JTG D40-2011: Specifications for design of highway cement concrete pavement

This specification has been established to adapt the requirements of traffic development and highway construction, improve design quality and technical level of cement concrete pavement, and guarantee the safety, reliability, economics and rationality of project.

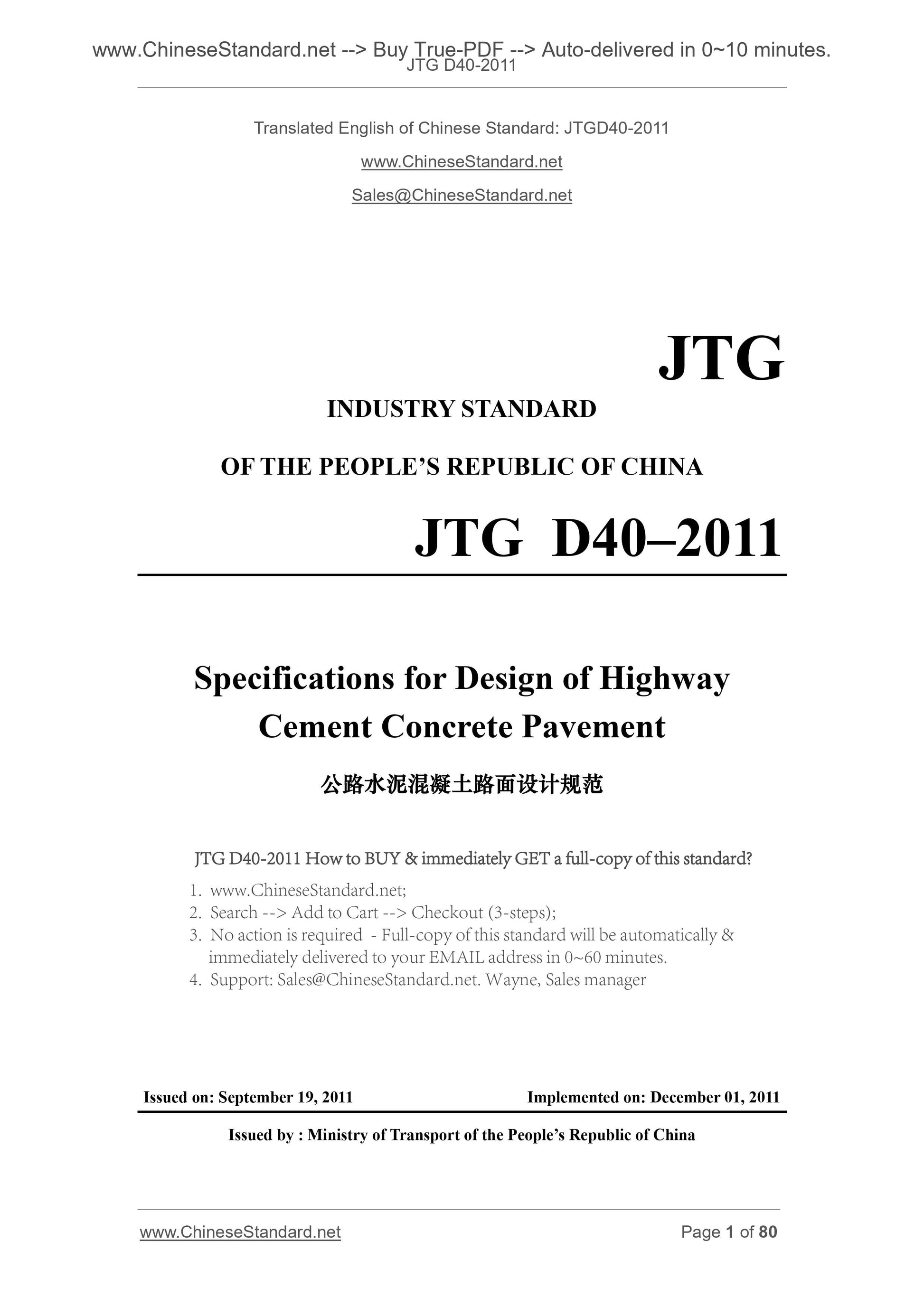

JTG D40-2011
INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
JTG D40?€?2011
Specifications for Design of Highway
Cement Concrete Pavement
ISSUED ON. SEPTEMBER 19, 2011
IMPLEMENTED ON. DECEMBER 01, 2011
Issued by . Ministry of Transport of the PEOPLE Republic of China
JTG
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

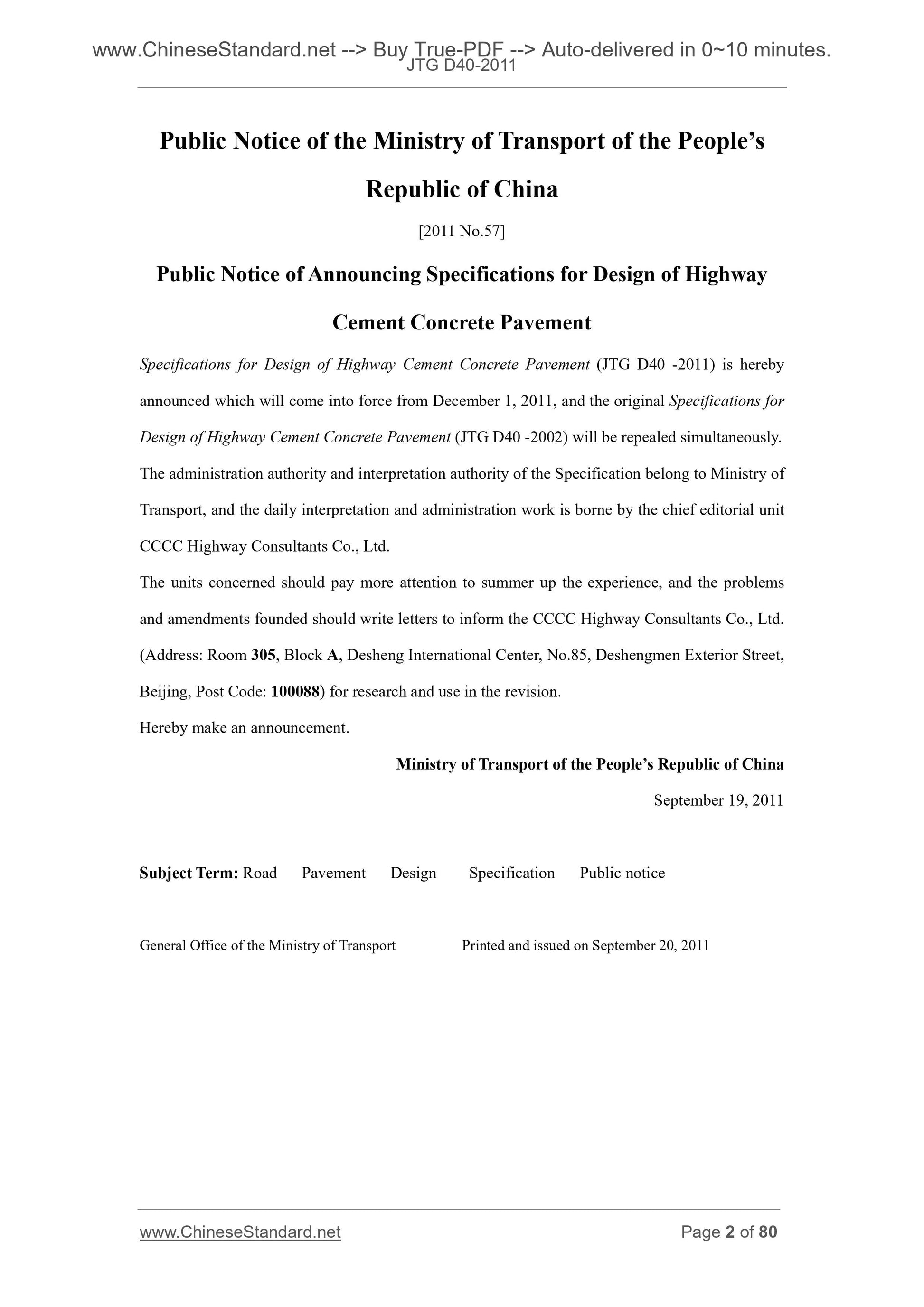

Public Notice of the Ministry of Transport of the PEOPLE
Republic of China
[2011 No.57]
Public Notice of Announcing Specifications for Design of Highway
Cement Concrete Pavement
Specifications for Design of Highway Cement Concrete Pavement (JTG D40 -2011) is hereby announced which will come into force from December 1, 2011, and the original Specifications for Design of Highway Cement Concrete Pavement (JTG D40 -2002) will be repealed simultaneously. The administration authority and interpretation authority of the Specification belong to Ministry of Transport, and the daily interpretation and administration work is borne by the chief editorial unit CCCC Highway Consultants Co., Ltd.
The units concerned should pay more attention to summer up the experience, and the problems and amendments founded should write letters to inform the CCCC Highway Consultants Co., Ltd. (Address. Room 305, Block A, Desheng International Center, No.85, Deshengmen Exterior Street, Beijing, Post Code. 100088) for research and use in the revision.
Hereby make an announcement.
Ministry of Transport of the PEOPLE Republic of China
September 19, 2011
Subject Term. Road Pavement Design Specification Public notice
General Office of the Ministry of Transport Printed and issued on September 20, 2011 Foreword

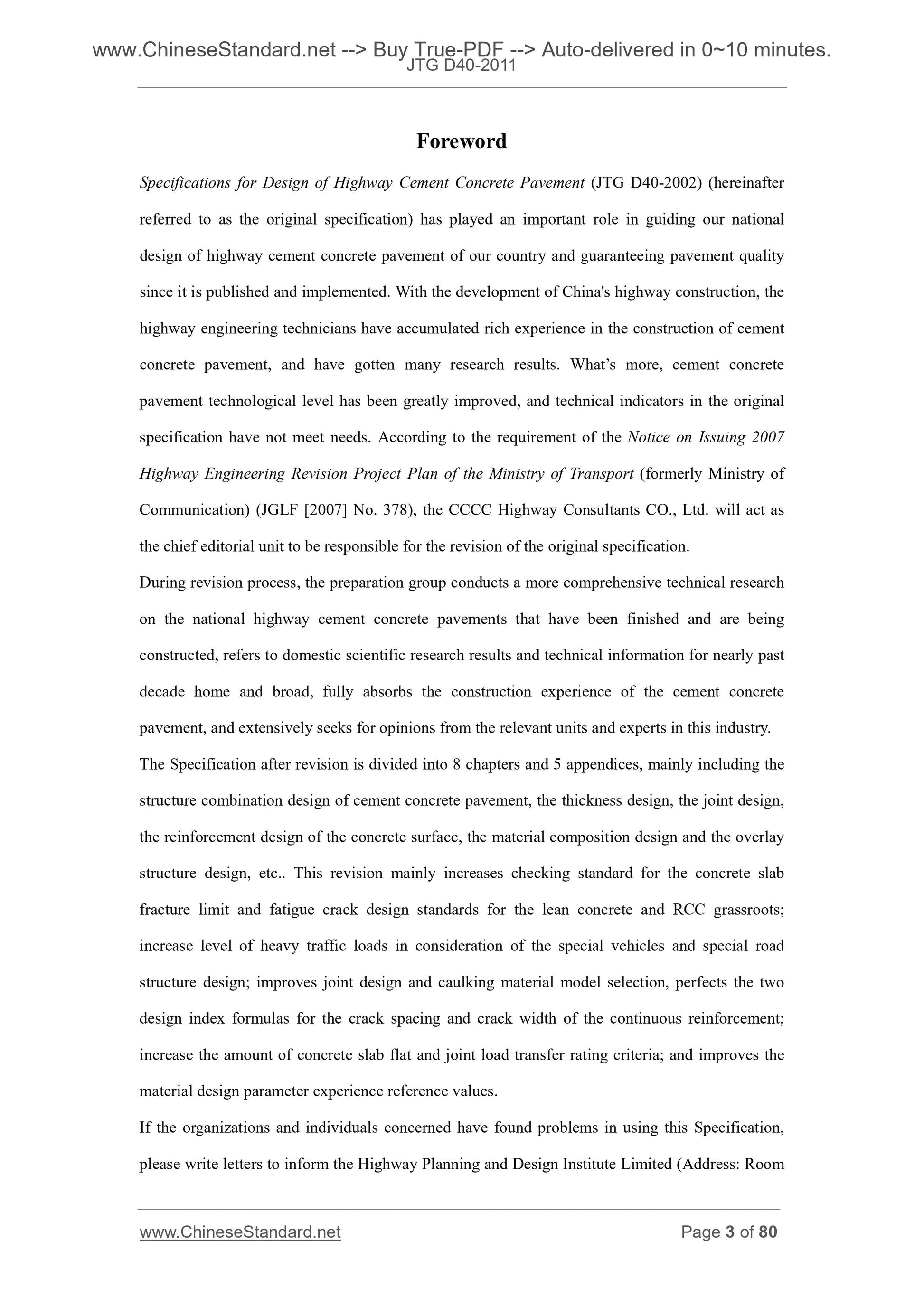

Specifications for Design of Highway Cement Concrete Pavement (JTG D40-2002) (hereinafter referred to as the original specification) has played an important role in guiding our national design of highway cement concrete pavement of our country and guaranteeing pavement quality since it is published and implemented. With the development of China's highway construction, the highway engineering technicians have accumulated rich experience in the construction of cement concrete pavement, and have gotten many research results. What?€?s more, cement concrete pavement technological level has been greatly improved, and technical indicators in the original specification have not meet needs. According to the requirement of the Notice on Issuing 2007 Highway Engineering Revision Project Plan of the Ministry of Transport (formerly Ministry of Communication) (JGLF [2007] No. 378), the CCCC Highway Consultants CO., Ltd. will act as the chief editorial unit to be responsible for the revision of the original specification. During revision process, the preparation group conducts a more comprehensive technical research on the national highway cement concrete pavements that have been finished and are being constructed, refers to domestic scientific research results and technical information for nearly past decade home and broad, fully absorbs the construction experience of the cement concrete pavement, and extensively seeks for opinions from the relevant units and experts in this industry. The Specification after revision is divided into 8 chapters and 5 appendices, mainly including the structure combination design of cement concrete pavement, the thickness design, the joint design, the reinforcement design of the concrete surface, the material composition design and the overlay structure design, etc.. This revision mainly increases checking standard for the concrete slab fracture limit and fatigue crack design standards for the lean concrete and RCC grassroots; increase level of heavy traffic loads in consideration of the special vehicles and special road structure design; improves joint design and caulking material model selection, perfects the two design index formulas for the crack spacing and crack width of the continuous reinforcement; increase the amount of concrete slab flat and joint load transfer rating criteria; and improves the material design parameter experience reference values.
If the organizations and individuals concerned have found problems in using this Specification, please write letters to inform the Highway Planning and Design Institute Limited (Address. Room Contents

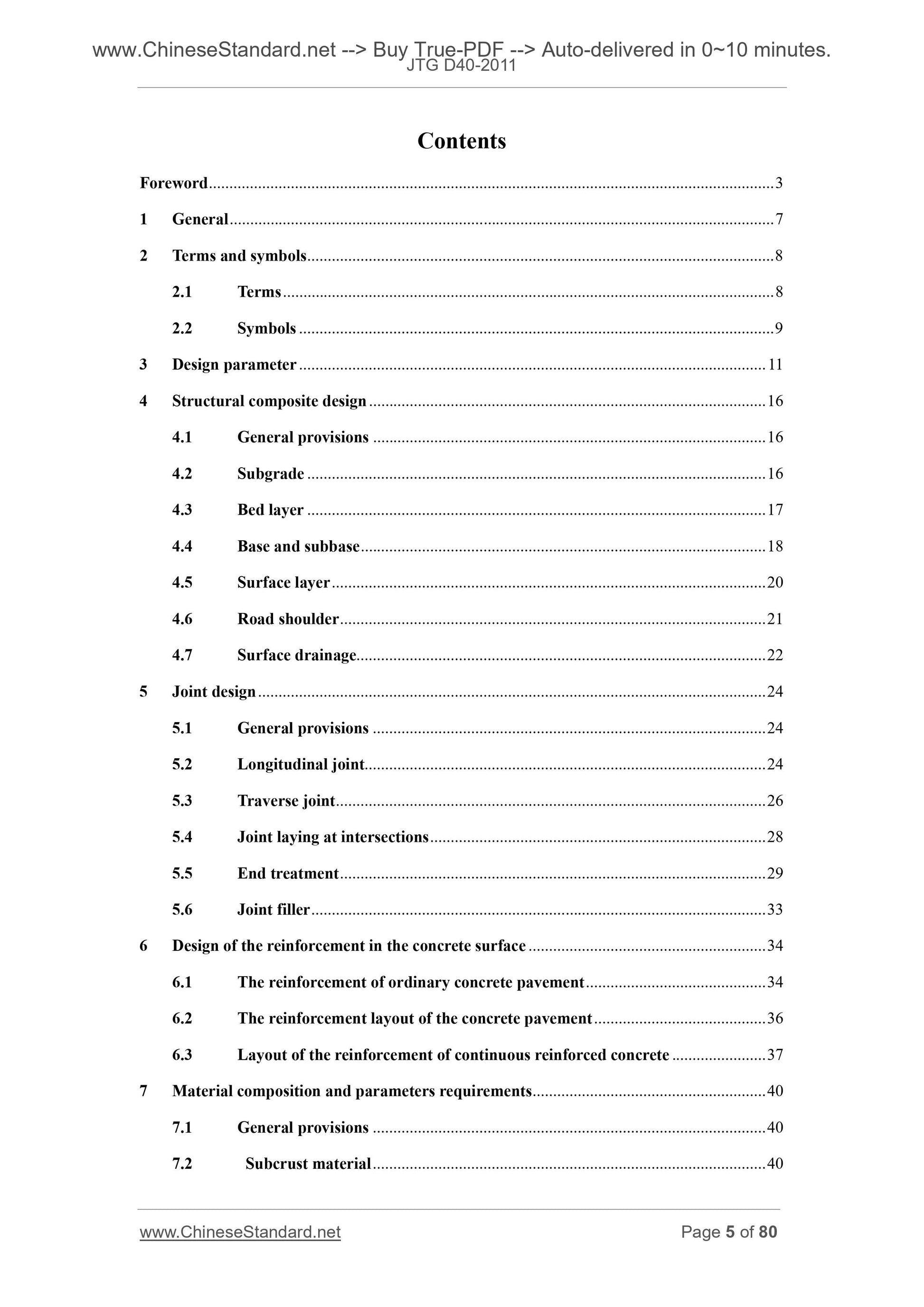

Foreword ... 3
