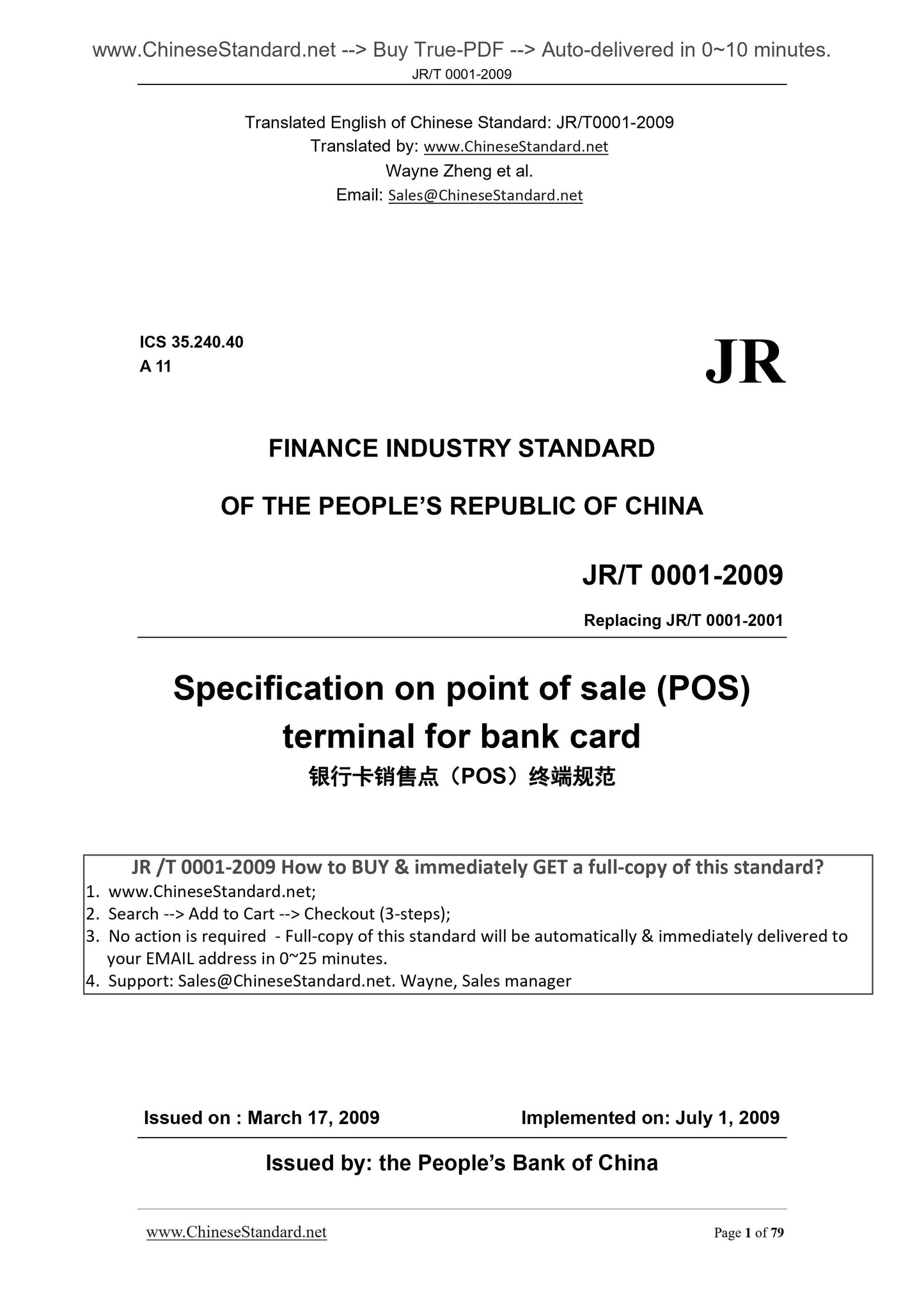

JR/T 0001-2009: Specification on point of sale(POS)terminal for bank card
FINANCE INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
Replacing JR/T 0001-2001
Specification on point of sale (POS)
terminal for bank card
ISSUED ON . MARCH 17, 2009
IMPLEMENTED ON. JULY 1, 2009
Issued by. the People’s Bank of China

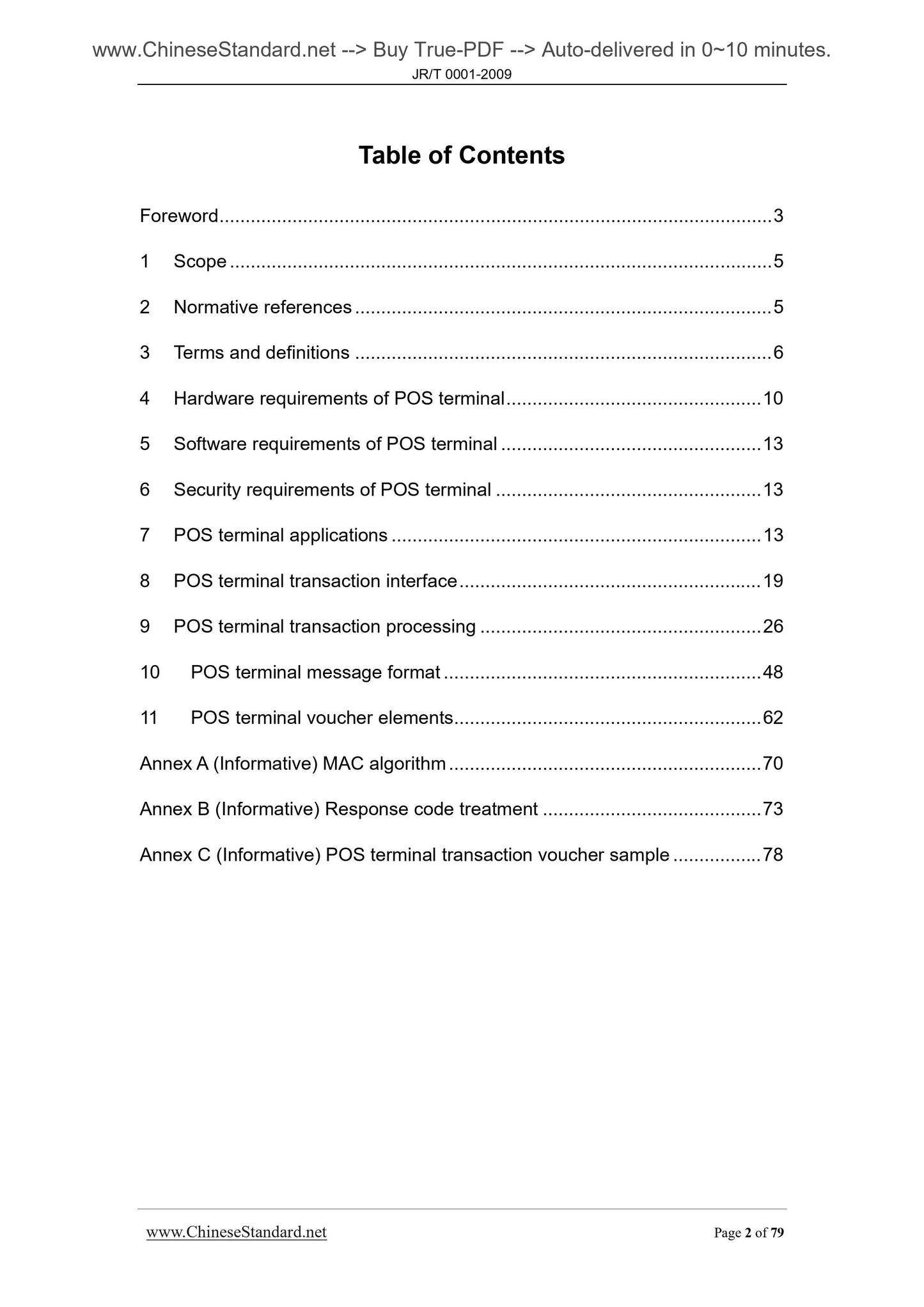

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Hardware requirements of POS terminal ... 10
5 Software requirements of POS terminal ... 13
6 Security requirements of POS terminal ... 13
7 POS terminal applications ... 13
8 POS terminal transaction interface ... 19
9 POS terminal transaction processing ... 26
10 POS terminal message format ... 48
11 POS terminal voucher elements ... 62
Annex A (Informative) MAC algorithm ... 70
Annex B (Informative) Response code treatment ... 73
Annex C (Informative) POS terminal transaction voucher sample ... 78

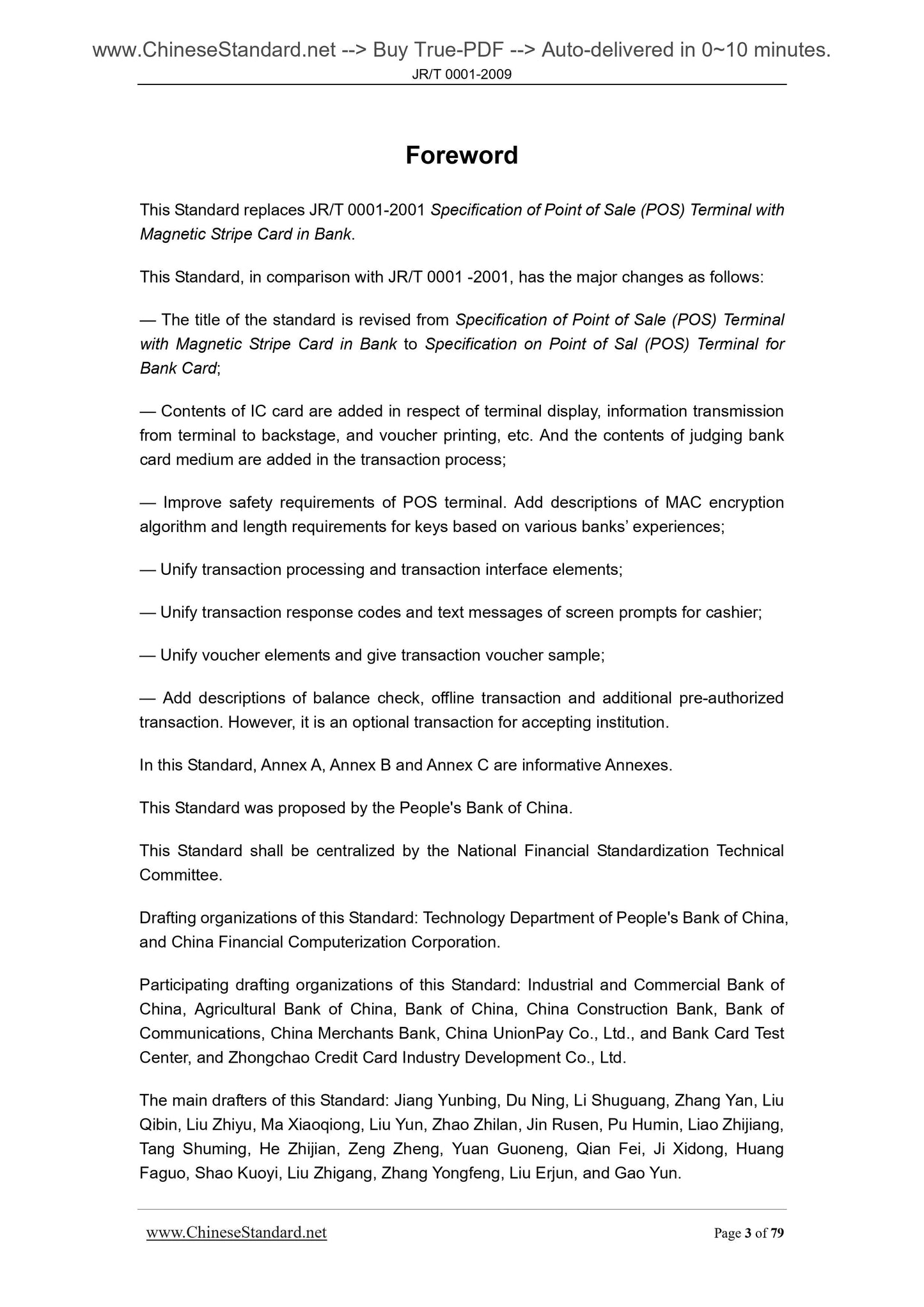

This Standard replaces JR/T 0001-2001 Specification of Point of Sale (POS) Terminal with Magnetic Stripe Card in Bank.
This Standard, in comparison with JR/T 0001 -2001, has the major changes as follows. — The title of the standard is revised from Specification of Point of Sale (POS) Terminal with Magnetic Stripe Card in Bank to Specification on Point of Sal (POS) Terminal for Bank Card;
— Contents of IC card are added in respect of terminal display, information transmission from terminal to backstage, and voucher printing, etc. And the contents of judging bank card medium are added in the transaction process;
— Improve safety requirements of POS terminal. Add descriptions of MAC encryption algorithm and length requirements for keys based on various banks’ experiences; — Unify transaction processing and transaction interface elements;
— Unify transaction response codes and text messages of screen prompts for cashier; — Unify voucher elements and give transaction voucher sample;
— Add descriptions of balance check, offline transaction and additional pre-authorized transaction. However, it is an optional transaction for accepting institution. In this Standard, Annex A, Annex B and Annex C are informative Annexes. This Standard was proposed by the People's Bank of China.
This Standard shall be centralized by the National Financial Standardization Technical Committee.
Drafting organizations of this Standard. Technology Department of People's Bank of China, and China Financial Computerization Corporation.
Participating drafting organizations of this Standard. Industrial and Commercial Bank of China, Agricultural Bank of China, Bank of China, China Construction Bank, Bank of Communications, China Merchants Bank, China UnionPay Co., Ltd., and Bank Card Test Center, and Zhongchao Credit Card Industry Development Co., Ltd.
The main drafters of this Standard. Jiang Yunbing, Du Ning, Li Shuguang, Zhang Yan, Liu Qibin, Liu Zhiyu, Ma Xiaoqiong, Liu Yun, Zhao Zhilan, Jin Rusen, Pu Humin, Liao Zhijiang, Tang Shuming, He Zhijian, Zeng Zheng, Yuan Guoneng, Qian Fei, Ji Xidong, Huang Faguo, Shao Kuoyi, Liu Zhigang, Zhang Yongfeng, Liu Erjun, and Gao Yun. This Standard was firstly issued in March, 2001 and this is the first revision. Specification on point of sale (POS) terminal
for bank card

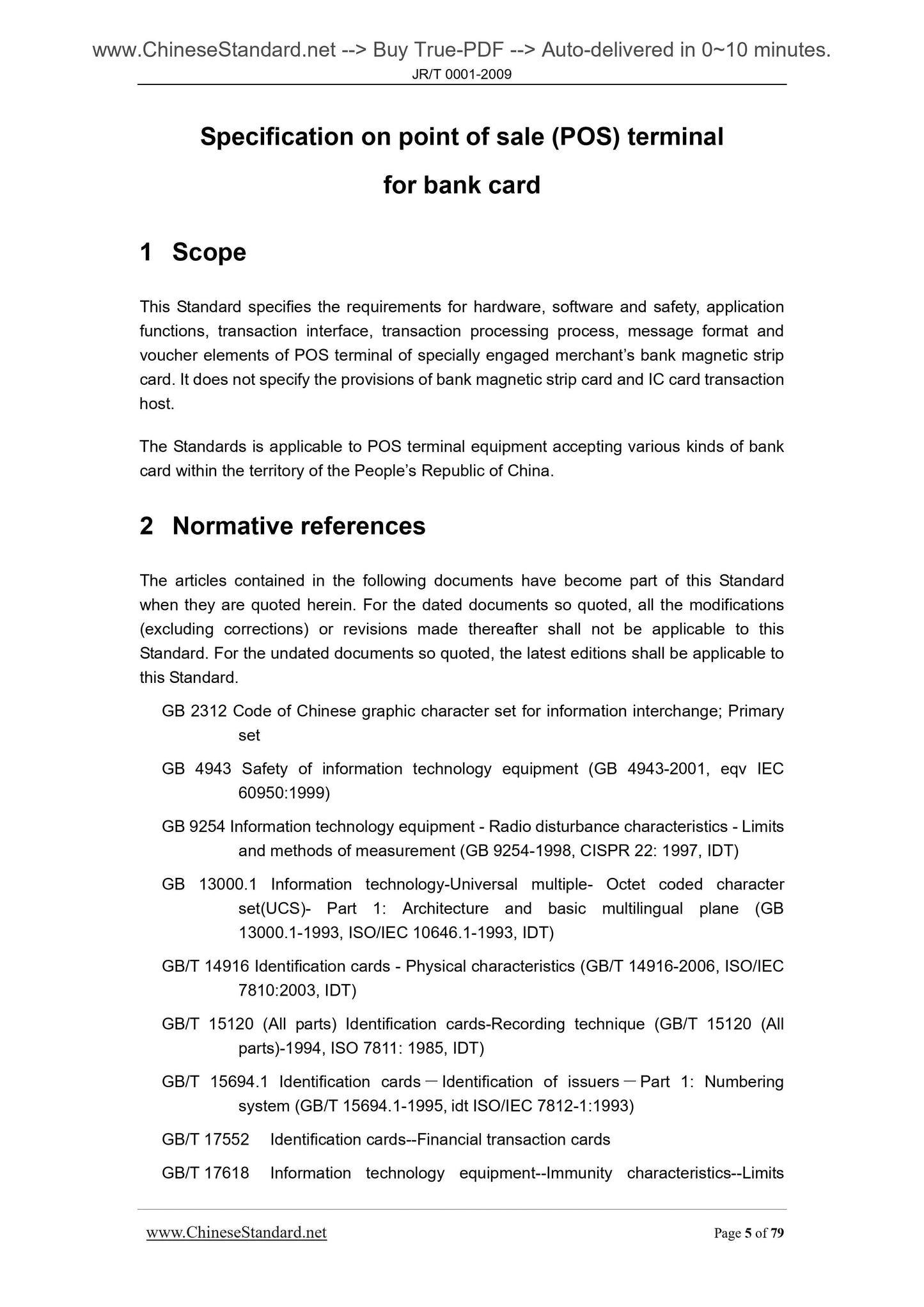

This Standard specifies the requirements for hardware, software and safety, application functions, transaction interface, transaction processing process, message format and voucher elements of POS terminal of specially engaged merchant’s bank magnetic strip card. It does not specify the provisions of bank magnetic strip card and IC card transaction host.
The Standards is applicable to POS terminal equipment accepting various kinds of bank card within the territory of the People’s Republic of China.
2 Normative references
The articles contained in the following documents have become part of this Standard when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard.
GB 2312 Code of Chinese graphic character set for information interchange; Primary set
GB 4943 Safety of information technology equipment (GB 4943-2001, eqv IEC 60950.1999)
GB 9254 Information technology equipment - Radio disturbance characteristics - Limits and methods of measurement (GB 9254-1998, CISPR 22. 1997, IDT)
GB 13000.1 Information technology-Universal multiple- Octet coded character set(UCS)- Part 1. Architecture and basic multilingual plane (GB
13000.1-1993, ISO/IEC 10646.1-1993, IDT)
GB/T 14916 Identification cards - Physical characteristics (GB/T 14916-2006, ISO/IEC 7810.2003, IDT)
GB/T 15120 (All parts) Identification cards-Recording technique (GB/T 15120 (All parts)-1994, ISO 7811. 1985, IDT)
GB/T 15694.1 Identification cards－ Identification of issuers－Part 1. Numbering system (GB/T 15694.1-1995, idt ISO/IEC 7812-1.1993)
GB/T 17552 Identification cards--Financial transaction cards
GB/T 17618 Information technology equipment--Immunity characteristics--Limits and methods of measurement (GB/T 17618-1998, idt CISPR 24.1997)
GB 18030 Information technology -- Chinese coded character set
GB/T 19584 Specification on magnetic stripe data content and application for bank card
GB/T 21078.1 Banking - Personal Identification Number management and security - Part 1. Basic principles and requirements for online PIN handling in ATM and POS systems (GB/T 21078.1-2007, ISO 9564-1.2002, MOD)
JR/T 0008 Bank identification number and card number for bank card
JR/T 0025 (All parts) China financial integrated circuit card specifications ISO 9564-3 Banking - Personal Identification Number (PIN) management and security - Part 1. Basic principles and requirements for online PIN handling in ATM and POS systems

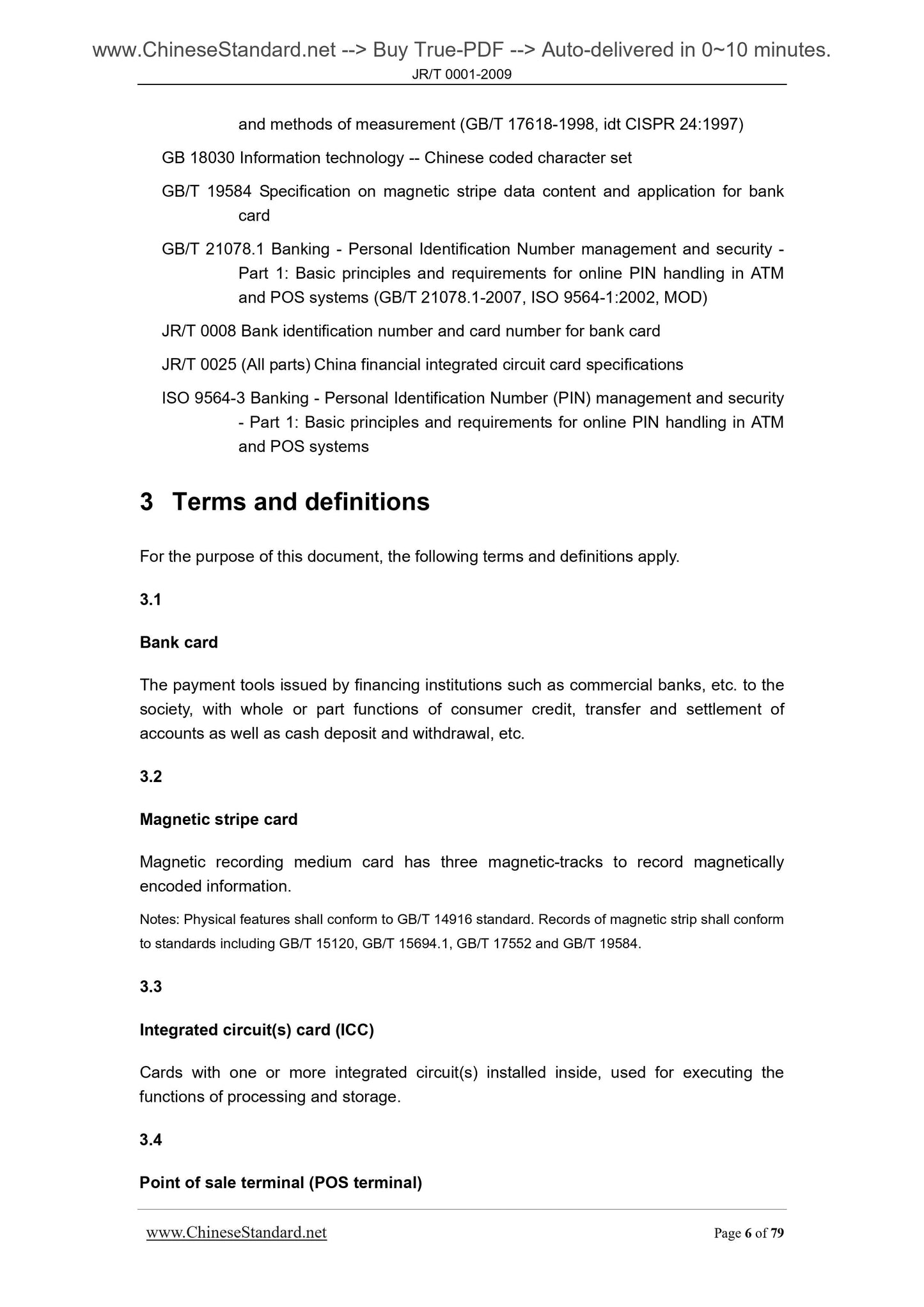

3 Terms and definitions
For the purpose of this document, the following terms and definitions apply. 3.1
The payment tools issued by financing institutions such as commercial banks, etc. to the society, with whole or part functions of consumer credit, transfer and settlement of accounts as well as cash deposit and withdrawal, etc.
Magnetic stripe card
Magnetic recording medium card has three magnetic-tracks to record magnetically encoded information.
Notes. Physical features shall conform to GB/T 14916 standard. Records of magnetic strip shall conform to standards including GB/T 15120, GB/T 15694.1, GB/T 17552 and GB/T 19584. 3.3
Integrated circuit(s) card (ICC)
Cards with one or more integrated circuit(s) installed inside, used for executing the functions of processing and storage.
Point of sale terminal (POS terminal)

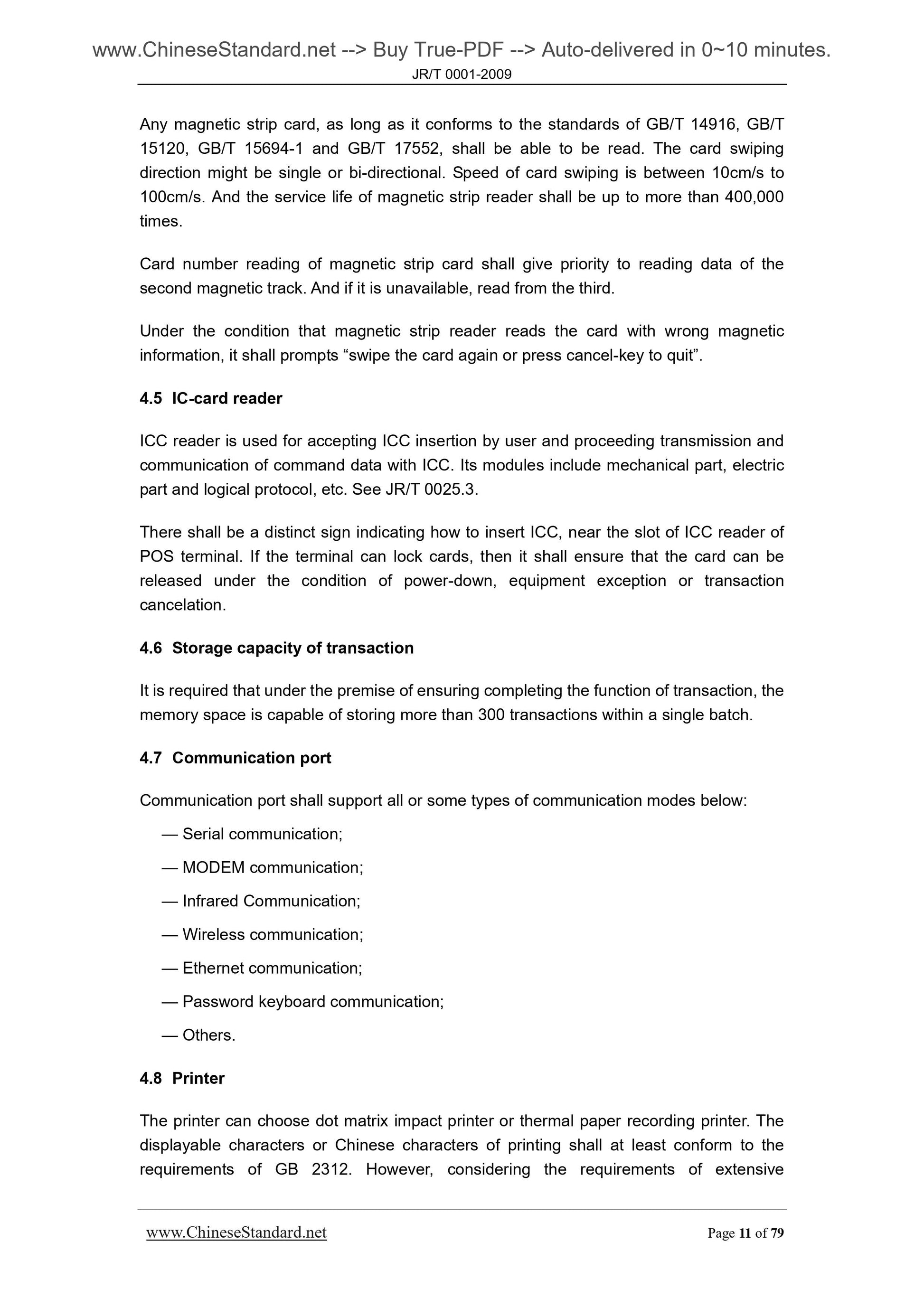

Any magnetic strip card, as long as it conforms to the standards of GB/T 14916, GB/T 15120, GB/T 15694-1 and GB/T 17552, shall be able to be read. The card swiping direction might be single or bi-directional. Speed of card swiping is between 10cm/s to 100cm/s. And the service life of magnetic strip reader shall be up to more than 400,000 times.
Card number reading of magnetic strip card shall give priority to reading data of the second magnetic track. And if it is unavailable, read from the third.
Under the condition that magnetic strip reader reads the card with wrong magnetic information, it shall prompts “swipe the card again or press cancel-key to quit”. 4.5 IC-card reader
ICC reader is used for accepting ICC insertion by user and proceeding transmission and communication of command data with ICC. Its modules include mechanical part, electric part and logical protocol, etc. See JR/T 0025.3.
There shall be a distinct sign indicating how to insert ICC, near the slot of ICC reader of POS terminal. If the terminal can lock cards, then it shall ensure that the card can be released under the condition of power-down, equipment exception or transaction cancelation.
4.6 Storage capacity of transaction
It is required that under the premise of ensuring completing the function of transaction, the memory space is capable of storing more than 300 transactions within a single batch. 4.7 Communication port
Communication port shall support all or some types of communication modes below. — Serial communication;
— MODEM communication;
— Infrared Communication;
— Wireless communication;
— Ethernet communication;
— Password keyboard communication;

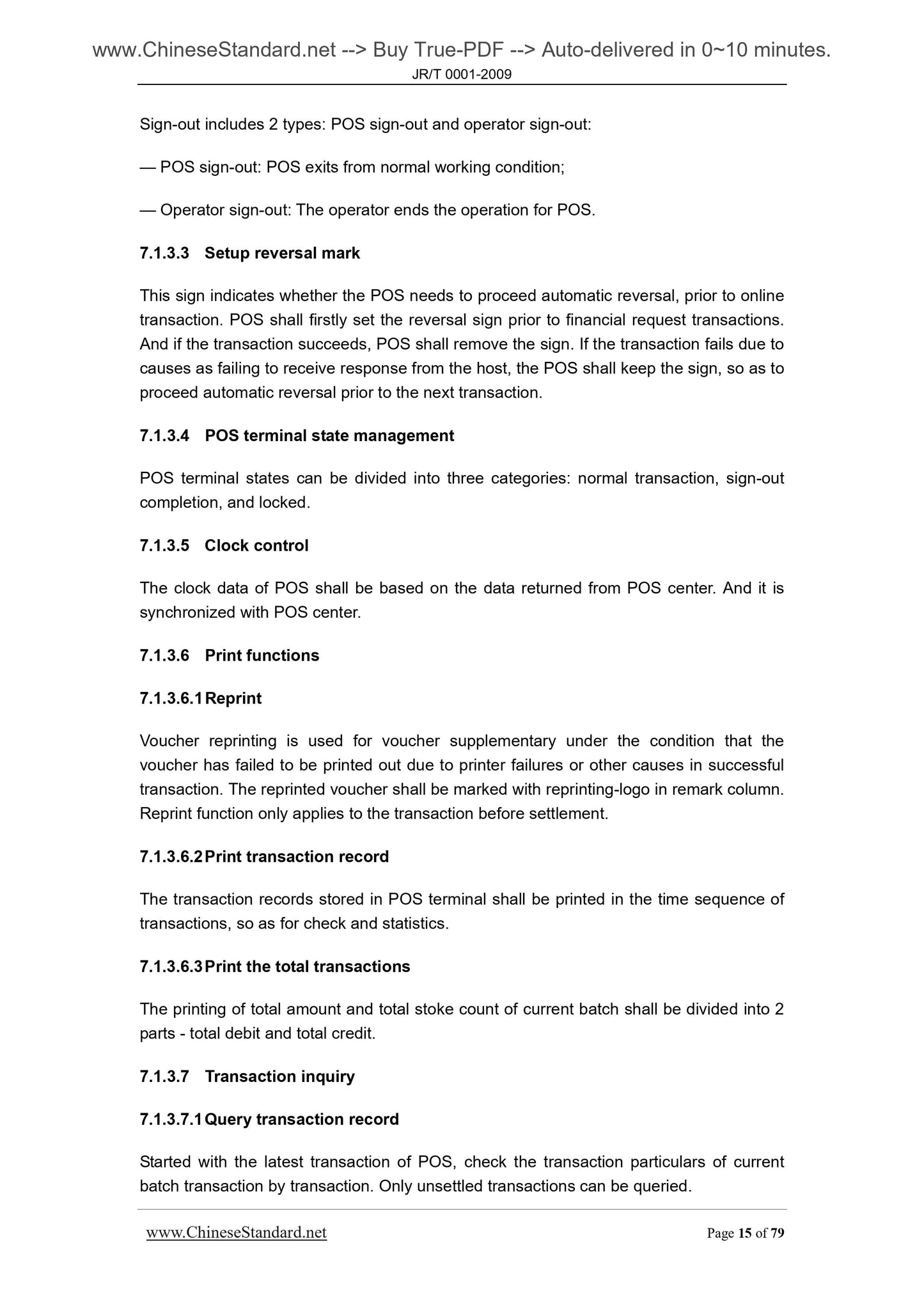

The printer can choose dot matrix impact printer or thermal paper recording printer. The displayable characters or Chinese characters of printing shall at least conform to the requirements of GB 2312. However, considering the requirements of extensive Sign-out includes 2 types. POS sign-out and operator sign-out.
— POS sign-out. POS exits from normal working condition;
— Operator sig...
