JJG 975-2002: Verification regulation of chemical oxygen demand (COD) meters

This Regulation is applicable to the first-time verification, follow-up verification, and inservice inspection of the chemical oxygen demand meters; while the calibration of online chemical oxygen demand meters can refer to this Regulation for implementation.

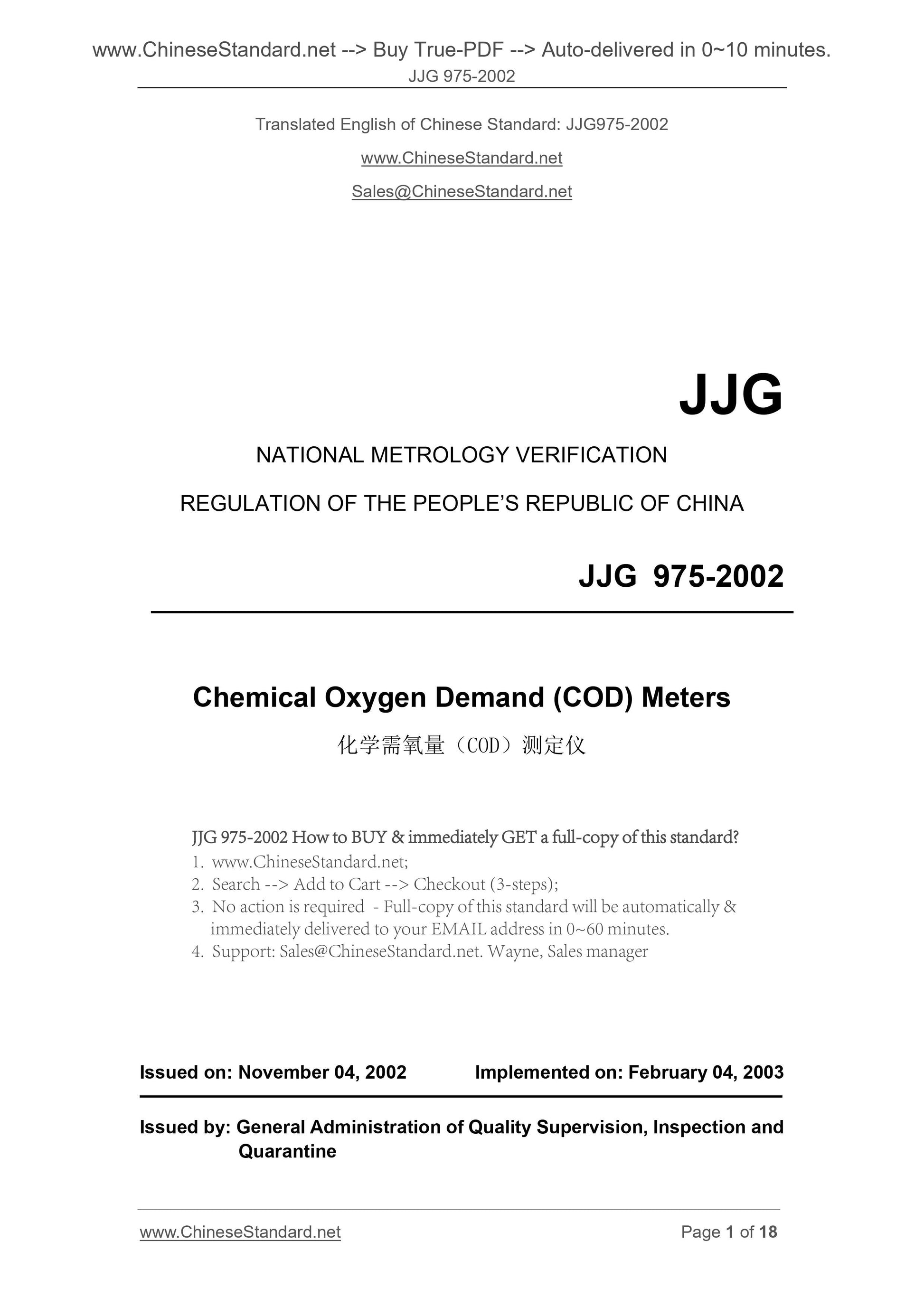

JJG 975-2002
JJG
NATIONAL METROLOGY VERIFICATION
REGULATION OF THE PEOPLE REPUBLIC OF CHINA
Chemical Oxygen Demand (COD) Meters
ISSUED ON. NOVEMBER 04, 2002
IMPLEMENTED ON. FEBRUARY 04, 2003
Issued by. General Administration of Quality Supervision, Inspection and Quarantine
3. No action is required - Full-copy of this standard will be automatically and immediately delivered to your EMAIL address in 0~60 minutes.

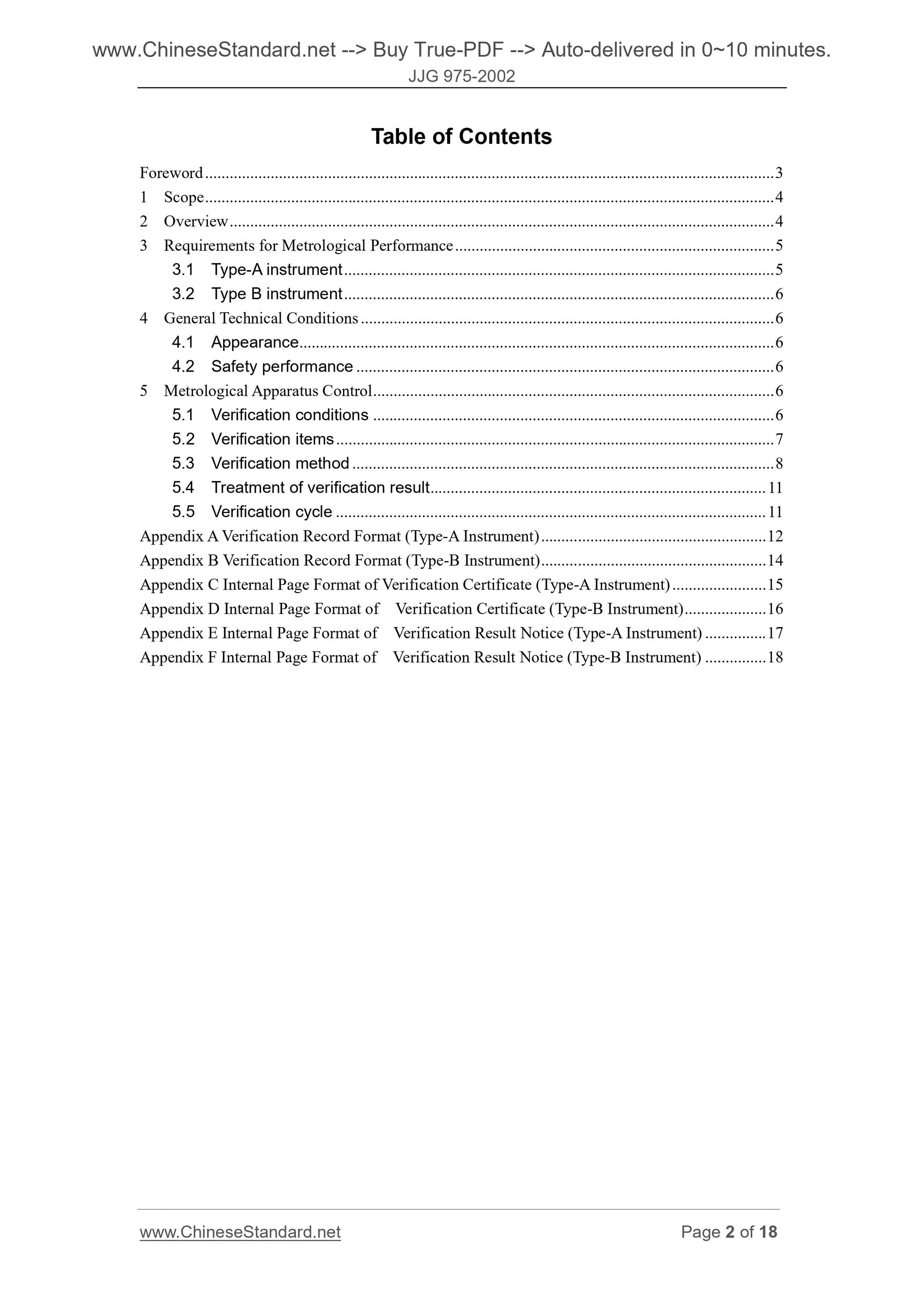

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Overview ... 4
3 Requirements for Metrological Performance ... 5
3.1 Type-A instrument ... 5

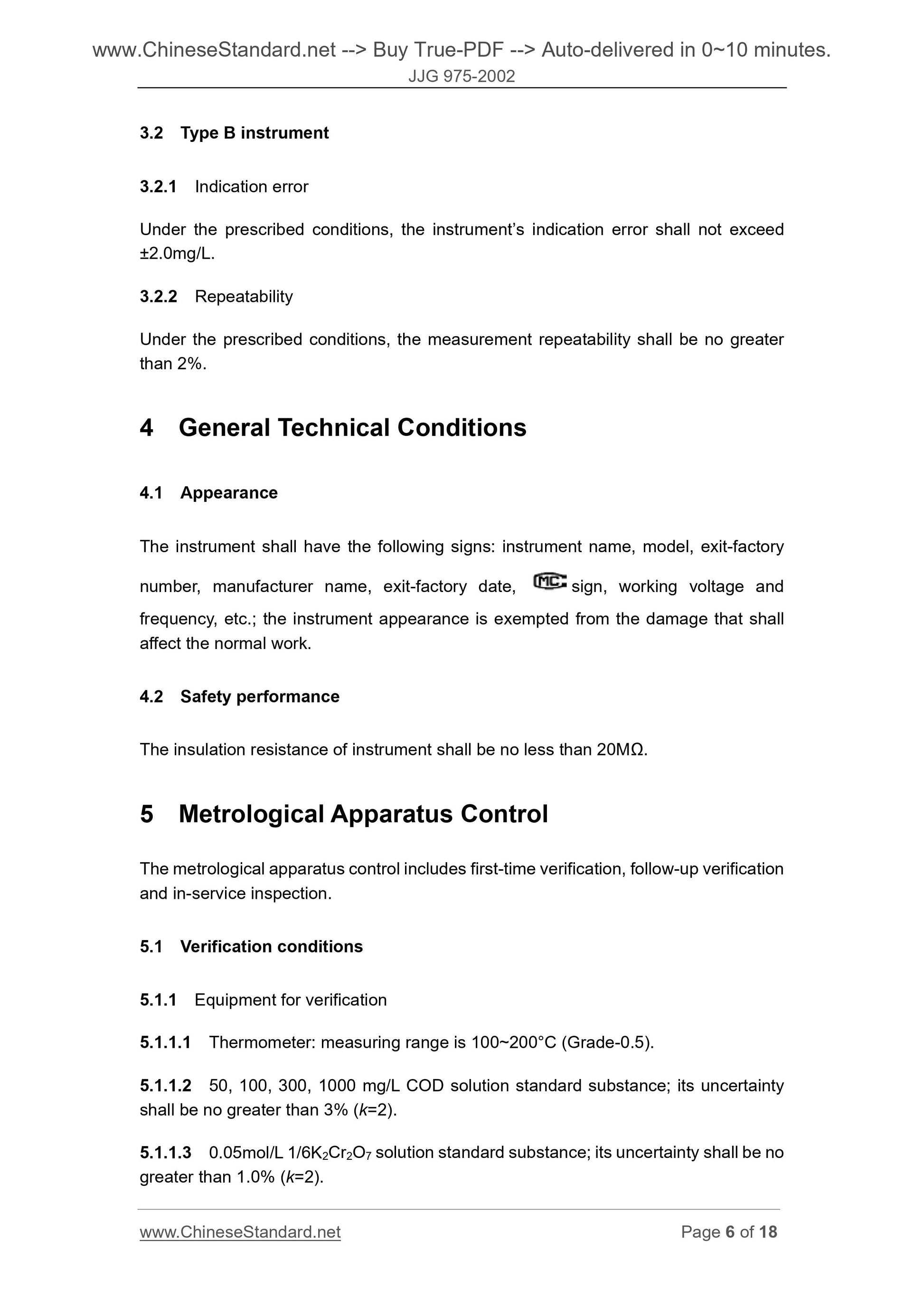

3.2 Type B instrument ... 6
4 General Technical Conditions ... 6
4.1 Appearance... 6
4.2 Safety performance ... 6
5 Metrological Apparatus Control ... 6
5.1 Verification conditions ... 6
5.2 Verification items ... 7

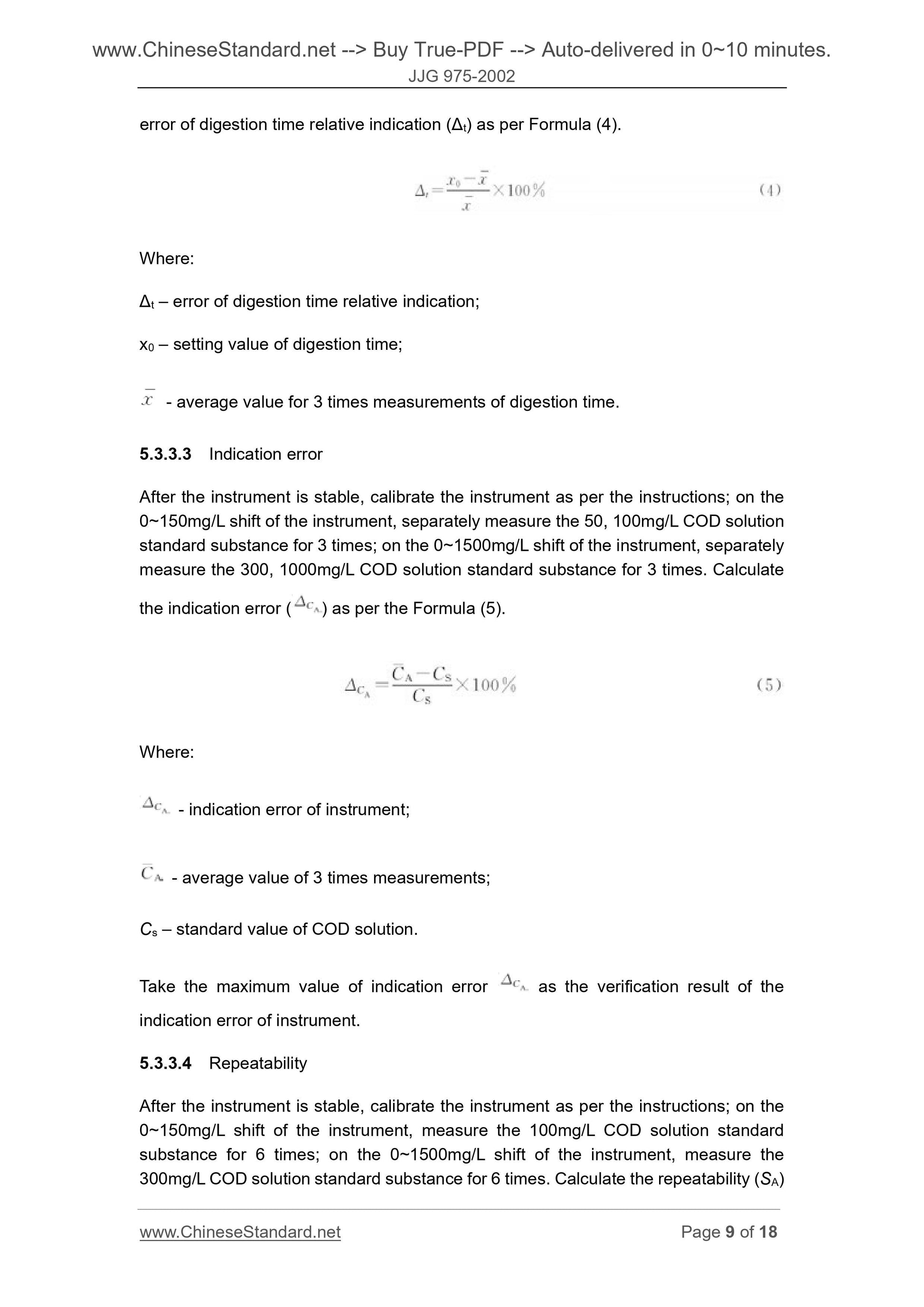

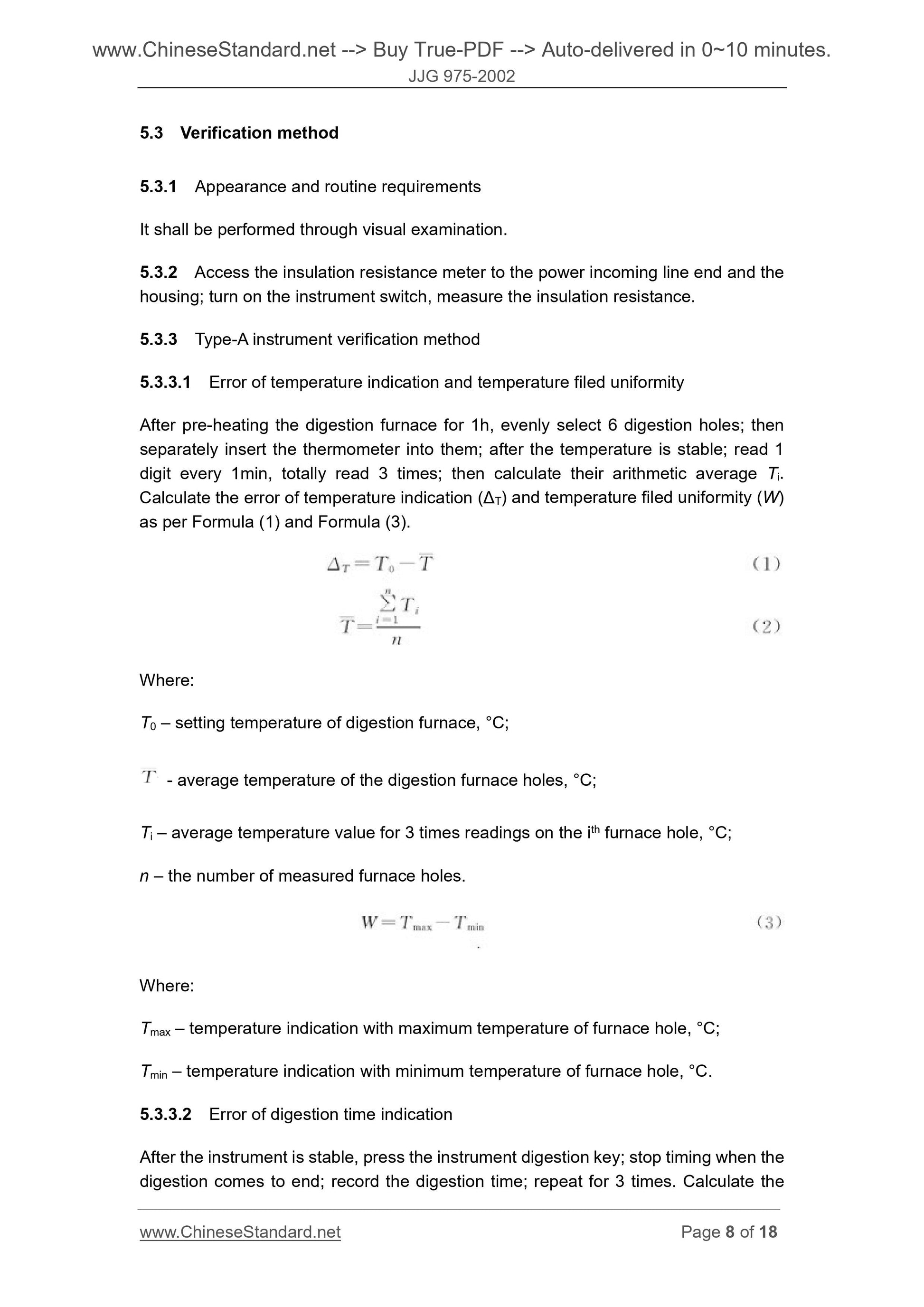

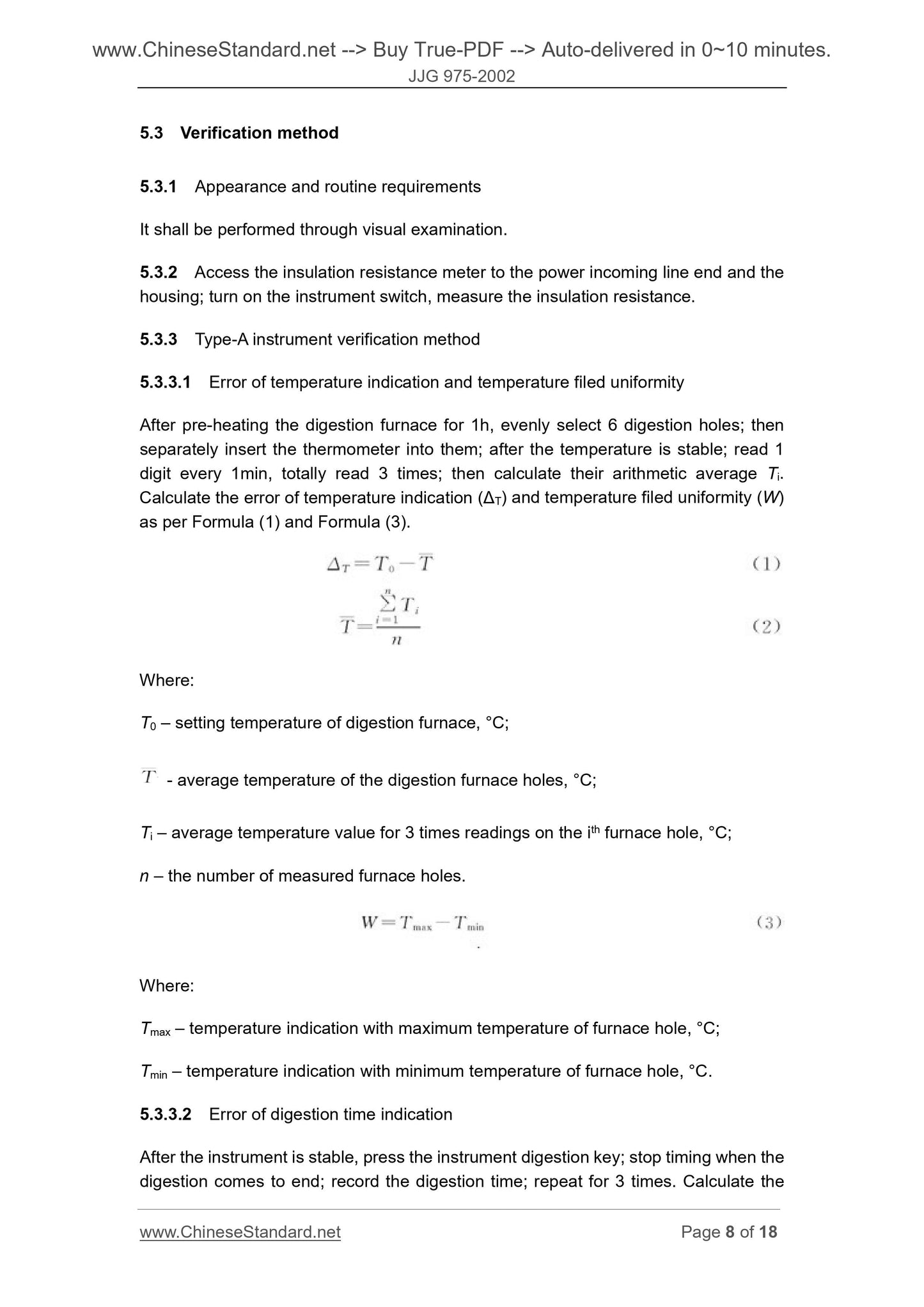

5.3 Verification method ... 8

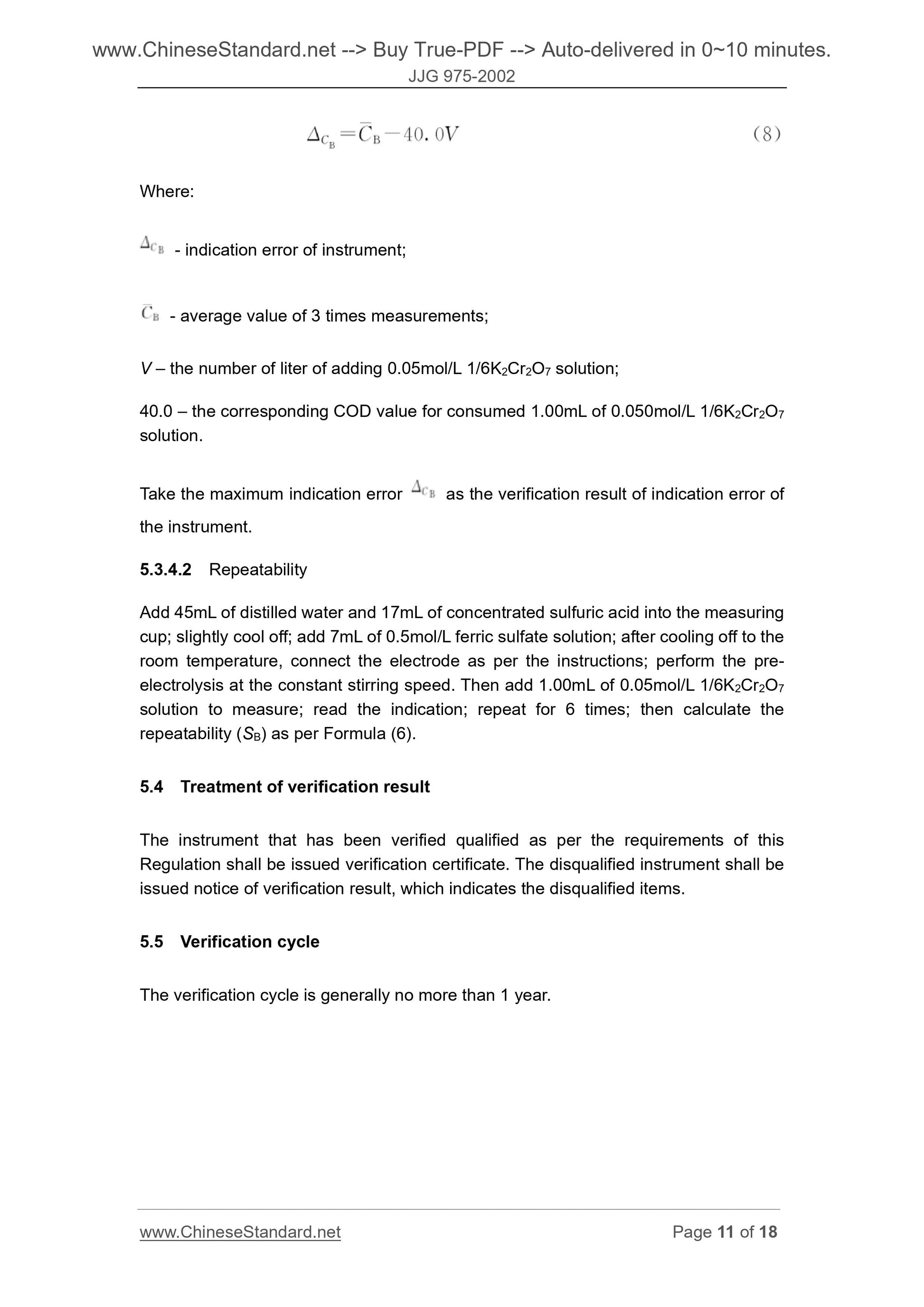

5.4 Treatment of verification result ... 11
5.5 Verification cycle ... 11
Appendix A Verification Record Format (Type-A Instrument) ... 12
Appendix B Verification Record Format (Type-B Instrument) ... 14
Appendix C Internal Page Format of Verification Certificate (Type-A Instrument) ... 15 Appendix D Internal Page Format of Verification Certificate (Type-B Instrument) ... 16 Appendix E Internal Page Format of Verification Result Notice (Type-A Instrument) ... 17 Appendix F Internal Page Format of Verification Result Notice (Type-B Instrument) ... 18 Verification Regulation of
Chemical Oxygen Demand (COD) Meters

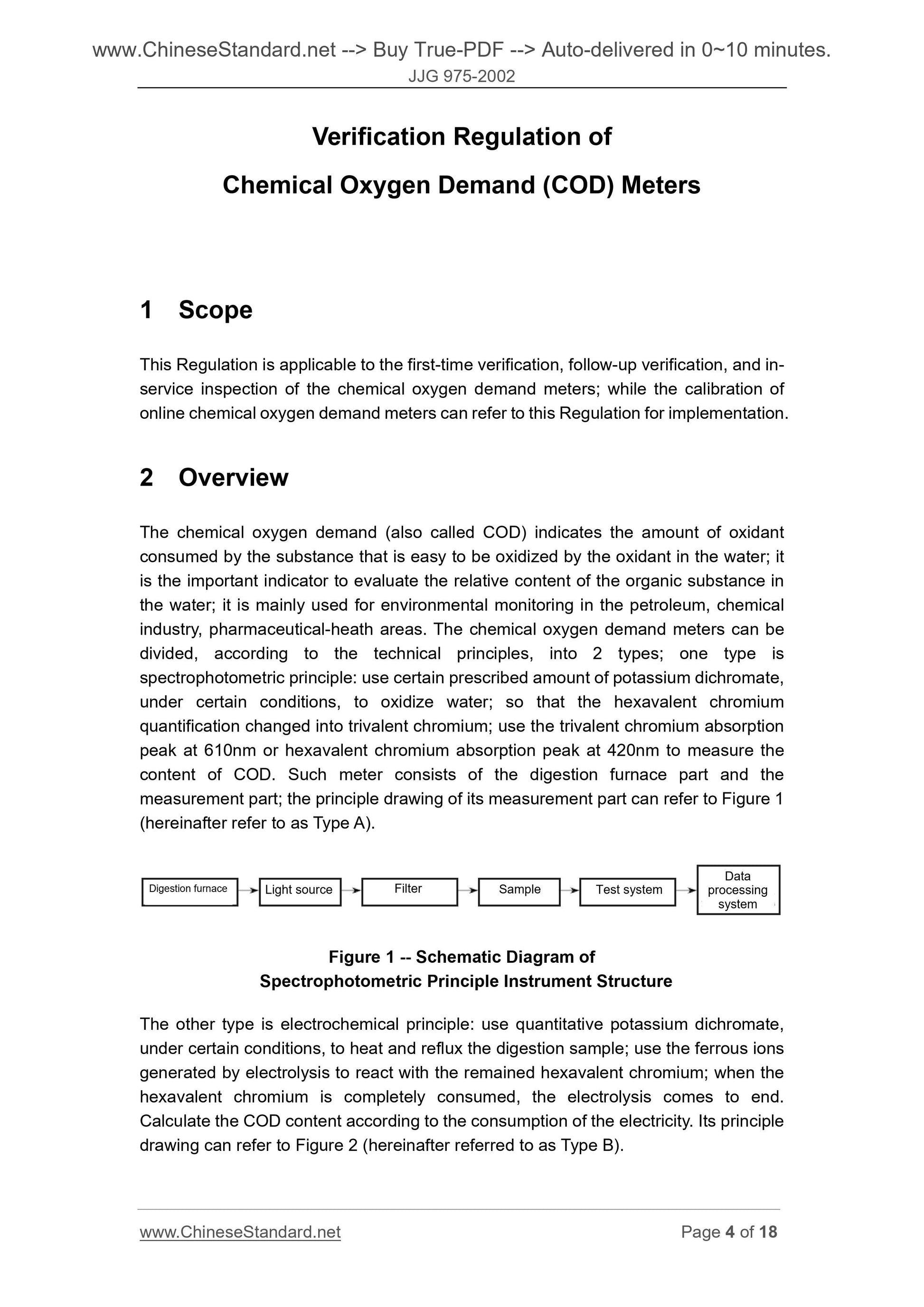

1 Scope
