JJG 376-2007 English PDF (JJG376-2007)

JJG 376-2007 English PDF (JJG376-2007)

Regular price $145.00 USD
Regular price Sale price $145.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here JJG 376-2007 to get it for Purchase Approval, Bank TT...

JJG 376-2007: Verification Regulation of Electrolytic Conductivity Meters

This regulation applies to the first-time verification, subsequent verification, and in-use inspection of electrolytic conductivity meters. Calibration of resistivity meter, salinity meter based on the electrical conductivity measurement principle, and TDS measurement instrument can reference to this regulation.

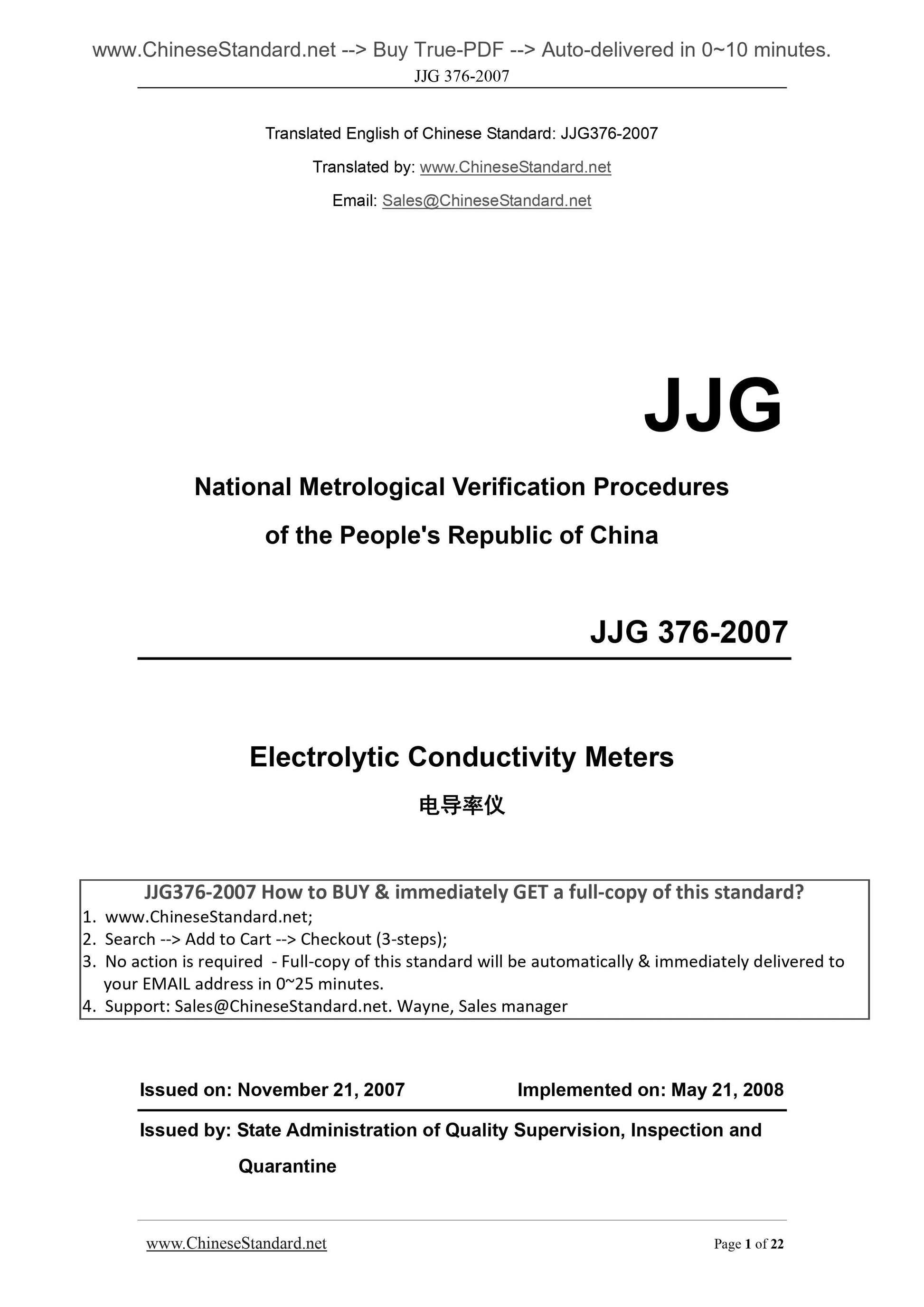

JJG 376-2007
JJG
National Metrological Verification Procedures
of the People's Republic of China
Electrolytic Conductivity Meters
ISSUED ON. NOVEMBER 21, 2007
IMPLEMENTED ON. MAY 21, 2008
Issued by. State Administration of Quality Supervision, Inspection and
Quarantine

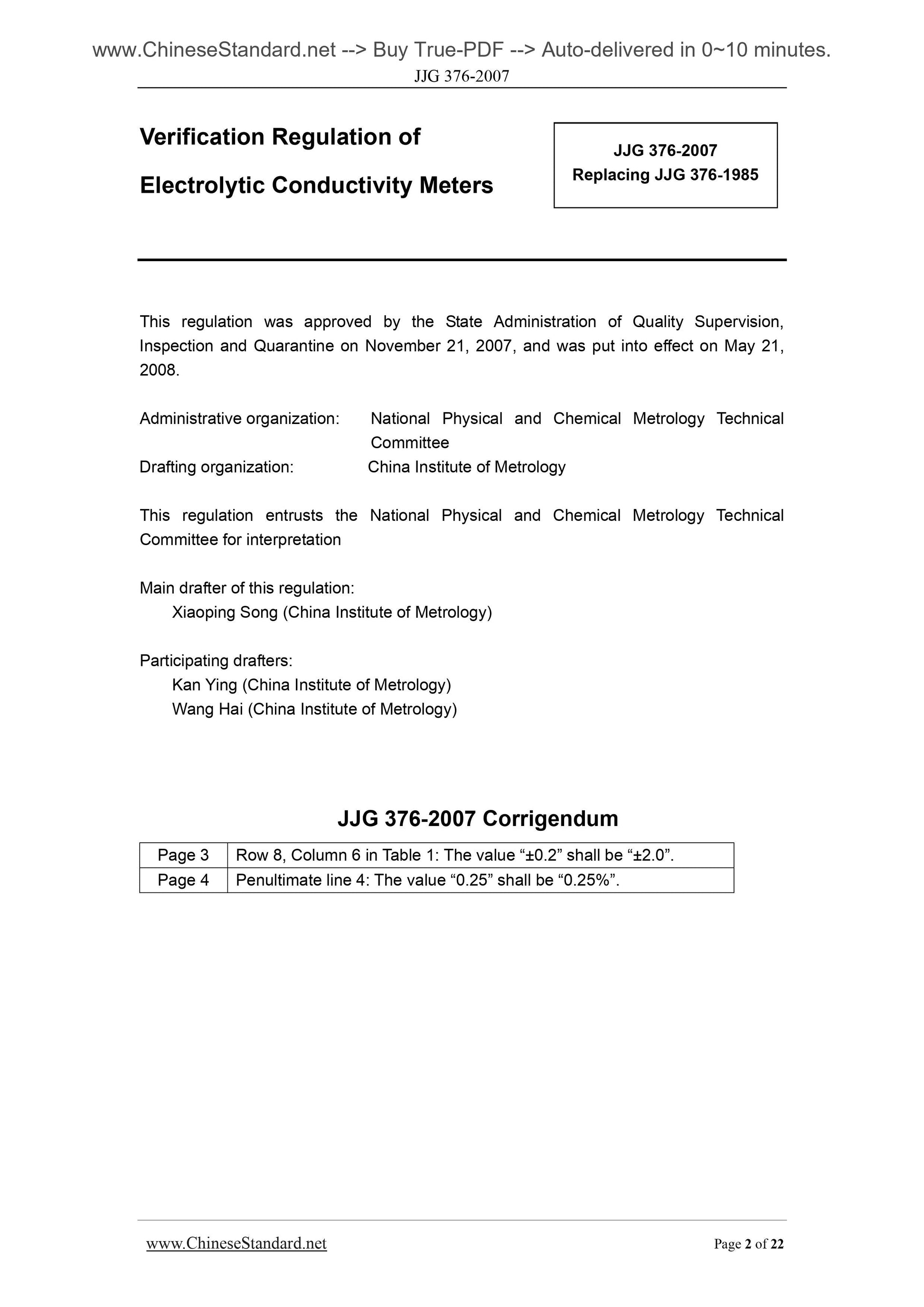

Verification Regulation of
Electrolytic Conductivity Meters
This regulation was approved by the State Administration of Quality Supervision, Inspection and Quarantine on November 21, 2007, and was put into effect on May 21, 2008.
Administrative organization. National Physical and Chemical Metrology Technical Committee
Drafting organization. China Institute of Metrology
This regulation entrusts the National Physical and Chemical Metrology Technical Committee for interpretation
Main drafter of this regulation.
Xiaoping Song (China Institute of Metrology)
Participating drafters.
Kan Ying (China Institute of Metrology)
Wang Hai (China Institute of Metrology)
JJG 376-2007 Corrigendum
Page 3 Row 8, Column 6 in Table 1. The value ?€???0.2?€? shall be ?€???2.0?€?.
Page 4 Penultimate line 4. The value ?€?0.25?€? shall be ?€?0.25%?€?.
Replacing JJG 376-1985

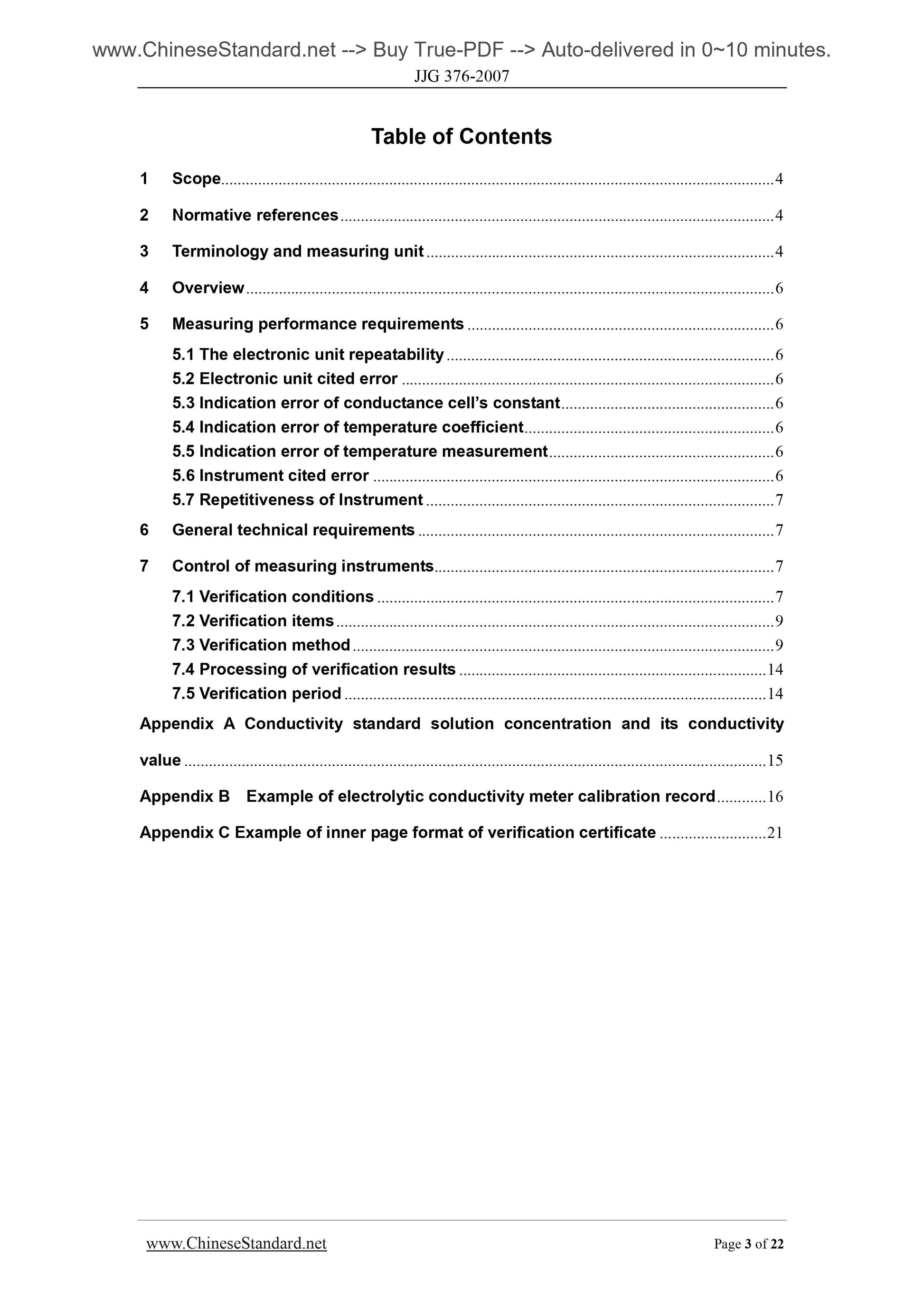

Table of Contents
1 Scope ... 4
2 Normative references ... 4
3 Terminology and measuring unit ... 4
4 Overview ... 6
5 Measuring performance requirements ... 6
5.1 The electronic unit repeatability ... 6
5.2 Electronic unit cited error ... 6
5.3 Indication error of conductance cell?€?s constant ... 6
5.4 Indication error of temperature coefficient ... 6
5.5 Indication error of temperature measurement ... 6
5.6 Instrument cited error ... 6
5.7 Repetitiveness of Instrument ... 7
6 General technical requirements ... 7
7 Control of measuring instruments... 7
7.1 Verification conditions ... 7
7.2 Verification items ... 9
7.3 Verification method ... 9
7.4 Processing of verification results ... 14
7.5 Verification period ... 14
Appendix A Conductivity standard solution concentration and its conductivity value ... 15
Appendix B Example of electrolytic conductivity meter calibration record ... 16 Appendix C Example of inner page format of verification certificate ... 21 Verification Regulation of Electrolytic Conductivity Meters

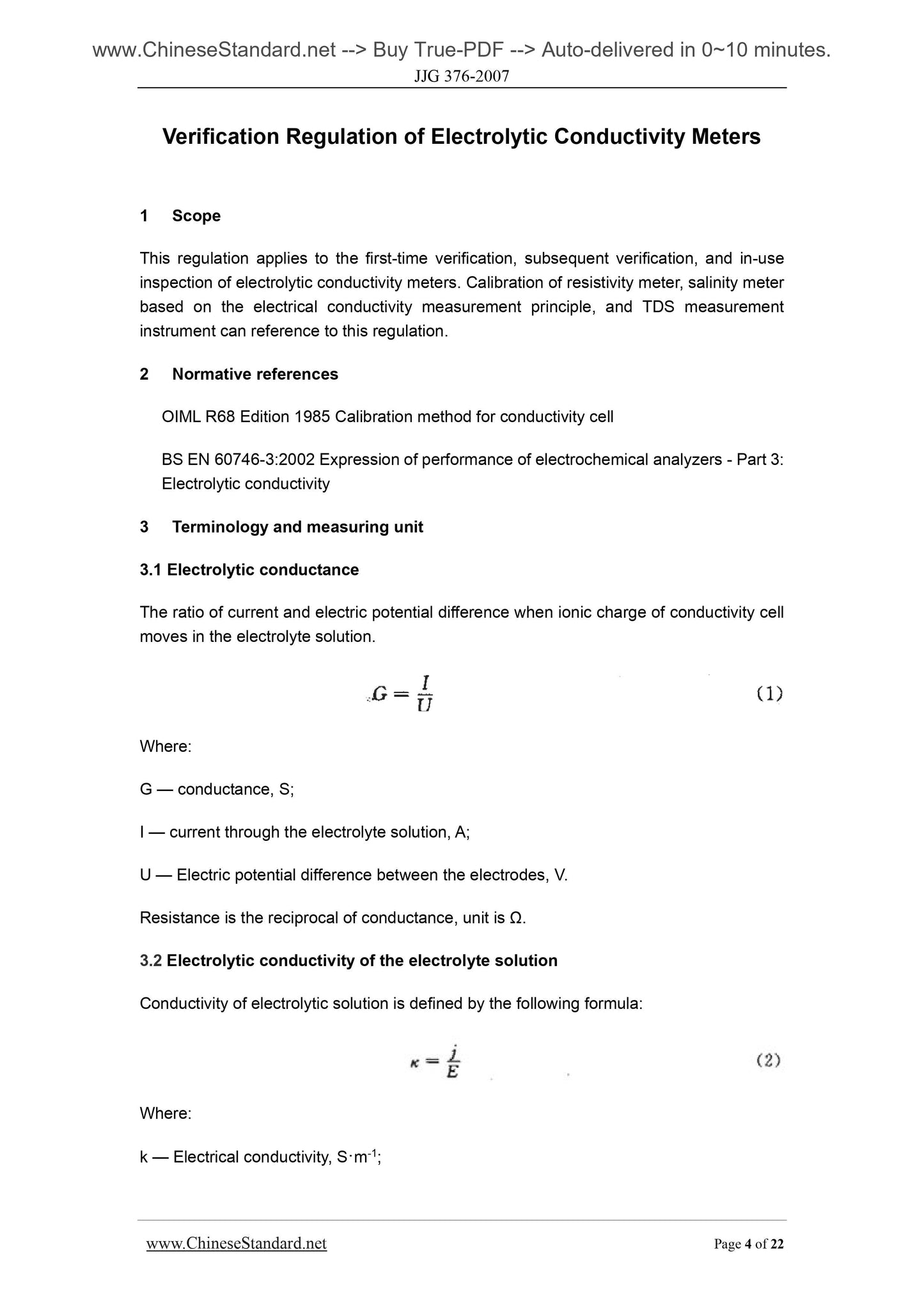

1 Scope
This regulation applies to the first-time verification, subsequent verification, and in-use inspection of electrolytic conductivity meters. Calibration of resistivity meter, salinity meter based on the electrical conductivity measurement principle, and TDS measurement instrument can reference to this regulation.
2 Normative references
OIML R68 Edition 1985 Calibration method for conductivity cell
BS EN 60746-3.2002 Expression of performance of electrochemical analyzers - Part 3. Electrolytic conductivity
3 Terminology and measuring unit
3.1 Electrolytic conductance
The ratio of current and electric potential difference when ionic charge of conductivity cell moves in the electrolyte solution.
Where.
G ?€? conductance, S;
I ?€? current through the electrolyte solution, A;
U ?€? Electric potential difference between the electrodes, V.
Resistance is the reciprocal of conductance, unit is ??.
3.2 Electrolytic conductivity of the electrolyte solution
Conductivity of electrolytic solution is defined by the following formula. Where.
k ?€? Electrical conductivity, S??m-1;

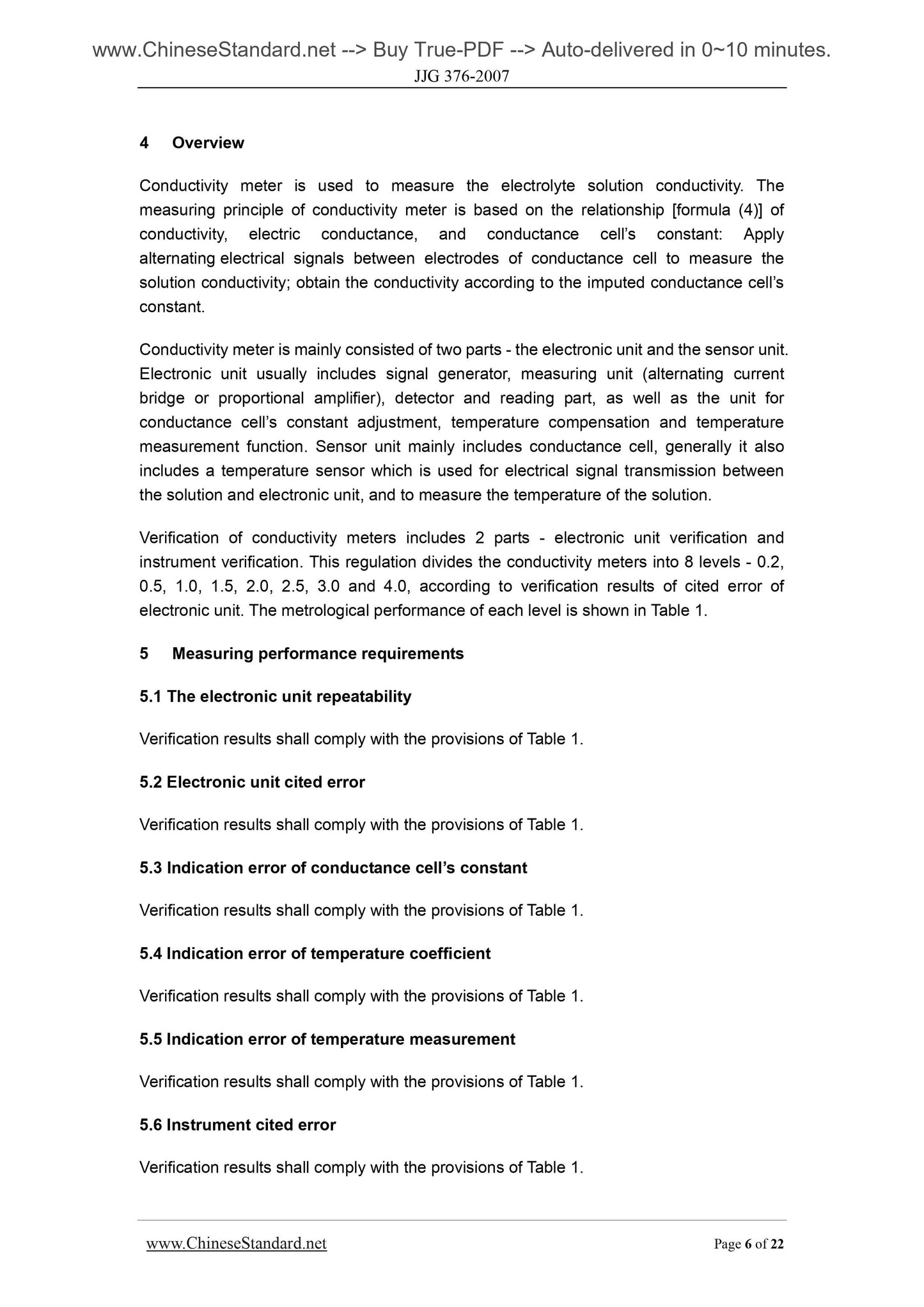

4 Overview
Conductivity meter is used to measure the electrolyte solution conductivity. The measuring principle of conductivity meter is based on the relationship [formula (4)] of conductivity, electric conductance, and conductance cell?€?s constant. Apply alternating electrical signals between electrodes of conductance cell to measure the solution conductivity; obtain the conductivity according to the imputed conductance cell?€?s constant.
Conductivity meter is mainly consisted of two parts - the electronic unit and the sensor unit. Electronic unit usually includes signal generator, measuring unit (alternating current bridge or proportional amplifier), detector and reading part, as well as the unit for conductance cell?€?s constant adjustment, temperature compensation and temperature measurement function. Sensor unit mainly includes conductance cell, generally it also includes a temperature sensor which is used for electrical signal transmission between the solution and electronic unit, and to measure the temperature of the solution. Verification of conductivity meters includes 2 parts - electronic unit verification and instrument verification. This regulation divides the conductivity meters into 8 levels - 0.2, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0 and 4.0, according to verification results of cited error of electronic unit. The metrological performance of each level is shown in Table 1. 5 Measuring performance requirements
5.1 The electronic unit repeatability
Verification results shall comply with the provisions of Table 1.
5.2 Electronic unit cited error
Verification results shall comply with the provisions of Table 1.
5.3 Indication error of conductance cell?€?s constant
Verification results shall comply with the provisions of Table 1.
5.4 Indication error of temperature coefficient
Verification results shall comply with the provisions of Table 1.
5.5 Indication error of temperature measurement
Verification results shall comply with the provisions of Table 1.
5.6 Instrument cited error
Verification results shall comply with the provisions of Table 1.

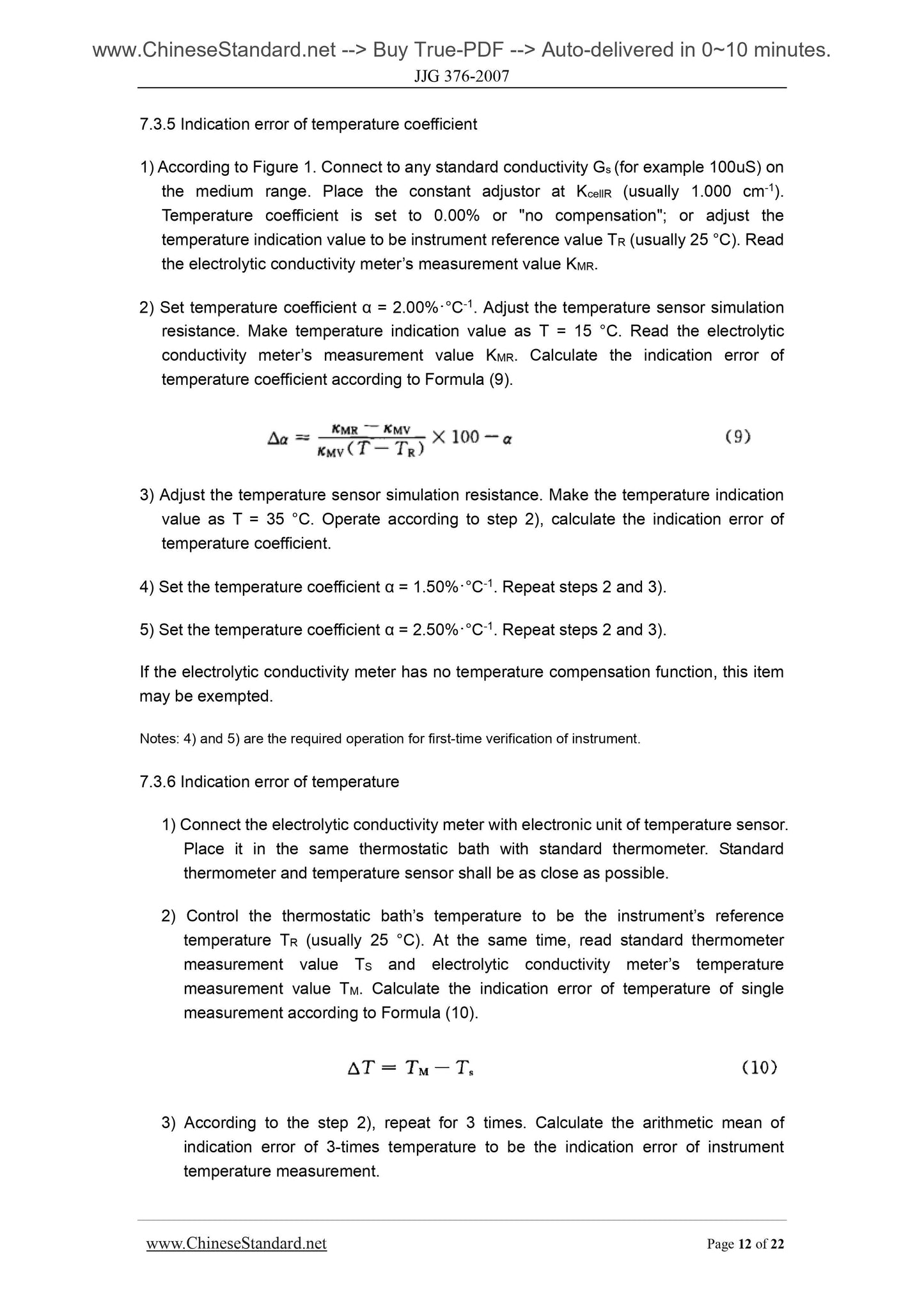

7.3.5 Indication error of temperature coefficient
1) According to Figure 1. Connect to any standard conductivity Gs (for example 100uS) on the medium range. Place the constant adjustor at KcellR (usually 1.000 cm-1). Temperature coefficient is set to 0.00% or "no compensation"; or adjust the temperature indication value to be instrument reference value TR (usually 25 ??C). Read the electrolytic conductivity meter?€?s measurement value KMR.
2) Set temperature coefficient ?? = 2.00%????C-1. Adjust the temperature sensor simulation resistance. Make temperature indication value as T = 15 ??C. Read the electrolytic conductivity meter?€?s measurement value KMR. Calculate the indication error of temperature coefficient according to Formula (9).
3) Adjust the temperature sensor simulation resistance. Make the temperature indication value as T = 35 ??C. Operate according to step 2), calculate the indication error of temperature coefficient.
4) Set the temperature coefficient ?? = 1.50%????C-1. Repeat steps 2 and 3). 5) Set the temperature coefficient ?? = 2.50%????C-1. Repeat steps 2 and 3). If the electrolytic conductivity meter has no temperature compensation function, this item may be exempted.
Notes. 4) and 5) are the required operation for first-time verification of instrument. 7.3.6 Indication error of temperature
1) Connect the electrolytic conductivity meter with electronic unit of temperature sensor. Place it in the same thermostatic bath with standard thermometer. Standard thermometer and temperature sensor shall be as close as possible.
2) Control the thermostatic bath?€?s temperature to be the instrument?€?s reference temperature TR (usually 25 ??C). At the same time, read standard thermometer measurement value TS and electrolytic conductivity meter?€?s temperature
measurement value TM. Calculate the indication error of temperature of single measurement according to Formula (10).
3) According to the step 2), repeat for 3 times. Calculate the arithmetic mean of indication error of 3-times temperature to be the indication error of instrument temperature measurement.

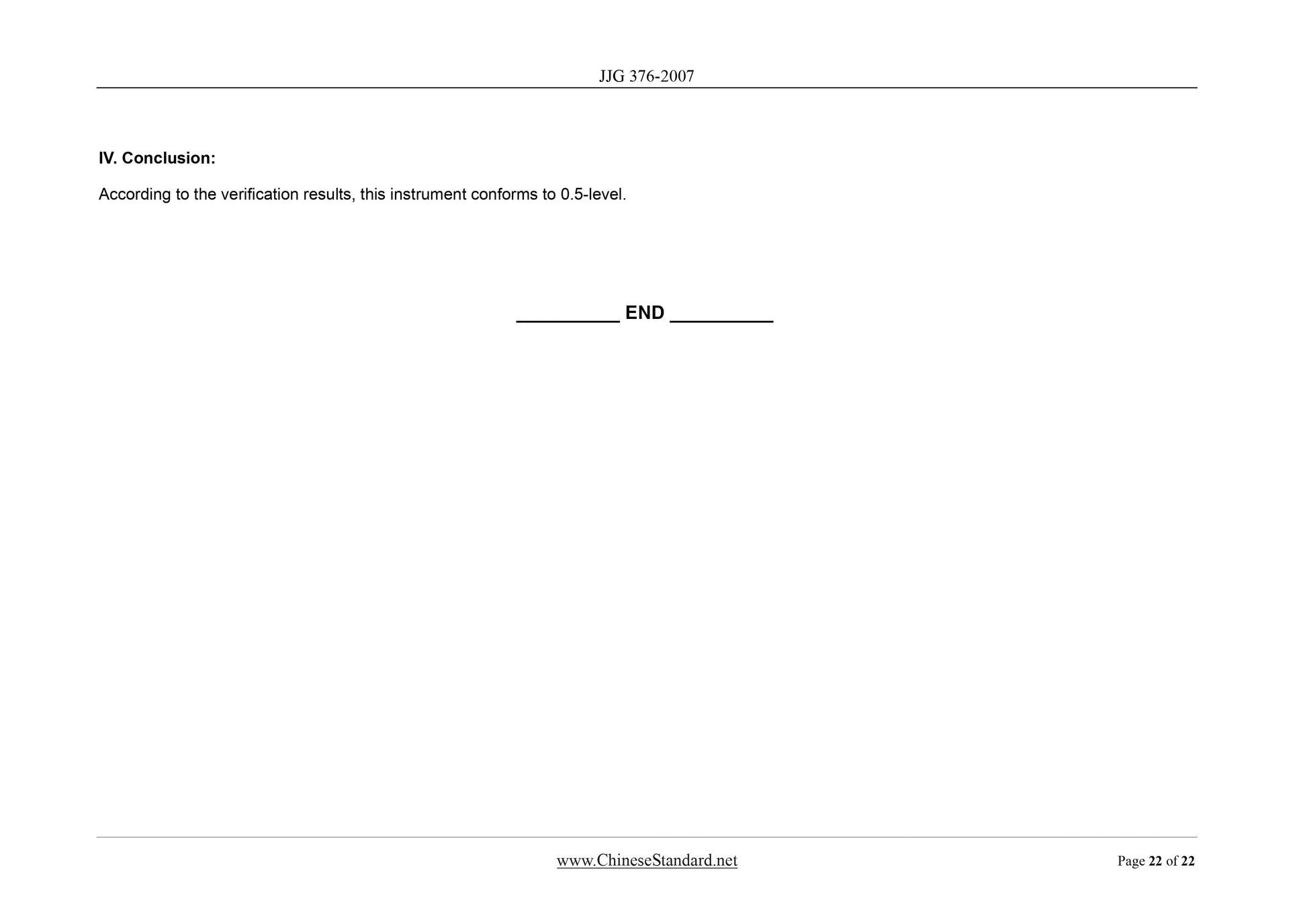

IV. Conclusion.
According to the verification results, this instrument conforms to 0.5-level.
