JGJ 59-2011: Standard for construction safety inspection

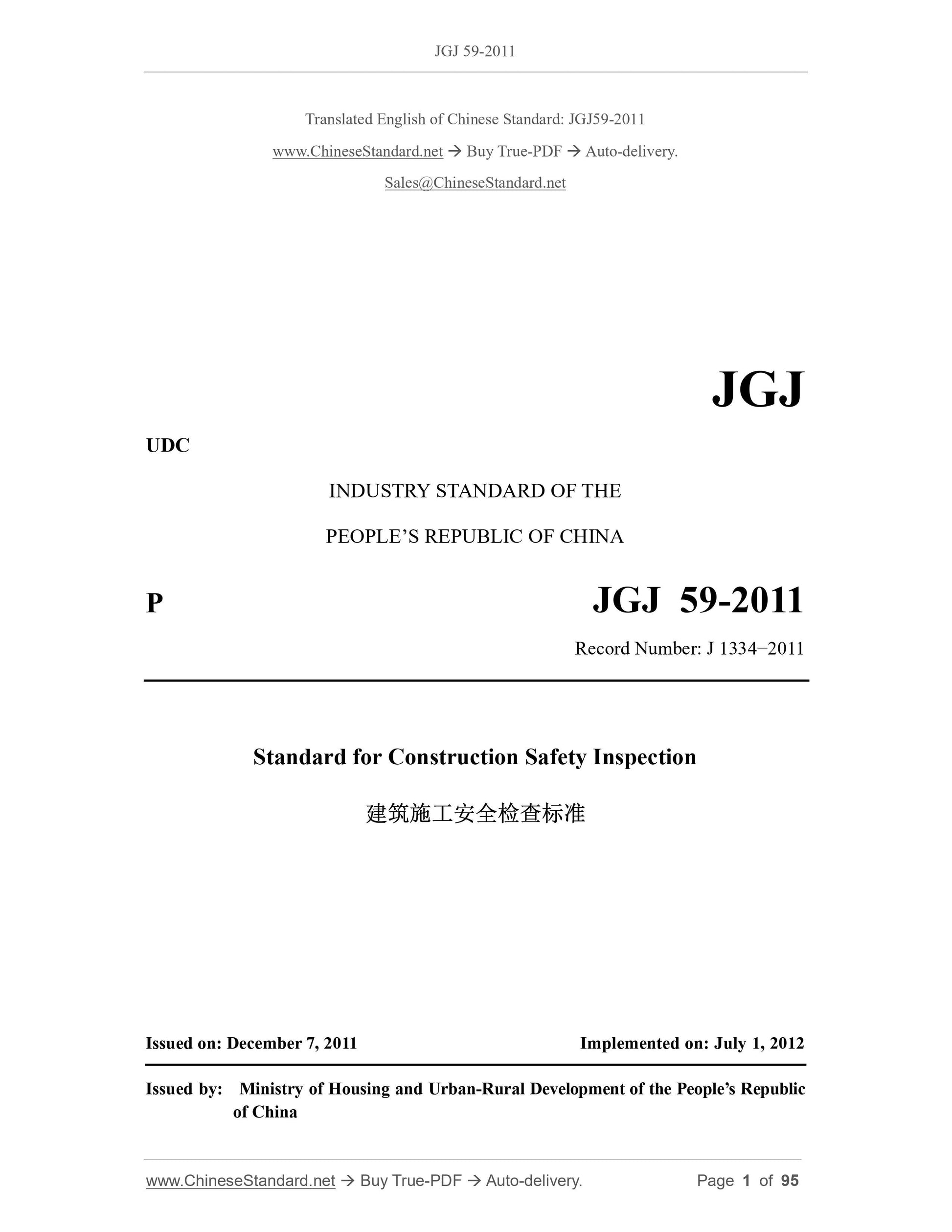

JGJ 59-2011
JGJ
UDC
INDUSTRY STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
P JGJ 59-2011
Record Number: J 1334−2011
Standard for Construction Safety Inspection
ISSUED ON: DECEMBER 7, 2011
IMPLEMENTED ON: JULY 1, 2012
Issued by: Ministry of Housing and Urban-Rural Development of the People’s Republic
of China

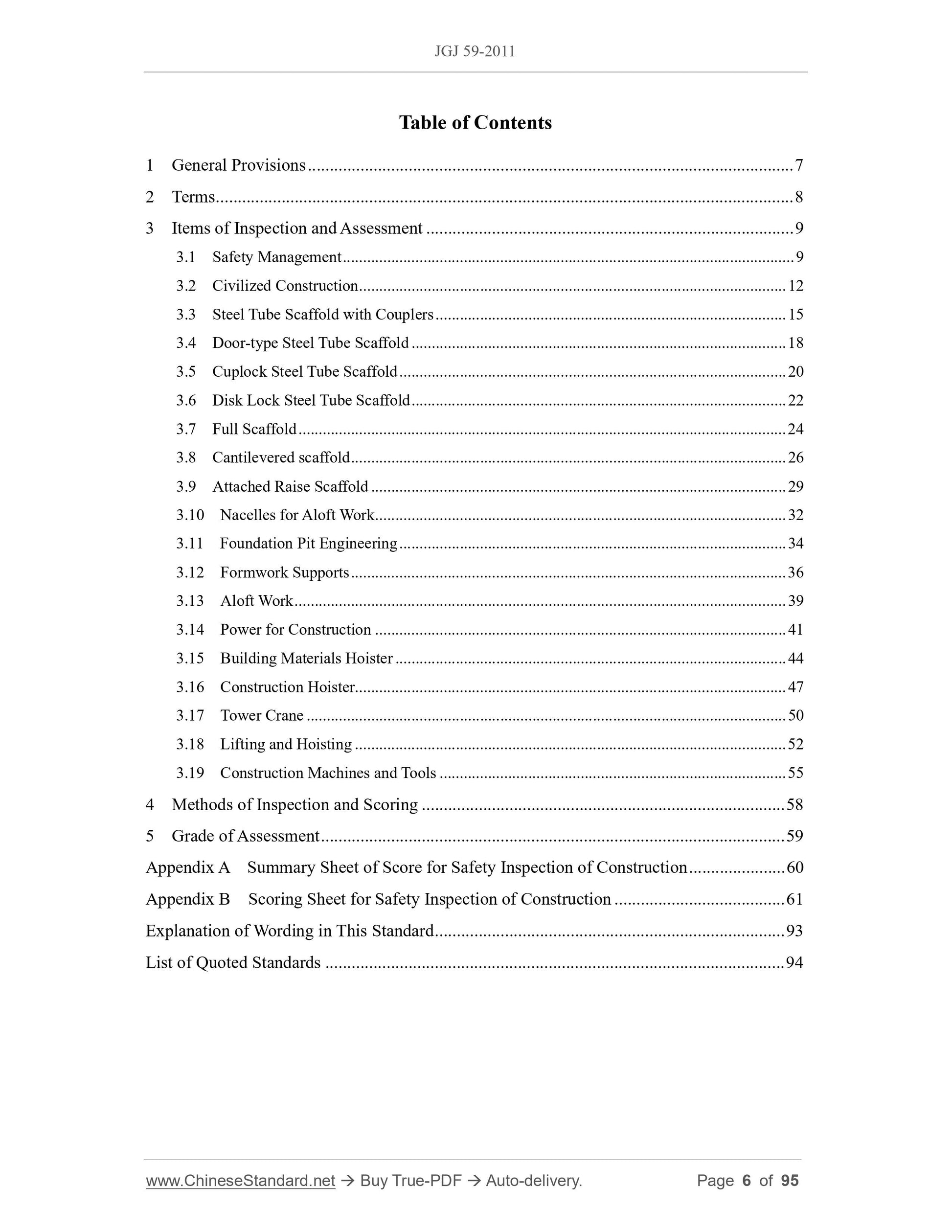

Table of Contents
1 General Provisions ... 7
2 Terms ... 8
3 Items of Inspection and Assessment ... 9
3.1 Safety Management ... 9
3.2 Civilized Construction ... 12
3.3 Steel Tube Scaffold with Couplers ... 15
3.4 Door-type Steel Tube Scaffold ... 18
3.5 Cuplock Steel Tube Scaffold ... 20
3.6 Disk Lock Steel Tube Scaffold ... 22
3.7 Full Scaffold ... 24
3.8 Cantilevered scaffold ... 26
3.9 Attached Raise Scaffold ... 29
3.10 Nacelles for Aloft Work ... 32
3.11 Foundation Pit Engineering ... 34
3.12 Formwork Supports ... 36
3.13 Aloft Work ... 39
3.14 Power for Construction ... 41
3.15 Building Materials Hoister ... 44
3.16 Construction Hoister... 47
3.17 Tower Crane ... 50
3.18 Lifting and Hoisting ... 52
3.19 Construction Machines and Tools ... 55
4 Methods of Inspection and Scoring ... 58
5 Grade of Assessment ... 59
Appendix A Summary Sheet of Score for Safety Inspection of Construction ... 60
Appendix B Scoring Sheet for Safety Inspection of Construction ... 61
Explanation of Wording in This Standard ... 93
List of Quoted Standards ... 94

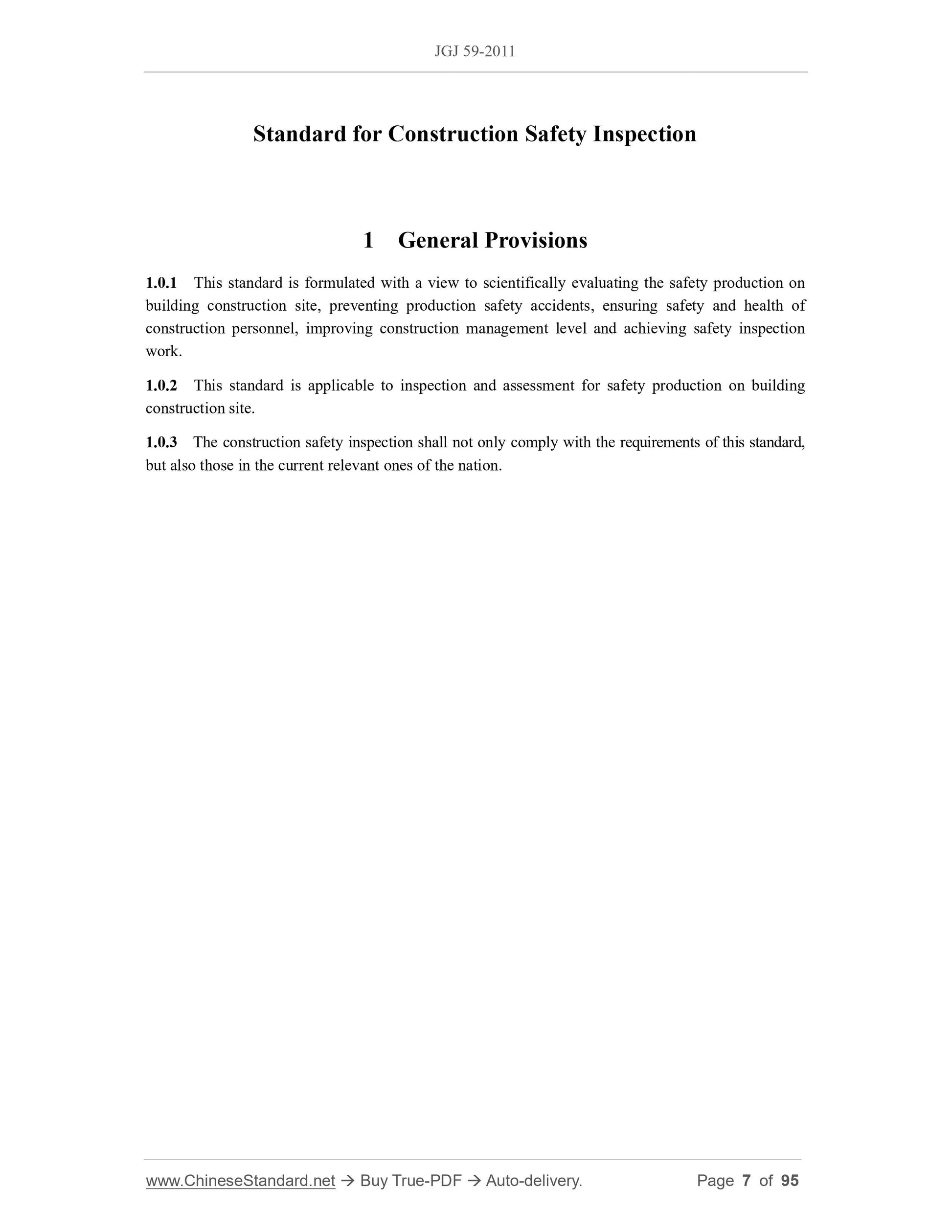

Standard for Construction Safety Inspection
1 General Provisions
1.0.1 This standard is formulated with a view to scientifically evaluating the safety production on
building construction site, preventing production safety accidents, ensuring safety and health of
construction personnel, improving construction management level and achieving safety inspection
work.
1.0.2 This standard is applicable to inspection and assessment for safety production on building
construction site.
1.0.3 The construction safety inspection shall not only comply with the requirements of this standard,
but also those in the current relevant ones of the nation.

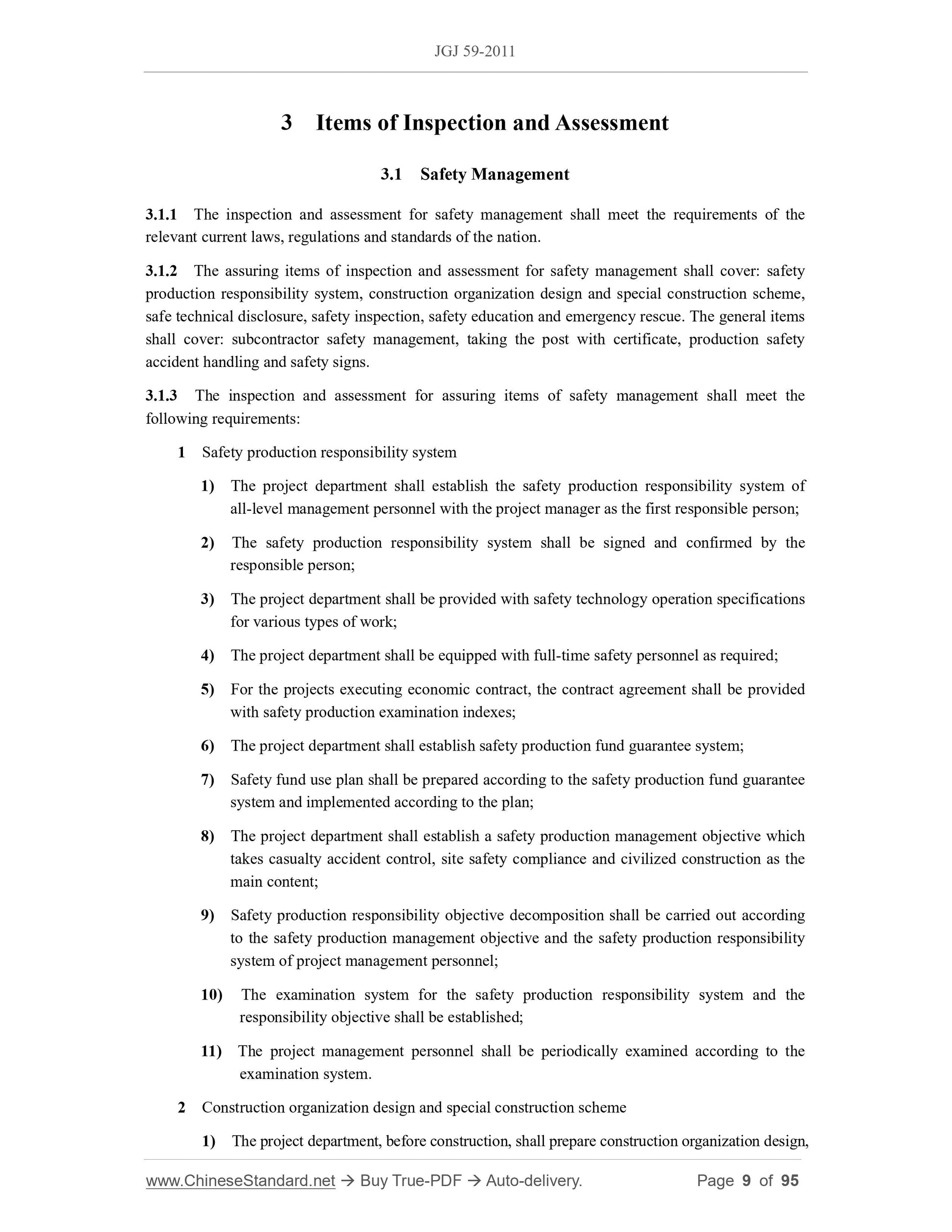

3 Items of Inspection and Assessment
3.1 Safety Management
3.1.1 The inspection and assessment for safety management shall meet the requirements of the
relevant current laws, regulations and standards of the nation.
3.1.2 The assuring items of inspection and assessment for safety management shall cover: safety
production responsibility system, construction organization design and special construction scheme,
safe technical disclosure, safety inspection, safety education and emergency rescue. The general items
shall cover: subcontractor safety management, taking the post with certificate, production safety
accident handling and safety signs.
3.1.3 The inspection and assessment for assuring items of safety management shall meet the
following requirements:
1 Safety production responsibility system
1) The project department shall establish the safety production responsibility system of
all-level management personnel with the project manager as the first responsible person;
2) The safety production responsibility system shall be signed and confirmed by the
responsible person;
3) The project department shall be provided with safety technology operation specifications
for various types of work;
4) The project department shall be equipped with full-time safety personnel as required;
5) For the projects executing economic contract, the contract agreement shall be provided
with safety production examination indexes;
6) The project department shall establish safety production fund guarantee system;
7) Safety fund use plan shall be prepared according to the safety production fund guarantee
system and implemented according to the plan;
8) The project department shall establish a safety production management objective which
takes casualty accident control, site safety compliance and civilized construction as the
main content;
9) Safety production responsibility objective decomposition shall be carried out according
to the safety production management objective and the safety production responsibility
system of project management personnel;
10) The examination system for the safety production responsibility system and the
responsibility objective shall be established;
11) The project management personnel shall be periodically examined according to the
examination system.
2 Construction organization design and special construction scheme

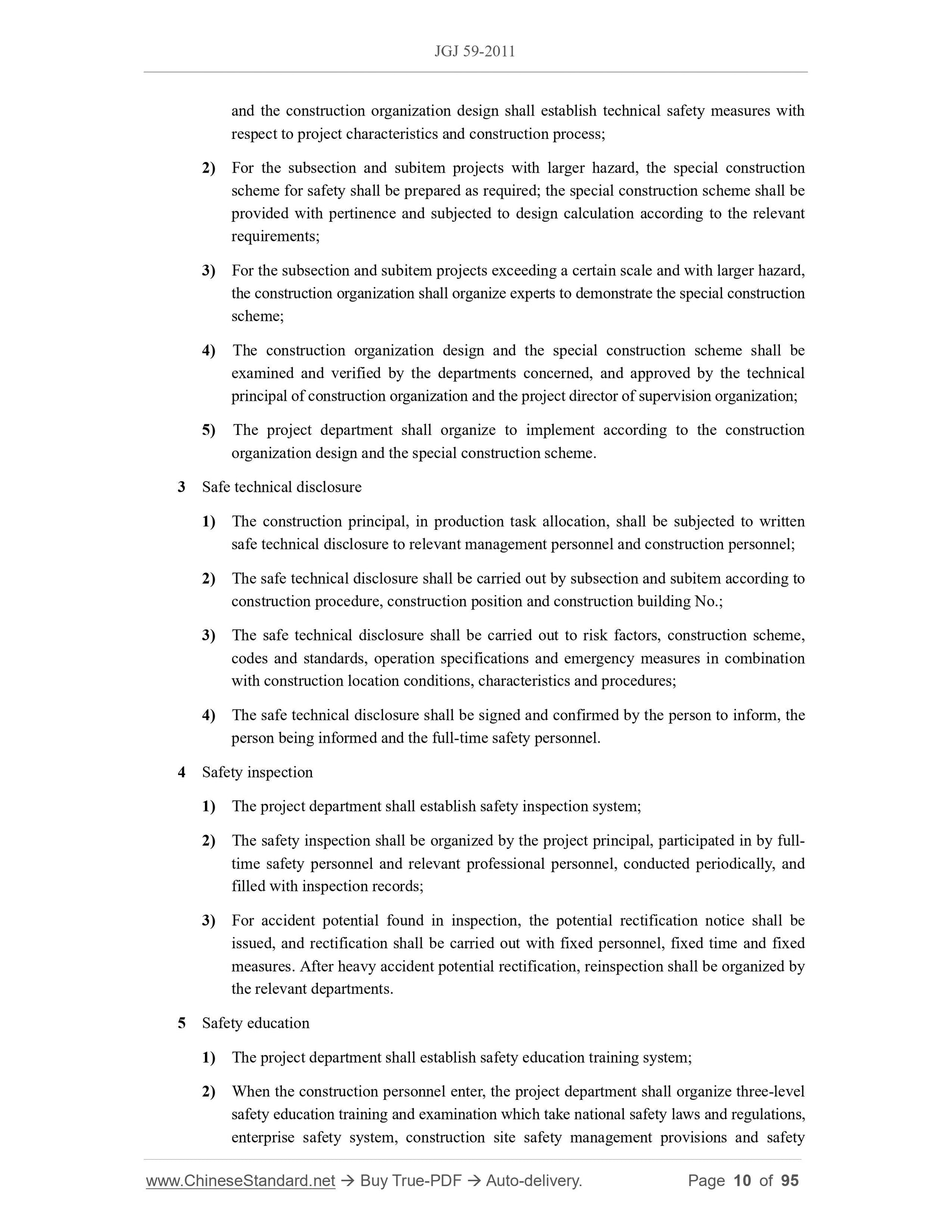

1) The project department, before construction, shall prepare construction organization design,
and the construction organization design shall establish technical safety measures with
respect to project characteristics and construction process;
2) For the subsection and subitem projects with larger hazard, the special construction
scheme for safety shall be prepared as required; the special construction scheme shall be
provided with pertinence and subjected to design calculation according to the relevant
requirements;
3) For the subsection and subitem projects exceeding a certain scale and with larger hazard,
the construction organization shall organize experts to demonstrate the special construction
scheme;
4) The construction organization design and the special construction scheme shall be
examined and verified by the departments concerned, and approved by the technical
principal of construction organization and the project director of supervision organization;
5) The project department shall organize to implement according to the construction
organization design and the special construction scheme.
3 Safe technical disclosure
1) The construction principal, in production task allocation, shall be subjected to written
safe technical disclosure to relevant management personnel and construction personnel;
2) The safe technical disclosure shall be carried out by subsection and subitem according to
construction procedure, construction position and construction building No.;
3) The safe technical disclosure shall be carried out to risk factors, construction scheme,
codes and standards, operation specifications and emergency measures in combination
with construction location conditions, characteristics and procedures;
4) The safe technical disclosure shall be signed and confirmed by the person to inform, the
person being informed and the full-time safety personnel.
4 Safety inspection
1) The project department shall establish safety inspection system;
2) The safety inspection shall be organized by the project principal, participated in by full-
time safety personnel and relevant professional personnel, conducted periodically, and
filled with inspection records;
3) For accident potential found in inspection, the potential rectification notice shall be
issued, and rectification shall be carried out with fixed personnel, fixed time and fixed
measures. After heavy accident potential rectification, reinspection shall be organized by
the relevant departments.
5 Safety education
1) The project department shall establish safety education training system;
2) When the construction personnel enter, the project department shall organize three-level
safety education training and examination which take national safety laws and regulations,
enterprise safety system, construction site safety management provisions and safety

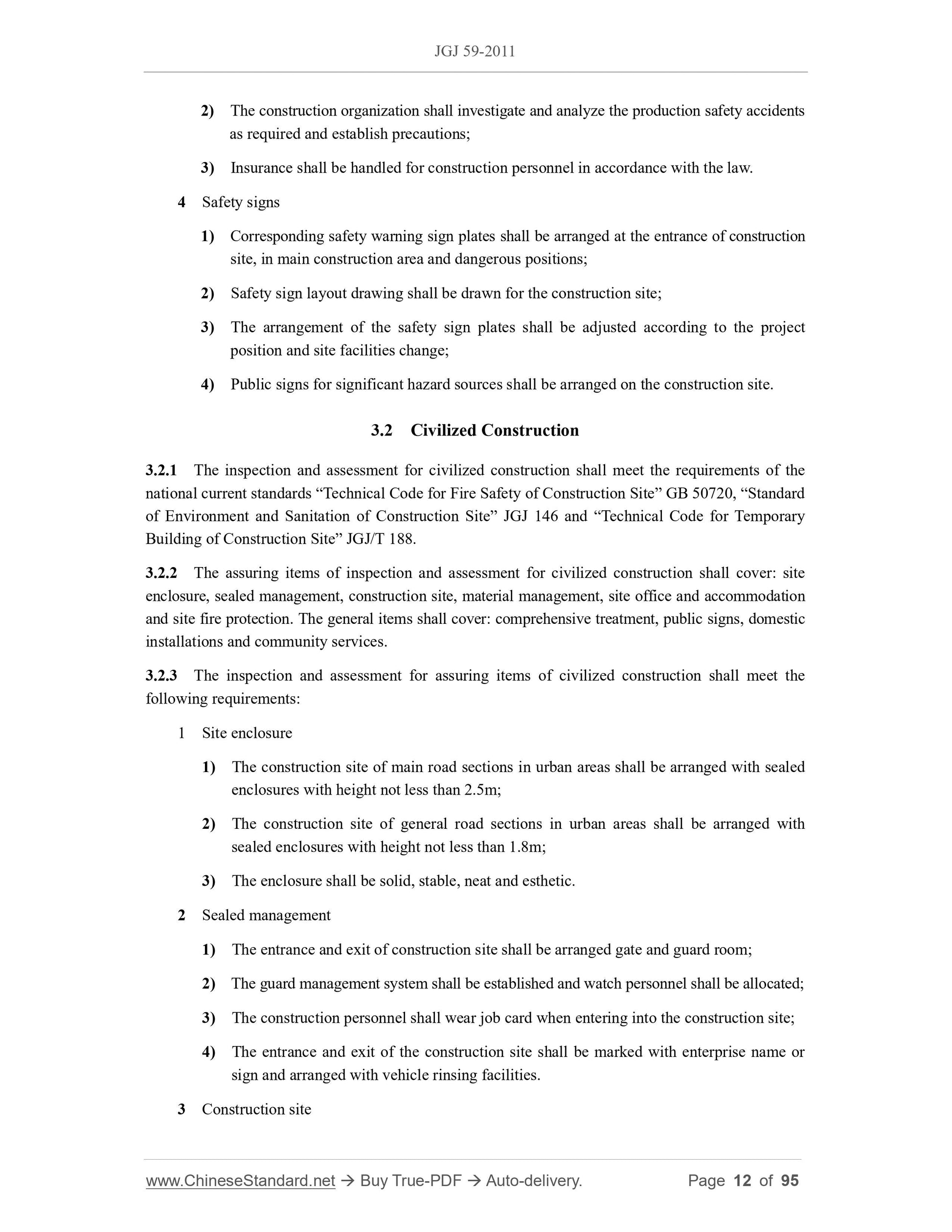

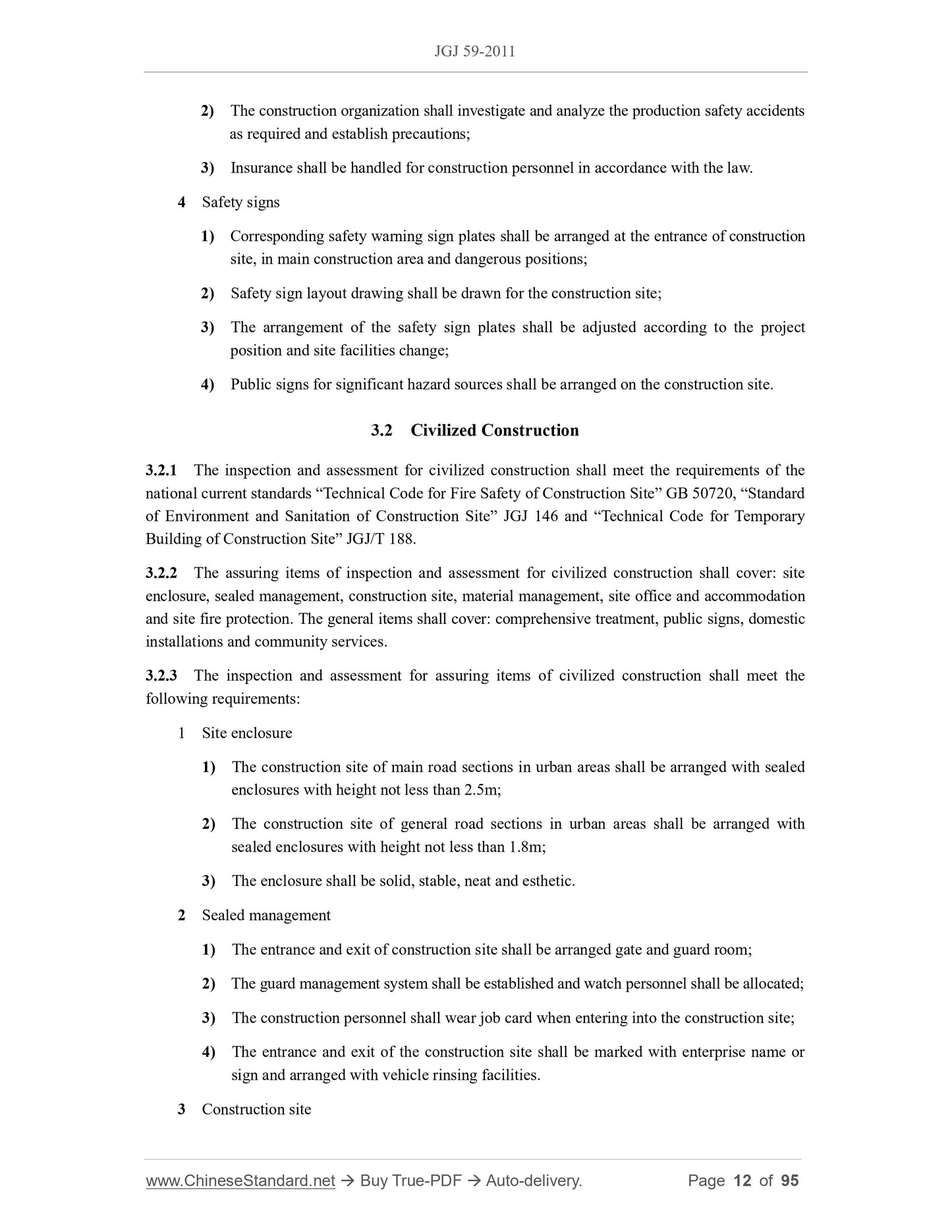

2) The construction organization shall investigate and analyze the production safety accidents
as required and establish precautions;
3) I...
