JB/T 8922-2011: Rolling bearings. Specifications for vibration (velocity) of cylindrical roller bearings

This standard specifies the vibration (velocity) technical conditions of the N-type, NU-type, NJ-type, NF-type cylindrical roller bearings, whose external dimensions conform to GB/T 283-2007, which have a diameter series 2 and 3, a nominal inner diameter of 15 mm ~ 120 mm, a radial clearance conforming to group 0 clearance specified in GB/T 4604-2006 (hereinafter referred to as bearings). Group V specified in this standard is the basic requirement for vibration (velocity) of general-purpose bearings. and quot;V and quot; is not marked on the bearings. Groups V1, V2, V3 are suitable for bearings that require vibration (velocity). This standard applies to the production inspection and user acceptance of finished bearings by the manufacturer.

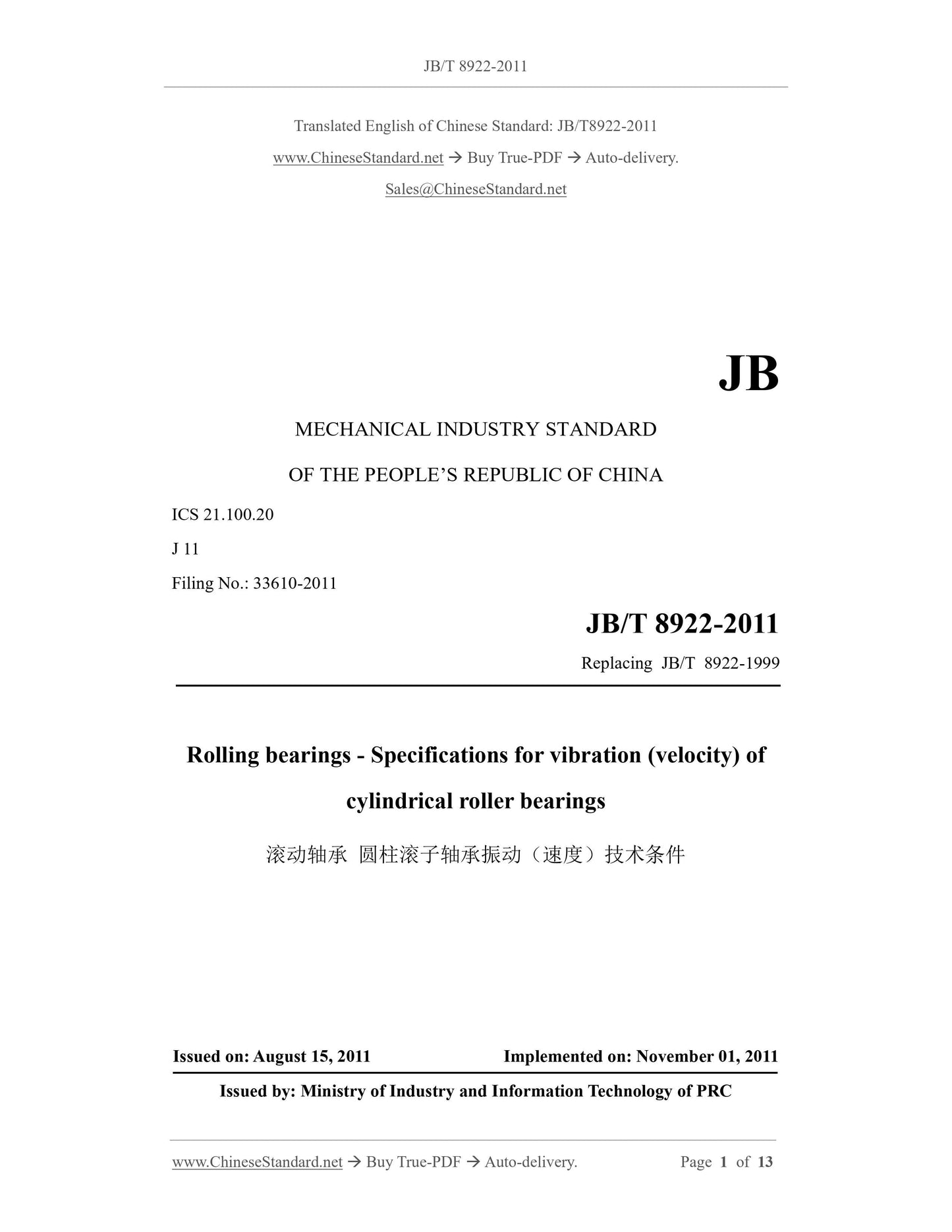

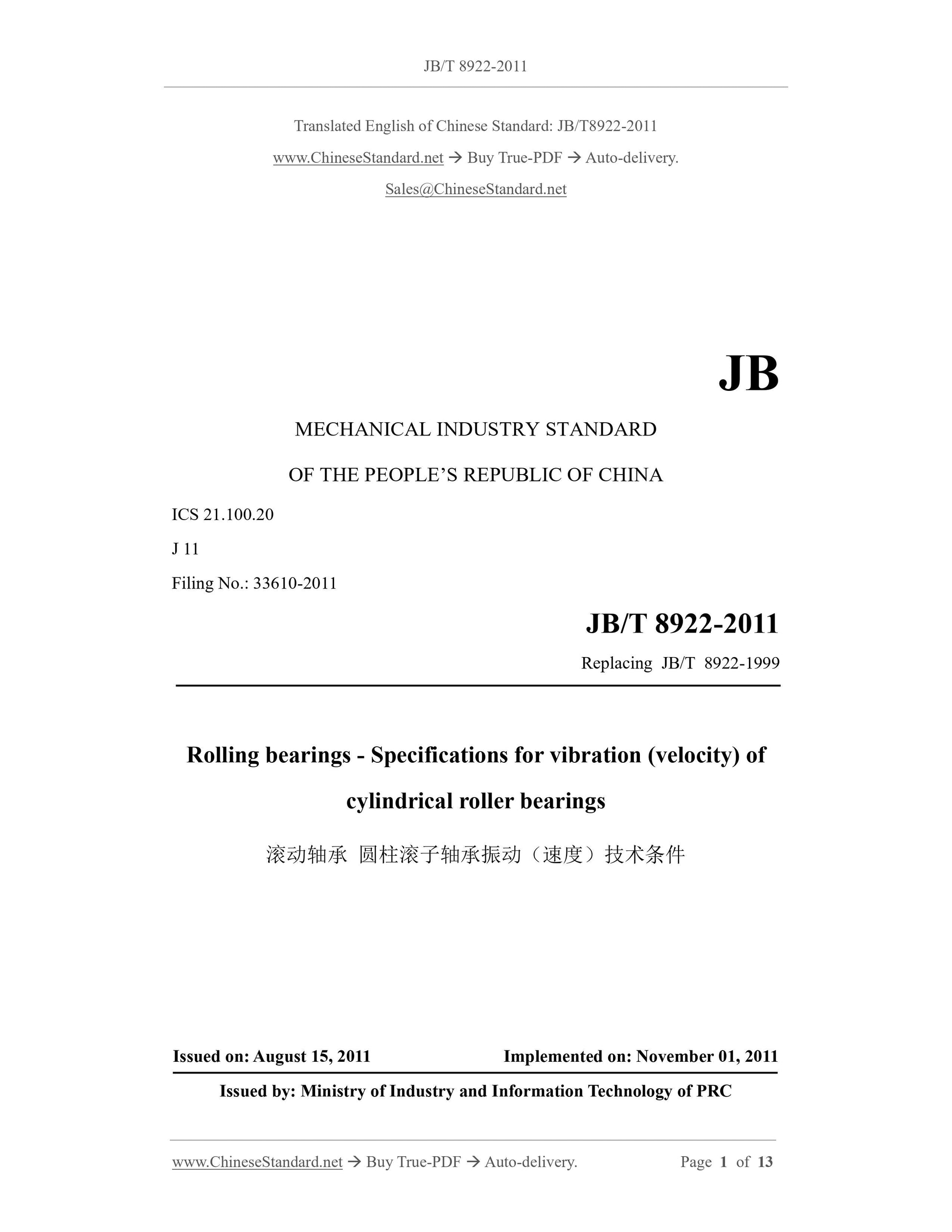

JB/T 8922-2011
JB
MECHANICAL INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 21.100.20
J 11
Filing No.: 33610-2011
Replacing JB/T 8922-1999
Rolling bearings - Specifications for vibration (velocity) of
cylindrical roller bearings
ISSUED ON: AUGUST 15, 2011
IMPLEMENTED ON: NOVEMBER 01, 2011
Issued by: Ministry of Industry and Information Technology of PRC

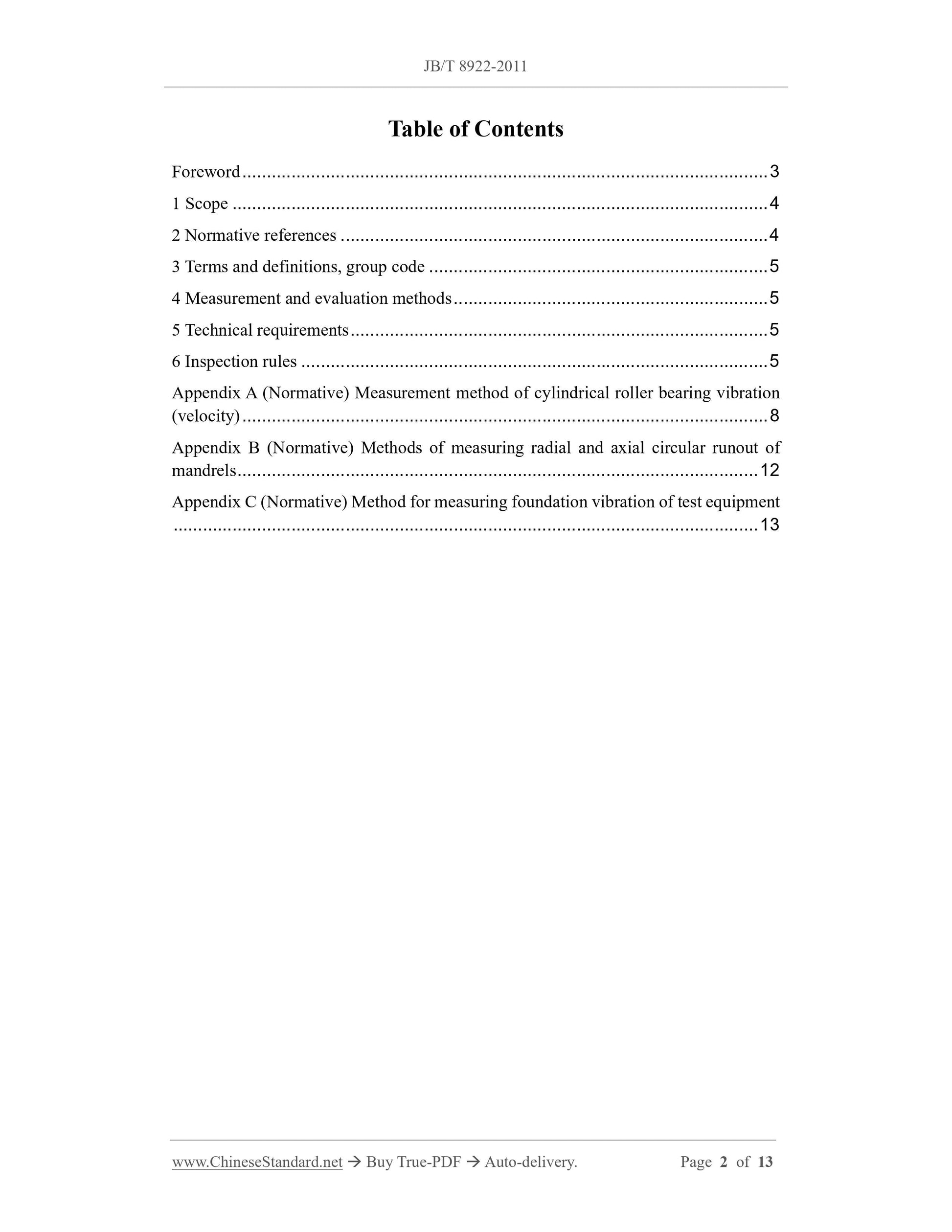

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions, group code ... 5
4 Measurement and evaluation methods ... 5
5 Technical requirements ... 5
6 Inspection rules ... 5
Appendix A (Normative) Measurement method of cylindrical roller bearing vibration (velocity) ... 8
Appendix B (Normative) Methods of measuring radial and axial circular runout of mandrels ... 12
Appendix C (Normative) Method for measuring foundation vibration of test equipment ... 13

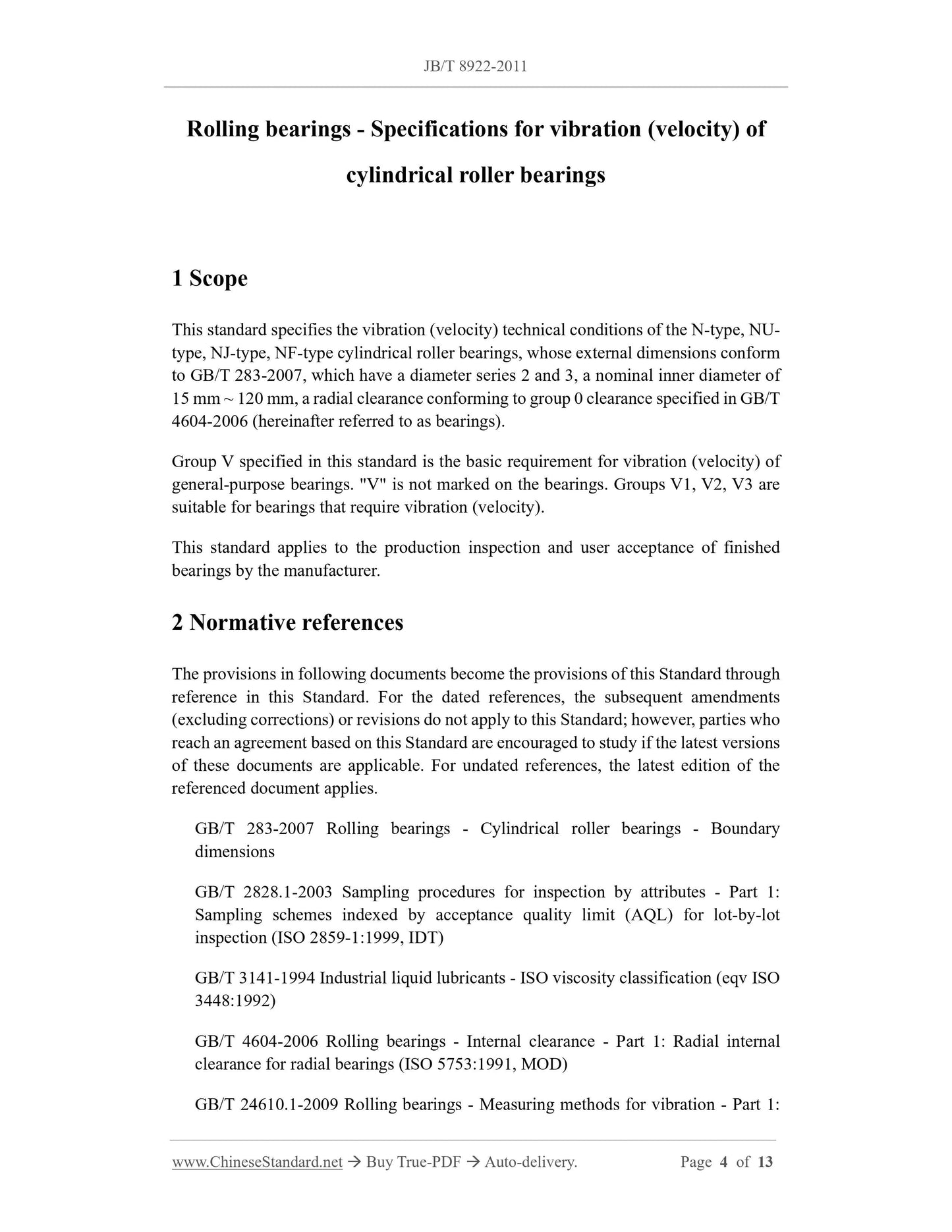

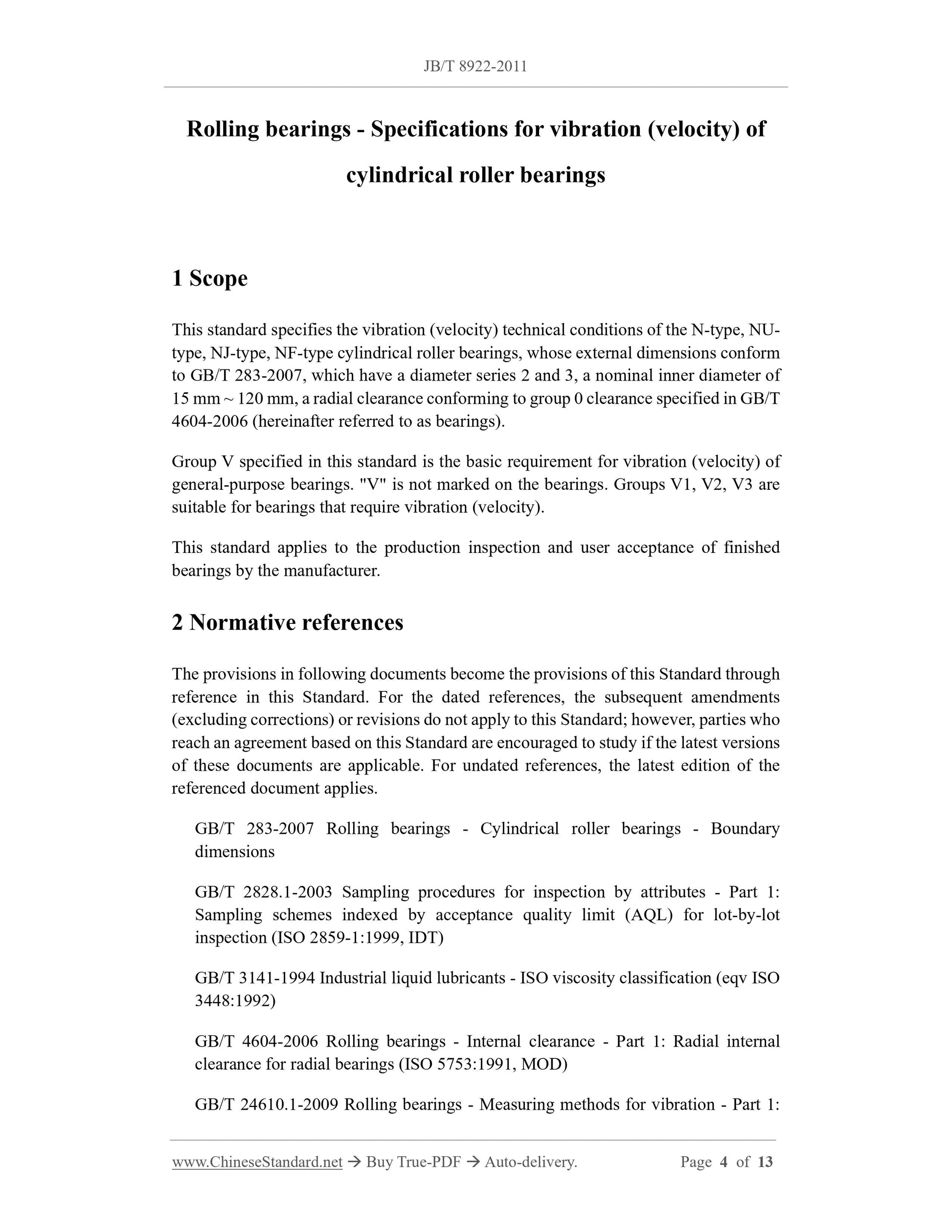

Rolling bearings - Specifications for vibration (velocity) of
cylindrical roller bearings
1 Scope
This standard specifies the vibration (velocity) technical conditions of the N-type, NU- type, NJ-type, NF-type cylindrical roller bearings, whose external dimensions conform to GB/T 283-2007, which have a diameter series 2 and 3, a nominal inner diameter of 15 mm ~ 120 mm, a radial clearance conforming to group 0 clearance specified in GB/T 4604-2006 (hereinafter referred to as bearings).
Group V specified in this standard is the basic requirement for vibration (velocity) of general-purpose bearings. "V" is not marked on the bearings. Groups V1, V2, V3 are suitable for bearings that require vibration (velocity).
This standard applies to the production inspection and user acceptance of finished bearings by the manufacturer.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB/T 283-2007 Rolling bearings - Cylindrical roller bearings - Boundary dimensions
GB/T 2828.1-2003 Sampling procedures for inspection by attributes - Part 1: Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot inspection (ISO 2859-1:1999, IDT)
GB/T 3141-1994 Industrial liquid lubricants - ISO viscosity classification (eqv ISO 3448:1992)
GB/T 4604-2006 Rolling bearings - Internal clearance - Part 1: Radial internal clearance for radial bearings (ISO 5753:1991, MOD)
GB/T 24610.1-2009 Rolling bearings - Measuring methods for vibration - Part 1: Fundamentals (ISO 15242-1:2004, IDT)
GB/T 24610.4-2009 Rolling bearings - Measuring methods for vibration - Part 4: Radial cylindrical roller bearings with cylindrical bore and outside surface (ISO 15242-4:2007, IDT)

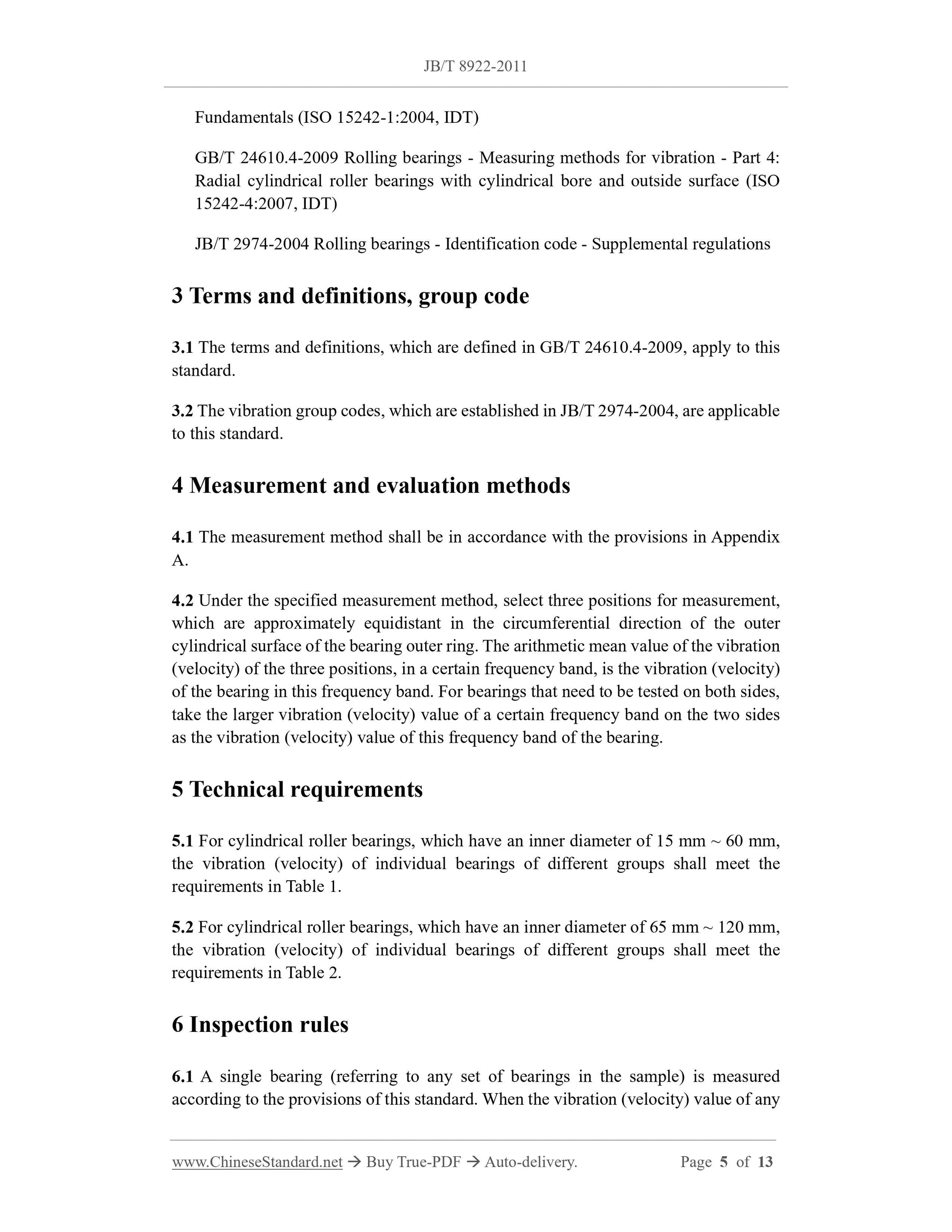

JB/T 2974-2004 Rolling bearings - Identification code - Supplemental regulations 3 Terms and definitions, group code
3.1 The terms and definitions, which are defined in GB/T 24610.4-2009, apply to this standard.
3.2 The vibration group codes, which are established in JB/T 2974-2004, are applicable to this standard.
4 Measurement and evaluation methods
4.1 The measurement method shall be in accordance with the provisions in Appendix A.
4.2 Under the specified measurement method, select three positions for measurement, which are approximately equidistant in the circumferential direction of the outer cylindrical surface of the bearing outer ring. The arithmetic mean value of the vibration (velocity) of the three positions, in a certain frequency band, is the vibration (velocity) of the bearing in this frequency band. For bearings that need to be tested on both sides, take the larger vibration (velocity) value of a certain frequency band on the two sides as the vibration (velocity) value of this frequency band of the bearing. 5 Technical requirements
5.1 For cylindrical roller bearings, which have an inner diameter of 15 mm ~ 60 mm, the vibration (velocity) of individual bearings of different groups shall meet the requirements in Table 1.
5.2 For cylindrical roller bearings, which have an inner diameter of 65 mm ~ 120 mm, the vibration (velocity) of individual bearings of different groups shall meet the requirements in Table 2.
6 Inspection rules

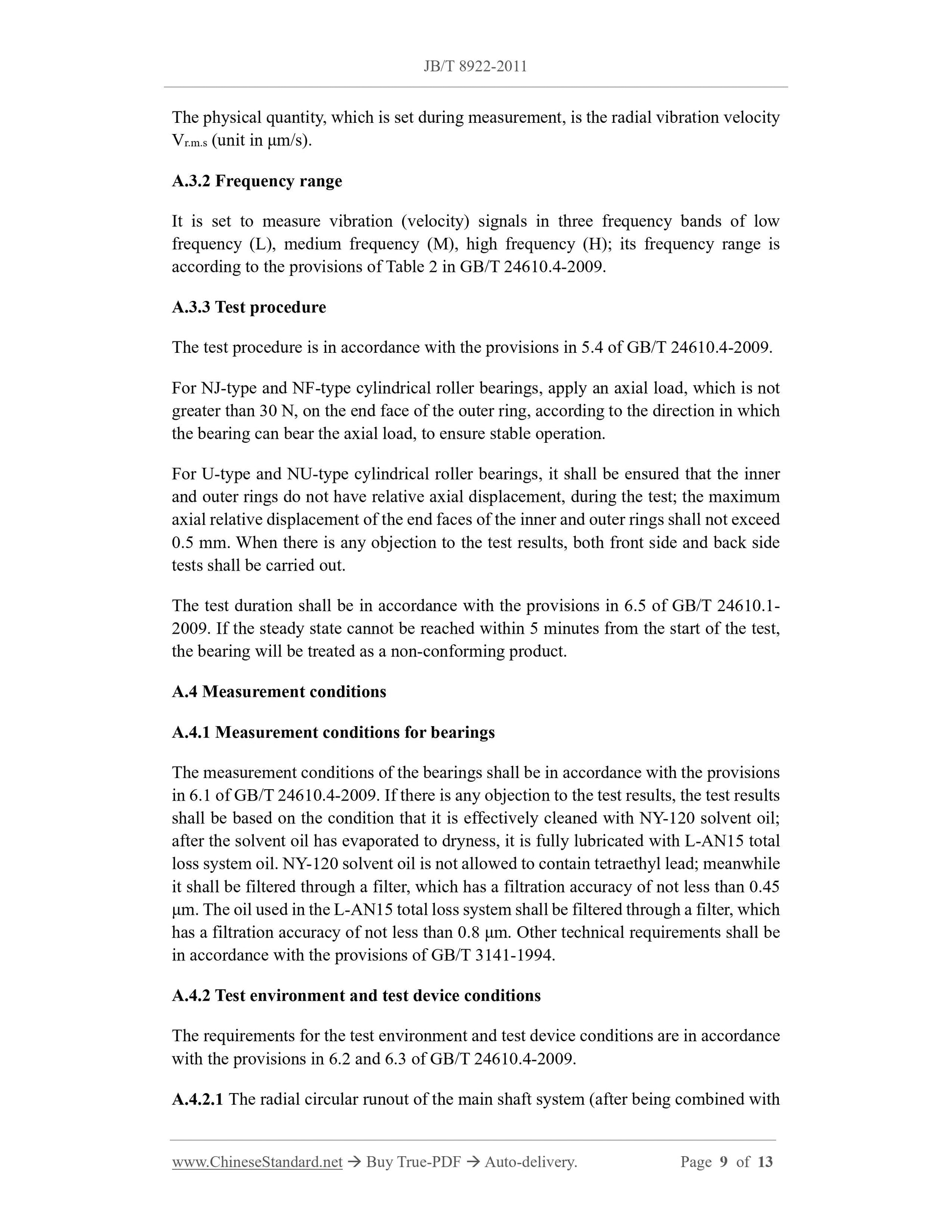

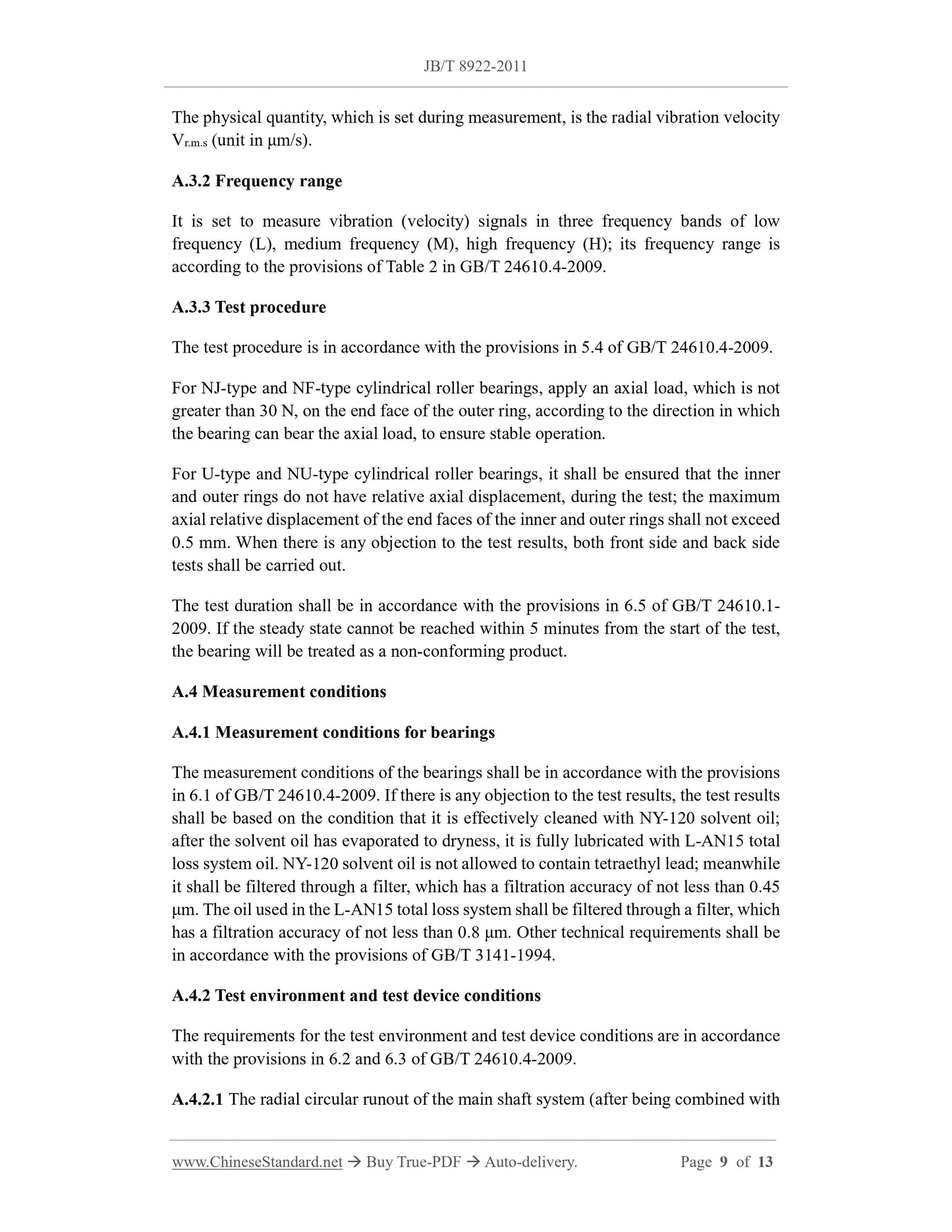

6.1 A single bearing (referring to any set of bearings in the sample) is measured according to the provisions of this standard. When the vibration (velocity) value of any The physical quantity, which is set during measurement, is the radial vibration velocity Vr.m.s (unit in ??m/s).
A.3.2 Frequency range
It is set to measure vibration (velocity) signals in three frequency bands of low frequency (L), medium frequency (M), high frequency (H); its frequency range is according to the provisions of Table 2 in GB/T 24610.4-2009.
A.3.3 Test procedure
The test procedure is in accordance with the provisions in 5.4 of GB/T 24610.4-2009. For NJ-type and NF-type cylindrical roller bearings, apply an axial load, which is not greater than 30 N, on the end face of the outer ring, according to the direction in which the bearing can bear the axial load, to ensure stable operation.
For U-type and NU-type cylindrical roller bearings, it shall be ensured that the inner and outer rings do not have relative axial displacement, during the test; the maximum axial relative displacement of the end faces of the inner and outer rings shall not exceed 0.5 mm. When there is any objection to the test results, both front side and back side tests shall be carried out.
The test duration shall be in accordance with the provisions in 6.5 of GB/T 24610.1- 2009. If the steady state cannot be reached within 5 minutes from the start of the test, the bearing will be treated as a non-conforming product.
A.4 Measurement conditions
A.4.1 Measurement conditions for bearings
The measurement conditions of the bearings shall be in accordance with the provisions in 6.1 of GB/T 24610.4-2009. If there is any objection to the test results, the test results shall be based on the condition that it is effectively cleaned with NY-120 solvent oil; after the solvent oil has evaporated to dryness, it is fully lubricated with L-AN15 total loss system oil. NY-120 solvent oil is not allowed to contain tetraethyl lead; meanwhile it shall be filtered through a filter, which has a filtration accuracy of not less than 0.45 ??m. The oil used in the L-AN15 total loss system shall be filtered through a filter, which has a filtration accuracy of not less than 0.8 ??m. Other technical requirements shall be in accordance with the provisions of GB/T 3141-1994.
A.4.2 Test environment and test device conditions
The requirements for the test environment and test device conditions are in accordance with the provisions in 6.2 and 6.3 of GB/T 24610.4-2009.
A.4.2.1 The radial circular runout of the main shaft system (after being combined with
