JB/T 8816-1998: Construction machinery - Drive axle - Technical specifications

JBT 8816-1998 specifies the technical requirements, test methods, inspection rules, marking, packaging, transportation, storage and quality guarantee period, etc. of engineering machinery drive axle. This Standard applies to general drive axle and steering drive axle of wheel type construction machinery (steering knuckle and bearing parts excluded).

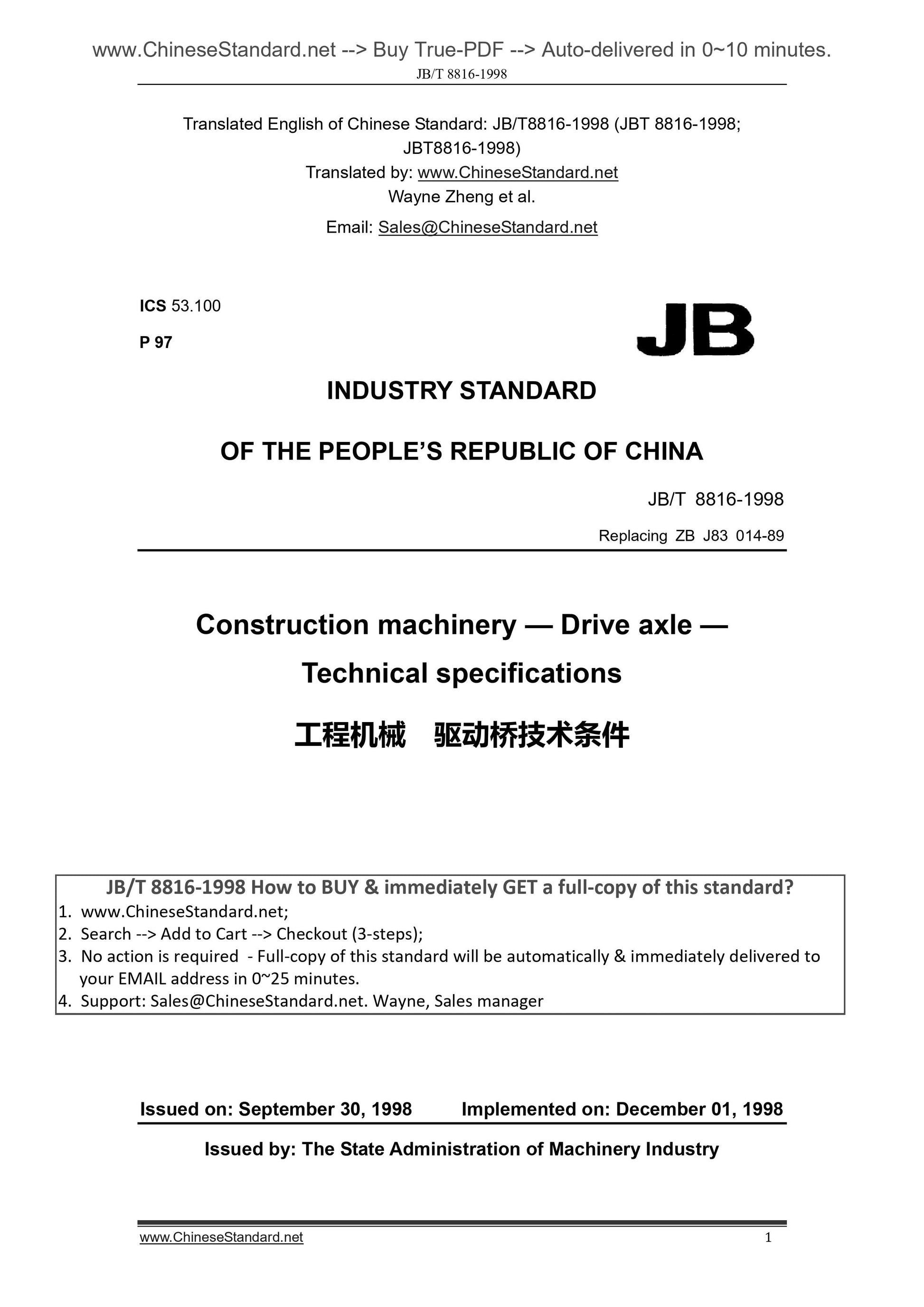

JB/T 8816-1998
JBT8816-1998)
ICS 53.100
P 97
INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Replacing ZB J83 014-89
Construction machinery ?€? Drive axle ?€?
Technical specifications
ISSUED ON. SEPTEMBER 30, 1998
IMPLEMENTED ON. DECEMBER 01, 1998
Issued by. The State Administration of Machinery Industry

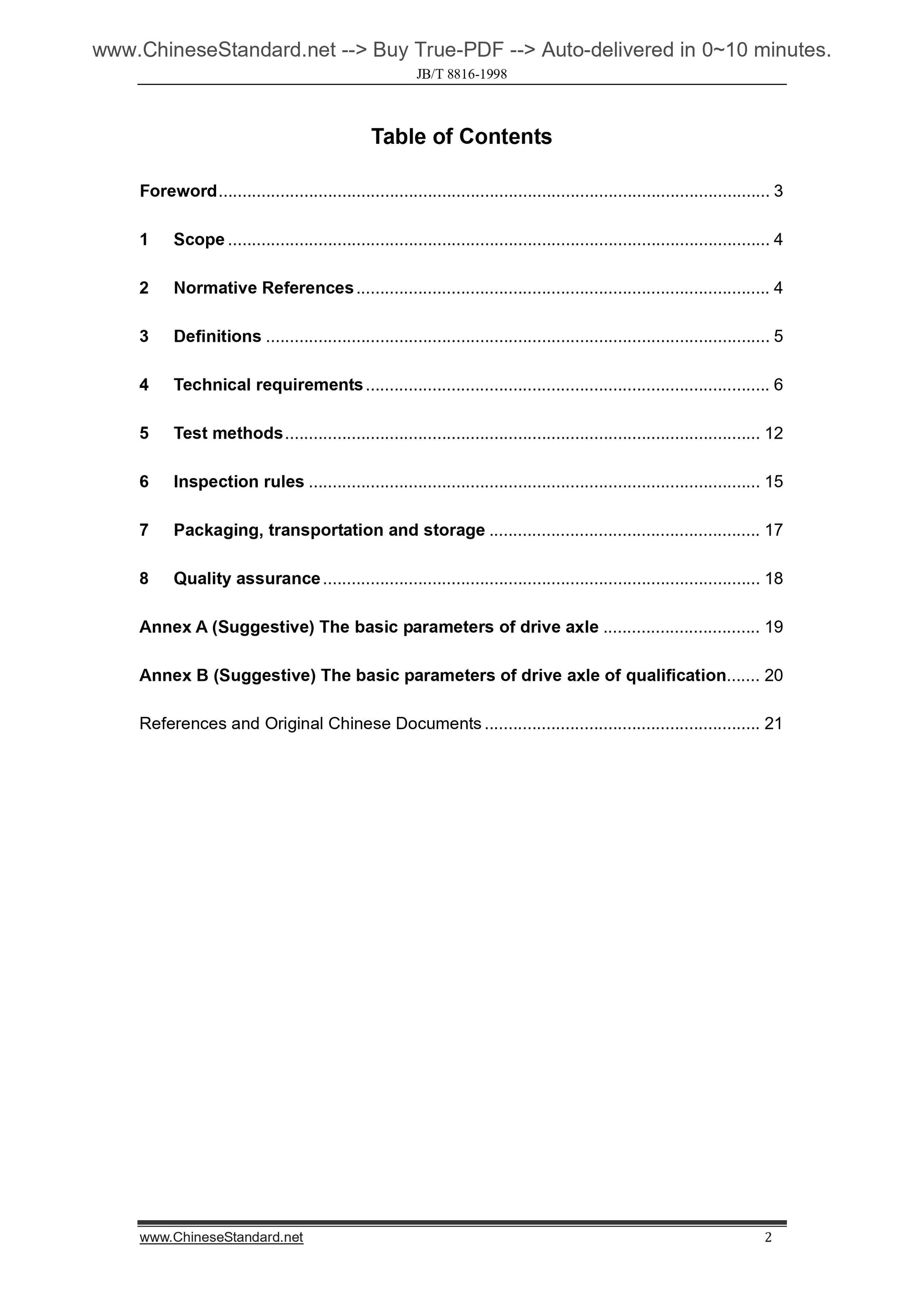

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Definitions ... 5
4 Technical requirements ... 6
5 Test methods ... 12
6 Inspection rules ... 15
7 Packaging, transportation and storage ... 17
8 Quality assurance ... 18
Annex A (Suggestive) The basic parameters of drive axle ... 19
Annex B (Suggestive) The basic parameters of drive axle of qualification ... 20 References and Original Chinese Documents ... 21

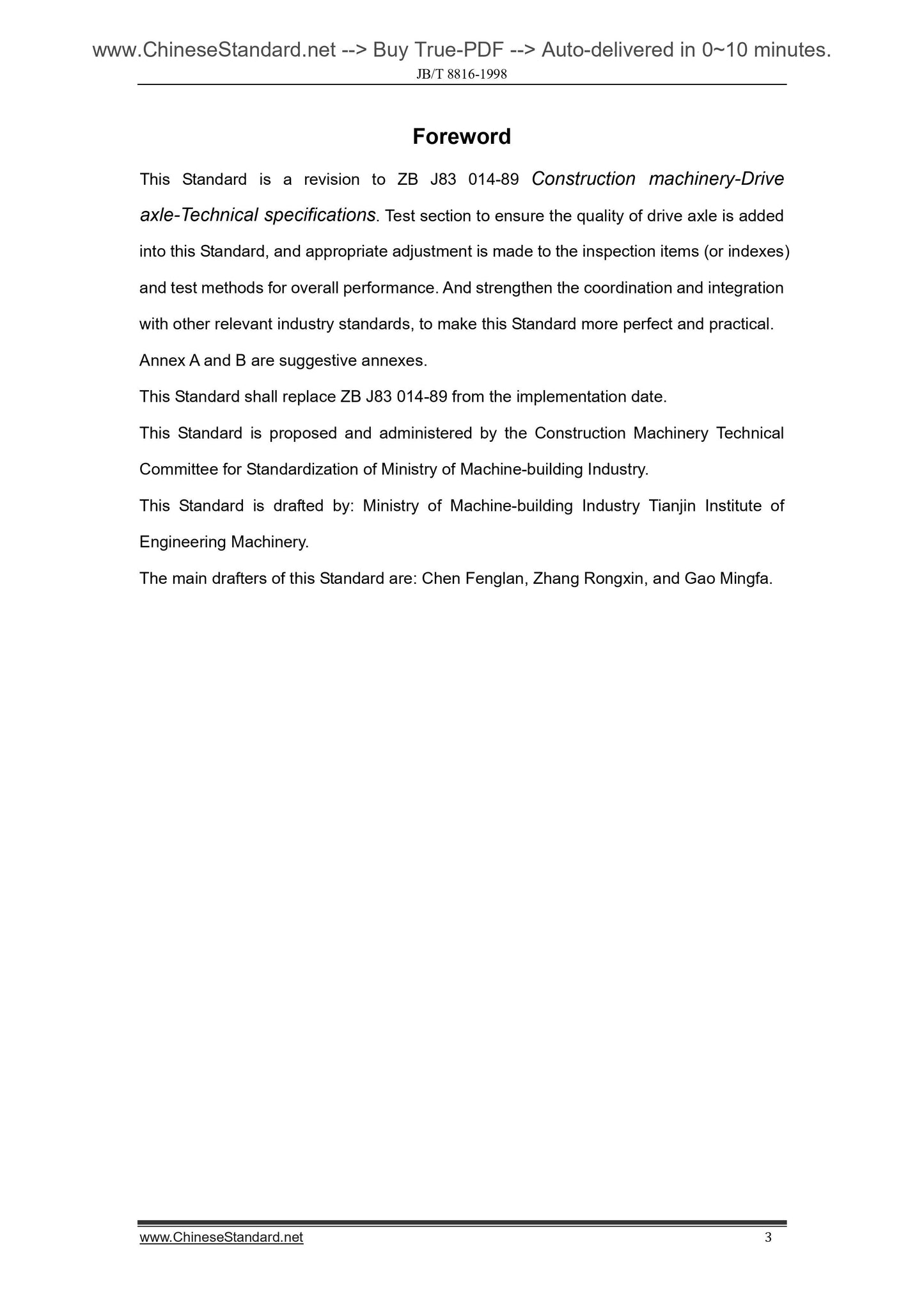

Foreword
This Standard is a revision to ZB J83 014-89 Construction machinery-Drive axle-Technical specifications. Test section to ensure the quality of drive axle is added into this Standard, and appropriate adjustment is made to the inspection items (or indexes) and test methods for overall performance. And strengthen the coordination and integration with other relevant industry standards, to make this Standard more perfect and practical. Annex A and B are suggestive annexes.
This Standard shall replace ZB J83 014-89 from the implementation date. This Standard is proposed and administered by the Construction Machinery Technical Committee for Standardization of Ministry of Machine-building Industry. This Standard is drafted by. Ministry of Machine-building Industry Tianjin Institute of Engineering Machinery.
The main drafters of this Standard are. Chen Fenglan, Zhang Rongxin, and Gao Mingfa. Construction machinery -- Drive axle -- Technical specifications

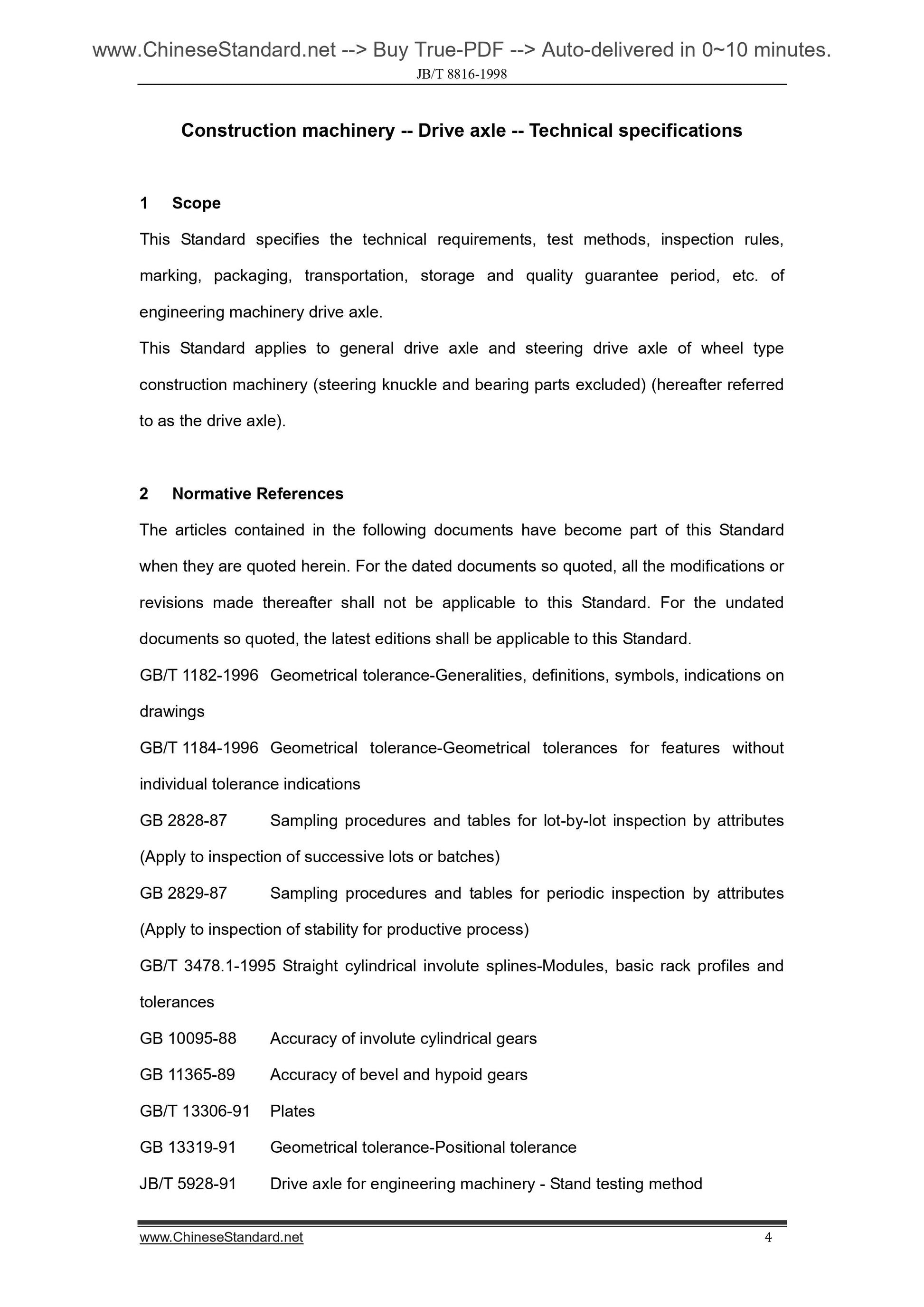

1 Scope
This Standard specifies the technical requirements, test methods, inspection rules, marking, packaging, transportation, storage and quality guarantee period, etc. of engineering machinery drive axle.
This Standard applies to general drive axle and steering drive axle of wheel type construction machinery (steering knuckle and bearing parts excluded) (hereafter referred to as the drive axle).
2 Normative References
The articles contained in the following documents have become part of this Standard when they are quoted herein. For the dated documents so quoted, all the modifications or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard. GB/T 1182-1996 Geometrical tolerance-Generalities, definitions, symbols, indications on drawings
GB/T 1184-1996 Geometrical tolerance-Geometrical tolerances for features without individual tolerance indications
GB 2828-87 Sampling procedures and tables for lot-by-lot inspection by attributes (Apply to inspection of successive lots or batches)
GB 2829-87 Sampling procedures and tables for periodic inspection by attributes (Apply to inspection of stability for productive process)
GB/T 3478.1-1995 Straight cylindrical involute splines-Modules, basic rack profiles and tolerances
GB 10095-88 Accuracy of involute cylindrical gears
GB 11365-89 Accuracy of bevel and hypoid gears
GB/T 13306-91 Plates
GB 13319-91 Geometrical tolerance-Positional tolerance
JB/T 5928-91 Drive axle for engineering machinery - Stand testing method and the phosphating film thickness and quality shall comply with the provisions specified in the sample drawing.

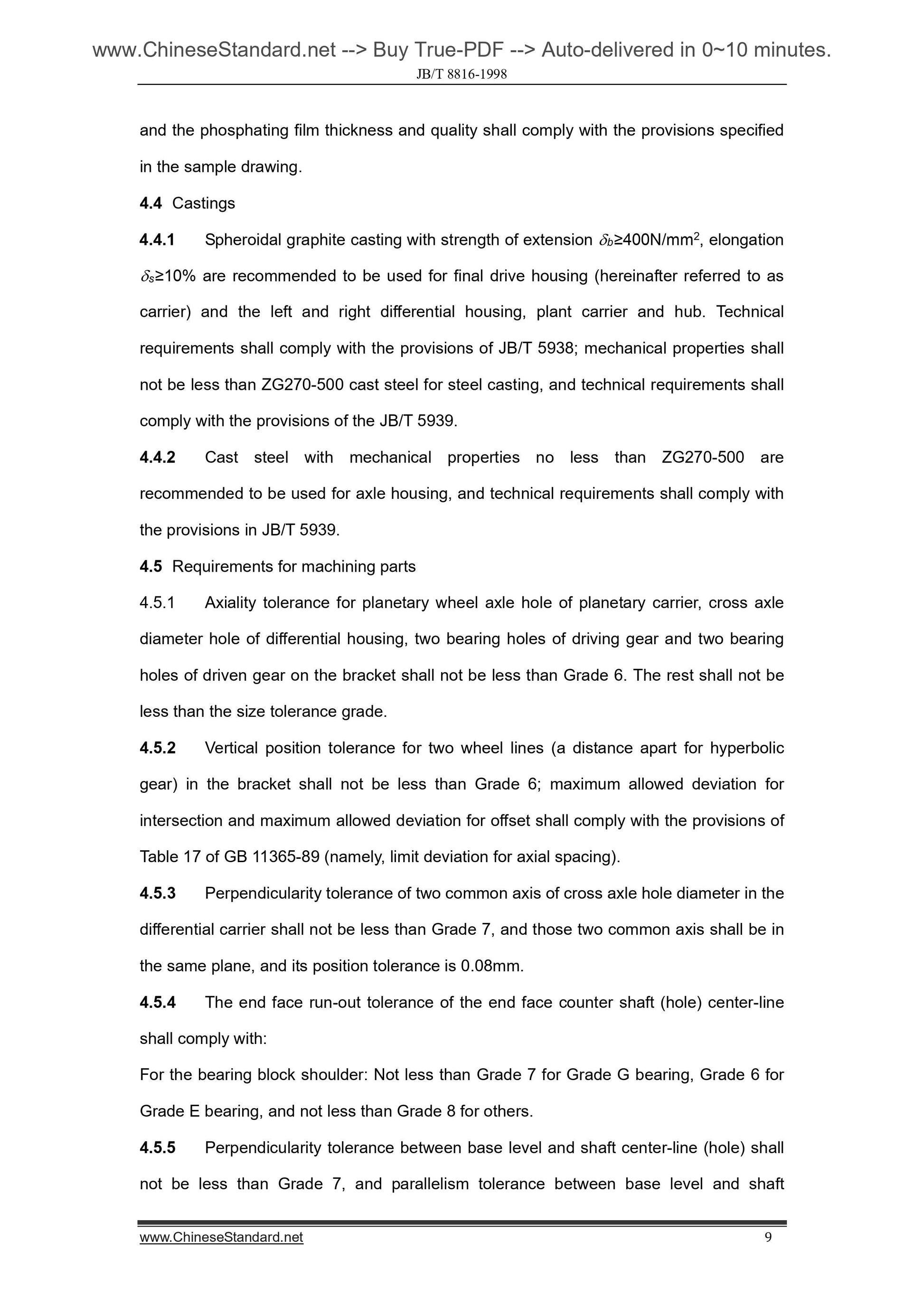

4.4 Castings
4.4.1 Spheroidal graphite casting with strength of extension ??b???400N/mm2, elongation ??s???10% are recommended to be used for final drive housing (hereinafter referred to as carrier) and the left and right differential housing, plant carrier and hub. Technical requirements shall comply with the provisions of JB/T 5938; mechanical properties shall not be less than ZG270-500 cast steel for steel casting, and technical requirements shall comply with the provisions of the JB/T 5939.
4.4.2 Cast steel with mechanical properties no less than ZG270-500 are
recommended to be used for axle housing, and technical requirements shall comply with the provisions in JB/T 5939.
4.5 Requirements for machining parts
4.5.1 Axiality tolerance for planetary wheel axle hole of planetary carrier, cross axle diameter hole of differential housing, two bearing holes of driving gear and two bearing holes of driven gear on the bracket shall not be less than Grade 6. The rest shall not be less than the size tolerance grade.
4.5.2 Vertical position tolerance for two wheel lines (a distance apart for hyperbolic gear) in the bracket shall not be less than Grade 6; maximum allowed deviation for intersection and maximum allowed deviation for offset shall comply with the provisions of Table 17 of GB 11365-89 (namely, limit deviation for axial spacing).
4.5.3 Perpendicularity tolerance of two common axis of cross axle hole diameter in the differential carrier shall not be less than Grade 7, and those two common axis shall be in the same plane, and its position tolerance is 0.08mm.
4.5.4 The end face run-out tolerance of the end face counter shaft (hole) center-line shall comply with.
For the bearing block shoulder. Not less than Grade 7 for Grade G bearing, Grade 6 for Grade E bearing, and not less than Grade 8 for others.
4.5.5 Perpendicularity tolerance between base level and shaft center-line (hole) shall not be less than Grade 7, and parallelism tolerance between base level and shaft specifications, product certificate).

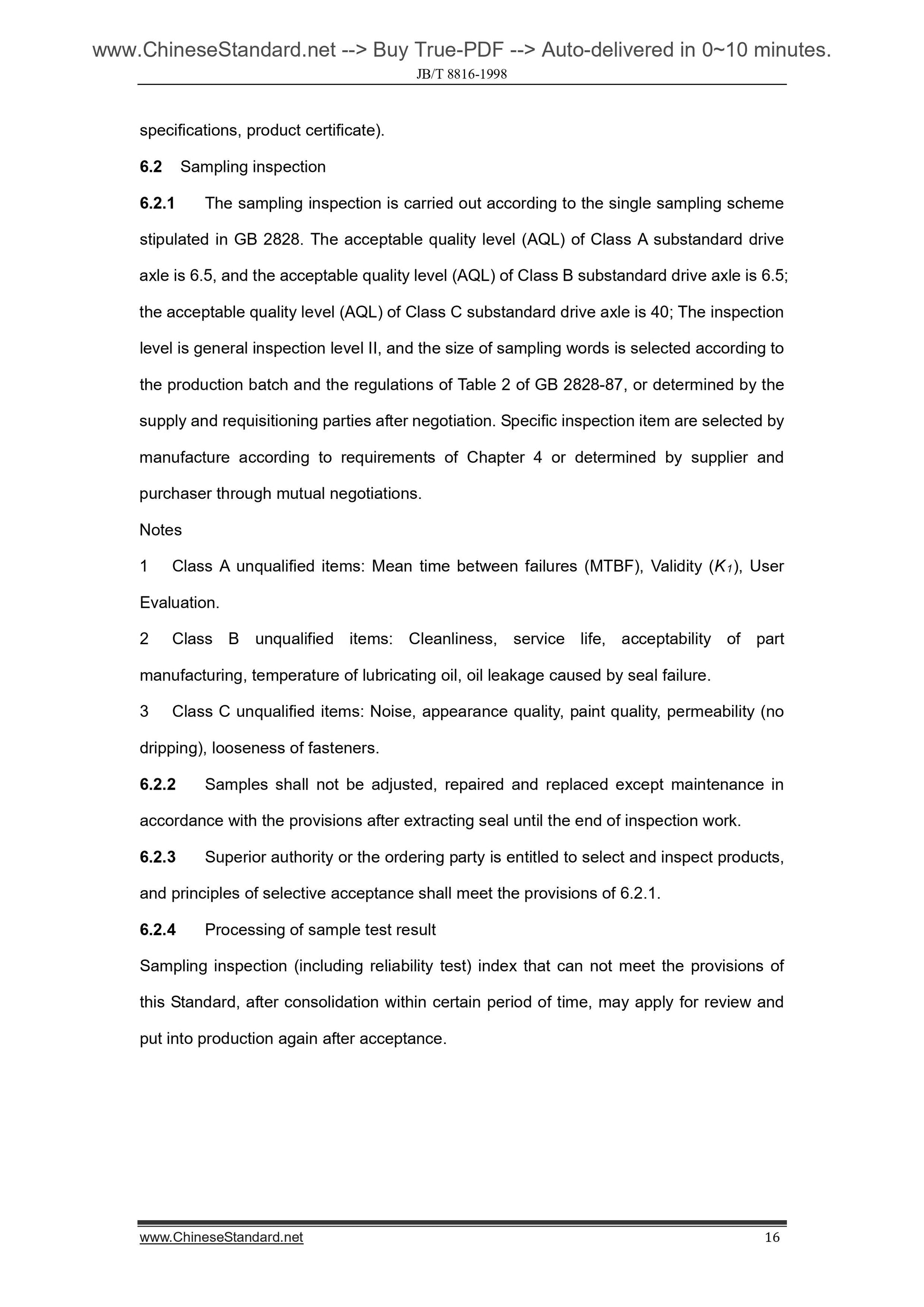

6.2 Sampling inspection
6.2.1 The sampling inspection is carried out according to the single sampling scheme stipulated in GB 2828. The acceptable quality level (AQL) of Class A substandard drive axle is 6.5, and the acceptable quality level (AQL) of Class B substandard drive axle is 6.5; the acceptable quality level (AQL) of Class C substandard drive axle is 40; The inspection level is general inspection level II, and the size of sampling words is selected according to the production batch and the regulations of Table 2 of GB 2828-87, or determined by the supply and requisitioning parties after negotiation. Specific inspection item are selected by manufacture according to requirements of Chapter 4 or determined by supplier and purchaser through mutual negotiations.
Notes
1 Class A unqualified items. Mean time between failures (MTBF), Validity (K1), User Evaluation.
2 Class B unqualified items. Cleanliness, service life, acceptability of part manufacturing, temperature of lubricating oil, oil leakage caused by seal failure. 3 Class C unqualified items. Noise, appearance quality, paint quality, permeability (no dripping), looseness of fasteners.
6.2.2 Samples shall not be adjusted, repaired and replaced except maintenance in accordance with the provisions after extracting seal until the end of inspection work. 6.2.3 Superior authority or the ordering party is entitled to select and inspect products, and principles of selective acceptance shall meet the provisions of 6.2.1. 6.2.4 Processing of sample test result
Sampling inspection (including reliability test) index that can not meet the provisions of this Standard, after consolidation within certain period of time, may apply for review and put into production again after acceptance.

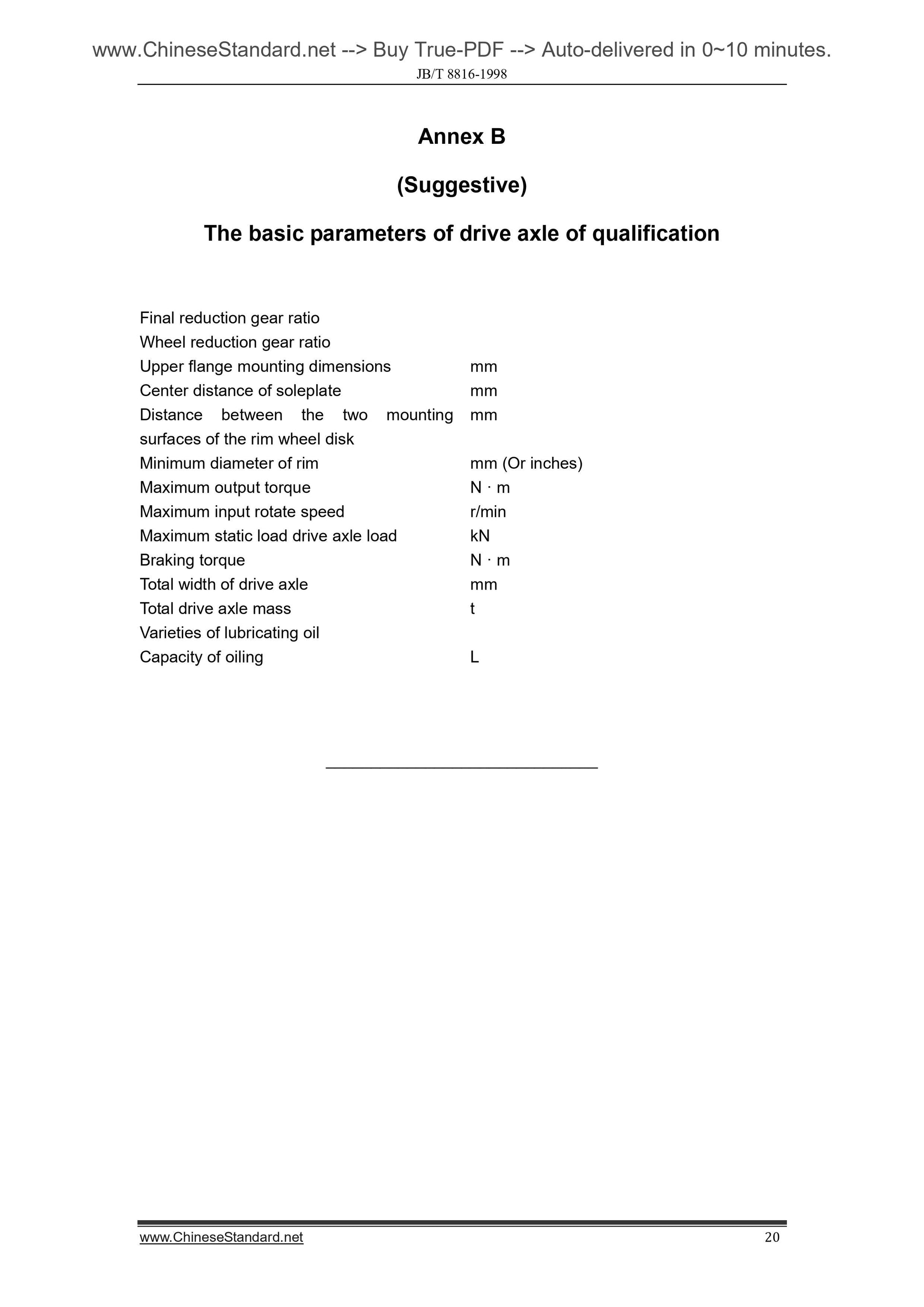

Annex B
(Suggestive)
The basic parameters of drive axle of qualification
Final reduction gear ratio
Wheel reduction gear ratio
Upper flange mounting dimensions mm
Center distance of soleplate mm
Distance between the two mounting
surfaces of the rim wheel disk
mm
Minimum diameter of rim mm (Or inches)
Maximum output torque N ?? m
Maximum input rotate speed r/min
Maximum static load drive axle load kN
Braking torque N ?? m
Total width of drive axle mm
Total drive axle mass t
Varieties of lubricating oil
Capacity of oiling L

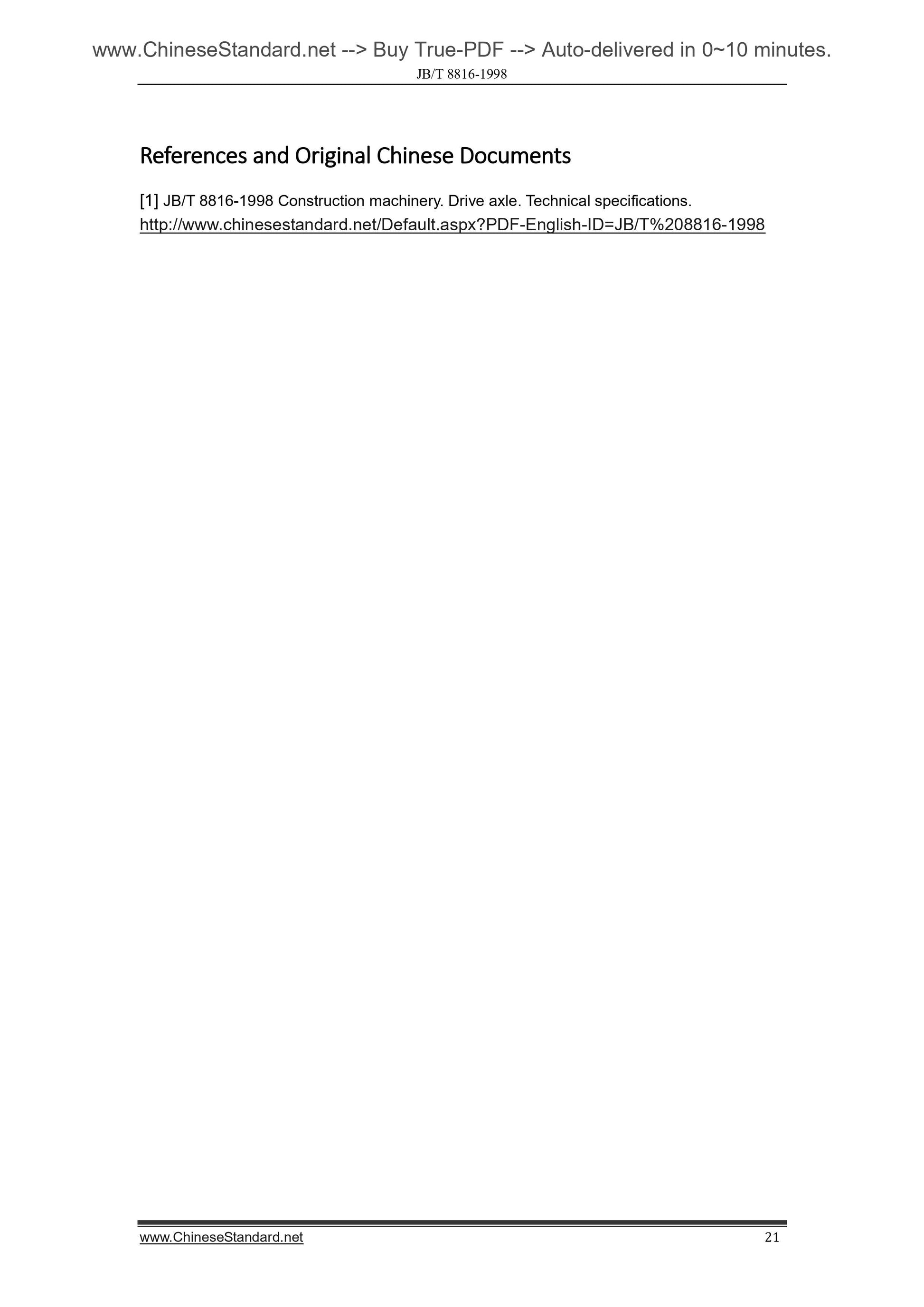

References and Original Chinese Documents
[1] JB/T 8816-1998 Construction machinery. Drive axle. Technical specifications.
