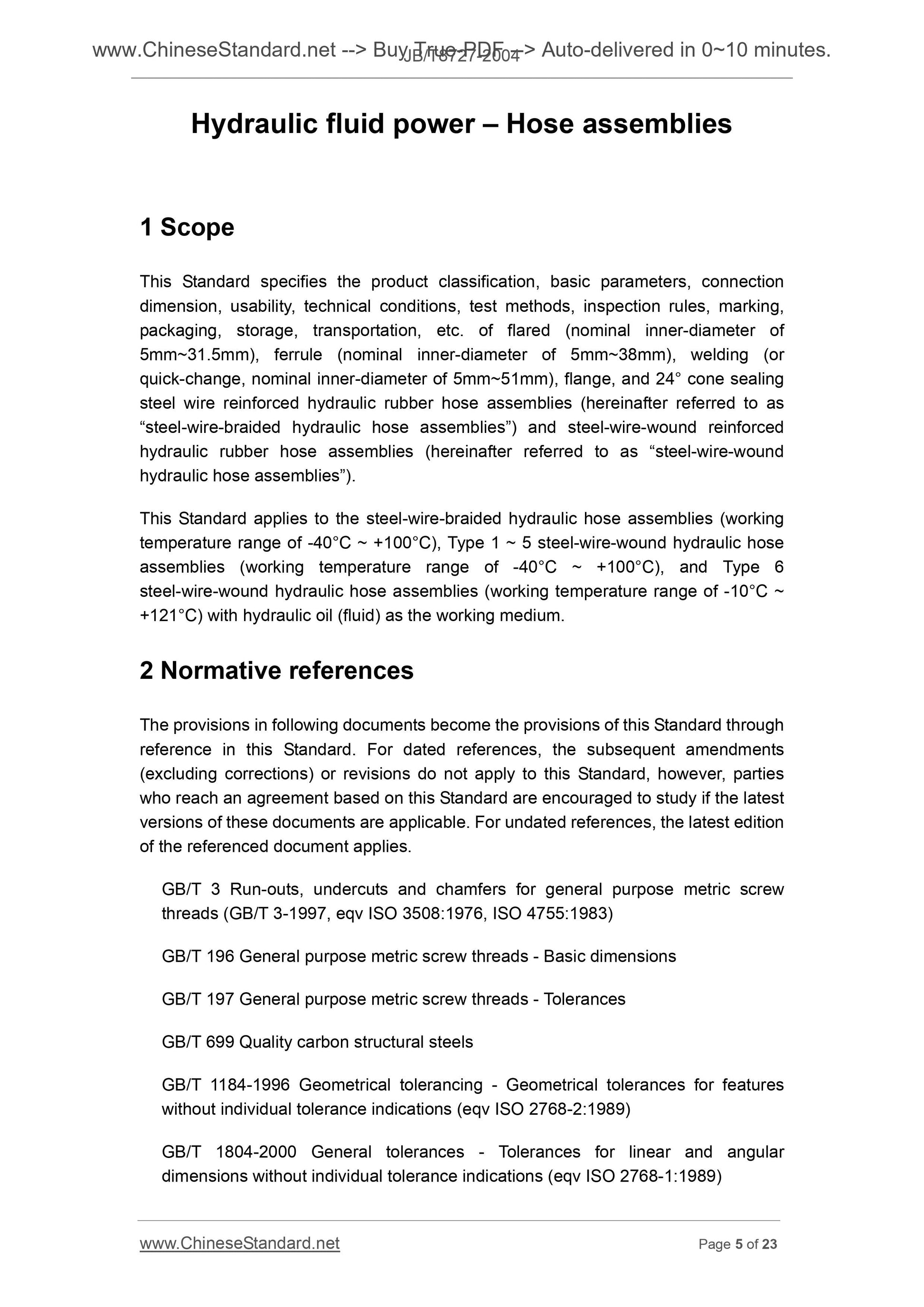

Scope

This Standard specifies the product classification, basic parameters, connection
dimension, usability, technical conditions, test methods, inspection rules, marking,
packaging, storage, transportation, etc. of flared (nominal inner-diameter of
5mm~31.5mm), ferrule (nominal inner-diameter of 5mm~38mm), welding (or
quick-change, nominal inner-diameter of 5mm~51mm), flange, and 24° cone sealing
steel wire reinforced hydraulic rubber hose assemblies (hereinafter referred to as
“steel-wire-braided hydraulic hose assemblies”) and steel-wire-wound reinforced
hydraulic rubber hose assemblies (hereinafter referred to as “steel-wire-wound
hydraulic hose assemblies”).
This Standard applies to the steel-wire-braided hydraulic hose assemblies (working
temperature range of -40°C ~ +100°C), Type 1 ~ 5 steel-wire-wound hydraulic hose
assemblies (working temperature range of -40°C ~ +100°C), and Type 6
steel-wire-wound hydraulic hose assemblies (working temperature range of -10°C ~
+121°C) with hydraulic oil (fluid) as the working medium.

Basic Data

Standard ID	JB/T 8727-2004 (JB/T8727-2004)
Description (Translated English)	Hydraulic fluid power - Hose assemblies
Sector / Industry	Mechanical and Machinery Industry Standard (Recommended)
Classification of Chinese Standard	J20
Classification of International Standard	23.100.30
Word Count Estimation	18,123
Date of Issue	2004-10-20
Date of Implementation	2005-04-01
Older Standard (superseded by this standard)	JB/T 8727-1998; JB/T 8885-1999
Quoted Standard	GB/T 3; GB/T 196; GB/T 197; GB/T 699; GB/T 1184-1996; GB/T 1804-2000; GB/T 2828.1; GB/T 3103.1; GB/T 3683; GB/T 7935; GB/T 7939; GB/T 9576; GB/T 9577; GB/T 10544; GB/T 17446; JB/T 7858; ISO 6162-1994; ISO 8434-4-1995
Regulation (derived from)	Development and Reform Bulletin (04/61)
Summary	This standard specifies nominal inside diameter was 5mm ~ 31. 5mm flared, 5mm ~ 38mm card sets, 5mm ~ 51mm welding (or quick), flange, 24 �� cone sealed steel reinforced hydraulic rubber hose assembly (hereinafter referred to as steel wire braided hydraulic hose assemblies), wire reinforced rubber cover hydraulic rubber hose assembly (hereinafter referred to as wire spiral hydraulic hose assemblies) product classification, the basic parameters of the connection size, performance, technical requirements, test methods, inspection rules, marking, packaging, storage, transportation. This standard applies to with hydraulic oil (liquid) as the working medium, operating temperature ranges of -40 �� ~ +100 �� wire braided hydraulic hose assemblies, 1-5 type wire spiral hydraulic hose assembly, -10 �� ~ +121 �� 6 type wire spiral hydraulic hose assemblies.
