JB/T 8693-2015 English PDF (JBT8693-2015)

JB/T 8693-2015 English PDF (JBT8693-2015)

Regular price $505.00 USD
Regular price Sale price $505.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here JB/T 8693-2015 to get it for Purchase Approval, Bank TT...

JB/T 8693-2015: Large and medium scale air separation plants

This standard specifies the terms and definitions, product classification and model, technical requirements, exit-factory inspection, on-site inspection, marking, packaging, transportation, storage of large and medium scale air separation plants.
JB/T 8693-2015

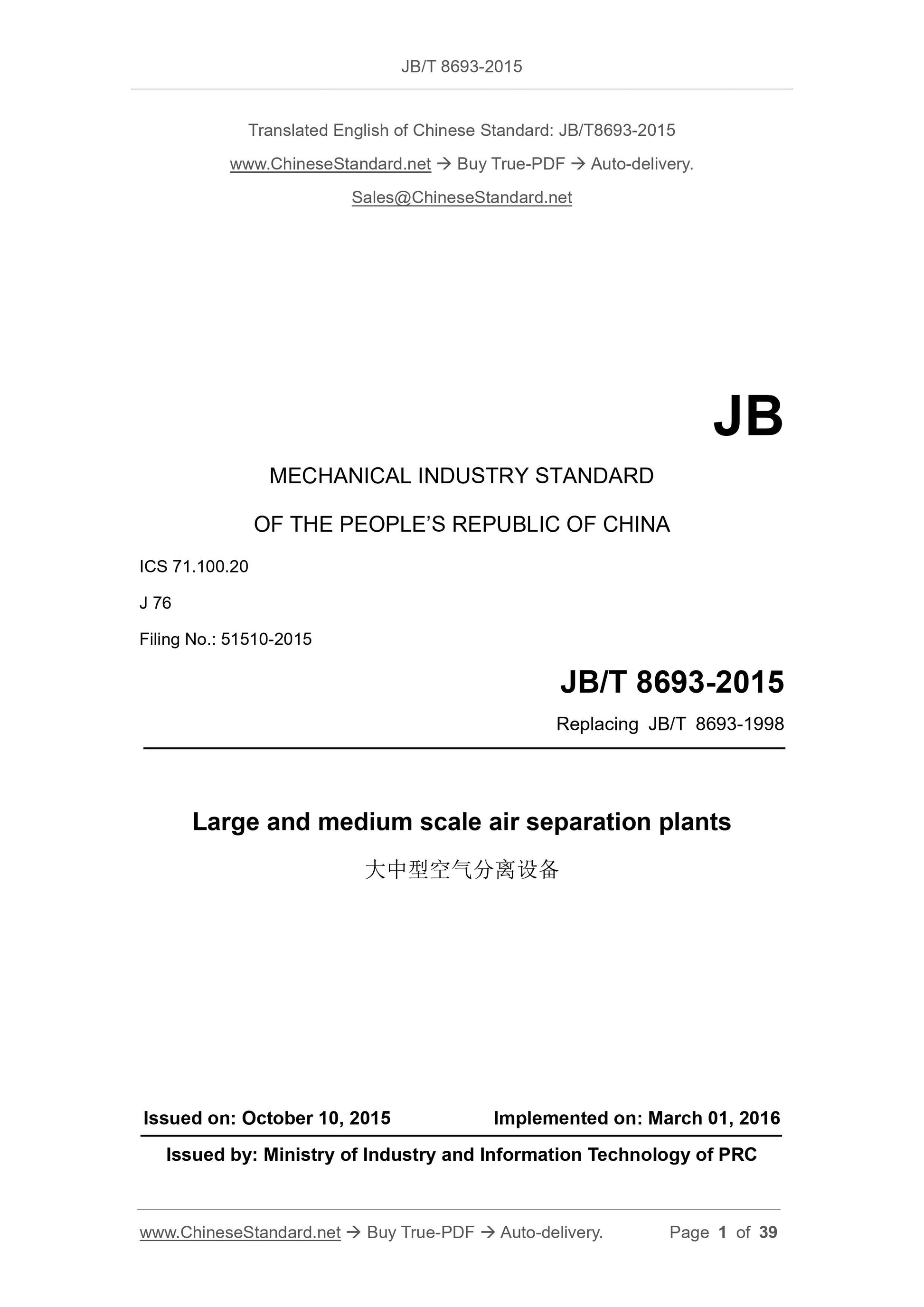

JB
MECHANICAL INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 71.100.20
J 76
Filing No.: 51510-2015
Replacing JB/T 8693-1998
Large and medium scale air separation plants
ISSUED ON: OCTOBER 10, 2015
IMPLEMENTED ON: MARCH 01, 2016
Issued by: Ministry of Industry and Information Technology of PRC

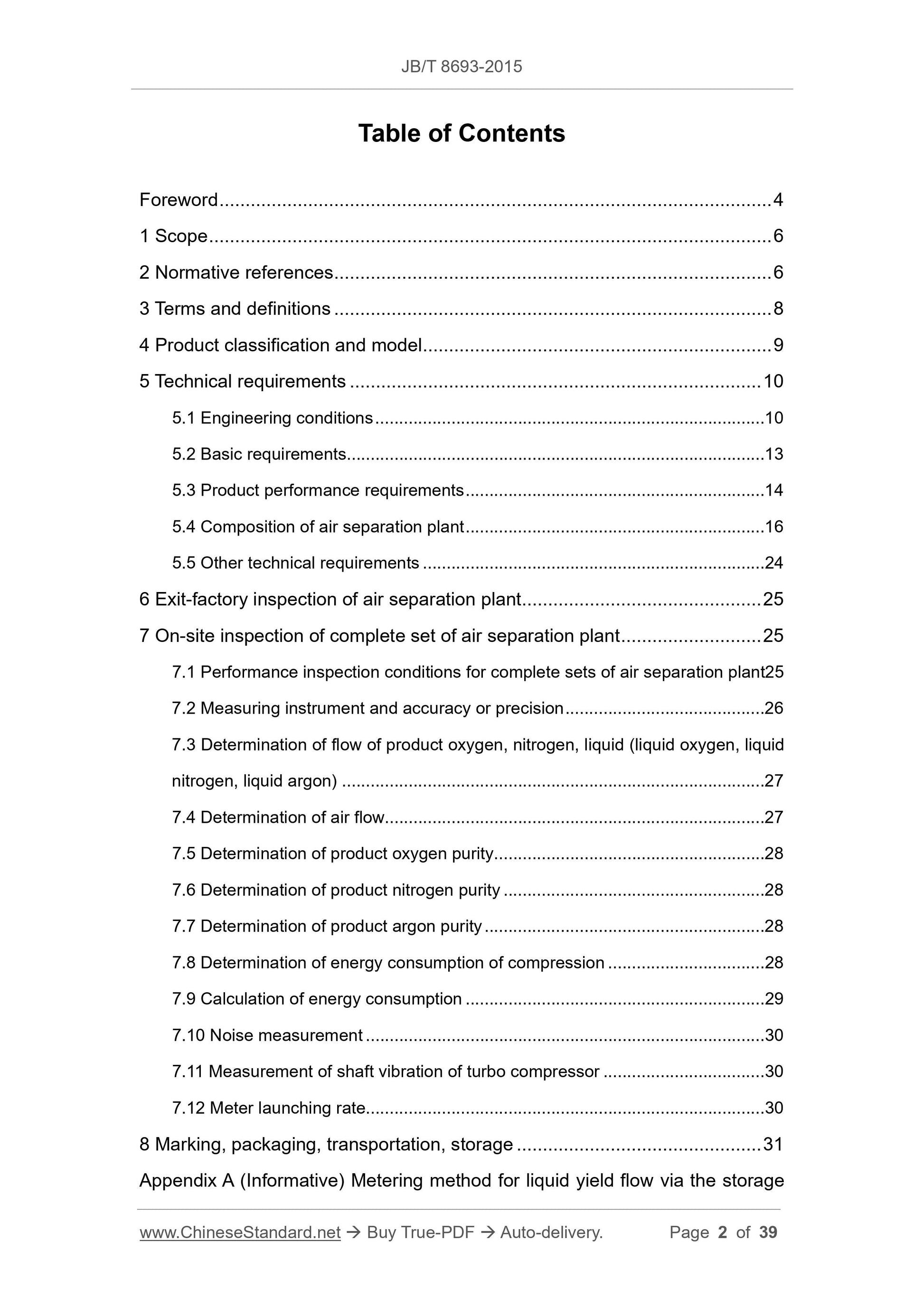

Table of Contents
Foreword ... 4
1 Scope ... 6
2 Normative references ... 6
3 Terms and definitions ... 8
4 Product classification and model ... 9
5 Technical requirements ... 10
5.1 Engineering conditions ... 10
5.2 Basic requirements... 13
5.3 Product performance requirements ... 14
5.4 Composition of air separation plant ... 16
5.5 Other technical requirements ... 24
6 Exit-factory inspection of air separation plant ... 25
7 On-site inspection of complete set of air separation plant ... 25
7.1 Performance inspection conditions for complete sets of air separation plant25 7.2 Measuring instrument and accuracy or precision ... 26
7.3 Determination of flow of product oxygen, nitrogen, liquid (liquid oxygen, liquid nitrogen, liquid argon) ... 27
7.4 Determination of air flow... 27
7.5 Determination of product oxygen purity ... 28
7.6 Determination of product nitrogen purity ... 28
7.7 Determination of product argon purity ... 28
7.8 Determination of energy consumption of compression ... 28
7.9 Calculation of energy consumption ... 29
7.10 Noise measurement ... 30
7.11 Measurement of shaft vibration of turbo compressor ... 30
7.12 Meter launching rate... 30
8 Marking, packaging, transportation, storage ... 31

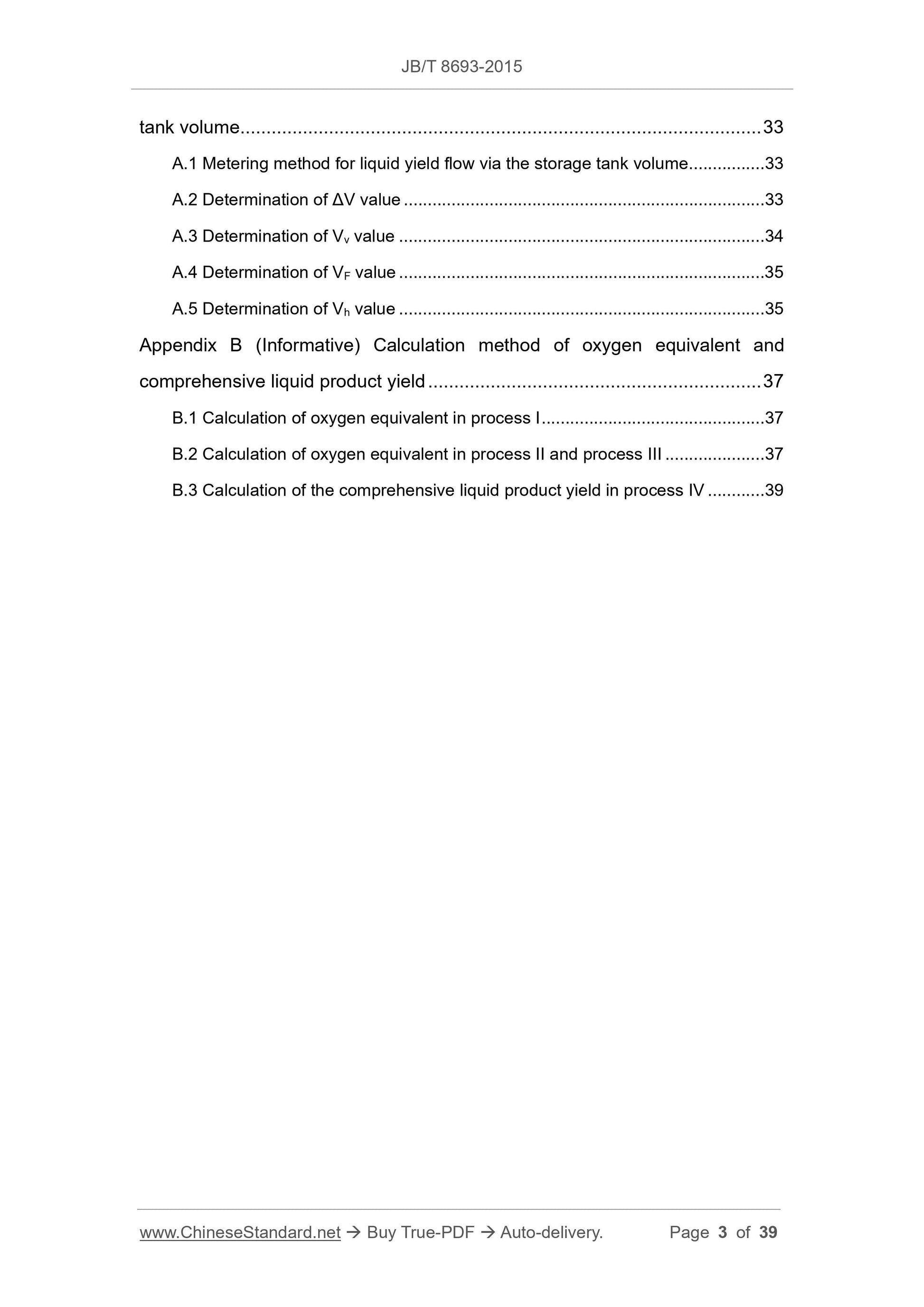

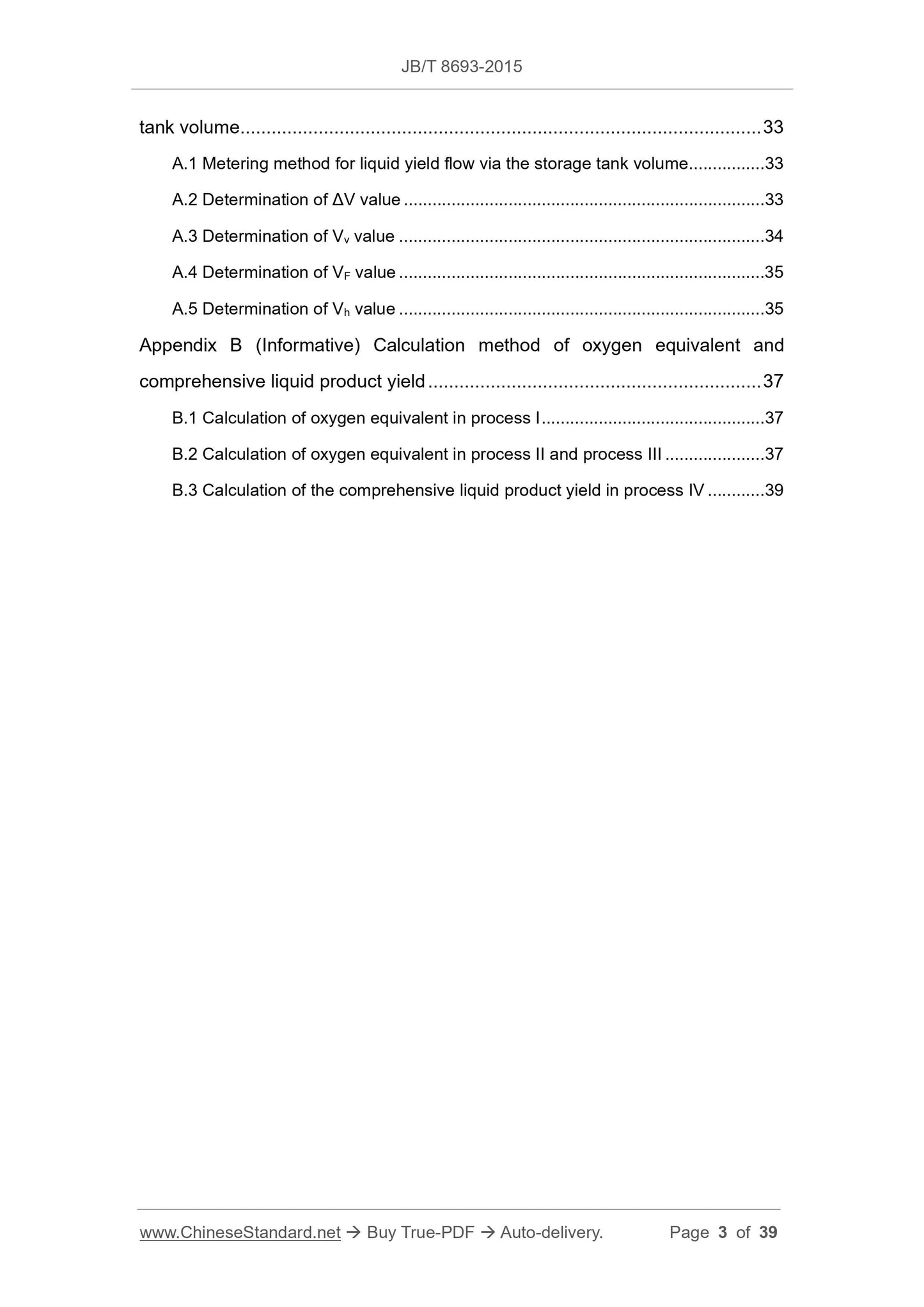

Appendix A (Informative) Metering method for liquid yield flow via the storage tank volume... 33
A.1 Metering method for liquid yield flow via the storage tank volume ... 33 A.2 Determination of ??V value ... 33
A.3 Determination of Vv value ... 34
A.4 Determination of VF value ... 35
A.5 Determination of Vh value ... 35
Appendix B (Informative) Calculation method of oxygen equivalent and
comprehensive liquid product yield ... 37
B.1 Calculation of oxygen equivalent in process I ... 37
B.2 Calculation of oxygen equivalent in process II and process III ... 37 B.3 Calculation of the comprehensive liquid product yield in process IV ... 39 Large and medium scale air separation plants

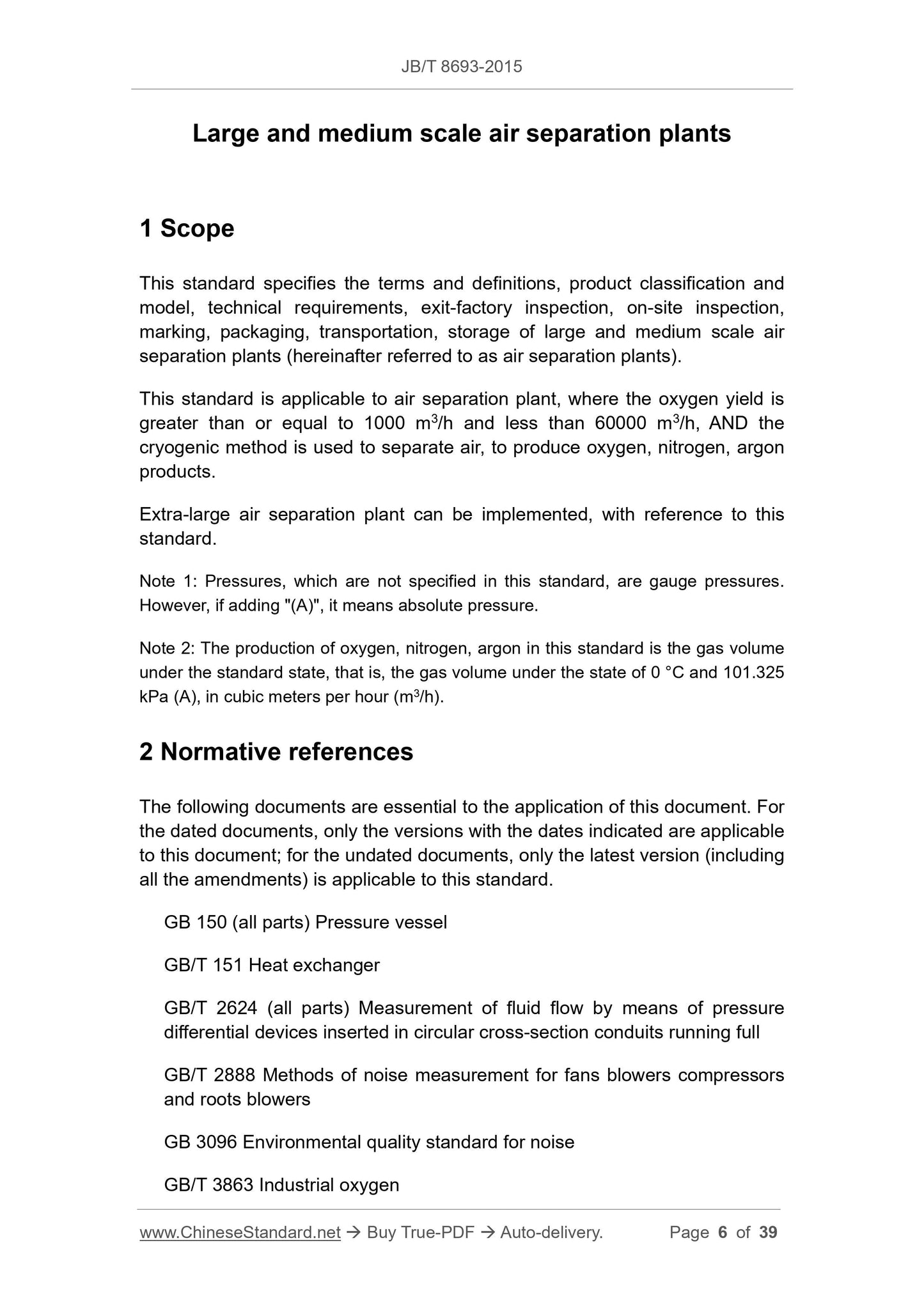

1 Scope
This standard specifies the terms and definitions, product classification and model, technical requirements, exit-factory inspection, on-site inspection, marking, packaging, transportation, storage of large and medium scale air separation plants (hereinafter referred to as air separation plants).
This standard is applicable to air separation plant, where the oxygen yield is greater than or equal to 1000 m3/h and less than 60000 m3/h, AND the
cryogenic method is used to separate air, to produce oxygen, nitrogen, argon products.
Extra-large air separation plant can be implemented, with reference to this standard.
Note 1: Pressures, which are not specified in this standard, are gauge pressures. However, if adding "(A)", it means absolute pressure.
Note 2: The production of oxygen, nitrogen, argon in this standard is the gas volume under the standard state, that is, the gas volume under the state of 0 ??C and 101.325 kPa (A), in cubic meters per hour (m3/h).
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard.
GB 150 (all parts) Pressure vessel
GB/T 151 Heat exchanger
GB/T 2624 (all parts) Measurement of fluid flow by means of pressure
differential devices inserted in circular cross-section conduits running full GB/T 2888 Methods of noise measurement for fans blowers compressors
and roots blowers
GB 3096 Environmental quality standard for noise
GB/T 3863 Industrial oxygen

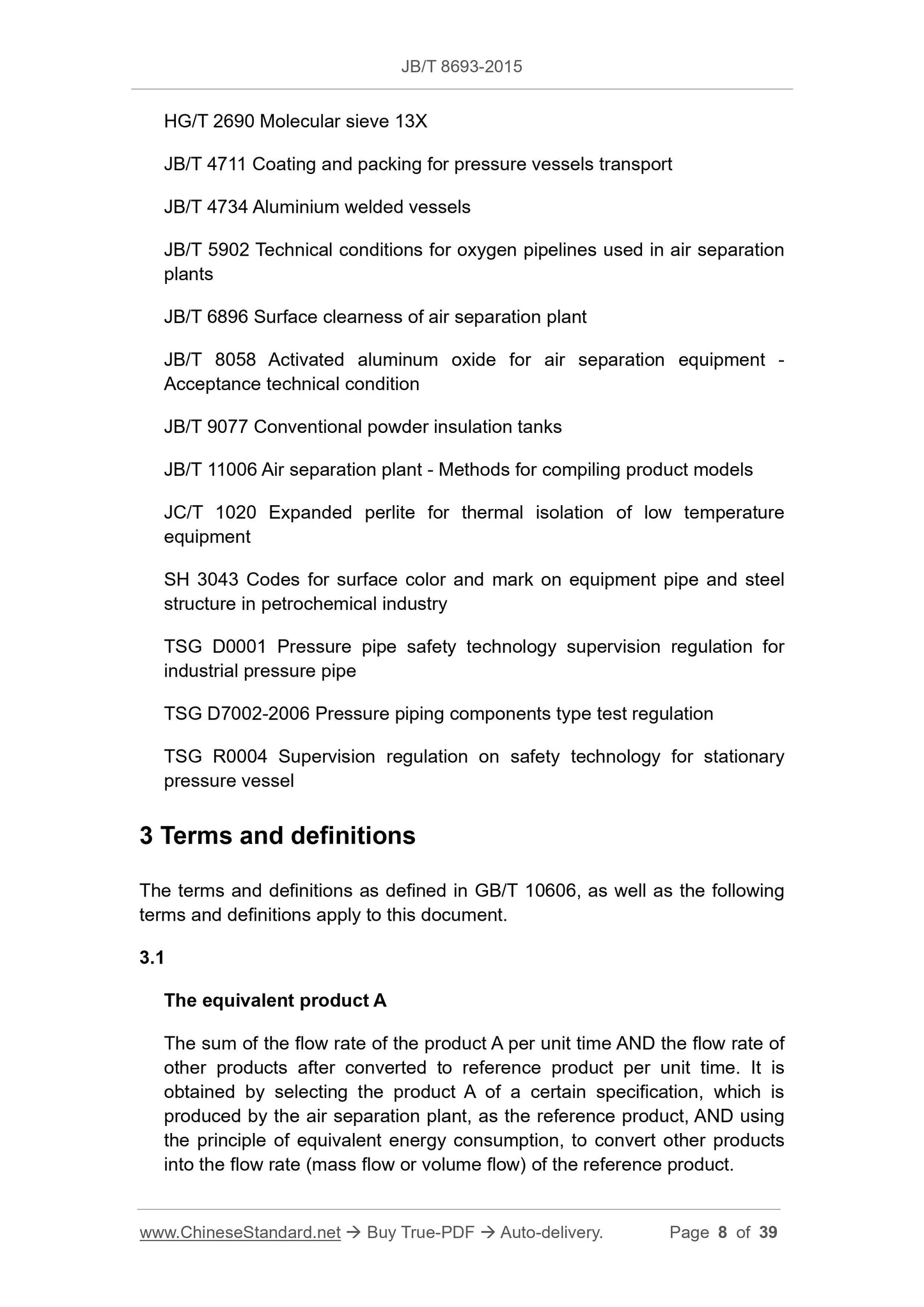

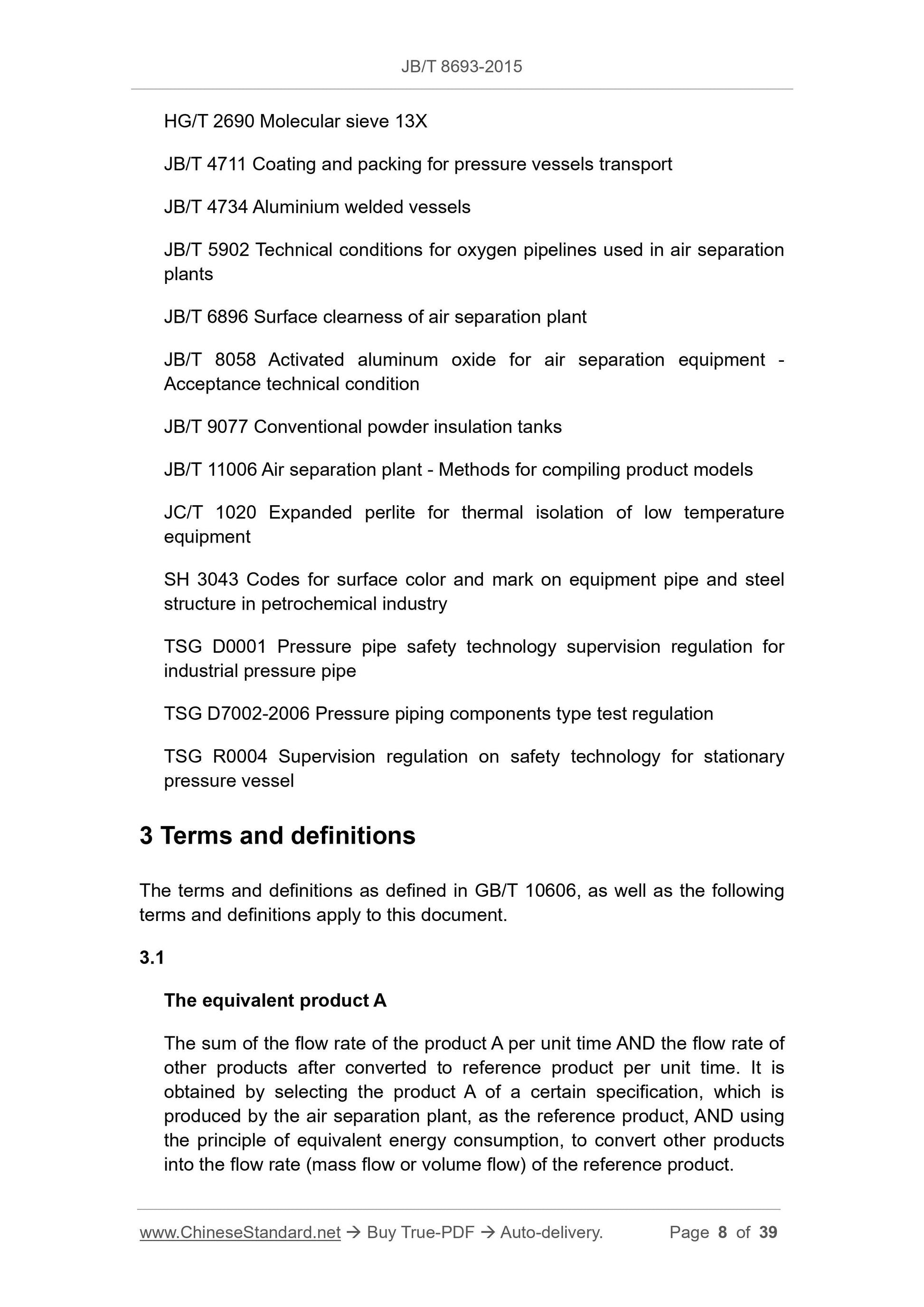

HG/T 2690 Molecular sieve 13X
JB/T 4711 Coating and packing for pressure vessels transport
JB/T 4734 Aluminium welded vessels
JB/T 5902 Technical conditions for oxygen pipelines used in air separation plants
JB/T 6896 Surface clearness of air separation plant
JB/T 8058 Activated aluminum oxide for air separation equipment -
Acceptance technical condition
JB/T 9077 Conventional powder insulation tanks
JB/T 11006 Air separation plant - Methods for compiling product models
JC/T 1020 Expanded perlite for thermal isolation of low temperature
equipment
SH 3043 Codes for surface color and mark on equipment pipe and steel
structure in petrochemical industry
TSG D0001 Pressure pipe safety technology supervision regulation for
industrial pressure pipe
TSG D7002-2006 Pressure piping components type test regulation
TSG R0004 Supervision regulation on safety technology for stationary
pressure vessel
3 Terms and definitions
The terms and definitions as defined in GB/T 10606, as well as the following terms and definitions apply to this document.
3.1
The equivalent product A
The sum of the flow rate of the product A per unit time AND the flow rate of other products after converted to reference product per unit time. It is obtained by selecting the product A of a certain specification, which is produced by the air separation plant, as the reference product, AND using the principle of equivalent energy consumption, to convert other products into the flow rate (mass flow or volume flow) of the reference product. air pre-cooling and purification; air pressurization; air expansion at medium pressure; feeding the structured packing into tower; compressing the liquid oxygen and reheating it out of the cold box, which is referred to as process II;

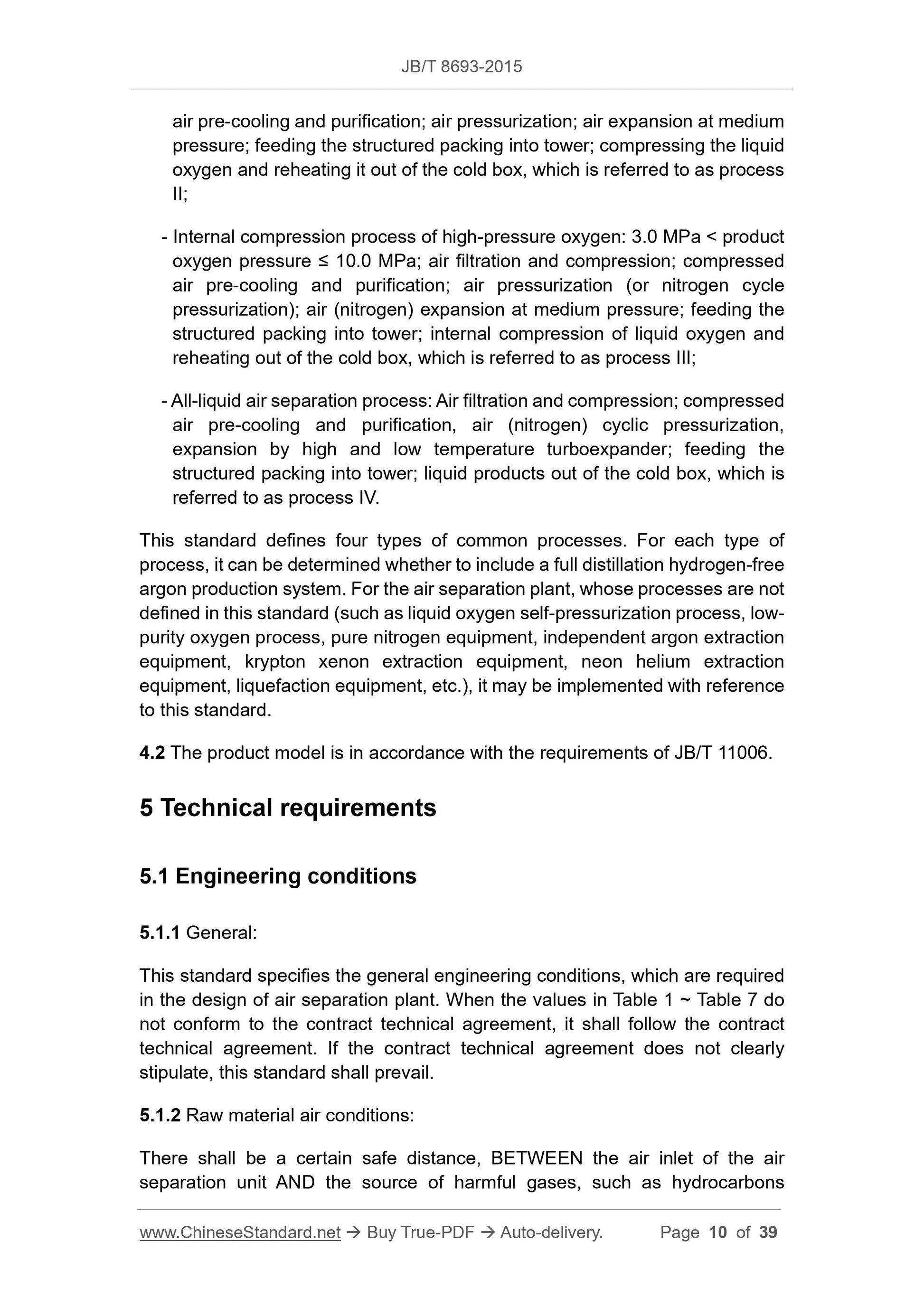

- Internal compression process of high-pressure oxygen: 3.0 MPa < product oxygen pressure ??? 10.0 MPa; air filtration and compression; compressed
air pre-cooling and purification; air pressurization (or nitrogen cycle pressurization); air (nitrogen) expansion at medium pressure; feeding the structured packing into tower; internal compression of liquid oxygen and reheating out of the cold box, which is referred to as process III;
- All-liquid air separation process: Air filtration and compression; compressed air pre-cooling and purification, air (nitrogen) cyclic pressurization, expansion by high and low temperature turboexpander; feeding the
structured packing into tower; liquid products out of the cold box, which is referred to as process IV.
This standard defines four types of common processes. For each type of
process, it can be determined whether to include a full distillation hydrogen-free argon production system. For the air separation plant, whose processes are not defined in this standard (such as liquid oxygen self-pressurization process, low- purity oxygen process, pure nitrogen equipment, independent argon extraction equipment, krypton xenon extraction equipment, neon helium extraction
equipment, liquefaction equipment, etc.), it may be implemented with reference to this standard.
4.2 The product model is in accordance with the requirements of JB/T 11006. 5 Technical requirements
5.1 Engineering conditions
5.1.1 General:
This standard specifies the general engineering conditions, which are required in the design of air separation plant. When the values in Table 1 ~ Table 7 do not conform to the contract technical agreement, it shall follow the contract technical agreement. If the contract technical agreement does not clearly stipulate, this standard shall prevail.
5.1.2 Raw material air conditions:
There shall be a certain safe distance, BETWEEN the air inlet of the air separation unit AND the source of harmful gases, such as hydrocarbons

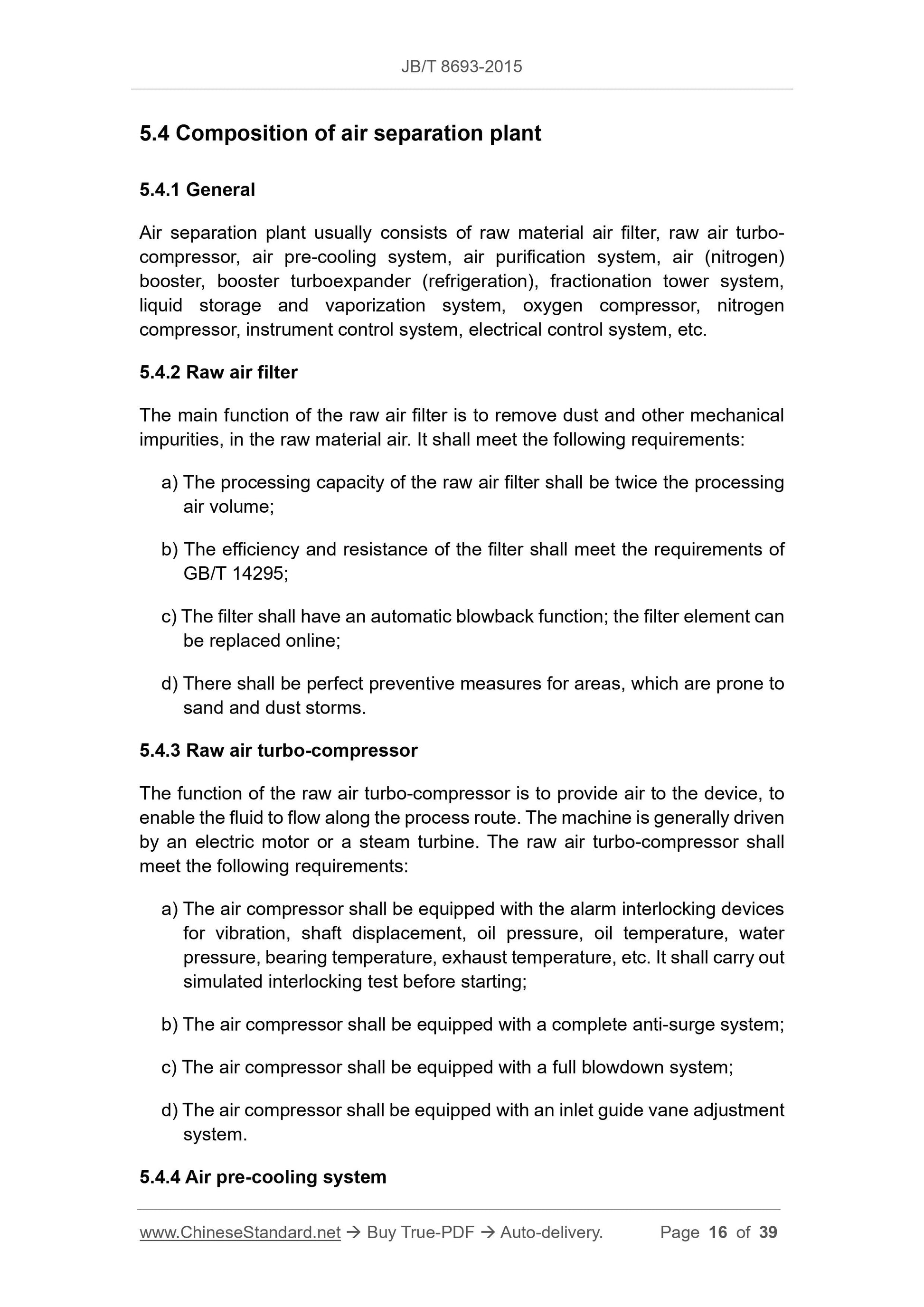

5.4 Composition of air separation plant
5.4.1 General
Air separation plant usually consists of raw material air filter, raw air turbo- compressor, air pre-cooling system, air purification system, air (nitrogen) booster, booster turboexpander (refrigeration), fractionation tower system, liquid storage and vaporization system, oxygen compressor, nitrogen
compressor, instrument control system, electrical control system, etc.
5.4.2 Raw air filter
The main function of the raw air filter is to remove dust and other mechanical impurities, in the raw material air. It shall meet the following requirements: a) The processing capacity of the raw air filter shall be twice the processing air volume;
b) The efficiency and resistance of the filter shall meet the requirements of GB/T 14295;
c) The filter shall have an automatic blowback function; the filter element can be replaced online;
d) There shall be perfect preventive measures for areas, which are prone to sand and dust storms.
5.4.3 Raw air turbo-compressor
The function of the raw air turbo-compressor is to provide air to the device, to enable the fluid to flow along the process route. The machine is generally driven by an electric motor or a steam turbine. The raw air turbo-compressor shall meet the following requirements:
a) The air compressor shall be equipped with the alarm interlocking devices for vibration, shaft displacement, oil pressure, oil temperature, water pressure, bearing temperature, exhaust temperature, etc. It shall carry out simulated interlocking test before starting;
b) The air compressor shall be equipped with a complete anti-surge system; c) The air compressor shall be equipped with a full blowdown system;
d) The air compressor shall be equipped with an inlet guide vane adjustment system.
5.4.4 Air pre-cooling system

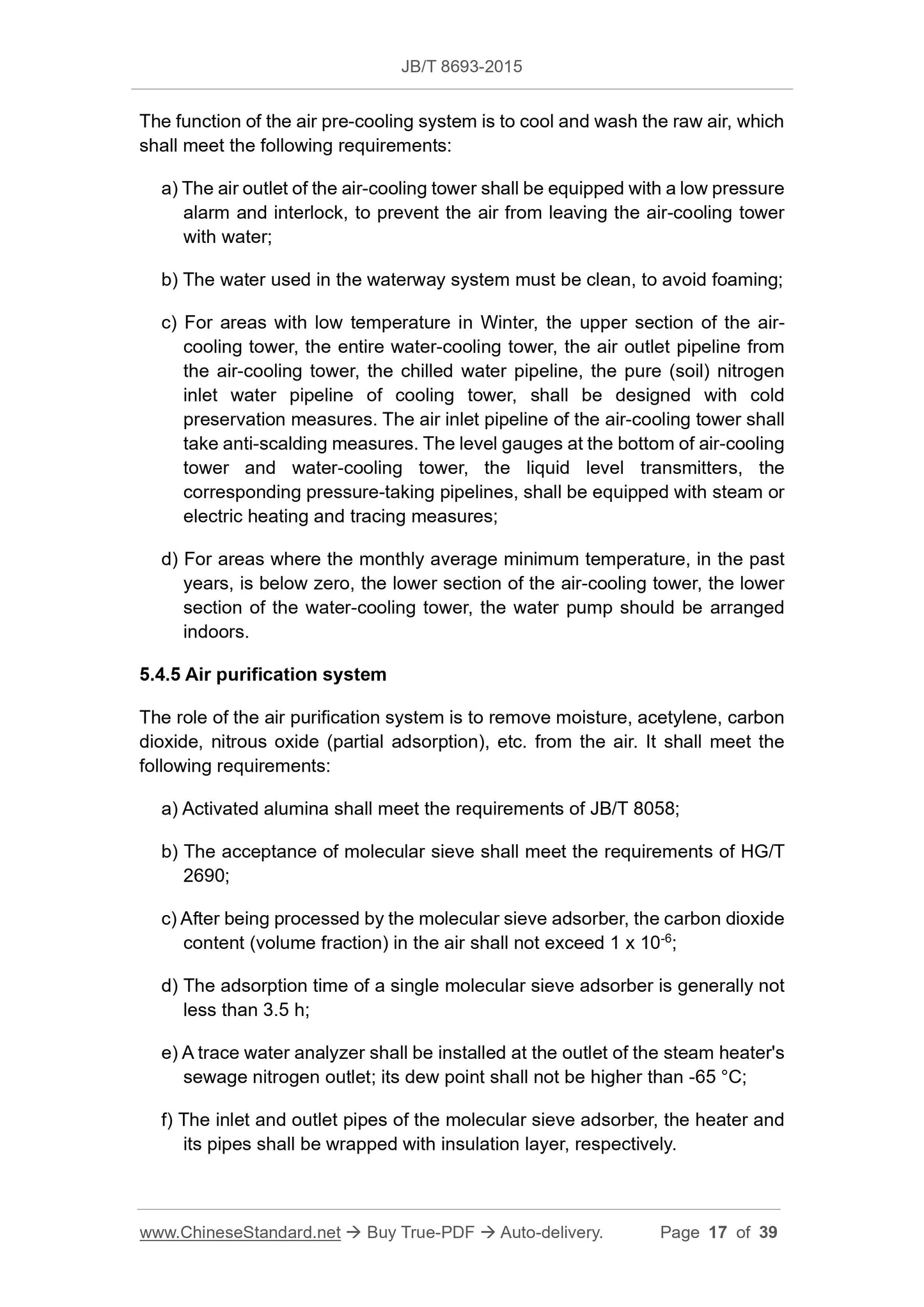

The function of the air pre-cooling system is to cool and wash the raw air, which shall meet the following requirements:
a) The air outlet of the air-cooling tower shall be equipped with a low pressure alarm and interlock, to prevent the air from leaving the air-cooling tower with water;
b) The water used in the waterway system must be clean, to avoid foaming; c) For areas with low temperature in Winter, the upper section of the air- cooling tower, the entire water-cooling tower, the air outlet pipeline from the air-cooling tower, the chilled water pipeline, the pure (soil) nitrogen inlet water pipeline of cooling tower, shall be designed with cold
preservation measures. The air inlet pipeline of the air-cooling tower shall take anti-scalding measures. The level gauges at the bottom of air-cooling tower and water-cooling tower, the liquid level transmitters, the
corresponding pressure-taking pipelines, shall be equipped with steam or electric heating and tracing measures;
d) For areas where the monthly average minimum temperature, in the past years, is below zero, the lower section of the air-cooling tower, the lower section of the water-cooling tower, the water pump should be arranged
indoors.
5.4.5 Air purification system
The role of the air purification system is to remove moisture, acetylene, carbon dioxide, nitrous oxide (partial adsorption), etc. from the air. It shall meet the following requirements:
a) Activated alumina shall meet the requirements of JB/T 8058;
b) The acceptance of molecular sieve shall meet the requirements of HG/T 2690;
c) After being processed by the molecular sieve adsorber, the carbon dioxide content (volume fraction) in the air shall not exceed 1 x 10-6;
d) The adsorption time of a single molecular sieve adsorber is generally not less than 3.5 h;
e) A trace water analyzer shall be installed at the outlet of the steam heater's sewage nitrogen outlet; its dew point shall not be higher than -65 ??C;
f) The inlet and outlet pipes of the molecular sieve adsorber, the heater and its pipes shall be wrapped with insulation layer, respectively.

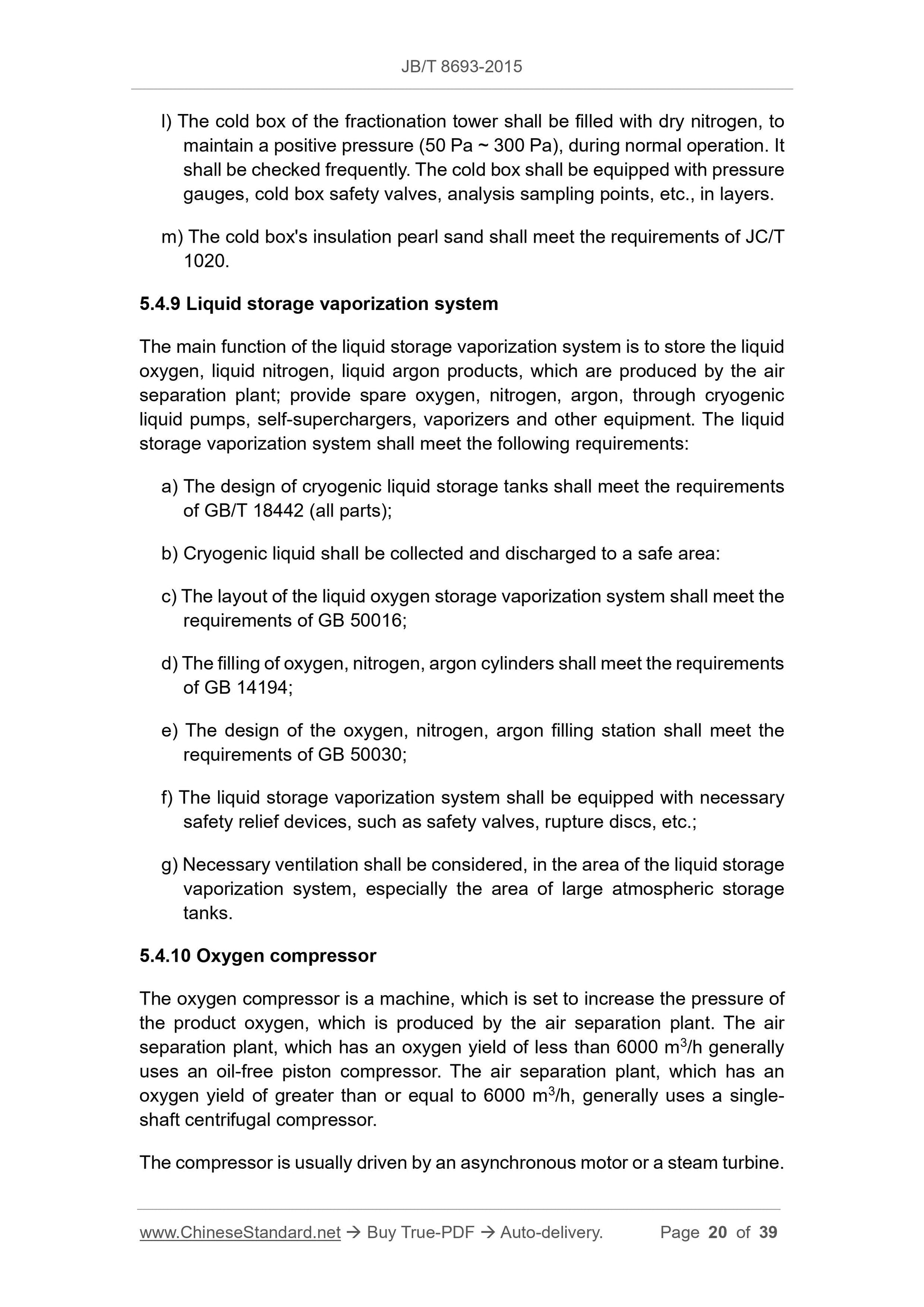

l) The cold box of the fractionation tower shall be filled with dry nitrogen, to maintain a positive pressure (50 Pa ~ 300 Pa), during normal operation. It shall be checked frequently. The cold box shall be equipped with pressure gauges, cold box safety valves, analysis sampling points, etc., in layers. m) The cold box's insulation pearl sand shall meet the requirements of JC/T 1020.
5.4.9 Liquid storage vaporization system
The main function of the liquid storage vaporization system is to store the liquid oxygen, liquid nitrogen, liquid argon products, which are produced by the air separation plant; provide spare oxygen, nitrogen, argon, through cryogenic liquid pumps, self-superchargers, vaporizers and other equipment. The liquid storage vaporization system shall meet the following requirements:
a) The design of cryogenic liquid storage tanks shall meet the requirements of GB/T 18442 (all parts);
b) Cryogenic liquid shall be collected and discharged to a safe area:
c) The layout of the liquid oxygen storage vaporization system shall meet the requirements of GB 50016;
d) The filling of oxygen, nitrogen, argon cylinders shall meet the requirements of GB 14194;
e) The design of the oxygen, nitrogen, argon filling station shall meet the requirements of GB 50030;
f) The liquid storage vaporization system shall be equipped with necessary safety relief devices, such as safety valves, rupture discs, etc.;
g) Necessary ventilation shall be considered, in the area of the liquid storage vaporization system, especially the area of large atmospheric storage
tanks.
5.4.10 Oxygen compressor
The oxygen compressor is a machine, which is set to increase the pressure of the product oxygen, which is produced by the air separation plant. The air separation plant, which has an oxygen yield of less than 6000 m3/h generally uses an oil-free piston compressor. The air separation plant, which has an oxygen yield of greater than or equal to 6000 m3/h, generally uses a single- shaft centrifugal compressor.
The compressor is usually driven by an asynchronous motor or a steam turbine. It is generally not allowed to be driven by a synchronous motor. The turbo oxygen compressor shall meet the following requirements:

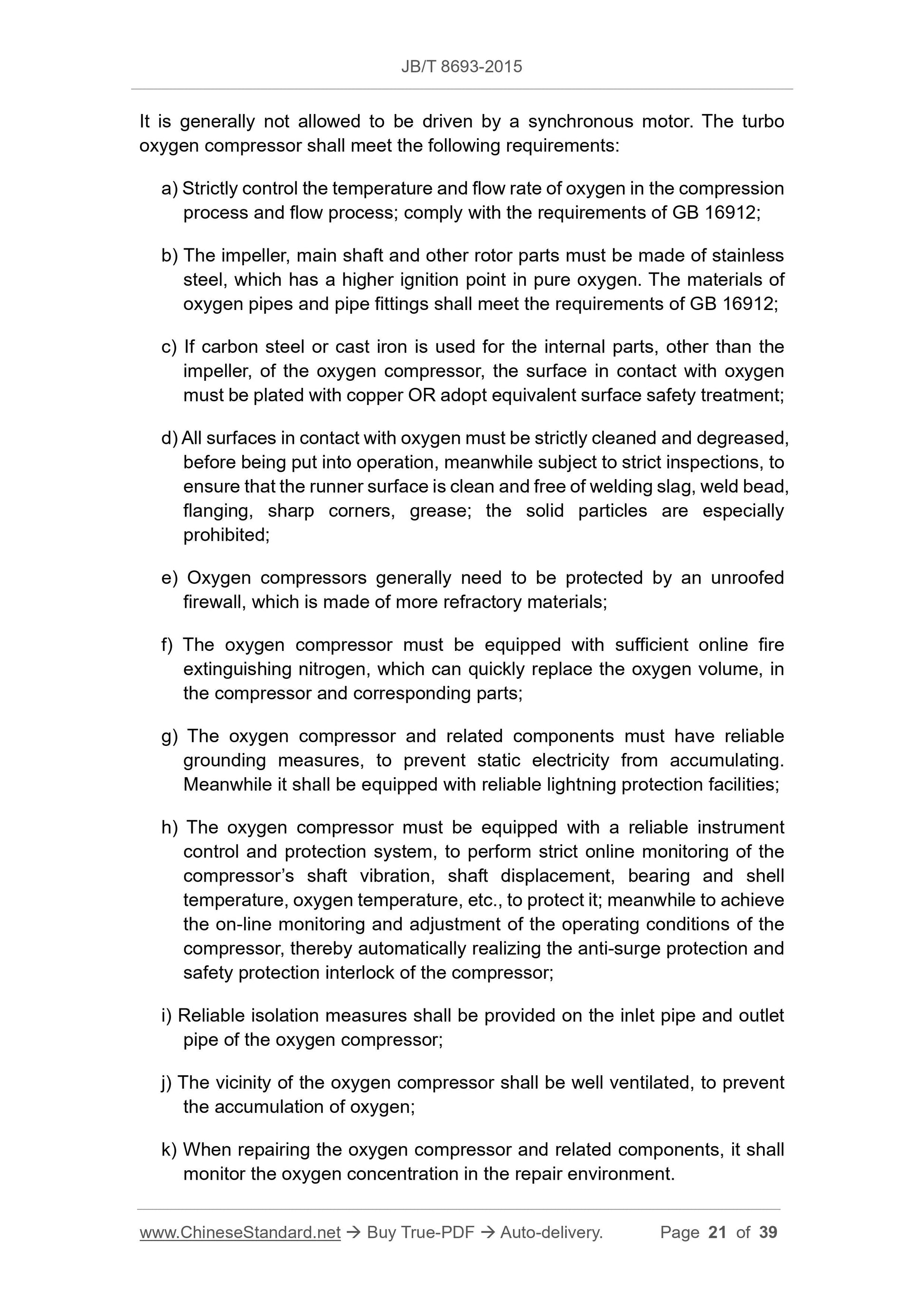

a) Strictly control the temperature and flow rate of oxygen in the compression process and flow process; comply with the requirements of GB 16912;
b) The impeller, main shaft and other rotor parts must be made of stainless steel, which has a higher ignition point in pure oxygen. The materials of oxygen pipes and pipe fittings shall meet the requirements of GB 16912; c) If carbon steel or cast iron is used for the internal parts, other than the impeller, of the oxygen compressor, the surface in contact with oxygen
must be plated with copper OR adopt equivalent surface safety treatment; d) All surfaces in contact with oxygen must be strictly cleaned and degreased, before being put into operation, meanwhile subject to strict inspections, to ensure that the runner surface is clean and free of welding slag, weld bead, flanging, sharp corners, grease; the solid particles are especially
prohibited;
e) Oxygen compressors generally need to be protected by an unroofed
firewall, which is made of more refractory materials;
f) The oxygen compressor must be equipped with sufficient online fire
extinguishing nitrogen, which can quickly replace the oxygen volume, in the compressor and corresponding parts;
g) The oxygen compressor and related components must have reliable
grounding measures, to prevent static electricity from accumulating.
Meanwhile it shall be equipped with reliable lightning protection facilities; h) The oxygen compressor must be equipped with a reliable instrument
control and protection system, to perform strict online monitoring of the compressor?€?s shaft vibration, shaft displacement, bearing and shell
temperature, oxygen temperature, etc., to protect it; meanwhile to achieve the on-line monitoring and adjustment of the operating conditions of the compressor, thereby automatically realizing the anti-surge protection and safety protection interlock of the compressor;
i) Reliable isolation measures shall be provided on the inlet pipe and outlet pipe of the oxygen compressor;
j) The vicinity of the oxygen compressor shall be well ventilated, to prevent the accumulation of oxygen;
k) When repairing the oxygen compressor and related components, it shall monitor the oxygen concentration in the repair environment.

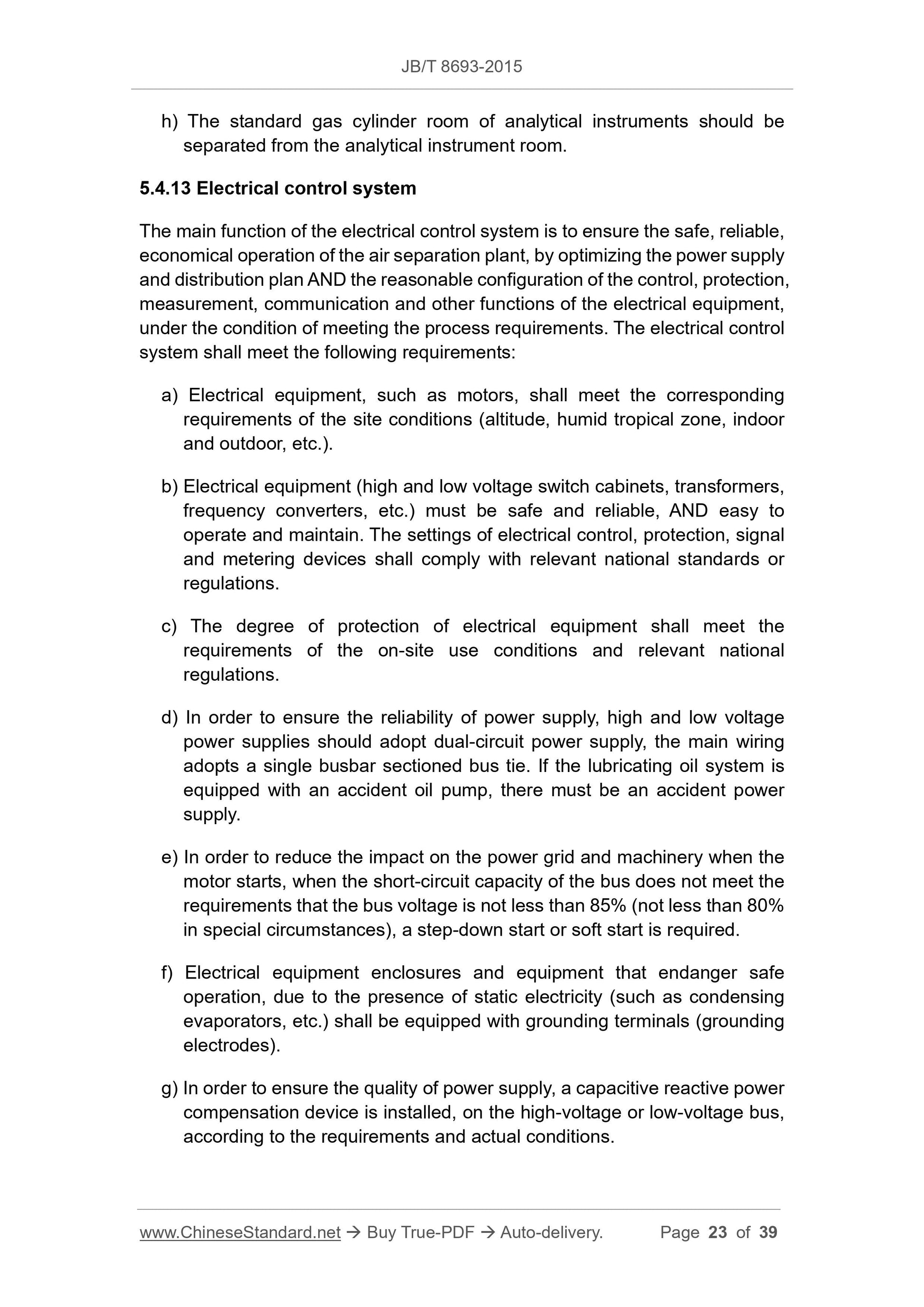

h) The standard gas cylinder room of analytical instruments should be
separated from the analytical instrument room.
5.4.13 Electrical control system
The main function of the electrical control system is to ensure the safe, reliable, economical operation of the air separation plant, by optimizing the power supply and distribution plan AND the reasonable configuration of the control, protection, measurement, communication and other functions of the electrical equipment, under the condition of meeting the process requirements. The electrical control system shall meet the following requirements:
a) Electrical equipment, such as motors, shall meet the corresponding
requirements of the site conditions (altitude, humid tropical zone, indoor and outdoor, etc.).
b) Electrical equipment (high and low voltage switch cabinets, transformers, frequency converters, etc.) must be safe and reliable, AND easy to
operate and maintain. The settings of electrical control, protection, signal and metering devices shall comply with relevant national standards or
regulations.
c) The degree of protection of electrical equipment shall meet the
requirements of the on-site use conditions and relevant national
regulations.
d) In order to ensure the reliability of power supply, high and low voltage power supplies should adopt dual-circuit power supply, the main wiring
adopts a single busbar sectioned bus tie. If the lubricating oil system is equipped with an accident oil pump, there must be an accident power
supply.
e) In order to reduce the impact on the power grid and machinery when the motor starts, when the short-circuit capacity of the bus does not meet the requirements that the bus voltage is not less than 85% (not less than 80% in special circumstances), a step-down start or soft start is required. f) Electrical equipment enclosures and equipment that endanger safe
operation, due to the presence of static electricity (such as condensing evaporators, etc.) shall be equipped with grounding terminals (grounding electrodes).
g) In order to ensure the quality of power supply, a capacitive reactive power compensation device is installed, on the high-voltage or low-voltage bus, according to the requirements and actual conditions.

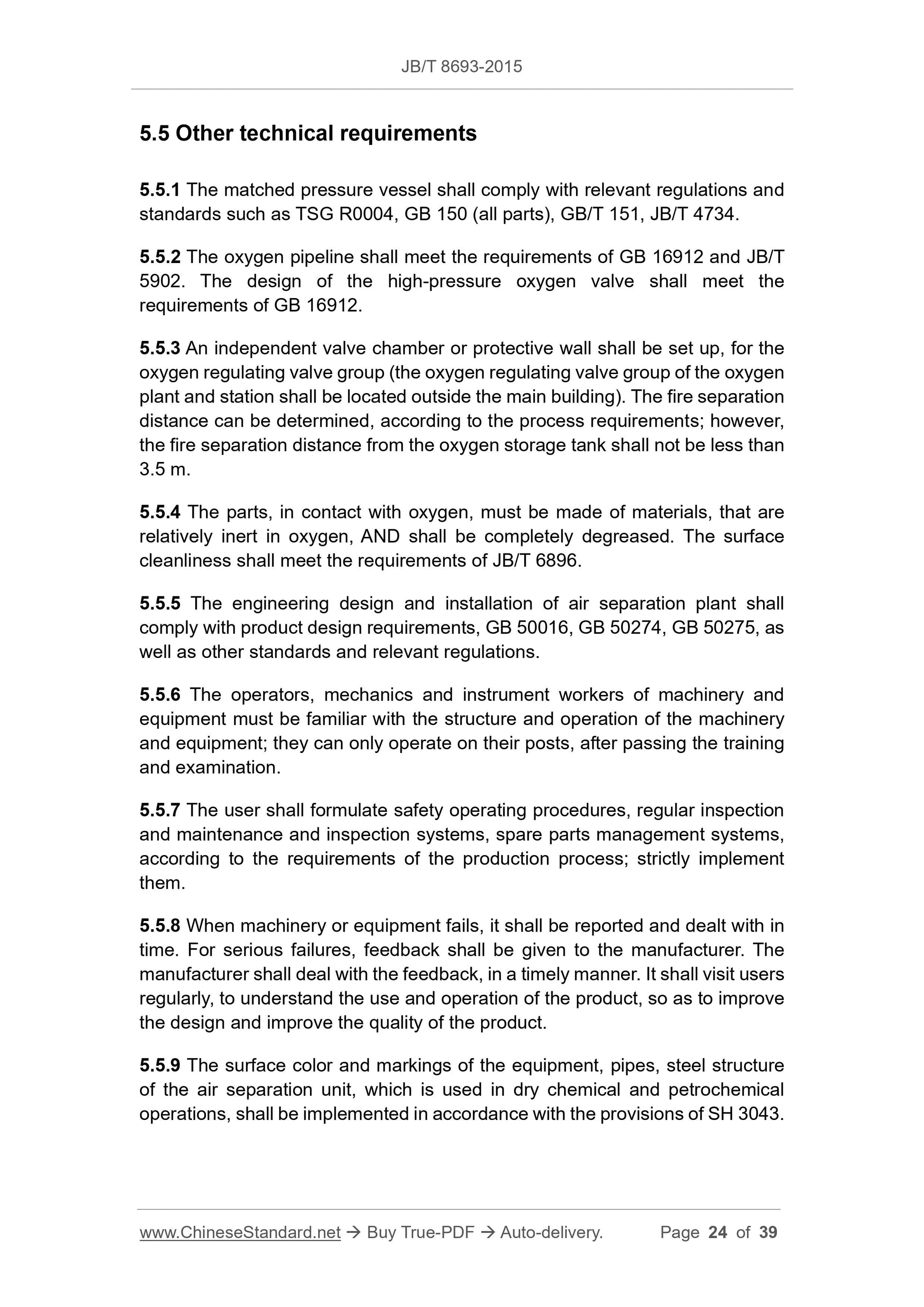

5.5 Other technical requirements
5.5.1 The matched pressure vessel shall comply with relevant regulations and standards such as TSG R0004, GB 150 (all parts), GB/T 151, JB/T 4734.
5.5.2 The oxygen pipeline shall meet the requirements of GB 16912 and JB/T 5902. The design of the high-pressure oxygen valve shall meet the
requirements of GB 16912.
5.5.3 An independent valve chamber or protective wall shall be set up, for the oxygen regulating valve group (the oxygen regulating valve group of the oxygen plant and station shall be located outside the main building). The fire separation distance can be determined, according to the process requirements; however, the fire separation distance from the oxygen storage tank shall not be less than 3.5 m.
5.5.4 The parts, in contact with oxygen, must be made of materials, that are rel...
