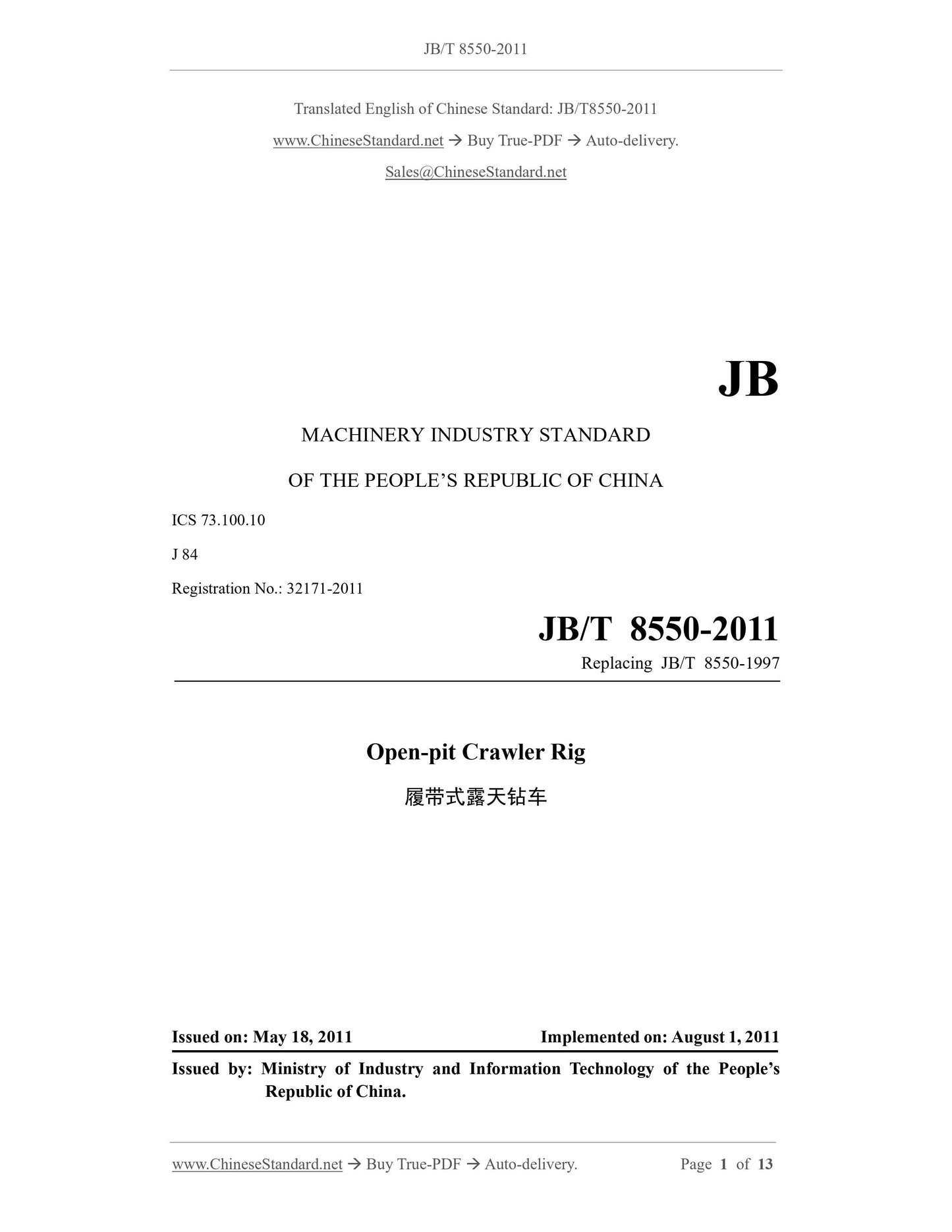

JB/T 8550-2011
JB
MACHINERY INDUSTRY STANDARD
ICS 73.100.10
J 84
Registration No.. 32171-2011
Replacing JB/T 8550-1997
Open-pit Crawler Rig
ISSUED ON. MAY 18, 2011
IMPLEMENTED ON. AUGUST 1, 2011
Issued by. Ministry of Industry and Information Technology of the People’s
Republic of China.

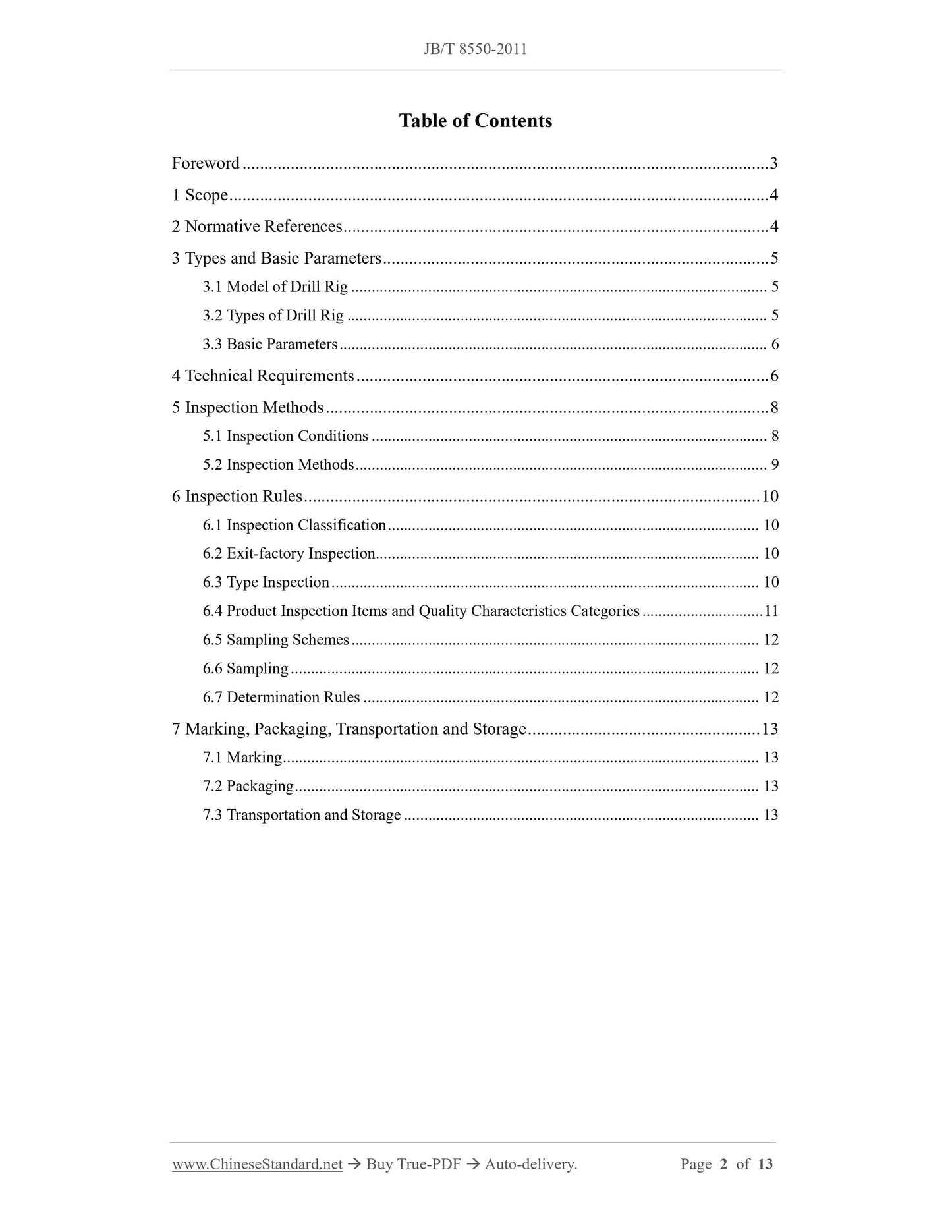

Table of Contents
Foreword... 3
1 Scope... 4
2 Normative References... 4
3 Types and Basic Parameters... 5
3.1 Model of Drill Rig... 5
3.2 Types of Drill Rig... 5
3.3 Basic Parameters... 6
4 Technical Requirements... 6
5 Inspection Methods... 8
5.1 Inspection Conditions... 8
5.2 Inspection Methods... 9
6 Inspection Rules... 10
6.1 Inspection Classification... 10
6.2 Exit-factory Inspection... 10
6.3 Type Inspection... 10
6.4 Product Inspection Items and Quality Characteristics Categories... 11
6.5 Sampling Schemes... 12
6.6 Sampling... 12
6.7 Determination Rules... 12
7 Marking, Packaging, Transportation and Storage... 13
7.1 Marking... 13
7.2 Packaging... 13
7.3 Transportation and Storage... 13

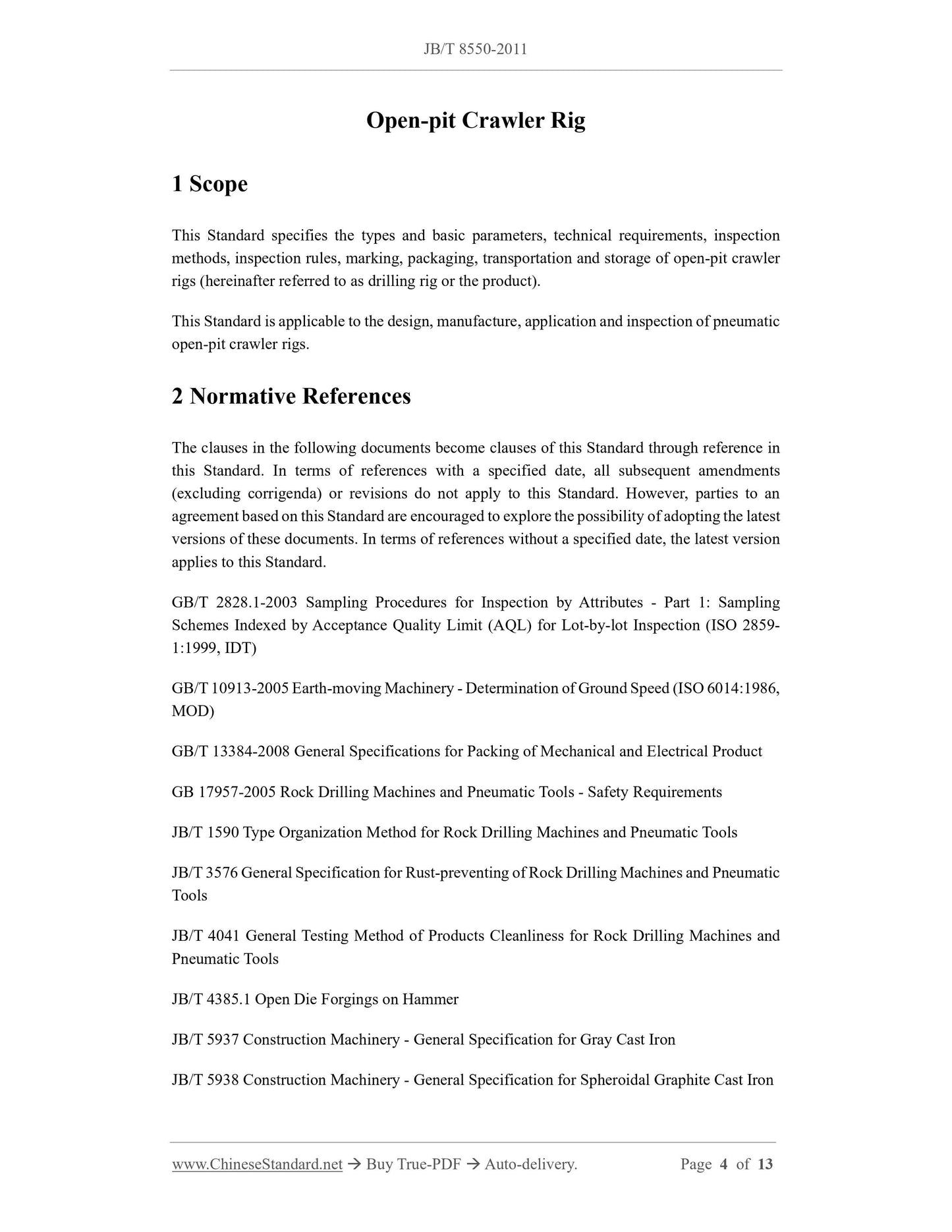

Open-pit Crawler Rig
1 Scope
This Standard specifies the types and basic parameters, technical requirements, inspection
methods, inspection rules, marking, packaging, transportation and storage of open-pit crawler
rigs (hereinafter referred to as drilling rig or the product).
This Standard is applicable to the design, manufacture, application and inspection of pneumatic
open-pit crawler rigs.
2 Normative References
The clauses in the following documents become clauses of this Standard through reference in
this Standard. In terms of references with a specified date, all subsequent amendments
(excluding corrigenda) or revisions do not apply to this Standard. However, parties to an
agreement based on this Standard are encouraged to explore the possibility of adopting the latest
versions of these documents. In terms of references without a specified date, the latest version
applies to this Standard.
GB/T 2828.1-2003 Sampling Procedures for Inspection by Attributes - Part 1.Sampling
Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection (ISO 2859-
1.1999, IDT)
GB/T 10913-2005 Earth-moving Machinery - Determination of Ground Speed (ISO 6014.1986,
MOD)
GB/T 13384-2008 General Specifications for Packing of Mechanical and Electrical Product
GB 17957-2005 Rock Drilling Machines and Pneumatic Tools - Safety Requirements
JB/T 1590 Type Organization Method for Rock Drilling Machines and Pneumatic Tools
JB/T 3576 General Specification for Rust-preventing of Rock Drilling Machines and Pneumatic
Tools
JB/T 4041 General Testing Method of Products Cleanliness for Rock Drilling Machines and
Pneumatic Tools
JB/T 4385.1 Open Die Forgings on Hammer
JB/T 5937 Construction Machinery - General Specification for Gray Cast Iron
JB/T 5938 Construction Machinery - General Specification for Spheroidal Graphite Cast Iron

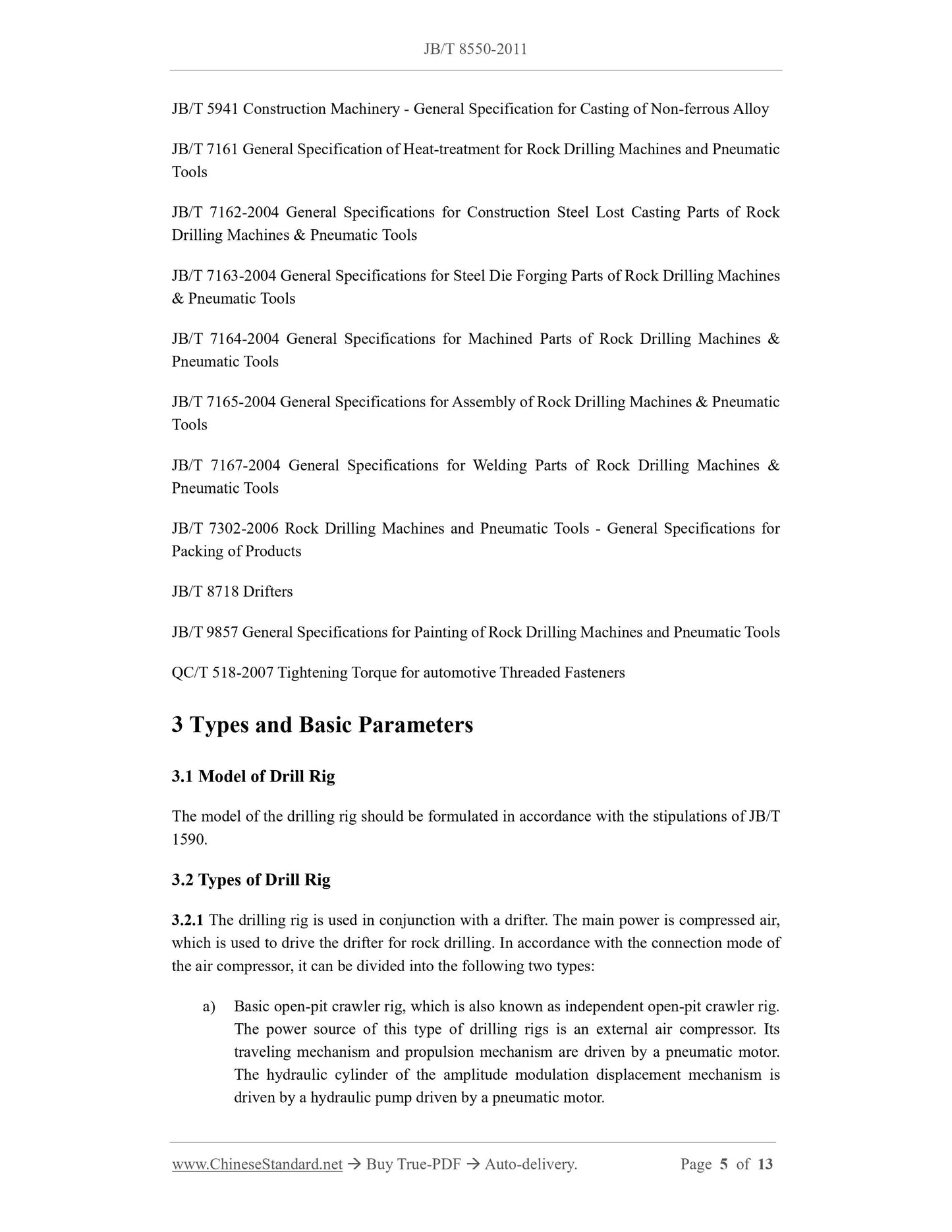

JB/T 5941 Construction Machinery - General Specification for Casting of Non-ferrous Alloy
JB/T 7161 General Specification of Heat-treatment for Rock Drilling Machines and Pneumatic
Tools
JB/T 7162-2004 General Specifications for Construction Steel Lost Casting Parts of Rock
Drilling Machines and Pneumatic Tools
JB/T 7163-2004 General Specifications for Steel Die Forging Parts of Rock Drilling Machines
and Pneumatic Tools
JB/T 7164-2004 General Specifications for Machined Parts of Rock Drilling Machines and
Pneumatic Tools
JB/T 7165-2004 General Specifications for Assembly of Rock Drilling Machines and Pneumatic
Tools
JB/T 7167-2004 General Specifications for Welding Parts of Rock Drilling Machines and
Pneumatic Tools
JB/T 7302-2006 Rock Drilling Machines and Pneumatic Tools - General Specifications for
Packing of Products
JB/T 8718 Drifters
JB/T 9857 General Specifications for Painting of Rock Drilling Machines and Pneumatic Tools
QC/T 518-2007 Tightening Torque for automotive Threaded Fasteners
3 Types and Basic Parameters
3.1 Model of Drill Rig
The model of the drilling rig should be formulated in accordance with the stipulations of JB/T
1590.
3.2 Types of Drill Rig
3.2.1 The drilling rig is used in conjunction with a drifter. The main power is compressed air,
which is used to drive the drifter for rock drilling. In accordance with the connection mode of
the air compressor, it can be divided into the following two types.
a) Basic open-pit crawler rig, which is also known as independent open-pit crawler rig.
The power source of this type of drilling rigs is an external air compressor. Its
traveling mechanism and propulsion mechanism are driven by a pneumatic motor.
The hydraulic cylinder of the amplitude modulation displacement mechanism is
driven by a hydraulic pump driven by a pneumatic motor.

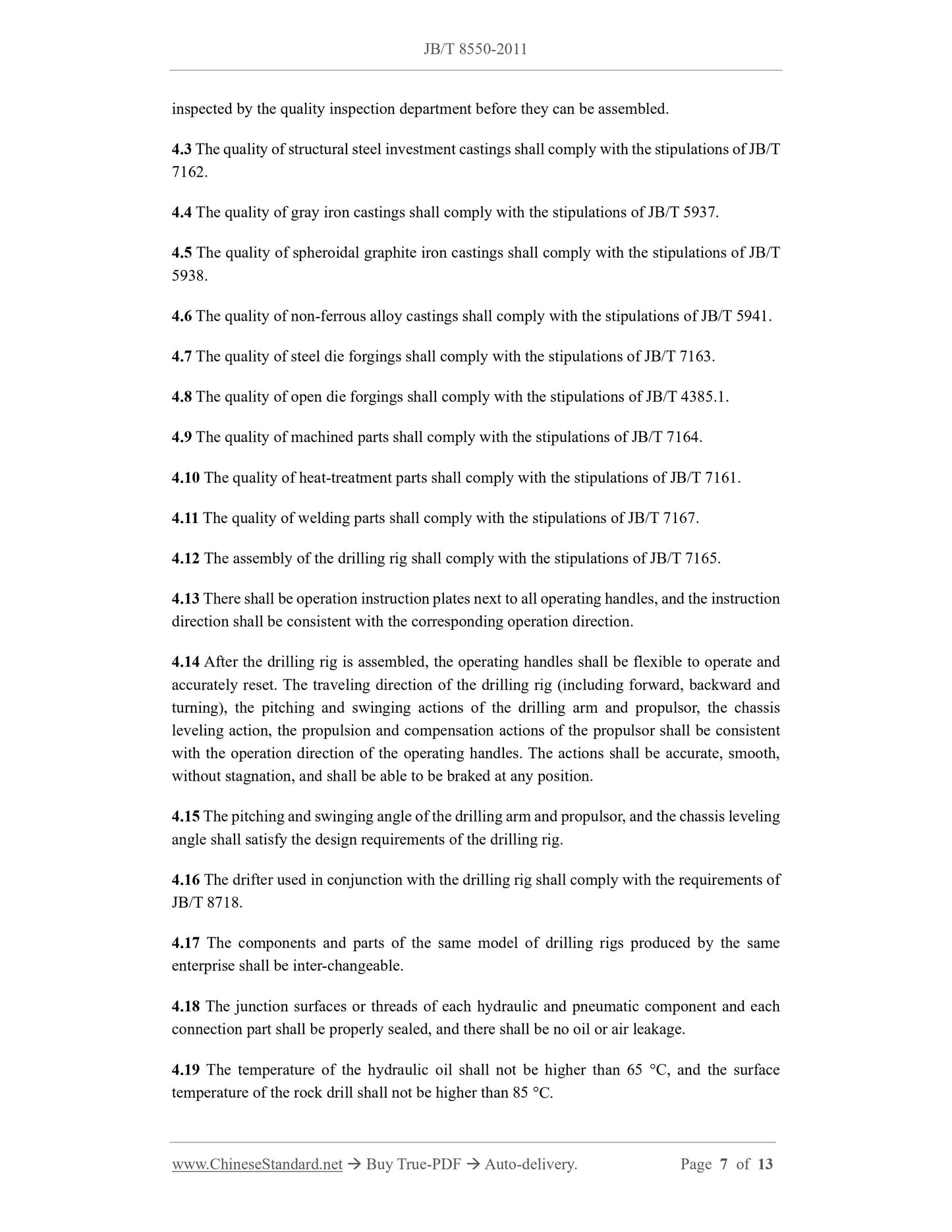

inspected by the quality inspection department before they can be assembled.
4.3 The quality of structural steel investment castings shall comply with the stipulations of JB/T
7162.
4.4 The quality of gray iron castings shall comply with the stipulations of JB/T 5937.
4.5 The quality of spheroidal graphite iron castings shall comply with the stipulations of JB/T
5938.
4.6 The quality of non-ferrous alloy castings shall comply with the stipulations of JB/T 5941.
4.7 The quality of steel die forgings shall comply with the stipulations of JB/T 7163.
4.8 The quality of open die forgings shall comply with the stipulations of JB/T 4385.1.
4.9 The quality of machined parts shall comply with the stipulations of JB/T 7164.
4.10 The quality of heat-treatment parts shall comply with the stipulations of JB/T 7161.
4.11 The quality of welding parts shall comply with the stipulations of JB/T 7167.
4.12 The assembly of the drilling rig shall comply with the stipulations of JB/T 7165.
4.13 There shall be operation instruction plates next to all operating handles, and the instruction
direction shall be consistent with the corresponding operation direction.
4.14 After the drilling rig is assembled, the operating handles shall be flexible to operate and
accurately reset. The traveling direction of the drilling rig (including forward, backward and
turning), the pitching and swinging actions of the drilling arm and propulsor, the chassis
leveling action, the propulsion and compensation actions of the propulsor shall be consistent
with the operation direction of the operating handles. The actions shall be accurate, smooth,
without stagnation, and shall be able to be braked at any position.
4.15 The pitching and swinging angle of the drilling arm and propulsor, and the chassis leveling
angle shall satisfy the design requirements of the drilling rig.
4.16 The drifter used in conjunction with the drilling rig shall comply with the requirements of
JB/T 8718.
4.17 The components and parts of the same model of drilling rigs produced by the same
enterprise shall be inter-changeable.
4.18 The junction surfaces or threads of each hydraulic and pneumatic component and each
connection part shall be properly sealed, and there shall be no oil or air leakage.
4.19 The temperature of the hydraulic oil shall not be higher than 65 C, and the surface
temperature of the rock drill shall not be higher than 85 C.

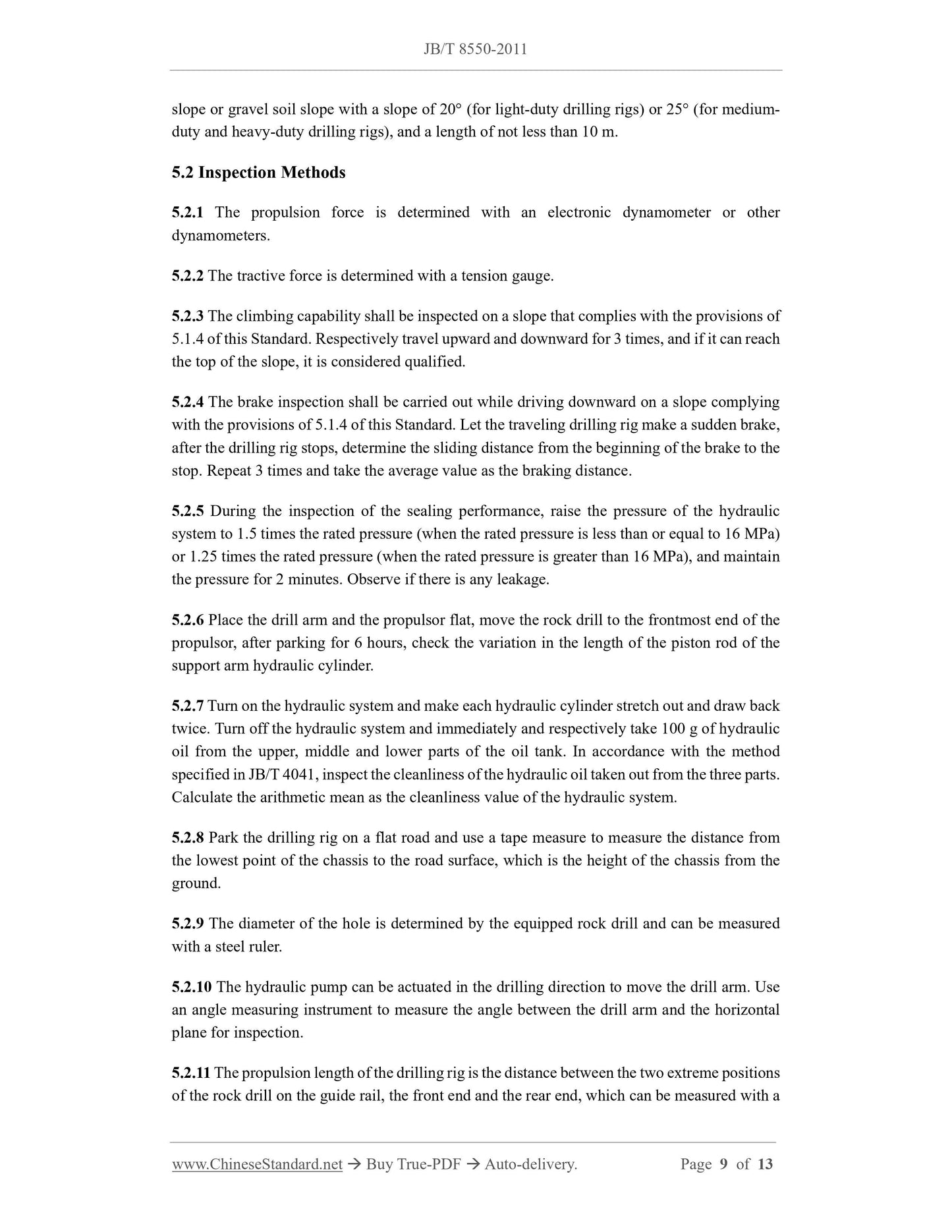

slope or gravel soil slope with a slope of 20 (for light-duty drilling rigs) or 25 (for medium-
duty and heavy-duty drilling rigs), and a length of not less than 10 m.
5.2 Inspection Methods
5.2.1 The propulsion force is determined with an electronic dynamometer or other
dynamometers.
5.2.2 The tractive force is determined with a tension gauge.
5.2.3 The climbing capability shall be inspected on a slope that complies with the provisions of
5.1.4 of this Standard. Respectively travel upward and downward for 3 times, and if it can reach
the top of the slope, it is considered qualified.
5.2.4 The brake inspection shall be carried out while driving downward on a slope complying
with the provisions of 5.1.4 of this Standard. Let the traveling drilling rig make a sudden brake,
after the drilling rig stops, determine the sliding distance from the beginning of the brake to the
stop. Repeat 3 times and take the average value as the braking distance.
5.2.5 During the inspection of the sealing performance, raise the pressure of the hydraulic
system to 1.5 times the rated pressure (when the rated pressure is less than or equal to 16 MPa)
or 1.25 times the rated pressure (when the rated pressure is greater than 16 MPa), and maintain
the pressure for 2 minutes. Observe if there is any leakage.
5.2.6 Place the drill arm and the propulsor flat, move the rock drill to the frontmost end of the
propulsor, after parking for 6 hours, check the variation in the length of the piston rod of the
support arm hydraulic cylinder.
5.2.7 Turn on the hydraulic system and make each hydraulic cylinder stretch out and draw back
twice. Turn off the hydraulic system and immediately and respectively take 100 g of hydraulic
oil from the upper, middle and lower parts of the oil tank. In accordance with the method
specified in JB/T 4041, inspect the cleanliness of the hydraulic oil taken out from the three parts.
Calculate the arithmetic mean as the cleanliness value of the hydraulic system.
5.2.8 Park the drilling rig on a flat road and use a tape measure to measure the distance from
the lowest point of the chassis to the road surface, which is the height of the chassis from the
ground.
5.2.9 The diameter of the hole is determined by the equipped rock drill and can be measured
with a steel ruler.
5.2.10 The hydraulic pump can be actuated in the drilling direction to move the drill arm. Use
an angle measuring instrument to measure the angle between the drill arm and the horizontal
plane for inspection.
5.2.11 The propulsion length of the drilling rig is the distance between the two extreme positions
of the rock drill on the guide rail, the front end and the rear end, which can be measured with a
tape measure.

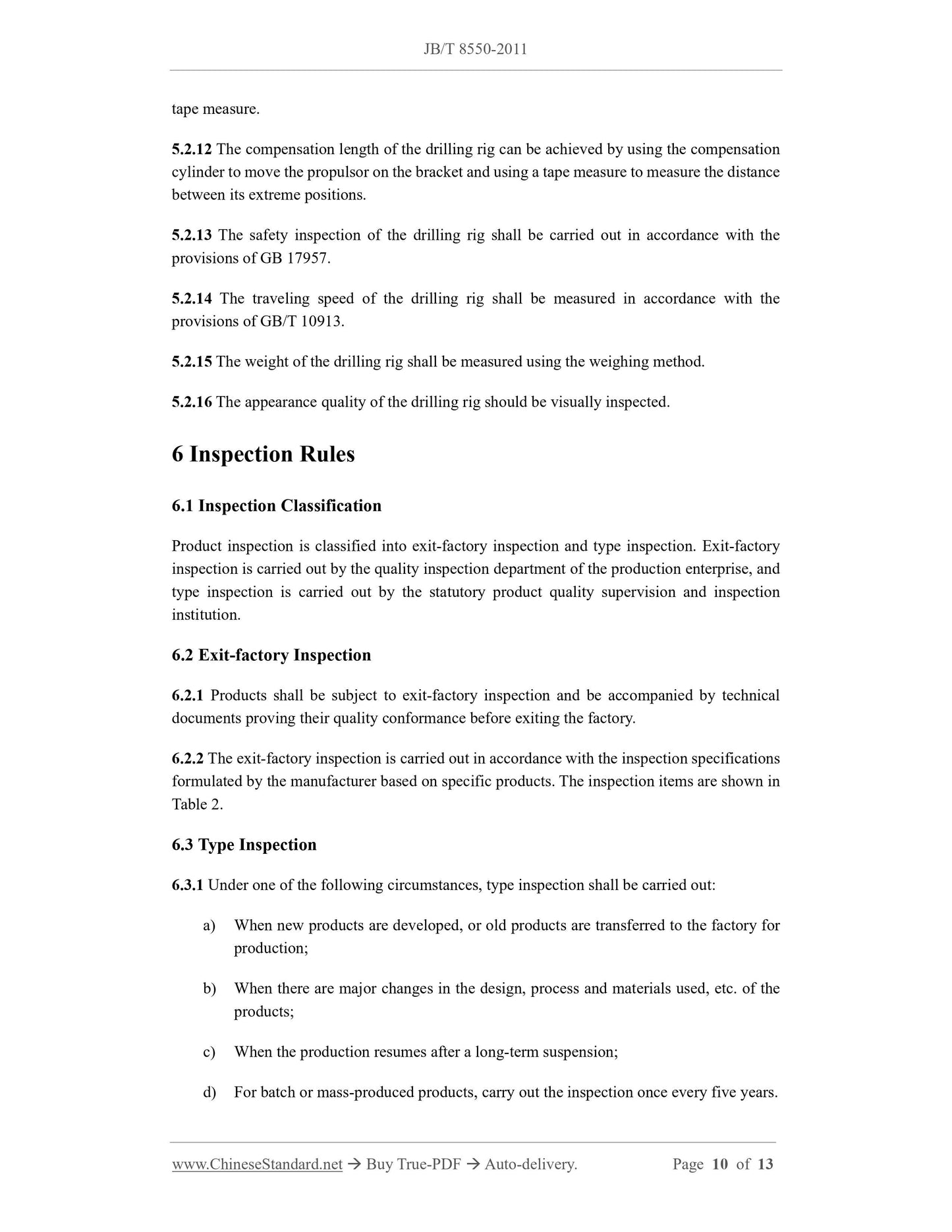

5.2.12 The compensation length of the drilling rig can be achieved by using the compensation
cylinder to move the propulsor on the bracket and using a tape measure to measure the distance
between its extreme positions.
5.2.13 The safety inspection of the drilling rig shall be carried out in accordance with the
provisions of GB 17957.
5.2.14 The traveling speed of the drilling rig shall be measured in accordance with the
provisions of GB/T 10913.
5.2.15 The weight of the drilling rig shall be measured using the weighing method.
5.2.16 The appearance quality of the drilling rig should be visually inspected.
6 Inspection Rules
6.1 Inspection Classification
Product inspection is classified into exit-factory inspection and type inspection. Exit-factory
inspection is carried out by the quality inspection department of the production enterprise, and
type inspection is carried out by the statutory product quality supervision and inspection
institution.
6.2 Exit-factory Inspection
6.2.1 Products shall be subject to exit-factory inspection and be accompanied by technical
documents proving their quality conformance before exiting the factory.
6.2.2 The exit-factory inspection is carried out in accordance with the inspection specifications
formulated by the manufacturer based on specific products. The inspection items are shown in
Table 2.
6.3 Type Inspection
6.3.1 Under one of the following circumstances, type inspection shall be carried out.
a) When new products are developed, or old products are transferred to the factory for
production;
b) When there are major changes in the design, process and materials used, etc. of the
products;
c) When the production resumes after a long-term suspension;
d) For batch or mass-produced products, carry out the inspection once every five years.
JB/T 8550-2011
JB
MACHINERY INDUSTRY STANDARD
ICS 73.100.10
J 84
Registration No.. 32171-2011
Replacing JB/T 8550-1997
Open-pit Crawler Rig
ISSUED ON. MAY 18, 2011
IMPLEMENTED ON. AUGUST 1, 2011
Issued by. Ministry of Industry and Information Technology of the People’s
Republic of China.
Table of Contents
Foreword... 3
1 Scope... 4
2 Normative References... 4
3 Types and Basic Parameters... 5
3.1 Model of Drill Rig... 5
3.2 Types of Drill Rig... 5
3.3 Basic Parameters... 6
4 Technical Requirements... 6
5 Inspection Methods... 8
5.1 Inspection Conditions... 8
5.2 Inspection Methods... 9
6 Inspection Rules... 10
6.1 Inspection Classification... 10
6.2 Exit-factory Inspection... 10
6.3 Type Inspection... 10
6.4 Product Inspection Items and Quality Characteristics Categories... 11
6.5 Sampling Schemes... 12
6.6 Sampling... 12
6.7 Determination Rules... 12
7 Marking, Packaging, Transportation and Storage... 13
7.1 Marking... 13
7.2 Packaging... 13
7.3 Transportation and Storage... 13
Open-pit Crawler Rig
1 Scope
This Standard specifies the types and basic parameters, technical requirements, inspection
methods, inspection rules, marking, packaging, transportation and storage of open-pit crawler
rigs (hereinafter referred to as drilling rig or the product).
This Standard is applicable to the design, manufacture, application and inspection of pneumatic
open-pit crawler rigs.
2 Normative References
The clauses in the following documents become clauses of this Standard through reference in
this Standard. In terms of references with a specified date, all subsequent amendments
(excluding corrigenda) or revisions do not apply to this Standard. However, parties to an
agreement based on this Standard are encouraged to explore the possibility of adopting the latest
versions of these documents. In terms of references without a specified date, the latest version
applies to this Standard.
GB/T 2828.1-2003 Sampling Procedures for Inspection by Attributes - Part 1.Sampling
Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection (ISO 2859-
1.1999, IDT)
GB/T 10913-2005 Earth-moving Machinery - Determination of Ground Speed (ISO 6014.1986,
MOD...
