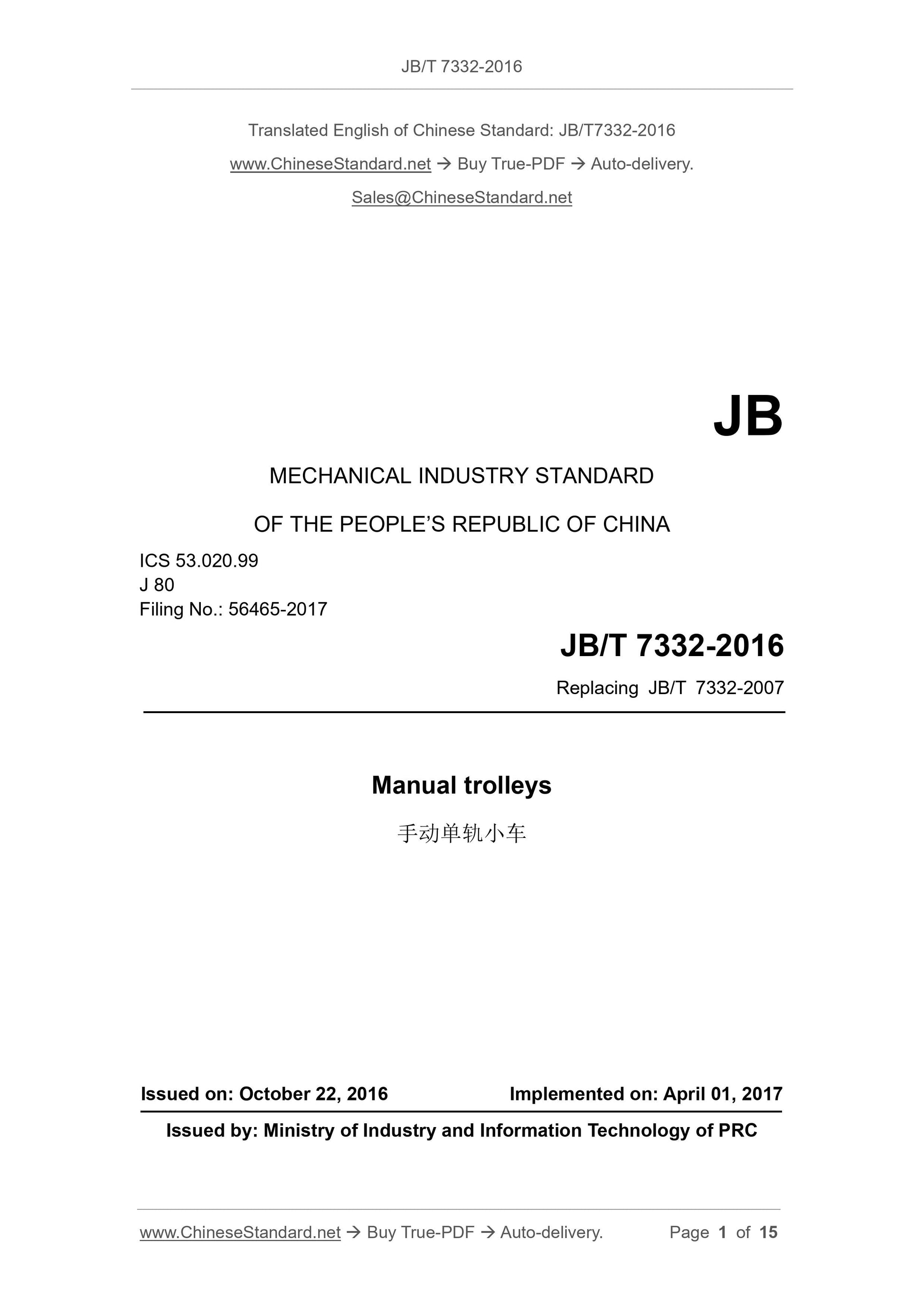

JB/T 7332-2016: Manual trolleys
MECHANICAL INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
Filing No.: 56465-2017
Replacing JB/T 7332-2007
ISSUED ON: OCTOBER 22, 2016
IMPLEMENTED ON: APRIL 01, 2017
Issued by: Ministry of Industry and Information Technology of PRC

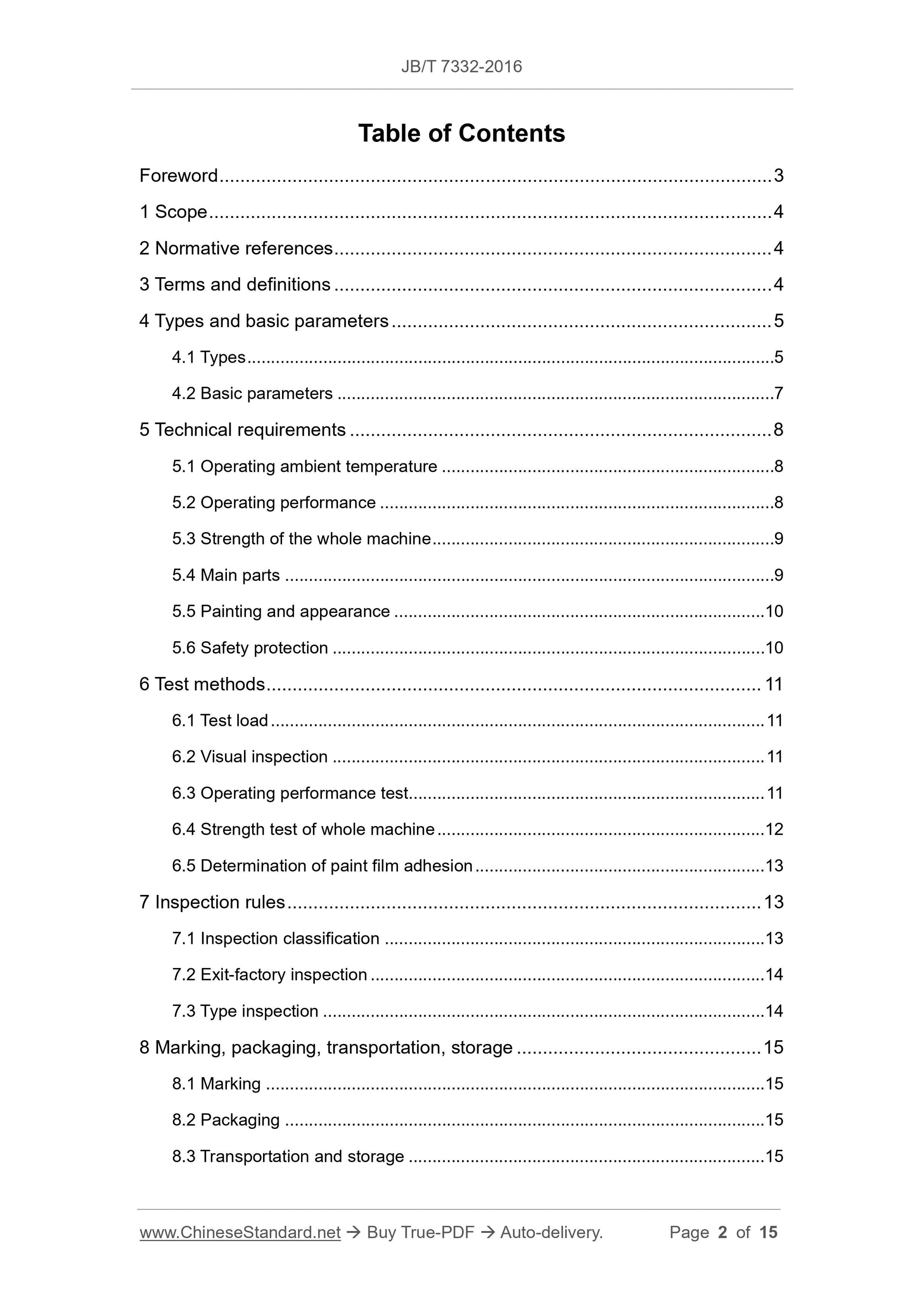

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions ... 4
4 Types and basic parameters ... 5
4.1 Types ... 5
4.2 Basic parameters ... 7
5 Technical requirements ... 8
5.1 Operating ambient temperature ... 8
5.2 Operating performance ... 8
5.3 Strength of the whole machine ... 9
5.4 Main parts ... 9
5.5 Painting and appearance ... 10
5.6 Safety protection ... 10
6 Test methods ... 11
6.1 Test load ... 11
6.2 Visual inspection ... 11
6.3 Operating performance test ... 11
6.4 Strength test of whole machine ... 12
6.5 Determination of paint film adhesion ... 13
7 Inspection rules ... 13
7.1 Inspection classification ... 13
7.2 Exit-factory inspection ... 14
7.3 Type inspection ... 14
8 Marking, packaging, transportation, storage ... 15
8.1 Marking ... 15
8.2 Packaging ... 15
8.3 Transportation and storage ... 15

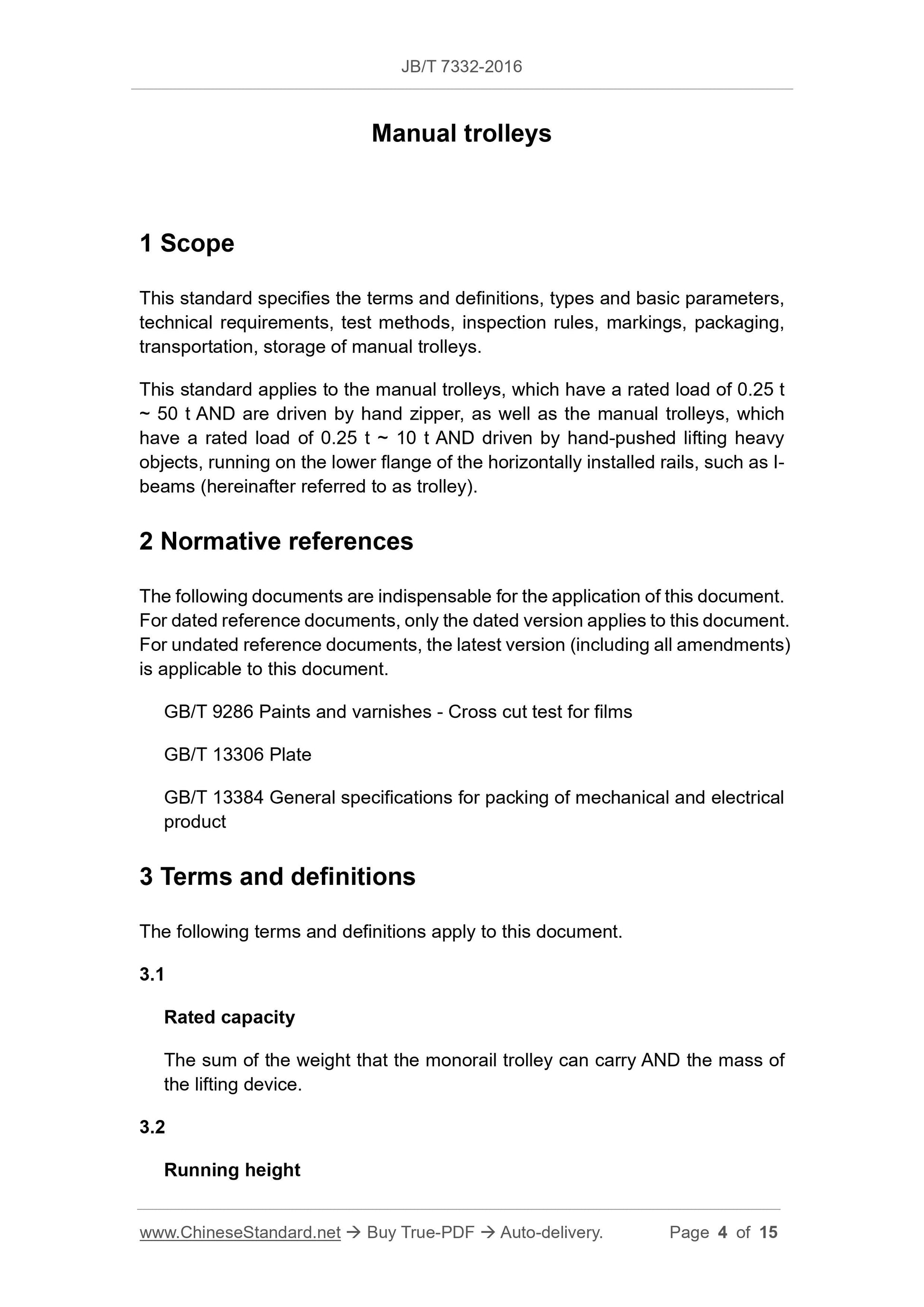

This standard specifies the terms and definitions, types and basic parameters, technical requirements, test methods, inspection rules, markings, packaging, transportation, storage of manual trolleys.
This standard applies to the manual trolleys, which have a rated load of 0.25 t ~ 50 t AND are driven by hand zipper, as well as the manual trolleys, which have a rated load of 0.25 t ~ 10 t AND driven by hand-pushed lifting heavy objects, running on the lower flange of the horizontally installed rails, such as I- beams (hereinafter referred to as trolley).
2 Normative references
The following documents are indispensable for the application of this document. For dated reference documents, only the dated version applies to this document. For undated reference documents, the latest version (including all amendments) is applicable to this document.
GB/T 9286 Paints and varnishes - Cross cut test for films
GB/T 13306 Plate
GB/T 13384 General specifications for packing of mechanical and electrical product
3 Terms and definitions
The following terms and definitions apply to this document.
The sum of the weight that the monorail trolley can carry AND the mass of the lifting device.

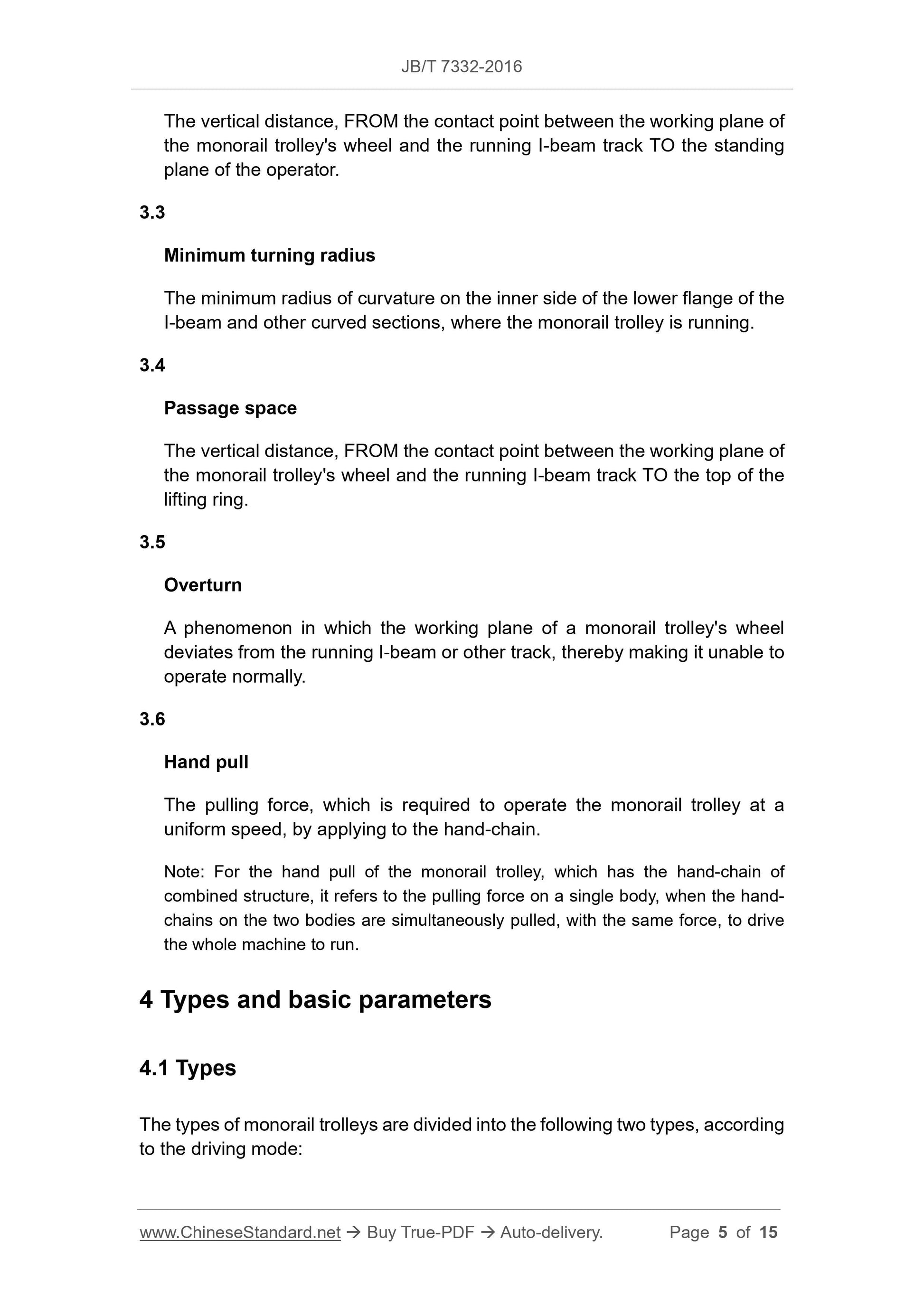

The vertical distance, FROM the contact point between the working plane of the monorail trolley's wheel and the running I-beam track TO the standing plane of the operator.
Minimum turning radius
The minimum radius of curvature on the inner side of the lower flange of the I-beam and other curved sections, where the monorail trolley is running. 3.4
The vertical distance, FROM the contact point between the working plane of the monorail trolley's wheel and the running I-beam track TO the top of the lifting ring.
A phenomenon in which the working plane of a monorail trolley's wheel
deviates from the running I-beam or other track, thereby making it unable to operate normally.
The pulling force, which is required to operate the monorail trolley at a uniform speed, by applying to the hand-chain.
Note: For the hand pull of the monorail trolley, which has the hand-chain of combined structure, it refers to the pulling force on a single body, when the hand- chains on the two bodies are simultaneously pulled, with the same force, to drive the whole machine to run.
4 Types and basic parameters
The types of monorail trolleys are divided into the following two types, according to the driving mode:
equipped with an anti-overturning device.

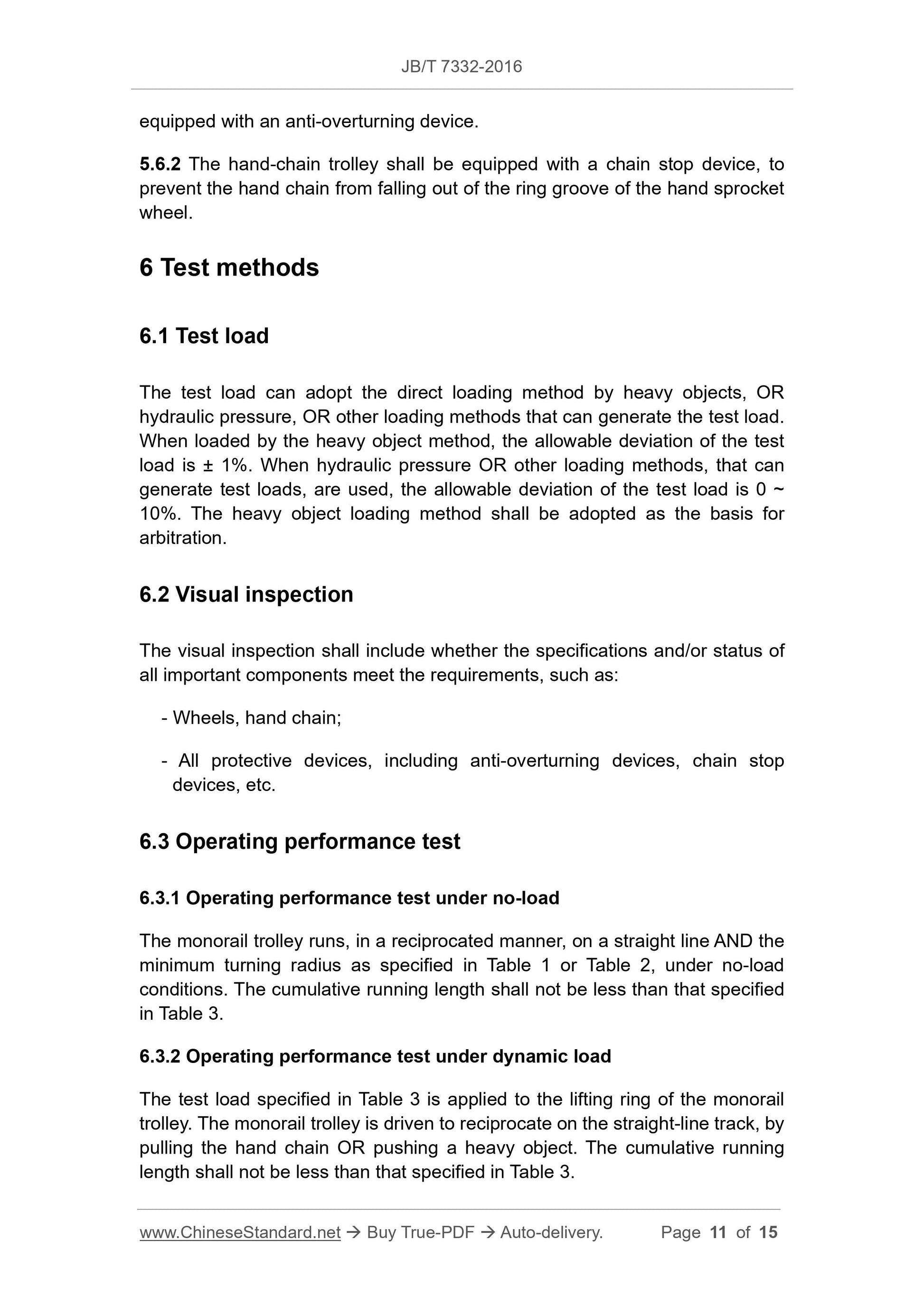

5.6.2 The hand-chain trolley shall be equipped with a chain stop device, to prevent the hand chain from falling out of the ring groove of the hand sprocket wheel.
6 Test methods
6.1 Test load
The test load can adopt the direct loading method by heavy objects, OR
hydraulic pressure, OR other loading methods that can generate the test load. When loaded by the heavy object method, the allowable deviation of the test load is ± 1%. When hydraulic pressure OR other loading methods, that can generate test loads, are used, the allowable deviation of the test load is 0 ~ 10%. The heavy object loading method shall be adopted as the basis for
6.2 Visual inspection
The visual inspection shall include whether the specifications and/or status of all important components meet the requirements, such as:
- Wheels, hand chain;
- All protective devices, including anti-overturning devices, chain stop devices, etc.
6.3 Operating performance test
6.3.1 Operating performance test under no-load
The monorail trolley runs, in a reciprocated manner, on a straight line AND the minimum turning radius as specified in Table 1 or Table 2, under no-load conditions. The cumulative running length shall not be less than that specified in Table 3.
6.3.2 Operating performance test under dynamic load
The test load specified in Table 3 is applied to the lifting ring of the monorail trolley. The monorail trolley is driven to reciprocate on the straight-line track, by pulling the hand chain OR pushing a heavy object. The cumulative running length shall not be less than that specified in Table 3.
6.3.3 Operating performance test along curve

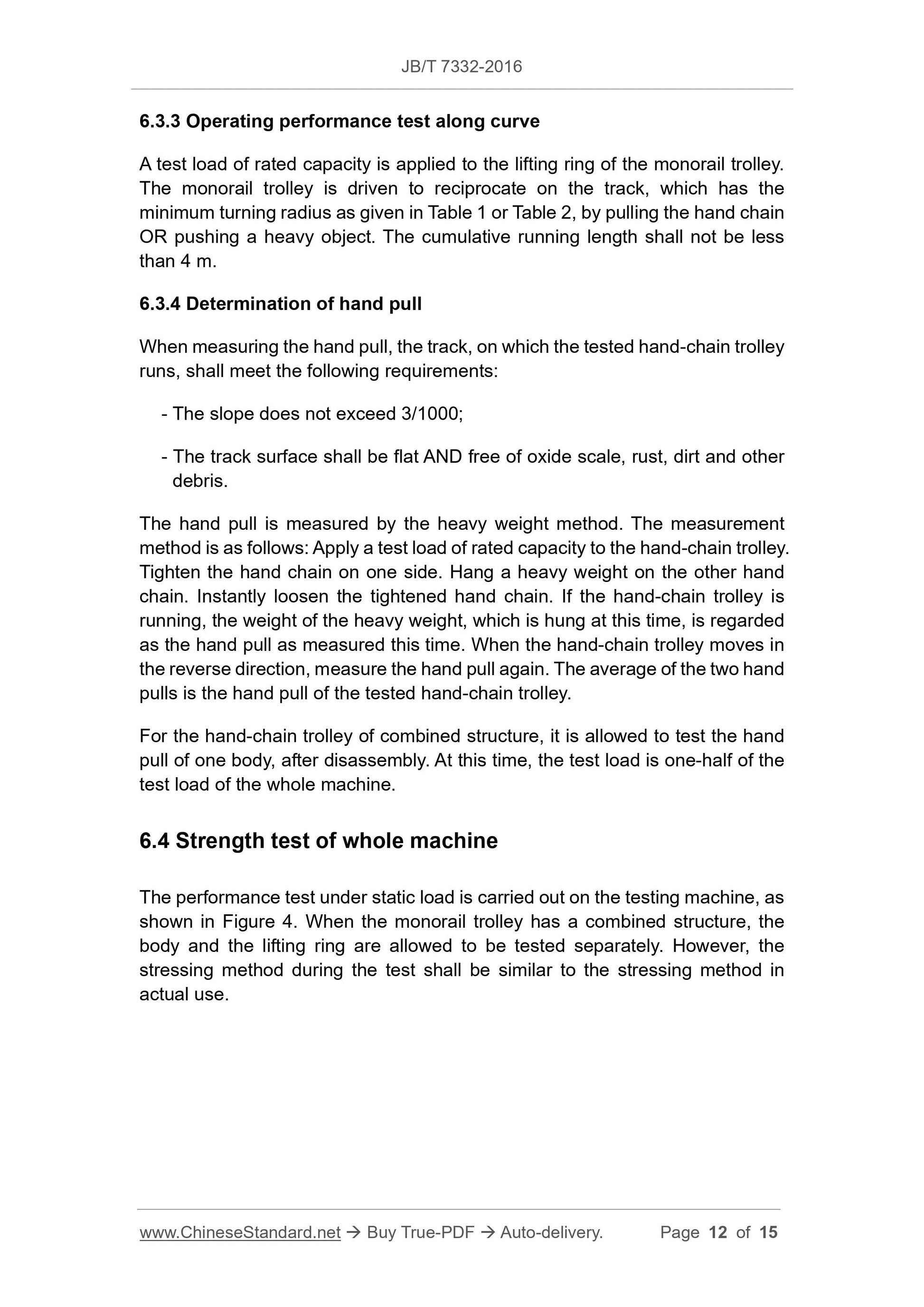

A test load of rated capacity is applied to the lifting ring of the monorail trolley. The monorail trolley is driven to reciprocate on the track, which has the minimum turning radius as given in Table 1 or Table 2, by pulling the hand chain OR pushing a heavy object. The cumulative running length shall not be less than 4 m.
6.3.4 Determination of hand pull
When measuring the hand pull, the track, on which the tested hand-chain trolley runs, shall meet the following requirements:
- The slope does not exceed 3/1000;
- The track surface shall be flat AND free of oxide scale, rust, dirt and other debris.
The hand pull is measured by the heavy weight method. The measurement
method is as follows: Apply a test load of rated capacity to the hand-chain trolley. Tighten the hand chain on one side. Hang a heavy weight on the other hand chain. Instantly loosen the tightened hand chain. If the hand-chain trolley is running, the weight of the heavy weight, which is hung at this time, is regarded as the hand pull as measured this time. When the hand-chain trolley moves in the reverse direction, measure the hand pull again. The average of the two hand pulls is the hand pull of the tested hand-chain trolley.
For the hand-chain trolley of combined structure, it is allowed to test the hand pull of one body, after disassembly. At this time, the test load is one-half of the test load of the whole machine.
6.4 Strength test of whole machine
The performance test under static load is carried out on the testing machine, as shown in Figure 4. When the monorail trolley has a combined structure, the body and the lifting ring are allowed to be tested separately. However, the stressing method during the test shall be similar to the stressing method in actual use.
