JB/T 5088.3-2014 English PDF (JBT5088.3-2014)

JB/T 5088.3-2014 English PDF (JBT5088.3-2014)

Regular price $195.00 USD
Regular price Sale price $195.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here JB/T 5088.3-2014 to get it for Purchase Approval, Bank TT...

JB/T 5088.3-2014: Internal combustion englnes. Spinon oil filters. Part 3: Dimensions

This Part of JB/T 5088 specifies the main characteristic dimensions of spin-on oil filters for internal combustion engines. This Part applies to spin-on oil filters (hereinafter referred to as filters), which are used for small and medium-power internal combustion engines.

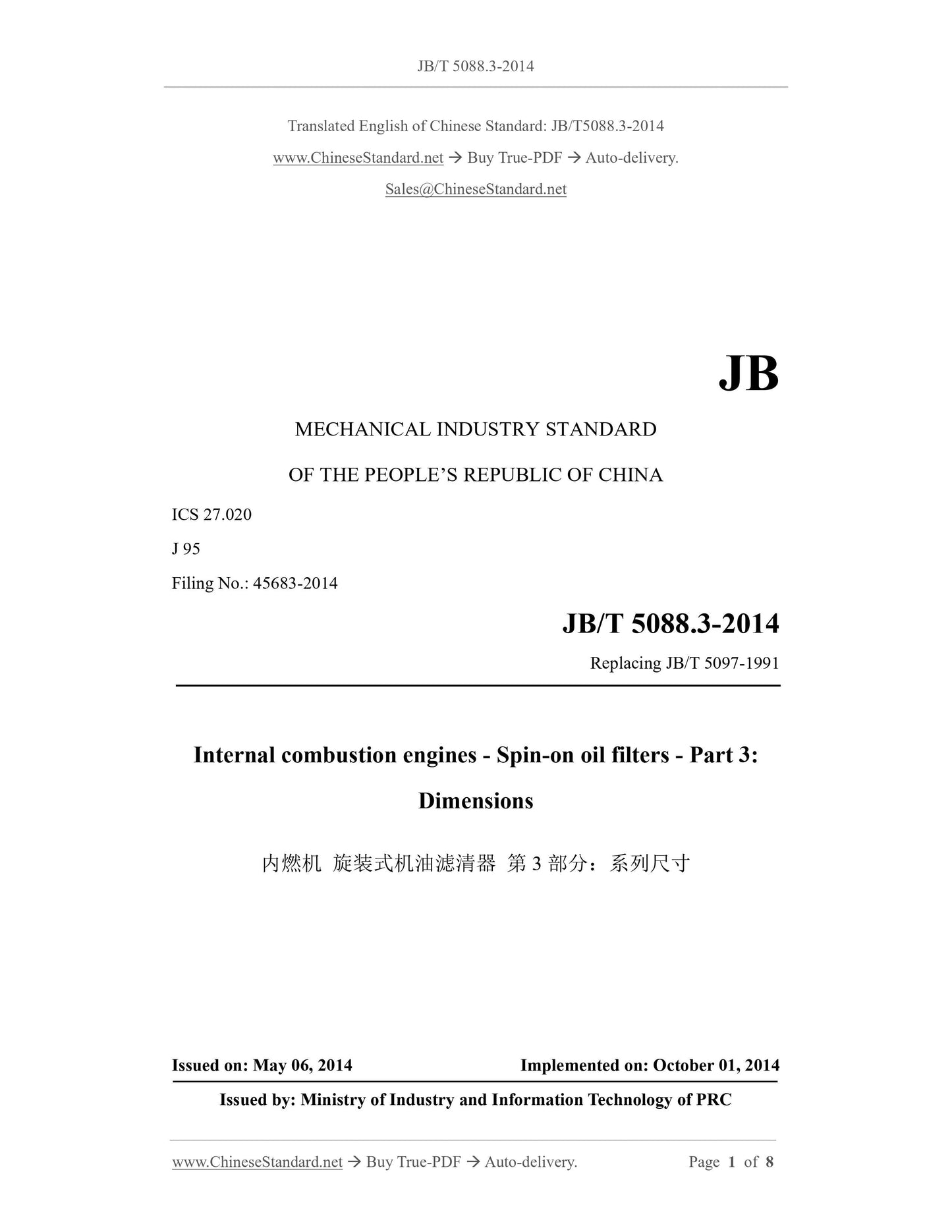

JB/T 5088.3-2014
JB
MECHANICAL INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 27.020
J 95
Filing No.: 45683-2014
Replacing JB/T 5097-1991
Internal combustion engines - Spin-on oil filters - Part 3:
Dimensions
ISSUED ON: MAY 06, 2014
IMPLEMENTED ON: OCTOBER 01, 2014
Issued by: Ministry of Industry and Information Technology of PRC

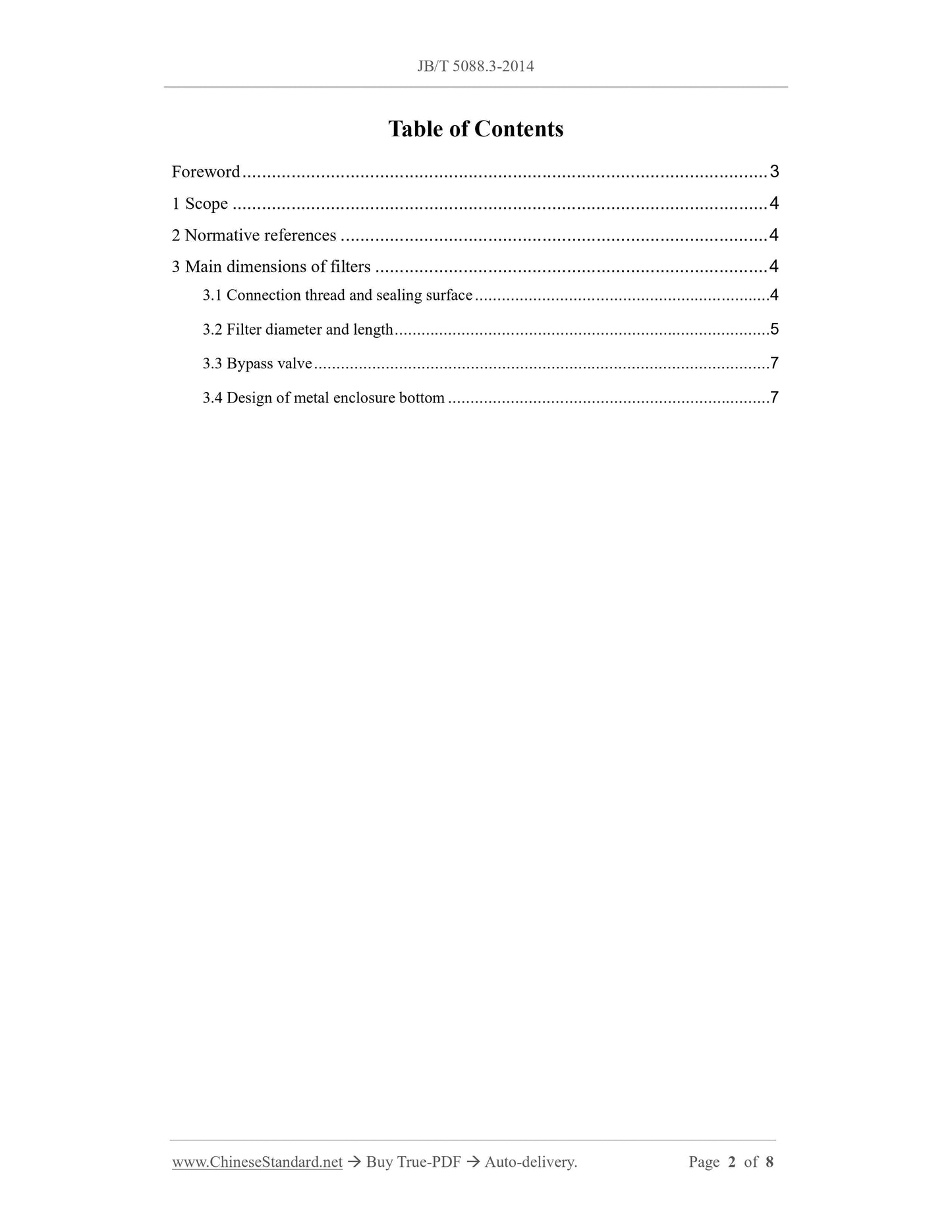

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Main dimensions of filters ... 4
3.1 Connection thread and sealing surface ... 4
3.2 Filter diameter and length ... 5
3.3 Bypass valve ... 7
3.4 Design of metal enclosure bottom ... 7
Foreword
JB/T 5088 "Internal combustion engines - Spin-on oil filters" is divided into three parts: - Part 1: Specification;
- Part 2: Test method;
- Part 3: Dimensions.
This Part is Part 3 of JB/T 5088.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part replaces JB/T 5097-1991 "Internal combustion engine spin-on oil filter serial size". Compared with JB/T 5097-1991, the main technical changes are as follows: - ADD the dimensional requirements for the sealing surface; MODIFY the
dimensional requirements for the connecting thread (see 3.1);
- DELETE the provisions on filter element size (2.2 of the 1991 edition); - MODIFY the diameter and length of the filter (see 3.2; 2.4 of the 1991 edition); - MODIFY the dimensions of the sealing ring (see 3.1, 3.2; 2.5 of the 1991 edition); - ADD the technical requirements for bypass valve's opening pressure (see 3.3); - ADD the technical requirements for metal enclosure bottom design (see 3.4). This Part was proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of the National Internal Combustion Engine Standardization Technical Committee (SAC/TC l77).
Drafting organizations of this Part: Bengbu Haoye Filter Co., Ltd., Shanghai Internal Combustion Engine Research Institute, Hangzhou Special Paper Co., Ltd., Shanghai Yonghong Auto Parts Co., Ltd., Fuyang Beimu Pulp and Paper Co., Ltd.
The main drafters of this Part: Shen Hongjie, Fang Wen, Xia Ruizhong, Chen Wen, Wu Anbo, Guo Yulin, Xu Xiaoqing.
This standard replaces the standard previously issued as follows:
- JB/T 5097-1991.

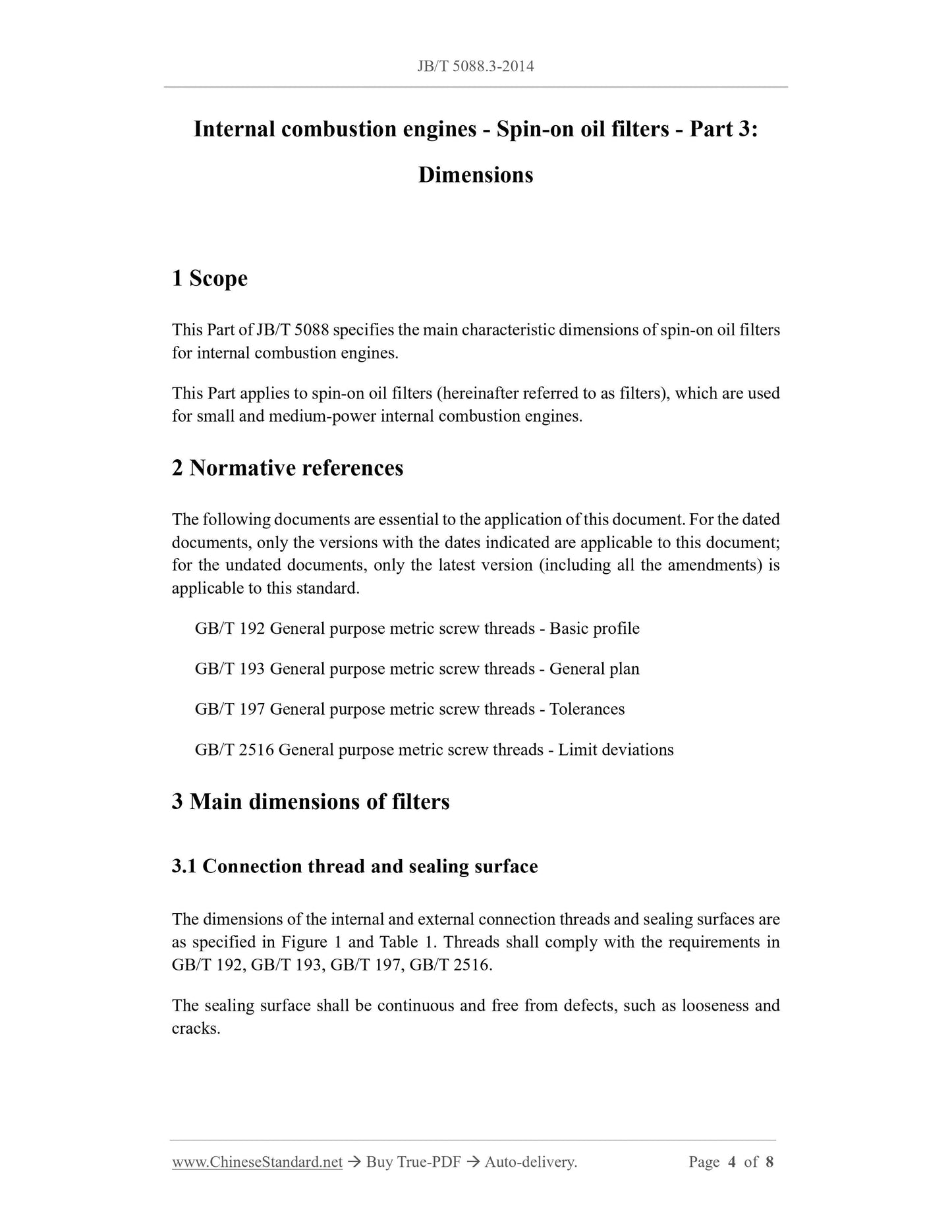

Internal combustion engines - Spin-on oil filters - Part 3:
Dimensions
1 Scope
This Part of JB/T 5088 specifies the main characteristic dimensions of spin-on oil filters for internal combustion engines.
This Part applies to spin-on oil filters (hereinafter referred to as filters), which are used for small and medium-power internal combustion engines.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard.
GB/T 192 General purpose metric screw threads - Basic profile
GB/T 193 General purpose metric screw threads - General plan
GB/T 197 General purpose metric screw threads - Tolerances
GB/T 2516 General purpose metric screw threads - Limit deviations
3 Main dimensions of filters
3.1 Connection thread and sealing surface
The dimensions of the internal and external connection threads and sealing surfaces are as specified in Figure 1 and Table 1. Threads shall comply with the requirements in GB/T 192, GB/T 193, GB/T 197, GB/T 2516.
The sealing surface shall be continuous and free from defects, such as looseness and cracks.
