JB/T 13910.1-2020: Piler - Part 1: Types and basic parameter

This Part of JB/T 13910 specifies the types and basic parameters of the piler. This Part applies to the piler on the uncoiling, leveling and shearing production line for sheet metal; it also applies, as a reference, to other pilers.

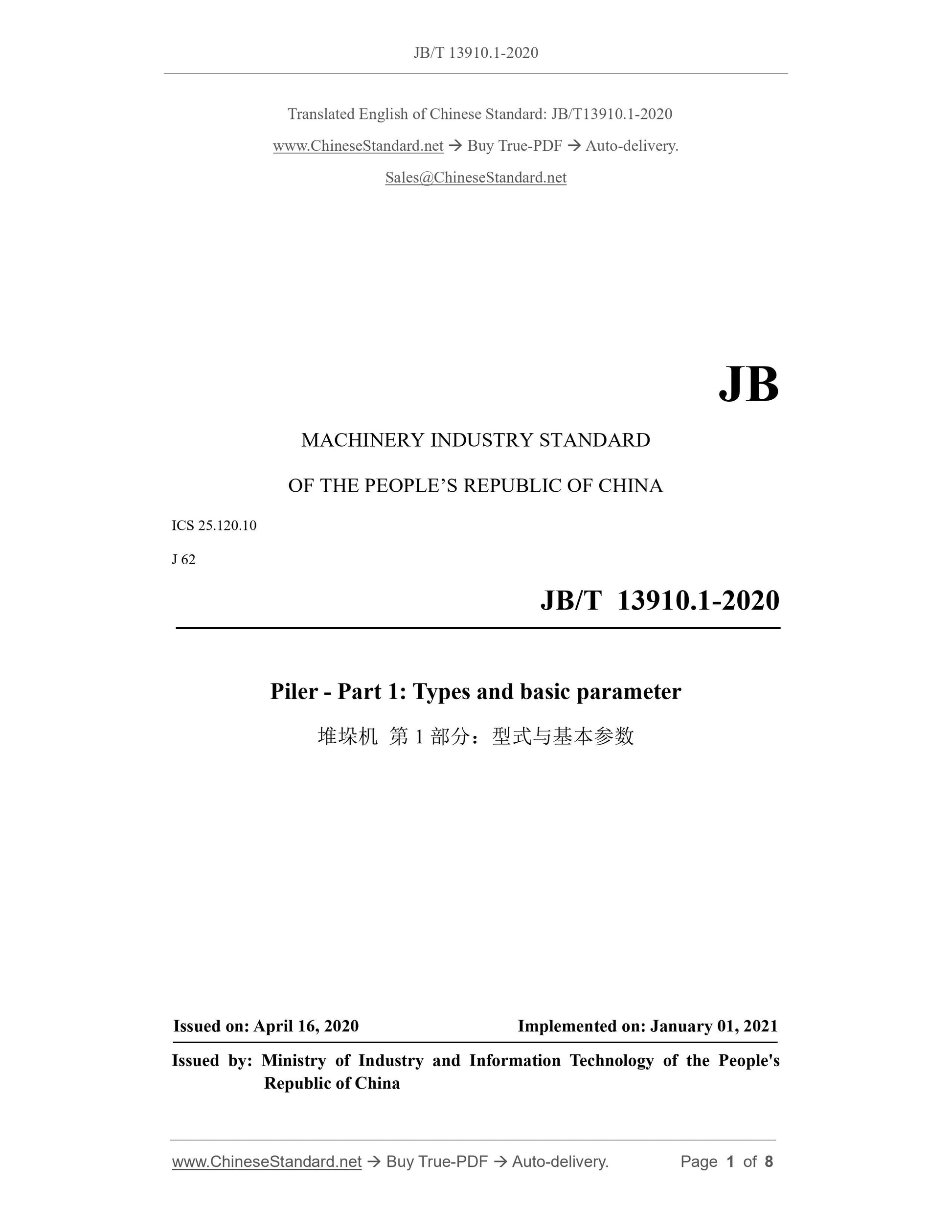

JB/T 13910.1-2020
JB
MACHINERY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 25.120.10
J 62
Piler - Part 1: Types and basic parameter
ISSUED ON: APRIL 16, 2020
IMPLEMENTED ON: JANUARY 01, 2021
Issued by: Ministry of Industry and Information Technology of the People's Republic of China

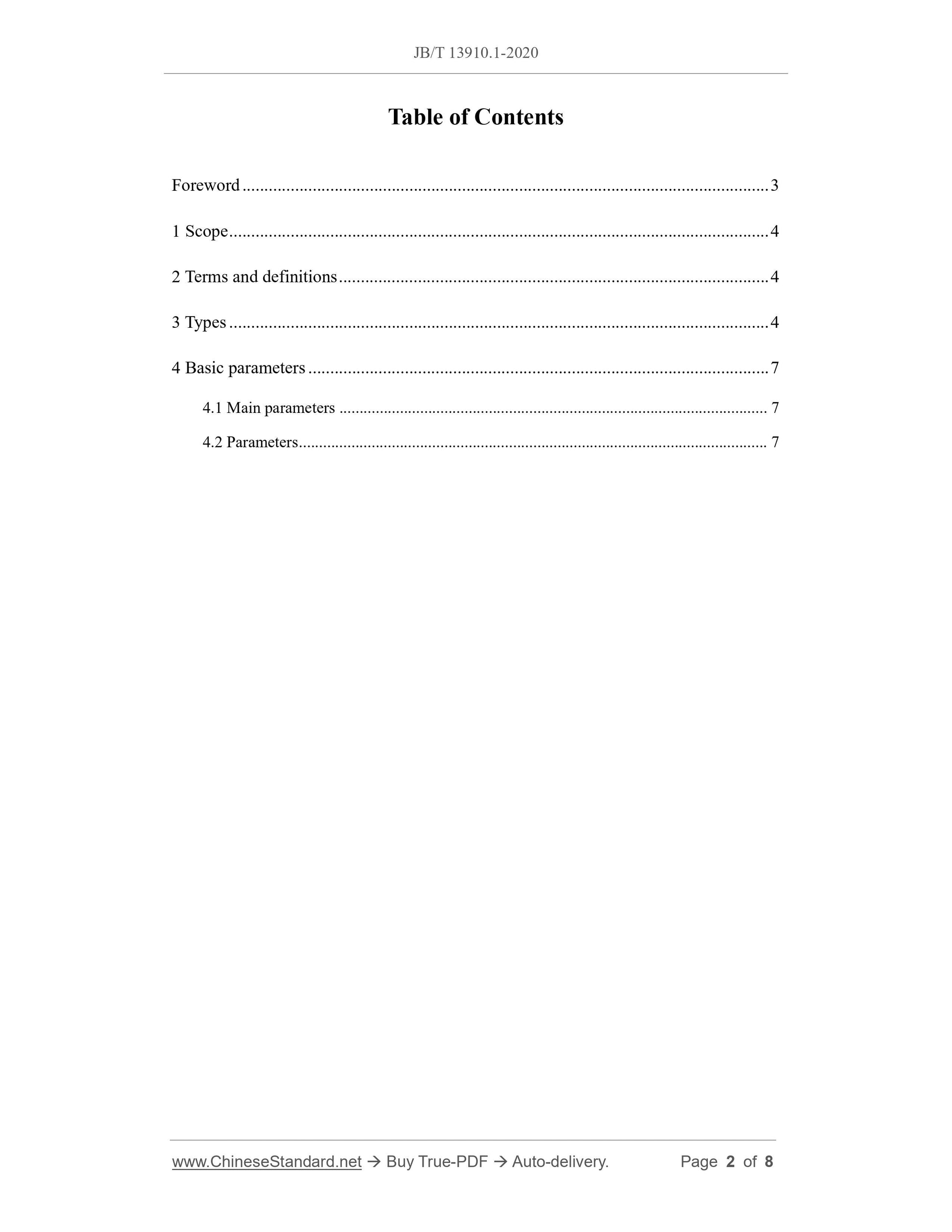

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Terms and definitions ... 4
3 Types ... 4
4 Basic parameters ... 7
4.1 Main parameters ... 7
4.2 Parameters ... 7

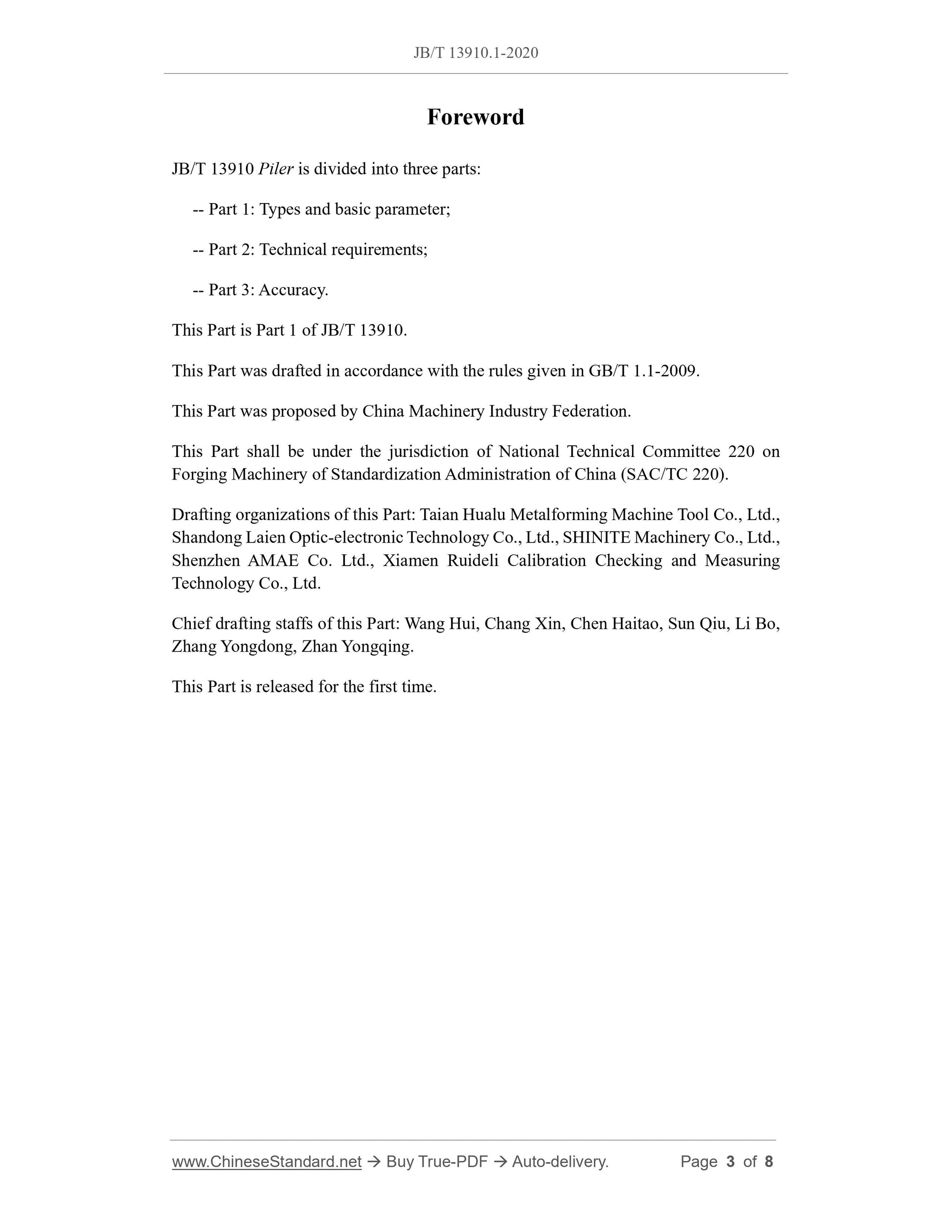

Foreword
JB/T 13910 Piler is divided into three parts:
-- Part 1: Types and basic parameter;
-- Part 2: Technical requirements;
-- Part 3: Accuracy.
This Part is Part 1 of JB/T 13910.
This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part was proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of National Technical Committee 220 on Forging Machinery of Standardization Administration of China (SAC/TC 220). Drafting organizations of this Part: Taian Hualu Metalforming Machine Tool Co., Ltd., Shandong Laien Optic-electronic Technology Co., Ltd., SHINITE Machinery Co., Ltd., Shenzhen AMAE Co. Ltd., Xiamen Ruideli Calibration Checking and Measuring Technology Co., Ltd.
Chief drafting staffs of this Part: Wang Hui, Chang Xin, Chen Haitao, Sun Qiu, Li Bo, Zhang Yongdong, Zhan Yongqing.
This Part is released for the first time.

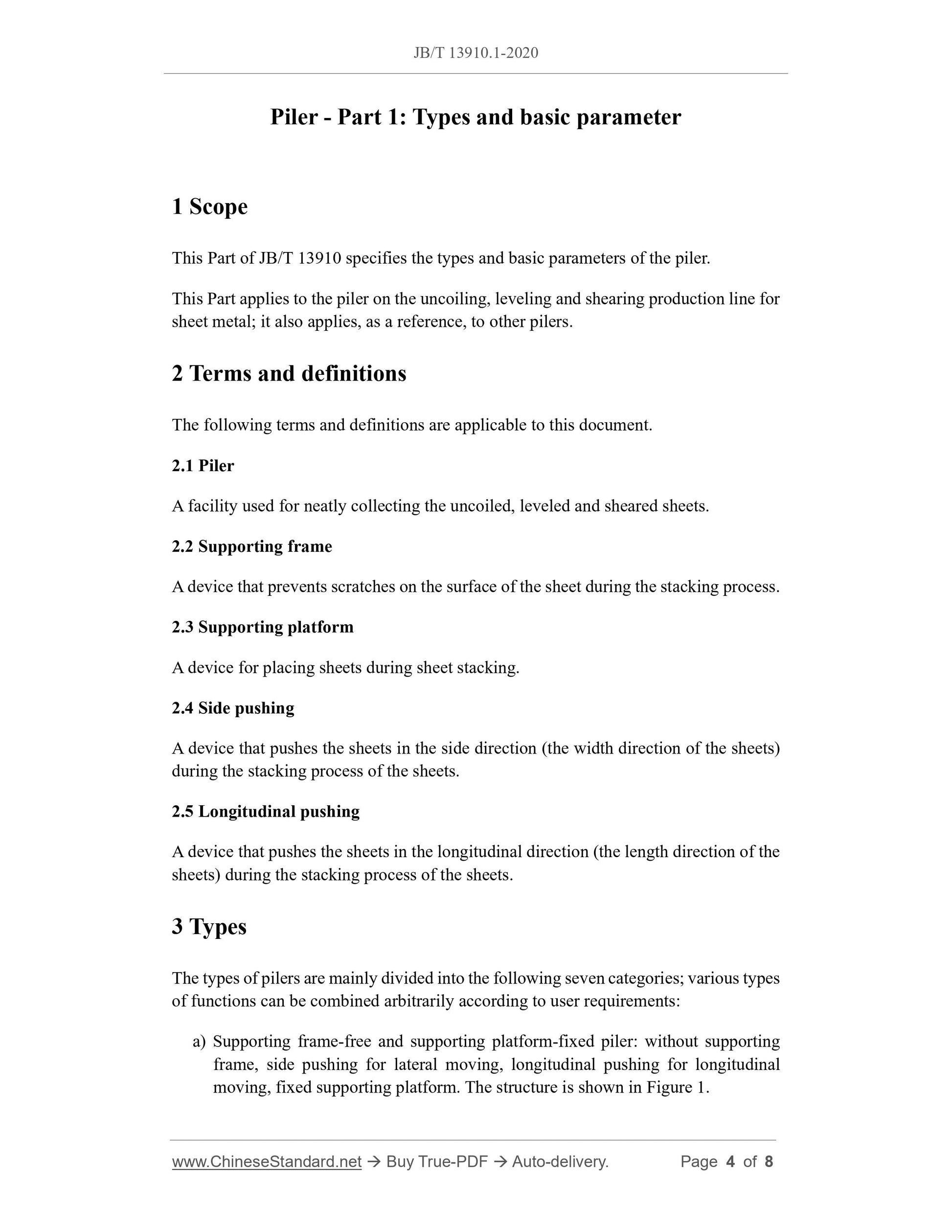

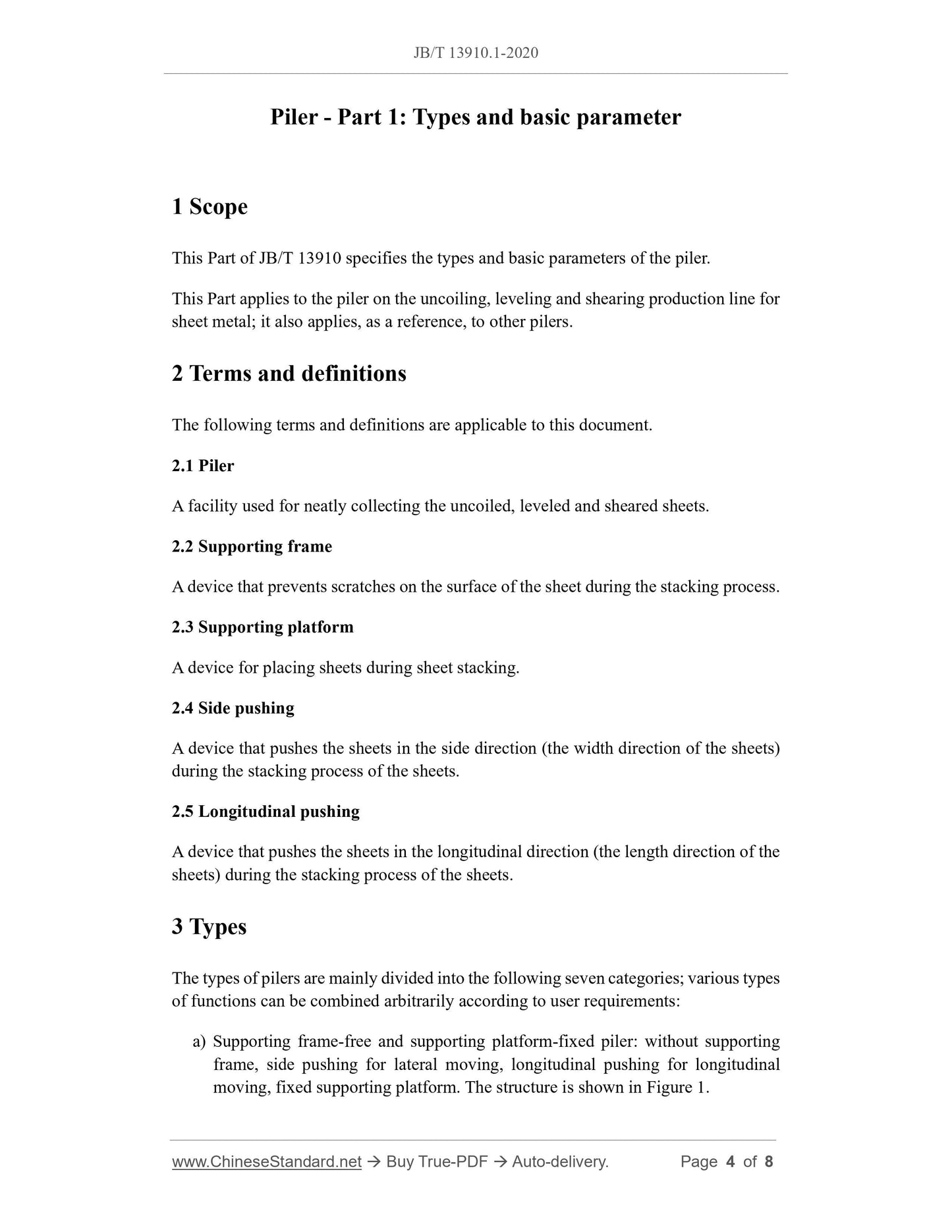

Piler - Part 1: Types and basic parameter
1 Scope
This Part of JB/T 13910 specifies the types and basic parameters of the piler. This Part applies to the piler on the uncoiling, leveling and shearing production line for sheet metal; it also applies, as a reference, to other pilers.
2 Terms and definitions
The following terms and definitions are applicable to this document.
2.1 Piler
A facility used for neatly collecting the uncoiled, leveled and sheared sheets. 2.2 Supporting frame
A device that prevents scratches on the surface of the sheet during the stacking process. 2.3 Supporting platform
A device for placing sheets during sheet stacking.
2.4 Side pushing
A device that pushes the sheets in the side direction (the width direction of the sheets) during the stacking process of the sheets.
2.5 Longitudinal pushing
A device that pushes the sheets in the longitudinal direction (the length direction of the sheets) during the stacking process of the sheets.
3 Types
The types of pilers are mainly divided into the following seven categories; various types of functions can be combined arbitrarily according to user requirements: a) Supporting frame-free and supporting platform-fixed piler: without supporting frame, side pushing for lateral moving, longitudinal pushing for longitudinal moving, fixed supporting platform. The structure is shown in Figure 1.
