JB/T 1306-2008: Electric single girder crane

This standard specifies the type and basic parameters, technical requirements, test methods, inspection rules, marking, packaging, transportation and storage of electric single girder cranes.

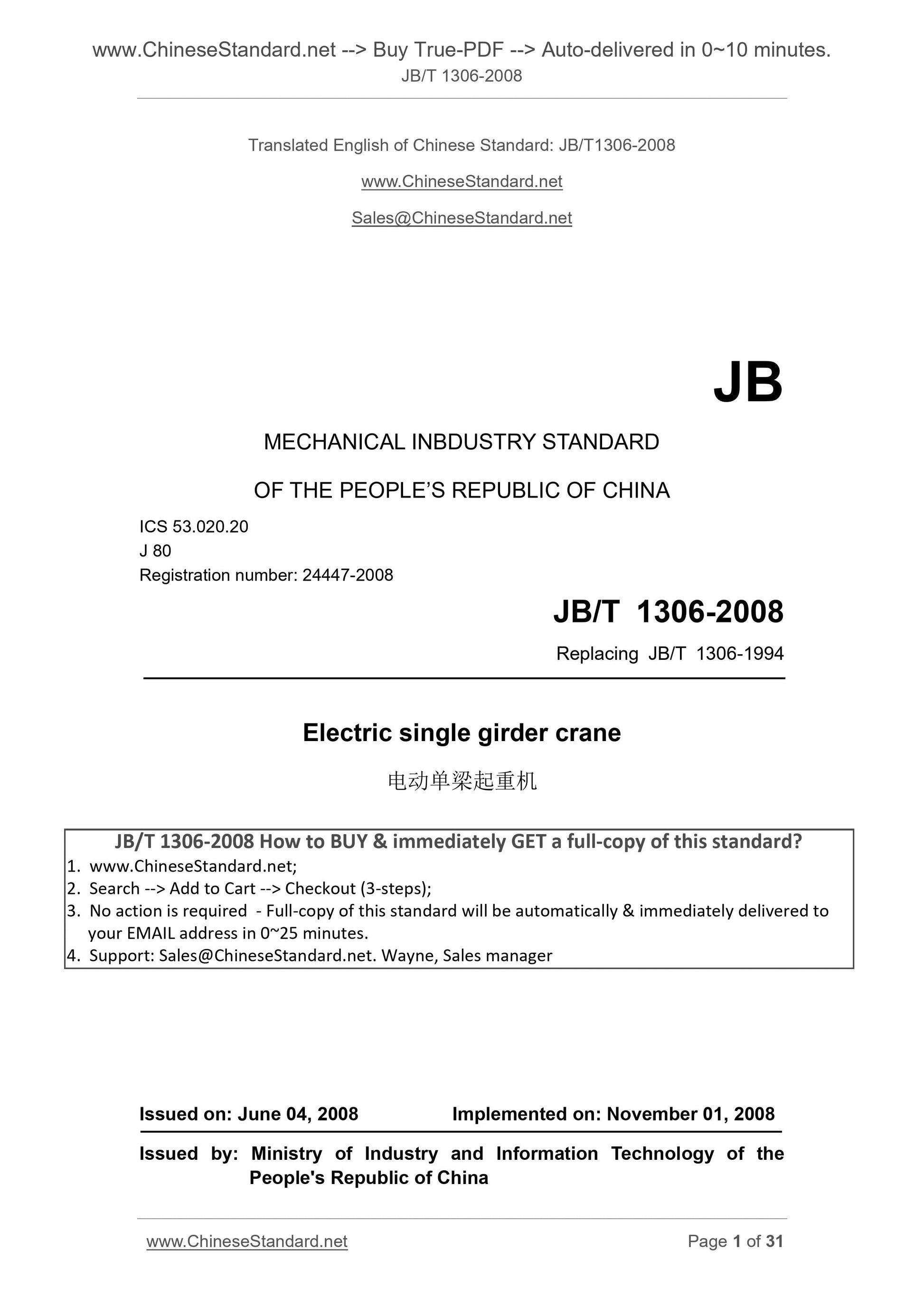

JB/T 1306-2008
JB
MECHANICAL INBDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 53.020.20
J 80
Registration number. 24447-2008
Replacing JB/T 1306-1994
Electric single girder crane
ISSUED ON. JUNE 04, 2008
IMPLEMENTED ON. NOVEMBER 01, 2008
Issued by. Ministry of Industry and Information Technology of the
People's Republic of China

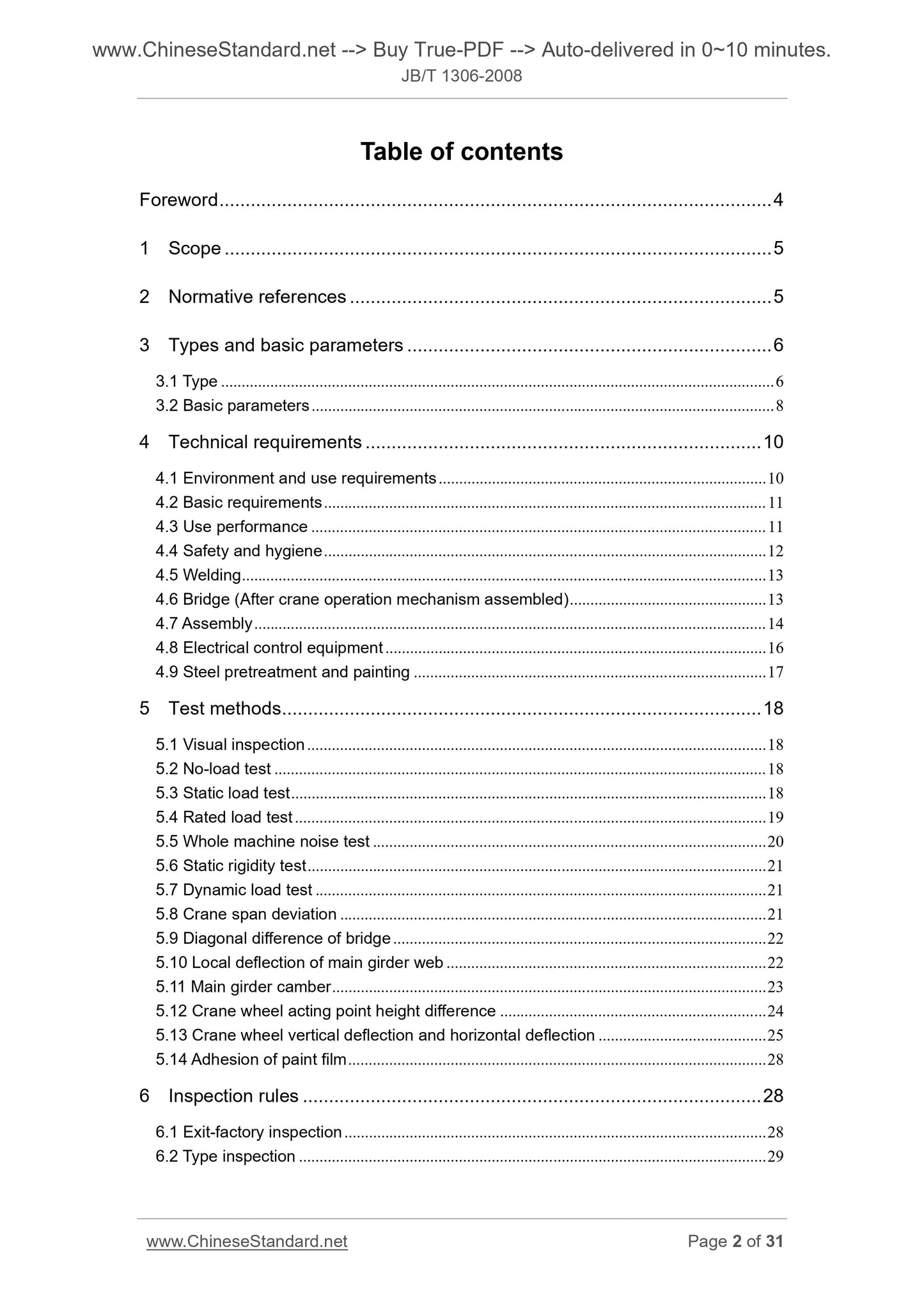

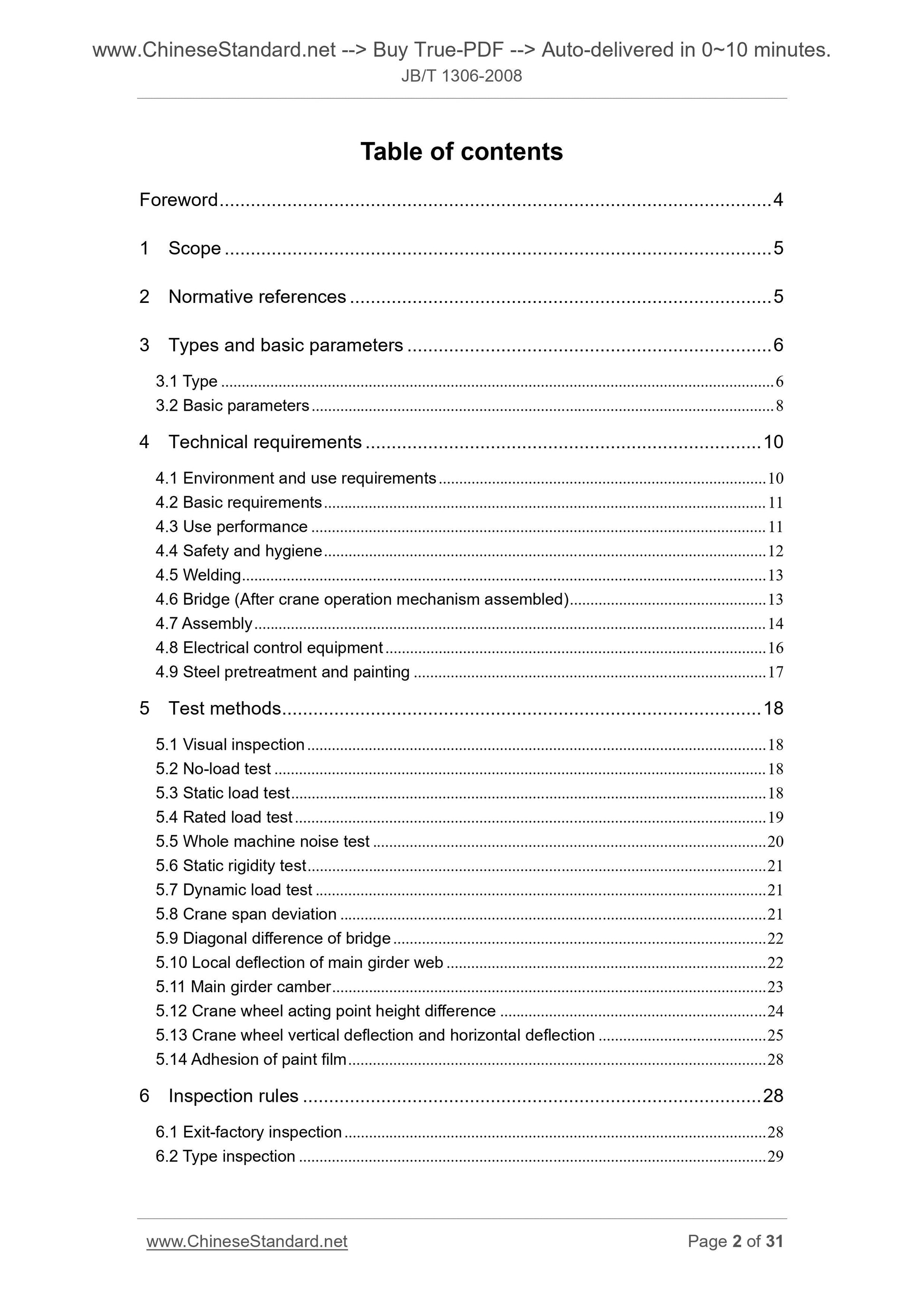

Table of contents
Foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 Types and basic parameters ... 6
3.1 Type ... 6
3.2 Basic parameters ... 8
4 Technical requirements ... 10
4.1 Environment and use requirements ... 10

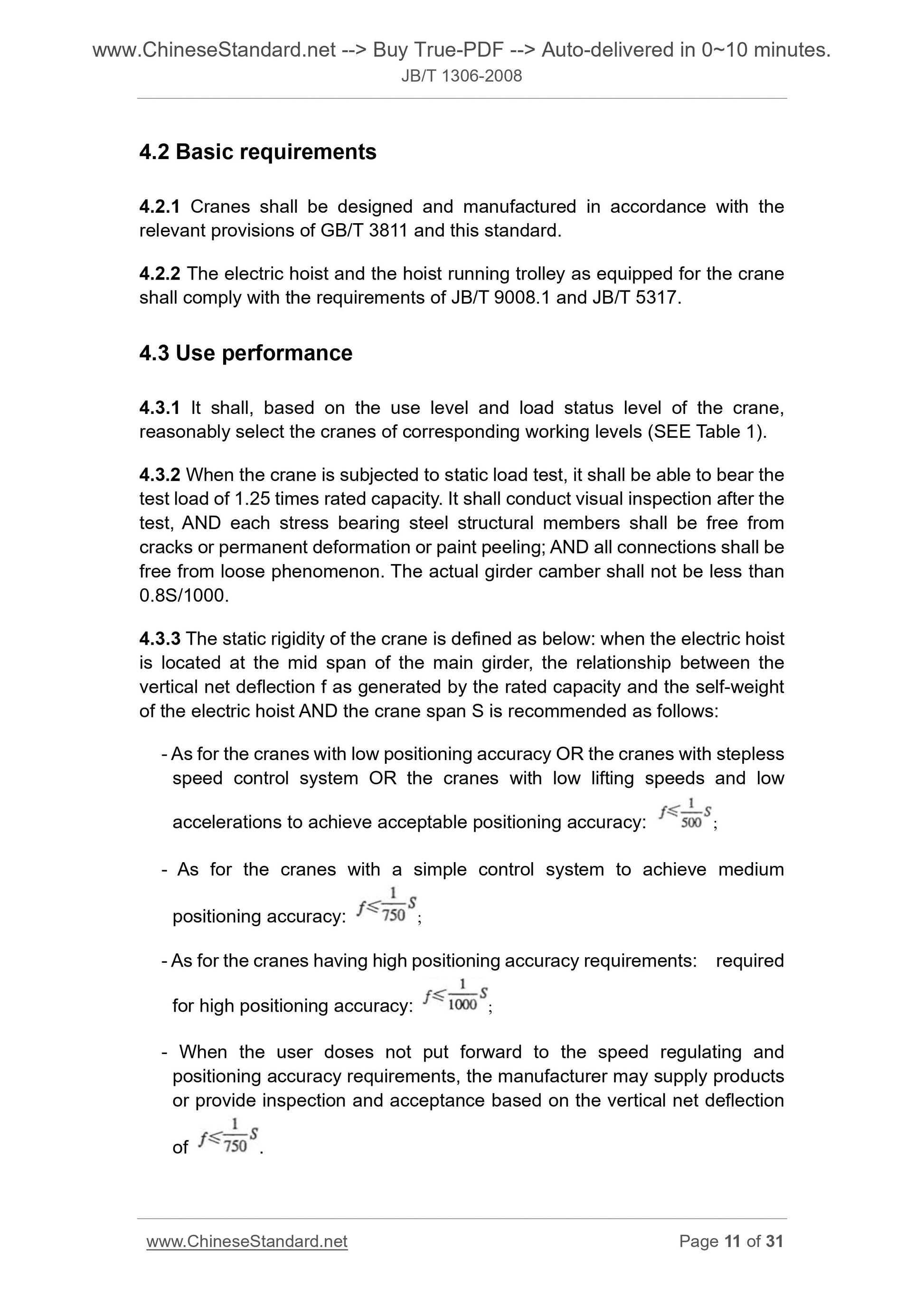

4.2 Basic requirements ... 11
4.3 Use performance ... 11

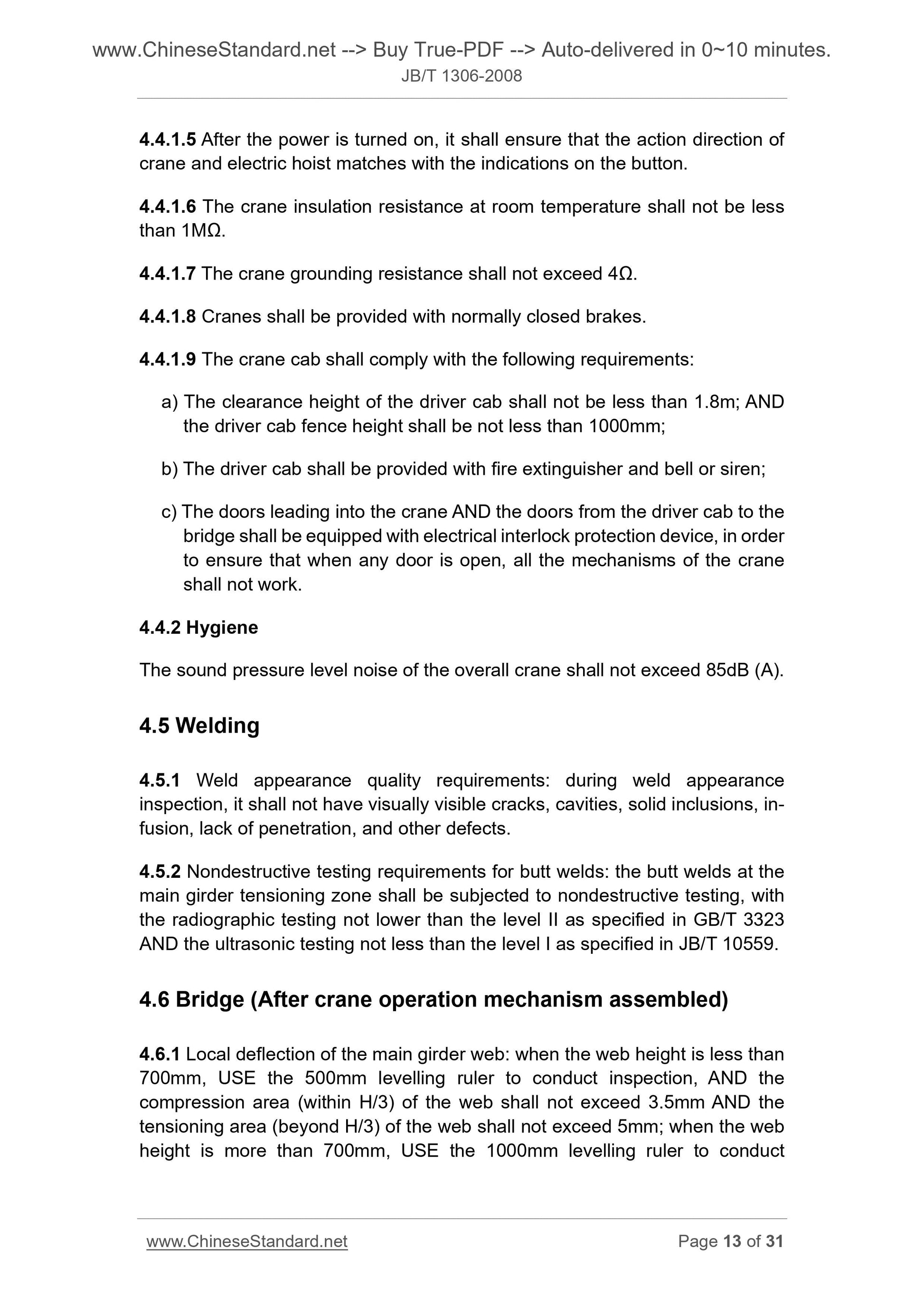

4.4 Safety and hygiene ... 12
4.5 Welding ... 13
4.6 Bridge (After crane operation mechanism assembled) ... 13
4.7 Assembly ... 14

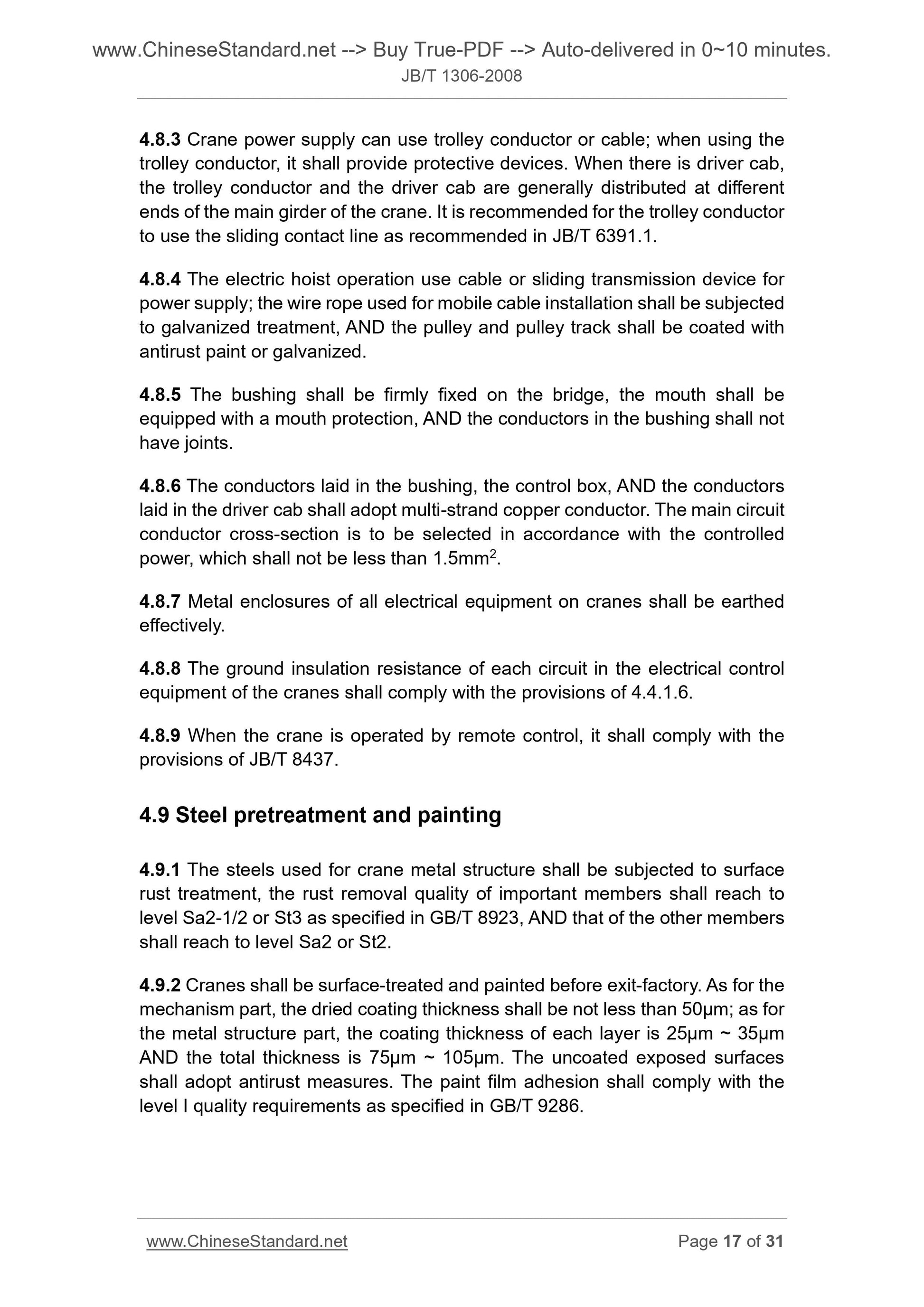

4.8 Electrical control equipment ... 16
4.9 Steel pretreatment and painting ... 17
5 Test methods ... 18
5.1 Visual inspection ... 18
5.2 No-load test ... 18
5.3 Static load test ... 18
5.4 Rated load test ... 19
5.5 Whole machine noise test ... 20

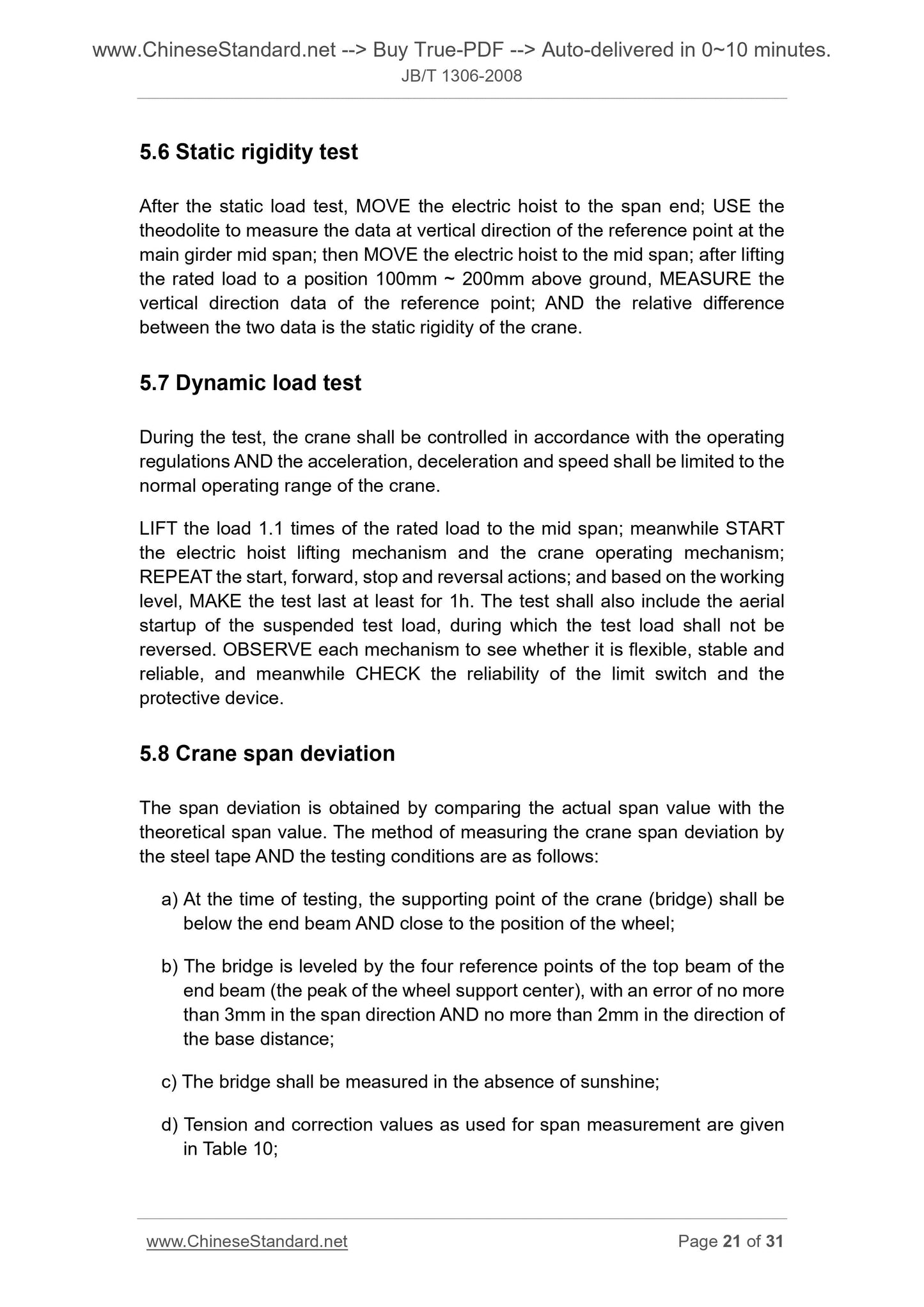

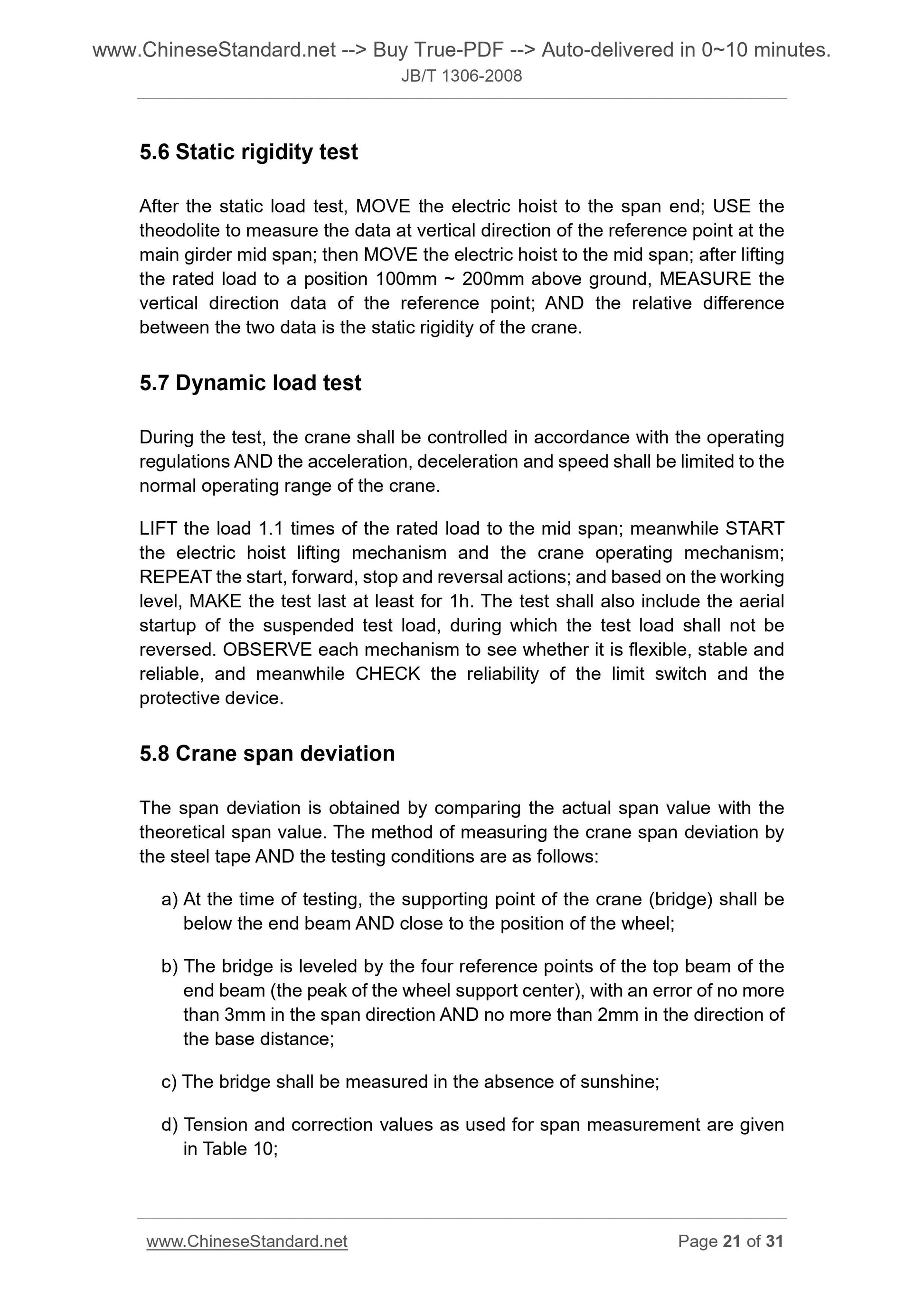

5.6 Static rigidity test ... 21
5.7 Dynamic load test ... 21
5.8 Crane span deviation ... 21
5.9 Diagonal difference of bridge ... 22
5.10 Local deflection of main girder web ... 22
5.11 Main girder camber ... 23
5.12 Crane wheel acting point height difference ... 24
5.13 Crane wheel vertical deflection and horizontal deflection ... 25
5.14 Adhesion of paint film ... 28
6 Inspection rules ... 28
6.1 Exit-factory inspection ... 28
6.2 Type inspection ... 29
7 Marking, packaging, transportation and storage ... 30
7.1 Marking ... 30
7.2 Packaging, transportation and storage ... 30

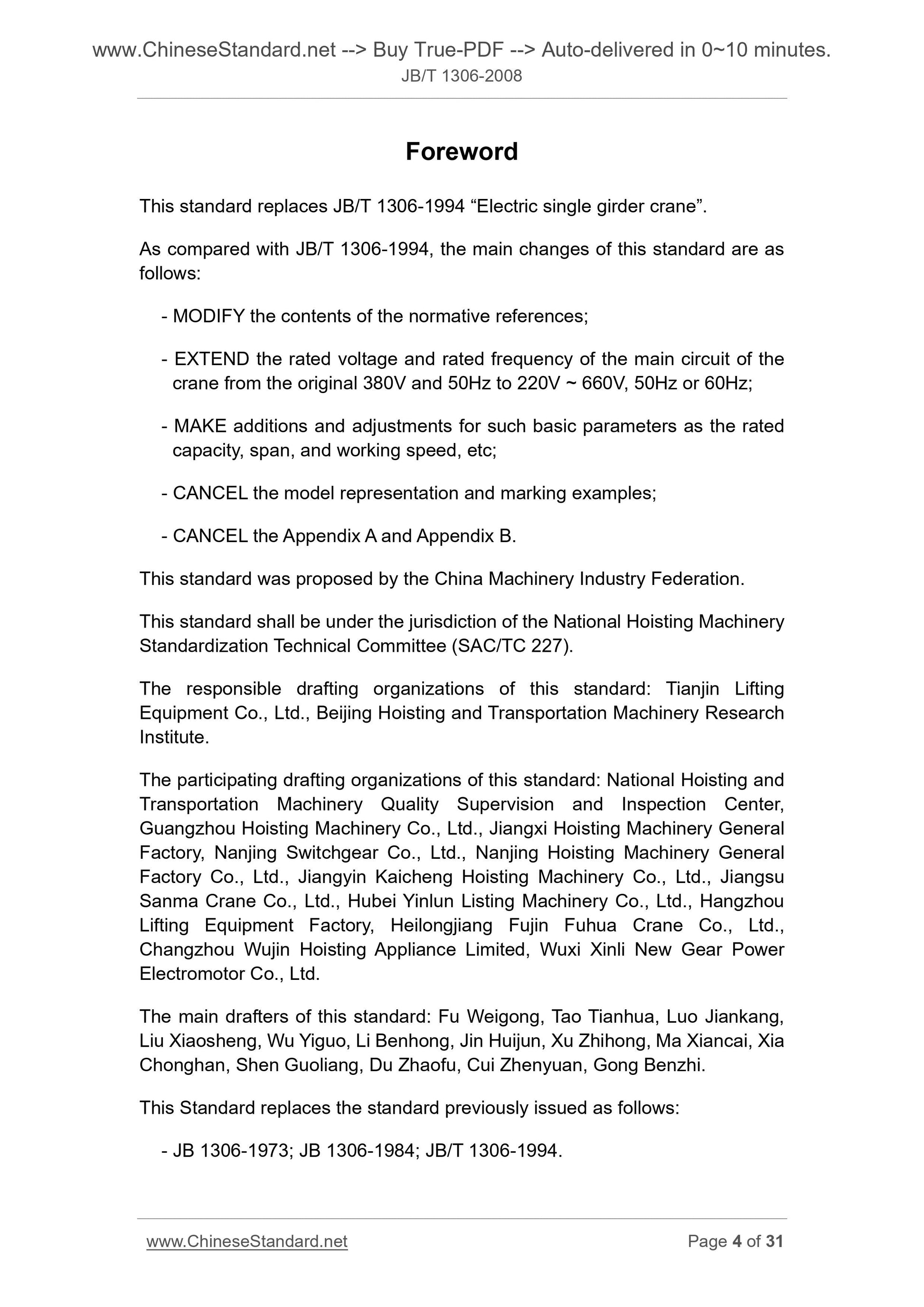

Foreword
This standard replaces JB/T 1306-1994 ?€?Electric single girder crane?€?.
As compared with JB/T 1306-1994, the main changes of this standard are as follows.
- MODIFY the contents of the normative references;
- EXTEND the rated voltage and rated frequency of the main circuit of the crane from the original 380V and 50Hz to 220V ~ 660V, 50Hz or 60Hz;
- MAKE additions and adjustments for such basic parameters as the rated capacity, span, and working speed, etc;
- CANCEL the model representation and marking examples;
- CANCEL the Appendix A and Appendix B.
This standard was proposed by the China Machinery Industry Federation.
This standard shall be under the jurisdiction of the National Hoisting Machinery Standardization Technical Committee (SAC/TC 227).
The responsible drafting organizations of this standard. Tianjin Lifting Equipment Co., Ltd., Beijing Hoisting and Transportation Machinery Research Institute.
The participating drafting organizations of this standard. National Hoisting and Transportation Machinery Quality Supervision and Inspection Center,
Guangzhou Hoisting Machinery Co., Ltd., Jiangxi Hoisting Machinery General Factory, Nanjing Switchgear Co., Ltd., Nanjing Hoisting Machinery General Factory Co., Ltd., Jiangyin Kaicheng Hoisting Machinery Co., Ltd., Jiangsu Sanma Crane Co., Ltd., Hubei Yinlun Listing Machinery Co., Ltd., Hangzhou Lifting Equipment Factory, Heilongjiang Fujin Fuhua Crane Co., Ltd.,
Changzhou Wujin Hoisting Appliance Limited, Wuxi Xinli New Gear Power
Electromotor Co., Ltd.
The main drafters of this standard. Fu Weigong, Tao Tianhua, Luo Jiankang, Liu Xiaosheng, Wu Yiguo, Li Benhong, Jin Huijun, Xu Zhihong, Ma Xiancai, Xia Chonghan, Shen Guoliang, Du Zhaofu, Cui Zhenyuan, Gong Benzhi.
This Standard replaces the standard previously issued as follows.
- JB 1306-1973; JB 1306-1984; JB/T 1306-1994.
Electric single girder crane

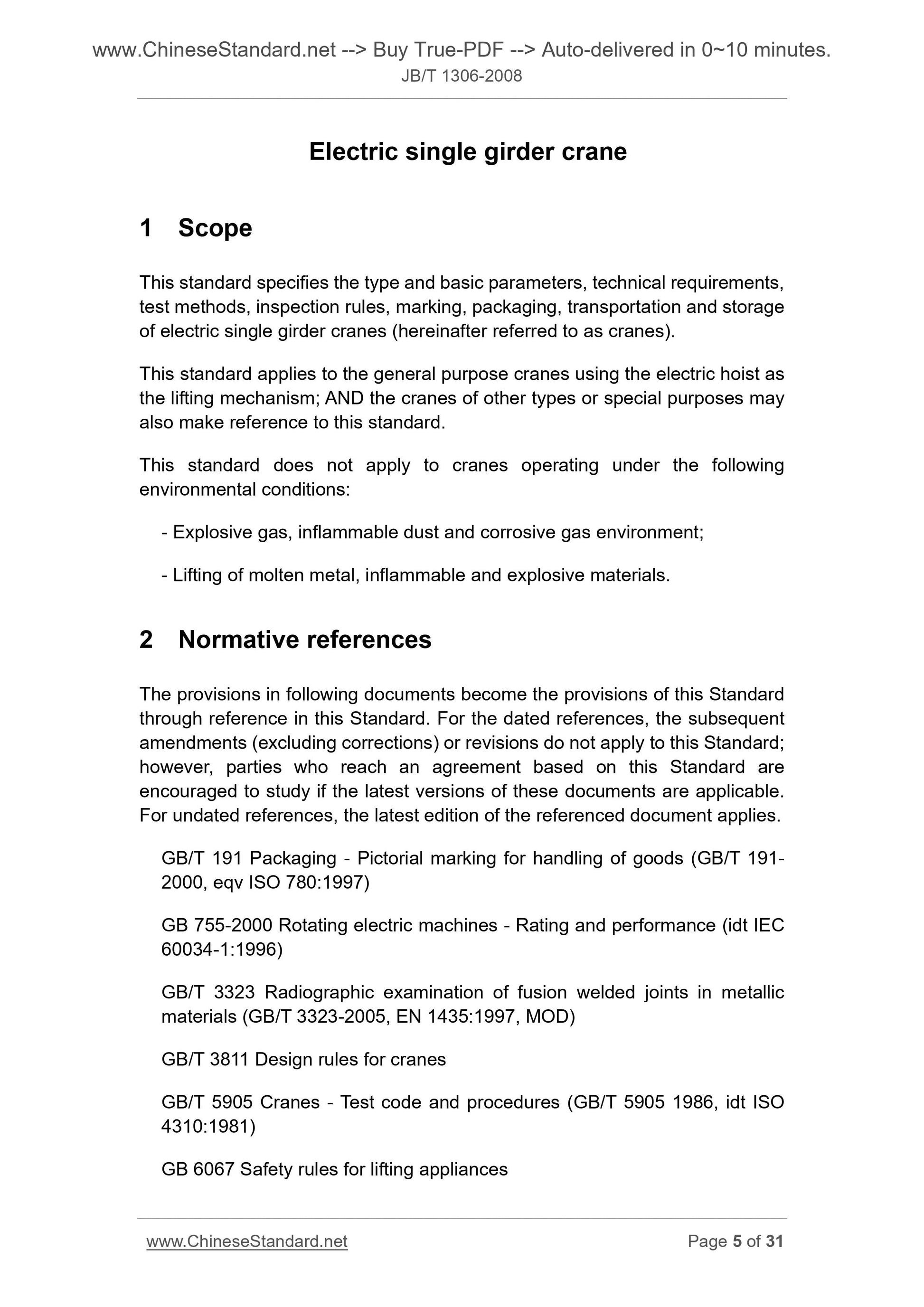

1 Scope
This standard specifies the type and basic parameters, technical requirements, test methods, inspection rules, marking, packaging, transportation and storage of electric single girder cranes (hereinafter referred to as cranes).
This standard applies to the general purpose cranes using the electric hoist as the lifting mechanism; AND the cranes of other types or special purposes may also make reference to this standard.
This standard does not apply to cranes operating under the following
environmental conditions.
- Explosive gas, inflammable dust and corrosive gas environment;
- Lifting of molten metal, inflammable and explosive materials.
2 Normative references
The provisions in following documents become the provisions of this Standard through reference in this Standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this Standard; however, parties who reach an agreement based on this Standard are
encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 191 Packaging - Pictorial marking for handling of goods (GB/T 191- 2000, eqv ISO 780.1997)
GB 755-2000 Rotating electric machines - Rating and performance (idt IEC 60034-1.1996)
GB/T 3323 Radiographic examination of fusion welded joints in metallic
materials (GB/T 3323-2005, EN 1435.1997, MOD)
GB/T 3811 Design rules for cranes
GB/T 5905 Cranes - Test code and procedures (GB/T 5905 1986, idt ISO
4310.1981)
GB 6067 Safety rules for lifting appliances

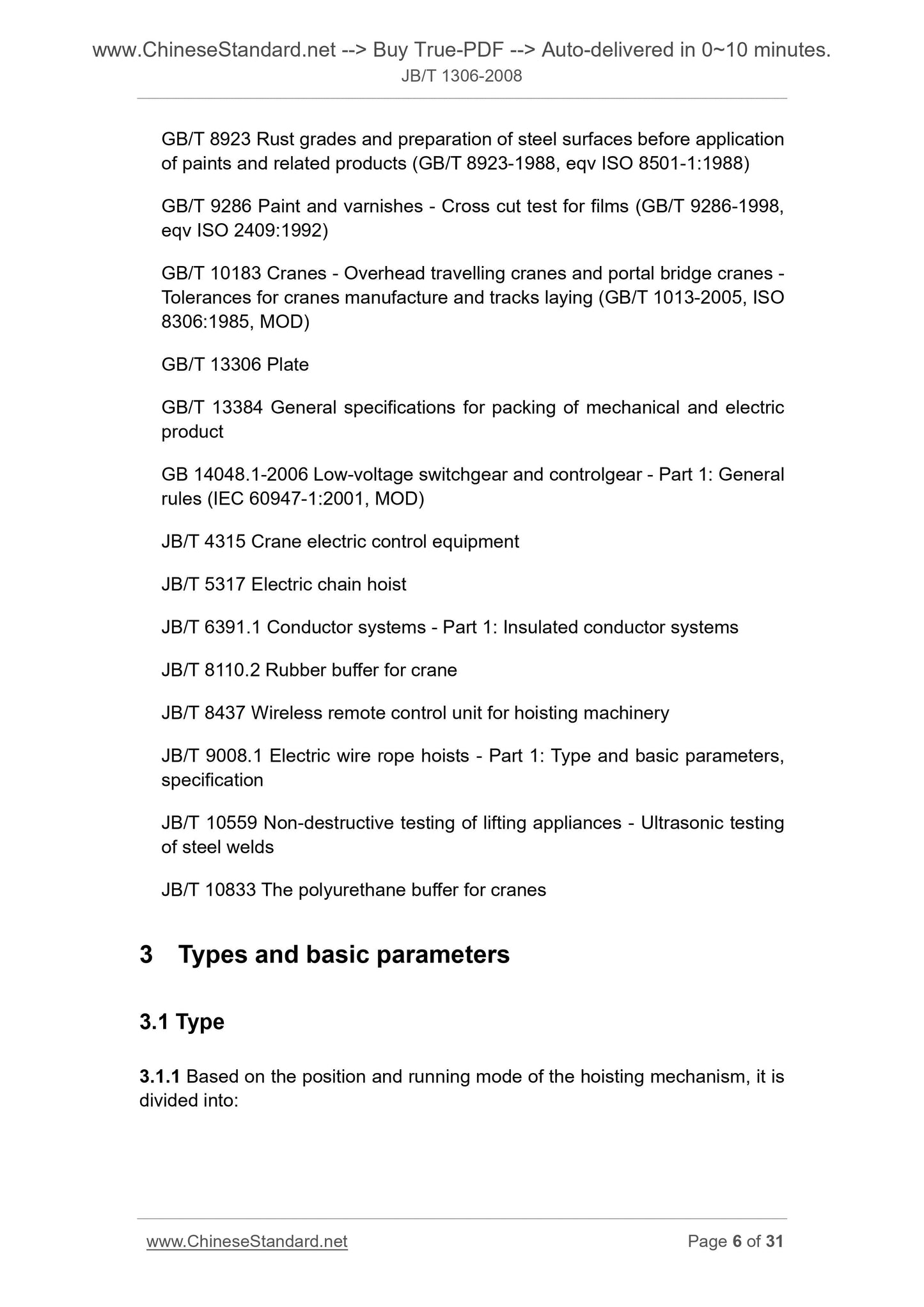

GB/T 8923 Rust grades and preparation of steel surfaces before application of paints and related products (GB/T 8923-1988, eqv ISO 8501-1.1988)
GB/T 9286 Paint and varnishes - Cross cut test for films (GB/T 9286-1998, eqv ISO 2409.1992)
GB/T 10183 Cranes - Overhead travelling cranes and portal bridge cranes - Tolerances for cranes manufacture and tracks laying (GB/T 1013-2005, ISO 8306.1985, MOD)
GB/T 13306 Plate
GB/T 13384 General specifications for packing of mechanical and electric product
GB 14048.1-2006 Low-voltage switchgear and controlgear - Part 1. General rules (IEC 60947-1.2001, MOD)
JB/T 4315 Crane electric control equipment
JB/T 5317 Electric chain hoist
JB/T 6391.1 Conductor systems - Part 1. Insulated conductor systems
JB/T 8110.2 Rubber buffer for crane
JB/T 8437 Wireless remote control unit for hoisting machinery
JB/T 9008.1 Electric wire rope hoists - Part 1. Type and basic parameters, specification
JB/T 10559 Non-destructive testing of lifting appliances - Ultrasonic testing of steel welds
JB/T 10833 The polyurethane buffer for cranes
3 Types and basic parameters
3.1 Type
3.1.1 Based on the position and running mode of the hoisting mechan...
