JB/T 12685-2016: Stator coils of high-voltage rotating electrical machines - Specification

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click JB/T 12685-2016 (Self-service in 1-minute)
Newer / historical versions: JB/T 12685-2016

Preview True-PDF

Scope

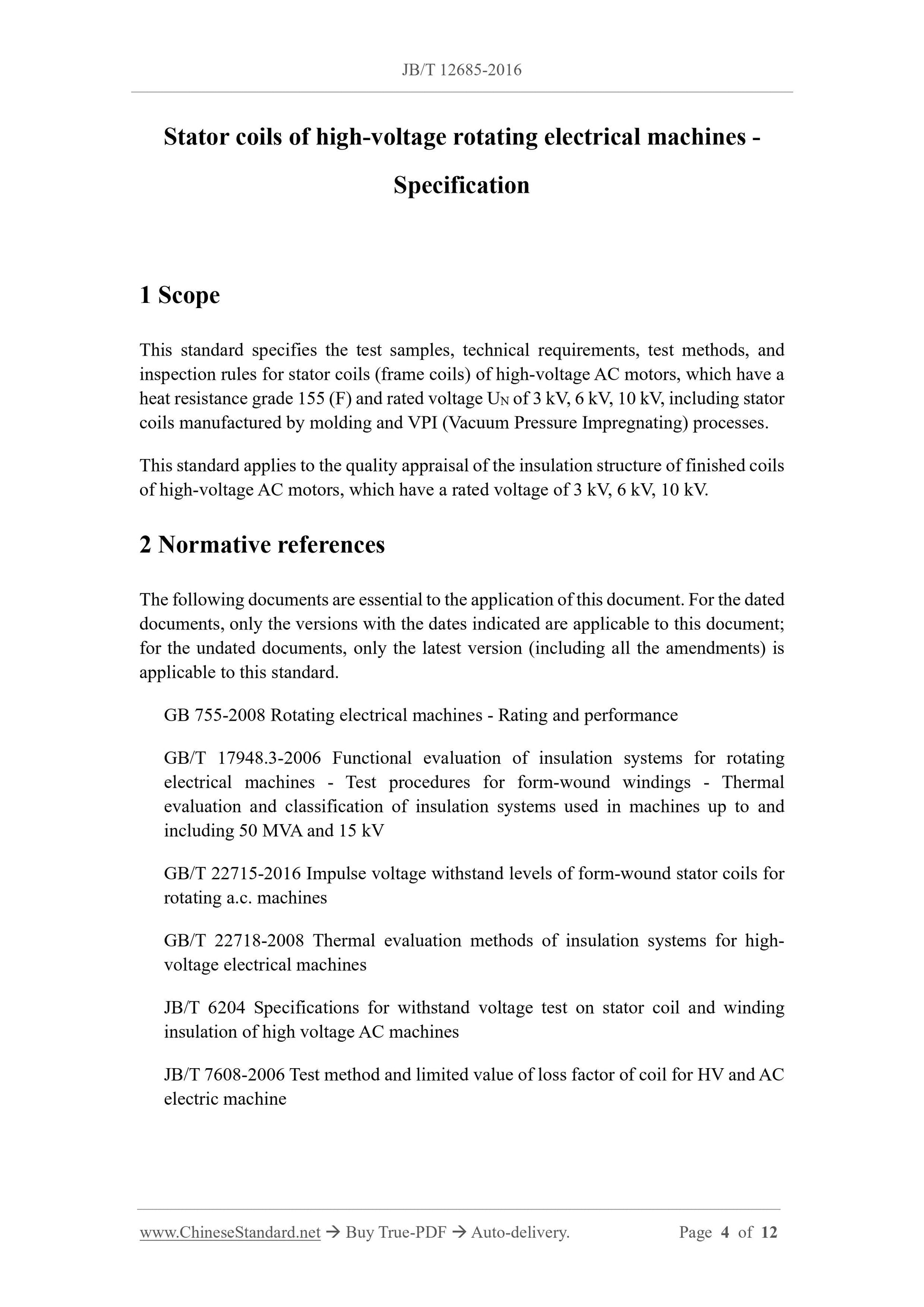

This standard specifies the test samples, technical requirements, test methods, and
inspection rules for stator coils (frame coils) of high-voltage AC motors, which have a
heat resistance grade 155 (F) and rated voltage UN of 3 kV, 6 kV, 10 kV, including stator
coils manufactured by molding and VPI (Vacuum Pressure Impregnating) processes.
This standard applies to the quality appraisal of the insulation structure of finished coils
of high-voltage AC motors, which have a rated voltage of 3 kV, 6 kV, 10 kV.

Basic Data

Standard ID	JB/T 12685-2016 (JB/T12685-2016)
Description (Translated English)	Stator coils of high-voltage rotating electrical machines - Specification
Sector / Industry	Mechanical and Machinery Industry Standard (Recommended)
Classification of Chinese Standard	K20
Classification of International Standard	29.160.01
Word Count Estimation	9,957
Date of Issue	2016-01-15
Date of Implementation	2016-06-01
Quoted Standard	GB 755-2008; GB/T 17948.3-2006; GB/T 22715-2016; GB/T 22718-2008; JB/T 6204; JB/T 7608-2006
Regulation (derived from)	?Ministry of Industry and Information Technology Bulletin 2016 No.3
Issuing agency(ies)	Ministry of Industry and Information Technology
Summary	This standard specifies the test samples, technical requirements, test methods and inspection rules for the stator coil (box type coil) with heat resistance class 155 (F) and rated voltage UN of 3kV, 6kV, 10kV high voltage AC motor, including the use of Molding process and VPI (Vacuum Pressure Impregnating) process to create a stator coil. This standard is suitable for the rated voltage of 3 kV, 6kV, 10 kV high voltage AC motor finished coil insulation structure quality identification.
