JB/T 11880.4-2014: Diesel engines. Selective catalytic reduction (SCR) systems. Part4: Urea solution supply pump

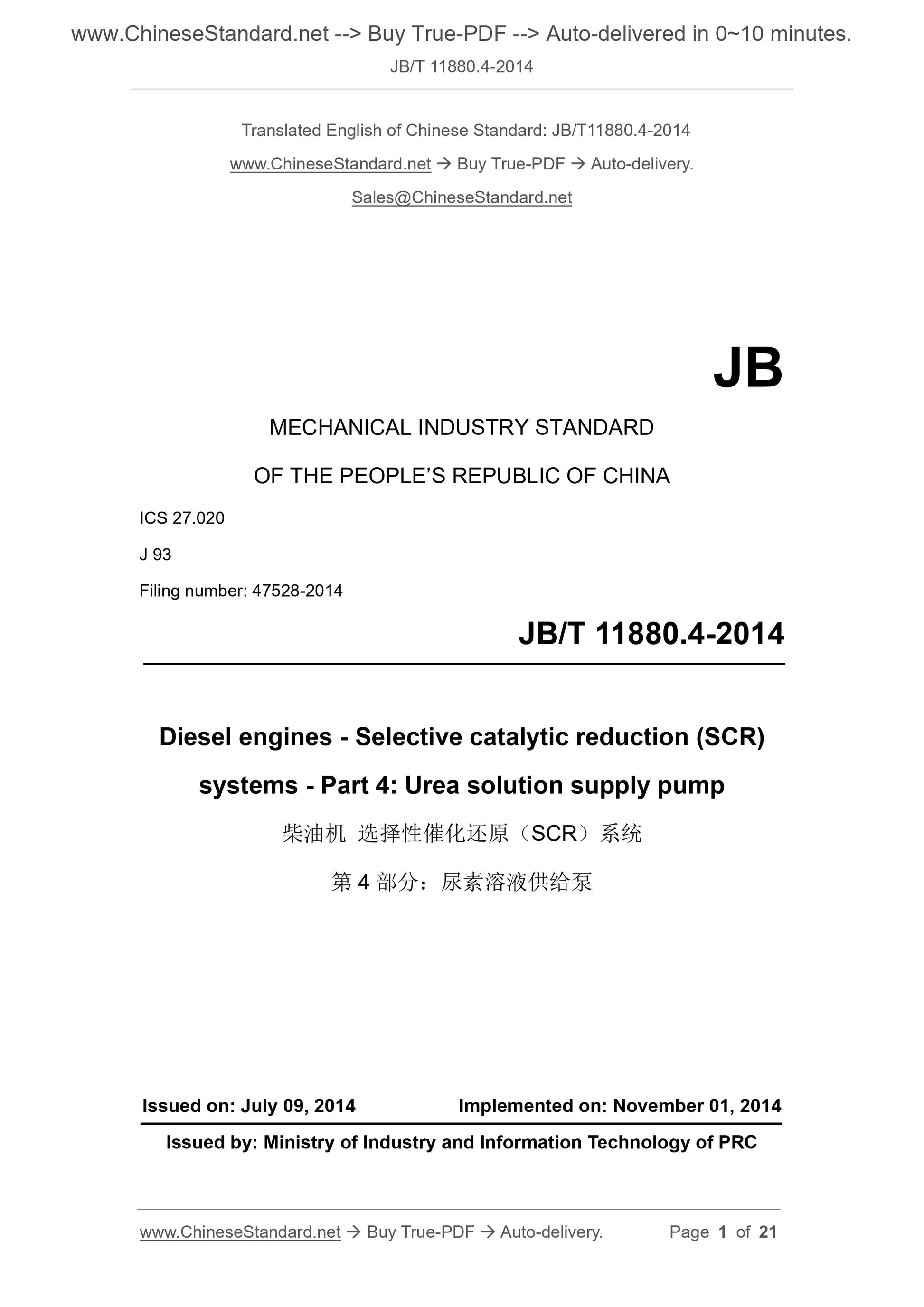

JB/T 11880.4-2014
JB
MECHANICAL INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 27.020
J 93
Filing number: 47528-2014
Diesel engines - Selective catalytic reduction (SCR)
systems - Part 4: Urea solution supply pump
ISSUED ON: JULY 09, 2014
IMPLEMENTED ON: NOVEMBER 01, 2014
Issued by: Ministry of Industry and Information Technology of PRC

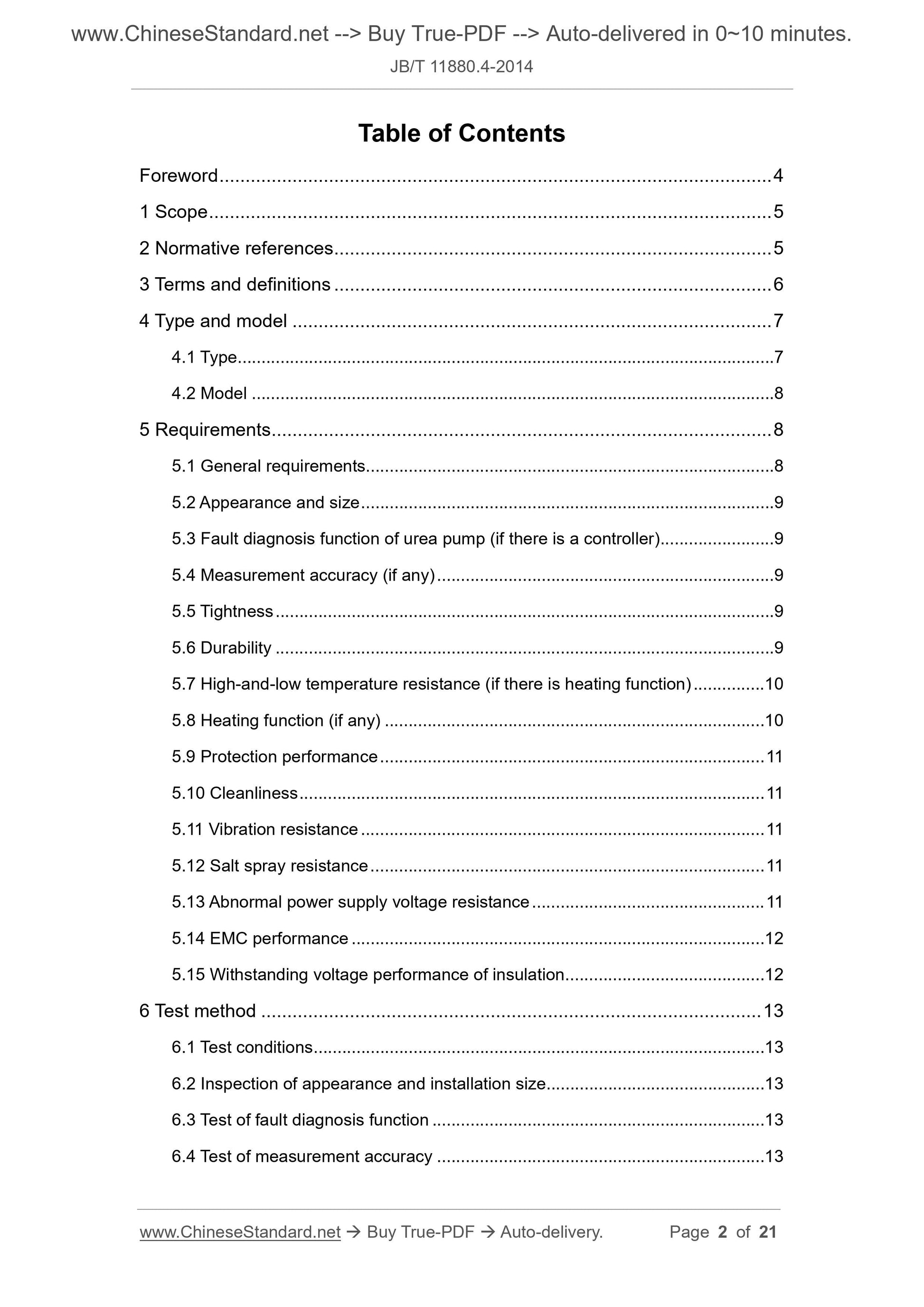

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Type and model ... 7
4.1 Type ... 7
4.2 Model ... 8
5 Requirements ... 8
5.1 General requirements... 8
5.2 Appearance and size ... 9
5.3 Fault diagnosis function of urea pump (if there is a controller) ... 9
5.4 Measurement accuracy (if any) ... 9
5.5 Tightness ... 9
5.6 Durability ... 9
5.7 High-and-low temperature resistance (if there is heating function) ... 10
5.8 Heating function (if any) ... 10
5.9 Protection performance ... 11
5.10 Cleanliness ... 11
5.11 Vibration resistance ... 11
5.12 Salt spray resistance ... 11
5.13 Abnormal power supply voltage resistance ... 11
5.14 EMC performance ... 12
5.15 Withstanding voltage performance of insulation ... 12
6 Test method ... 13
6.1 Test conditions ... 13
6.2 Inspection of appearance and installation size ... 13
6.3 Test of fault diagnosis function ... 13
6.4 Test of measurement accuracy ... 13
6.5 Tightness test ... 14
6.6 Endurance reliability test ... 14
6.7 Test of high-and-low-temperature resistance ... 14
6.8 Heating function test ... 15
6.9 Protection performance test ... 15
6.10 Cleanliness test ... 16
6.11 Vibration resistance test ... 16
6.12 Salt spray resistance test ... 17
6.13 Abnormal power supply voltage resistance test ... 17
6.14 Electromagnetic compatibility test ... 17
6.15 Insulation withstanding voltage test ... 18
7 Inspection rules ... 18
7.1 Inspection category ... 18
7.2 Exit-factory inspection ... 18
7.3 Sampling inspection ... 19
7.4 Type inspection ... 19
8 Marking, packaging, transportation, storage ... 20
8.1 Marking ... 20
8.2 Packaging ... 20
8.3 Transportation and storage ... 21

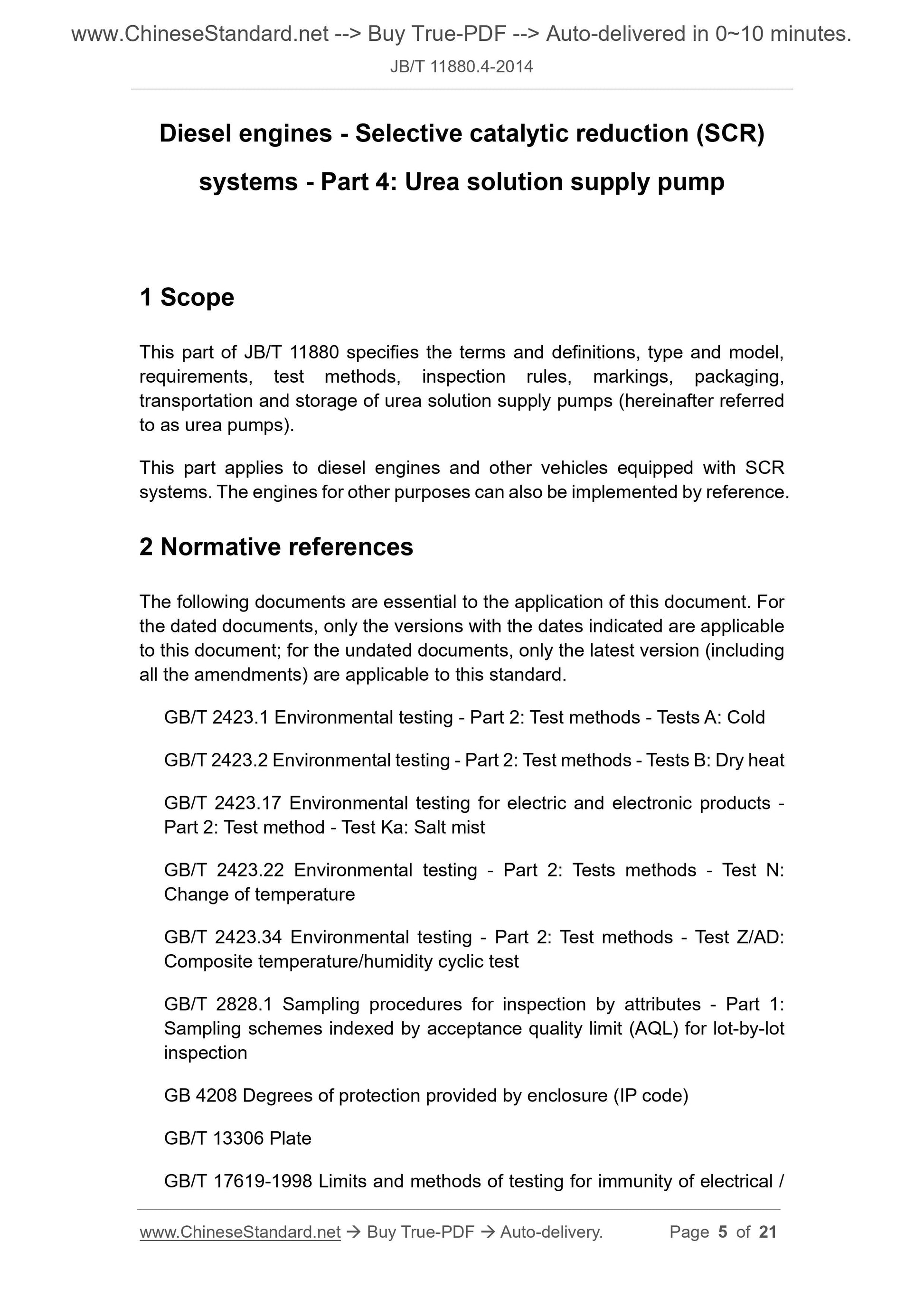

Diesel engines - Selective catalytic reduction (SCR)
systems - Part 4: Urea solution supply pump
1 Scope
This part of JB/T 11880 specifies the terms and definitions, type and model,
requirements, test methods, inspection rules, markings, packaging,
transportation and storage of urea solution supply pumps (hereinafter referred
to as urea pumps).
This part applies to diesel engines and other vehicles equipped with SCR
systems. The engines for other purposes can also be implemented by reference.
2 Normative references
The following documents are essential to the application of this document. For
the dated documents, only the versions with the dates indicated are applicable
to this document; for the undated documents, only the latest version (including
all the amendments) are applicable to this standard.
GB/T 2423.1 Environmental testing - Part 2: Test methods - Tests A: Cold
GB/T 2423.2 Environmental testing - Part 2: Test methods - Tests B: Dry heat
GB/T 2423.17 Environmental testing for electric and electronic products -
Part 2: Test method - Test Ka: Salt mist
GB/T 2423.22 Environmental testing - Part 2: Tests methods - Test N:
Change of temperature
GB/T 2423.34 Environmental testing - Part 2: Test methods - Test Z/AD:
Composite temperature/humidity cyclic test
GB/T 2828.1 Sampling procedures for inspection by attributes - Part 1:
Sampling schemes indexed by acceptance quality limit (AQL) for lot-by-lot
inspection
GB 4208 Degrees of protection provided by enclosure (IP code)
GB/T 13306 Plate
GB/T 17619-1998 Limits and methods of testing for immunity of electrical /
electronic sub-assemblies in vehicles to electromagnetic radiation
GB 18655 Vehicles boats and internal combustion engines - Radio
disturbance characteristics - Limits and methods of measurement for the
protection of on-board receivers
GB/T 19951-2005 Road vehicles - Test methods for electrical disturbances
from electrostatic discharge
QC/T 29106 Technical specification of automobile wire harness
ISO 16232-3 Road vehicles - Cleanliness of components of fluid circuits -
Part 3: Method of extraction of contaminants by pressure rinsing first edition
ISO 16232-10 Road vehicles - Cleanliness of components of fluid circuits -
Part 10: Expression of results first edition
ISO 22241-1 Diesel engines - NOx reduction agent AUS 32 - Part 1: Quality
requirements first edition
SAE J1939 (all parts) Recommended practice for a serial control and
communication vehicle network
SAE J2044 Quick connect coupling specification for liquid fuel and
vapor/emissions systems

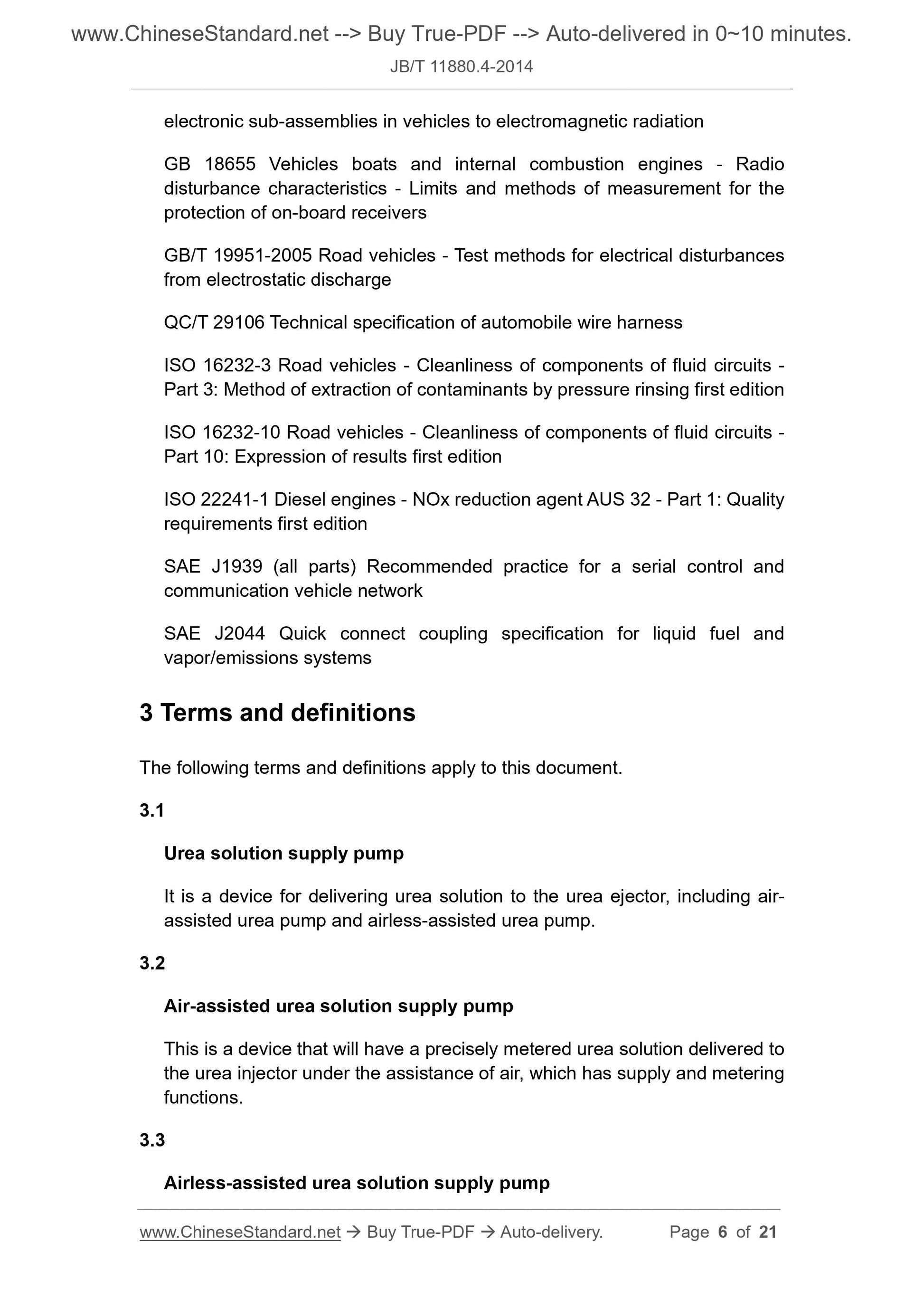

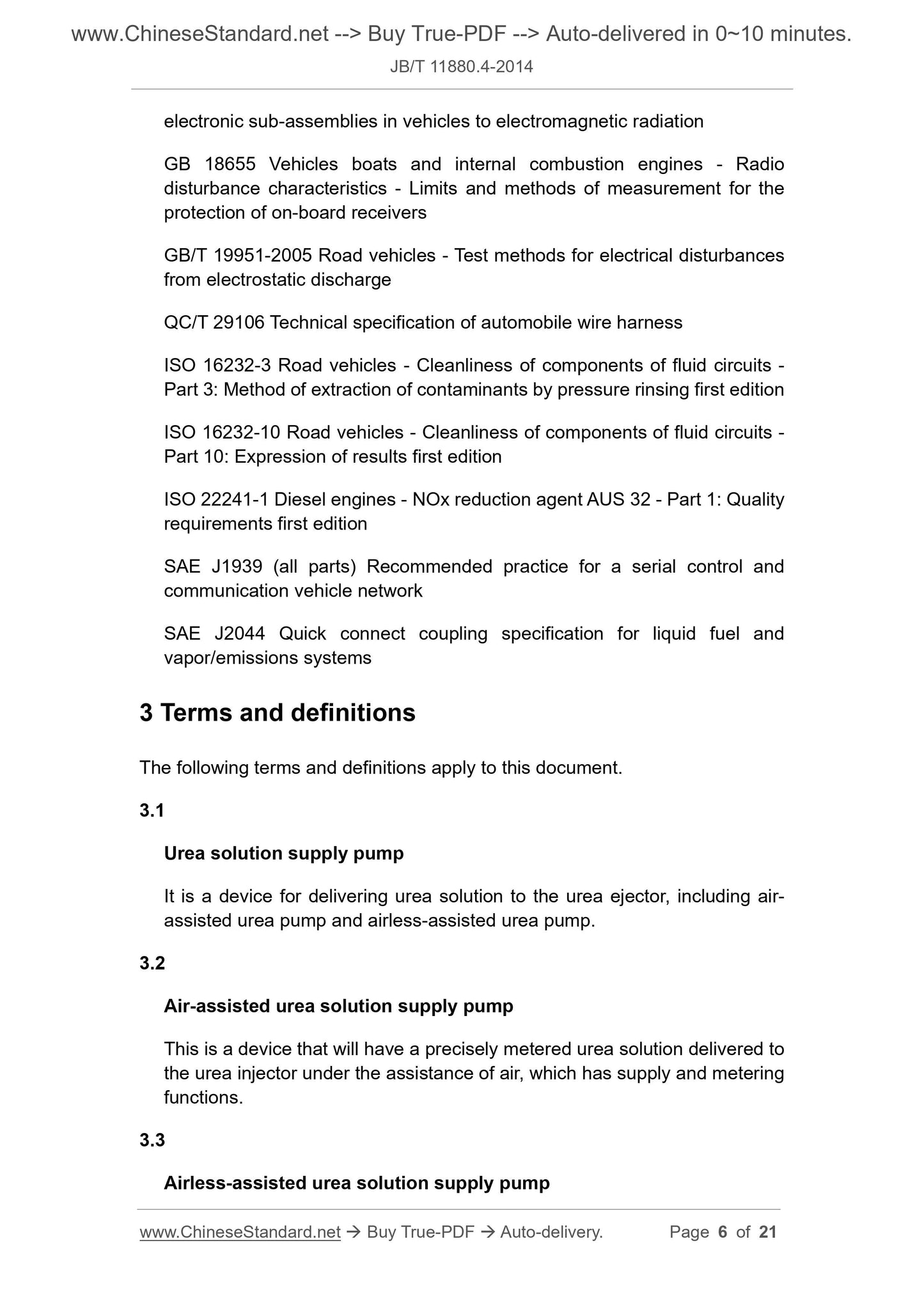

3 Terms and definitions
The following terms and definitions apply to this document.
3.1
Urea solution supply pump
It is a device for delivering urea solution to the urea ejector, including air-
assisted urea pump and airless-assisted urea pump.
3.2
Air-assisted urea solution supply pump
This is a device that will have a precisely metered urea solution delivered to
the urea injector under the assistance of air, which has supply and metering
functions.
3.3
Airless-assisted urea solution supply pump

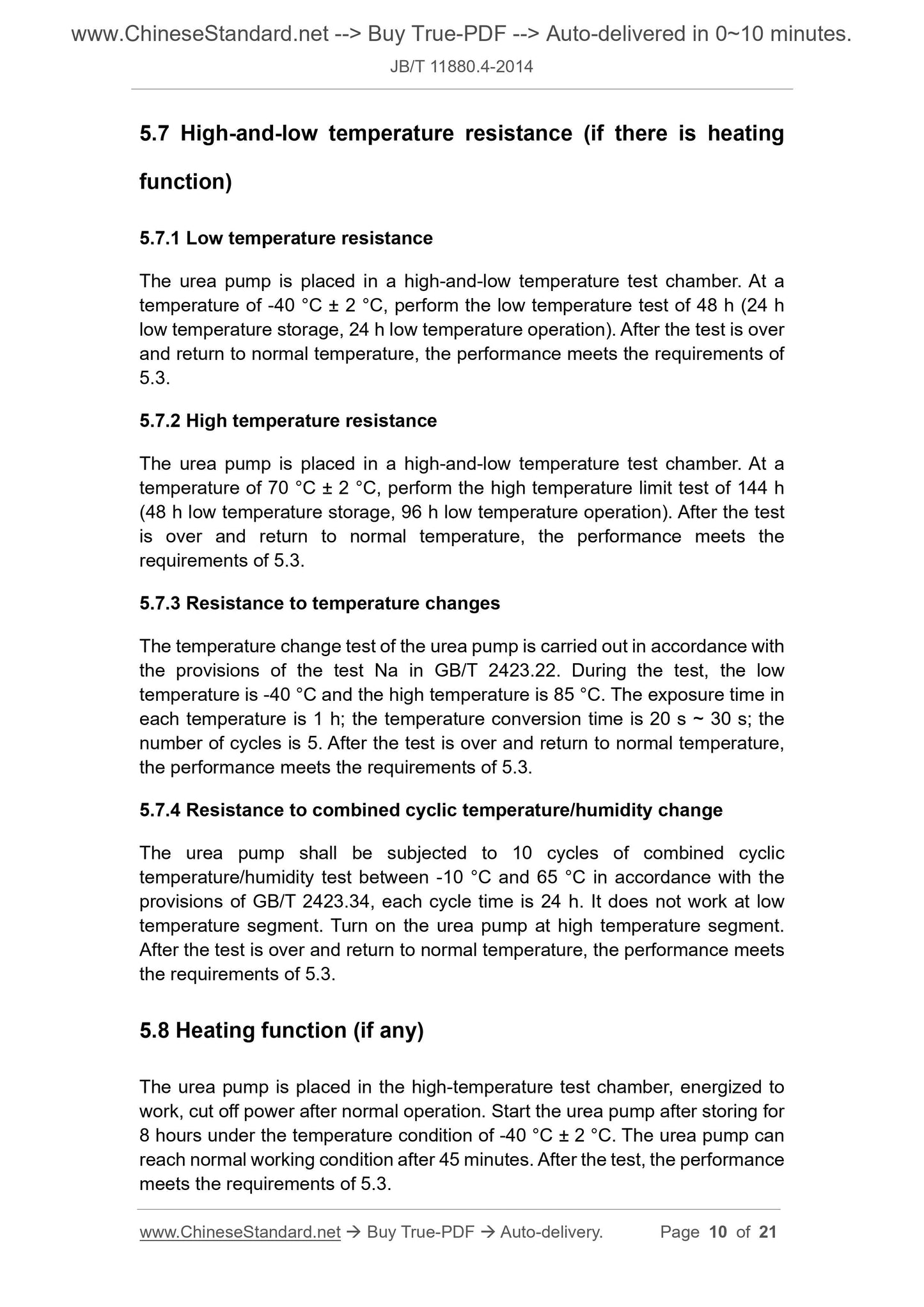

5.7 High-and-low temperature resistance (if there is heating
function)
5.7.1 Low temperature resistance
The urea pump is placed in a high-and-low temperature test chamber. At a
temperature of -40 °C ± 2 °C, perform the low temperature test of 48 h (24 h
low temperature storage, 24 h low temperature operation). After the test is over
and return to normal temperature, the performance meets the requirements of
5.3.
5.7.2 High temperature resistance
The urea pump is placed in a high-and-low temperature test chamber. At a
temperature of 70 °C ± 2 °C, perform the high temperature limit test of 144 h
(48 h low temperature storage, 96 h low temperature operation). After the test
is over and return to normal temperature, the performance meets the
requirements of 5.3.
5.7.3 Resistance to temperature changes
The temperature change test of the urea pump is carried out in accordance with
the provisions of the test Na in GB/T 2423.22. During the test, the low
temperature is -40 °C and the high temperature is 85 °C. The exposure time in
each temperature is 1 h; the temperature conversion time is 20 s ~ 30 s; the
number of cycles is 5. After the test is over and return to normal temperature,
the performance meets the requirements of 5.3.
5.7.4 Resistance to combined cyclic temperature/humidity change
The urea pump shall be subjected to 10 cycles of combined cyclic
temperature/humidity test between -10 °C and 65 °C in accordance with the
provisions of GB/T 2423.34, each cycle time is 24 h. It does not work at low
temperature segment. Turn on the urea pump at high temperature segment.
After the test is over and return to normal temperature, the performance meets
the requirements of 5.3.

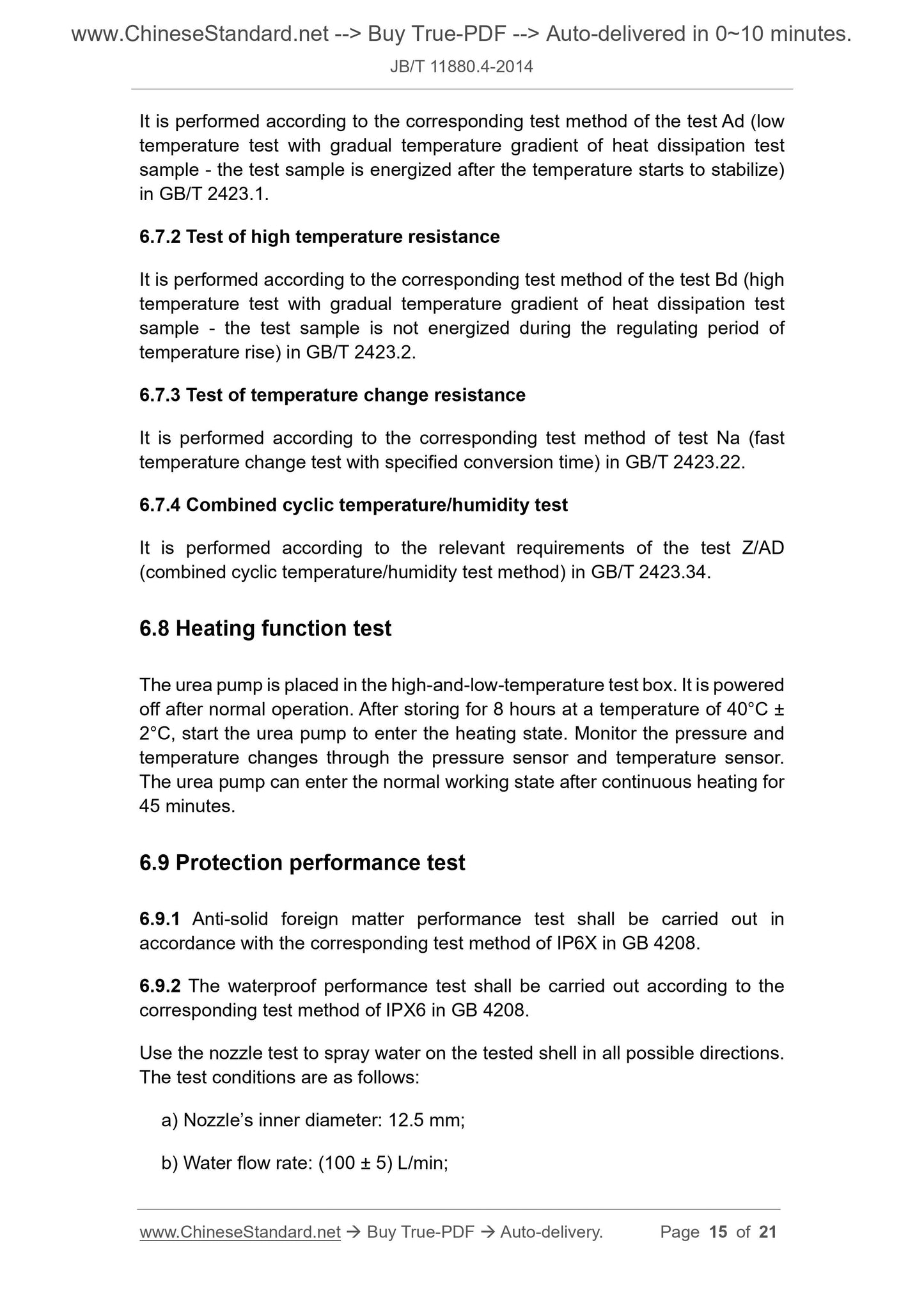

5.8 Heating function (if any)
The urea pump is placed in the high-temperature test chamber, energized to
work, cut off power after normal operation. Start the urea pump after storing for
8 hours under the temperature condition of -40 °C ± 2 °C. The urea pump can
reach normal working condition after 45 minutes. After the test, the performance
meets the requirements of 5.3.

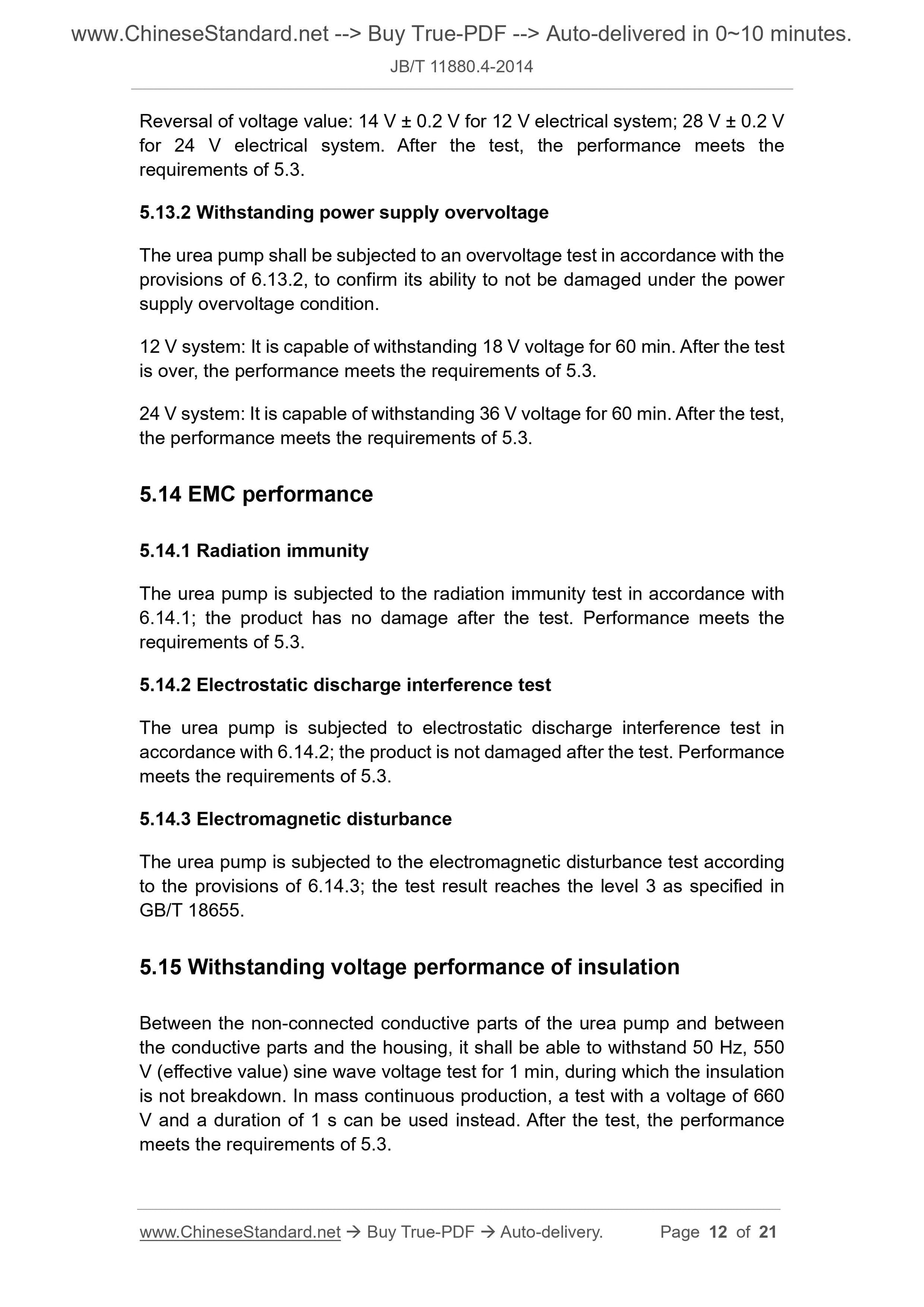

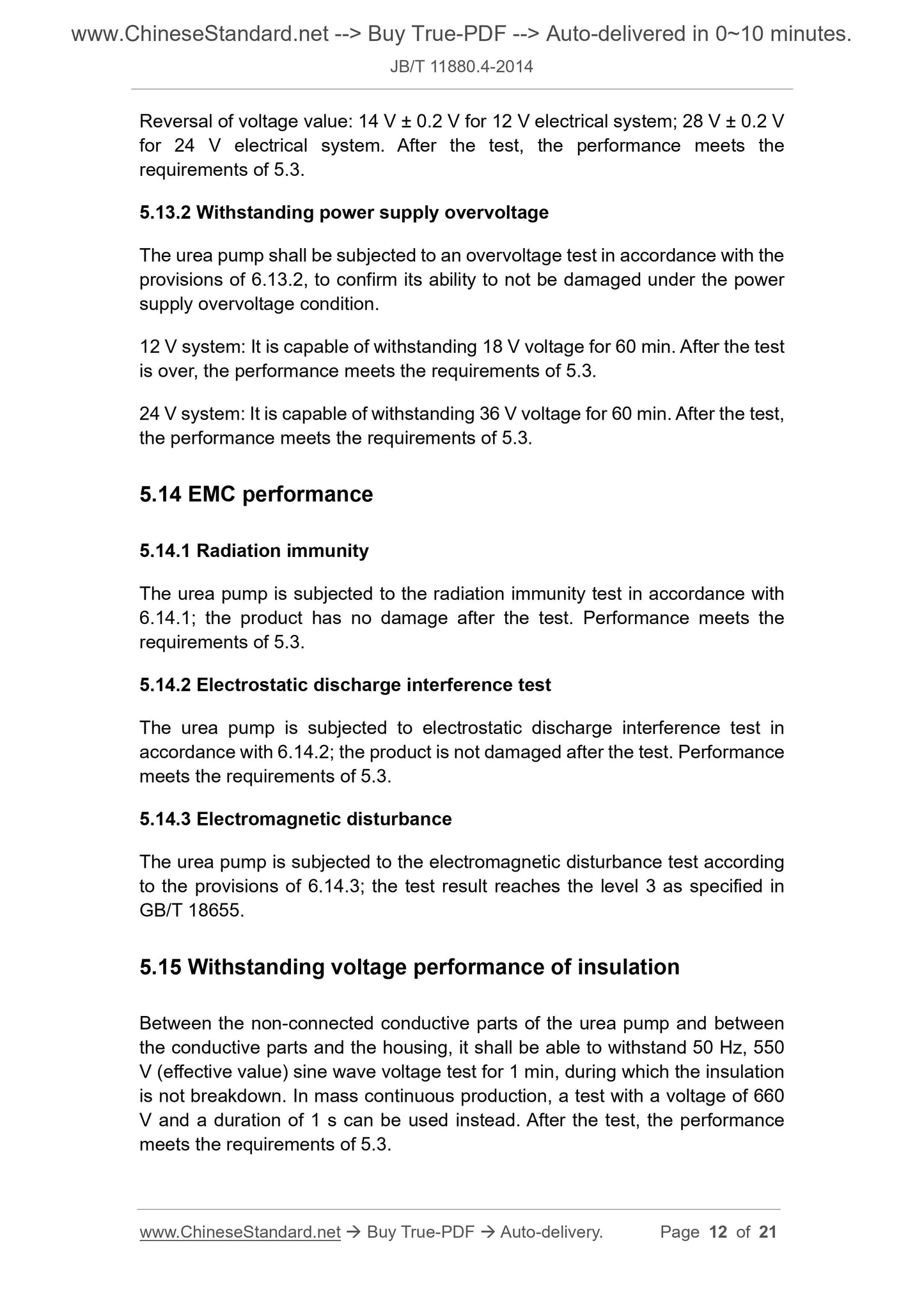

Reversal o...
