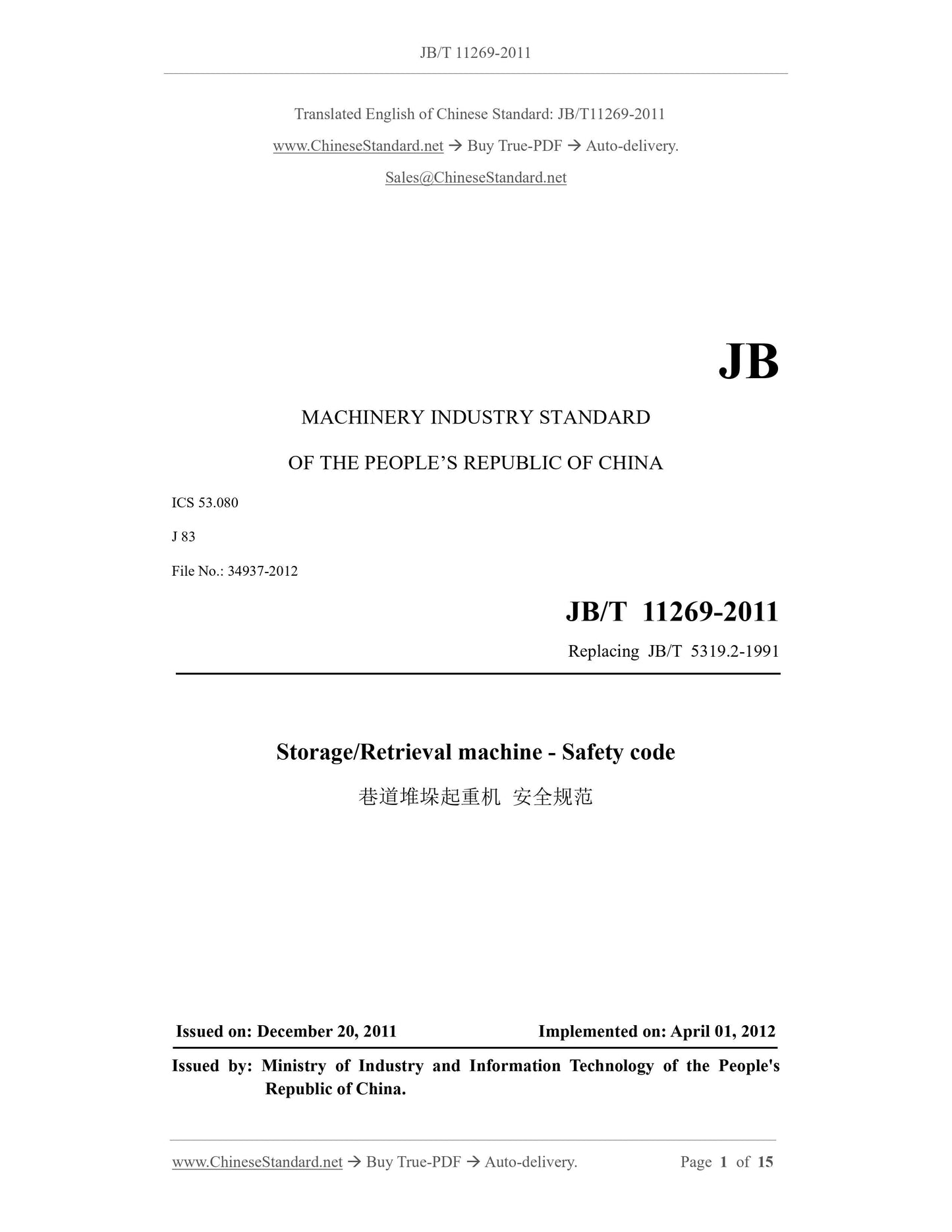

JB/T 11269-2011
JB
MACHINERY INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 53.080
J 83
File No.: 34937-2012
Replacing JB/T 5319.2-1991
Storage/Retrieval machine - Safety code
ISSUED ON: DECEMBER 20, 2011
IMPLEMENTED ON: APRIL 01, 2012
Issued by: Ministry of Industry and Information Technology of the People's
Republic of China.

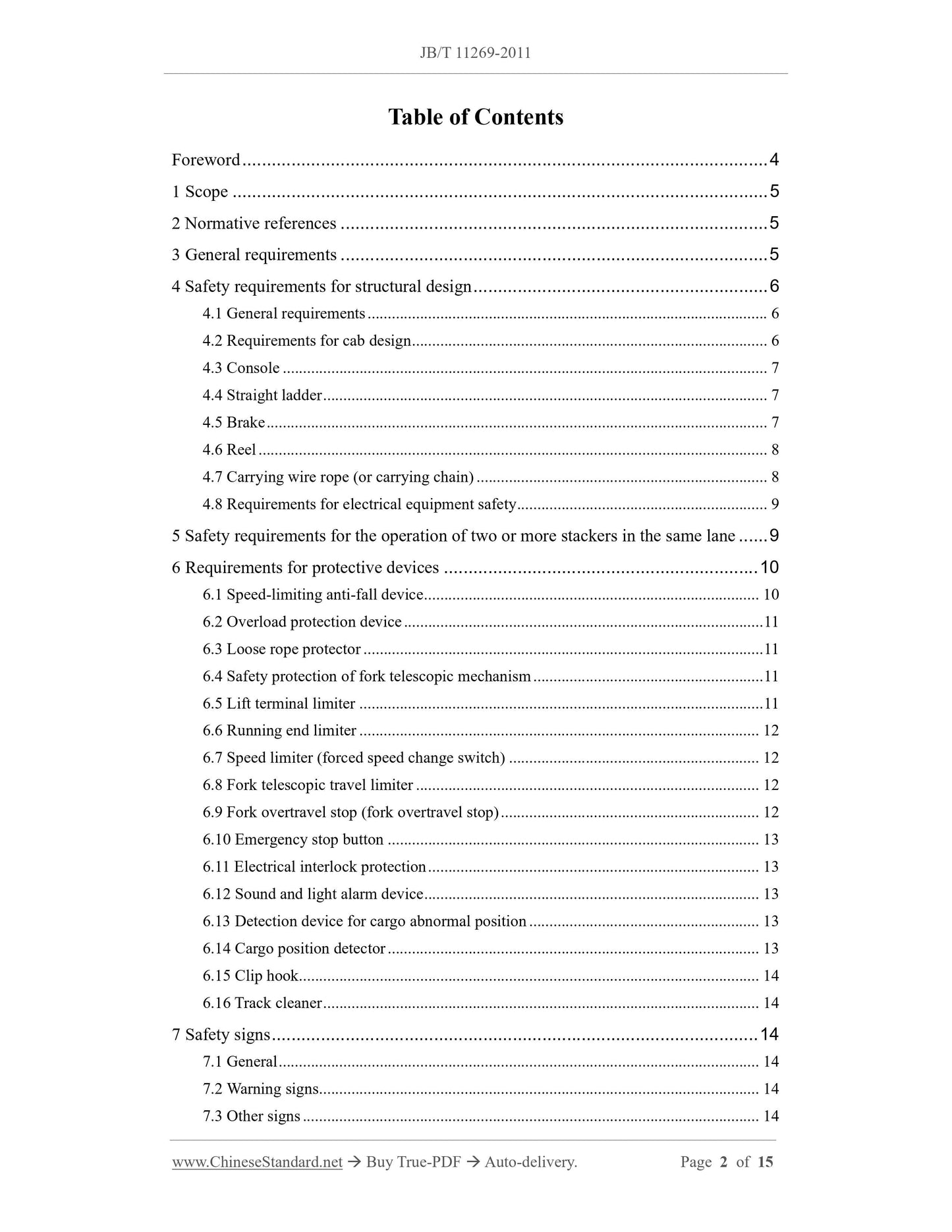

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 General requirements ... 5
4 Safety requirements for structural design ... 6
4.1 General requirements ... 6
4.2 Requirements for cab design ... 6
4.3 Console ... 7
4.4 Straight ladder ... 7
4.5 Brake ... 7
4.6 Reel ... 8
4.7 Carrying wire rope (or carrying chain) ... 8
4.8 Requirements for electrical equipment safety ... 9
5 Safety requirements for the operation of two or more stackers in the same lane ... 9
6 Requirements for protective devices ... 10
6.1 Speed-limiting anti-fall device ... 10
6.2 Overload protection device ... 11
6.3 Loose rope protector ... 11
6.4 Safety protection of fork telescopic mechanism ... 11
6.5 Lift terminal limiter ... 11
6.6 Running end limiter ... 12
6.7 Speed limiter (forced speed change switch) ... 12
6.8 Fork telescopic travel limiter ... 12
6.9 Fork overtravel stop (fork overtravel stop) ... 12
6.10 Emergency stop button ... 13
6.11 Electrical interlock protection ... 13
6.12 Sound and light alarm device ... 13
6.13 Detection device for cargo abnormal position ... 13
6.14 Cargo position detector ... 13
6.15 Clip hook ... 14
6.16 Track cleaner ... 14
7 Safety signs ... 14
7.1 General ... 14
7.2 Warning signs ... 14
7.3 Other signs ... 14

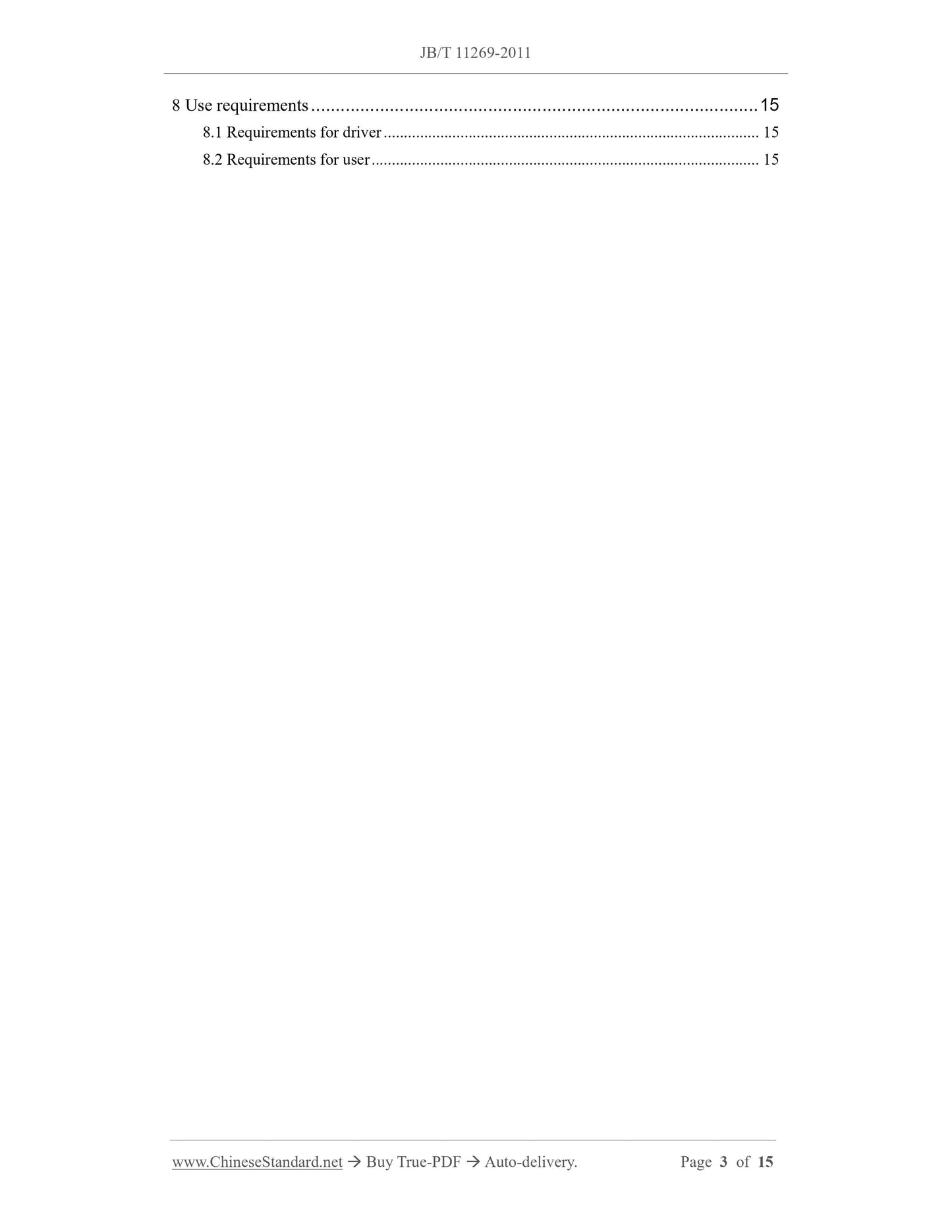

8 Use requirements ... 15
8.1 Requirements for driver ... 15
8.2 Requirements for user ... 15
Storage/Retrieval machine - Safety code
1 Scope
This Standard specifies the safety requirements for the design, manufacture and use of
storage/retrieval machine.
This Standard applies to the storage/retrieval machine in three-dimensional warehouses
(hereinafter referred to as the stacker).
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB 2893, Safety colors
GB 2894, Safety signs and guideline for the use
GB/T 3323-2005, Radiographic examination of fusion welded joints in metallic
materials
GB/T 3811, Design rules for cranes
GB/T 4205, Basic and safety principles for man-machine interface (MMI), marking
and identification - Actuating principles
GB/T 5972, Cranes - Wire ropes - Care and maintenance, inspection and discard
GB 6067.1-2010, Safety rules for lifting appliances - Part 1: General
GB 8918, Steel wire ropes for important purpose
GB 15052, Cranes - Safety signs and hazard pictorials - General principles
GB 50254, Code for construction and acceptance of low-voltage apparatus -
Electric equipment installation engineering
3 General requirements
3.1 The strength, rigidity and stability of the stacker and its parts and components shall
meet the requirements of GB/T 3811.

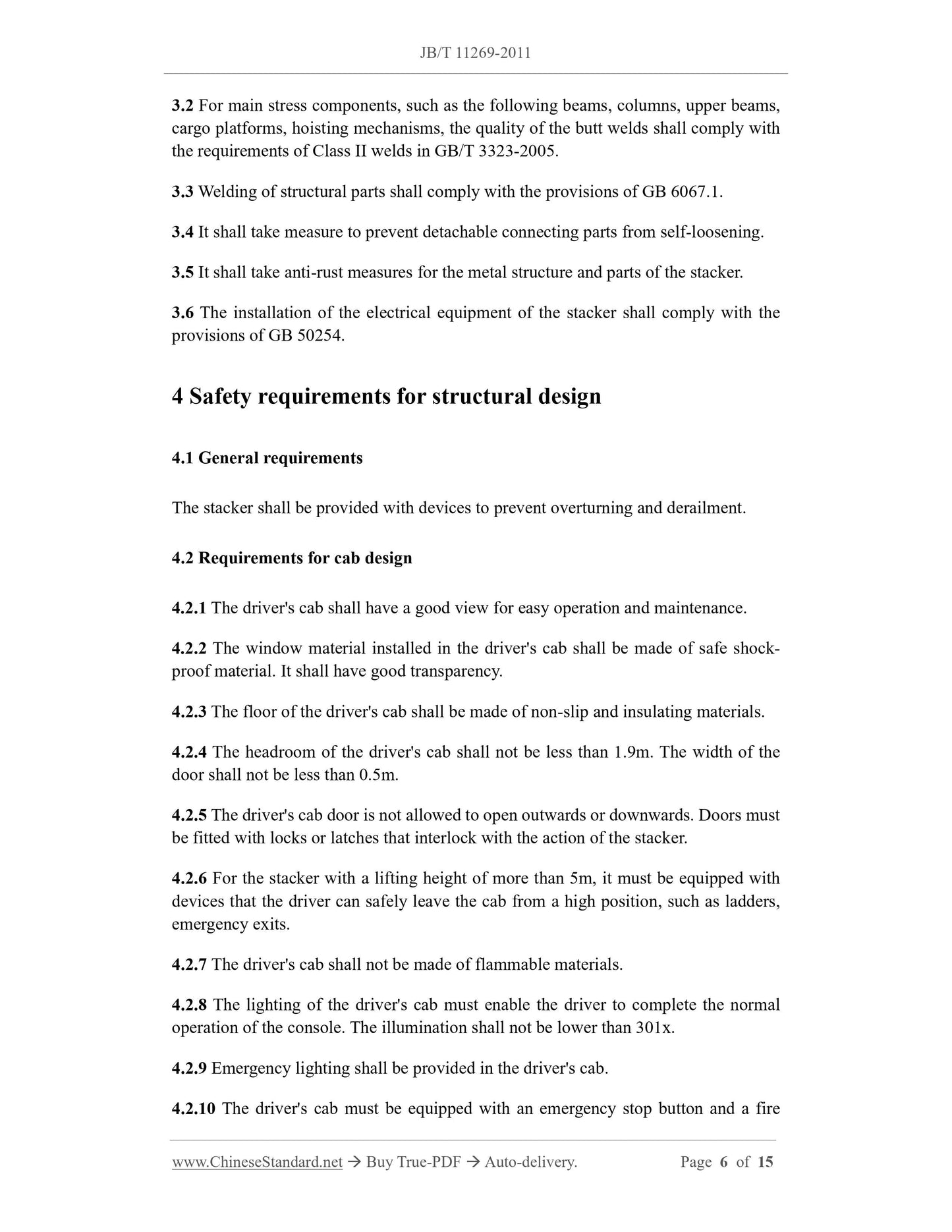

3.2 For main stress components, such as the following beams, columns, upper beams,
cargo platforms, hoisting mechanisms, the quality of the butt welds shall comply with
the requirements of Class II welds in GB/T 3323-2005.
3.3 Welding of structural parts shall comply with the provisions of GB 6067.1.
3.4 It shall take measure to prevent detachable connecting parts from self-loosening.
3.5 It shall take anti-rust measures for the metal structure and parts of the stacker.
3.6 The installation of the electrical equipment of the stacker shall comply with the
provisions of GB 50254.
4 Safety requirements for structural design
4.1 General requirements
The stacker shall be provided with devices to prevent overturning and derailment.
4.2 Requirements for cab design
4.2.1 The driver's cab shall have a good view for easy operation and maintenance.
4.2.2 The window material installed in the driver's cab shall be made of safe shock-
proof material. It shall have good transparency.
4.2.3 The floor of the driver's cab shall be made of non-slip and insulating materials.
4.2.4 The headroom of the driver's cab shall not be less than 1.9m. The width of the
door shall not be less than 0.5m.
4.2.5 The driver's cab door is not allowed to open outwards or downwards. Doors must
be fitted with locks or latches that interlock with the action of the stacker.
4.2.6 For the stacker with a lifting height of more than 5m, it must be equipped with
devices that the driver can safely leave the cab from a high position, such as ladders,
emergency exits.
4.2.7 The driver's cab shall not be made of flammable materials.
4.2.8 The lighting of the driver's cab must enable the driver to complete the normal
operation of the console. The illumination shall not be lower than 301x.
4.2.9 Emergency lighting shall be provided in the driver's cab.
4.2.10 The driver's cab must be equipped with an emergency stop button and a fire

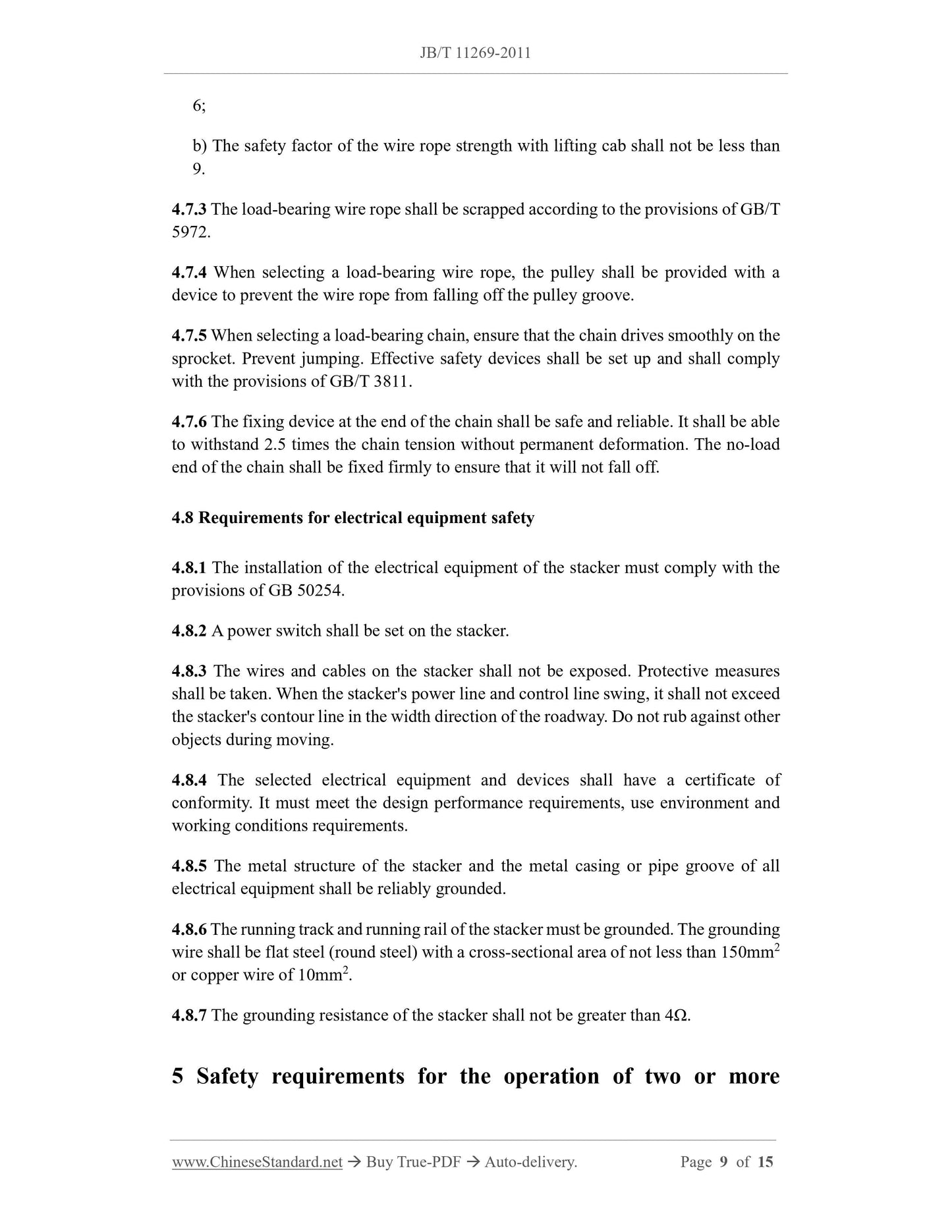

6;
b) The safety factor of the wire rope strength with lifting cab shall not be less than
9.
4.7.3 The load-bearing wire rope shall be scrapped according to the provisions of GB/T
5972.
4.7.4 When selecting a load-bearing wire rope, the pulley shall be provided with a
device to prevent the wire rope from falling off the pulley groove.
4.7.5 When selecting a load-bearing chain, ensure that the chain drives smoothly on the
sprocket. Prevent jumping. Effective safety devices shall be set up and shall comply
with the provisions of GB/T 3811.
4.7.6 The fixing device at the end of the chain shall be safe and reliable. It shall be able
to withstand 2.5 times the chain tension without permanent deformation. The no-load
end of the chain shall be fixed firmly to ensure that it will not fall off.
4.8 Requirements for electrical equipment safety
4.8.1 The installation of the electrical equipment of the stacker must comply with the
provisions of GB 50254.
4.8.2 A power switch shall be set on the stacker.
4.8.3 The wires and cables on the stacker shall not be exposed. Protective measures
shall be taken. When the stacker's power line and control line swing, it shall not exceed
the stacker's contour line in the width direction of the roadway. Do not rub against other
objects during moving.
4.8.4 The selected electrical equipment and devices shall have a certificate of
conformity. It must meet the design performance requirements, use environment and
working conditions requirements.
4.8.5 The metal structure of the stacker and the metal casing or pipe groove of all
electrical equipment shall be reliably grounded.
4.8.6 The running track and running rail of the stacker must be grounded. The grounding
wire shall be flat steel (round steel) with a cross-sectional area of not less than 150mm2
or copper wire of 10mm2.
4.8.7 The grounding resistance of the stacker shall not be greater than 4Ω.

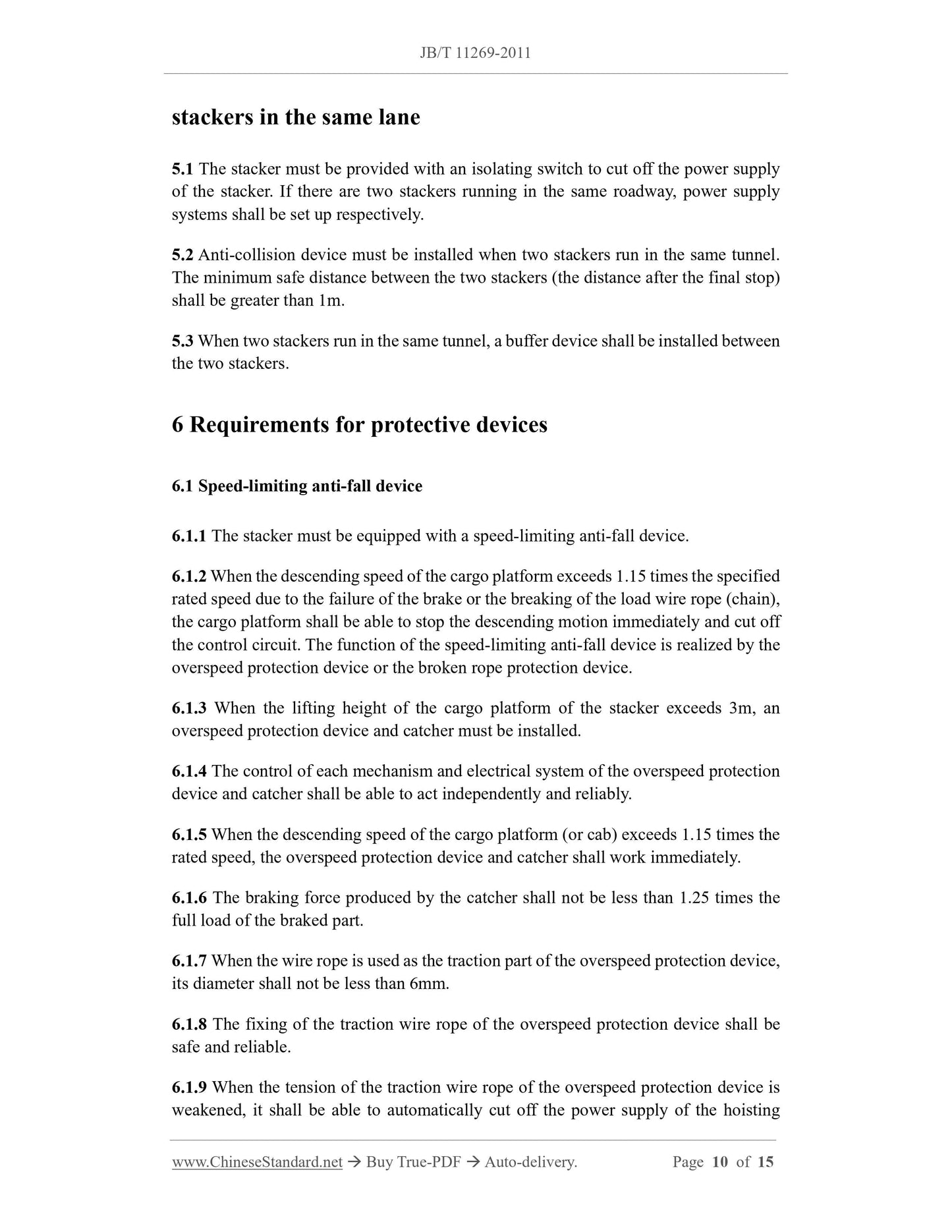

5 Safety requirements for the operation of two or more
stackers in the same lane
5.1 The stacker must be provided with an isolating switch to cut off the power supply
of the stacker. If there are two stackers running in the same roadway, power supply
systems shall be set up respectively.
5.2 Anti-collision device must be installed when two stackers run in the same tunnel.
The minimum safe distance between the two stackers (the distance after the final stop)
shall be greater than 1m.
5.3 When two stackers run in the same tunnel, a buffer device shall be installed between
the two stackers.
6 Requirements for protective devices
6.1 Speed-limiting anti-fall device
6.1.1 The stacker must be equipped with a speed-limiting anti-fall device.
6.1.2 When the descending speed of the cargo platform exceeds 1.15 times the specified
rated speed due to the failure of the brake or the breaking of the load wire rope (chain),
the cargo platform shall be able to stop the descending motion immediately and cut off
the control circuit. The function of the speed-limiting anti-fall device is realized by the
overspeed protection device or the broken rope protection device.
6.1.3 When the lifting height of the cargo platform of the stacker exceeds 3m, an
overspeed protection device and catcher must be installed.
6.1.4 The control of each mechanism and electrical system of the overspeed protection
device and catcher shall be able to act independently and reliably.
6.1.5 When the descending speed of the cargo platform (or cab) exceeds 1.15 times the
rated speed, the overspeed protection device and catcher shall work immediately.
6.1.6 The braking force produced by the catcher shall not be less than 1.25 times the
full load of the braked part.
6.1.7 When the wire rope is used as the traction part of the overspeed protection device,
its diameter shall not be less than 6mm.
6.1.8 The fixing of the traction wire rope of the overspeed protection device shall be
safe and reliable.
6.1.9 When the tension of the traction wire rope of the overspeed protection device is
weakened, it shall be able to automatically cut off the power supply of the hoisting

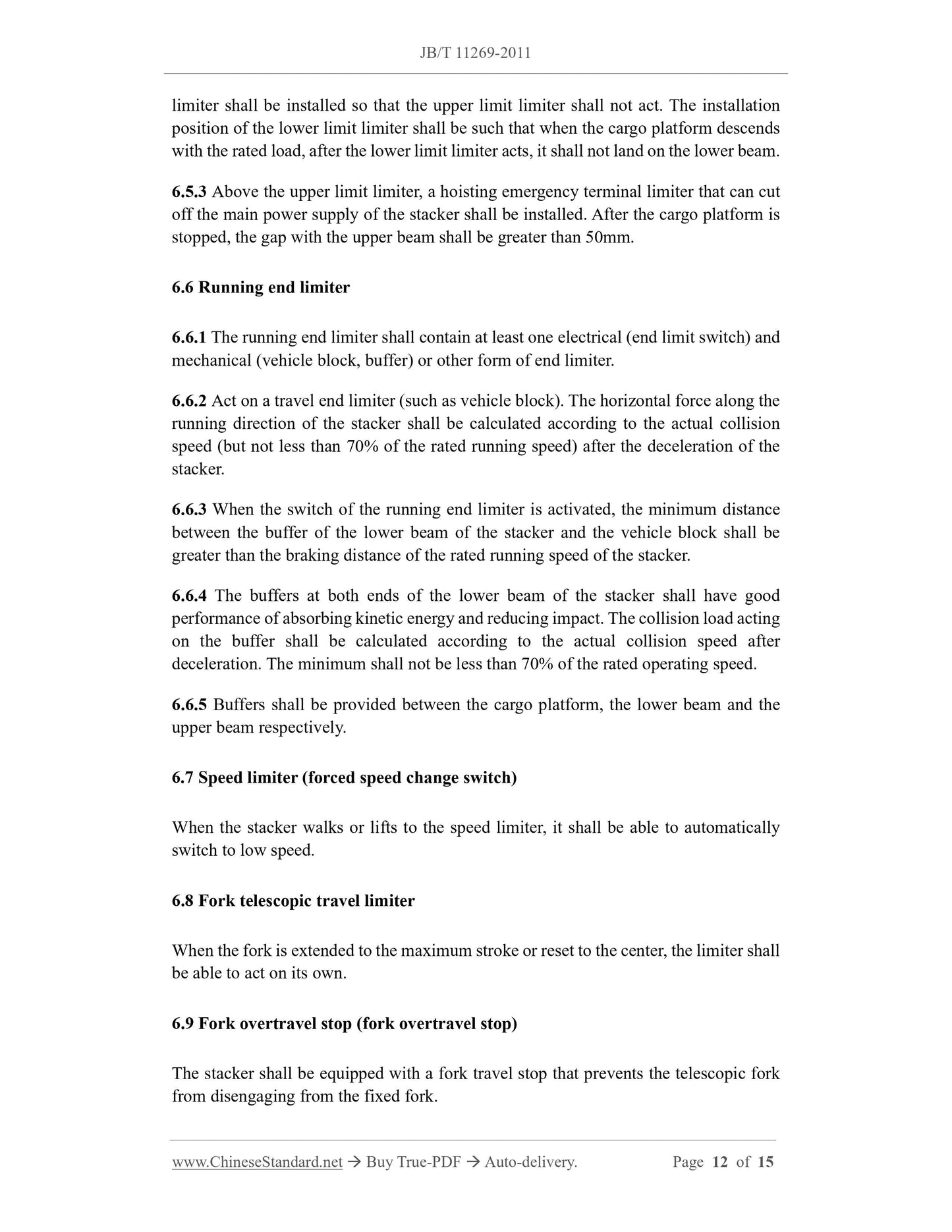

limiter shall be installed so that the upper limit limiter shall not act. The installation
position of the lower limit limiter shall be such that when the cargo platform descends
with the rated load, after the lower limit limiter acts, it shall not land on the lower beam.
6.5.3 Above the upper limit limiter, a hoisting emergency terminal limiter that can cut
off the main power supply of the stacker shall be installed. After the cargo platform is
stopped, the gap with the upper beam shall be greater than 50mm.
6.6 Running end limiter
6.6.1 The running end limiter shall contain at least one electrical (end limit switch) and
mechanical (vehicle block, buffer) or other form of end limiter.
6.6.2 Act on a travel end limiter (such as vehicle block). The horizontal force along the
running direction of the stacker shall be calculated according to the actual collision
speed (but not less than 70% of the rated running speed) after the deceleration of the
stacker.
6.6.3 When the switch of the running end limiter is activated, the minimum distance
between the buffer of the lower beam of the stacker and the vehicle block shall be
greater than the braking distance of the rated running speed of the stacker.
6.6.4 The buffers at both ends of the lower beam of the stacker shall have good
performance of absorbing kinetic energy and reducing impact. The collision load acting
on the buffer shall be calculated according to the actual collision speed after
deceleration. The minimum shall not be less than 70% of the rated operating speed.
6.6.5 Buffers shall be provided between the cargo platform, the lower beam and the
upper beam respectively.
6.7 Speed limiter (forced speed change switch)
When the stacker walks or lifts to the speed limiter, it shall be able to automatically
switch to low speed.
6.8 Fork telescopic travel limiter
When the fork is extended to the maximum stroke or reset to the center, the limiter shall
be able to act on its own.
6.9 Fork overtravel stop (fork overtravel stop)
The stacker shall be equipped with a fork travel stop that prevents the telescopic fork
from disengaging from the fixed fork.

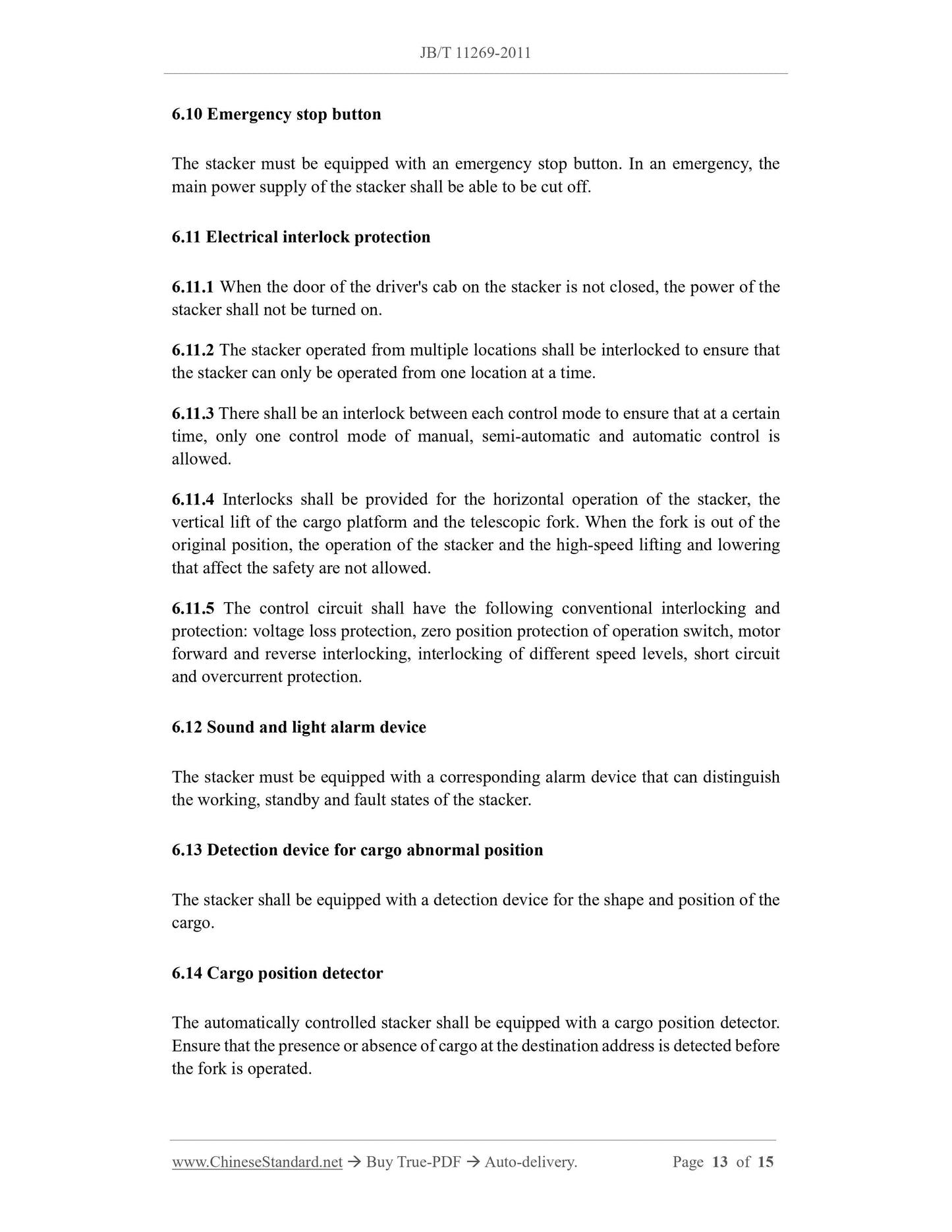

6.10 Emergency stop button
The stacker must be equipped with an emergency stop button. In an emergency, the
main power supply of the stacker shall be able to be cut off.
6.11 Electrical interlock protection
6.11.1 When the door of the driver's cab on the stacker is not closed, the power of the
stacker shall not be turned on.
6.11.2 The stacker operated from multiple locations shall be interlocked to ensure that
the stacker can only be operated from one location at a time.
6.11.3 There shall be an interlock between each control mode to ensure that at a certain
time, only one control mode of manual, semi-automatic and automatic control is
allowed.
6.11.4 Interlocks shall be provided for the horizontal operation of the stacker, the
vertical lift of the cargo platform and the telescopic fork. When the fork is out of the
original position, the operation of the stacker and the high-speed lifting and lowering
that affect the safety are not allowed.
6.11.5 The control circuit shall have the following conventional interlocking and
protection: voltage loss protection, zero position protection of operation switch, motor
forward and reverse interlocking, interlocking of different speed levels, short circuit
and overcurrent protection.
6.12 Sound and light alarm device
The stacker must be equipped with a corresponding alarm device that can distinguish
the working, standby and fault states of the stacker.
6.13 Detection device for cargo abnormal position
The stacker shall be equipped with a detection device for the shape and position of the
cargo.
6.14 Cargo position detector
The automatically controlled stacker shall be equipped with a cargo position detector.
Ensure that the presence or absence of cargo at the destination address is detected before
the fork is operated.
JB/T 11269-2011
JB
MACHINERY INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 53.080
J 83
File No.: 34937-2012
Replacing JB/T 5319.2-1991
Storage/Retrieval machine - Safety code
ISSUED ON: DECEMBER 20, 2011
IMPLEMENTED ON: APRIL 01, 2012
Issued by: Ministry of Industry and Information Technology of the People's
Republic of China.
Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative references ... 5
3 General requirements ... 5
4 Safety requirements for structural design ... 6
4.1 General requirements ... 6
4.2 Requirements for cab design ... 6
4.3 Console ... 7
4.4 Straight ladder ... 7
4.5 Brake ... 7
4.6 Reel ... 8
4.7 Carrying wire rope (or carryi...
