JB/T 10419-2005: Accuracy of cycloidal gear and pin wheel for cycloidal drives

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click JB/T 10419-2005 (Self-service in 1-minute)
Newer / historical versions: JB/T 10419-2005

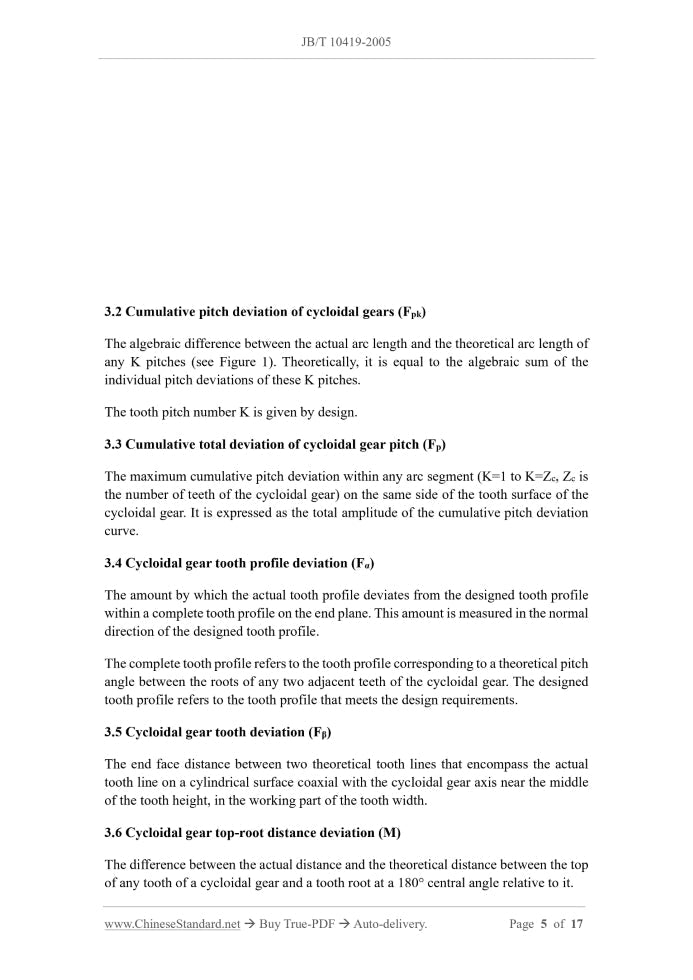

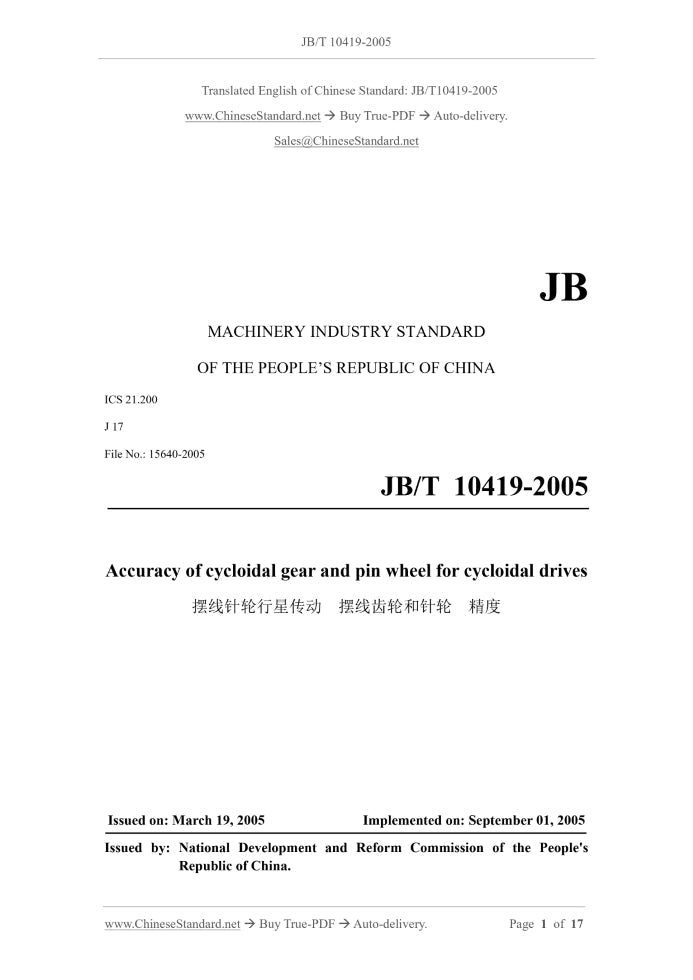

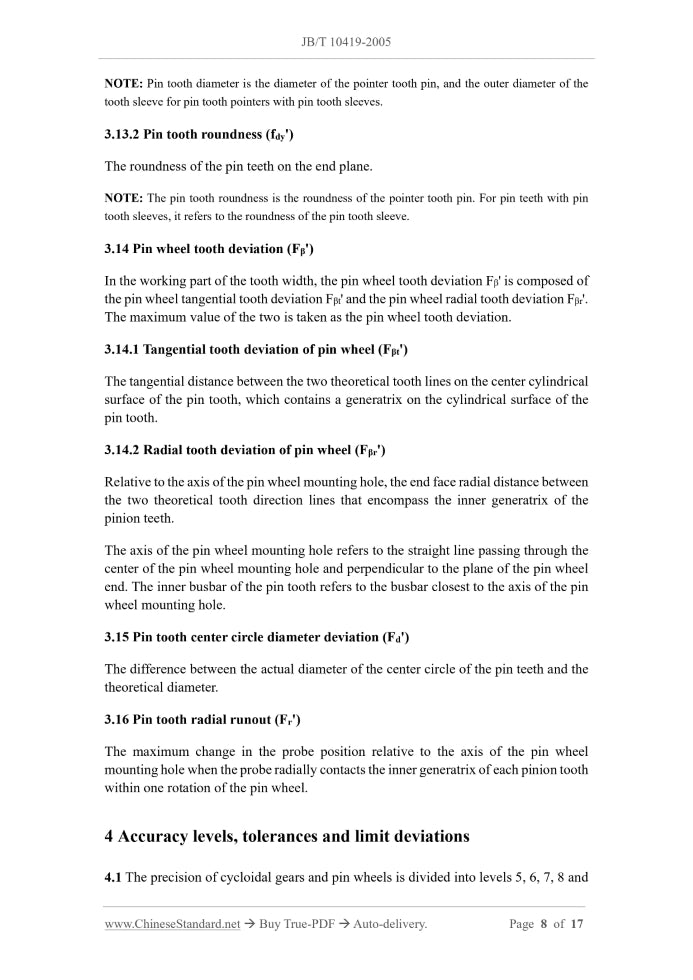

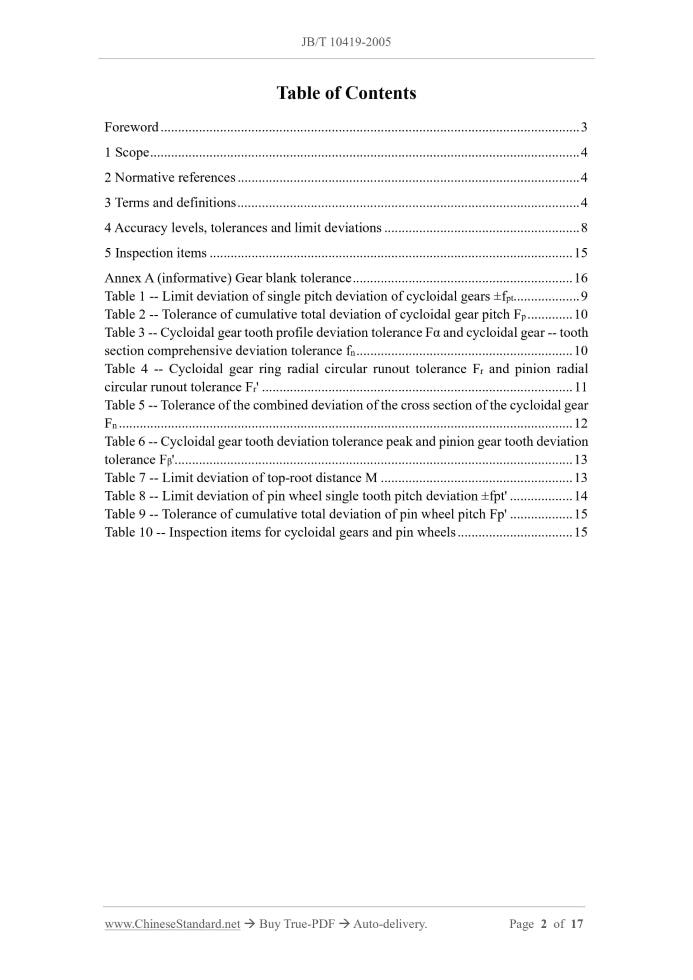

Preview True-PDF

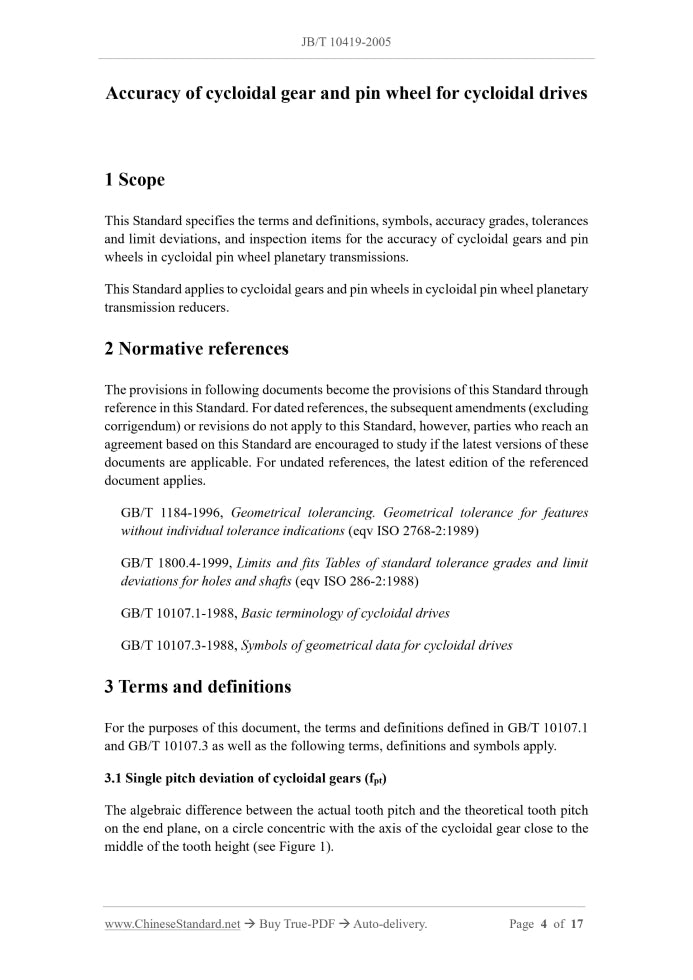

Scope

This Standard specifies the terms and definitions, symbols, accuracy grades, tolerances
and limit deviations, and inspection items for the accuracy of cycloidal gears and pin
wheels in cycloidal pin wheel planetary transmissions.
This Standard applies to cycloidal gears and pin wheels in cycloidal pin wheel planetary
transmission reducers.

Basic Data

Standard ID	JB/T 10419-2005 (JB/T10419-2005)
Description (Translated English)	Accuracy of cycloidal gear and pin wheel for cycloidal drives
Sector / Industry	Mechanical and Machinery Industry Standard (Recommended)
Classification of Chinese Standard	J17
Classification of International Standard	21.200
Word Count Estimation	15,166
Date of Issue	2005-03-19
Date of Implementation	2005-09-01
Quoted Standard	GB/T 1184-1996; GB/T 1800.4-1999; GB/T 10107.1-1988; GB/T 10107.3-1988
Regulation (derived from)	National Development and Reform Commission, People's Republic of China Notice No. 10 of 2005
Summary	This standard specifies cycloid cycloid planetary transmission in gear, precision gears Terms, definitions, symbols, precision grade, tolerances, limit deviations, test items. This standard applies to cycloid gear reducer drive cycloid gear, pin wheel.
