HJ 439-2008 English PDF (HJ439-2008)

HJ 439-2008 English PDF (HJ439-2008)

Regular price $115.00 USD
Regular price Sale price $115.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here HJ 439-2008 to get it for Purchase Approval, Bank TT...

HJ 439-2008: In-service conformity of compression ignition and gas fuelled positive ignition engines of vehicles

The standard specifies the in-service vehicle / engine conformity requirements of automobile equipped with compression ignition engine and its compression ignition engine, the spark ignition engine automobile and its spark ignition engine with NG or LPG as fuel. This standard applies to the in-service vehicle / engine conformity inspection of M2, M3, N1, N2 and N3 classes of vehicles whose designing speed are larger than 25km/h; and M1 class vehicle equipped with compression ignition engines (including gas fuelled positive ignition type) and its automobile whose total mass is larger than 3500kg. If the N1 and M2 classes of vehicles equipped with compression ignition engines (including gas fuelled positive ignition type) engine have been conducted the conformity inspection of in-service vehicle according to the standards of GB 18352.3-2005 Limits and Measurement Methods for Light Car Pollutant Emission (China III, IV stage), it does not have to perform this standard.

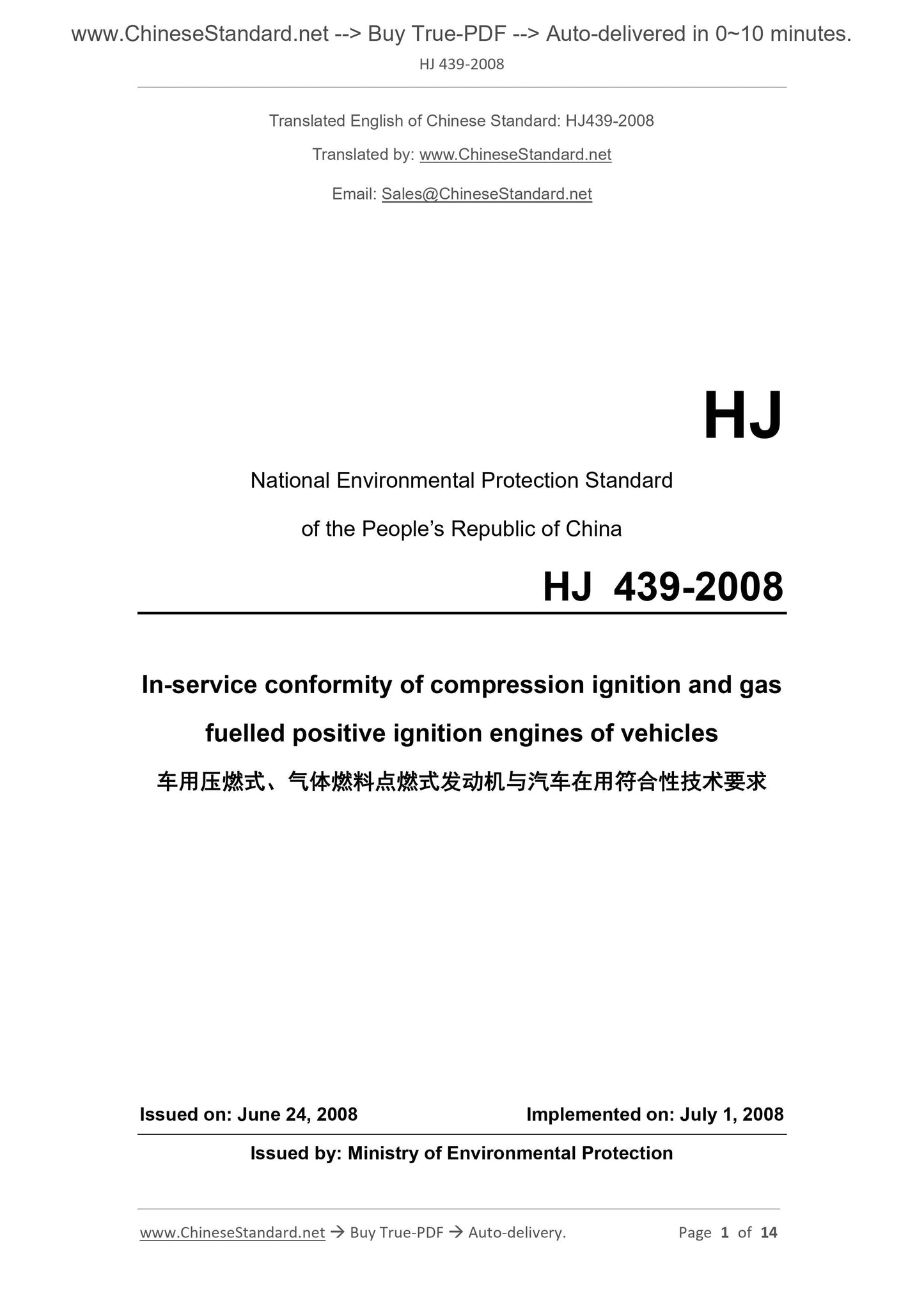

HJ??439?€?2008
HJ
National Environment Protection Standard
of the PEOPLE Republic of China
In-service conformity of compression ignition and gas fuelled
positive ignition engines of vehicles
ISSUED ON. JUNE 24, 2008
IMPLEMENTED ON. JULY 1, 2008
Issued by. Ministry of Environmental Protection
Notice of Ministry of Environmental Protection
of the PEOPLE Republic of China
No. 25 in 2008
In order to implement Environmental Protection Law of the People's Republic of China and The People's Republic of China on The Prevention and Control of Air Pollution, prevent the pollution of motor vehicle pollutant emission to the environment, protect the environment and guarantying human health, the three standards including Automotive Compression Ignition and Gas Fuelled Positive Ignition Engines and Cars On-Board Diagnosis System Technical Requirements are approved as the state environmental protection standard. It is now released.
Standard names and standard numbers are as follows.
I. Automotive compression ignition and gas fuelled positive ignition engines and cars on-board diagnosis system technical requirements (HJ 437-2008);
II. Automotive compression ignition and gas fuelled positive ignition engines and durability technical requirements of vehicle emissions control system (HJ 438-2008);
III. In-service conformity of compression ignition and gas fuelled positive ignition engines of vehicles (HJ 439-2008).
The above standards have been implemented since July 1, 2008. They are published by China Environmental Science Press. The standards?€? content can be found at the website of the Ministry of Environmental Protection (bz.mep.gov.cn).
Hereby it is announced.
June 24, 2008

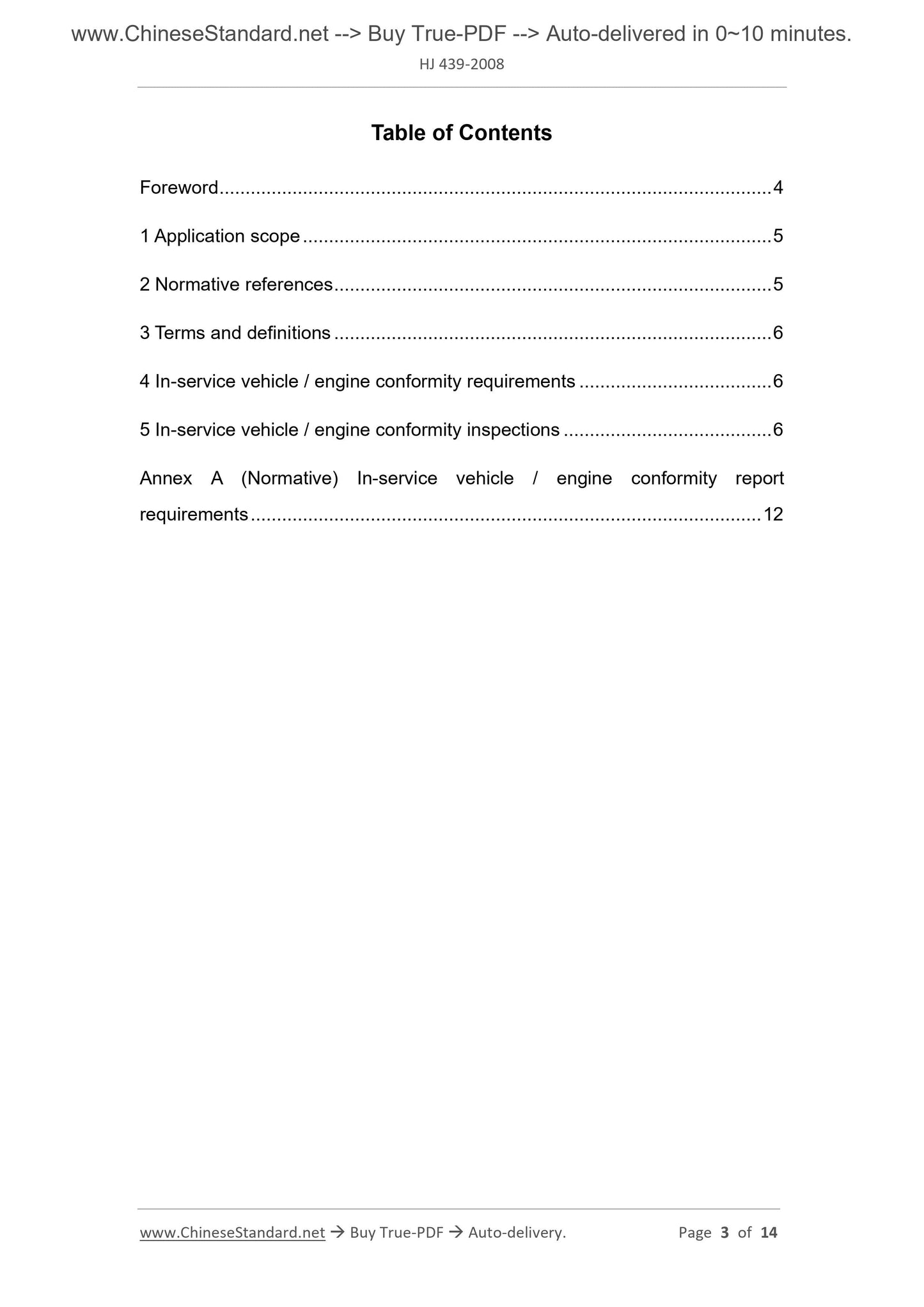

Table of Contents
Foreword ... 4
1 Application scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 In-service vehicle / engine conformity requirements ... 6
5 In-service vehicle / engine conformity inspections ... 6
Annex A ... 12
Foreword
According to Environmental Protection Law of the People's Republic of China and The People's Republic of China on The Prevention and Control of Air Pollution, and in order to prevent the pollutions of automobile emissions of automotive compression ignition and gas fuelled positive ignition engines TO the environment, improve the environment quality, this standard is formulated.
This standard specifies in-service vehicle conformity requirements of automobile equipped with compression ignition engine and its compression ignition engine, the spark ignition engine automobile, and its spark ignition engine with NG or LPG as fuel. This standard is the supplement of in-service vehicle / engine conformity contents TO GB 17691-2005 Limits and Measurement Methods for Exhaust Pollutants from Compression Ignition and Gas Fuelled Positive Ignition Engines of Vehicles (China III, IV, V stage). The modification of technical contents in this standard adopts EU order 2005/55/EC the council order in regard to coordinating with all member states to adopt measures to prevent gaseous pollutant and particulate matter emissions laws of automotive compression ignition engine and automotive spark ignition engines of burning natural gas or liquefied petroleum gas, as well as the contents of relevant in-service vehicle / engine conformity in the revision orders 2005/78/EC and 2006/51/EC.
Annex A of this standard is normative.
This standard is first-time issued.
This standard is organized and formulated by Department of Science, Technology and Standards of Ministry of Environmental Protection.
Main drafting organizations of this standard. China Research Academy of Environmental Sciences, JNATC (Jinan Automotive Test Center), and Chinese Automotive Technology and Research Centre.
The standard was approved by Ministry of Environmental Protection on June 24, 2008. This standard shall be implemented from July 1, 2008.
The Ministry of Environmental Protection is responsible for the interpretation of this standard.

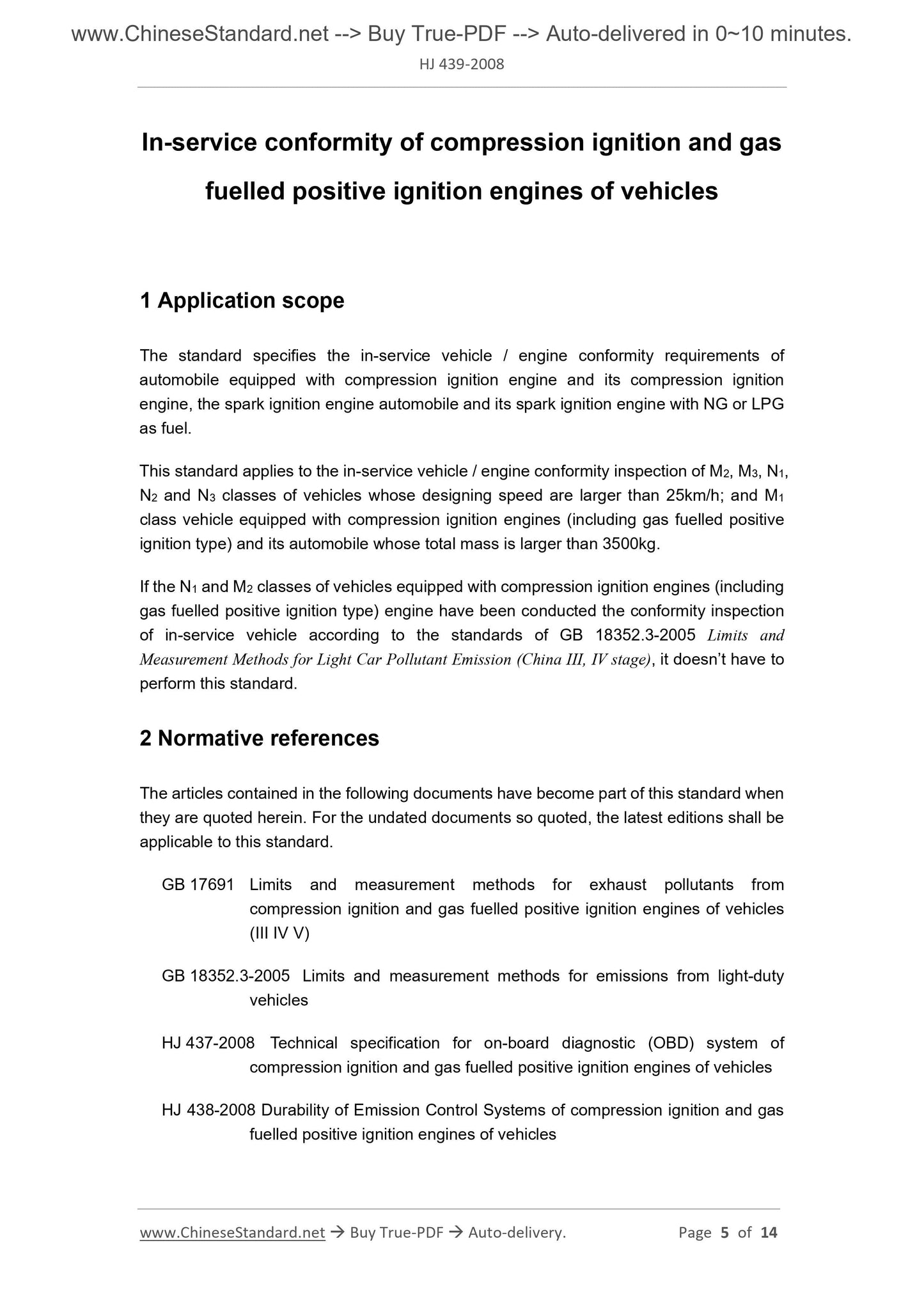

In-service conformity of compression ignition and gas
fuelled positive ignition engines of vehicles
1 Application??scope
The standard specifies the in-service vehicle / engine conformity requirements of automobile equipped with compression ignition engine and its compression ignition engine, the spark ignition engine automobile and its spark ignition engine with NG or LPG as fuel.
This standard applies to the in-service vehicle / engine conformity inspection of M2, M3, N1, N2 and N3 classes of vehicles whose designing speed are larger than 25km/h; and M1 class vehicle equipped with compression ignition engines (including gas fuelled positive ignition type) and its automobile whose total mass is larger than 3500kg. If the N1 and M2 classes of vehicles equipped with compression ignition engines (including gas fuelled positive ignition type) engine have been conducted the conformity inspection of in-service vehicle according to the standards of GB 18352.3-2005 Limits and Measurement Methods for Light Car Pollutant Emission (China III, IV stage), it doesn?€?t have to perform this standard.
2 Normative??references
The articles contained in the following documents have become part of this standard when they are quoted herein. For the undated documents so quoted, the latest editions shall be applicable to this standard.
GB 17691 Limits and measurement methods for exhaust pollutants from
compression ignition and gas fuelled positive ignition engines of vehicles (III IV V)
GB 18352.3-2005 Limits and measurement methods for emissions from light-duty vehicles
HJ 437-2008 Technical specification for on-board diagnostic (OBD) system of compression ignition and gas fuelled positive ignition engines of vehicles HJ 438-2008 Durability of Emission Control Systems of compression ignition and gas fuelled positive ignition engines of vehicles
3 Terms??and??definitions
The related terms and definitions defined in GB 17691, HJ 437-2008 Automotive Compression Ignition and Gas Fuelled Positive Ignition Engines and Cars On-board Diagnosis System Technical Requirements and HJ 438-2008 Automotive Compression Ignition and Gas Fuelled Positive Ignition Engines and Durability Technical Requirements of Vehicle Emissions Control System apply to this standard.
4 In?€?service??vehicle??/??engine??conformity??requirements
4.1 The manufacturing enterprise shall adopt appropriate measures to guarantee that the emission control device of the installed engine of vehicle, under the condition of normal use within the normal lifetime, is always in a normal operation.
4.2 The conformity of in-service vehicle / engine shall be inspected periodically within the actual life of automotive engine. And it shall satisfy the limiting value requirements of Table 1 and Table 2 in GB 17691.
4.3 The conformity inspection of in-service vehicle / engine shall be implemented according to the provisions of chapter 5. Figure 1 is the audit procedure of in-service conformity.
5 In?€?service??vehicle??/??engine??conformity??inspections
5.1 The type approval agency shall implement the conformity inspection for in-service vehicle / engine through the in-service vehicle / engine conformity report provided by the manufacturing enterprise, or (and) the supervision test of type approval agency. 5.2 Audit of in-service vehicle / engine conformity report
5.2.1 The contents of in-service vehicle / engine conformity report shall meet the provisions of Annex A.
5.2.2 In order to evaluate whether the in-service vehicle performance complies with the specified normal service condition, the manufacturing enterprise shall collect sufficient information. And it can represent that the manufacturing enterprise has well-known the region and market.
actual use of engine family.

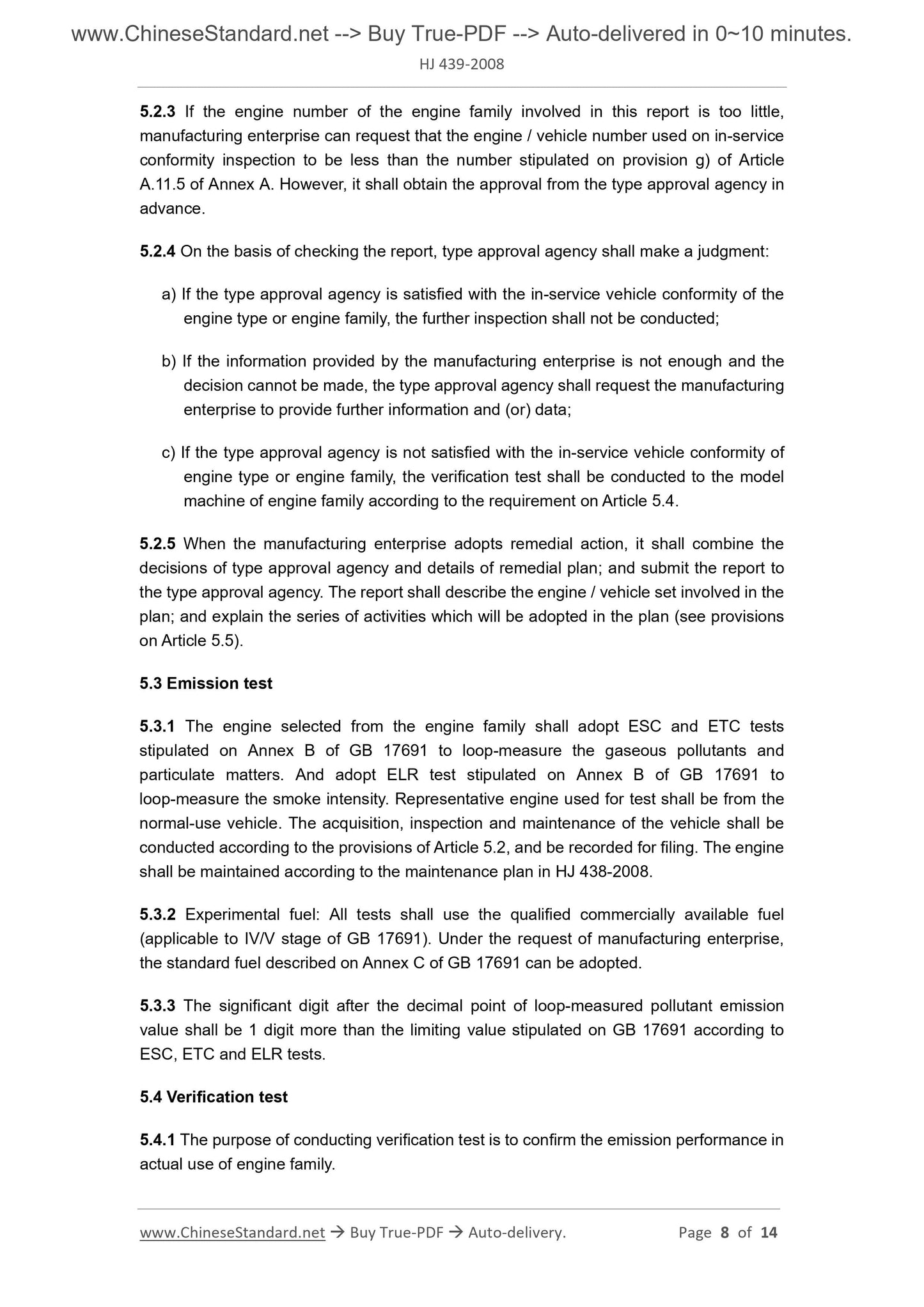

5.4.1.1 If the type approval agency is unsatisfied with the in-service vehicle / engine conformity report of manufacturing enterprise, the type approval agency can instruct the manufacturing enterprise to conduct verification test as per the Article 5.2.4. The type approval agency will audit the verification test report provided by the manufacturing enterprise.
5.4.1.2 The type approval agency can conduct the verification test.
5.4.2 The verification test shall be conducted as per the provisions on Article 5.3. The sample engine for test shall be the engine dismantled from the normal-use vehicle. 5.4.3 For verification test of Article 5.4.2, if the type approval agency agrees, the manufacturing enterprise may conduct the test to the emission control components of in-service vehicle. Dismantle the emission control components from the in-service vehicle and correctly install it on the representative engine that has been used. For the test of each vehicle type, engine type and engine family, the same emission control components shall be chosen; and the selection reason shall be stated.
5.4.4 If any kind of pollutant emission of two sets or more than two sets of engines, which represent the same engine family, exceeds 1.3 times of limiting value stipulated on GB 17691, it shall be judged that the compliance requirements is not satisfied. 5.5 Inconformity remedial action
5.5.1 If the type approval agency is un...
