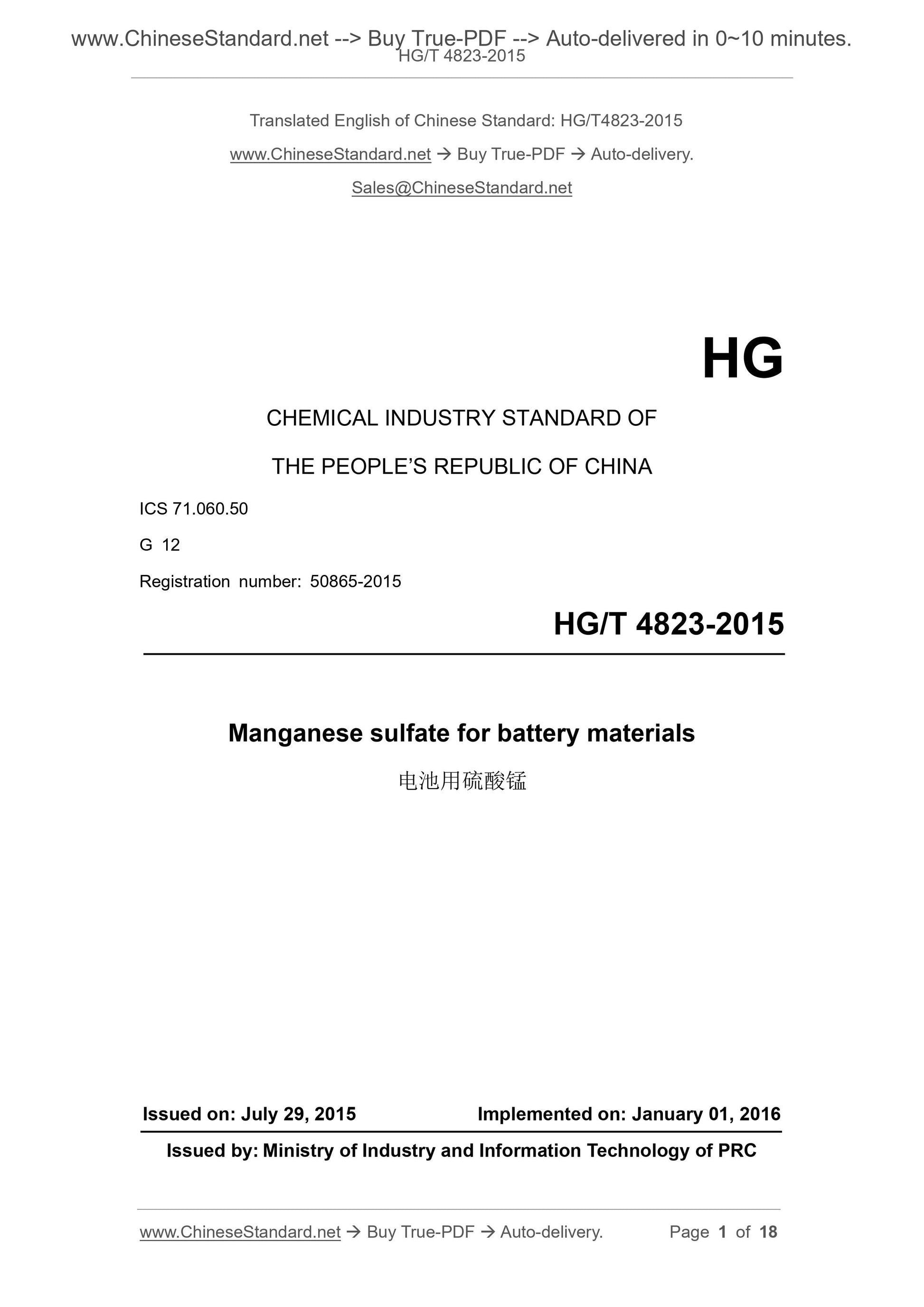

HG/T 4823-2015: Manganese sulfate for battery materials
CHEMICAL INDUSTRY STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
Registration number: 50865-2015
Manganese sulfate for battery materials
ISSUED ON: JULY 29, 2015
IMPLEMENTED ON: JANUARY 01, 2016
Issued by: Ministry of Industry and Information Technology of PRC

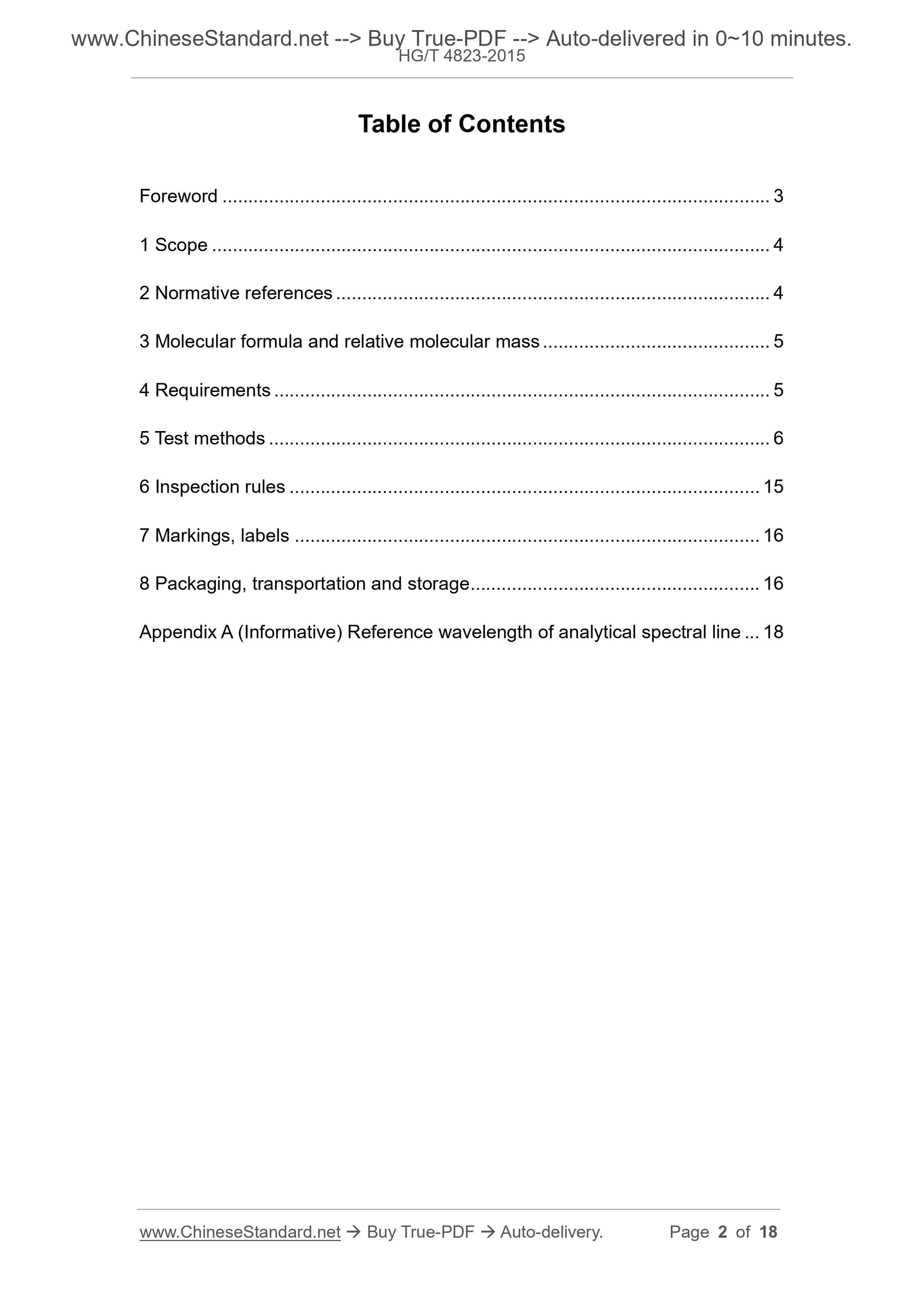

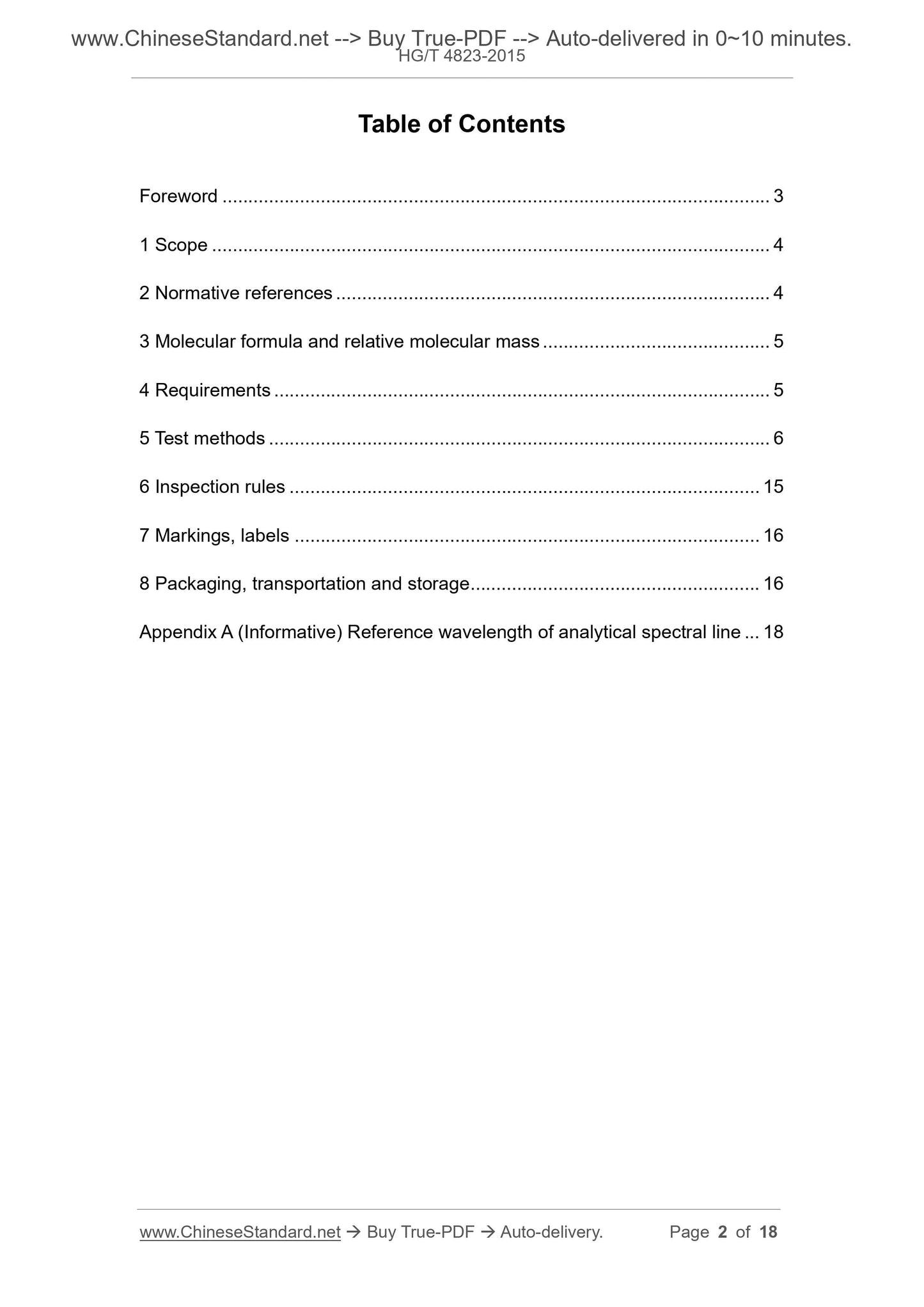

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Molecular formula and relative molecular mass ... 5
4 Requirements ... 5
5 Test methods ... 6
6 Inspection rules ... 15
7 Markings, labels ... 16
8 Packaging, transportation and storage ... 16
Appendix A (Informative) Reference wavelength of analytical spectral line ... 18 Manganese sulfate for battery materials

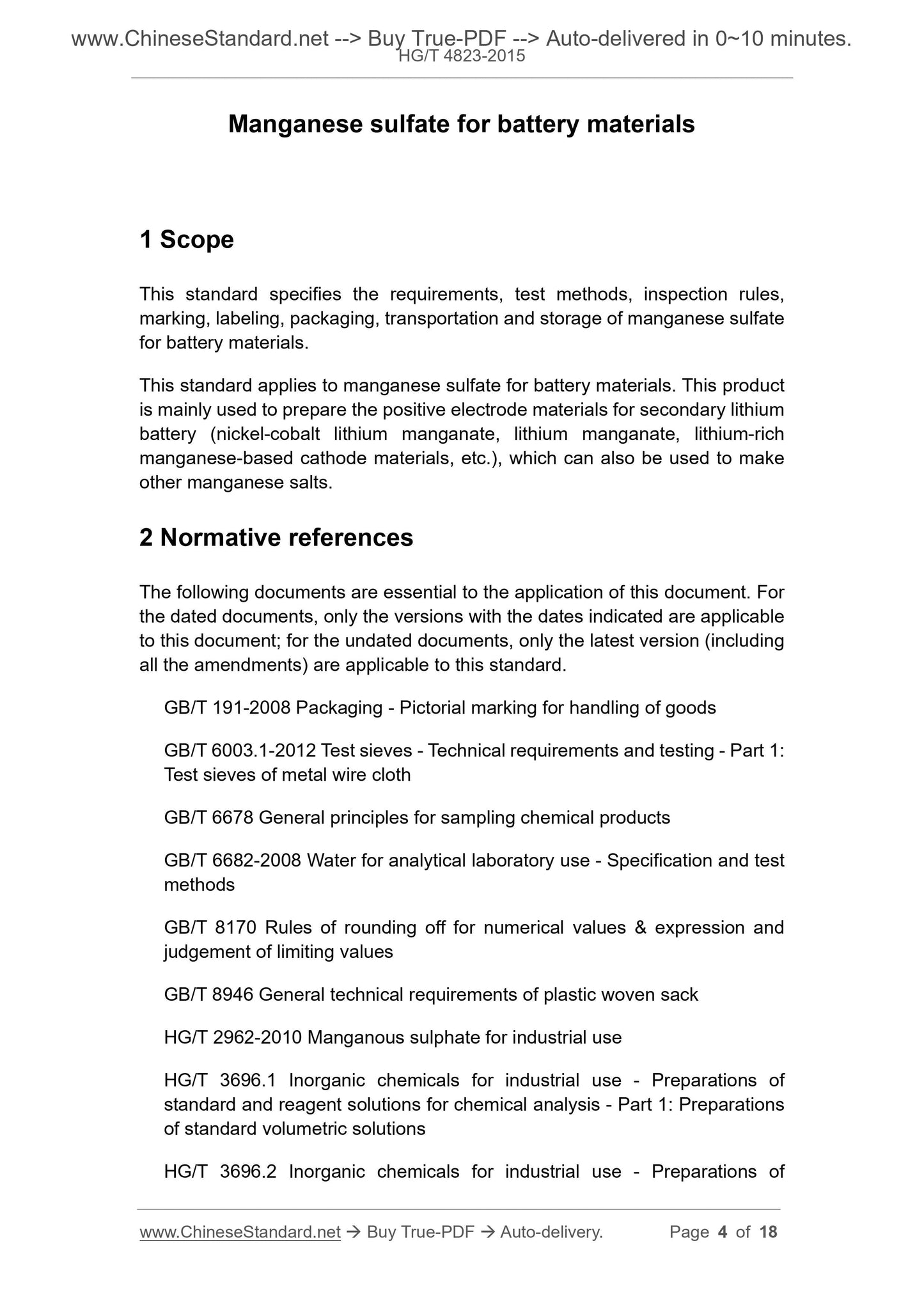

This standard specifies the requirements, test methods, inspection rules, marking, labeling, packaging, transportation and storage of manganese sulfate for battery materials.
This standard applies to manganese sulfate for battery materials. This product is mainly used to prepare the positive electrode materials for secondary lithium battery (nickel-cobalt lithium manganate, lithium manganate, lithium-rich manganese-based cathode materials, etc.), which can also be used to make other manganese salts.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB/T 191-2008 Packaging - Pictorial marking for handling of goods
GB/T 6003.1-2012 Test sieves - Technical requirements and testing - Part 1: Test sieves of metal wire cloth
GB/T 6678 General principles for sampling chemical products
GB/T 6682-2008 Water for analytical laboratory use - Specification and test methods
GB/T 8170 Rules of rounding off for numerical values and expression and
judgement of limiting values
GB/T 8946 General technical requirements of plastic woven sack
HG/T 2962-2010 Manganous sulphate for industrial use
HG/T 3696.1 Inorganic chemicals for industrial use - Preparations of
standard and reagent solutions for chemical analysis - Part 1: Preparations of standard volumetric solutions
HG/T 3696.2 Inorganic chemicals for industrial use - Preparations of

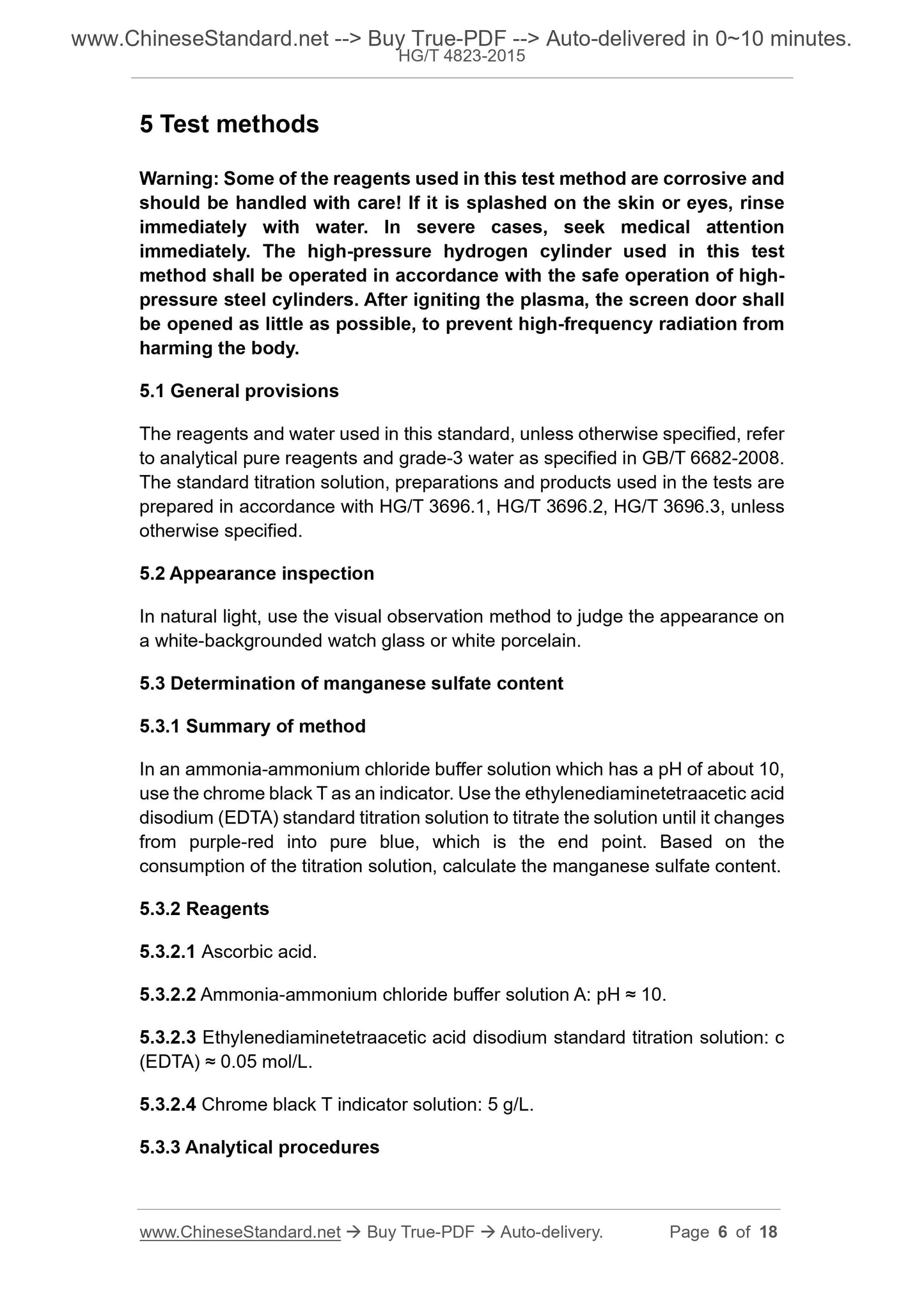

5 Test methods
Warning: Some of the reagents used in this test method are corrosive and should be handled with care! If it is splashed on the skin or eyes, rinse immediately with water. In severe cases, seek medical attention
immediately. The high-pressure hydrogen cylinder used in this test
method shall be operated in accordance with the safe operation of high- pressure steel cylinders. After igniting the plasma, the screen door shall be opened as little as possible, to prevent high-frequency radiation from harming the body.
5.1 General provisions
The reagents and water used in this standard, unless otherwise specified, refer to analytical pure reagents and grade-3 water as specified in GB/T 6682-2008. The standard titration solution, preparations and products used in the tests are prepared in accordance with HG/T 3696.1, HG/T 3696.2, HG/T 3696.3, unless otherwise specified.
5.2 Appearance inspection
In natural light, use the visual observation method to judge the appearance on a white-backgrounded watch glass or white porcelain.
5.3 Determination of manganese sulfate content
5.3.1 Summary of method
In an ammonia-ammonium chloride buffer solution which has a pH of about 10, use the chrome black T as an indicator. Use the ethylenediaminetetraacetic acid disodium (EDTA) standard titration solution to titrate the solution until it changes from purple-red into pure blue, which is the end point. Based on the
consumption of the titration solution, calculate the manganese sulfate content. 5.3.2 Reagents
188.8.131.52 Ascorbic acid.
184.108.40.206 Ammonia-ammonium chloride buffer solution A: pH ≈ 10.
220.127.116.11 Ethylenediaminetetraacetic acid disodium standard titration solution: c (EDTA) ≈ 0.05 mol/L.
18.104.22.168 Chrome black T indicator solution: 5 g/L.
5.3.3 Analytical procedures
determination result. When calculated by manganese sulfate (MnSO4 • H2O), the absolute difference of the results of the two parallel determinations is not more than 0.5%. When calculated by manganese (Mn), the absolute difference of the results of the two parallel determinations is not more than 0.2%. 5.4 Determination of iron, zinc, copper, cadmium, potassium, sodium,

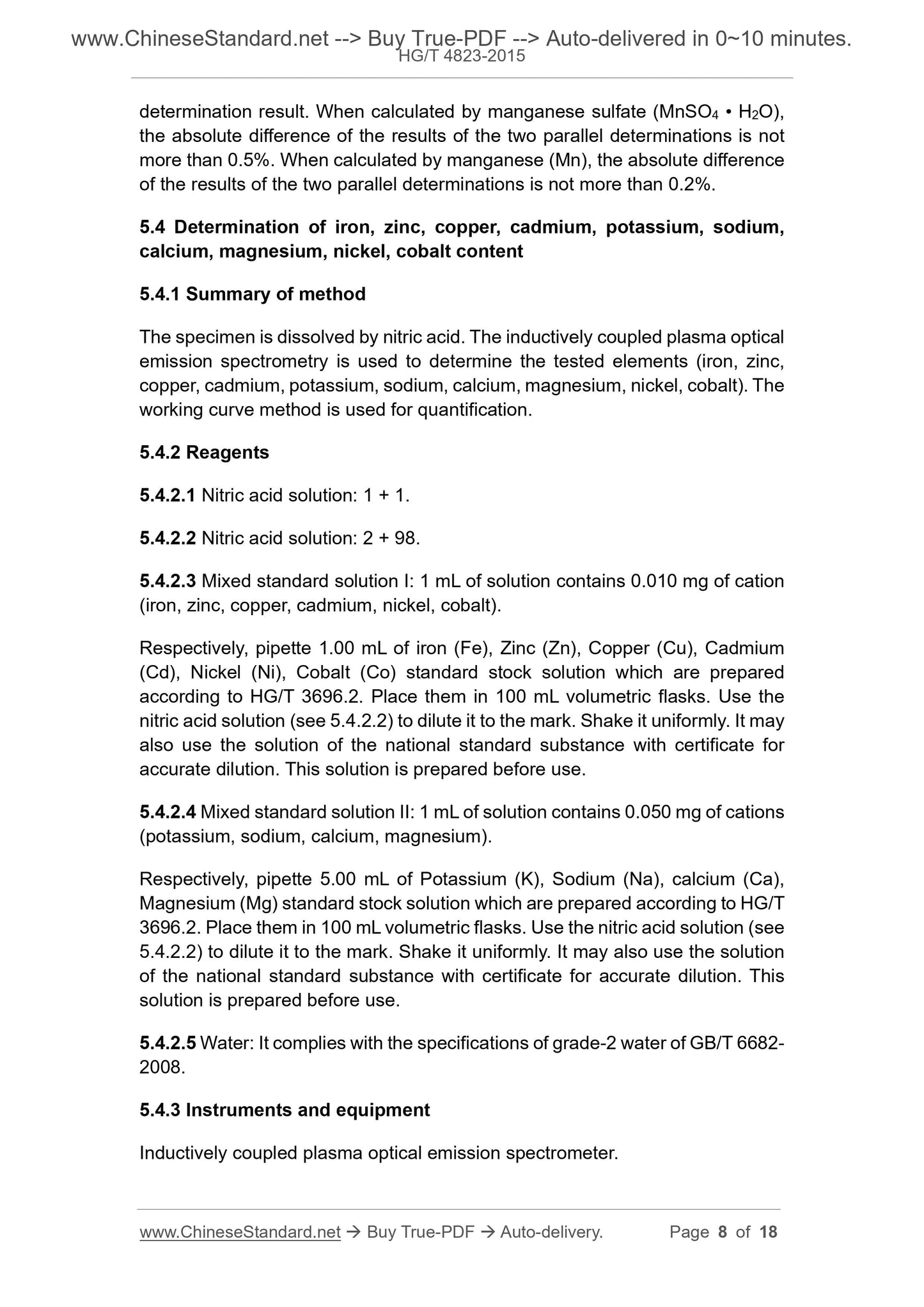

calcium, magnesium, nickel, cobalt content
5.4.1 Summary of method
The specimen is dissolved by nitric acid. The inductively coupled plasma optical emission spectrometry is used to determine the tested elements (iron, zinc, copper, cadmium, potassium, sodium, calcium, magnesium, nickel, cobalt). The working curve method is used for quantification.
22.214.171.124 Nitric acid solution: 1 + 1.
126.96.36.199 Nitric acid solution: 2 + 98.
188.8.131.52 Mixed standard solution I: 1 mL of solution contains 0.010 mg of cation (iron, zinc, copper, cadmium, nickel, cobalt).
Respectively, pipette 1.00 mL of iron (Fe), Zinc (Zn), Copper (Cu), Cadmium (Cd), Nickel (Ni), Cobalt (Co) standard stock solution which are prepared according to HG/T 3696.2. Place them in 100 mL volumetric flasks. Use the nitric acid solution (see 184.108.40.206) to dilute it to the mark. Shake it uniformly. It may also use the solution of the national standard substance with certificate for accurate dilution. This solution is prepared before use.
220.127.116.11 Mixed standard solution II: 1 mL of solution contains 0.050 mg of cations (potassium, sodium, calcium, magnesium).
Respectively, pipette 5.00 mL of Potassium (K), Sodium (Na), calcium (Ca), Magnesium (Mg) standard stock solution which are prepared according to HG/T 3696.2. Place them in 100 mL volumetric flasks. Use the nitric acid solution (see 18.104.22.168) to dilute it to the mark. Shake it uniformly. It may also use the solution of the national standard substance with certificate for accurate dilution. This solution is prepared before use.
22.214.171.124 Water: It complies with the specifications of grade-2 water of GB/T 6682- 2008.
5.4.3 Instruments and equipment
Inductively coupled plasma optical emission spectrometer.
5.4.4 Analytical procedures

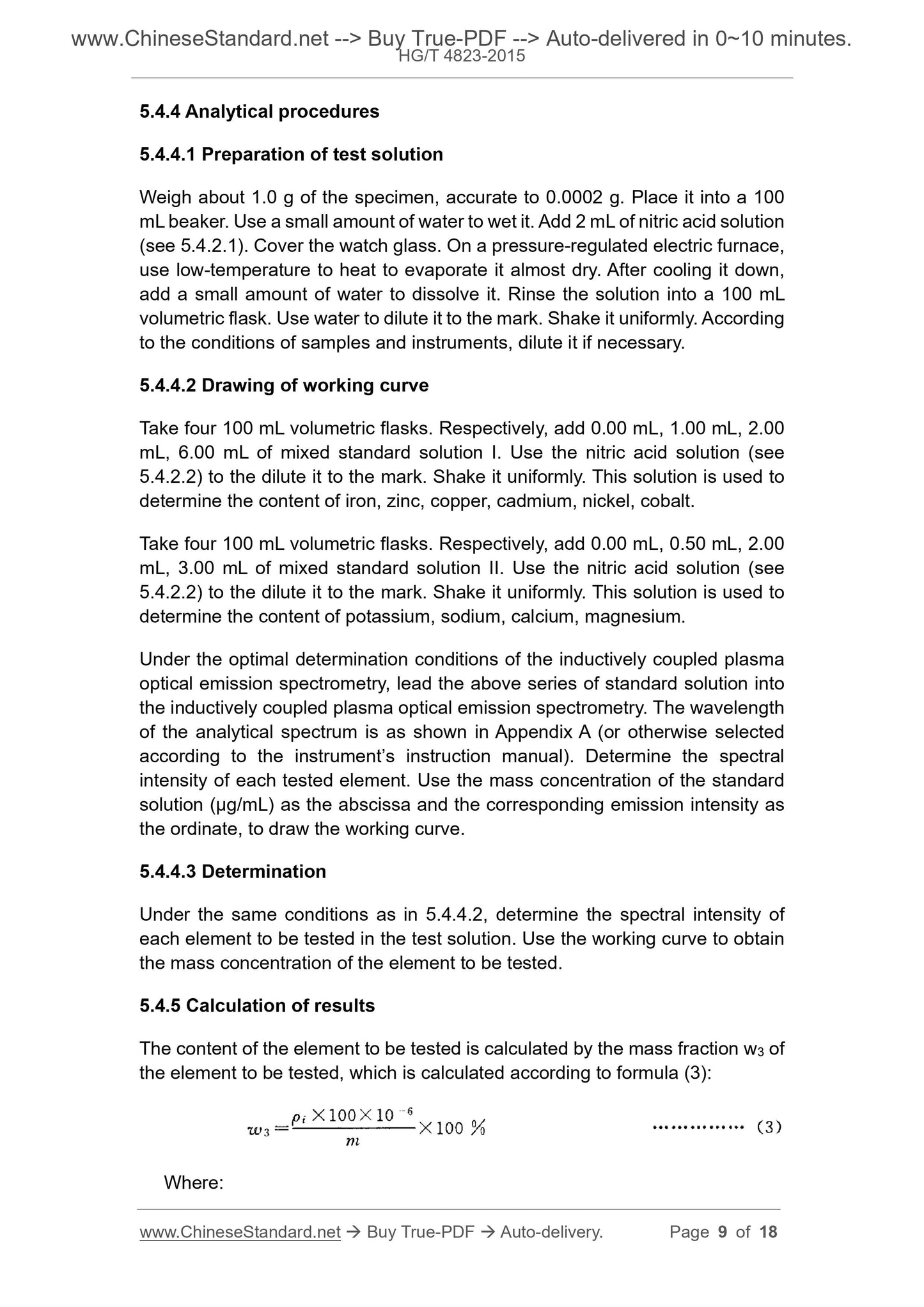

126.96.36.199 Preparation of test solution
Weigh about 1.0 g of the specimen, accurate to 0.0002 g. Place it into a 100 mL beaker. Use a small amount of water to wet it. Add 2 mL of nitric acid solution (see 188.8.131.52). Cover the watch glass. On a pressure-regulated electric furnace, use low-temperature to heat to evaporate it almost dry. After cooling it down, add a small amount of water to dissolve it. Rinse the solution into a 100 mL volumetric flask. Use water to dilute it to the mark. Shake it uniformly. According to the conditions of samples and instruments, dilute it if necessary.
184.108.40.206 Drawing of working curve
Take four 100 mL volumetric flasks. Respectively, add 0.00 mL, 1.00 mL, 2.00 mL, 6.00 mL of mixed standard solution I. Use the nitric acid solution (see 220.127.116.11) to the dilute it to the mark. Shake it uniformly. This solution is used to determine the content of iron, zinc, copper, cadmium, nickel, cobalt.
Take four 100 mL volumetric flasks. Respectively, add 0.00 mL, 0.50 mL, 2.00 mL, 3.00 mL of mixed standard solution II. Use the nitric acid solution (see 18.104.22.168) to the dilute it to the mark. Shake it uniformly. This solution is used to determine the content of potassium, sodium, calcium, magnesium.
Under the optimal determination conditions of the inductively coupled plasma optical emission spectrometry, lead the above series of standard solution into the inductively coupled plasma optical emission spectrometry. The wavelength of the analytical spectrum is as shown in Appendix A (or otherwise selected according to the instrument’s instruction manual). Determine the spectral intensity of each tested element. Use the mass concentration of the standard solution (μg/mL) as the abscissa and the corresponding emission intensity as the ordinate, to draw the working curve.
Under the same conditions as in 22.214.171.124, determine the spectral intensity of each element to be tested in the test solution. Use the working curve to obtain the mass concentration of the element to be tested.
5.4.5 Calculation of results
The content of the element to be tested is calculated by the mass fraction w3 of the element to be tested, which is calculated according to formula (3): Where:
Use water to dilute it to 100 mL. Use sodium hydroxide solution to adjust the pH of solution o 1.0 ~ 1.5 (use precision pH test paper to check it). Transfer this solution into a 250 mL separatory funnel. Use water to dilute it to about 200 mL. Add 2 mL of Pyrrolidine dithiocarbamate (APDC) solution. Mix it. Use
trichloromethane to extract it for two times. Add 20 mL for each extraction. Collect the extract (that is, the organic phase) into a 50 mL beaker. Put it in steam bath to evaporate it dry (this operation must be carried out in a ventilation hood). Add 3 mL of nitric acid in the residue. Continue evaporation to almost dry. Add 0.5 mL of nitric acid and 10 mL of water. Heat it until the solution volume is about 3 mL ~ 5 mL. Transfer it into a 10 mL volumetric flask. Use water to dilute it to the mark. Shake it uniformly.
5.5.4 Preparation of test solution

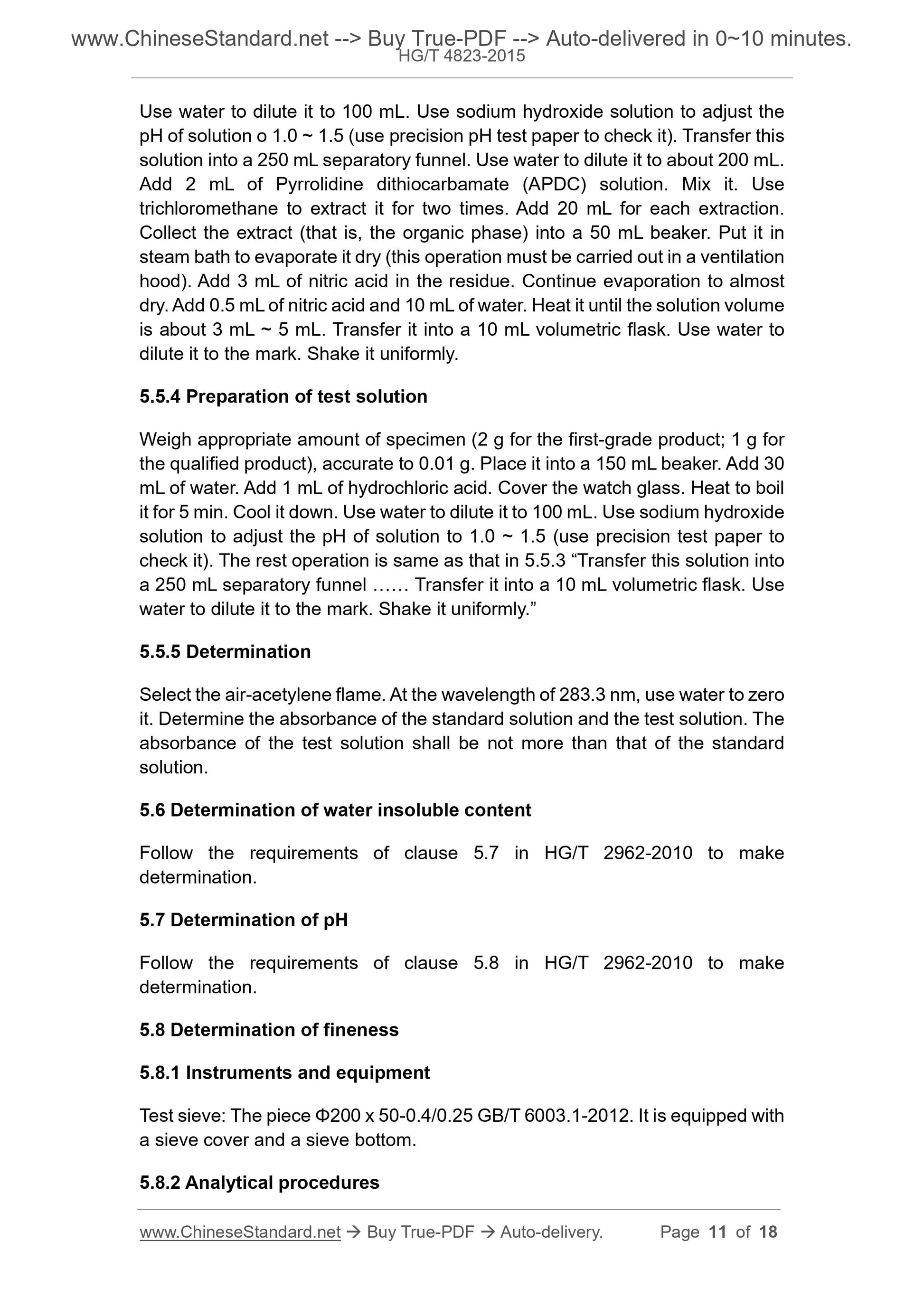

Weigh appropriate amount of specimen (2 g for the first-grade product; 1 g for the qualified product), accurate to 0.01 g. Place it into a 150 mL beaker. Add 30 mL of water. Add 1 mL of hydrochloric acid. Cover the watch glass. Heat to boil it for 5 min. Cool it down. Use water to dilute it to 100 mL. Use sodium hydroxide solution to adjust the pH of solution to 1.0 ~ 1.5 (use precision test paper to check it). The rest operation is same as that in 5.5.3 “Transfer this solution into a 250 mL separatory funnel …… Transfer it into a 10 mL volumetric flask. Use water to dilute it to the mark. Shake it uniformly.”
Select the air-acetylene flame. At the wavelength of 283.3 nm, use water to zero it. Determine the absorbance of the standard solution and the test solution. The absorbance of the test solution shall be not more than that of the standard solution.
5.6 Determination of water insoluble content
Follow the requirements of clause 5.7 in HG/T 2962-2010 to make
5.7 Determination of pH
Follow the requirements of clause 5.8 in HG/T 2962-2010 to make
5.8 Determination of fineness
5.8.1 Instruments and equipment
Test sieve: The piece Φ200 x 50-0.4/0.25 GB/T 6003.1-2012. It is equipped with a sieve cover and a sieve bottom.
5.8.2 Analytical procedures

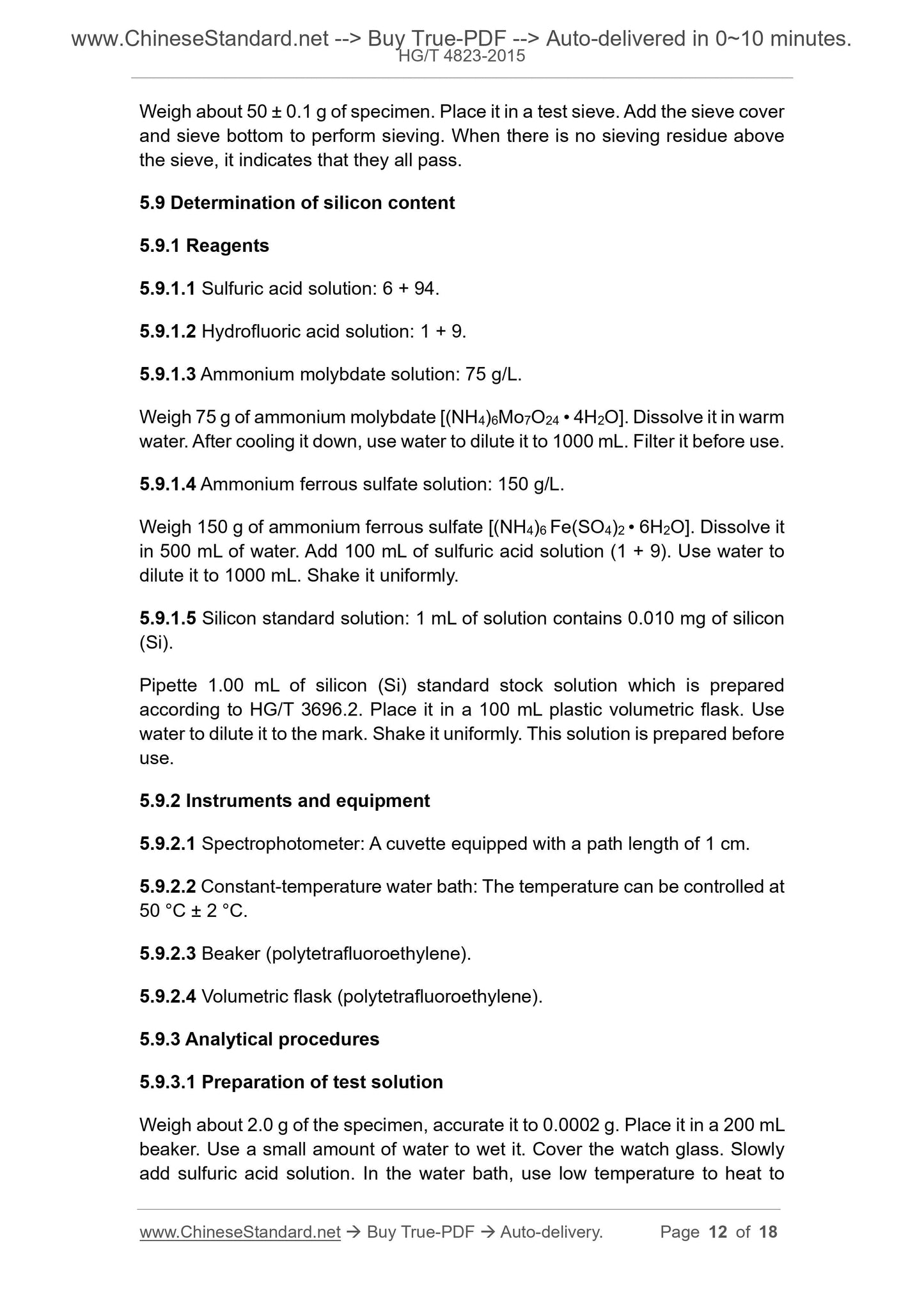

Weigh about 50 ± 0.1 g of specimen. Place it in a test sieve. Add the sieve cover and sieve bottom to perform sieving. When there is no sieving residue above the sieve, it indicates that they all pass.
5.9 Determination of silicon content
126.96.36.199 Sulfuric acid solution: 6 + 94.
188.8.131.52 Hydrofluoric acid solution: 1 + 9.
184.108.40.206 Ammonium molybdate solution: 75 g/L.
Weigh 75 g of ammonium molybdate [(NH4)6Mo7O24 • 4H2O]. Dissolve it in warm water. After cooling it down, use water to dilute it to 1000 mL. Filter it before use. 220.127.116.11 Ammonium ferrous sulfate solution: 150 g/L.
Weigh 150 g of ammonium ferrous sulfate [(NH4)6 Fe(SO4)2 • 6H2O]. Dissolve it in 500 mL of water. Add 100 mL of sulfuric acid solution (1 + 9). Use water to dilute it to 1000 mL. Shake it uniformly.
18.104.22.168 Silicon standard solution: 1 mL of solution contains 0.010 mg of silicon (Si).
Pipette 1.00 mL of silicon (Si) standard stock solution which is prepared according to HG/T 3696.2. Place it in a 100 mL plastic volumetric flask. Use water to dilute it to the mark. Shake it uniformly. This solution is prepared before use.
5.9.2 Instruments and equipment
22.214.171.124 Spectrophotometer: A cuvette equipped with a path length of 1 cm. 126.96.36.199 Constant-temperature water bath: The temperature can be controlled at 50 °C ± 2 °C.
188.8.131.52 Beaker (polytetrafluoroethylene).
184.108.40.206 Volumetric flask (polytetrafluoroethylene).
5.9.3 Analytical procedures
220.127.116.11 Preparation of test solution
Weigh about 2.0 g of the specimen, accurate it to 0.0002 g. Place it in a 200 mL beaker. Use a small amount of water to wet it. Cover the watch glass. Slowly add sulfuric acid solution. In the water bath, use low temperature to heat to m - The value of the mass of the specimen, in grams (g).
Take the arithmetic mean of the results of parallel determination as the determination result. The absolute difference between the two parallel
determination results is not more than 20% of the arithmetic mean.

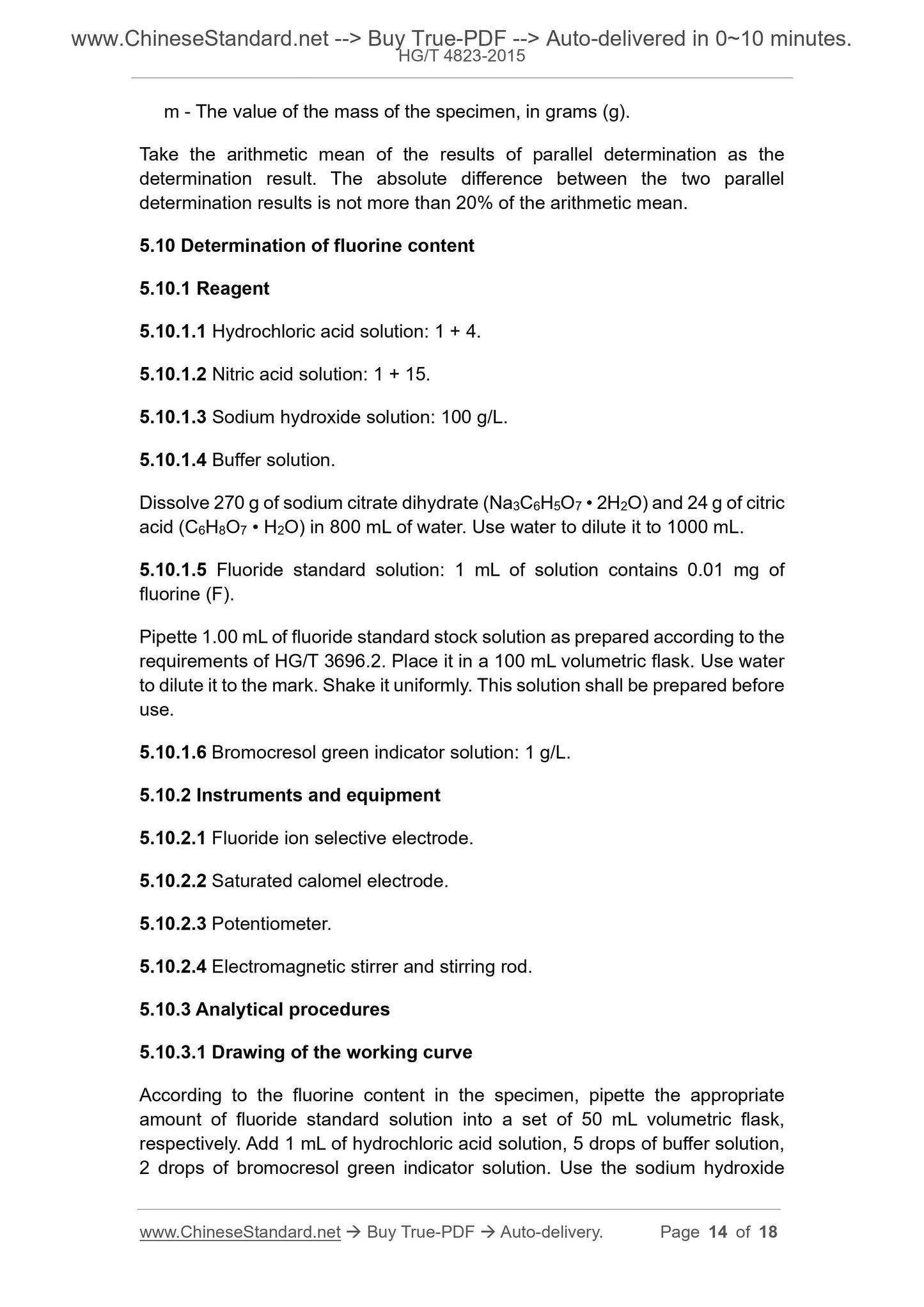

5.10 Determination of fluorine content
18.104.22.168 Hydrochloric acid solution: 1 + 4.
22.214.171.124 Nitric acid solution: 1 + 15.
126.96.36.199 Sodium hydroxide solution: 100 g/L.
188.8.131.52 Buffer solution.
Dissolve 270 g of sodium citrate dihydrate (Na3C6H5O7 • 2H2O) and 24 g of citric acid (C6H8O7 • H2O) in 800 mL of water. Use water to dilute it to 1000 mL. 184.108.40.206 Fluoride standard solution: 1 mL of solution contains 0.01 mg of fluorine (F).
Pipette 1.00 mL of fluoride standard stock solution as prepared according to the requirements of HG/T 3696.2. Place it in a 100 mL volumetric flask. Use water to dilute it to the mark. Shake it uniformly. This solution shall be prepared before use.
220.127.116.11 Bromocresol green indicator solution: 1 g/L.
5.10.2 Instruments and equipment
18.104.22.168 Fluoride ion selective electrode.
22.214.171.124 Saturated calomel electrode.
126.96.36.199 Electromagnetic stirrer and stirring rod.
5.10.3 Analytical procedures
188.8.131.52 Drawing of the working curve
According to the fluorine content in the specimen, pipette the appropriate amount of fluoride standard solution into a set of 50 mL volumetric flask, respectively. Add 1 mL of hydrochloric acid solution, 5 drops of buffer solution, 2 drops of bromocresol green indicator solution. Use the sodium hydroxide continuously or by the same shift of the same enterprise using the same materials under the same production conditions. Each batch of products shall not exceed 5 t.

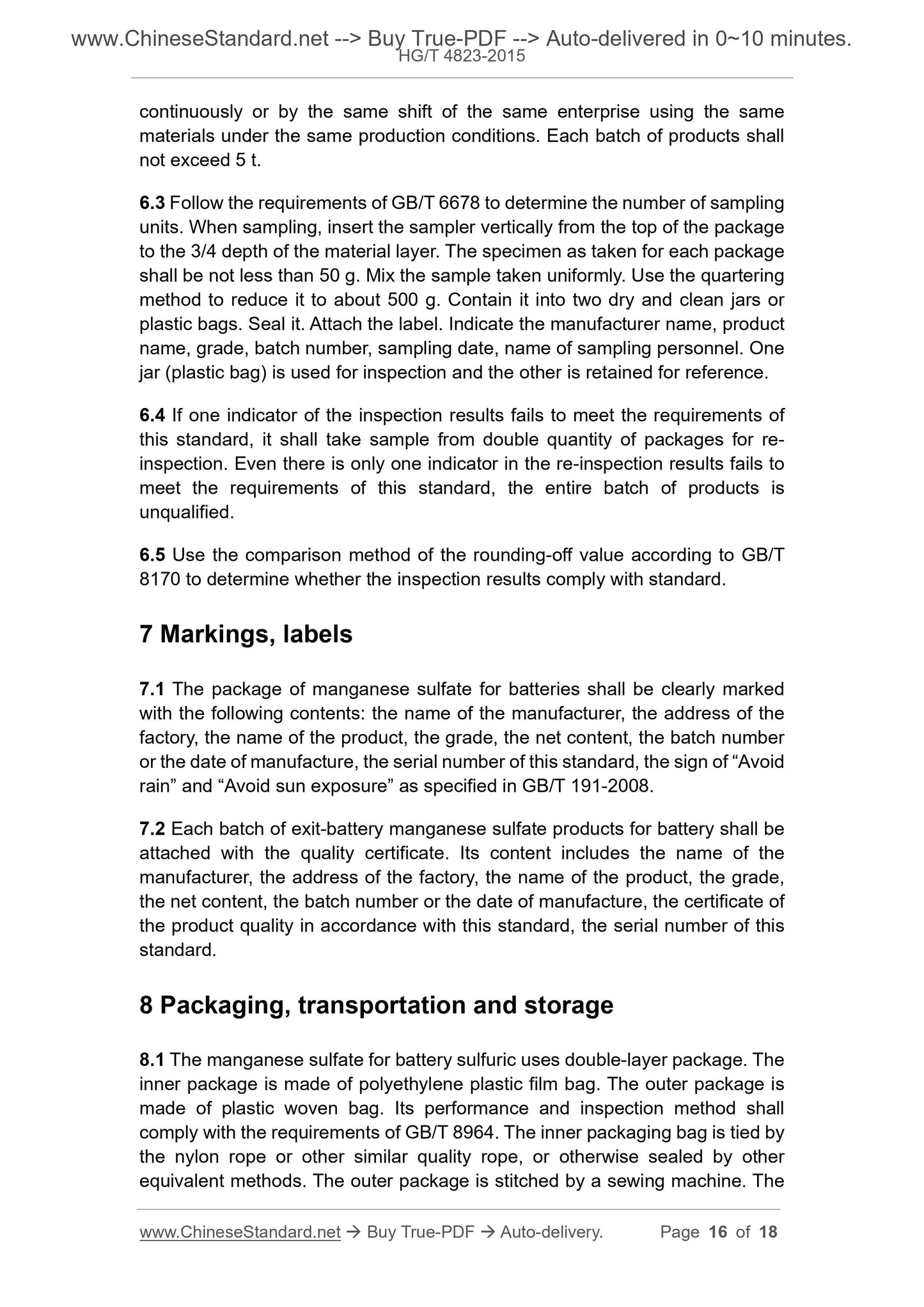

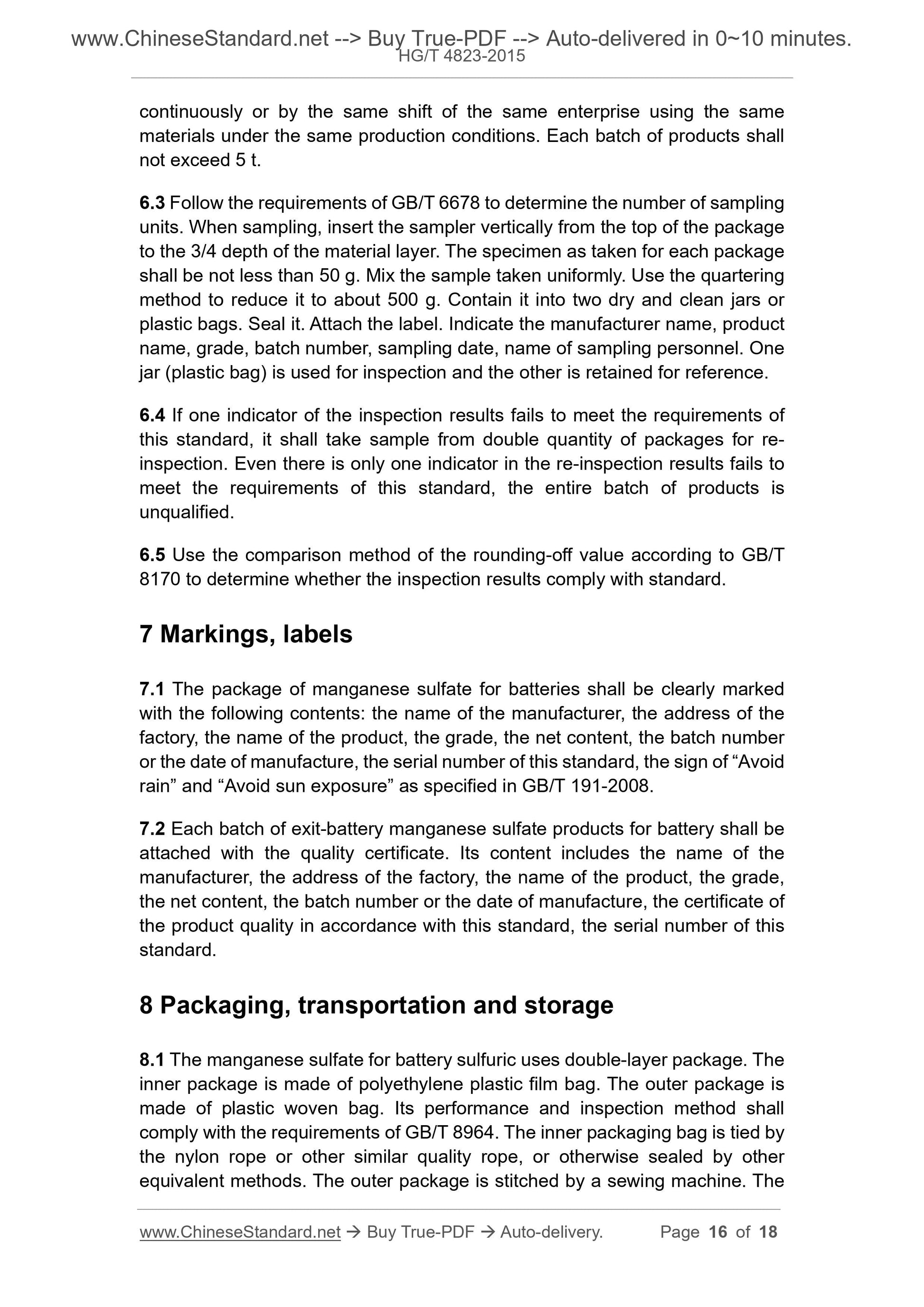

6.3 Follow the requirements of GB/T 6678 to determine the number of sampling units. When sampling, insert the sampler vertically from the top of the package to the 3/4 depth of the material layer. The specimen as taken for each package shall be not less than 50 g. Mix the sample taken uniformly. Use the quartering method to reduce it to about 500 g. Contain it into two dry and clean jars or plastic bags. Seal it. Attach the label. Indicate the manufacturer name, product name, grade, batch number, sampling date, name of sampling personnel. One jar (plastic bag) is used for inspection and the other is retained for reference. 6.4 If one indicator of the inspection results fails to meet the requirements of this standard, it shall take sample from double quantity of packages for re- inspection. Even there is only one indicator in the re-inspection results fails to meet the requirements of this standard, the entire batch of products is unqualified.
6.5 Use the comparison method of the rounding-off value according to GB/T 8170 to determine whether the inspection results comply with standard.
7 Markings, labels
7.1 The package of manganese sulfate for batteries shall be clearly marked with the following contents: the name of the manufacturer, the address of the factory, the name of the product, the grade, the net content, the batch number or the date of manufacture, the serial number of this standard, the sign of “Avoid rain” and “Avoid sun exposure” as specified in GB/T 191-2008.
7.2 Each batch of exit-battery manganese sulfate products for battery shall be attached with the quality certificate. Its content includes the name of the manufacturer, the address of the factory, the name of the product, the grade, the net content, the batch number or the date of manufacture, the certificate of the product quality in accordance with this standard, the serial number of this standard.
8 Packaging, transportation and storage
8.1 The manganese sulfate for battery sulfuric uses double-layer package. The inner package is made of polyethylene plastic film bag. The outer package is made of plastic woven bag. Its performance and inspection method shall
comply with the requirements of GB/T 8964. The inner packaging bag is tied by the nylon rope or other similar quality rope, or otherwise sealed by other equivalent methods. The outer package is stitched by a sewing machine. The
