HG/T 3489-2014: Chemical reagent. Copper (???) chloride

This standard specifies the traits, specifications, tests, inspection rules, packaging and marking of Chemical reagent - Copper (I) chloride. This standard applies to the inspection of Chemical reagent - Copper (I) chloride. Molecular formula: CuCl. Relative molecular mass: 99.00 (in accordance with the 2007 International relative molecular mass).

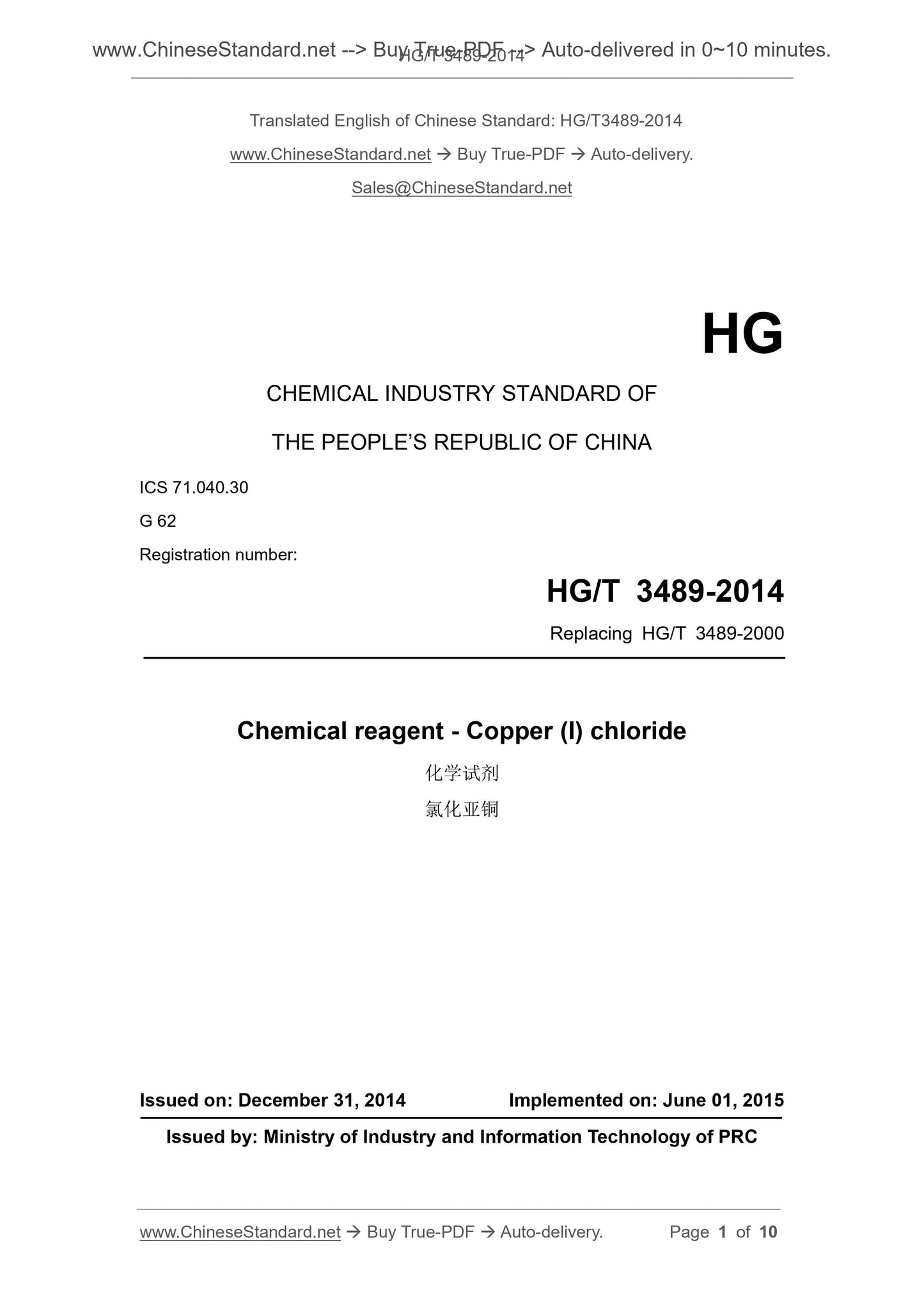

HG/T 3489-2014
HG
CHEMICAL INDUSTRY STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 71.040.30
G 62
Registration number.
Replacing HG/T 3489-2000
Chemical reagent - Copper (I) chloride
????????????
ISSUED ON. DECEMBER 31, 2014
IMPLEMENTED ON. JUNE 01, 2015
Issued by. Ministry of Industry and Information Technology of PRC

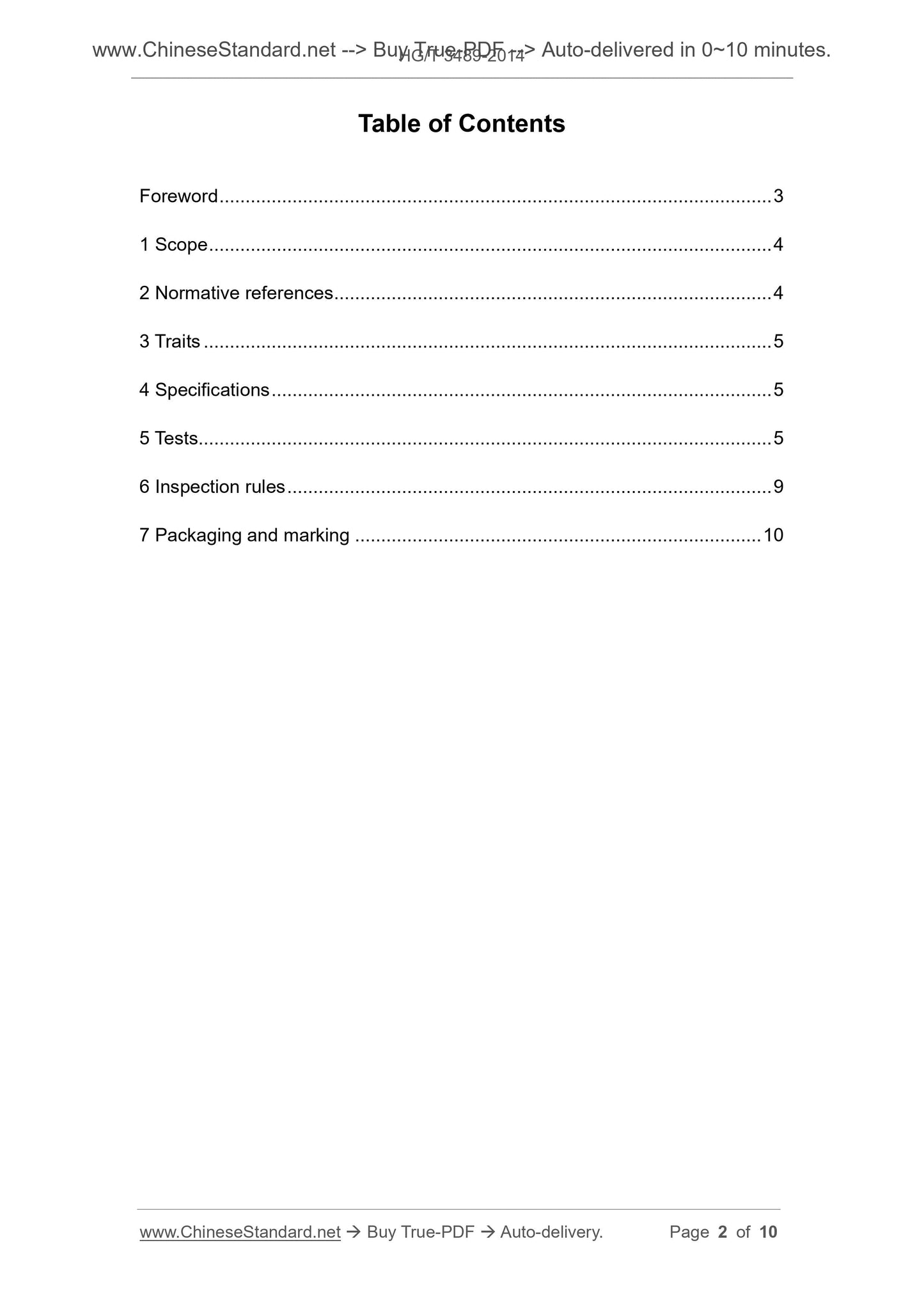

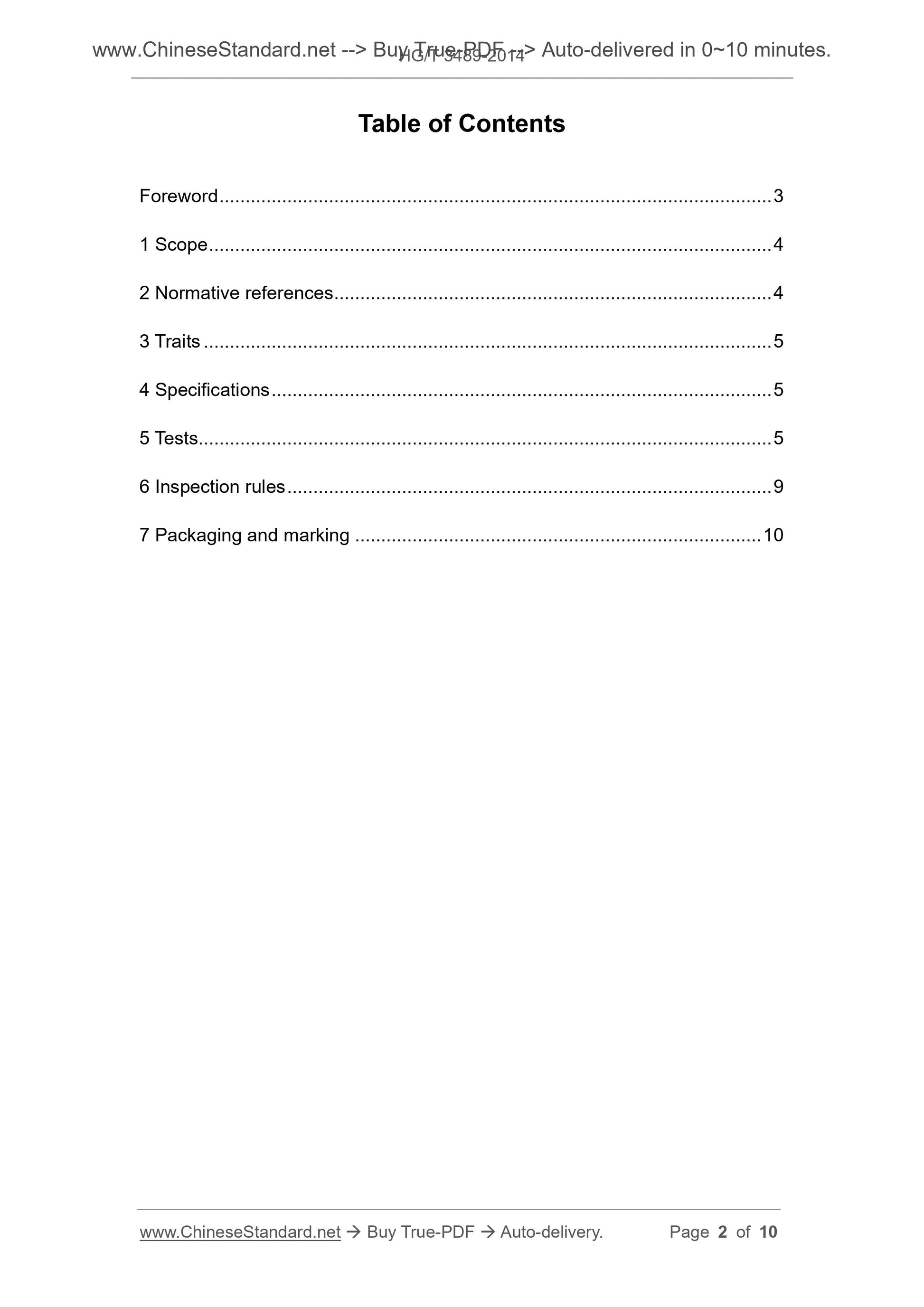

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Traits ... 5
4 Specifications ... 5
5 Tests... 5
6 Inspection rules ... 9
7 Packaging and marking ... 10
Chemical reagent - Copper (I) chloride

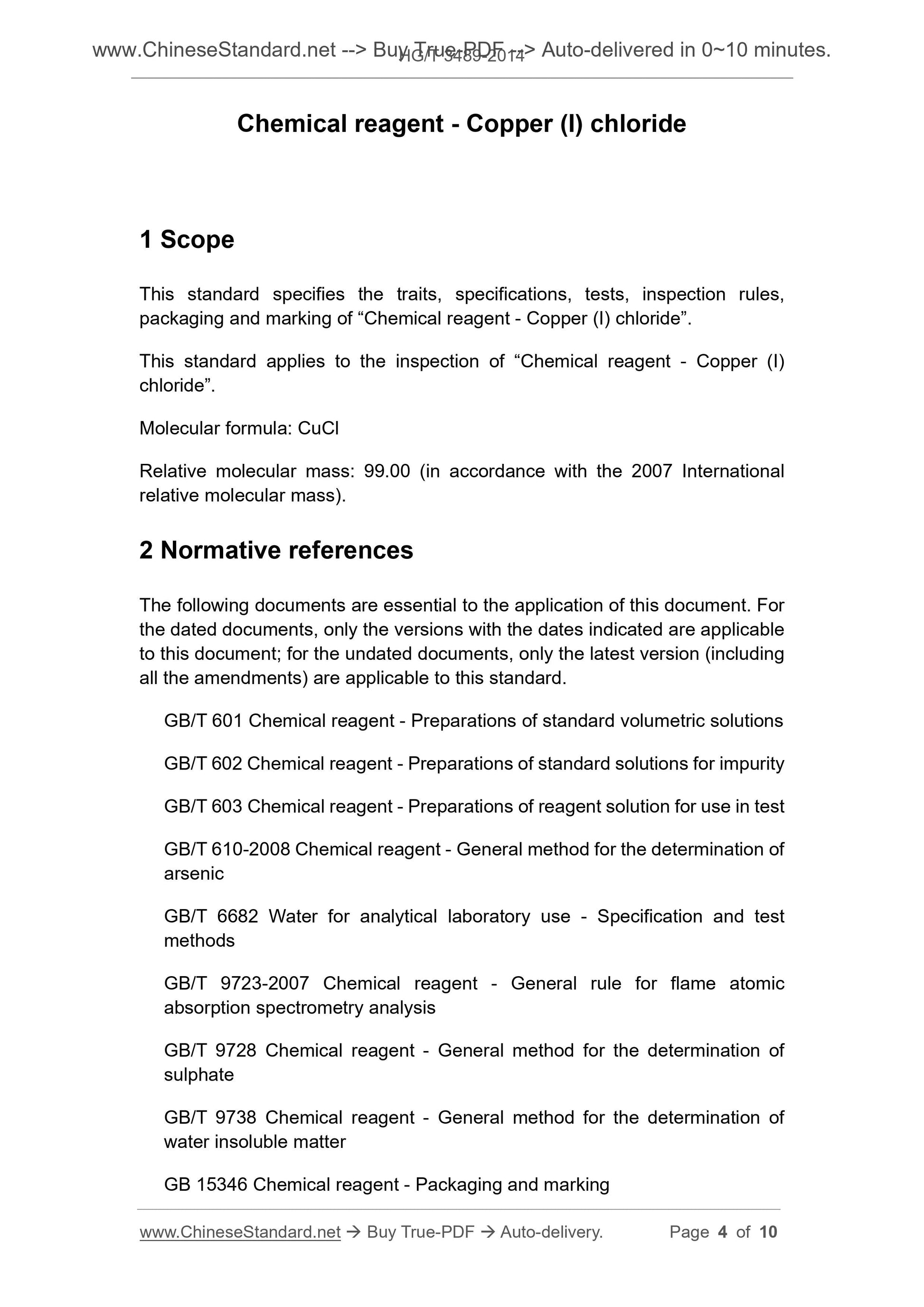

1 Scope
This standard specifies the traits, specifications, tests, inspection rules, packaging and marking of ?€?Chemical reagent - Copper (I) chloride?€?.
This standard applies to the inspection of ?€?Chemical reagent - Copper (I) chloride?€?.
Molecular formula. CuCl
Relative molecular mass. 99.00 (in accordance with the 2007 International relative molecular mass).
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB/T 601 Chemical reagent - Preparations of standard volumetric solutions GB/T 602 Chemical reagent - Preparations of standard solutions for impurity GB/T 603 Chemical reagent - Preparations of reagent solution for use in test GB/T 610-2008 Chemical reagent - General method for the determination of arsenic
GB/T 6682 Water for analytical laboratory use - Specification and test
methods
GB/T 9723-2007 Chemical reagent - General rule for flame atomic
absorption spectrometry analysis
GB/T 9728 Chemical reagent - General method for the determination of
sulphate
GB/T 9738 Chemical reagent - General method for the determination of
water insoluble matter
GB 15346 Chemical reagent - Packaging and marking

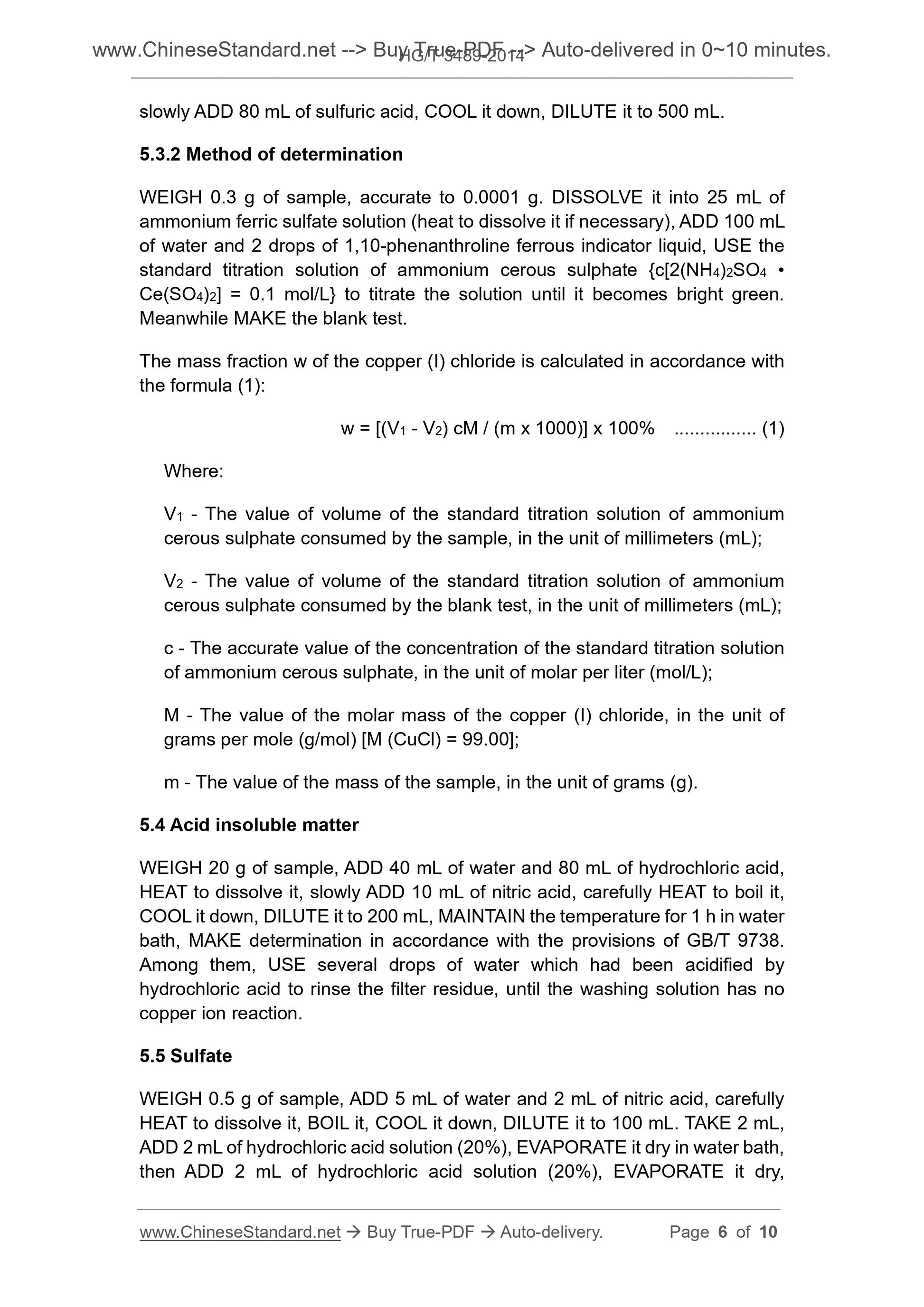

slowly ADD 80 mL of sulfuric acid, COOL it down, DILUTE it to 500 mL.
5.3.2 Method of determination
WEIGH 0.3 g of sample, accurate to 0.0001 g. DISSOLVE it into 25 mL of
ammonium ferric sulfate solution (heat to dissolve it if necessary), ADD 100 mL of water and 2 drops of 1,10-phenanthroline ferrous indicator liquid, USE the standard titration solution of ammonium cerous sulphate {c[2(NH4)2SO4 ?€? Ce(SO4)2] = 0.1 mol/L} to titrate the solution until it becomes bright green. Meanwhile MAKE the blank test.
The mass fraction w of the copper (I) chloride is calculated in accordance with the formula (1).
w = [(V1 - V2) cM/(m x 1000)] x 100% ... (1)
Where.
V1 - The value of volume of the standard titration solution of ammonium cerous sulphate consumed by the sample, in the unit of millimeters (mL); V2 - The value of volume of the standard titration solution of ammonium cerous sulphate consumed by the blank test, in the unit of millimeters (mL); c - The accurate value of the concentration of the standard titration solution of ammonium cerous sulphate, in the unit of molar per liter (mol/L);
M - The value of the molar mass of the copper (I) chloride, in the unit of grams per mole (g/mol) [M (CuCl) = 99.00];
m - The value of the mass of the sample, in the unit of grams (g).
5.4 Acid insoluble matter
WEIGH 20 g of sample, ADD 40 mL of water and 80 mL of hydrochloric acid, HEAT to dissolve it, slowly ADD 10 mL of nitric acid, carefully HEAT to boil it, COOL it down, DILUTE it to 200 mL, MAINTAIN the temperature for 1 h in water bath, MAKE determination in accordance with the provisions of GB/T 9738. Among them, USE several drops of water which had been acidified by
hydrochloric acid to rinse the filter residue, until the washing solution has no copper ion reaction.
5.5 Sulfate
WEIGH 0.5 g of sample, ADD 5 mL of water and 2 mL of nitric acid, carefully HEAT to dissolve it, BOIL it, COOL it down, DILUTE it to 100 mL. TAKE 2 mL, ADD 2 mL of hydrochloric acid solution (20%), EVAPORATE it dry in water bath, then ADD 2 mL of hydrochloric acid solution (20%), EVAPORATE it dry,
DISSOLVE it into water (filter it if necessary), DILUTE it to 20 mL, ADD 0.5 mL of hydrochloric acid solution (20%) to acidify it, MAKE determination in accordance with the provisions of GB/T 9728. The turbidity of the solution shall not be greater than the standard turbidity solution.
The standard turbidity solution is prepared as follows. TAKE the following amount of the sulfate (SO4) standard solution, MAKE it subject to same
treatment together with the residues which are evaporated dry.
Analytical pure. 0.02 mg; chemical pure. 0.04 mg.
5.6 Arsenic
5.6.1 Preparation of ammonium ferric sulfate solution (10 g/L)
WEIGH 1 g of ammonium ferric sulfate dodecahydrate (III), DISSOLVE it into water, ADD 2 drops of sulfuric acid, DILUTE it to 100 mL.
5.6.2 Method of determination
WEIGH 1 g of sample, ADD 10 mL of water and 2 mL of nitric acid, carefully HEAT to dissolve it, BOIL it for 2 min. DILUTE it to 40 mL, BOIL it. ADD 1 mL of ammonium ferric sulfate solution (10 g/L), ADD drops of ammonia solution (10%) until the produced precipitation dissolves, to make it excess 2 mL; MAINTAIN the temperature in water bath for 30 min. USE the No.3 glass filter to filter it, USE ammonia solution (1 + 25) to rinse it until the blue color disappears completely, MAKE another 3 rinsing. USE 2 mL of hot hydrochloric acid solution (20%) to dissolve the precipitation on the filter crucible, USE water to rinse it, COLLECT the filtrate and the washing solution, DILUTE it to 50 mL. TAKE 10 mL, DILUTE it to 70 mL. MAKE determination in accordance with the provisions of clause 4.1 of GB/T 610-2008. The brownish yellow shown by the mercury bromide test paper shall not be deeper than that of the standard colorimetric test paper.
The standard colorimetric test paper is prepared as follows. TAKE the following amount of arsenic (As) standard solution, DILUTE it to 70 mL, MAKE it subject to the same treatment together with the same volume of test solution.
Analytical pure. 0.001 mg; chemical pure. 0.004 mg.
5.7 Sodium
5.7.1 Reagents, materials and instruments
They shall comply with the provisions of clause 5 and clause 6 of GB/T 9723- 2007.
5.7.2 Conditions of instruments

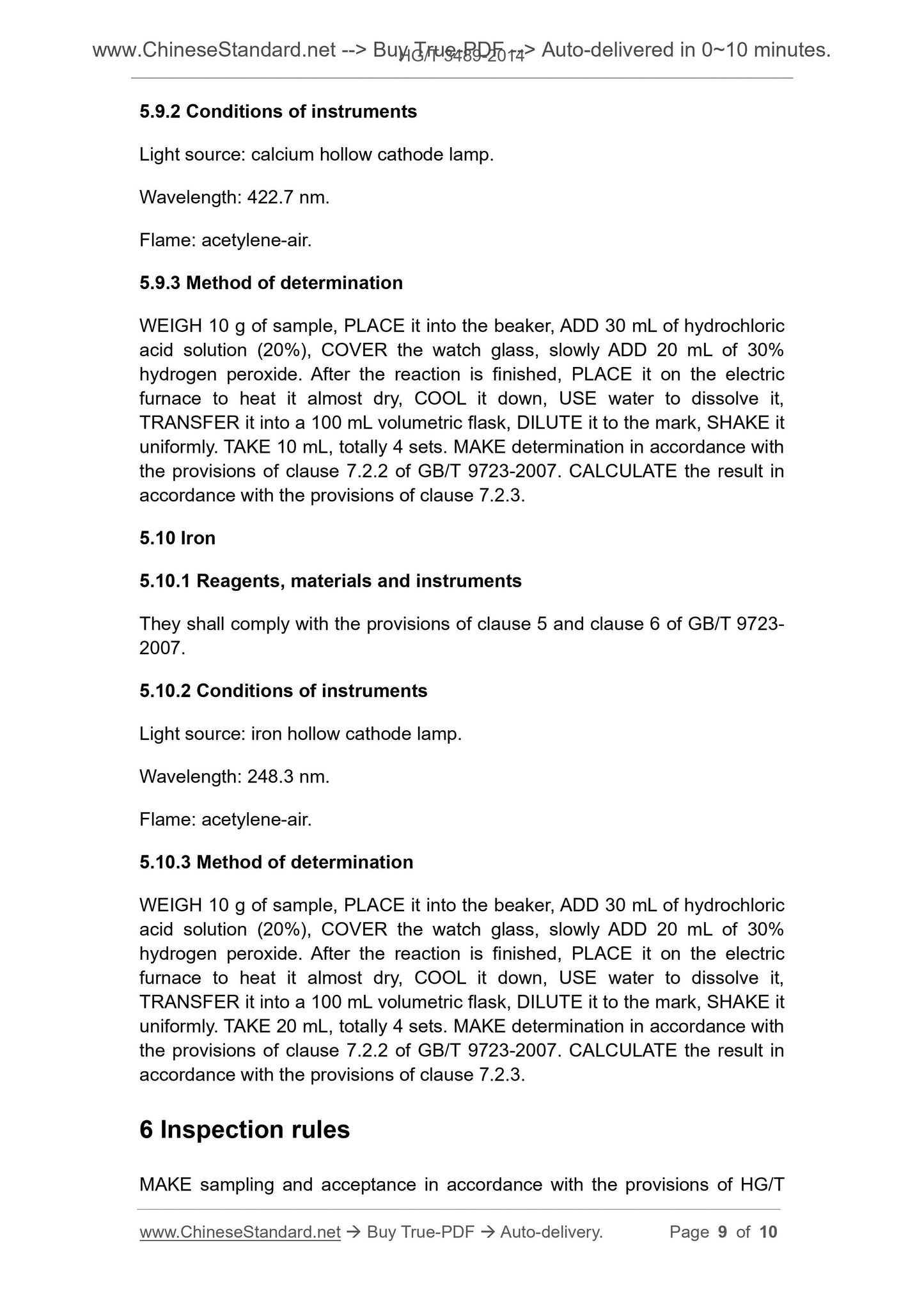

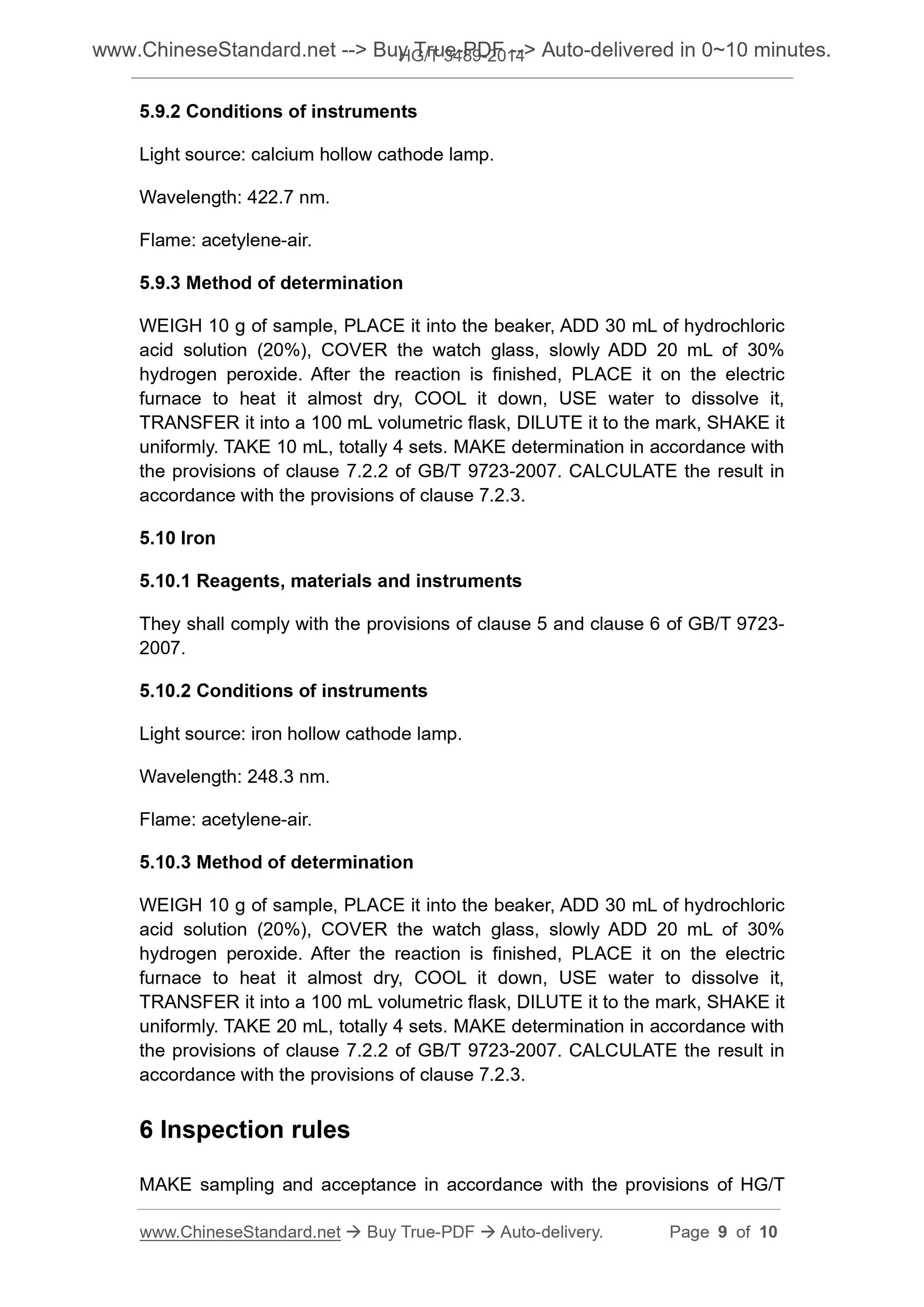

5.9.2 Conditions of instruments
Light source. calcium hollow cathode lamp.
Wavelength. 422.7 nm.
Flame. acetylene-air.
5.9.3 Method of determination
WEIGH 10 g of sample, PLACE it into the beaker, ADD 30 mL of hydrochloric acid solution (20%), COVER the watch glass, slowly ADD 20 mL of 30%
hydrogen peroxide. After the reaction is finished, PLACE it on the electric furnace to heat it almost dry, COOL it down, USE water to dissolve it,
TRANSFER it into a 100 mL volumetric flask, DILUTE it to the mark, SHAKE it uniformly. TAKE 10 mL, totally 4 sets. MAKE determination in accordance with the provisions of clause 7.2.2 of GB/T 9723-2007. CALCULATE the result in accordance with the provisions of clause 7.2.3.
5.10 Iron
5.10.1 Reagents, materials and instruments
They shall comply with the provisions of clause 5 and clause 6 of GB/T 9723- 2007.
5.10.2 Conditions of instruments
Light source. iron hollow cathode lamp.
Wavelength. 248.3 nm.
Flame. acetylene-air.
5.10.3 Method of determination
WEIGH 10 g of sample, PLACE it into the beaker, ADD 30 mL of hydrochloric acid solution (20%), COVER the watch glass, slowly ADD 20 mL of 30%
hydrogen peroxide. After the reaction is finished, PLACE it on the electric furnace to heat it almost dry, COOL it down, USE water to dissolve it,
TRANSFER it into a 100 mL volumetric flask, DILUTE it to the mark, SHAKE it uniformly. TAKE 20 mL, totally 4 sets. MAKE determination in accordance with the provisions of clause 7.2.2 of GB/T 9723-2007. CALCULATE the result in accordance with the provisions of clause 7.2.3.
6 Inspection rules
MAKE sampling and acceptance in accordance with the provisions of HG/T
