HG/T 2520-2006: Phosphorous acid for industrial use

This standard specifies the industrial phosphorous acid.

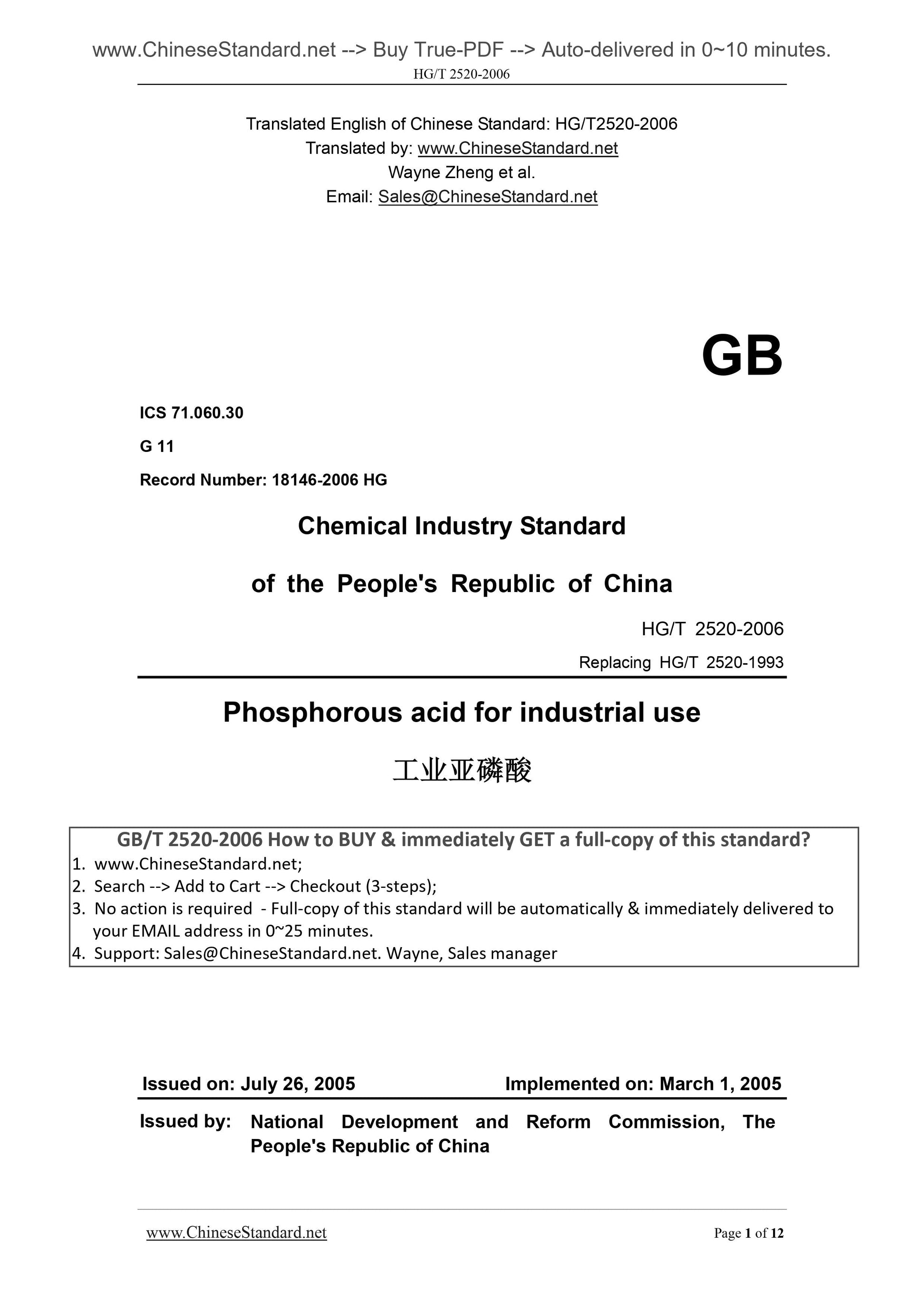

HG/T 2520-2006
GB
ICS 71.060.30
G 11
Record Number. 18146-2006 HG
Chemical Industry Standard
of the People's Republic of China
Replacing HG/T 2520-1993
Phosphorous acid for industrial use
???????????????
ISSUED ON. JULY 26, 2005
IMPLEMENTED ON. MARCH 1, 2005
Issued by.
National Development and Reform Commission, The
People's Republic of China

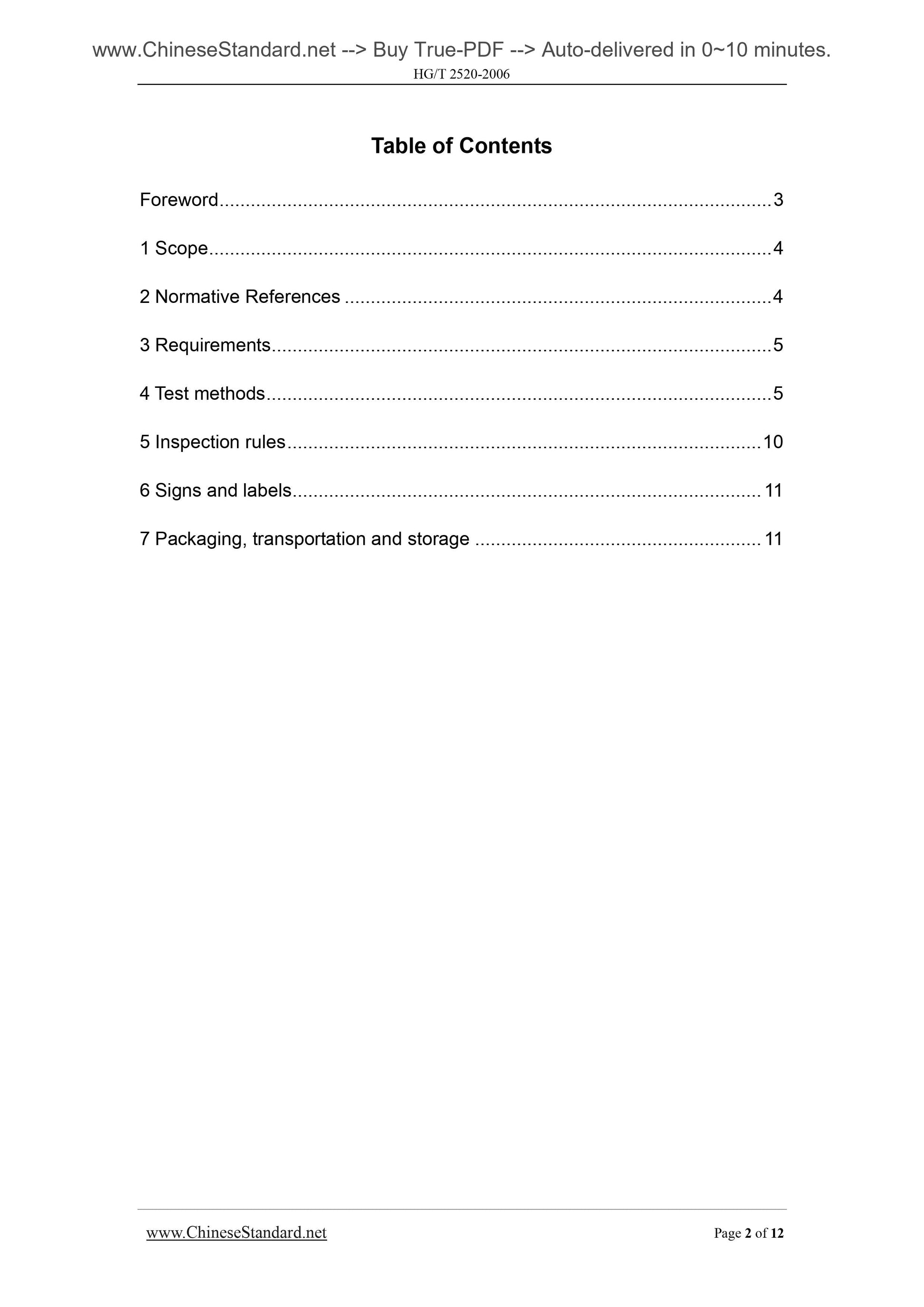

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Requirements ... 5
4 Test methods ... 5
5 Inspection rules ... 10
6 Signs and labels ... 11
7 Packaging, transportation and storage ... 11

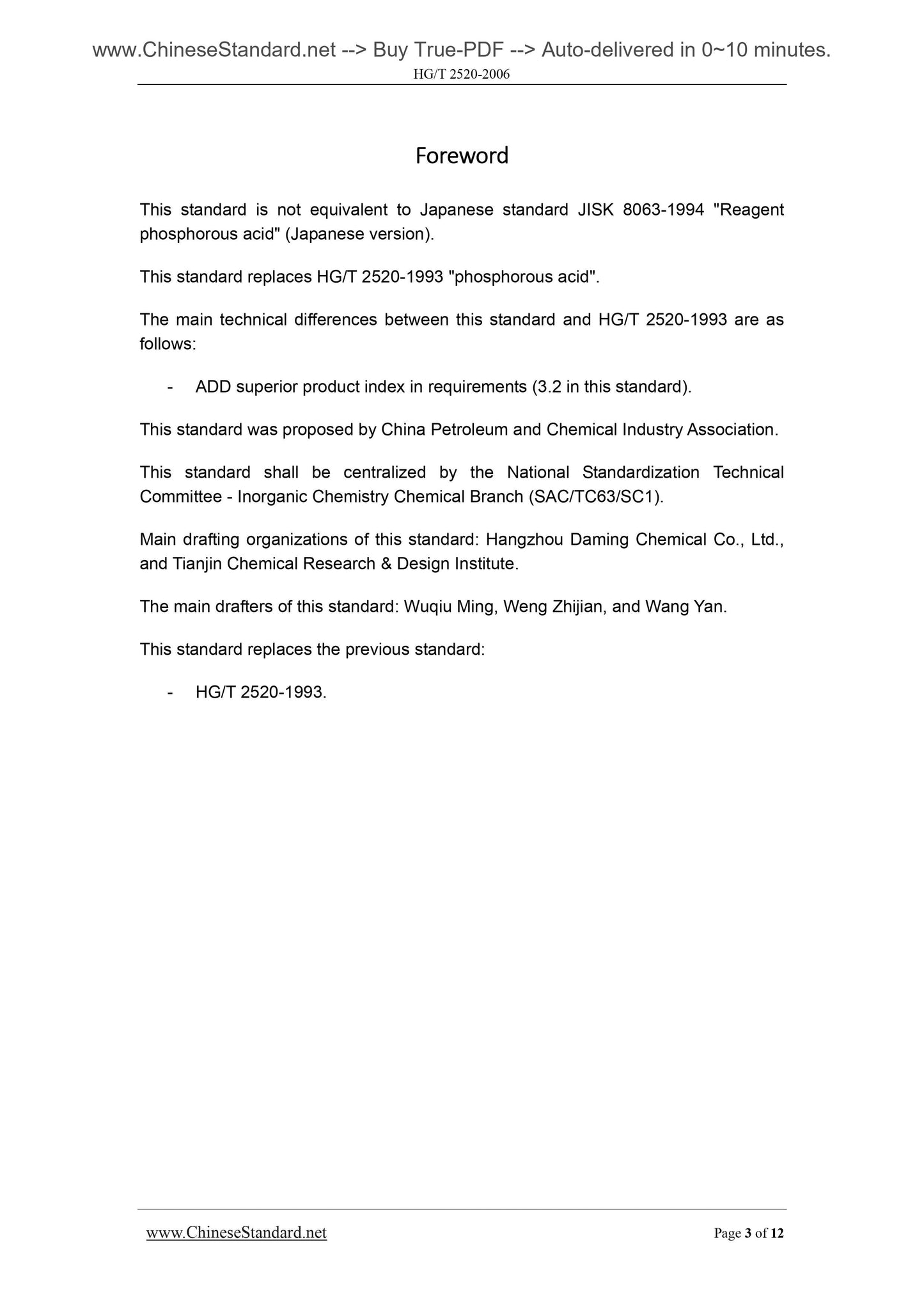

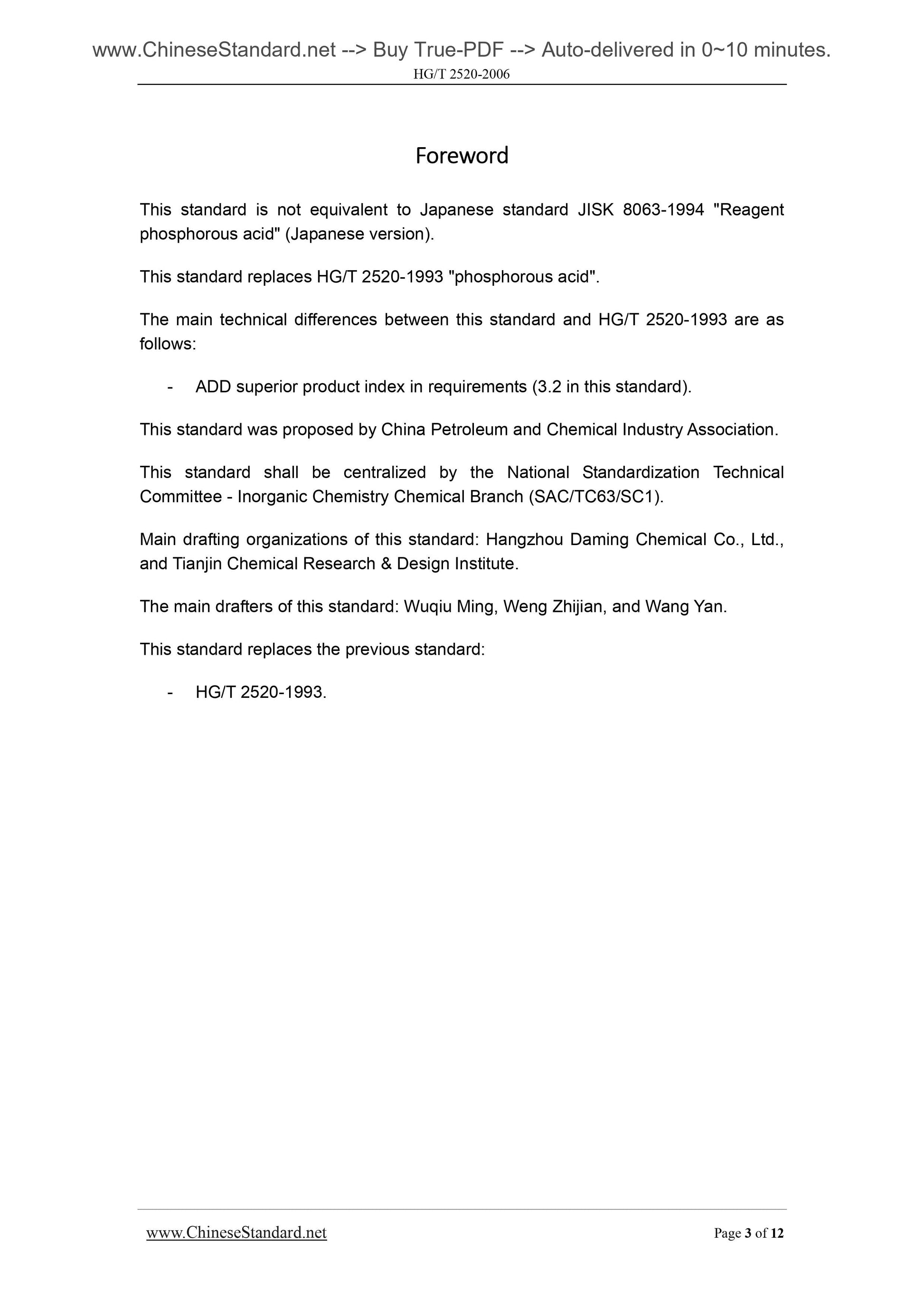

Foreword
This standard is not equivalent to Japanese standard JISK 8063-1994 "Reagent phosphorous acid" (Japanese version).
This standard replaces HG/T 2520-1993 "phosphorous acid".
The main technical differences between this standard and HG/T 2520-1993 are as follows.
- ADD superior product index in requirements (3.2 in this standard).
This standard was proposed by China Petroleum and Chemical Industry Association. This standard shall be centralized by the National Standardization Technical Committee - Inorganic Chemistry Chemical Branch (SAC/TC63/SC1).
Main drafting organizations of this standard. Hangzhou Daming Chemical Co., Ltd., and Tianjin Chemical Research and Design Institute.
The main drafters of this standard. Wuqiu Ming, Weng Zhijian, and Wang Yan. This standard replaces the previous standard.
- HG/T 2520-1993.

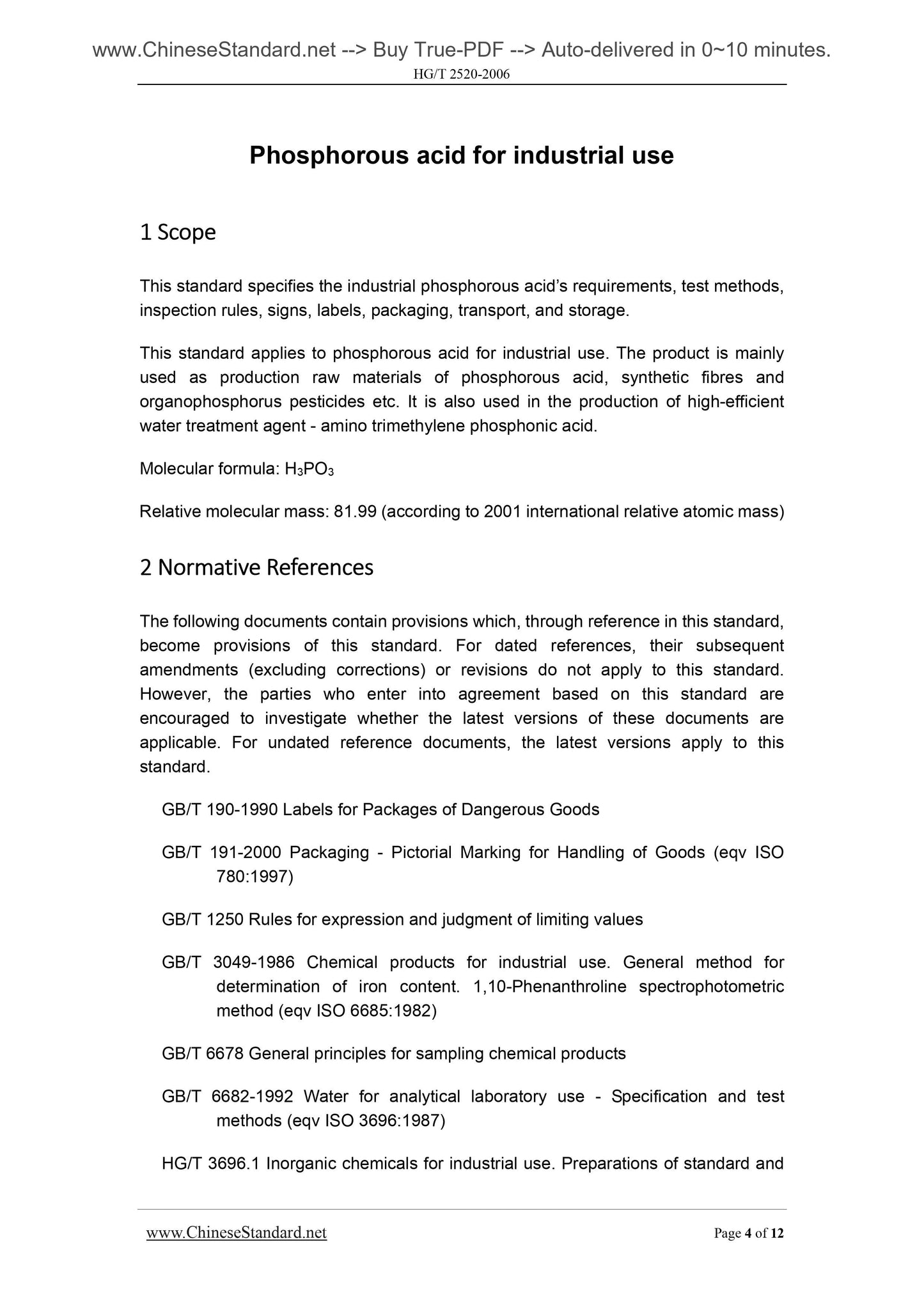

Phosphorous acid for industrial use
1??Scope
This standard specifies the industrial phosphorous acid?€?s requirements, test methods, inspection rules, signs, labels, packaging, transport, and storage.
This standard applies to phosphorous acid for industrial use. The product is mainly used as production raw materials of phosphorous acid, synthetic fibres and organophosphorus pesticides etc. It is also used in the production of high-efficient water treatment agent - amino trimethylene phosphonic acid.
Molecular formula. H3PO3
Relative molecular mass. 81.99 (according to 2001 international relative atomic mass) 2??Normative??References
The following documents contain provisions which, through reference in this standard, become provisions of this standard. For dated references, their subsequent amendments (excluding corrections) or revisions do not apply to this standard. However, the parties who enter into agreement based on this standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest versions apply to this standard.
GB/T 190-1990 Labels for Packages of Dangerous Goods
GB/T 191-2000 Packaging - Pictorial Marking for Handling of Goods (eqv ISO 780.1997)
GB/T 1250 Rules for expression and judgment of limiting values
GB/T 3049-1986 Chemical products for industrial use. General method for determination of iron content. 1,10-Phenanthroline spectrophotometric
method (eqv ISO 6685.1982)
GB/T 6678 General principles for sampling chemical products
GB/T 6682-1992 Water for analytical laboratory use - Specification and test methods (eqv ISO 3696.1987)

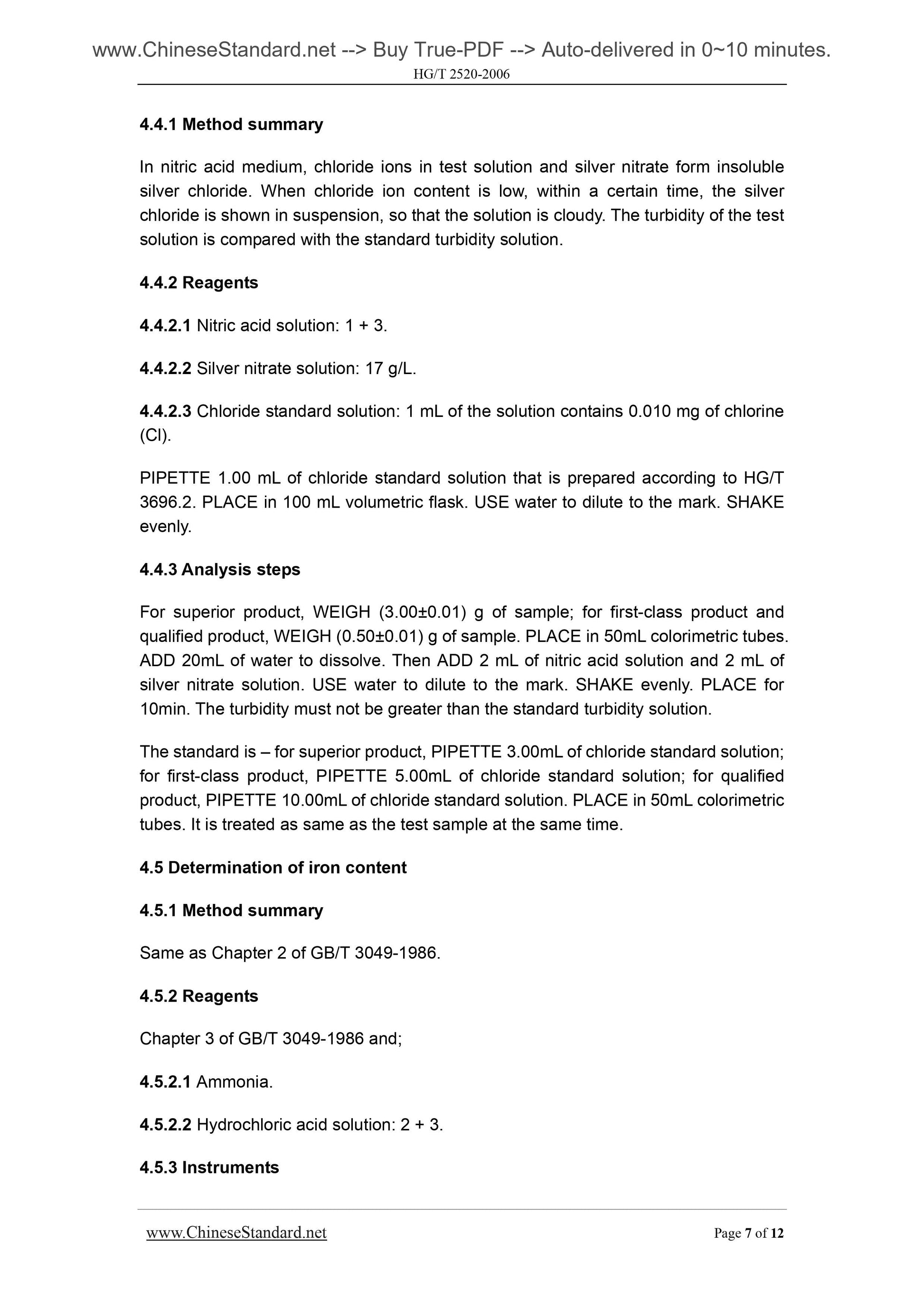

HG/T 3696.1 Inorganic chemicals for industrial use. Preparations of standard and 4.4.1 Method summary
In nitric acid medium, chloride ions in test solution and silver nitrate form insoluble silver chloride. When chloride ion content is low, within a certain time, the silver chloride is shown in suspension, so that the solution is cloudy. The turbidity of the test solution is compared with the standard turbidity solution.
4.4.2 Reagents
4.4.2.1 Nitric acid solution. 1 + 3.
4.4.2.2 Silver nitrate solution. 17 g/L.
4.4.2.3 Chloride standard solution. 1 mL of the solution contains 0.010 mg of chlorine (Cl).
PIPETTE 1.00 mL of chloride standard solution that is prepared according to HG/T 3696.2. PLACE in 100 mL volumetric flask. USE water to dilute to the mark. SHAKE evenly.
4.4.3 Analysis steps
For superior product, WEIGH (3.00??0.01) g of sample; for first-class product and qualified product, WEIGH (0.50??0.01) g of sample. PLACE in 50mL colorimetric tubes. ADD 20mL of water to dissolve. Then ADD 2 mL of nitric acid solution and 2 mL of silver nitrate solution. USE water to dilute to the mark. SHAKE evenly. PLACE for 10min. The turbidity must not be greater than the standard turbidity solution. The standard is ?€? for superior product, PIPETTE 3.00mL of chloride standard solution; for first-class product, PIPETTE 5.00mL of chloride standard solution; for qualified product, PIPETTE 10.00mL of chloride standard solution. PLACE in 50mL colorimetric tubes. It is treated as same as the test sample at the same time.
4.5 Determination of iron content
4.5.1 Method summary
Same as Chapter 2 of GB/T 3049-1986.
4.5.2 Reagents
Chapter 3 of GB/T 3049-1986 and;
4.5.2.1 Ammonia.
4.5.2.2 Hydrochloric acid solution. 2 + 3.
4.5.3 Instruments

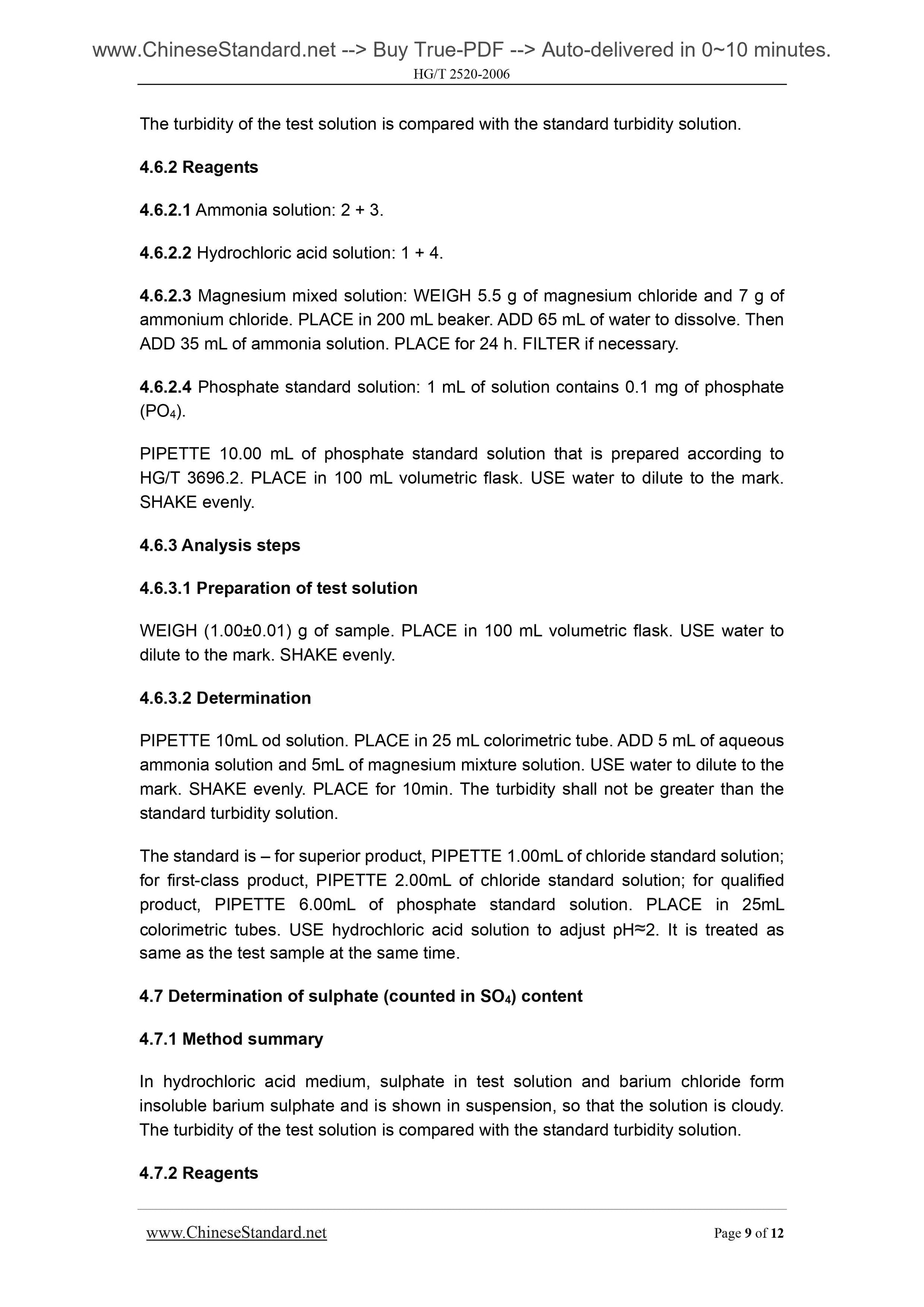

The turbidity of the test solution is compared with the standard turbidity solution. 4.6.2 Reagents
4.6.2.1 Ammonia solution. 2 + 3.
4.6.2.2 Hydrochloric acid solution. 1 + 4.
4.6.2.3 Magnesium mixed solution. WEIGH 5.5 g of magnesium chloride and 7 g of ammonium chloride. PLACE in 200 mL beaker. ADD 65 mL of water to dissolve. Then ADD 35 mL of ammonia solution. PLACE for 24 h. FILTER if necessary.
4.6.2.4 Phosphate standard solution. 1 mL of solution contains 0.1 mg of phosphate (PO4).
PIPETTE 10.00 mL of phosphate standard solution that is prepared according to HG/T 3696.2. PLACE in 100 mL volumetric flask. USE water to dilute to the mark. SHAKE evenly.
4.6.3 Analysis steps
4.6.3.1 Preparation of test solution
WEIGH (1.00??0.01) g of sample. PLACE in 100 mL volumetric flask. USE water to dilute to the mark. SHAKE evenly.
4.6.3.2 Determination
PIPETTE 10mL od solution. PLACE in 25 mL colorimetric tube. ADD 5 mL of aqueous ammonia solution and 5mL of magnesium mixture solution. USE water to dilute to the mark. SHAKE evenly. PLACE for 10min. The turbidity shall not be greater than the standard turbidity solution.
The standard is ?€? for superior product, PIPETTE 1.00mL of chloride standard solution; for first-class product, PIPETTE 2.00mL of chloride standard solution; for qualified product, PIPETTE 6.00mL of phosphate standard solution. PLACE in 25mL
colorimetric tubes. USE hydrochloric acid solution to adjust pH???2. It is treated as same as the test sample at the same time.
4.7 Determination of sulphate (counted in SO4) content
4.7.1 Method summary
In hydrochloric acid medium, sulphate in test solution and barium chloride form insoluble barium sulphate and is shown in suspension, so that the solution is cloudy. The turbidity of the test solution is compared with the standard turbidity solution. 4.7.2 Reagents
use shall comply with the requirements of the standard.

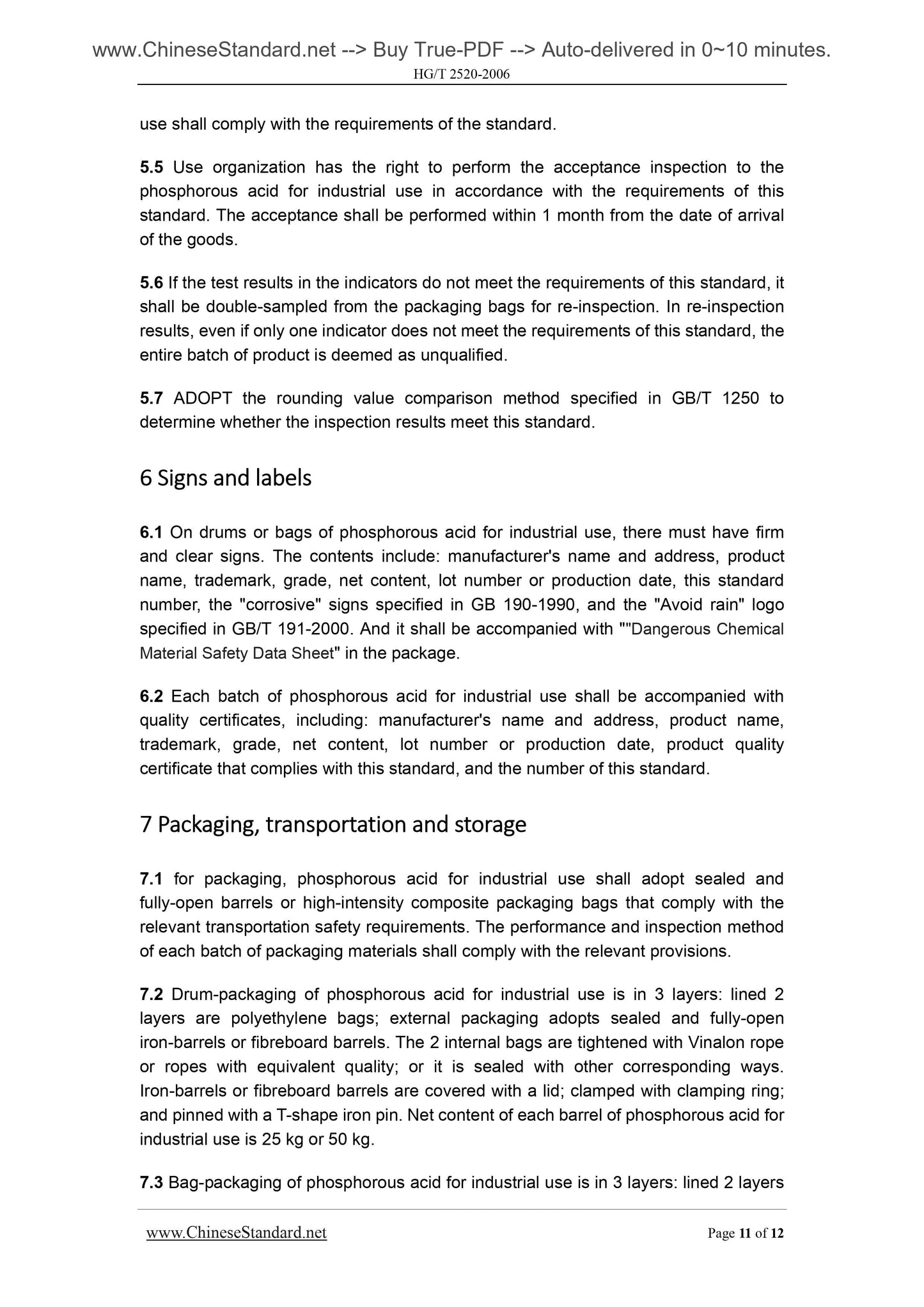

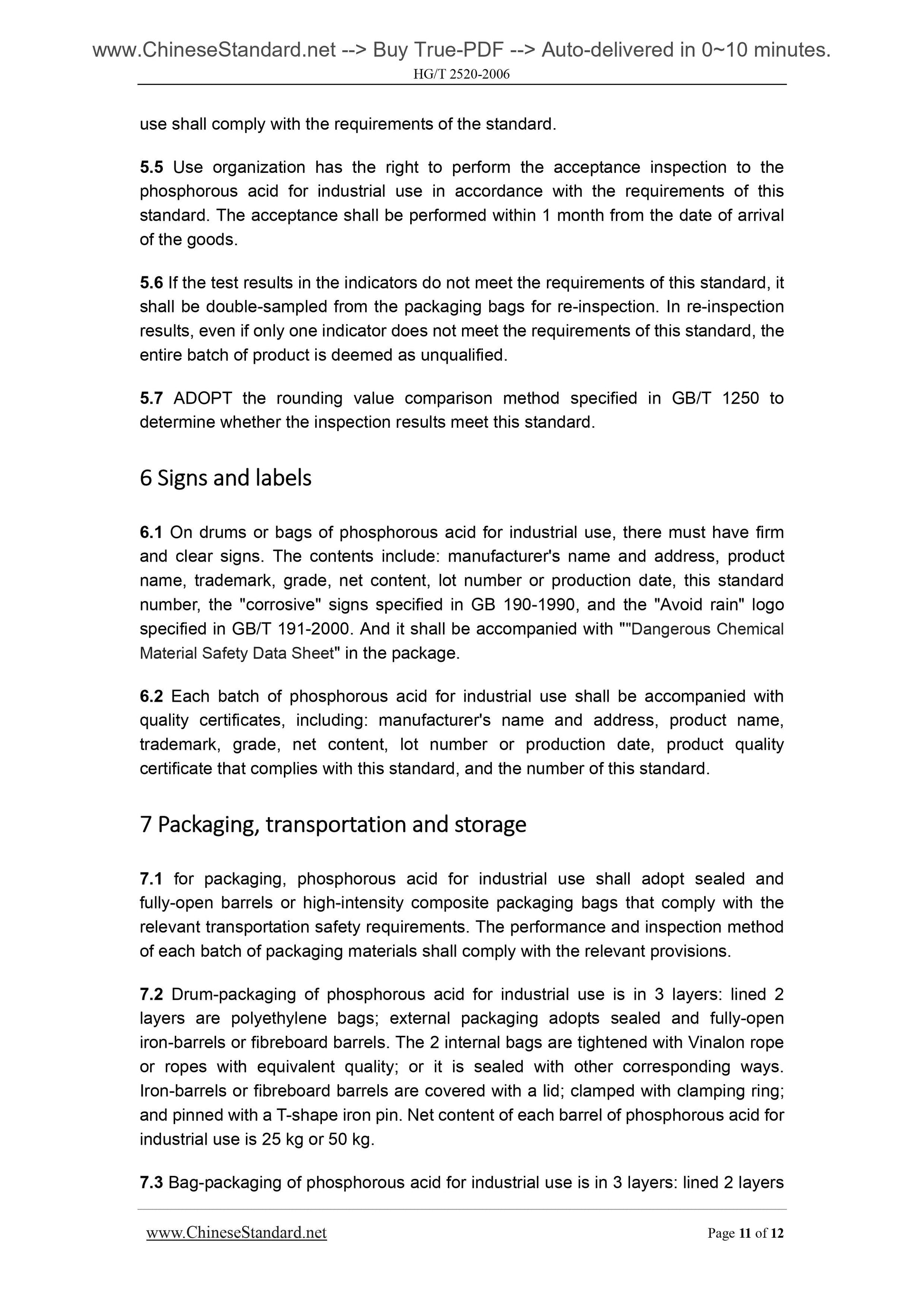

5.5 Use organization has the right to perform the acceptance inspection to the phosphorous acid for industrial use in accordance with the requirements of this standard. The acceptance shall be performed within 1 month from the date of arrival of the goods.
5.6 If the test results in the indicators do not meet the requirements of this standard, it shall be double-sampled from the packaging bags for re-inspection. In re-inspection results, even if only one indicator does not meet the requirements of this standard, the entire batch of product is deemed as unqualified.
5.7 ADOPT the rounding value comparison method specified in GB/T 1250 to determine whether the inspection results meet this standard.
6??Signs??and??labels
6.1 On drums or bags of phosphorous acid for industrial use, there must have firm and clear signs. The contents include. manufacturer's name and address, product name, trademark, grade, net content, lot number or production date, this standard number, the "corrosive" signs specified in GB 190-1990, and the "Avoid rain" logo specified in GB/T 191-2000. And it shall be accompanied with ""Dangerous Chemical Material Safety Data Sheet" in the package.
6.2 Each batch of phosphorous acid for industrial use shall be accompanied with quality certificates, including. manufacturer's name and address, product name, trademark, grade, net content, lot number or production date, product quality certificate that complies with this standard, and the number of this standard. 7??Packaging,??transportation??and??storage
7.1 for packaging, phosphorous acid for industrial use shall adopt sealed and fully-open barrels or high-intensity composite packaging bags that comply with the relevant transportation safety requirements. The performance and inspection method of each batch of packaging materials shall comply with the relevant provisions. 7.2 Drum-packaging of phosphorous acid for industrial use is in 3 layers. lined 2 layers are polyethylene bags; external packaging adopts sealed and fully-open iron-barrels or fibreboard barrels. The 2 internal bags are tightened with Vinalon rope or ropes with equivalent quality; or it is sealed with other corresponding ways. Iron-barrels or fibreboard barrels are covered with a lid; clamped with clamping ring; and pinned w...
