GM/T 0097-2020: Security technical specifications for unified name resolution service of RFID

This Standard specifies the system architecture, key business process and security requirements for unified name resolution service of RFID; defines the registration process of name resolution server, the security query process of electronic product code and corresponding information message format. This Standard is applicable to the development and application of unified name resolution service system of RFID.

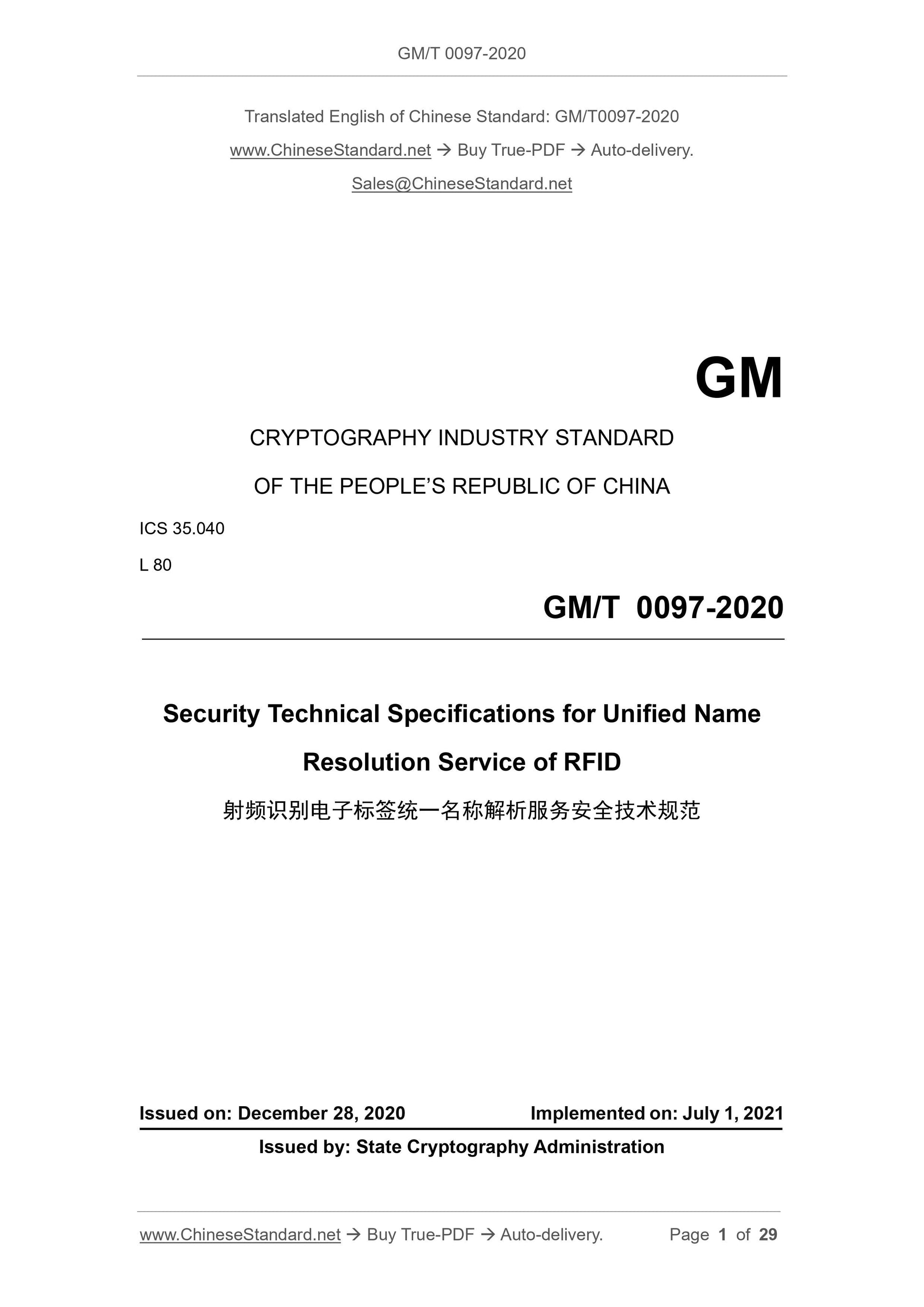

GM/T 0097-2020
GM
CRYPTOGRAPHY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 35.040
L 80
Security Technical Specifications for Unified Name
Resolution Service of RFID
ISSUED ON: DECEMBER 28, 2020
IMPLEMENTED ON: JULY 1, 2021
Issued by: State Cryptography Administration

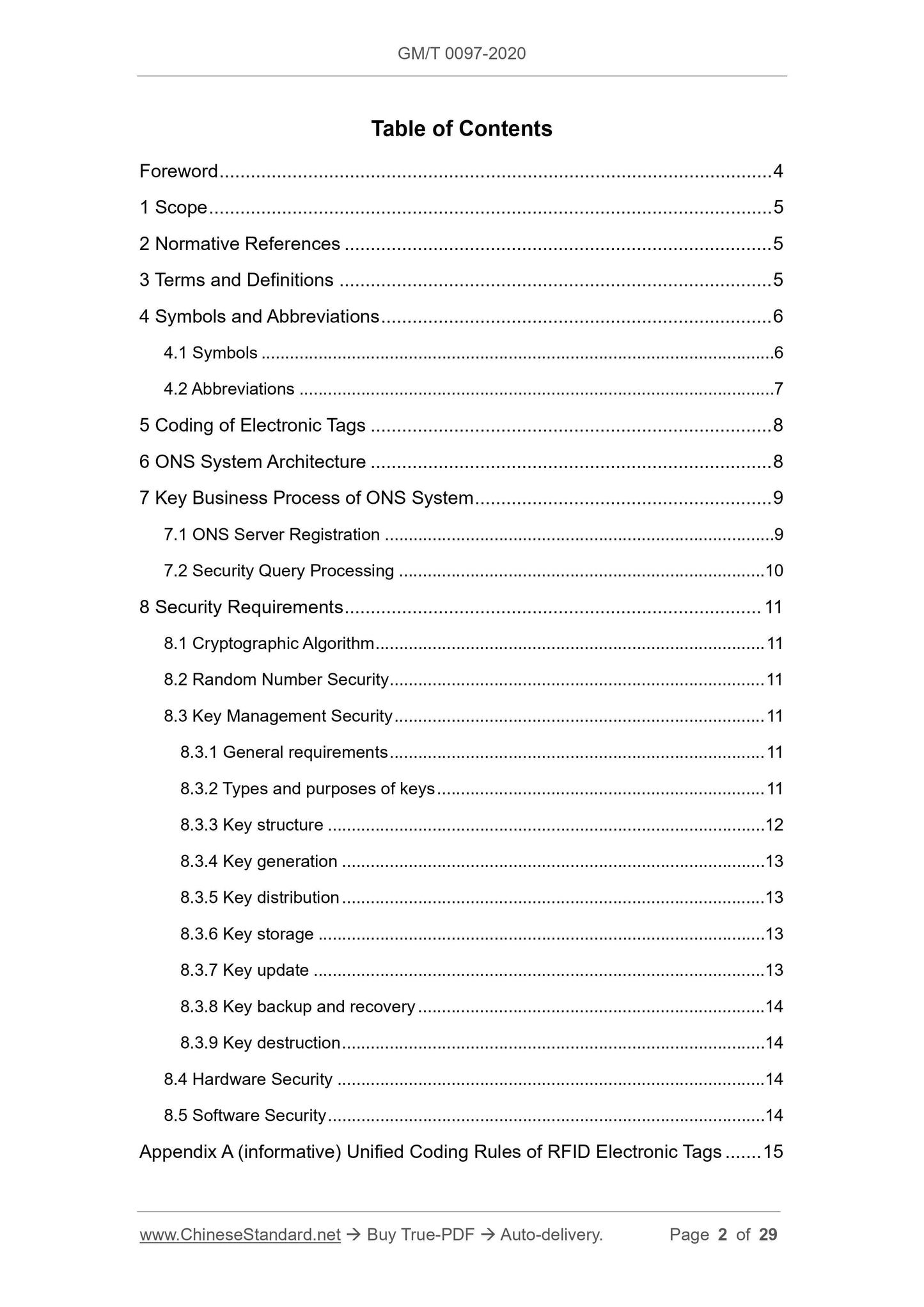

Table of Contents
Foreword ... 4
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 5
4 Symbols and Abbreviations ... 6
4.1 Symbols ... 6
4.2 Abbreviations ... 7
5 Coding of Electronic Tags ... 8
6 ONS System Architecture ... 8
7 Key Business Process of ONS System ... 9
7.1 ONS Server Registration ... 9
7.2 Security Query Processing ... 10
8 Security Requirements ... 11
8.1 Cryptographic Algorithm ... 11
8.2 Random Number Security ... 11
8.3 Key Management Security ... 11
8.3.1 General requirements ... 11
8.3.2 Types and purposes of keys ... 11
8.3.3 Key structure ... 12
8.3.4 Key generation ... 13
8.3.5 Key distribution ... 13
8.3.6 Key storage ... 13
8.3.7 Key update ... 13
8.3.8 Key backup and recovery ... 14
8.3.9 Key destruction ... 14
8.4 Hardware Security ... 14
8.5 Software Security ... 14

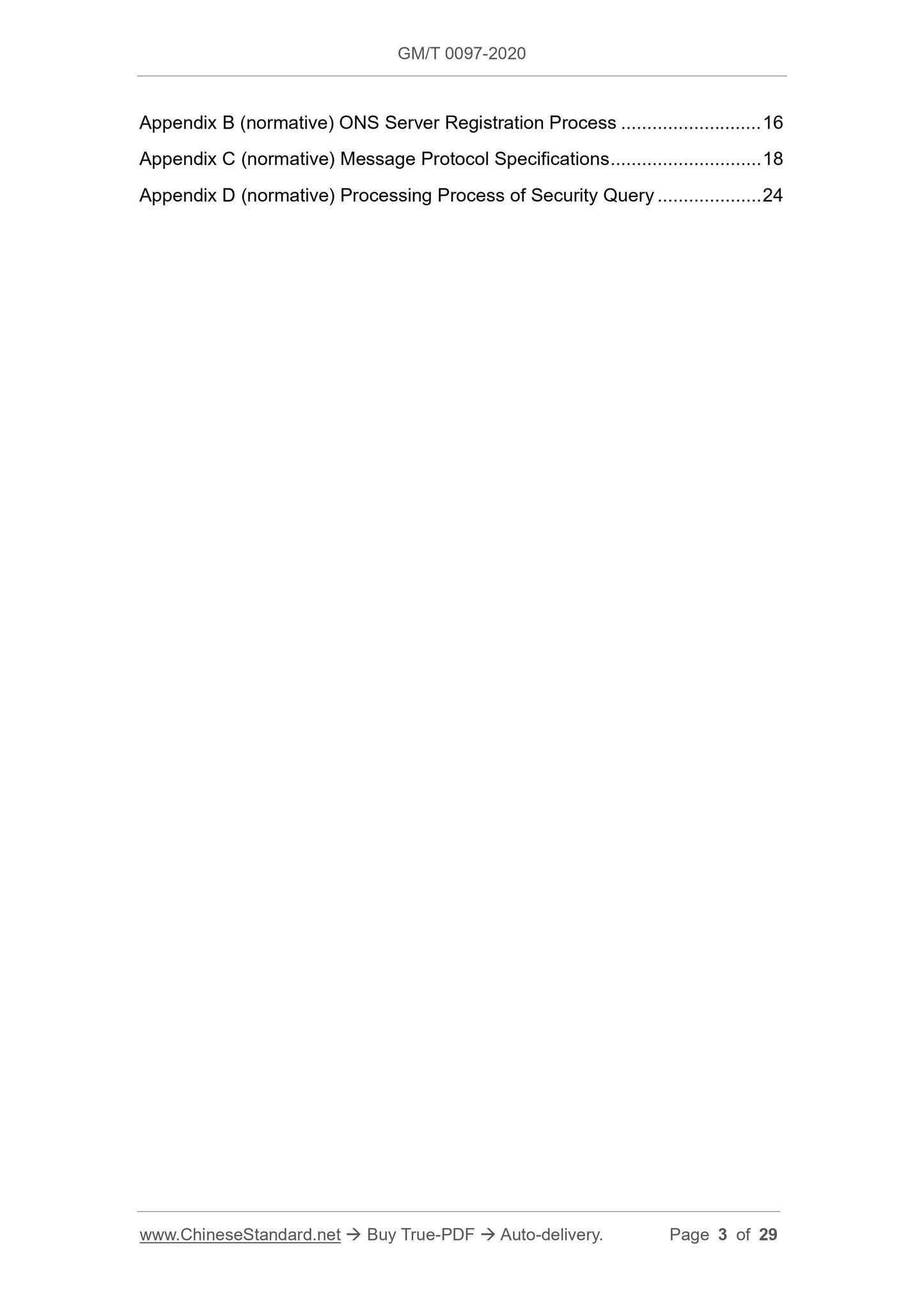

Appendix A (informative) Unified Coding Rules of RFID Electronic Tags ... 15 Appendix B (normative) ONS Server Registration Process ... 16
Appendix C (normative) Message Protocol Specifications ... 18
Appendix D (normative) Processing Process of Security Query ... 24
Security Technical Specifications for Unified Name
Resolution Service of RFID

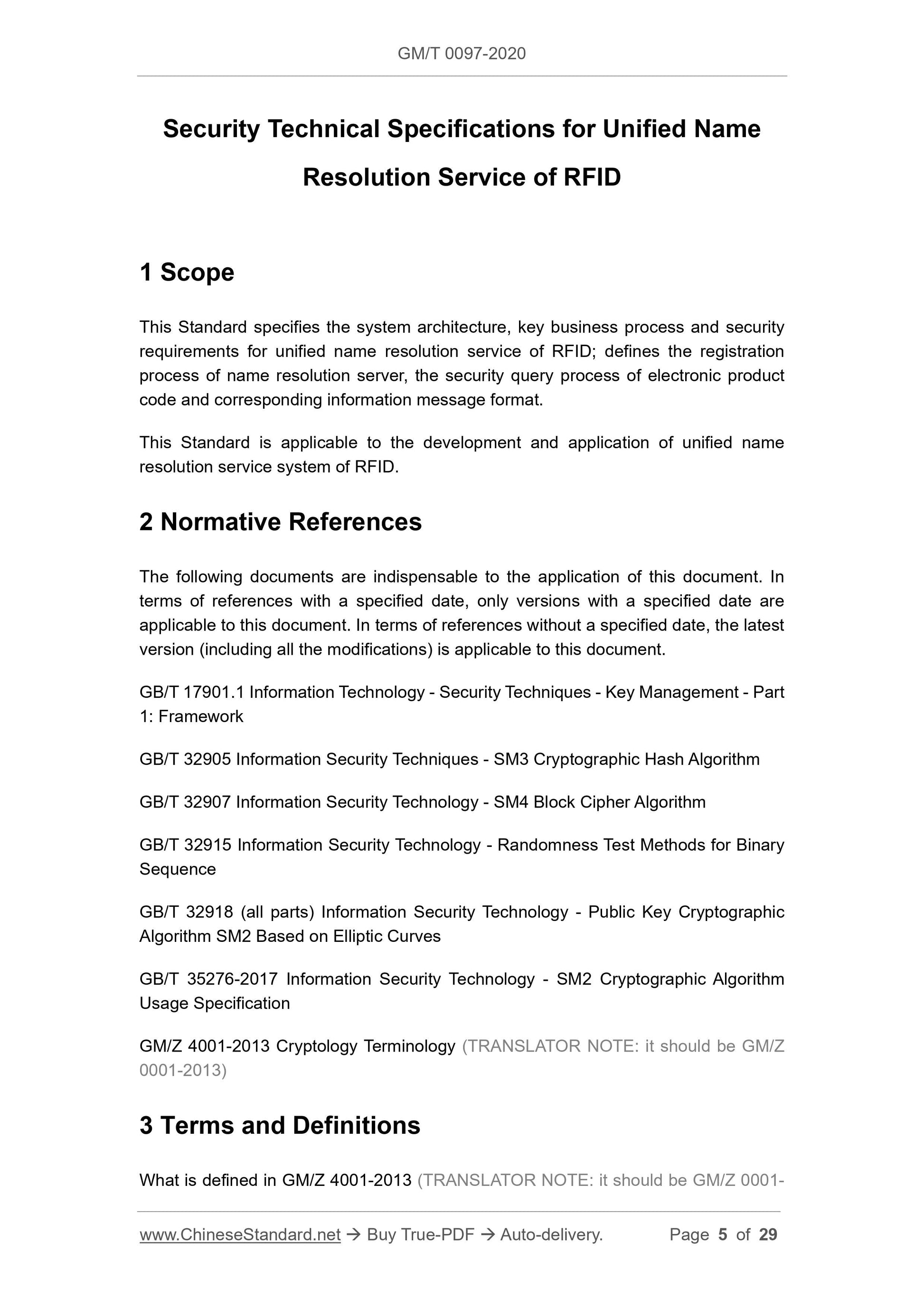

1 Scope
This Standard specifies the system architecture, key business process and security requirements for unified name resolution service of RFID; defines the registration process of name resolution server, the security query process of electronic product code and corresponding information message format.
This Standard is applicable to the development and application of unified name resolution service system of RFID.
2 Normative References
The following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 17901.1 Information Technology - Security Techniques - Key Management - Part 1: Framework
GB/T 32905 Information Security Techniques - SM3 Cryptographic Hash Algorithm GB/T 32907 Information Security Technology - SM4 Block Cipher Algorithm GB/T 32915 Information Security Technology - Randomness Test Methods for Binary Sequence
GB/T 32918 (all parts) Information Security Technology - Public Key Cryptographic Algorithm SM2 Based on Elliptic Curves
GB/T 35276-2017 Information Security Technology - SM2 Cryptographic Algorithm Usage Specification
GM/Z 4001-2013 Cryptology Terminology (TRANSLATOR NOTE: it should be GM/Z 0001-2013)
3 Terms and Definitions

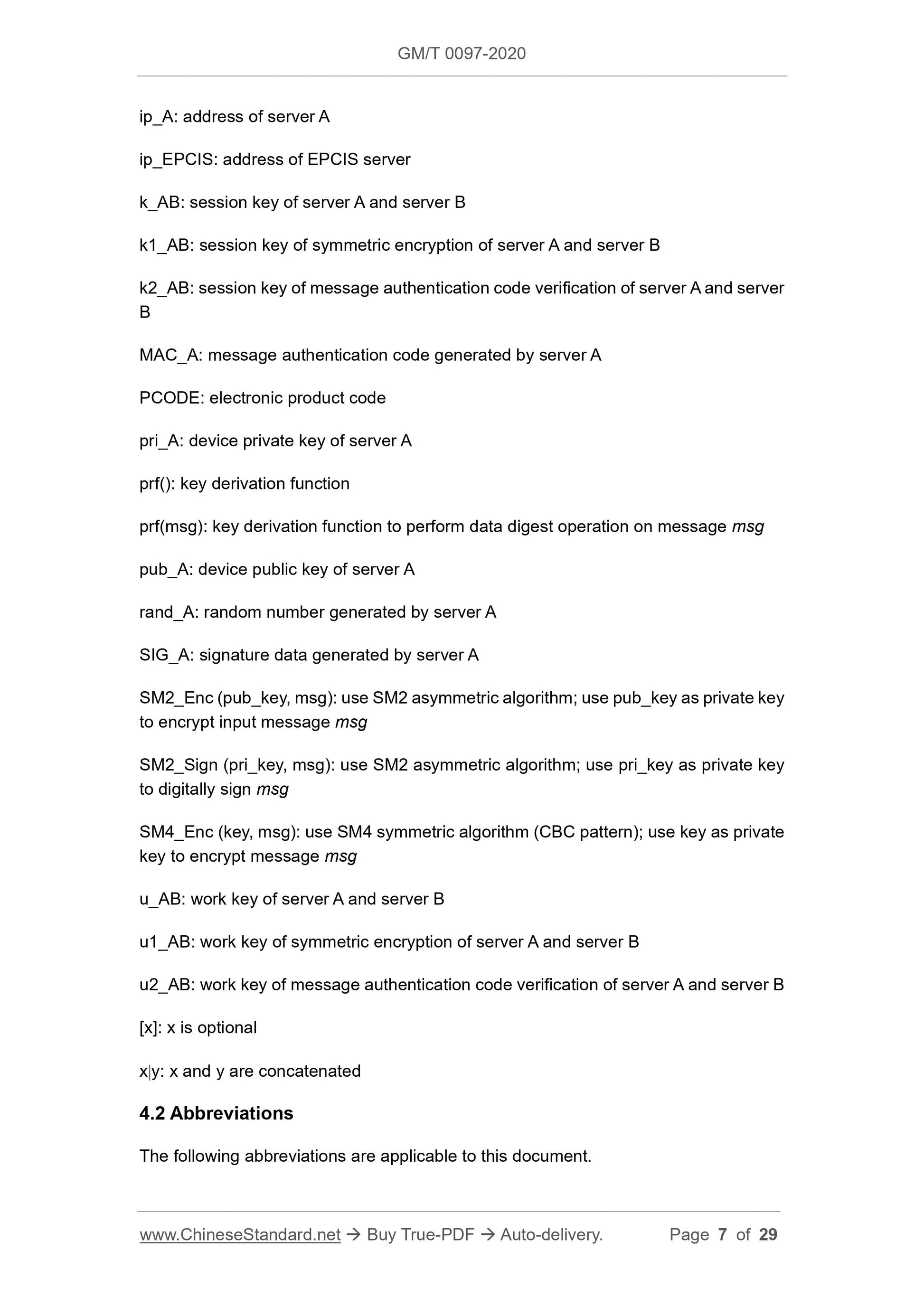

What is defined in GM/Z 4001-2013 (TRANSLATOR NOTE: it should be GM/Z 0001- ip_A: address of server A
ip_EPCIS: address of EPCIS server
k_AB: session key of server A and server B
k1_AB: session key of symmetric encryption of server A and server B
k2_AB: session key of message authentication code verification of server A and server MAC_A: message authentication code generated by server A
PCODE: electronic product code
pri_A: device private key of server A
prf(): key derivation function
prf(msg): key derivation function to perform data digest operation on message msg pub_A: device public key of server A
rand_A: random number generated by server A
SIG_A: signature data generated by server A
SM2_Enc (pub_key, msg): use SM2 asymmetric algorithm; use pub_key as private key to encrypt input message msg
SM2_Sign (pri_key, msg): use SM2 asymmetric algorithm; use pri_key as private key to digitally sign msg
SM4_Enc (key, msg): use SM4 symmetric algorithm (CBC pattern); use key as private key to encrypt message msg
u_AB: work key of server A and server B
u1_AB: work key of symmetric encryption of server A and server B
u2_AB: work key of message authentication code verification of server A and server B [x]: x is optional
x???y: x and y are concatenated
4.2 Abbreviations
The following abbreviations are applicable to this document.
ONS server. Meanwhile, this key uses the session key generated through negotiation during the registration of the inferior ONS server for encryption and protection, and queries and distributes messages through the local ONS server to the inferior ONS server. During the communication between the local ONS server and the inferior ONS server, this key (including the key used for data encryption and the key used to calculate message authentication code) is used to perform security protection of the confidentiality, integrity and data source validity verification for ONS query messages. The interactive process of query messages is shown in Appendix D. The
communication protocol is shown in Appendix C.

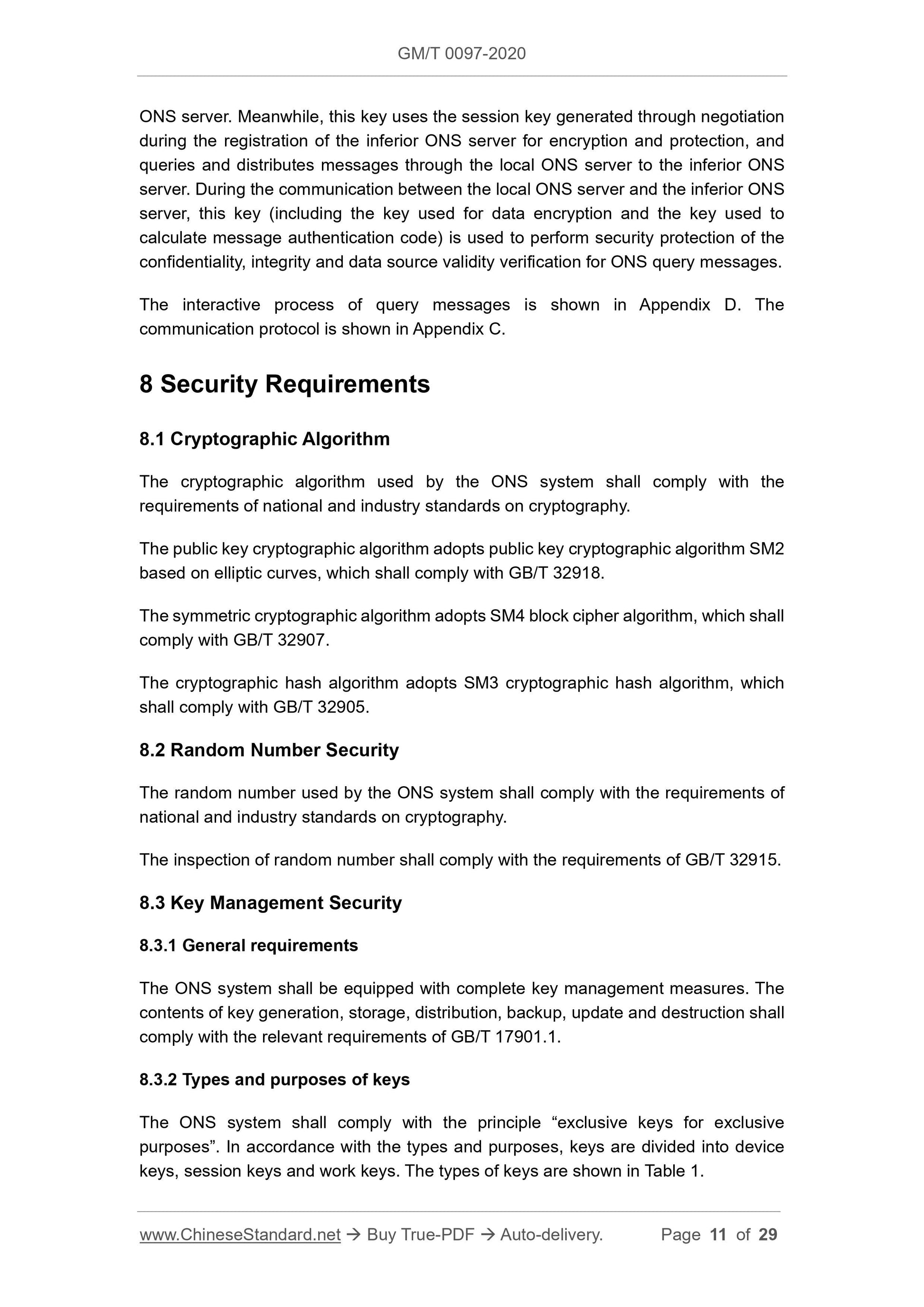

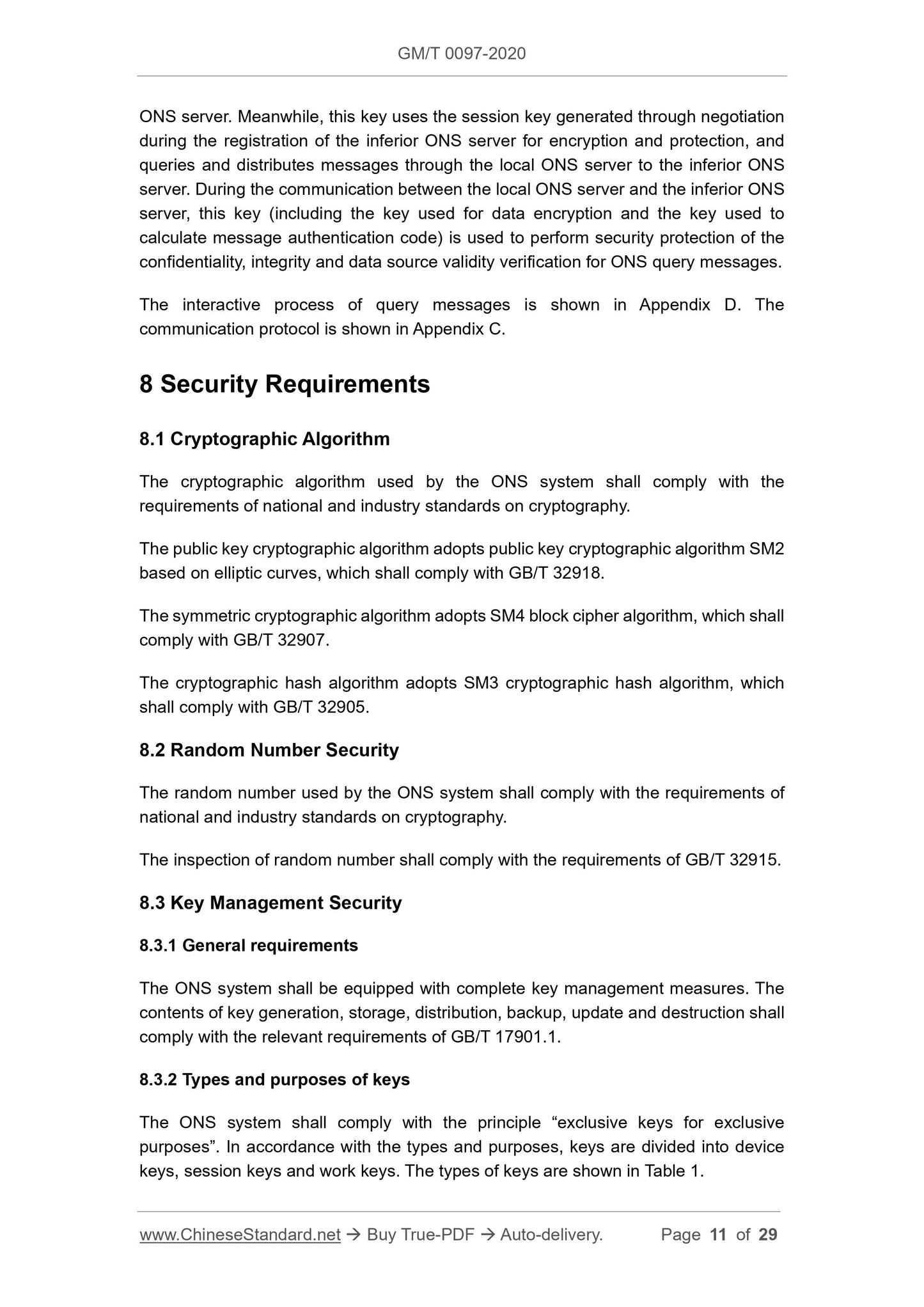

8 Security Requirements
8.1 Cryptographic Algorithm
The cryptographic algorithm used by the ONS system shall comply with the requirements of national and industry standards on cryptography.
The public key cryptographic algorithm adopts public key cryptographic algorithm SM2 based on elliptic curves, which shall comply with GB/T 32918.
The symmetric cryptographic algorithm adopts SM4 block cipher algorithm, which shall comply with GB/T 32907.
The cryptographic hash algorithm adopts SM3 cryptographic hash algorithm, which shall comply with GB/T 32905.
8.2 Random Number Security
The random number used by the ONS system shall comply with the requirements of national and industry standards on cryptography.
The inspection of random number shall comply with the requirements of GB/T 32915. 8.3 Key Management Security
8.3.1 General requirements
The ONS system shall be equipped with complete key management measures. The contents of key generation, storage, distribution, backup, update and destruction shall comply with the relevant requirements of GB/T 17901.1.
8.3.2 Types and purposes of keys
The ONS system shall comply with the principle ?€?exclusive keys for exclusive purposes?€?. In accordance with the types and purposes, keys are divided into device keys, session keys and work keys. The types of keys are shown in Table 1. 8.3.4 Key generation
The device key, which is generated by each ONS server itself, includes device private key and device certificate.
The session key is generated through negotiation during the registration of ONS server. See the negotiation process in Appendix B.
The work key is generated by the superior ONS server. See the generation process in Appendix D.

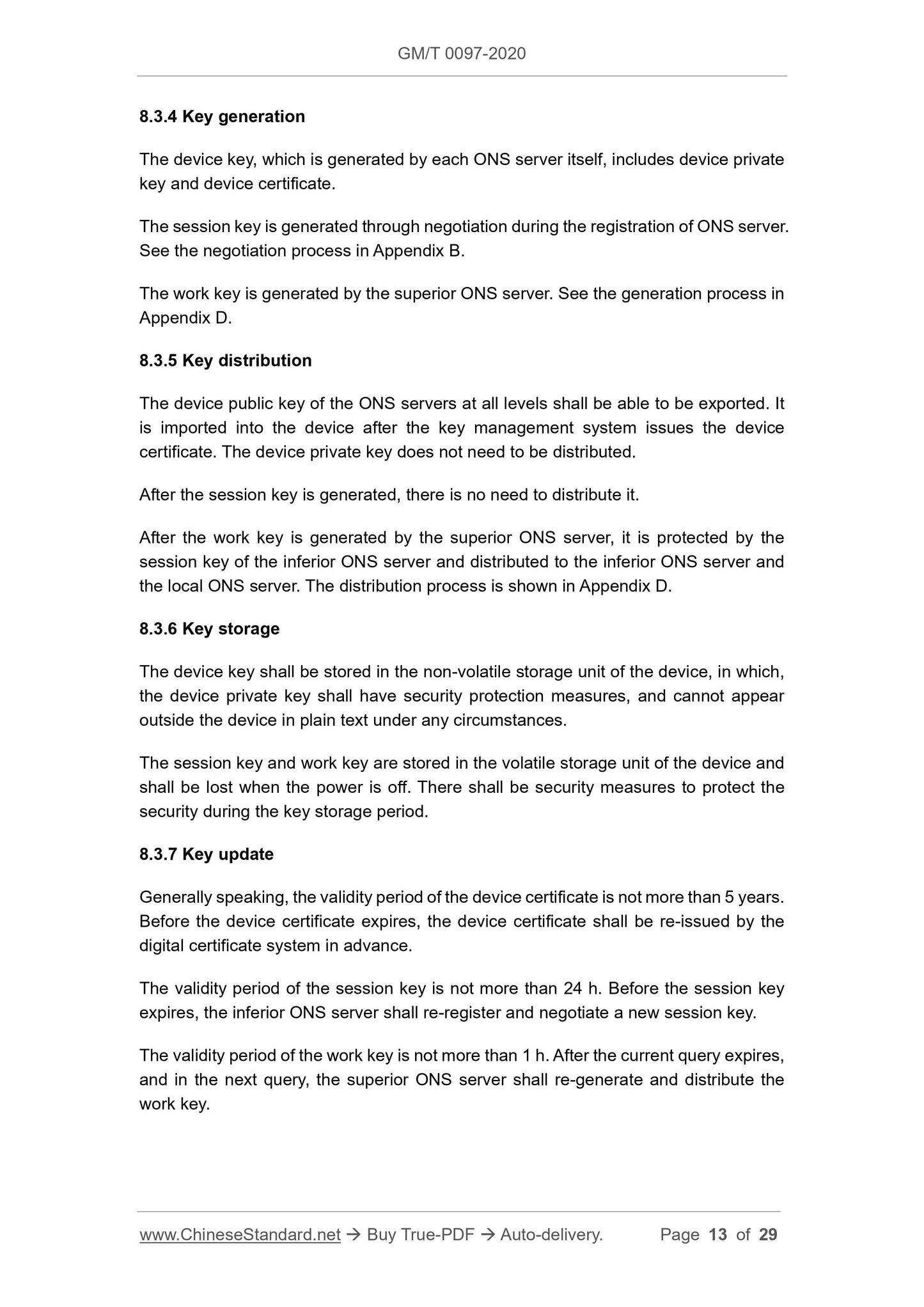

8.3.5 Key distribution
The device public key of the ONS servers at all levels shall be able to be exported. It is imported into the device after the key management system issues the device certificate. The device private key does not need to be distributed.
After the session key is generated, there is no need to distribute it.
After the work key is generated by the superior ONS server, it is protected by the session key of the inferior ONS server and distributed to the inferior ONS server and the local ONS server. The distribution process is shown in Appendix D.
8.3.6 Key storage
The device key shall be stored in the non-volatile storage unit of the device, in which, the device private key shall have security protection measures, and cannot appear outside the device in plain text under any circumstances.
The session key and work key are stored in the volatile storage unit of the device and shall be lost when the power is off. There shall be security measures to protect the security during the key storage period.
8.3.7 Key update
Generally speaking, the validity period of the device certificate is not more than 5 years. Before the device certificate expires, the device certificate shall be re-issued by the digital certificate system in advance.
The validity period of the session key is not more than 24 h. Before the session key expires, the inferior ONS server shall re-register and negotiate a new session key. The validity period of the work key is not more than 1 h. After the current query expires, and in the next query, the superior ONS server shall re-generate and distribute the work key.
a) Server L generates a random number rand_L, with a length of 6 bytes; uses server R device public key for SM2 encryption protection to obtain random number rand_L cipher text;
b) Server L sends a registration request message to server R, including the random number rand_L cipher text and server L device certificate; uses the device private key to SM2 sign the request message;
c) After server R receives the request message, firstly, it shall verify the legitimacy of the device certificate identity of server L and verify whether the message signature is valid. If the verification fails, then, the registration fails; d) Server R uses the device private key to SM2 decrypt the random number rand_L cipher text and obtain the plain text rand_L;
e) Server R generates a random number rand_R;
f) Server R uses the random numbers rand_L and rand_R as key materials to generate the session key k_LA;
g) In accordance with the requirements of B.2.3, server R returns a registration response message to server L.

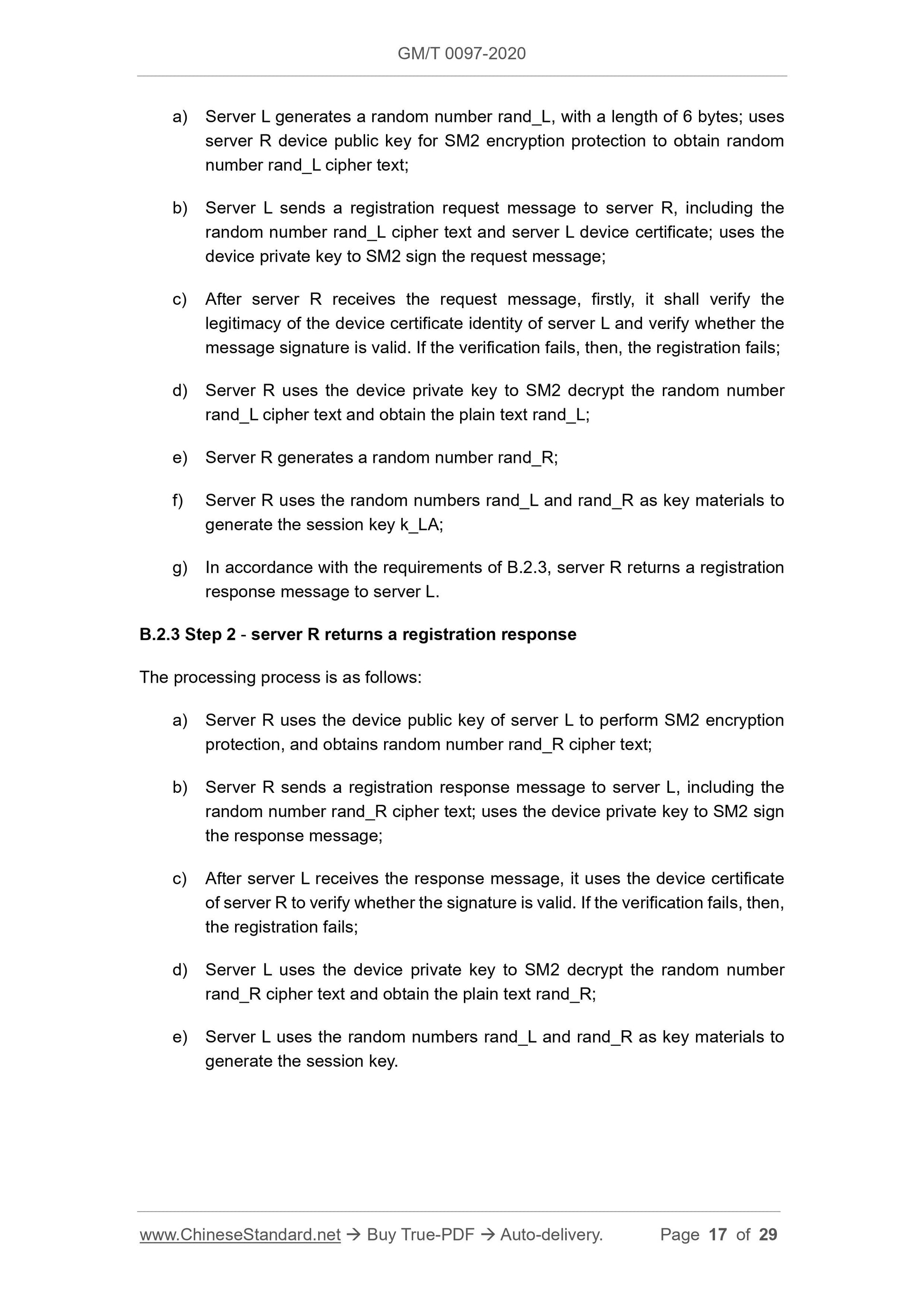

B.2.3 Step 2 - server R returns a registration response
The processing process is as follows:
a) Server R uses the device public key of server L to perform SM2 encryption protection, and obtains random number rand_R cipher text;
b) Server R sends a registration response message to server L, including the random number rand_R cipher text; uses the device private key to SM2 sign the response message;
c) After server L receives the response message, it uses the device certificate of server R to verify whether the signature is valid. If the verification fails, then, the registration fails;
d) Server L uses the device private key to SM2 decrypt the random number rand_R cipher text and obtain the plain text rand_R;
e) Server L uses the random numbers rand_L and rand_R as key materials to generate the session key.
of D.2.3, it will initiate a query request to server R.

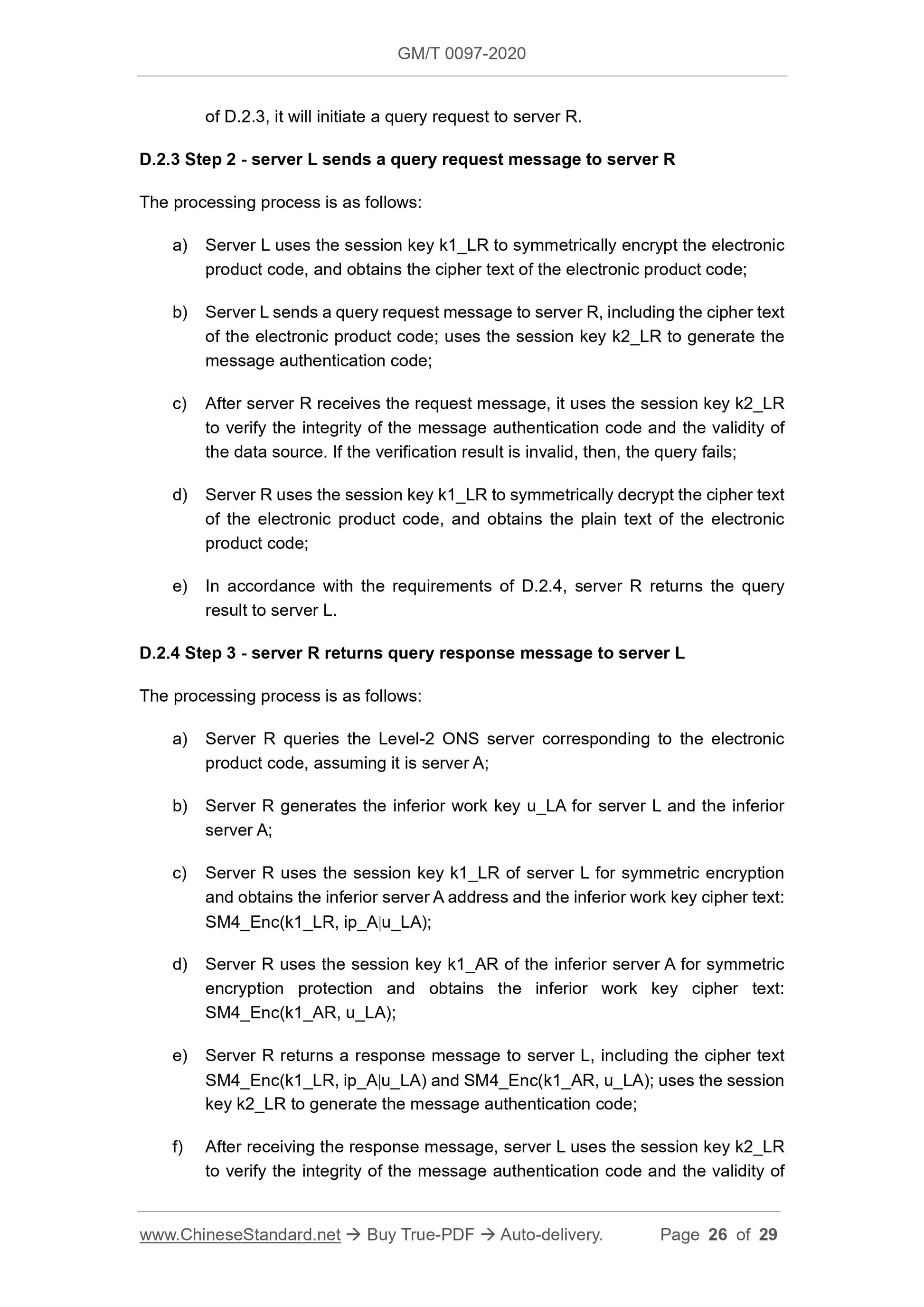

D.2.3 Step 2 - server L sends a query request message to server R
The processing process is as follows:
a) Server L uses the session key k1_LR to symmetrically encrypt the electronic product code, and obtains the cipher text of the electronic product code; b) Server L sends a query request message to server R, including the cipher text of the electronic product code; uses the session key k2_LR to generate the message authentication code;
c) After server R receives the request message, it uses the session key k2_LR to verify the integrity of the message authentication code and the validity of the data source. If the verification result is invalid, then, the query fails; d) Server R uses the session key k1_LR to symmetrically decrypt the cipher text of the electronic product code, and obtains the plain text of the electronic product code;
e) In accordance with the requirements of D.2.4, server R returns the query result to server L.
D.2.4 Step 3 - server R returns query response message to server L
The processing process is as follows:
a) Server R queries the Level-2 ONS server corresponding to the electronic product code, assuming it is server A;
b) Server R generates the inferior work key u_LA for server L and the inferior server A;
c) Server R uses the session key k1_LR of server L for symmetric encryption and obtains the inferior server A address and the inferior work key cipher text: SM4_Enc(k1_LR, ip_A???u_LA);
d) Server R uses the session key k1_AR of the inferior server A for symmetric encryption protection and obtains the inferior work key cipher text:
SM4_Enc(k1_AR, u_LA);
e) Server R returns a response message to server L, including the cipher text SM4_Enc(k1_LR, ip_A???u_LA) and SM4_Enc(k1_AR, u_LA); uses the session
key k2_LR to generate the message authentication code;
f) After receiving the response message, server L uses the session key k2_LR to verify the integrity of the message authentication code and the validity of cipher text: SM4_Enc(u1_LA, ip_C???u_LC);

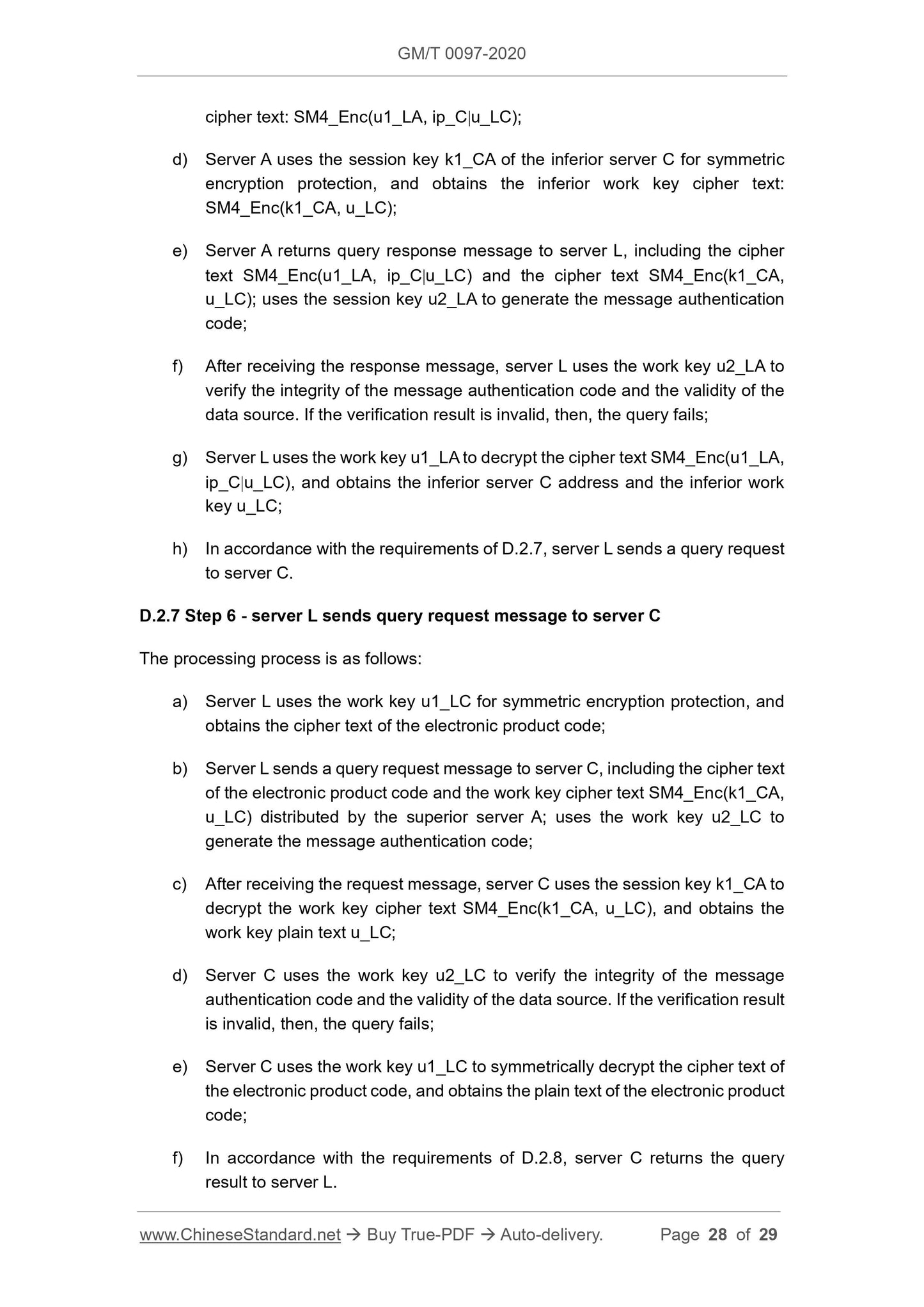

d) Server A uses the session key k1_CA of the inferior server C for symmetric encryption protection, and obtains the inferior work key cipher text:
SM4_Enc(k1_CA, u_LC);
e) Server A returns query response message to server L, including the cipher text SM4_Enc(u1_LA, ip_C???u_LC) and the cipher text SM4_Enc(k1_CA,
u_LC); uses the session key u2_LA to generate the message authentication code;
f) After receiving the response message, server L uses the work key u2_LA to verify the integrity of the message authentication code and the validity of the data source. If the verification result is invalid, then, the query fails; g) Server L uses the work key u1_LA to decrypt the cipher text SM4_Enc(u1_LA, ip_C???u_LC), and obtains the inferior server C address and the inferior work key u_LC;
h) In accordance with the requirements of D.2.7, server L sends a query request to server C.

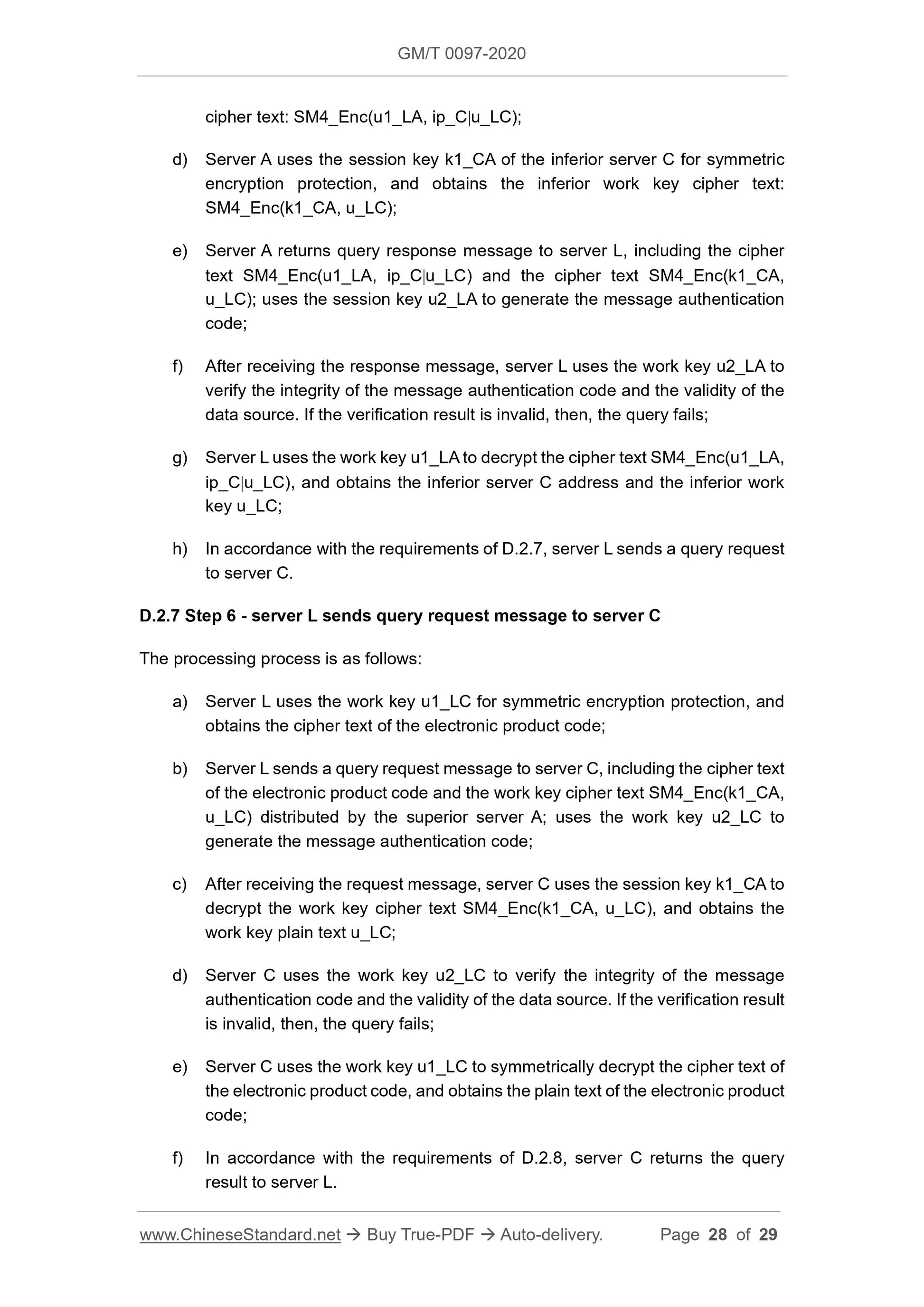

D.2.7 Step 6 - server L sends query request message to server C
The processing process is as follows:
a) Server L uses the work key u1_LC for symmetric encryption protection, and obtains the cipher text of the electronic product code;
b) Server L sends a query request message to server C, including the cipher text of the electronic product code and the work key cipher text SM4_Enc(k1_CA, u_LC) distributed by the superior server A; uses the work key u2_LC to
generate the message authentication code;
c) After receiving the request message, server C uses the session key k1_CA to decrypt the work key cipher text SM4_Enc(k1_CA, u_LC), and obtains the
work key plain text u_LC;
d) Server C uses the work key u2_LC to verify the integrity of the message authentication code and the validity of the data source. If the verification result is invalid, then, the query fails;
e) Server C uses the work key u1_LC to symmetrically decrypt the cipher text of the electronic product code, and obtains the plain text of the electronic product code;
f) In accordance with the requirements of D.2.8, server C returns the query result to server L.
