GM/T 0056-2018: Specification of cryptography application interface with nulti-applications equipment

This Standard specifies the cryptography application interface of SM2/3/4 series of algorithms in multi-applications equipment, including: - defines the identity of SM2/SM3/SM4 algorithms in multi-applications equipment. - defines the cryptography application interface specifications of SM2/SM3/SM4 algorithms. This Standard is applicable to the development of various multi-applications equipment, and can also be used to guide the cryptography application test of multi-applications equipment.

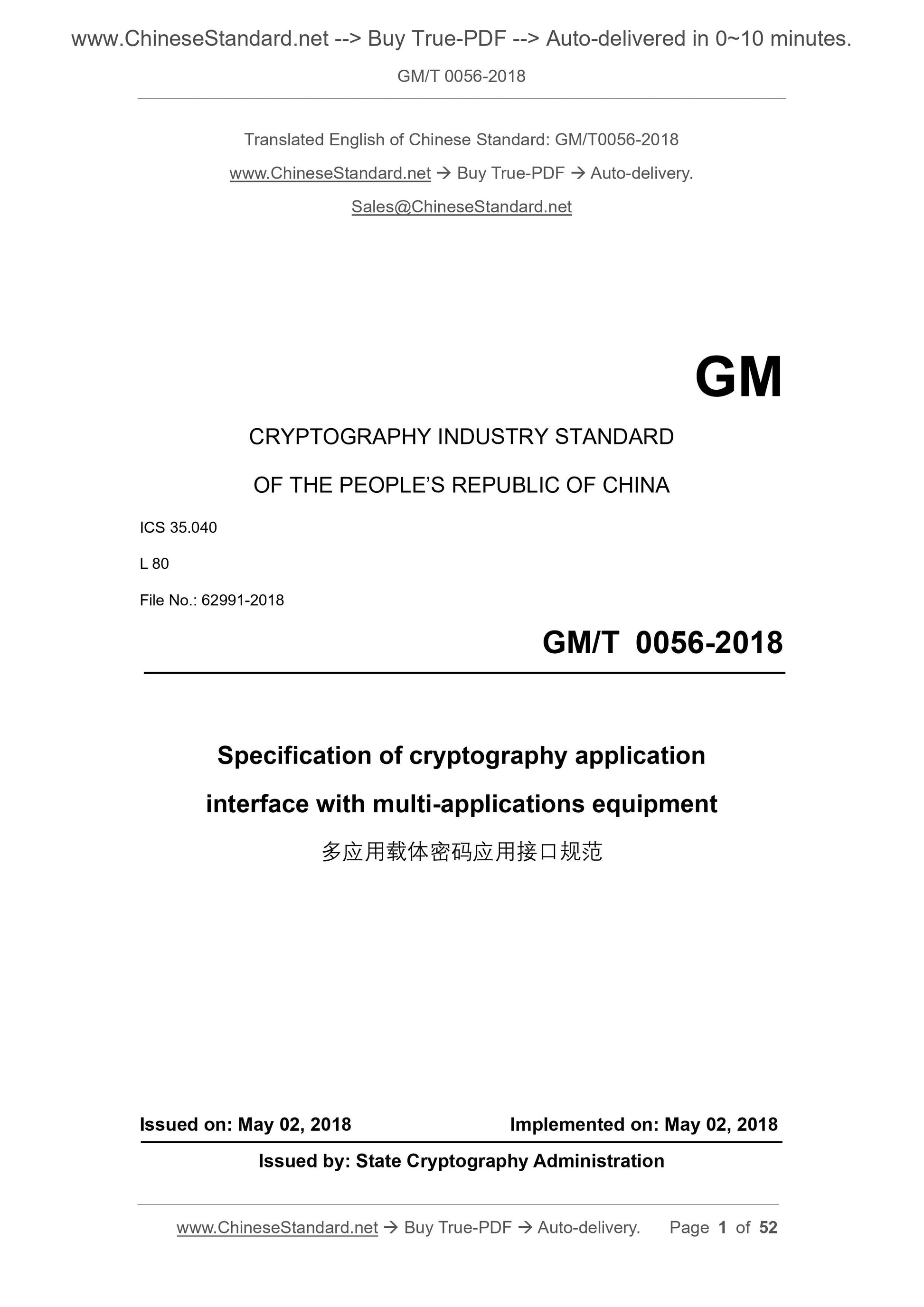

GM/T 0056-2018
CRYPTOGRAPHY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 35.040
L 80
File No.: 62991-2018
Specification of cryptography application
interface with multi-applications equipment
ISSUED ON: MAY 02, 2018
IMPLEMENTED ON: MAY 02, 2018
Issued by: State Cryptography Administration

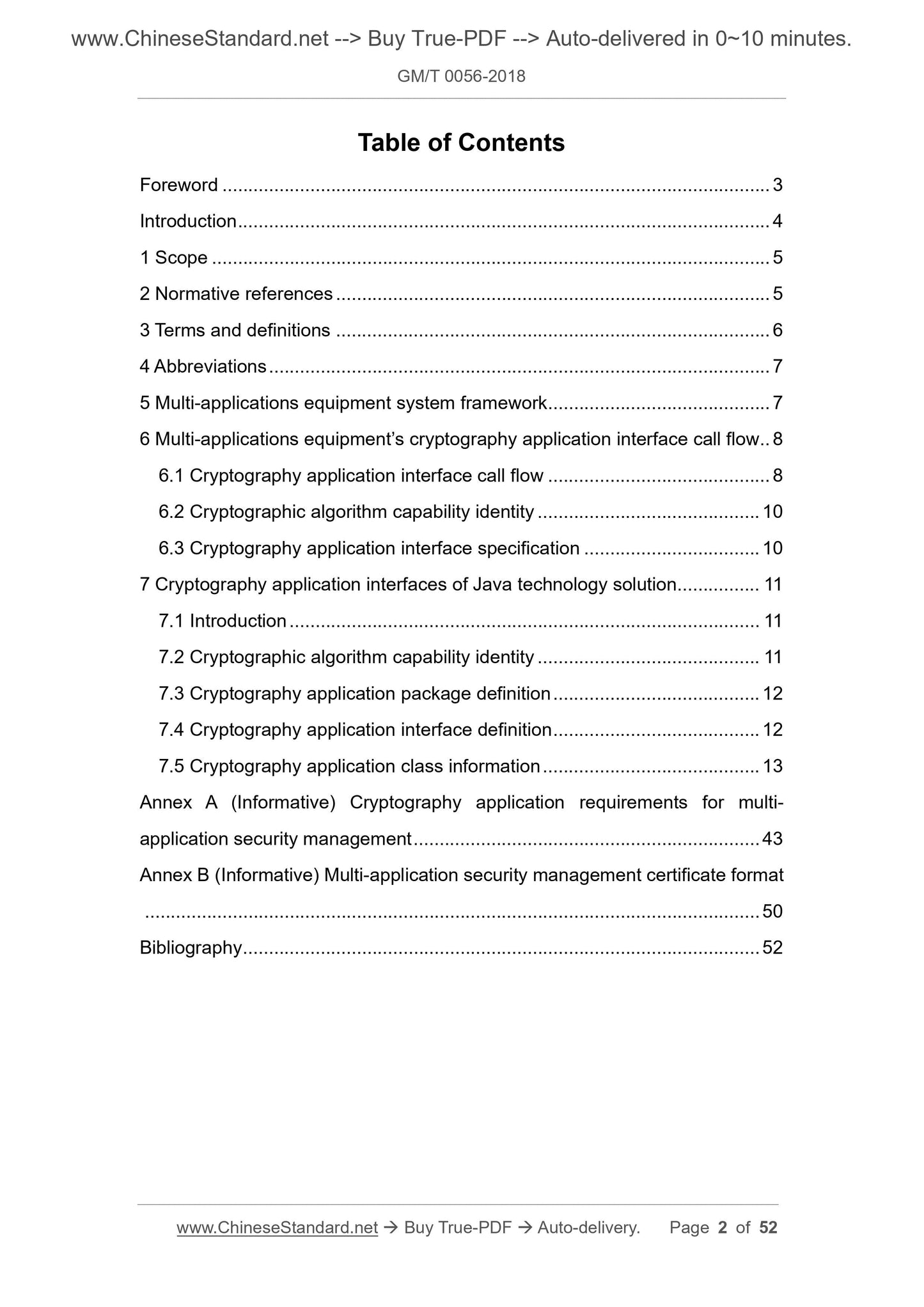

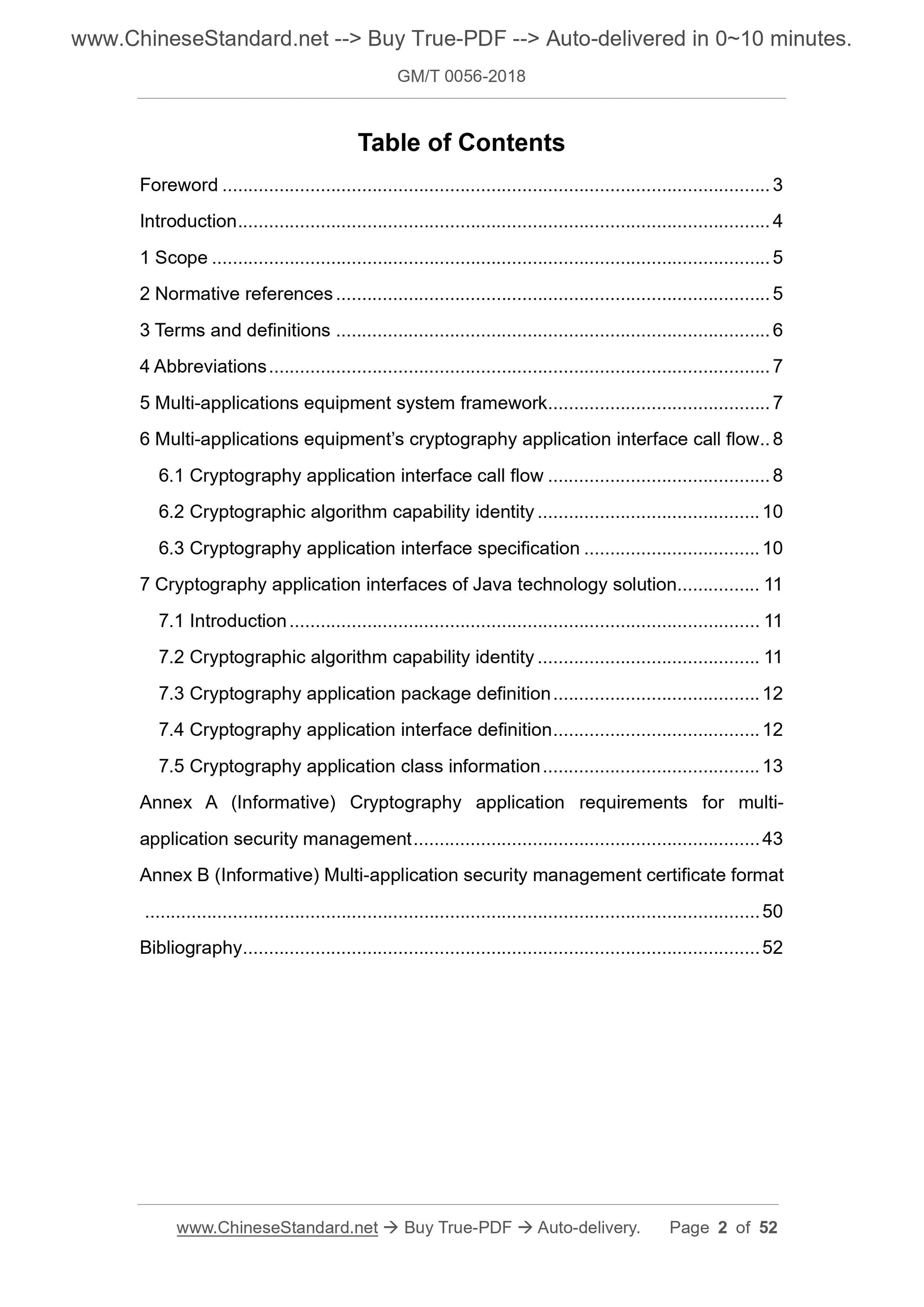

Table of Contents
Foreword ... 3
Introduction ... 4
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 6
4 Abbreviations ... 7
5 Multi-applications equipment system framework ... 7
6 Multi-applications equipment?€?s cryptography application interface call flow .. 8 6.1 Cryptography application interface call flow ... 8
6.2 Cryptographic algorithm capability identity ... 10
6.3 Cryptography application interface specification ... 10
7 Cryptography application interfaces of Java technology solution ... 11 7.1 Introduction ... 11
7.2 Cryptographic algorithm capability identity ... 11
7.3 Cryptography application package definition ... 12
7.4 Cryptography application interface definition ... 12
7.5 Cryptography application class information ... 13
Annex A (Informative) Cryptography application requirements for multi-
application security management ... 43
Annex B (Informative) Multi-application security management certificate format ... 50
Bibliography ... 52
Specification of cryptography application
interface with multi-applications equipment

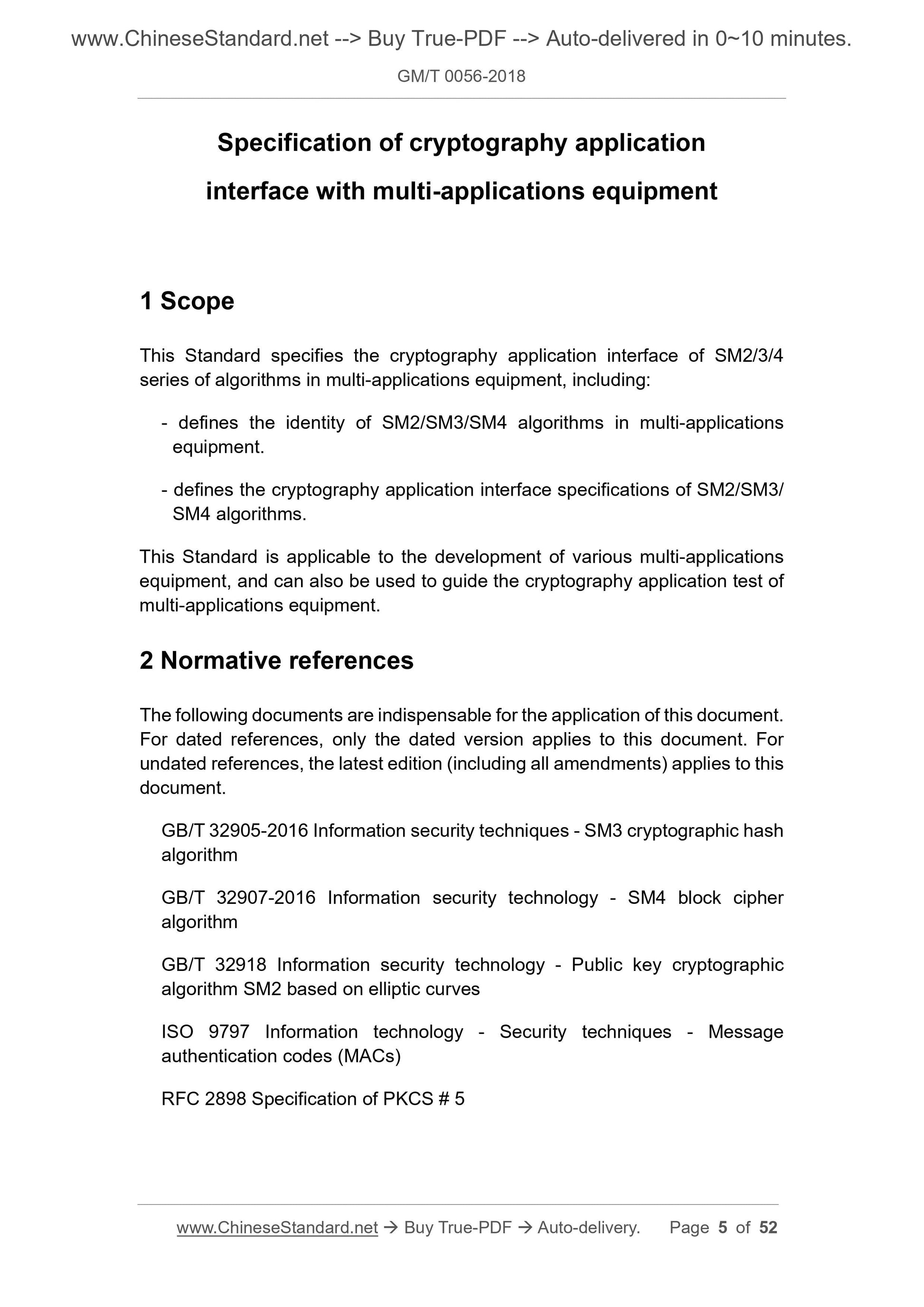

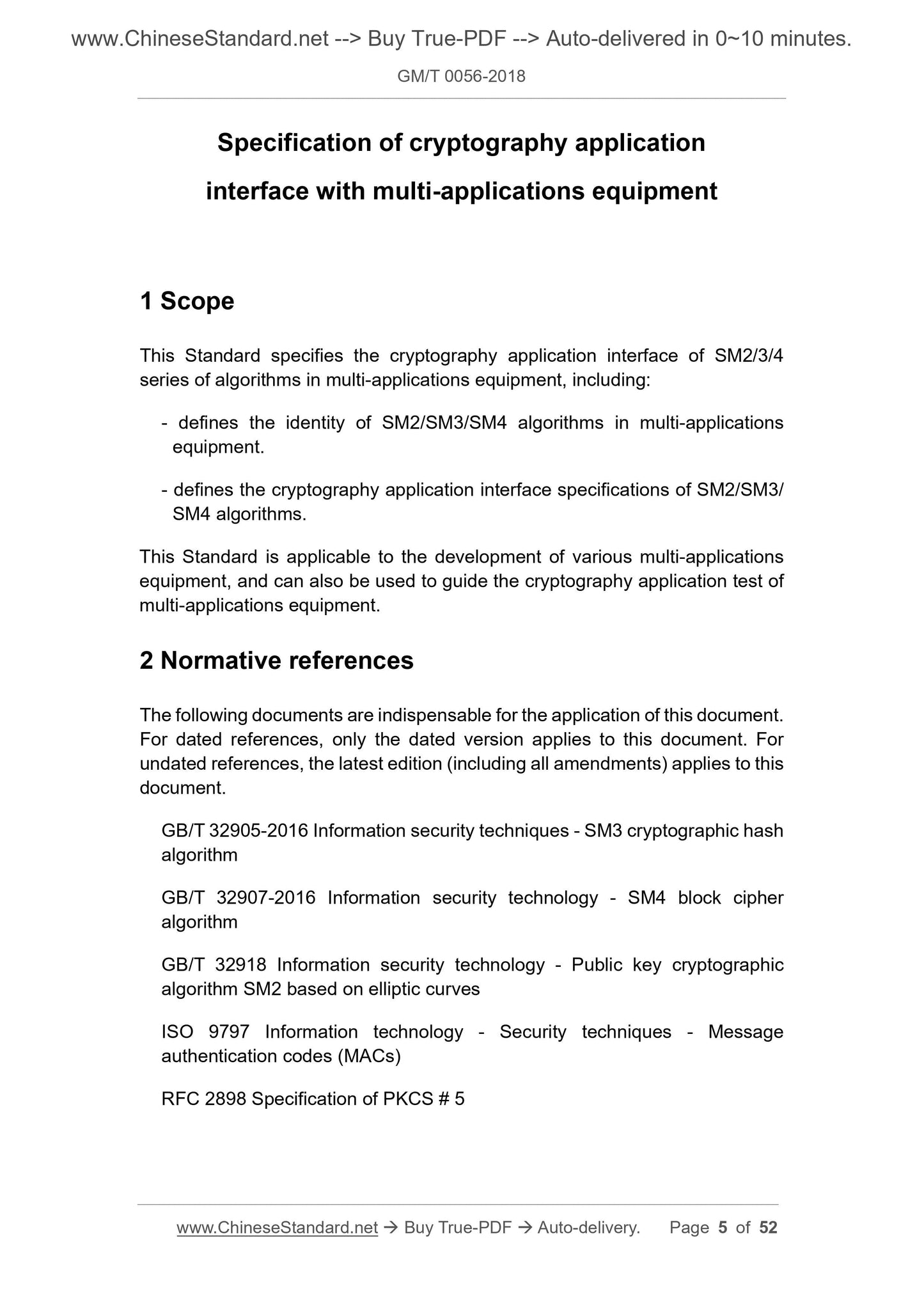

1 Scope
This Standard specifies the cryptography application interface of SM2/3/4 series of algorithms in multi-applications equipment, including:
- defines the identity of SM2/SM3/SM4 algorithms in multi-applications
equipment.
- defines the cryptography application interface specifications of SM2/SM3/ SM4 algorithms.
This Standard is applicable to the development of various multi-applications equipment, and can also be used to guide the cryptography application test of multi-applications equipment.
2 Normative references
The following documents are indispensable for the application of this document. For dated references, only the dated version applies to this document. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 32905-2016 Information security techniques - SM3 cryptographic hash algorithm
GB/T 32907-2016 Information security technology - SM4 block cipher
algorithm
GB/T 32918 Information security technology - Public key cryptographic
algorithm SM2 based on elliptic curves
ISO 9797 Information technology - Security techniques - Message
authentication codes (MACs)
RFC 2898 Specification of PKCS # 5
SM4 algorithm
An algorithm defined by GB/T 32907-2016.
3.8
SM9 algorithm
A public key cryptographic algorithm based on elliptic curves, using bilinear pairings.

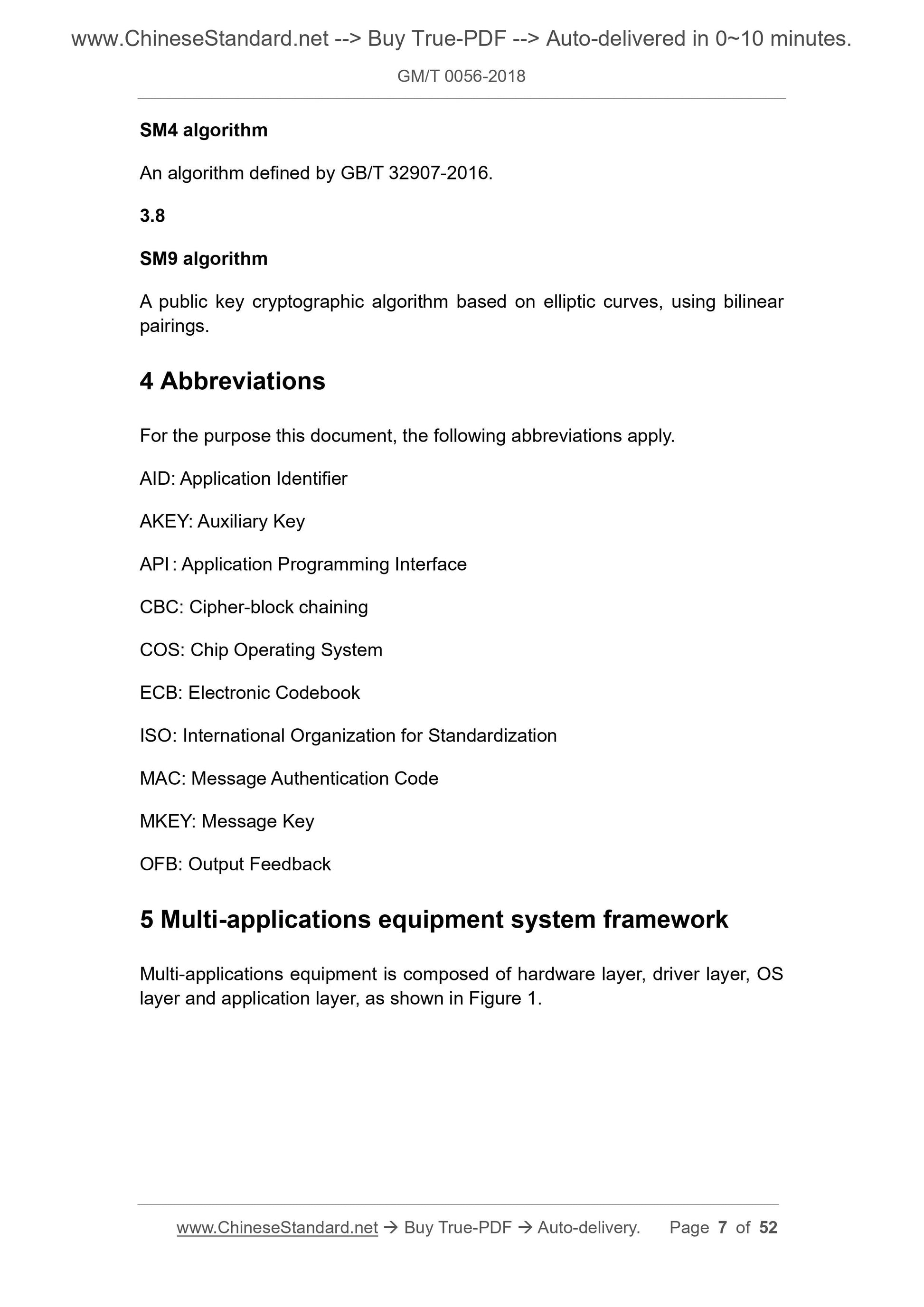

4 Abbreviations
For the purpose this document, the following abbreviations apply.
AID: Application Identifier
AKEY: Auxiliary Key
API : Application Programming Interface
CBC: Cipher-block chaining
COS: Chip Operating System
ECB: Electronic Codebook
ISO : International Organization for Standardization
MAC: Message Authentication Code
MKEY: Message Key
OFB: Output Feedback
5 Multi-applications equipment system framework
Multi-applications equipment is composed of hardware layer, driver layer, OS layer and application layer, as shown in Figure 1.
algorithmic capability of the equipment.
c) Call the cryptography application interface: If the equipment supports the cryptographic algorithm, the upper computer software calls the user
application on the equipment. After the user application receives the call command on the equipment, it processes according to the command.
d) Call the cryptography application interface: If the processing of the command requires the use of the cryptography function, the call is made through the cryptography application interface of the equipment?€?s
operating system.
e) Return the cryptography application interface call result: After the cryptography application API is called, process by the algorithm and the processing result is returned to the user application on the equipment. f) Return the application call result: The user application on the equipment returns the call result to the upper computer software. The process ends. 6.2 Cryptographic algorithm capability identity
Multi-applications equipment shall identify the supported cryptographic algorithm capability so that the outer-equipment entity can know the algorithm supported by the equipment.
Since the multi-applications equipment can be implemented by using different technical solutions, such as Java technical solution, C technical solution, etc., the algorithm capability identity of the corresponding technical solutions is described in Clause 7.

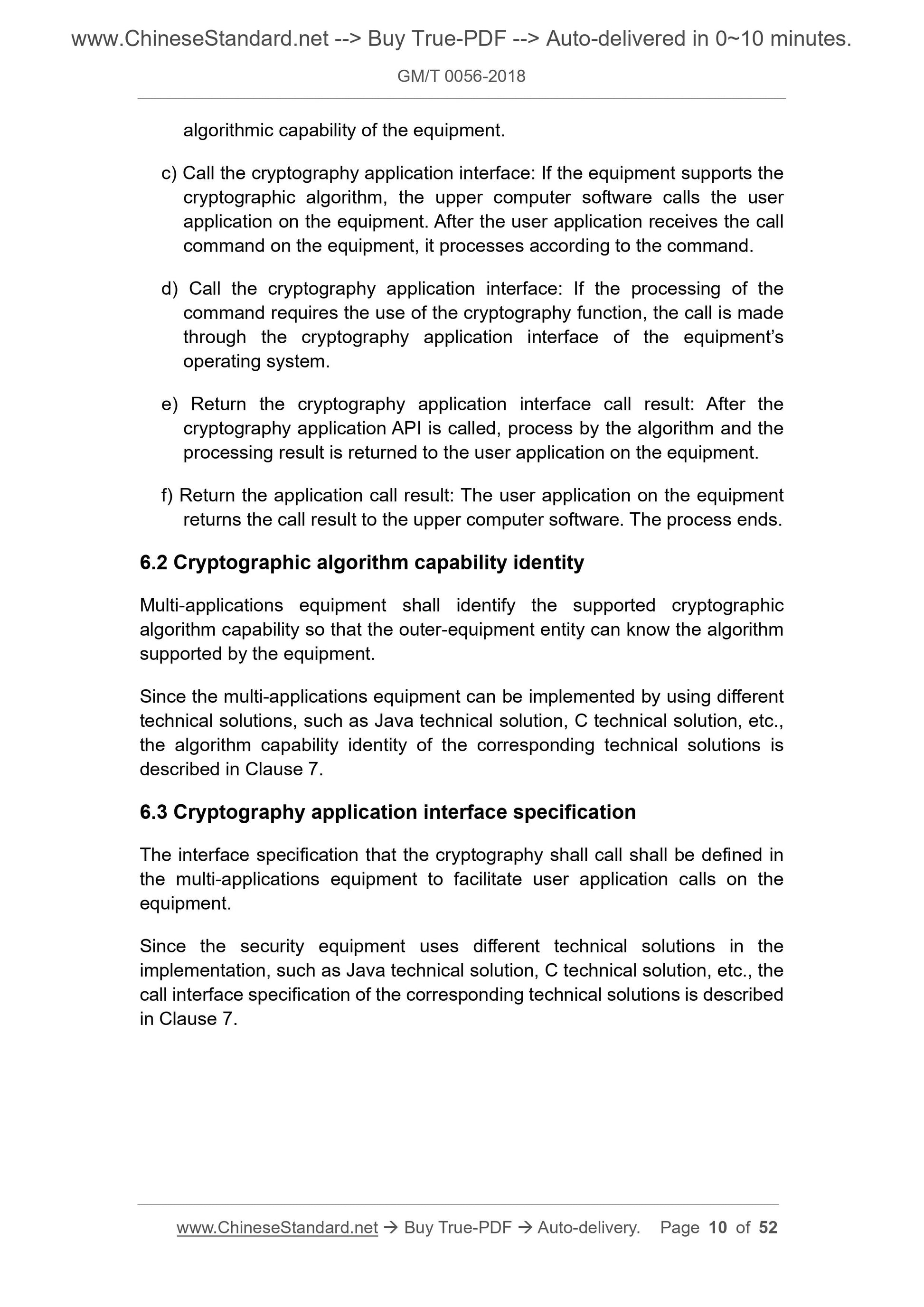

6.3 Cryptography application interface specification
The interface specification that the cryptography shall call shall be defined in the multi-applications equipment to facilitate user application calls on the equipment.
Since the security equipment uses different technical solutions in the
implementation, such as Java technical solution, C technical solution, etc., the call interface specification of the corresponding technical solutions is described in Clause 7.

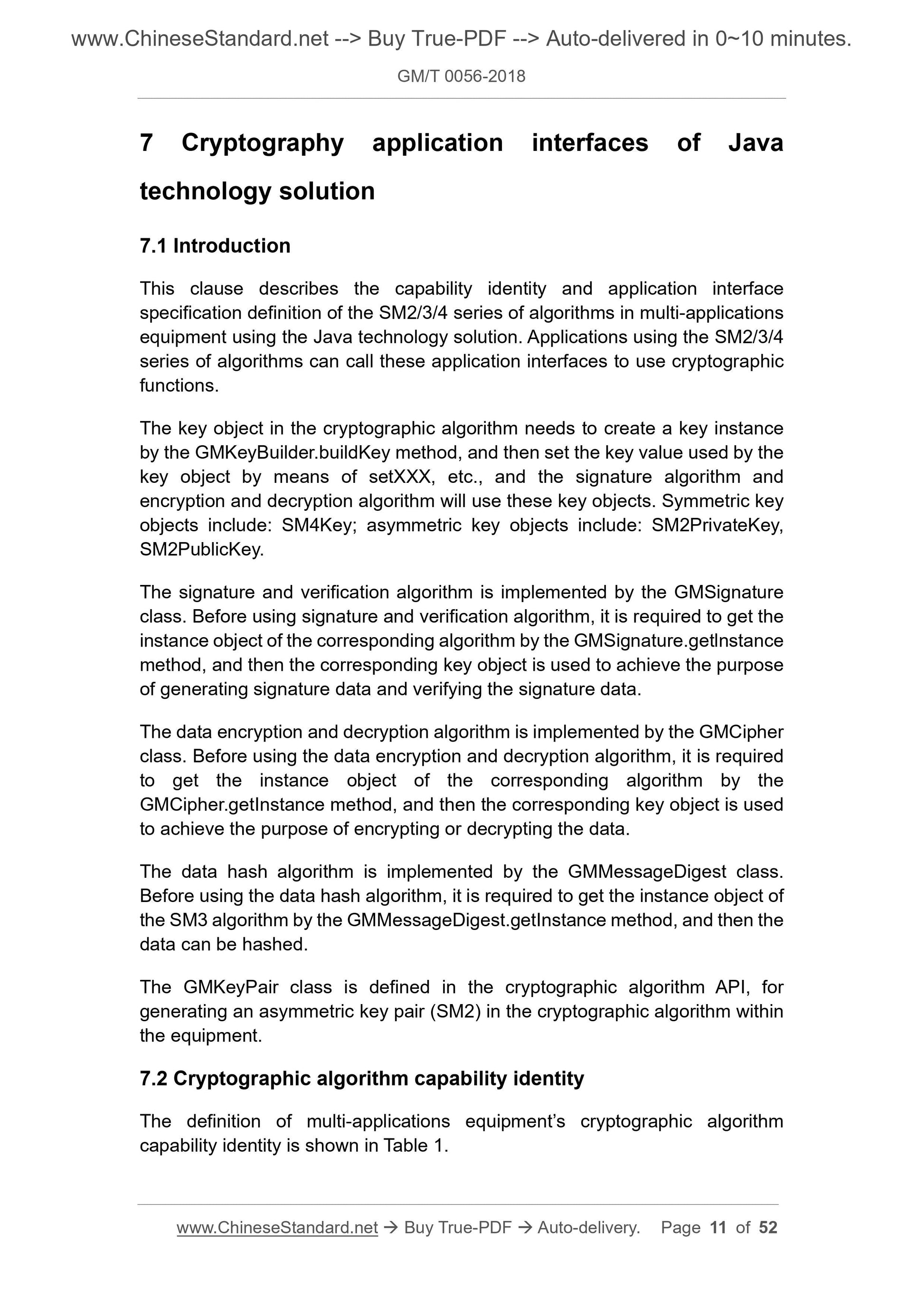

7 Cryptography application interfaces of Java
technology solution
7.1 Introduction
This clause describes the capability identity and application interface specification definition of the SM2/3/4 series of algorithms in multi-applications equipment using the Java technology solution. Applications using the SM2/3/4 series of algorithms can call these application interfaces to use cryptographic functions.
The key object in the cryptographic algorithm needs to create a key instance by the GMKeyBuilder.buildKey method, and then set the key value used by the key object by means of setXXX, etc., and the signature algorithm and
encryption and decryption algorithm will use these key objects. Symmetric key objects include: SM4Key; asymmetric key objects include: SM2PrivateKey, SM2PublicKey.
The signature and verification algorithm is implemented by the GMSignature class. Before using signature and verification algorithm, it is required to get the instance object of the corresponding algorithm by the GMSignature.getlnstance method, and then the corresponding key object is used to achieve the purpose of generating signature data and verifying the signature data.
The data encryption and decryption algorithm is implemented by the GMCipher class. Before using the data encryption and decryption algorithm, it is required to get the instance object of the corresponding algorithm by the
GMCipher.getInstance method, and then the corresponding key object is used to achieve the purpose of encrypting or decrypting the data.
The data hash algorithm is implemented by the GMMessageDigest class.
Before using the data hash algorithm, it is required to get the instance object of the SM3 algorithm by the GMMessageDigest.getInstance method, and then the data can be hashed.
The GMKeyPair class is defined in the cryptographic algorithm API, for
generating an asymmetric key pair (SM2) in the cryptographic algorithm within the equipment.
7.2 Cryptographic algorithm capability identity
The definition of multi-applications equipment?€?s cryptographic algorithm capability identity is shown in Table 1.

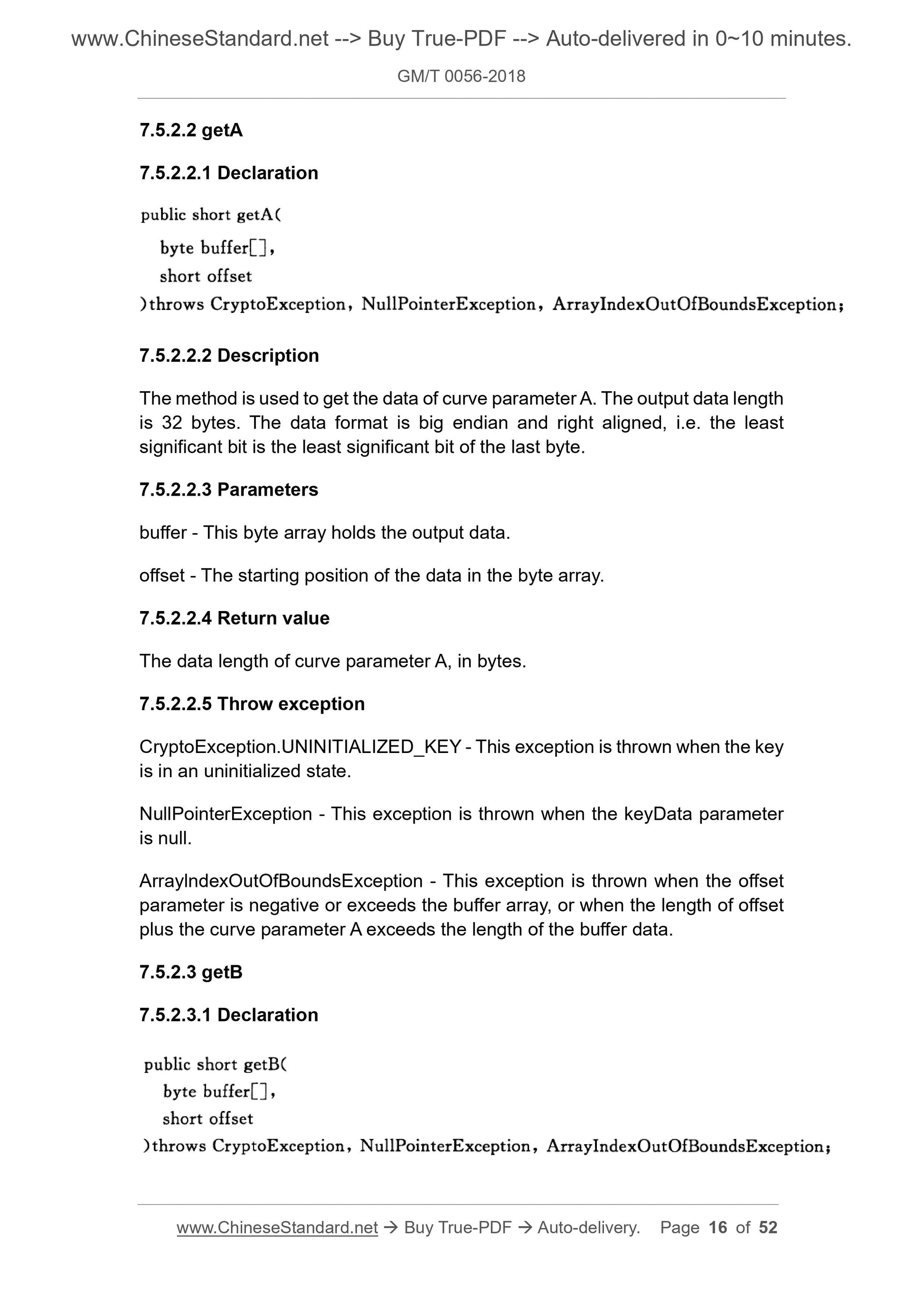

7.5.2.2 getA
7.5.2.2.1 Declaration
7.5.2.2.2 Description
The method is used to get the data of curve parameter A. The output data length is 32 bytes. The data format is big endian and right aligned, i.e. the least significant bit is the least significant bit of the last byte.
7.5.2.2.3 Parameters
buffer - This byte array holds the output data.
offset - The starting position of the data in the byte array.
7.5.2.2.4 Return value
The data length of curve parameter A, in bytes.
7.5.2.2.5 Throw exception
CryptoException.UNINITIALIZED_KEY - This exception is thrown when the key is in an uninitialized state.
NullPointerException - This exception is thrown when the keyData parameter is null.
ArraylndexOutOfBoundsException - This exception is thrown when the offset parameter is negative or exceeds the buffer array, or when the length of offset plus the curve parameter A exceeds the length of the buffer data.
7.5.2.3 getB
7.5.2.3.1 Declaration
7.5.3.2.2 Description

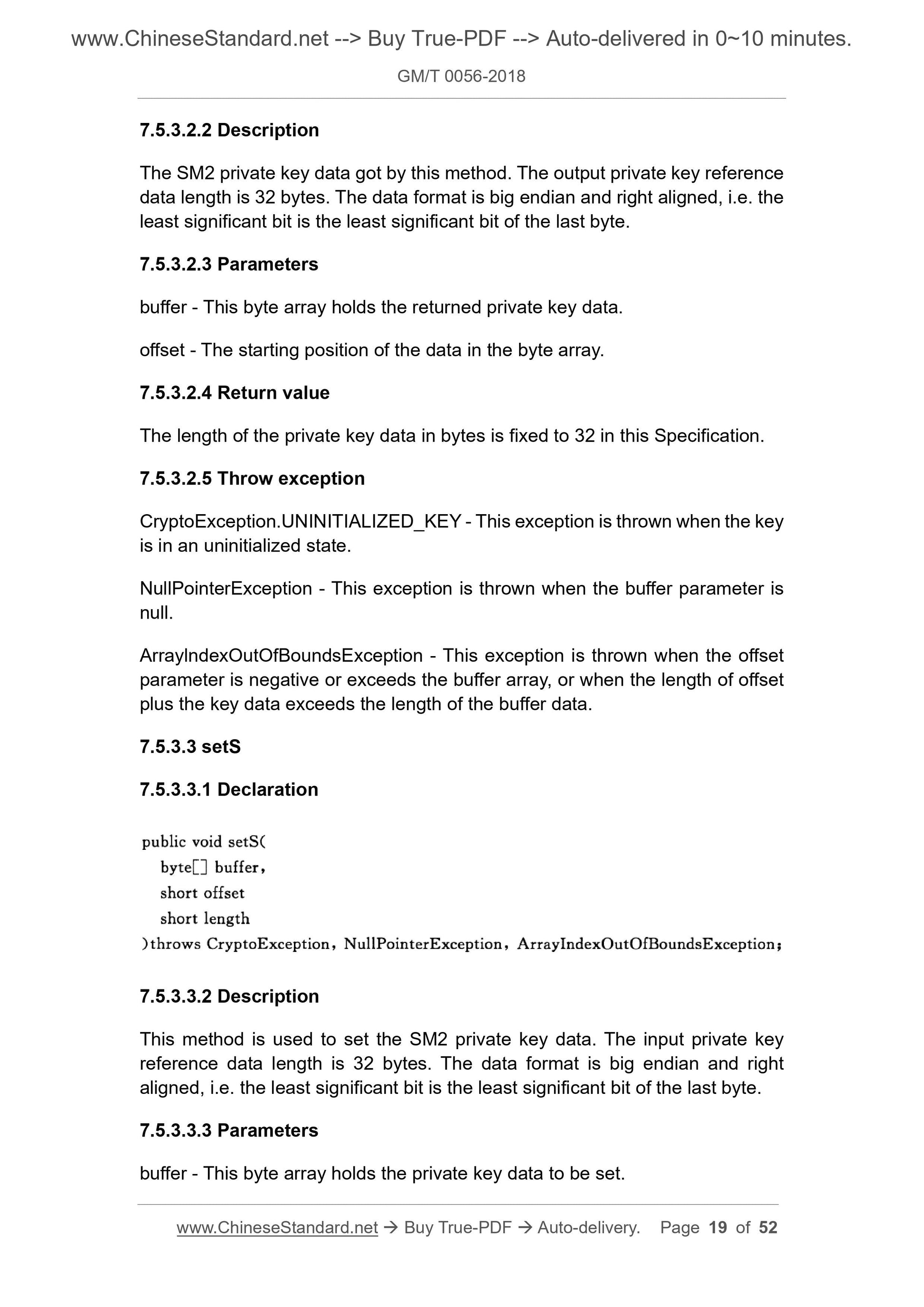

The SM2 private key data got by this method. The output private key reference data length is 32 bytes. The data format is big endian and right aligned, i.e. the least significant bit is the least significant bit of the last byte.
7.5.3.2.3 Parameters
buffer - This byte array holds the returned private key data.
offset - The starting position of the data in the byte array.
7.5.3.2.4 Return value
The length of the private key data in bytes is fixed to 32 in this Specification. 7.5.3.2.5 Throw exception
CryptoException.UNINITIALIZED_KEY - This exception is thrown when the key is in an uninitialized state.
NullPointerException - This exception is thrown when the buffer parameter is null.
ArraylndexOutOfBoundsException - This exception is thrown when the offset parameter is negative or exceeds the buffer array, or when the length of offset plus the key data exceeds the length of the buffer data.
7.5.3.3 setS
7.5.3.3.1 Declaration
7.5.3.3.2 Description
This method is used to set the SM2 private key data. The input private key reference data length is 32 bytes. The data format is big endian and right aligned, i.e. the least significant bit is the least significant bit of the last byte. 7.5.3.3.3 Parameters
buffer - This byte array holds the private key data to be set.

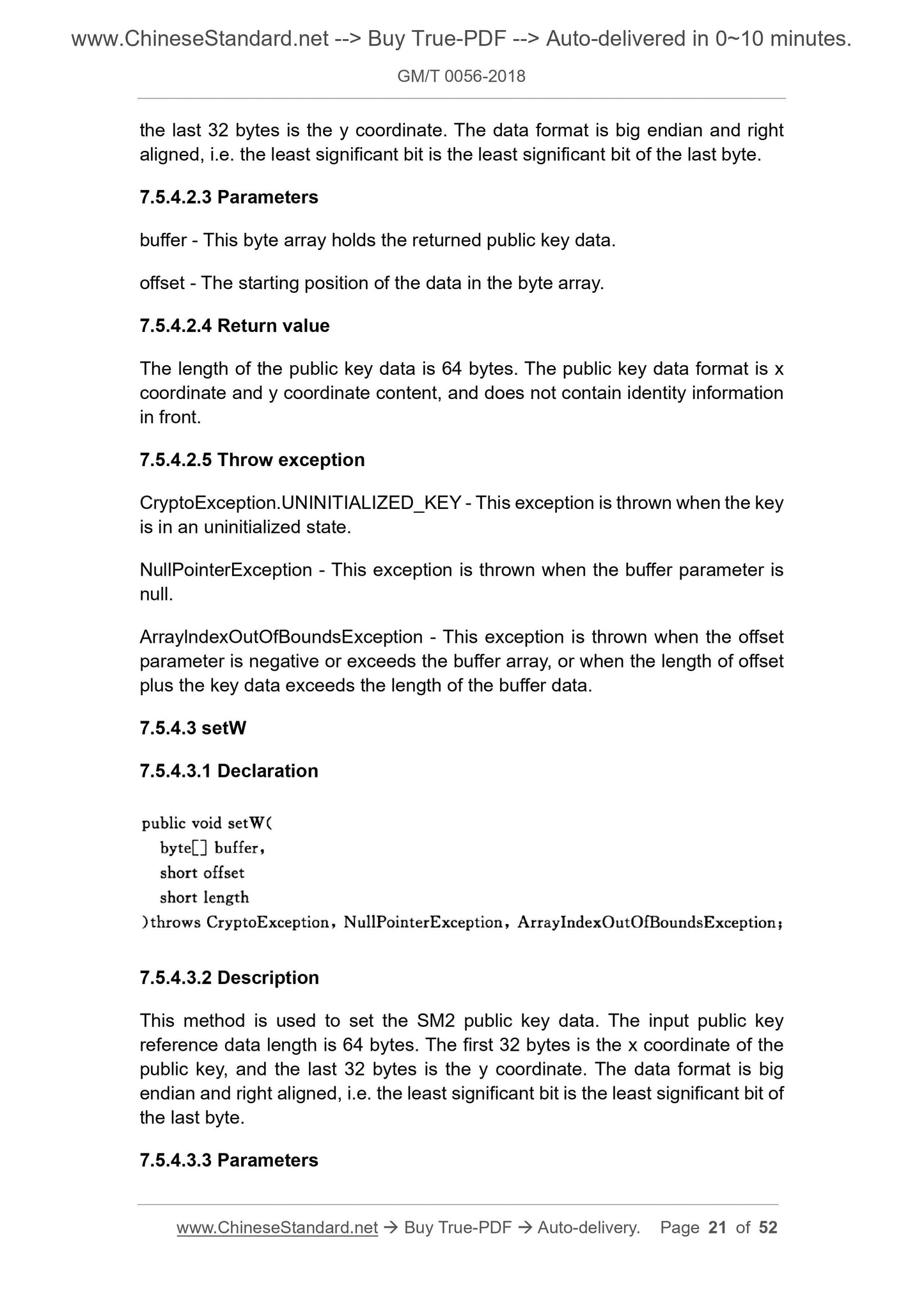

the last 32 bytes is the y coordinate. The data format is big endian and right aligned, i.e. the least significant bit is the least significant bit of the last byte. 7.5.4.2.3 Parameters
buffer - This byte array holds the returned public key data.
offset - The starting position of the data in the byte array.
7.5.4.2.4 Return value
The length of the public key data is 64 bytes. The public key data format is x coordinate and y coordinate content, and does not contain identity information in front.
7.5.4.2.5 Throw exception
CryptoException.UNINITIALIZED_KEY - This exception is thrown when the key is in an uninitialized state.
NullPointerException - This exception is thrown when the buffer parameter is null.
ArraylndexOutOfBoundsException - This exception is thrown when the offset parameter is negative or exceeds the buffer array, or when the length of offset plus the key data exceeds the length of the buffer data.
7.5.4.3 setW
7.5.4.3.1 Declaration
7.5.4.3.2 Description
This method is used to set the SM2 public key data. The input public key reference data length is 64 bytes. The first 32 bytes is the x coordinate of the public key, and the last 32 bytes is the y coordinate. The data format is big endian and right aligned, i.e. the least significant bit is the least significant bit of the last byte.
7.5.4.3.3 Parameters

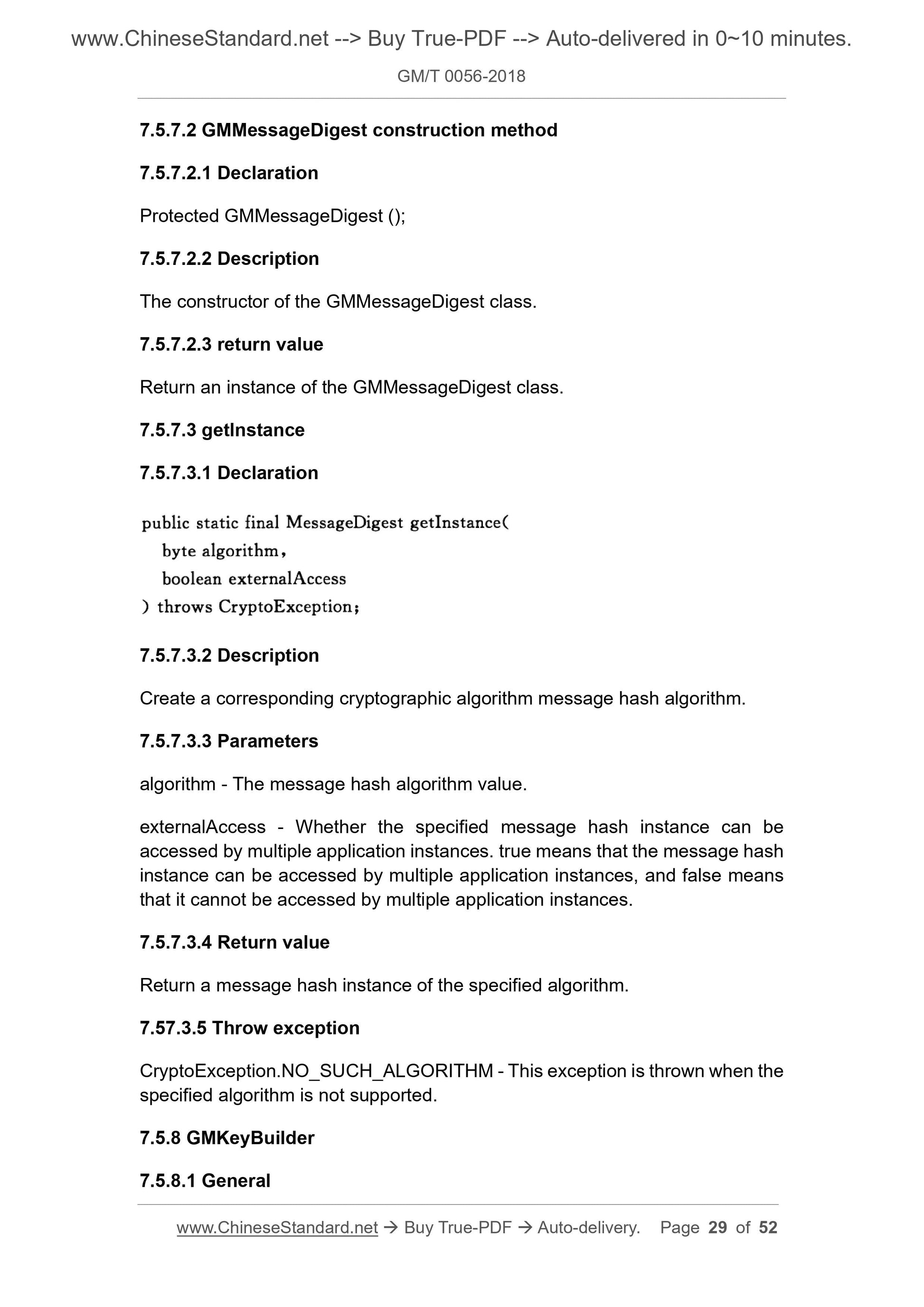

7.5.7.2 GMMessageDigest construction method
7.5.7.2.1 Declaration
Protected GMMessageDigest ();
7.5.7.2.2 Description
The constructor of the GMMessageDigest class.
7.5.7.2.3 return value
Return an instance of the GMMessageDigest class.
7.5.7.3 getlnstance
7.5.7.3.1 Declaration
7.5.7.3.2 Description
Create a corresponding cryptographic algorithm message hash algorithm.
7.5.7.3.3 Parameters
algorithm - The message hash algorithm value.
externalAccess - Whether the specified message hash instance can be
accessed by multiple application instances. true means that the message hash instance can be accessed by multiple application instances, and false means that it cannot be accessed by multiple application instances.
7.5.7.3.4 Return value
Return a message hash instance of the specified algorithm.
7.57.3.5 Throw exception
CryptoException.NO_SUCH_ALGORITHM - This exception is thrown when the
specified algorithm is not supported.
7.5.8 GMKeyBuilder
7.5.8.1 General
Asymmetric key algorithms use a public key (encryption) or a private key (signature) for encryption. In addition, they use a private key (decryption) or a public key (authentication) for decryption.
The object of the GMCipher class is reset to the state when the init() method is called after a card pull or reset event occurs. When the key corresponding to the object of the GMCipher class is invalid [when the clear event related to the key object is encountered], the object of the GMCipher class also returns to the uninitialized state.
For the intermediate results of the calculation of GMCipher class instances, no transaction management is required.

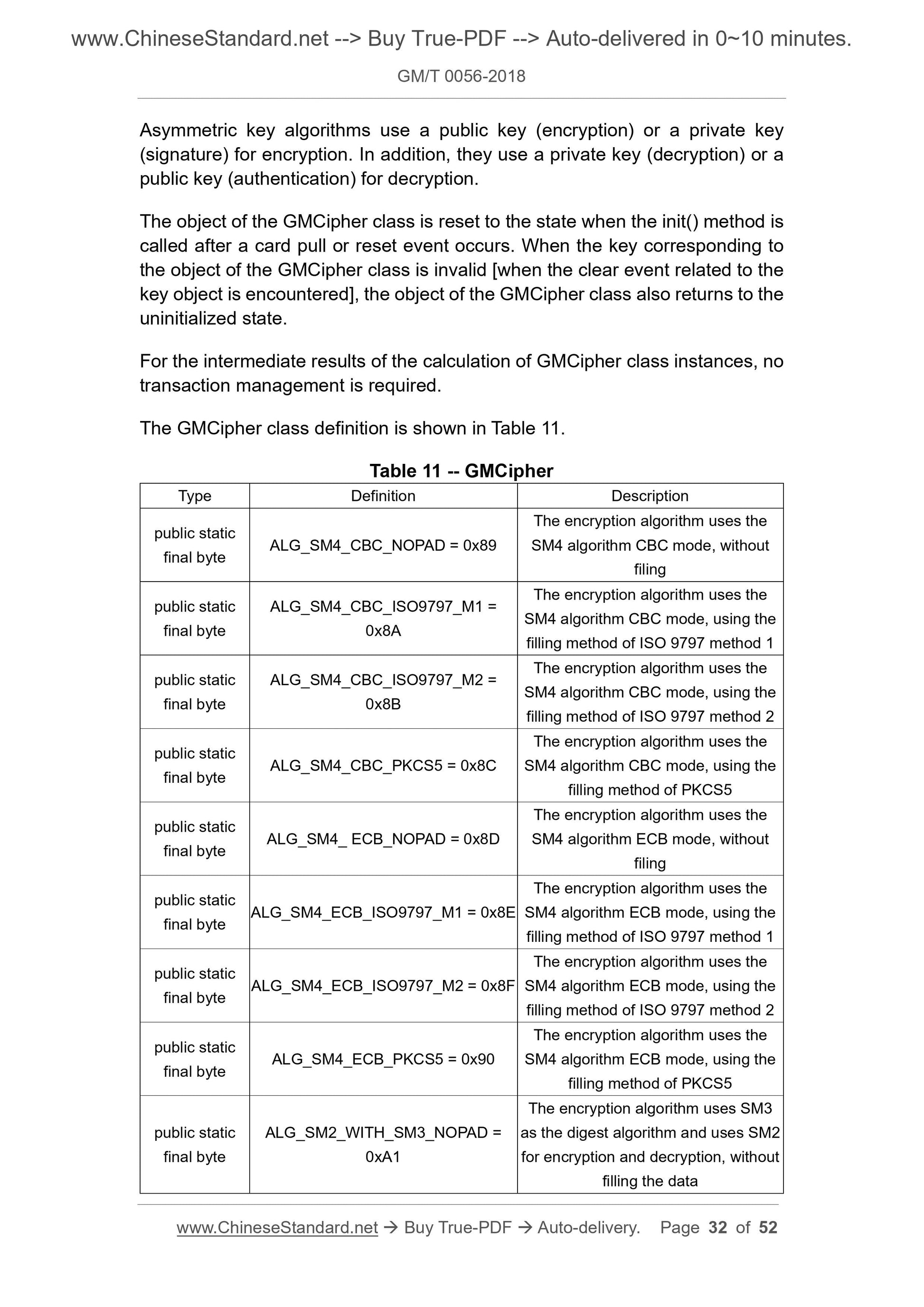

The GMCipher class definition is shown in Table 11.
Table 11 -- GMCipher
Type Definition Description
public static
final byte ALG_SM4_CBC_NOPAD = 0x89
The encryption algorithm uses the
SM4 algorithm CBC mode, without
filing
public static
final byte
ALG_SM4_CBC_ISO9797_M1 =
0x8A
The encryption algorithm uses the
SM4 algorithm CBC mode, using the
filling method of ISO 9797 method 1
public static
final byte
ALG_SM4_CBC_ISO9797_M2 =
0x8B
The encryption algorithm uses the
SM4 algorithm CBC mode, using the
filling method of ISO 9797 method 2
public static
final byte ALG_SM4_CBC_PKCS5 = 0x8C
The encryption algorithm uses the
SM4 algorithm CBC mode, using the
filling method of PKCS5
public static
final byte ALG_SM4_ ECB_NOPAD = 0x8D
The encryption algorithm uses the
SM4 algorithm ECB mode, without
filing
public static
final byte ALG_SM4_ECB_ISO9797_M1 = 0x8E
The encryption algorithm uses the
SM4 algorithm ECB mode, using the
filling method of ISO 9797 method 1
public static
final byte ALG_SM4_ECB_ISO9797_M2 = 0x8F
The encryption algorithm uses the
SM4 algorithm ECB mode, using the
filling method of ISO 9797 method 2
public static
final byte ALG_SM4_ECB_PKCS5 = 0x90
The encryption algorithm uses the
SM4 algorithm ECB mode, using the
filling method of PKCS5
public static
final byte
ALG_SM2_WITH_SM3_NOPAD =
0xA1
The encryption algorithm uses SM3
as the digest algorithm and uses SM2
for encryption and decryption, without
filling the data
Return a GMCipher class object of the specified algorithm.
7.5.9.3.5 Throw exception
CryptoException.NO_SUCH_ALGORITHM - This exception is thrown when the
specified algorithm is not supported.
7.5.10 GMSM2KeyExchange
7.5.10.1 General
GMSM2KeyExChange class is the SM2 key exchange algorithm class in
cryptographic algorithms. It implements the relevant contents of the SM2 key exchange algorithm in cryptographic algorithms.

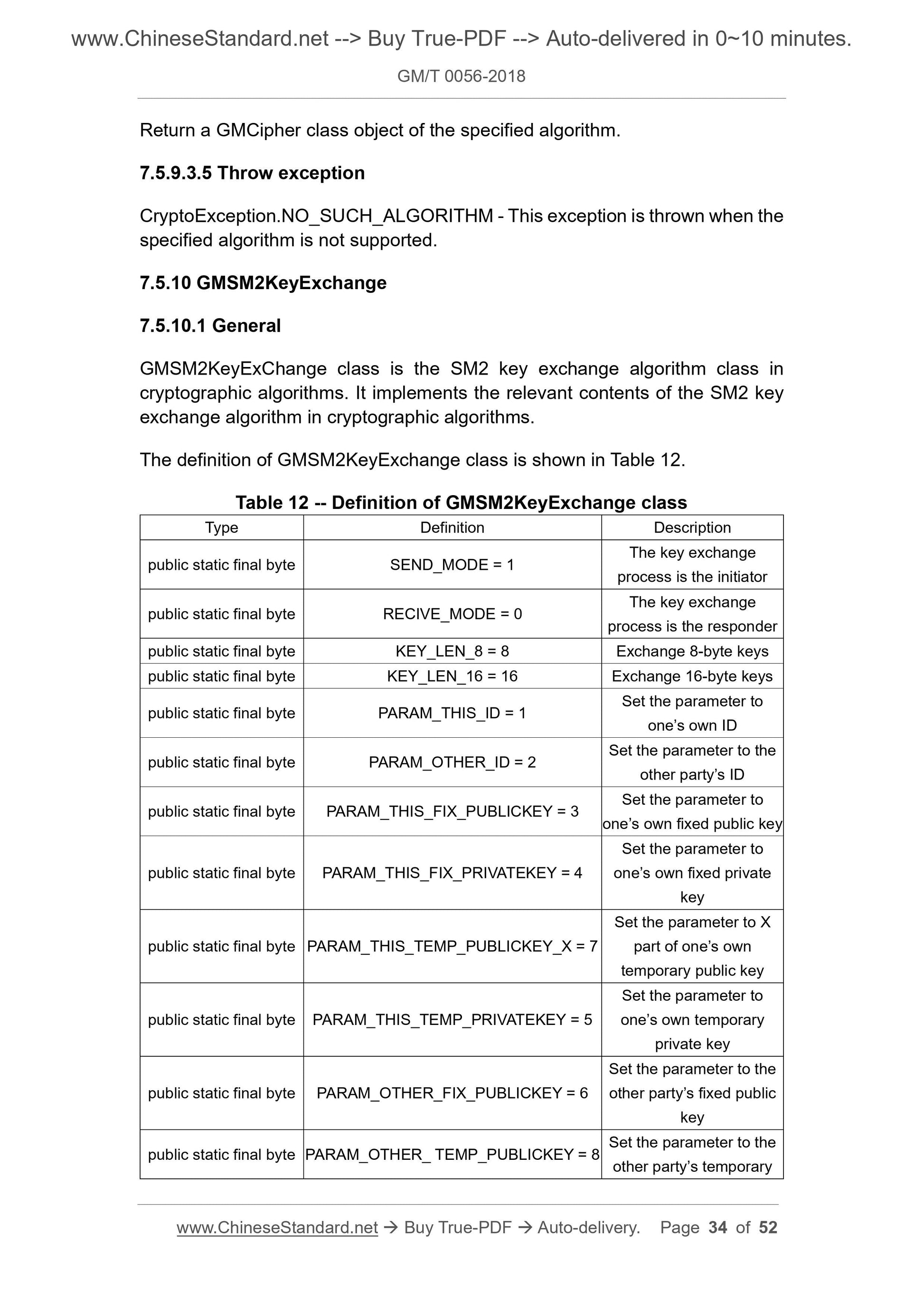

The definition of GMSM2KeyExchange class is shown in Table 12.
Table 12 -- Definition of GMSM2KeyExchange class
Type Definition Description
public static final byte SEND_MODE = 1 The key exchange process is the initiator public static final byte RECIVE_MODE = 0 The key exchange process is the responder public static final byte KEY_LEN_8 = 8 Exchange 8-byte keys
public static final byte KEY_LEN_16 = 16 Exchange 16-byte keys
public static final byte PARAM_THIS_ID = 1 Set the parameter to one?€?s own ID public static final byte PARAM_OTHER_ID = 2 Set the parameter to the other party?€?s ID public static final byte PARAM_THIS_FIX_PUBLICKEY = 3 Set the parameter to one?€?s own fixed public key public static final byte PARAM_THIS_FIX_PRIVATEKEY = 4
Set the parameter to
one?€?s own fixed private
key
public static final byte PARAM_THIS_TEMP_PUBLICKEY_X = 7
Set the parameter to X
part of one?€?s own
temporary public key
public static final byte PARAM_THIS_TEMP_PRIVATEKEY = 5
Set the parameter to
one?€?s own temporary
private key
public static final byte PARAM_OTHER_FIX_PUBLICKEY = 6
Set the parameter to the
other party?€?s fixed public
key
public static final byte PARAM_OTHER_ TEMP_PUBLICKEY = 8 Set the parameter to the other party?€?s temporary null.
ArraylndexOutOfBoundsException- This exception is thrown when the offset parameter is negative or exceeds the buffer array, or when the length of offset plus the parameter exceeds the length of the buffer data.
CryptoException.ILLEGAL_VALUE - This exception is thrown when the input parameter is incorrect.
7.5.10.7 getParam
7.5.10.7.1 Declaration
7.5.10.7.2 Description
Get the parameter that has been written and used for the key exchange.
7.5.10.7.3 Parameters
buffer - The array where the read data is.
offset - The read data position offset.
type - The read data type, e.g. PARAM_THIS_ID means to read one?€?s own ID parameter.
7.5.10.7.4 Return value
Read data length.
7.5.10.7.5 Throw exception
NullPointerException - This exception is thrown when the buffer parameter is null.
ArraylndexOutOfBoundsException- This exception is thrown when the offset parameter is negative or exceeds the buffer array, or when the length of offset plus the parameter exceeds the length of the buffer data.
CryptoException.UNINITIALIZED_KEY - This exception is thrown when the
corresponding parameter is in an uninitialized state.
CryptoException.ILLEGAL_VALUE - This exception is thrown when the input parameter is incorrect.
IDLength - The ID value length.
PubKey - The public key object.
destBuffer - The array where the Za value is stored.
destOffset - The Za value offset.
type - The curve parameter type, currently only supports one more, i.e. PARAM_FP_256.
7.5.11.4.4 Return value
Za length.
7.5.11.4.5 Throw exception
CryptoException.ILLEGAL_VALUE - This exception is thrown when the input parameter is incorrect.
7.5.11.5 generateSM2Pubkey
7.5.11.5.1 Declaration
7.5.11.5.2 Description
Output the corresponding public key information according to the known private key object.
7.5.11.5.3 Parameters
public_key - The output object of the public key data.
private_key - The known private key object.
7.5.11.5.4 Return value
The length of the public key.
7.5.11.5.5 Throw exception
CryptoException.INVALID_INIT - This exception is thrown when the private key is not initialized.
NullPointerException - This exception is thrown when the public key object is null.
Annex A
(Informative)
Cryptography application requirements for multi-application
security management
A.1 Introduction
This annex describes the cryptography use requirements for multi-application security management in multi-applications equipment. Multi-application
management adopts the technical solution of security domain. Each security domain is divided into a separate logical security zone, which can be configured with an independent cryptography. Cryptography use in the secure domain includes:
- acquisition of cryptographic algorithm identity in security domains;
- secure channel management of out-of-equipment entities and security
domains;
- signature and verification of CAP packages;
- authorization token for downloading, installing, migrating and dele...

View full details
