GM/T 0044.1-2016: Identity-based cryptographic algorithms SM9 - Part 1: General

This Part of GM/T 0044 describes the necessary basic knowledge of mathematics and related cryptographic technology, to help implement the cryptographic mechanisms specified in other parts of GM/T 0044. This Part is applicable to the implementation, application and testing of identification cryptography in commercial cryptographic algorithms.

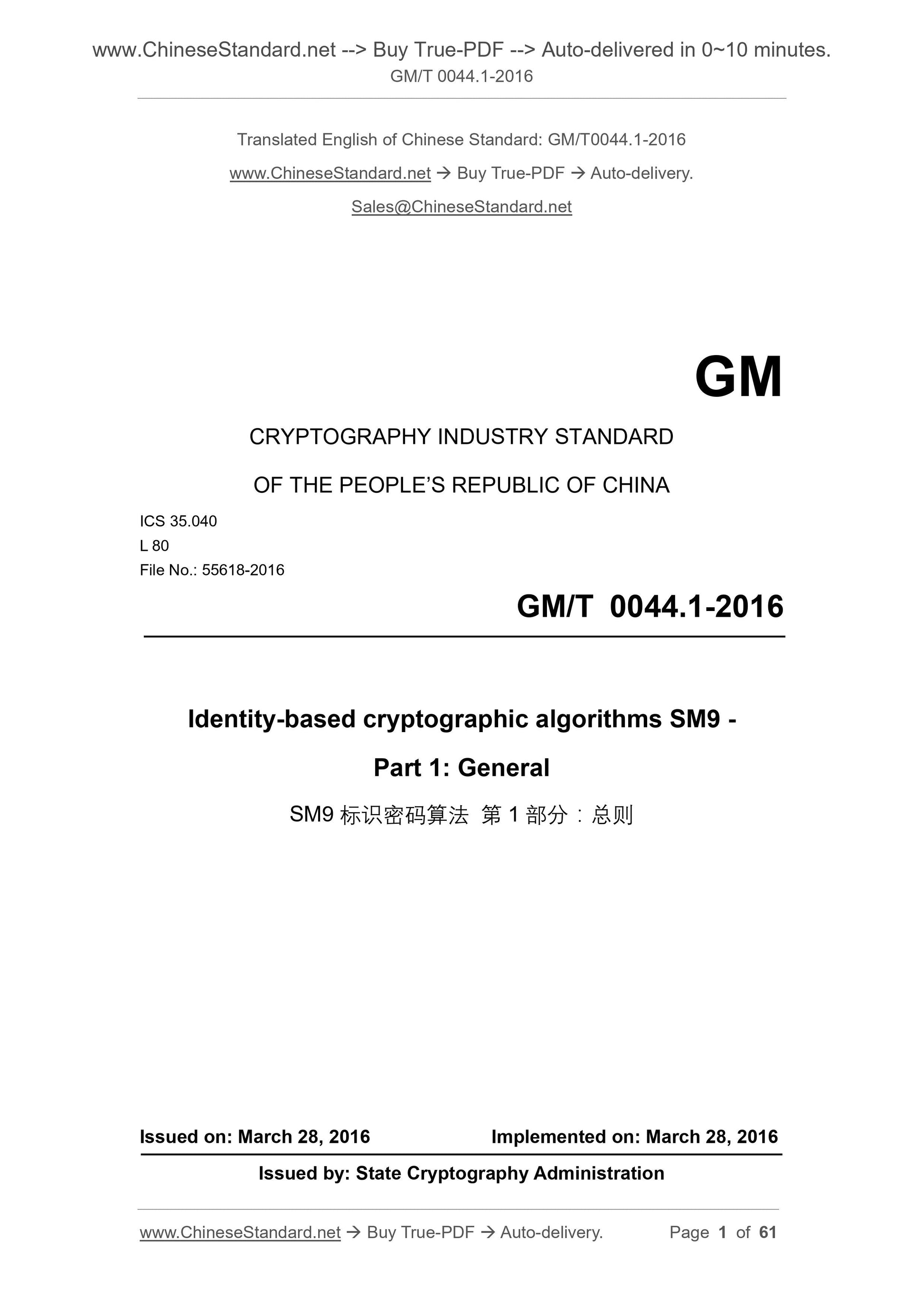

GM/T 0044.1-2016
GM
CRYPTOGRAPHY INDUSTRY STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
ICS 35.040
L 80
File No.. 55618-2016
Identity-based cryptographic algorithms SM9 -
Part 1. General
ISSUED ON. MARCH 28, 2016
IMPLEMENTED ON. MARCH 28, 2016
Issued by. State Cryptography Administration

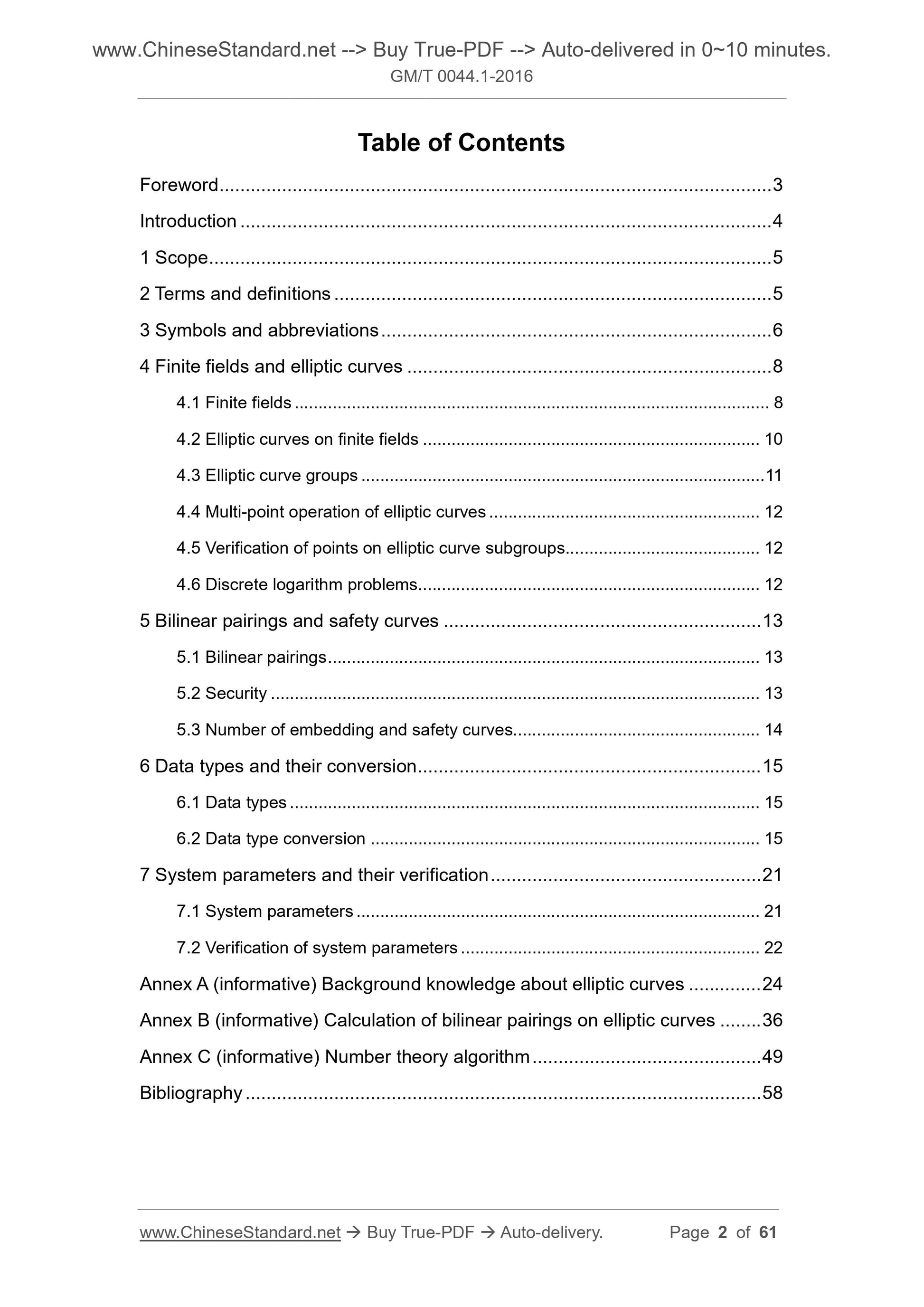

Table of Contents
Foreword . 3
Introduction .. 4
1 Scope .. 5
2 Terms and definitions .. 5
3 Symbols and abbreviations . 6
4 Finite fields and elliptic curves .. 8
4.1 Finite fields . 8
4.2 Elliptic curves on finite fields .. 10
4.3 Elliptic curve groups .. 11
4.4 Multi-point operation of elliptic curves .. 12
4.5 Verification of points on elliptic curve subgroups.. 12
4.6 Discrete logarithm problems. 12
5 Bilinear pairings and safety curves .. 13
5.1 Bilinear pairings .. 13
5.2 Security . 13
5.3 Number of embedding and safety curves. 14
6 Data types and their conversion . 15
6.1 Data types .. 15
6.2 Data type conversion .. 15
7 System parameters and their verification . 21
7.1 System parameters .. 21
7.2 Verification of system parameters . 22
Annex A (informative) Background knowledge about elliptic curves .. 24
Annex B (informative) Calculation of bilinear pairings on elliptic curves .. 36 Annex C (informative) Number theory algorithm .. 49
Bibliography .. 58

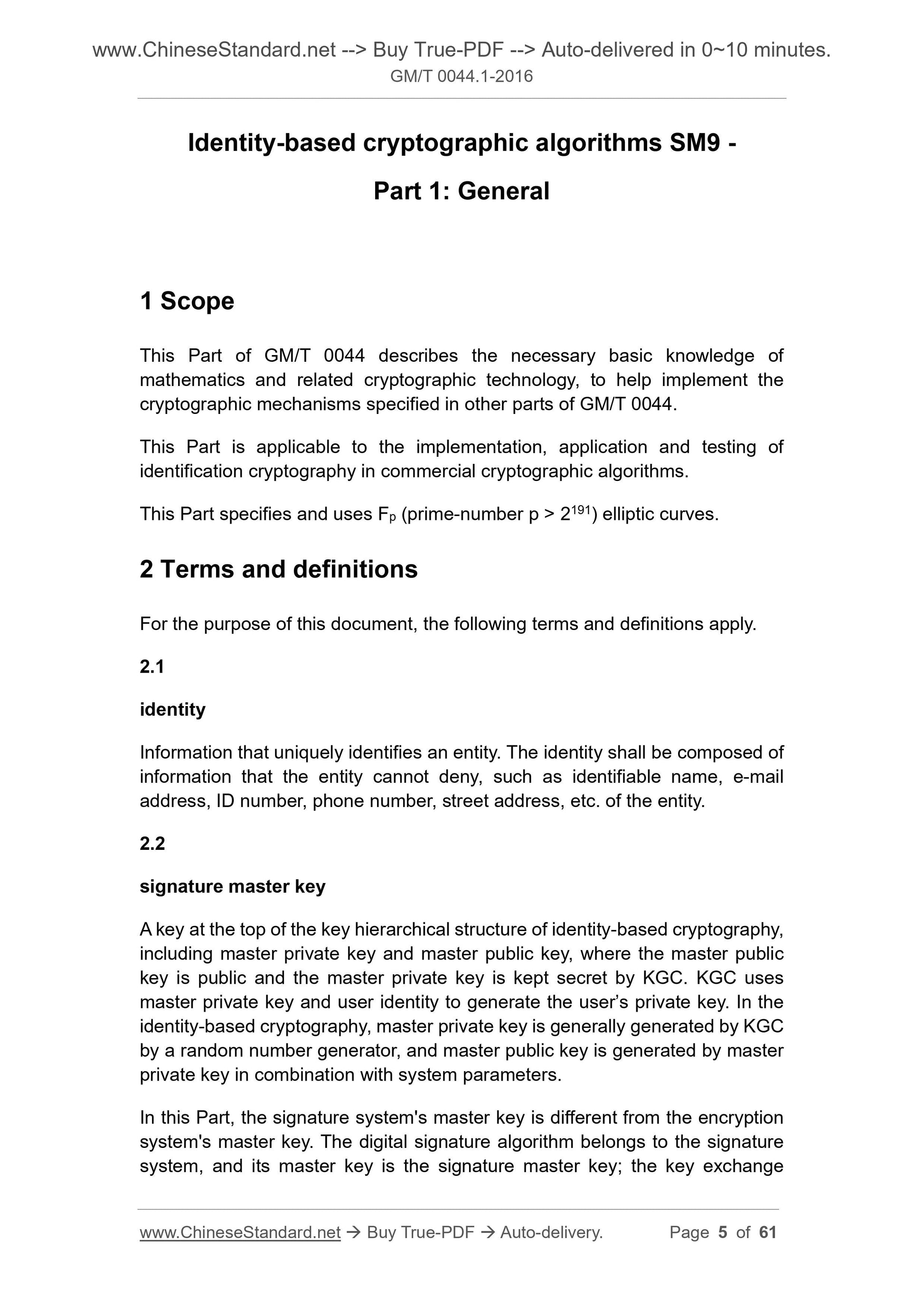

Identity-based cryptographic algorithms SM9 -
Part 1. General

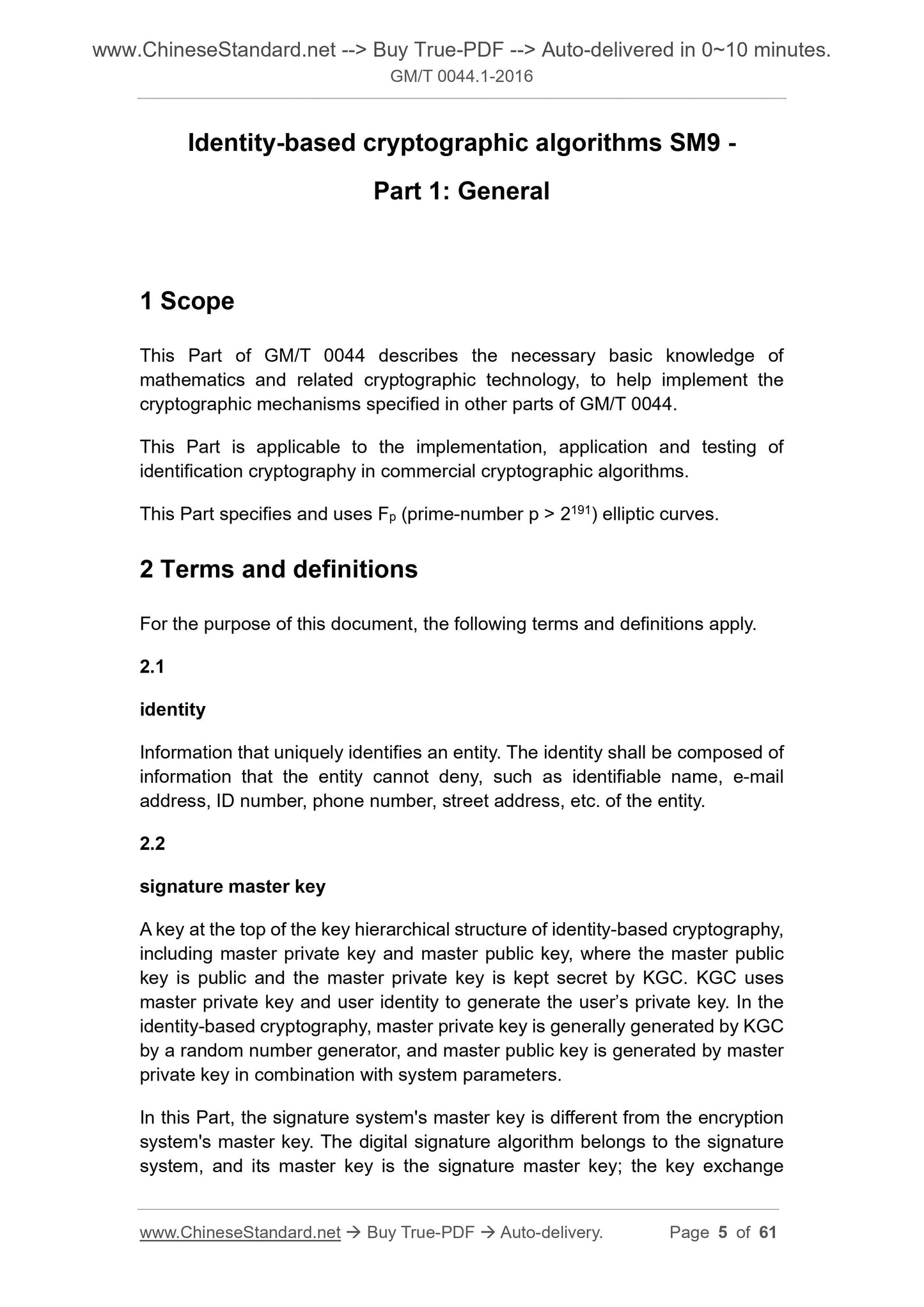

1 Scope
This Part of GM/T 0044 describes the necessary basic knowledge of
mathematics and related cryptographic technology, to help implement the cryptographic mechanisms specified in other parts of GM/T 0044.
This Part is applicable to the implementation, application and testing of identification cryptography in commercial cryptographic algorithms.
This Part specifies and uses Fp (prime-number p > 2191) elliptic curves. 2 Terms and definitions
For the purpose of this document, the following terms and definitions apply. 2.1
identity
Information that uniquely identifies an entity. The identity shall be composed of information that the entity cannot deny, such as identifiable name, e-mail address, ID number, phone number, street address, etc. of the entity.
2.2
signature master key
A key at the top of the key hierarchical structure of identity-based cryptography, including master private key and master public key, where the master public key is public and the master private key is kept secret by KGC. KGC uses master private key and user identity to generate the user?€?s private key. In the identity-based cryptography, master private key is generally generated by KGC by a random number generator, and master public key is generated by master private key in combination with system parameters.

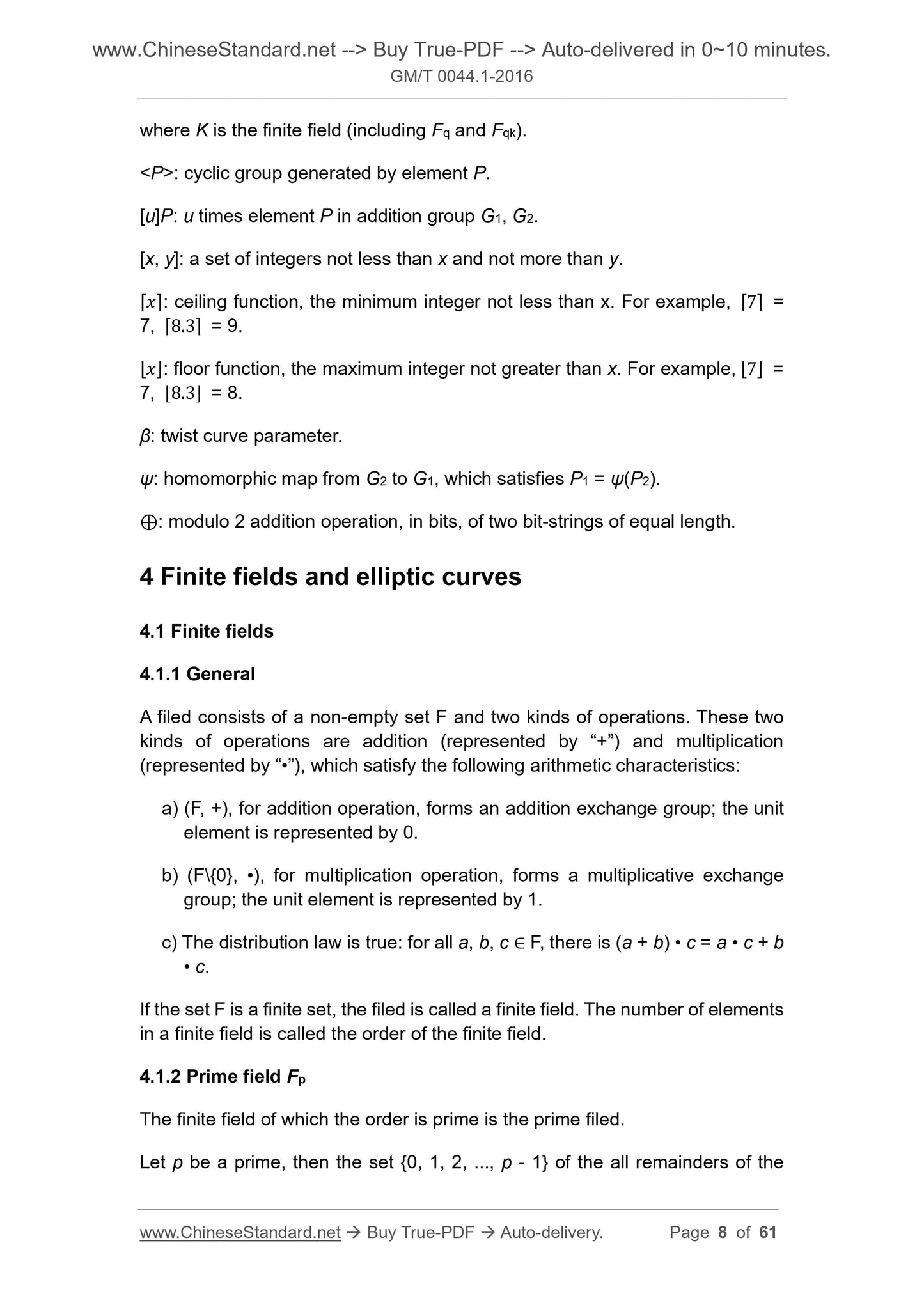

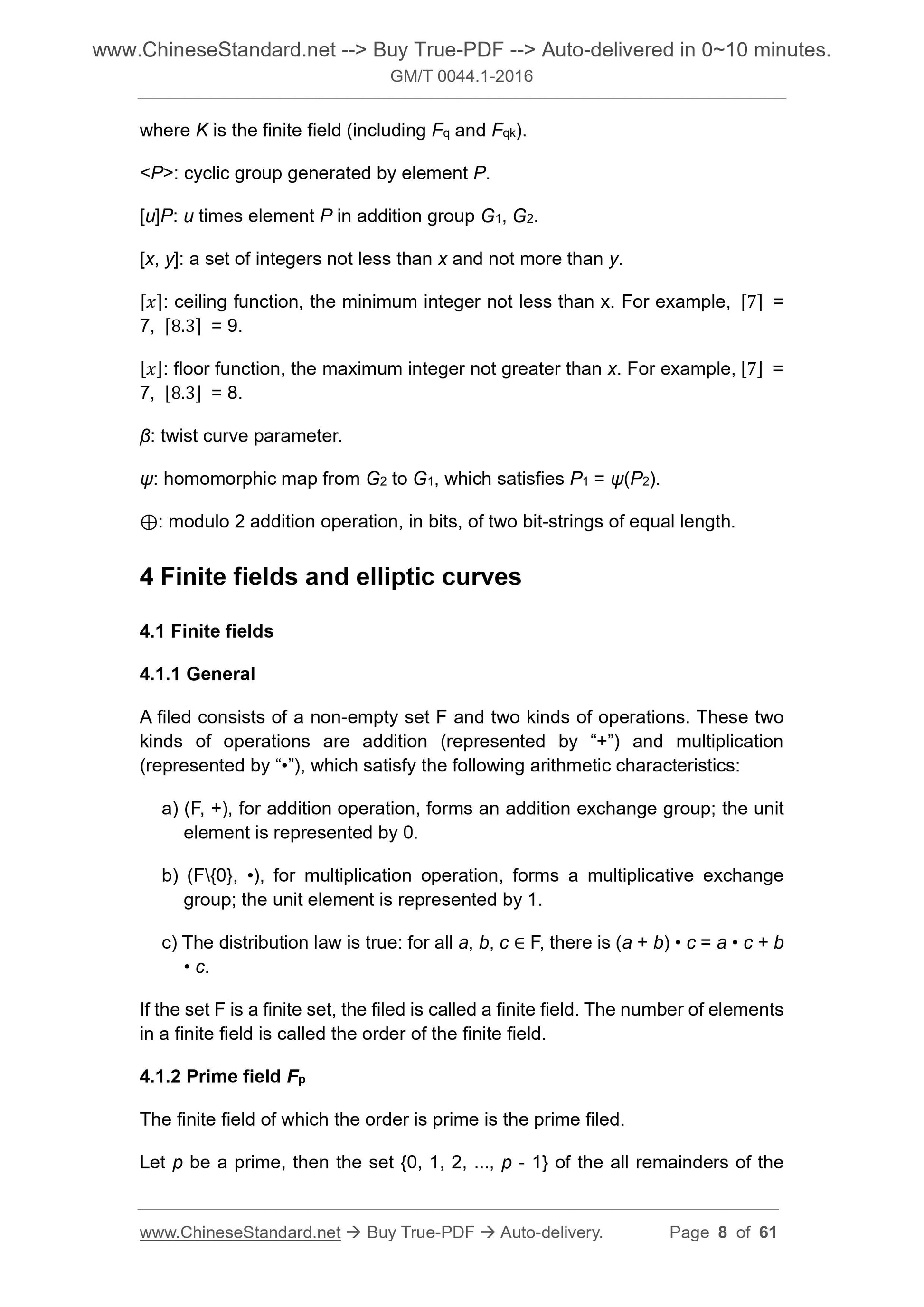

In this Part, the signature system's master key is different from the encryption system's master key. The digital signature algorithm belongs to the signature system, and its master key is the signature master key; the key exchange where K is the finite field (including Fq and Fqk).
< P>. cyclic group generated by element P.
[u]P. u times element P in addition group G1, G2.
[x, y]. a set of integers not less than x and not more than y.
?????€. ceiling function, the minimum integer not less than x. For example, ??7?€ = 7, ??8.3?€ = 9.
??????. floor function, the maximum integer not greater than x. For example, ??7?? = 7, ??8.3?? = 8.
??. twist curve parameter.
??. homomorphic map from G2 to G1, which satisfies P1 = ??(P2).
???. modulo 2 addition operation, in bits, of two bit-strings of equal length. 4 Finite fields and elliptic curves
4.1 Finite fields
4.1.1 General
A filed consists of a non-empty set F and two kinds of operations. These two kinds of operations are addition (represented by ?€?+?€?) and multiplication (represented by ?€??€??€?), which satisfy the following arithmetic characteristics. a) (F, +), for addition operation, forms an addition exchange group; the unit element is represented by 0.
b) (F\{0}, ?€?), for multiplication operation, forms a multiplicative exchange group; the unit element is represented by 1.
c) The distribution law is true. for all a, b, c ??? F, there is (a + b) ?€? c = a ?€? c + b ?€? c.
If the set F is a finite set, the filed is called a finite field. The number of elements in a finite field is called the order of the finite field.
4.1.2 Prime field Fp
The finite field of which the order is prime is the prime filed.

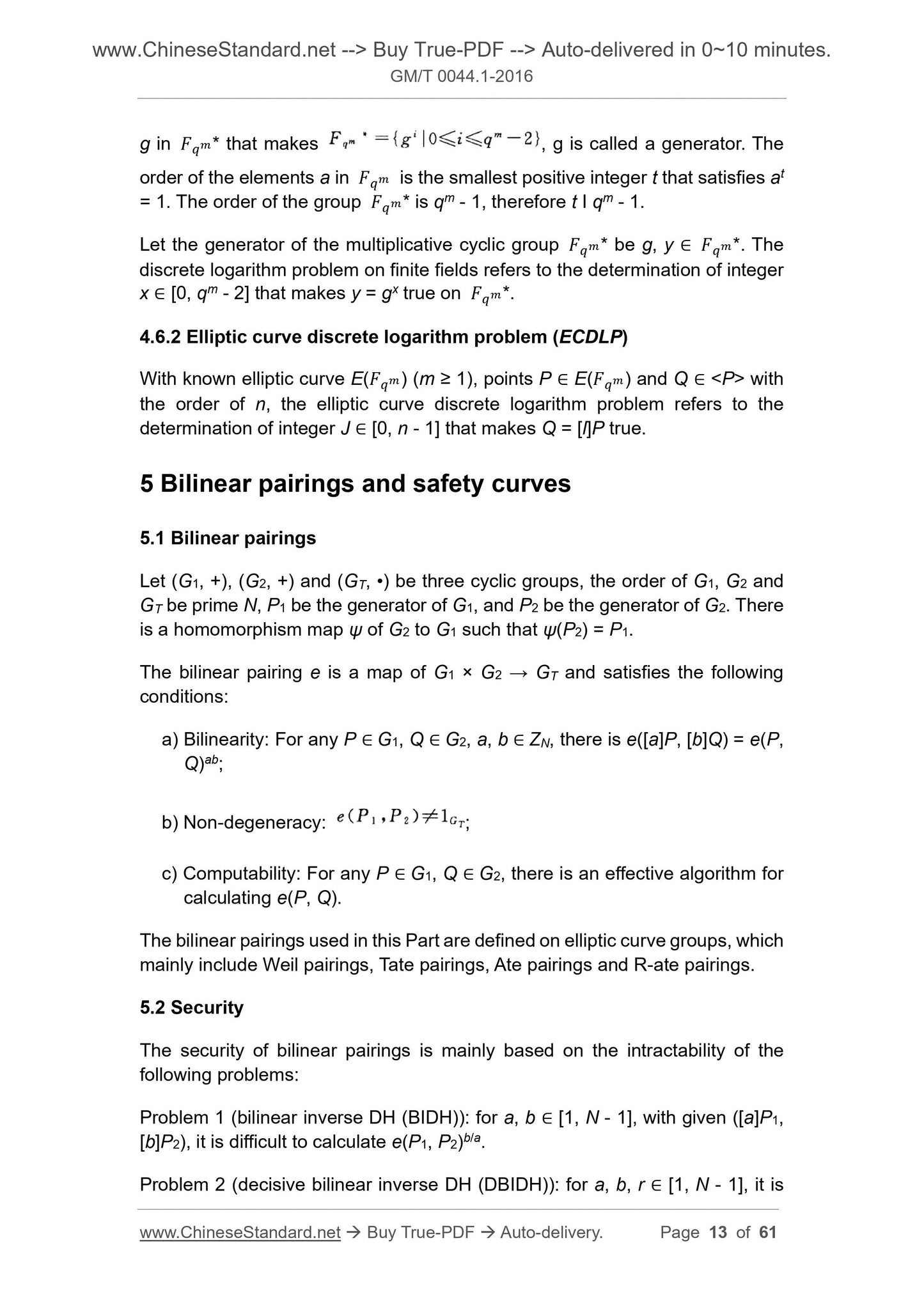

Let p be a prime, then the set {0, 1, 2, ., p - 1} of the all remainders of the g in ????????* that makes , g is called a generator. The
order of the elements a in ???????? is the smallest positive integer t that satisfies at = 1. The order of the group ????????* is qm - 1, therefore t I qm - 1.
Let the generator of the multiplicative cyclic group ????????* be g, y ??? ????????*. The discrete logarithm problem on finite fields refers to the determination of integer x ??? [0, qm - 2] that makes y = gx true on ????????*.
4.6.2 Elliptic curve discrete logarithm problem (ECDLP)
With known elliptic curve E(????????) (m ??? 1), points P ??? E(????????) and Q ??? < P> with the order of n, the elliptic curve discrete logarithm problem refers to the determination of integer J ??? [0, n - 1] that makes Q = [l]P true.
5 Bilinear pairings and safety curves
5.1 Bilinear pairings
Let (G1, +), (G2, +) and (GT, ?€?) be three cyclic groups, the order of G1, G2 and GT be prime N, P1 be the generator of G1, and P2 be the generator of G2. There is a homomorphism map ?? of G2 to G1 such that ??(P2) = P1.
The bilinear pairing e is a map of G1 ?? G2 ??? GT and satisfies the following conditions.
a) Bilinearity. For any P ??? G1, Q ??? G2, a, b ??? ZN, there is e([a]P, [b]Q) = e(P, Q)ab;
b) Non-degeneracy. ;
c) Computability. For any P ??? G1, Q ??? G2, there is an effective algorithm for calculating e(P, Q).
The bilinear pairings used in this Part are defined on elliptic curve groups, which mainly include Weil pairings, Tate pairings, Ate pairings and R-ate pairings. 5.2 Security
The security of bilinear pairings is mainly based on the intractability of the following problems.
Problem 1 (bilinear inverse DH (BIDH)). for a, b ??? [1, N - 1], with given ([a]P1, [b]P2), it is difficult to calculate e(P1, P2)b/a.

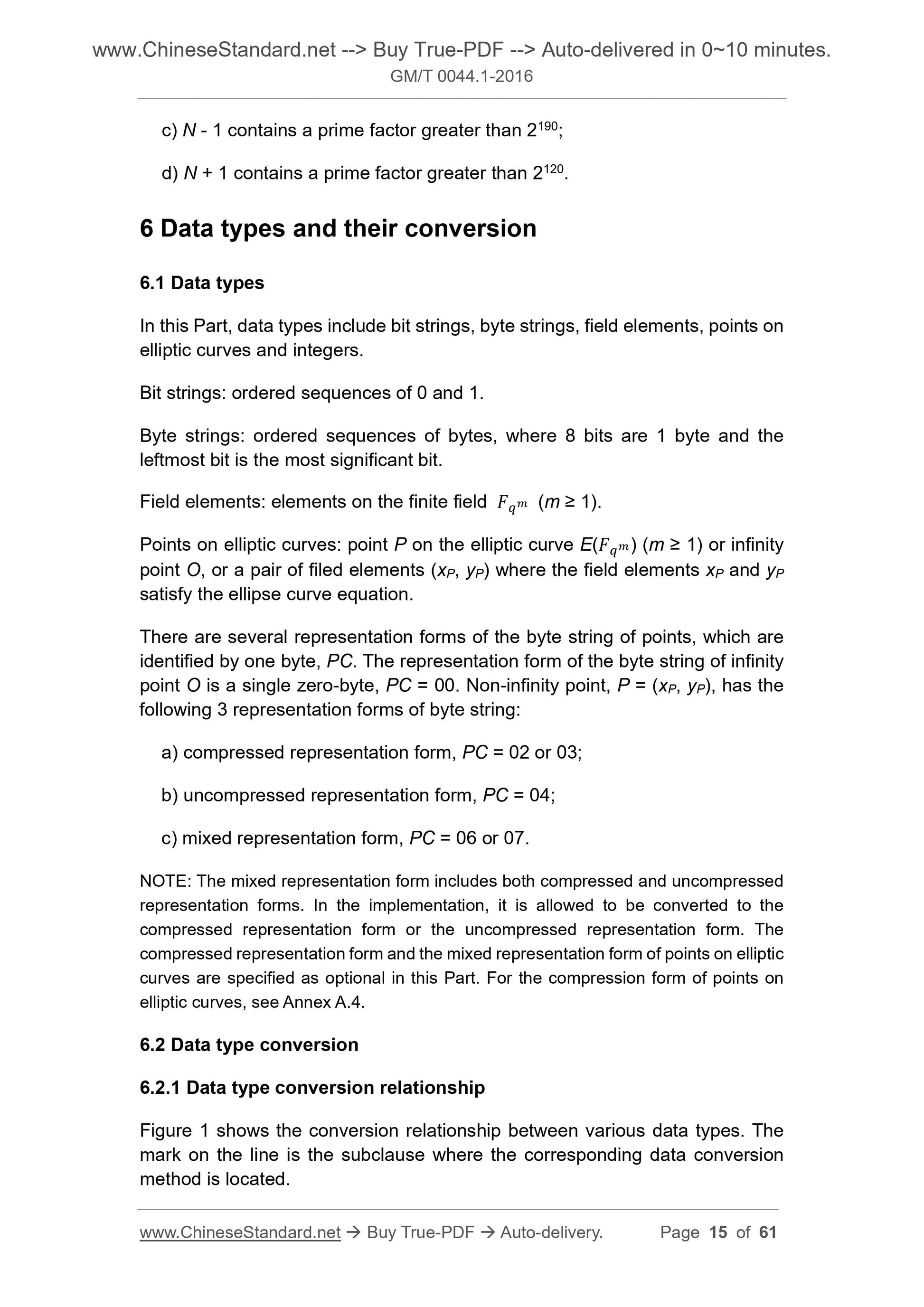

Problem 2 (decisive bilinear inverse DH (DBIDH)). for a, b, r ??? [1, N - 1], it is c) N - 1 contains a prime factor greater than 2190;
d) N + 1 contains a prime factor greater than 2120.
6 Data types and their conversion
6.1 Data types
In this Part, data types include bit strings, byte strings, field elements, points on elliptic curves and integers.
Bit strings. ordered sequences of 0 and 1.
Byte strings. ordered sequences of bytes, where 8 bits are 1 byte and the leftmost bit is the most significant bit.
Field elements. elements on the finite field ???????? (m ??? 1).
Points on elliptic curves. point P on the elliptic curve E(????????) (m ??? 1) or infinity point O, or a pair of filed elements (xP, yP) where the field elements xP and yP satisfy the ellipse curve equation.
There are several representation forms of the byte string of points, which are identified by one byte, PC. The representation form of the byte string of infinity point O is a single zero-byte, PC = 00. Non-infinity point, P = (xP, yP), has the following 3 representation forms of byte string.
a) compressed representation form, PC = 02 or 03;
b) uncompressed representation form, PC = 04;
c) mixed representation form, PC = 06 or 07.
NOTE. The mixed representation form includes both compressed and uncompressed representation forms. In the implementation, it is allowed to be converted to the compressed representation form or the uncompressed representation form. The compressed representation form and the mixed representation form of points on elliptic curves are specified as optional in this Part. For the compression form of points on elliptic curves, see Annex A.4.
6.2 Data type conversion
6.2.1 Data type conversion relationship
Figure 1 shows the conversion relationship between various data types. The mark on the line is the subclause where the corresponding data conversion method is located.

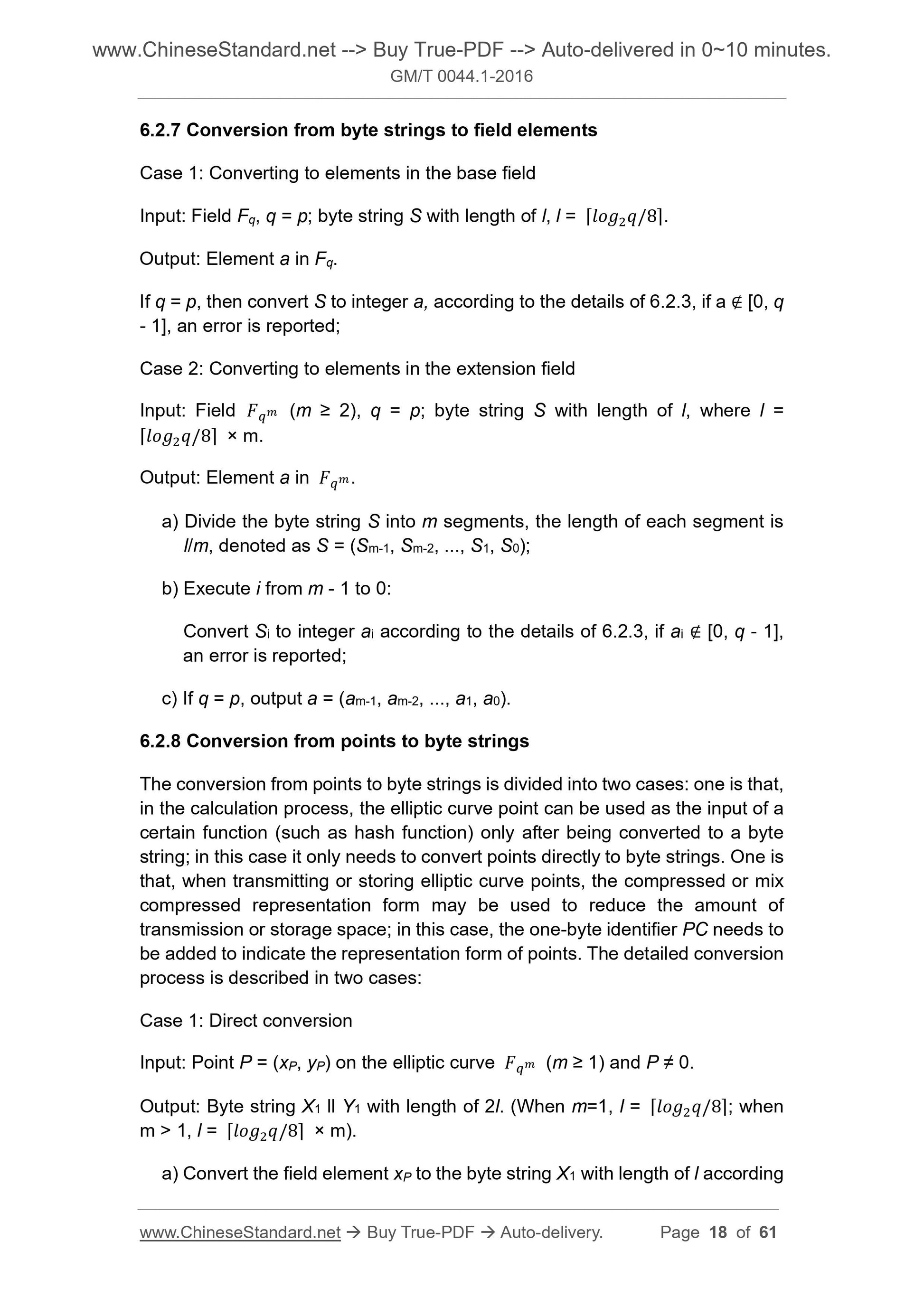

6.2.7 Conversion from byte strings to field elements
Case 1. Converting to elements in the base field
Input. Field Fq, q = p; byte string S with length of l, l = ?????????????/8?€.
Output. Element a in Fq.
If q = p, then convert S to integer a, according to the details of 6.2.3, if a ??? [0, q - 1], an error is reported;
Case 2. Converting to elements in the extension field
Input. Field ???????? (m ??? 2), q = p; byte string S with length of l, where l = ?????????????/8?€ ?? m.
Output. Element a in ????????.
a) Divide the byte string S into m segments, the length of each segment is l/m, denoted as S = (Sm-1, Sm-2, ., S1, S0);
b) Execute i from m - 1 to 0.
Convert Si to integer ai according to the details of 6.2.3, if ai ??? [0, q - 1], an error is reported;
c) If q = p, output a = (am-1, am-2, ., a1, a0).
6.2.8 Conversion from points to byte strings
The conversion from points to byte strings is divided into two cases. one is that, in the calculation process, the elliptic curve point can be used as the input of a certain function (such as hash function) only after being converted to a byte string; in this case it only needs to convert points directly to byte strings. One is that, when transmitting or storing elliptic curve points, the compressed or mix compressed representation form may be used to reduce the amount of
transmission or storage space; in this case, the one-byte identifier PC needs to be added to indicate the representation form of points. The detailed conversion process is described in two cases.
Case 1. Direct conversion
Input. Point P = (xP, yP) on the elliptic curve ???????? (m ??? 1) and P ??? 0.
Output. Byte string X1 ll Y1 with length of 2l. (When m=1, l = ?????????????/8?€; when m > 1, l = ?????????????/8?€ ?? m)...
