GB/Z 32513-2016 English PDF (GBZ32513-2016)

GB/Z 32513-2016 English PDF (GBZ32513-2016)

Regular price $115.00 USD
Regular price Sale price $115.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/Z 32513-2016 to get it for Purchase Approval, Bank TT...

GB/Z 32513-2016: General rules of reliability for low voltage apparatus

This guidance technical document specifies the general requirements for the reliability verification of the household and similar purpose residual current operated circuit breakers, household and similar purposes over-current protection circuit breakers, plastic enclosure circuit breakers, overload relays, small capacity contactors, and contactor relays.

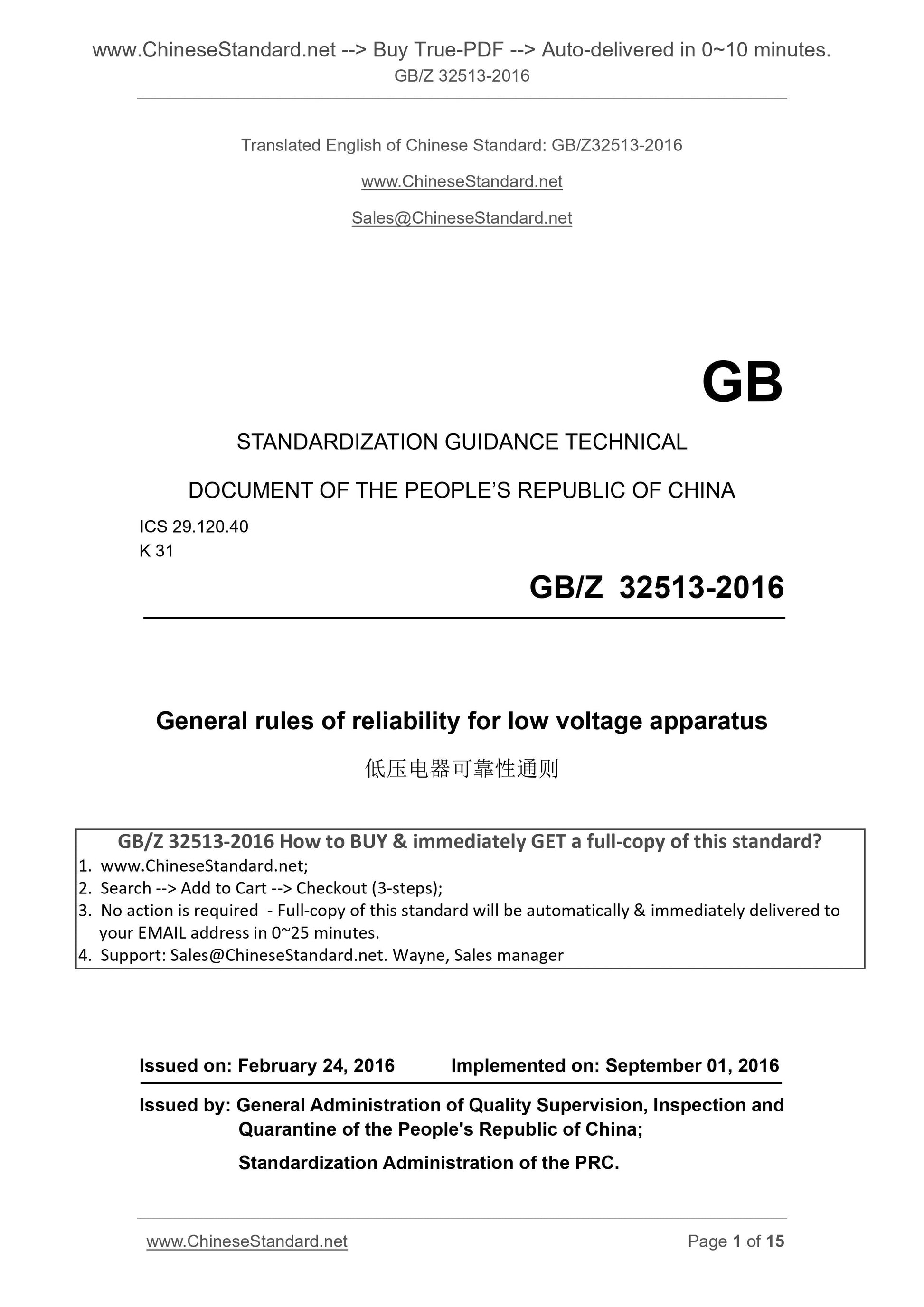

GB/Z 32513-2016
GB
STANDARDIZATION GUIDANCE TECHNICAL
DOCUMENT OF THE PEOPLE REPUBLIC OF CHINA
ICS 29.120.40
K 31
General rules of reliability for low voltage apparatus
ISSUED ON. FEBRUARY 24, 2016
IMPLEMENTED ON. SEPTEMBER 01, 2016
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China;
Standardization Administration of the PRC.

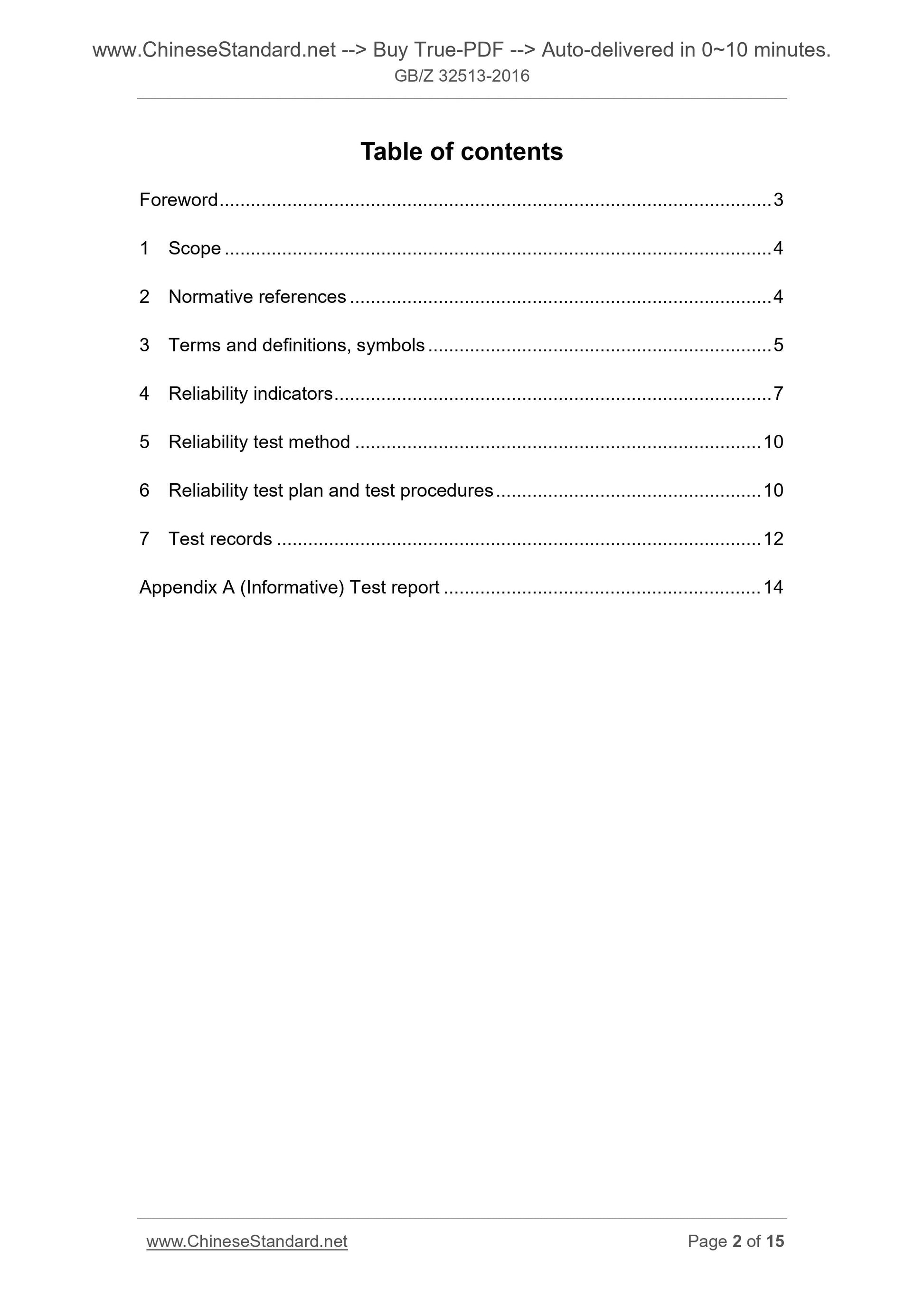

Table of contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Terms and definitions, symbols ... 5
4 Reliability indicators ... 7
5 Reliability test method ... 10
6 Reliability test plan and test procedures ... 10
7 Test records ... 12

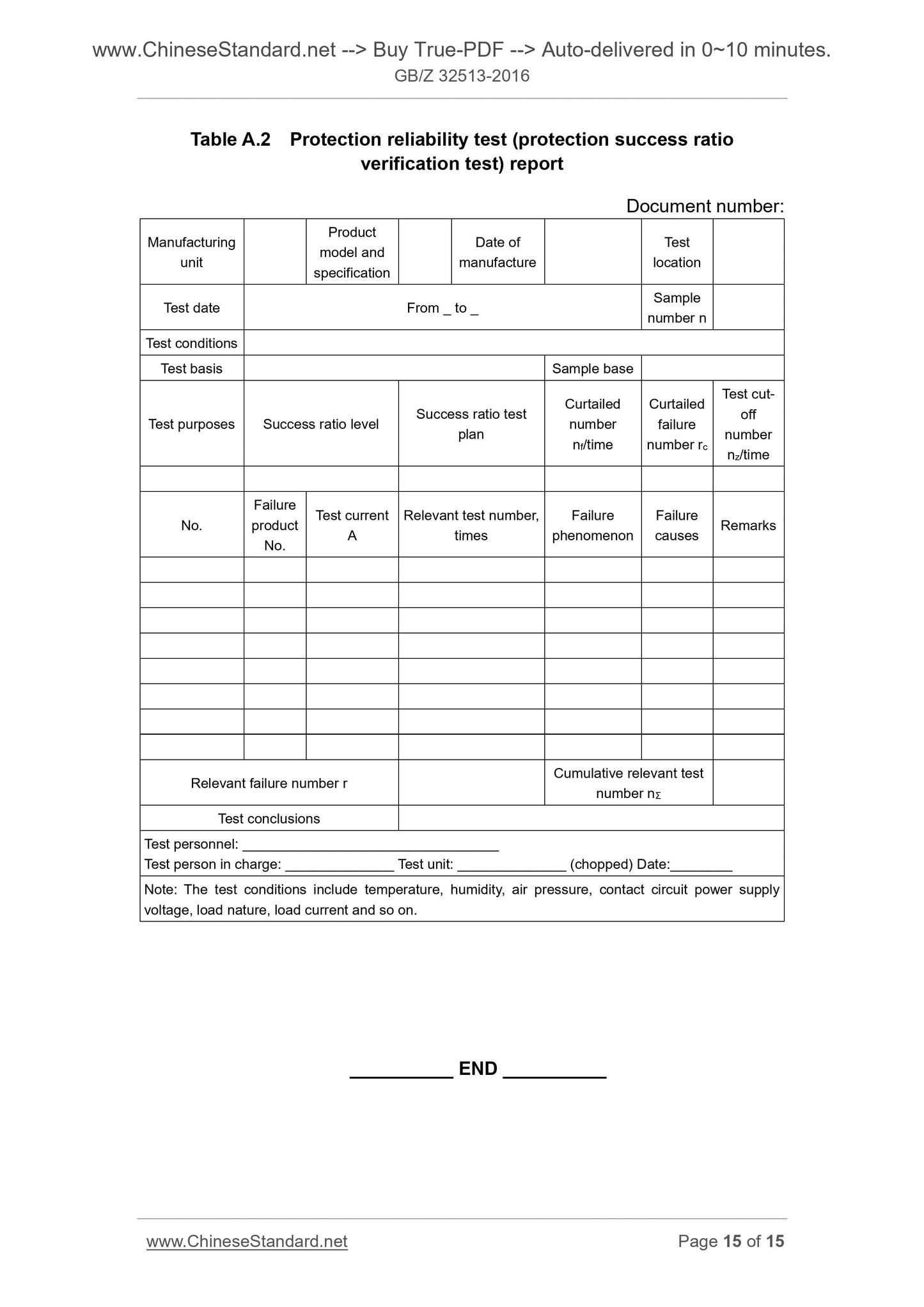

Appendix A (Informative) Test report ... 14

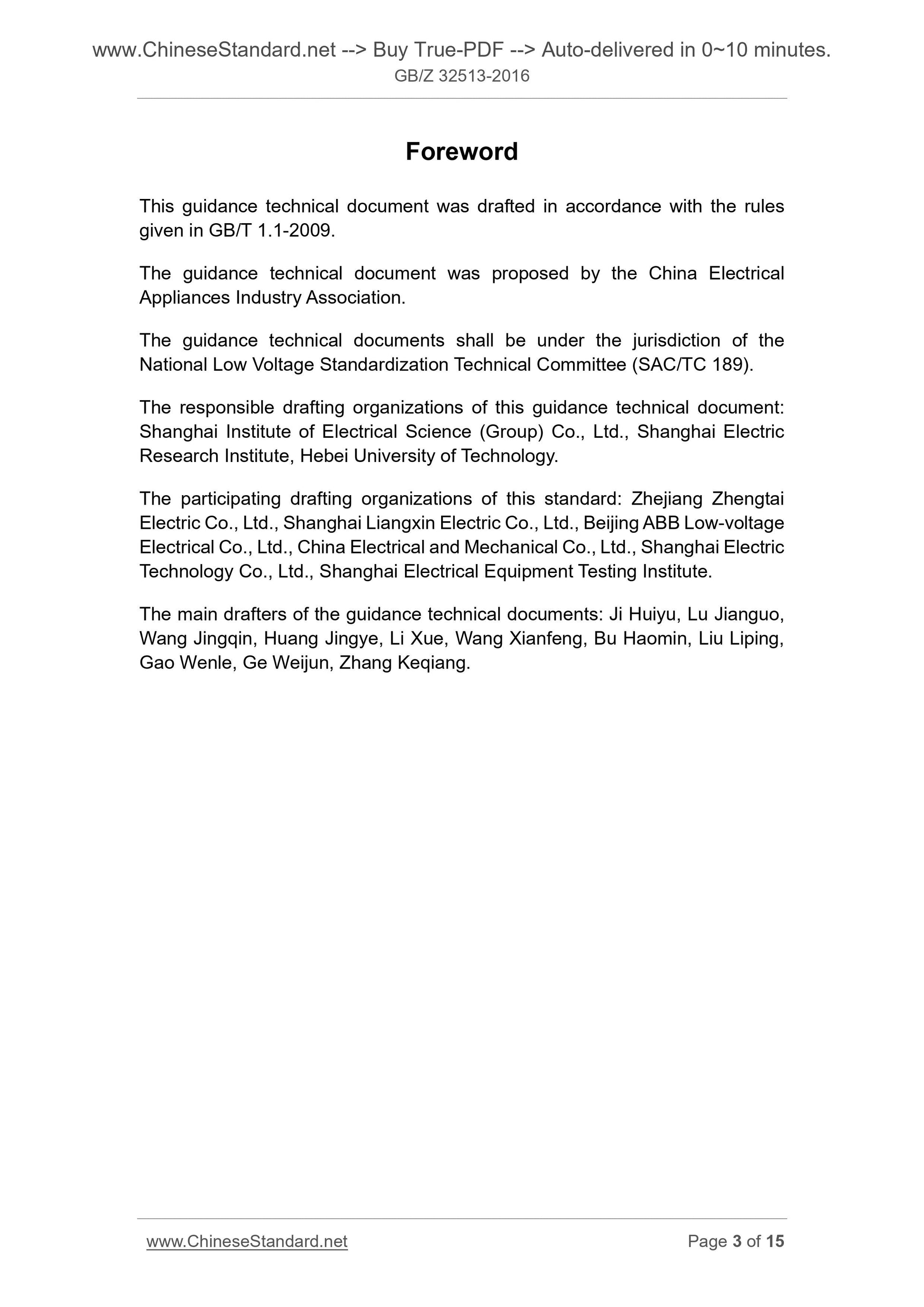

Foreword
This guidance technical document was drafted in accordance with the rules given in GB/T 1.1-2009.
The guidance technical document was proposed by the China Electrical
Appliances Industry Association.
The guidance technical documents shall be under the jurisdiction of the National Low Voltage Standardization Technical Committee (SAC/TC 189).
The responsible drafting organizations of this guidance technical document. Shanghai Institute of Electrical Science (Group) Co., Ltd., Shanghai Electric Research Institute, Hebei University of Technology.
The participating drafting organizations of this standard. Zhejiang Zhengtai Electric Co., Ltd., Shanghai Liangxin Electric Co., Ltd., Beijing ABB Low-voltage Electrical Co., Ltd., China Electrical and Mechanical Co., Ltd., Shanghai Electric Technology Co., Ltd., Shanghai Electrical Equipment Testing Institute.
The main drafters of the guidance technical documents. Ji Huiyu, Lu Jianguo, Wang Jingqin, Huang Jingye, Li Xue, Wang Xianfeng, Bu Haomin, Liu Liping, Gao Wenle, Ge Weijun, Zhang Keqiang.

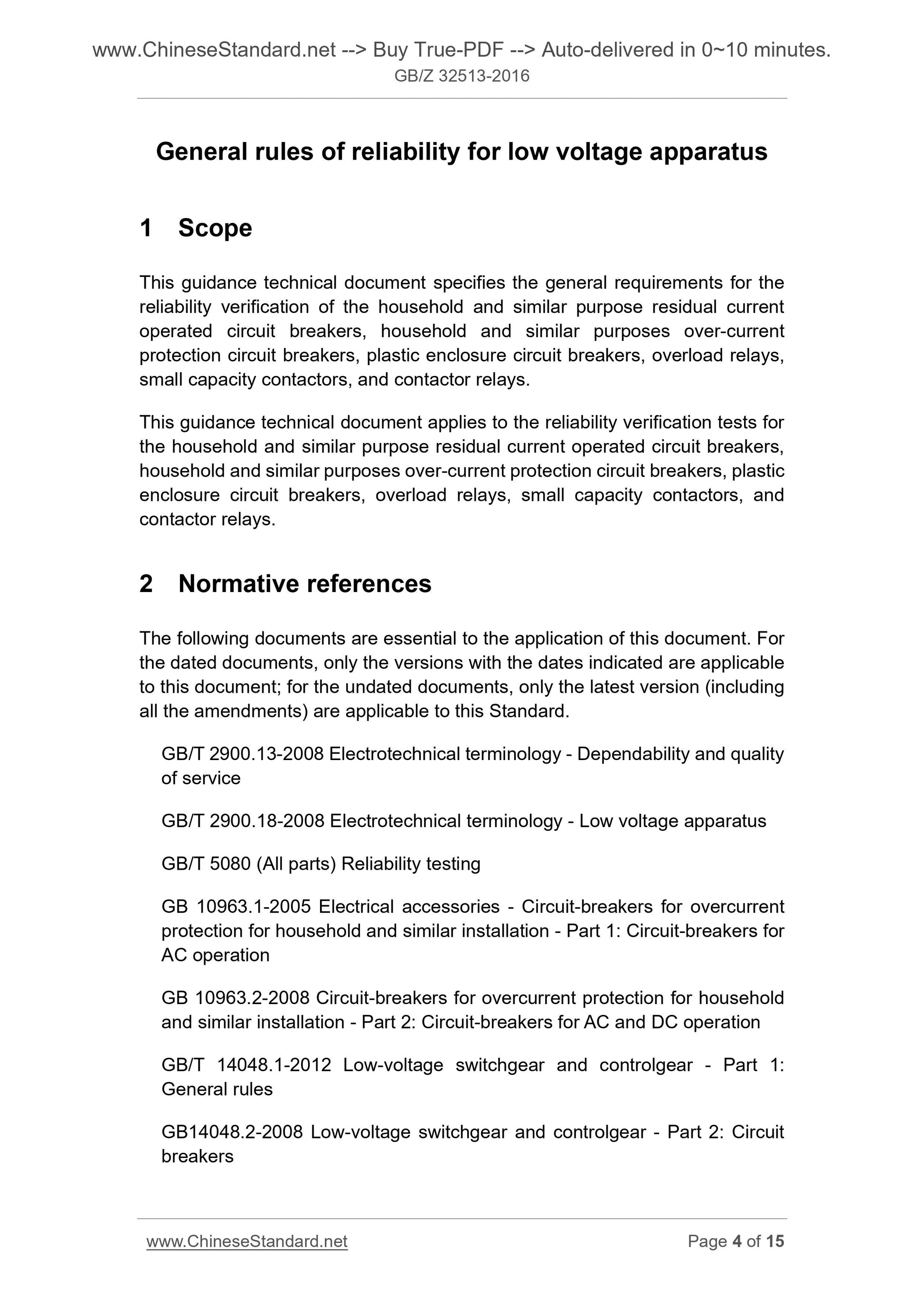

General rules of reliability for low voltage apparatus
1 Scope
This guidance technical document specifies the general requirements for the reliability verification of the household and similar purpose residual current operated circuit breakers, household and similar purposes over-current
protection circuit breakers, plastic enclosure circuit breakers, overload relays, small capacity contactors, and contactor relays.
This guidance technical document applies to the reliability verification tests for the household and similar purpose residual current operated circuit breakers, household and similar purposes over-current protection circuit breakers, plastic enclosure circuit breakers, overload relays, small capacity contactors, and contactor relays.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard.
GB/T 2900.13-2008 Electrotechnical terminology - Dependability and quality of service
GB/T 2900.18-2008 Electrotechnical terminology - Low voltage apparatus
GB/T 5080 (All parts) Reliability testing
GB 10963.1-2005 Electrical accessories - Circuit-breakers for overcurrent protection for household and similar installation - Part 1. Circuit-breakers for AC operation
GB 10963.2-2008 Circuit-breakers for overcurrent protection for household and similar installation - Part 2. Circuit-breakers for AC and DC operation GB/T 14048.1-2012 Low-voltage switchgear and controlgear - Part 1.
General rules
GB14048.2-2008 Low-voltage switchgear and controlgear - Part 2. Circuit breakers

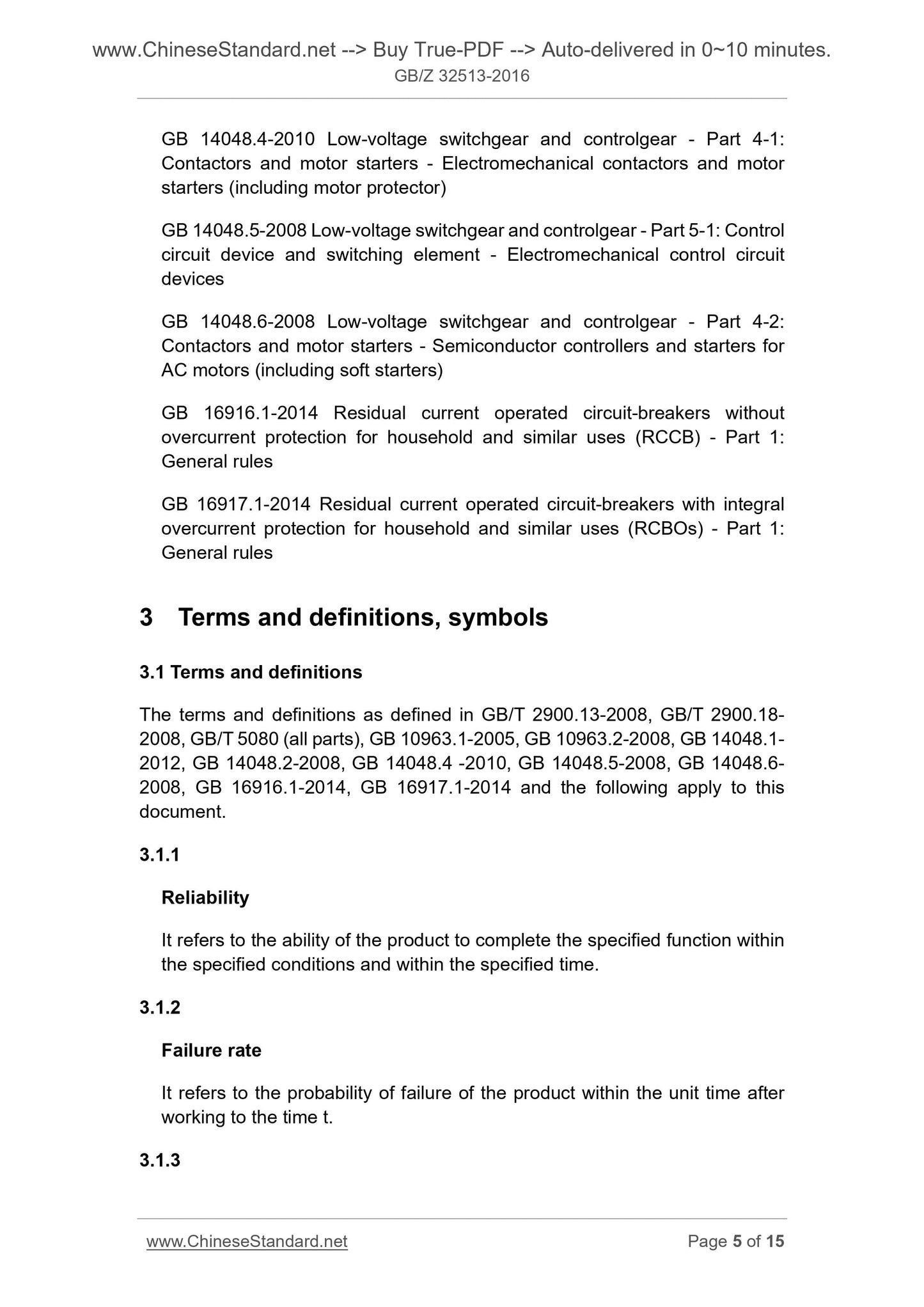

GB 14048.4-2010 Low-voltage switchgear and controlgear - Part 4-1.
Contactors and motor starters - Electromechanical contactors and motor
starters (including motor protector)
GB 14048.5-2008 Low-voltage switchgear and controlgear - Part 5-1. Control circuit device and switching element - Electromechanical control circuit devices
GB 14048.6-2008 Low-voltage switchgear and controlgear - Part 4-2.
Contactors and motor starters - Semiconductor controllers and starters for AC motors (including soft starters)
GB 16916.1-2014 Residual current operated circuit-breakers without
overcurrent protection for household and similar uses (RCCB) - Part 1.
General rules
GB 16917.1-2014 Residual current operated circuit-breakers with integral overcurrent protection for household and similar uses (RCBOs) - Part 1. General rules
3 Terms and definitions, symbols
3.1 Terms and definitions
The terms and definitions as defined in GB/T 2900.13-2008, GB/T 2900.18- 2008, GB/T 5080 (all parts), GB 10963.1-2005, GB 10963.2-2008, GB 14048.1- 2012, GB 14048.2-2008, GB 14048.4 -2010, GB 14048.5-2008, GB 14048.6-
2008, GB 16916.1-2014, GB 16917.1-2014 and the following apply to this
document.
3.1.1
Reliability
It refers to the ability of the product to complete the specified function within the specified conditions and within the specified time.
3.1.2
Failure rate
It refers to the probability of failure of the product within the unit time after working to the time t.
3.1.3

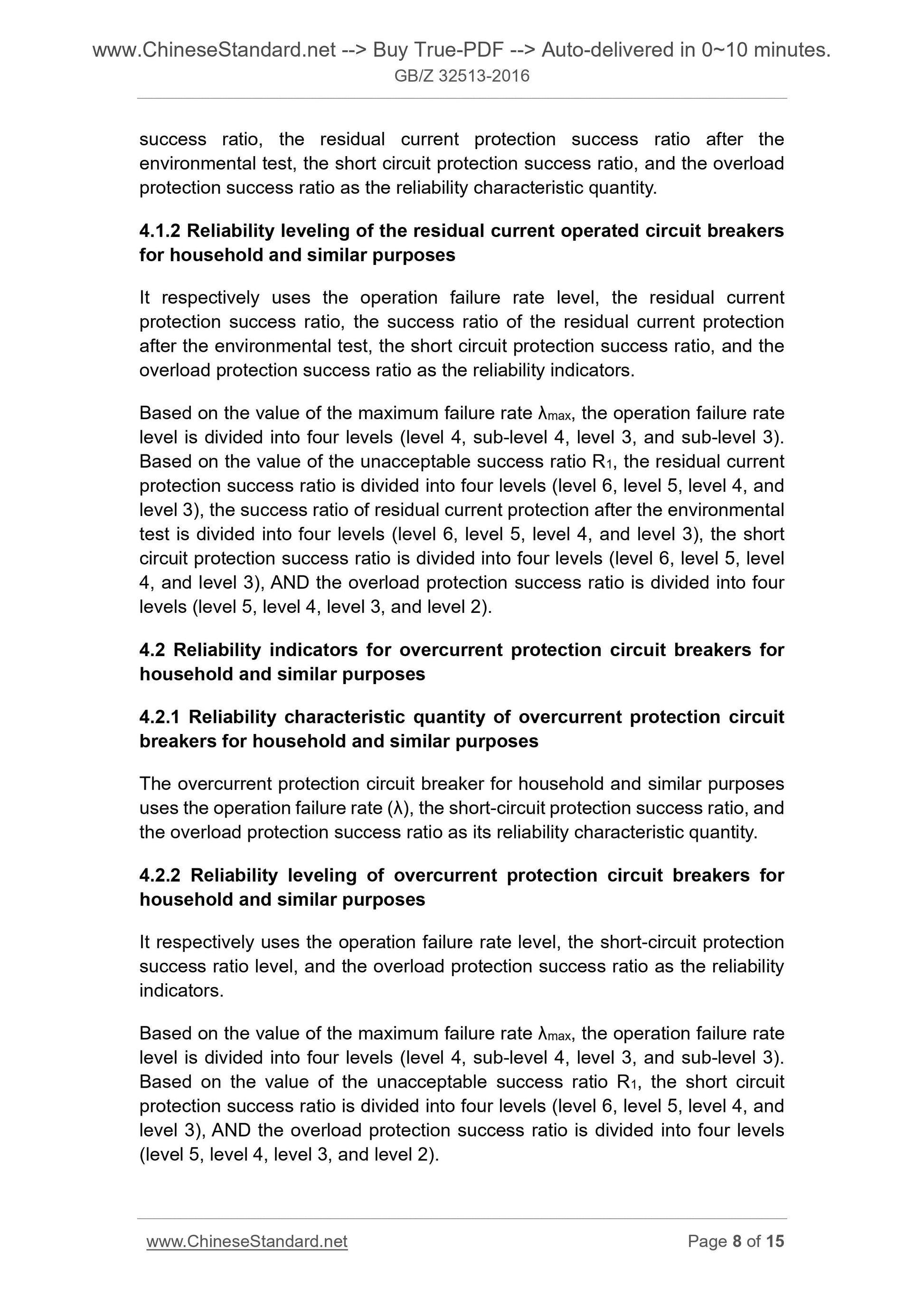

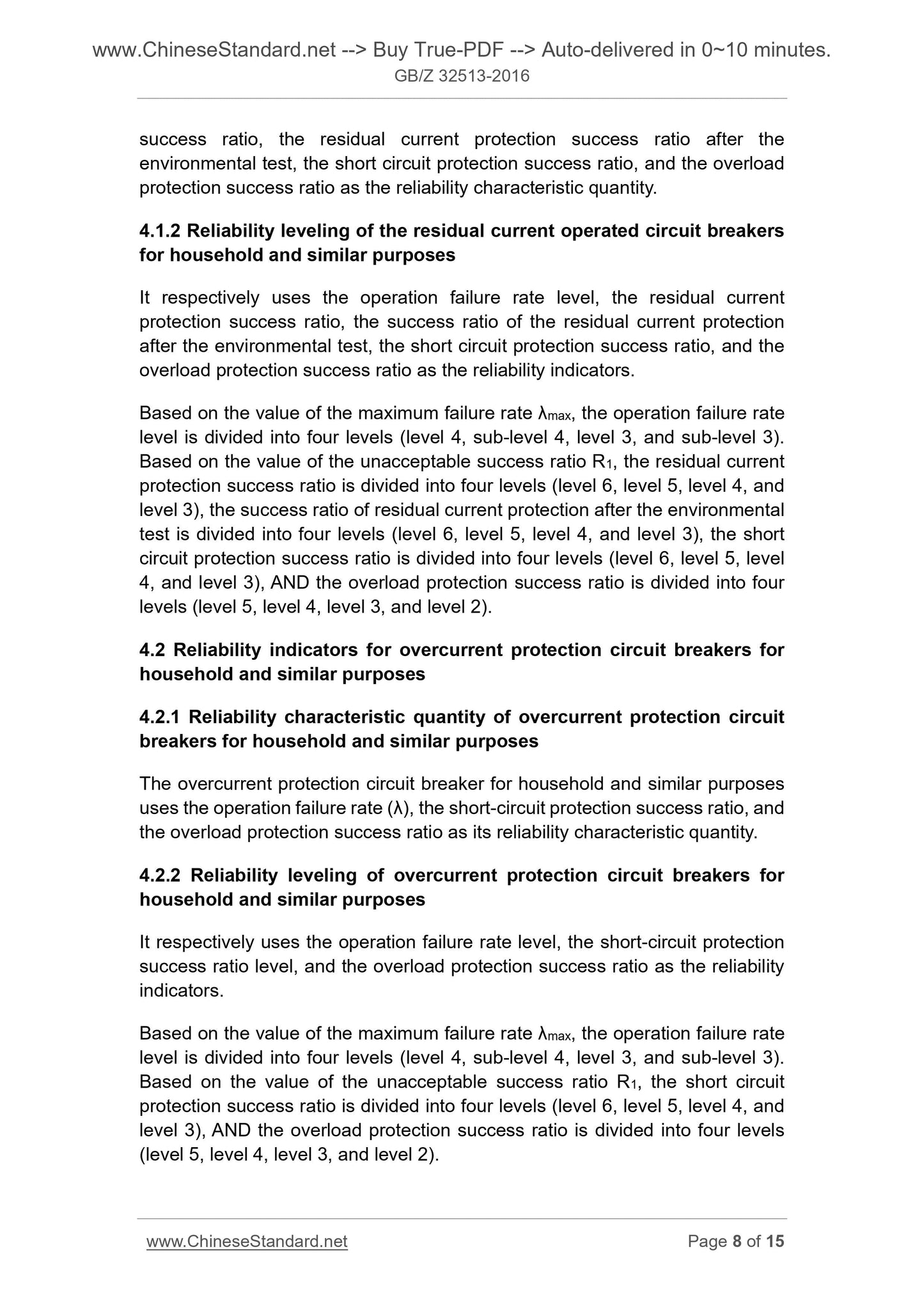

success ratio, the residual current protection success ratio after the
environmental test, the short circuit protection success ratio, and the overload protection success ratio as the reliability characteristic quantity.
4.1.2 Reliability leveling of the residual current operated circuit breakers for household and similar purposes
It respectively uses the operation failure rate level, the residual current protection success ratio, the success ratio of the residual current protection after the environmental test, the short circuit protection success ratio, and the overload protection success ratio as the reliability indicators.
Based on the value of the maximum failure rate ??max, the operation failure rate level is divided into four levels (level 4, sub-level 4, level 3, and sub-level 3). Based on the value of the unacceptable success ratio R1, the residual current protection success ratio is divided into four levels (level 6, level 5, level 4, and level 3), the success ratio of residual current protection after the environmental test is divided into four levels (level 6, level 5, level 4, and level 3), the short circuit protection success ratio is divided into four levels (level 6, level 5, level 4, and level 3), AND the overload protection success ratio is divided into four levels (level 5, level 4, level 3, and level 2).
4.2 Reliability indicators for overcurrent protection circuit breakers for household and similar purposes
4.2.1 Reliability characteristic quantity of overcurrent protection circuit breakers for household and similar purposes
The overcurrent protection circuit breaker for household and similar purposes uses the operation failure rate (??), the short-circuit protection success ratio, and the overload protection success ratio as its reliability characteristic quantity. 4.2.2 Reliability leveling of overcurrent protection circuit breakers for household and similar purposes
It respectively uses the operation failure rate level, the short-circuit protection success ratio level, and the overload protection success ratio as the reliability indicators.
Based on the value of the maximum failure rate ??max, the operation failure rate level is divided into four levels (level 4, sub-level 4, level 3, and sub-level 3). Based on the value of the unacceptable success ratio R1, the short circuit protection success ratio is divided into four levels (level 6, level 5, level 4, and level 3), AND the overload protection success ratio is divided into four levels (level 5, level 4, level 3, and level 2).

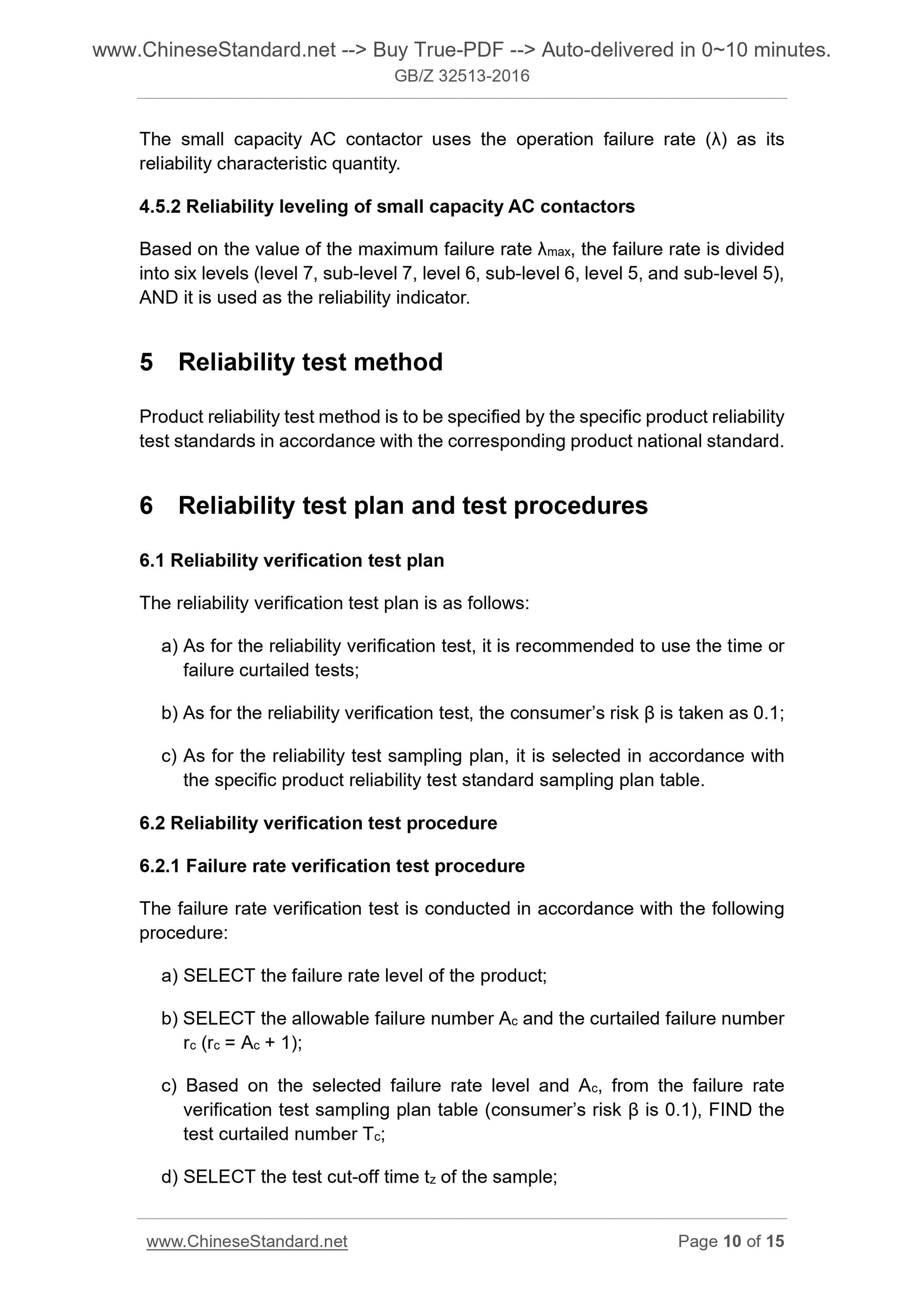

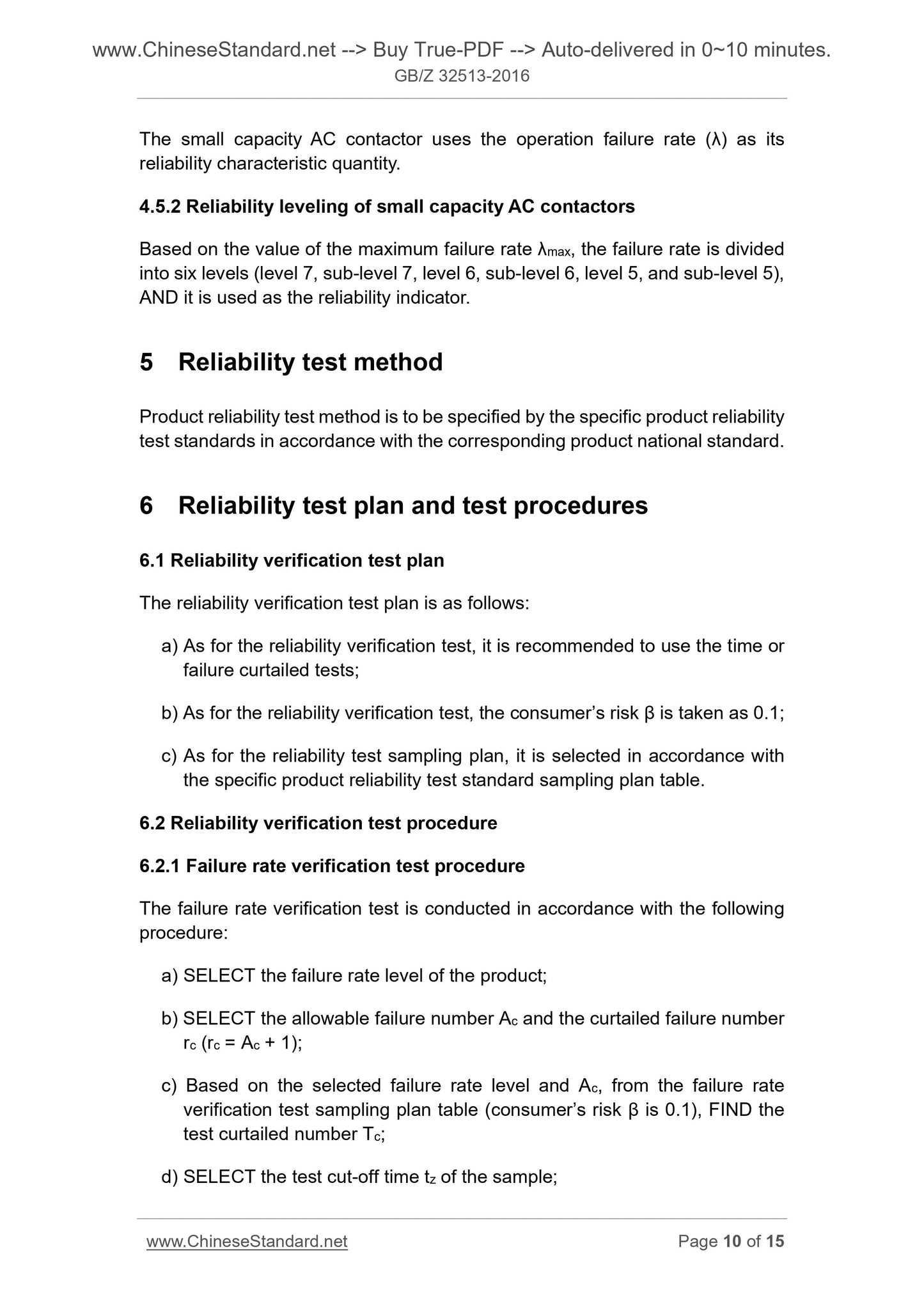

The small capacity AC contactor uses the operation failure rate (??) as its reliability characteristic quantity.
4.5.2 Reliability leveling of small capacity AC contactors
Based on the value of the maximum failure rate ??max, the failure rate is divided into six levels (level 7, sub-level 7, level 6, sub-level 6, level 5, and sub-level 5), AND it is used as the reliability indicator.
5 Reliability test method
Product reliability test method is to be specified by the specific product reliability test standards in accordance with the corresponding product national standard. 6 Reliability test plan and test procedures
6.1 Reliability verification test plan
The reliability verification test plan is as follows.
a) As for the reliability verification test, it is recommended to use the time or failure curtailed tests;
b) As for the reliability verification test, the consumer?€?s risk ?? is taken as 0.1; c) As for the reliability test sampling plan, it is selected in accordance with the specific product reliability test standard sampling plan table.
6.2 Reliability verification test procedure
6.2.1 Failure rate verification test procedure
The failure rate verification test is conducted in accordance with the following procedure.
a) SELECT the failure rate level of the product;
b) SELECT the allowable failure number Ac and the curtailed failure number rc (rc = Ac + 1);
c) Based on the selected failure rate level and Ac, from the failure rate verific...
