GB/T 972-2008: Thread rolling flat dies

This Standard stipulates the basic requirements for the type and size, profile size and deviation, technical requirements, marking and packaging of thread rolling flat dies for general purpose metric screw threads. This Standard applies to thread rolling flat dies for processing general purpose metric screw threads (GB/T 192~193, GB/T 196~197). Thread rolling flat dies are divided into three precision grades: grade 1, grade 2 and grade 3. Grade 1 applies to the processing of external threads with tolerance grades 4 and 5; grade 2 applies to the processing of external threads with tolerance grades 5 and 6; grade 3 applies to the processing of external threads with tolerance grades 6 and 7.

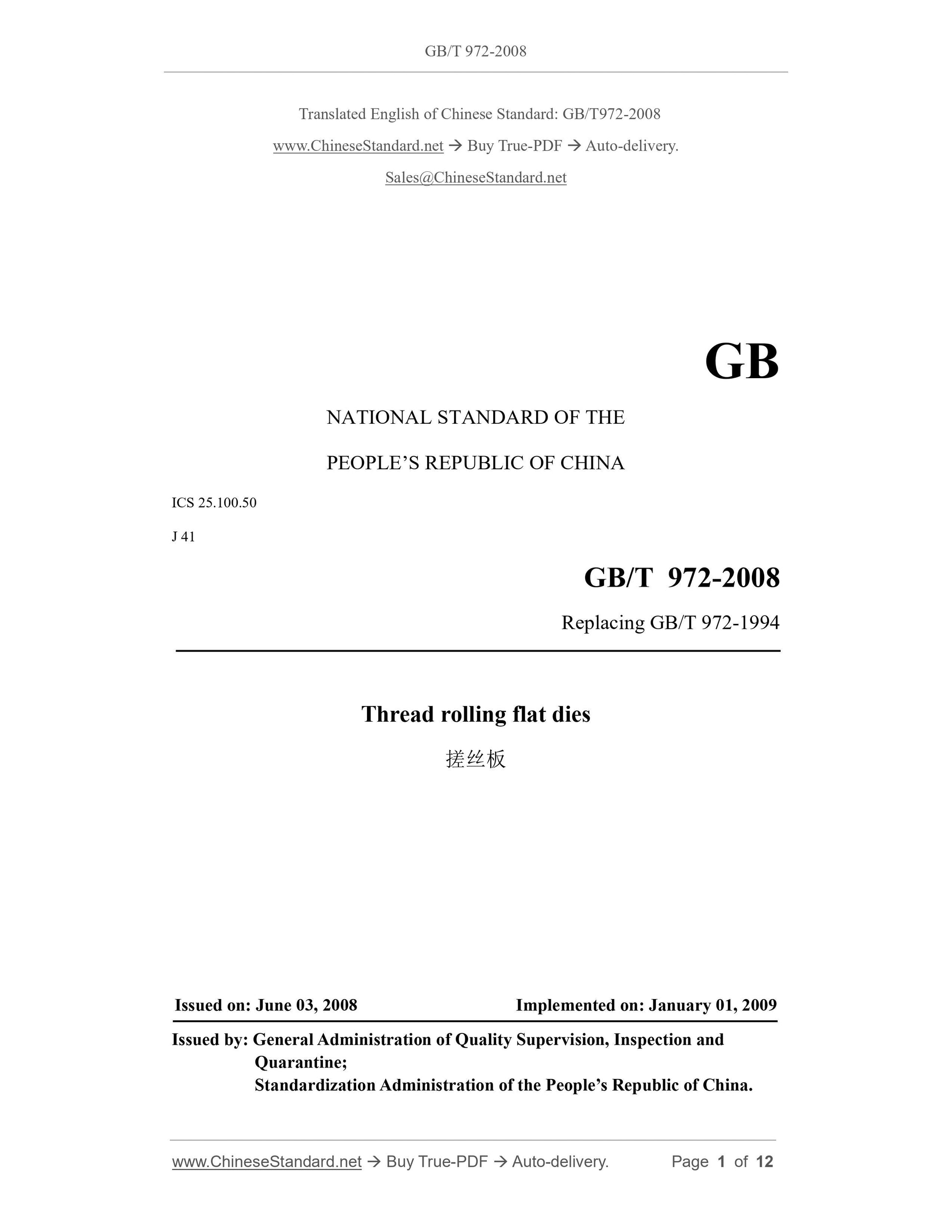

GB/T 972-2008
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 25.100.50
J 41
Replacing GB/T 972-1994
Thread rolling flat dies
?????????
ISSUED ON: JUNE 03, 2008
IMPLEMENTED ON: JANUARY 01, 2009
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the PEOPLE Republic of China.

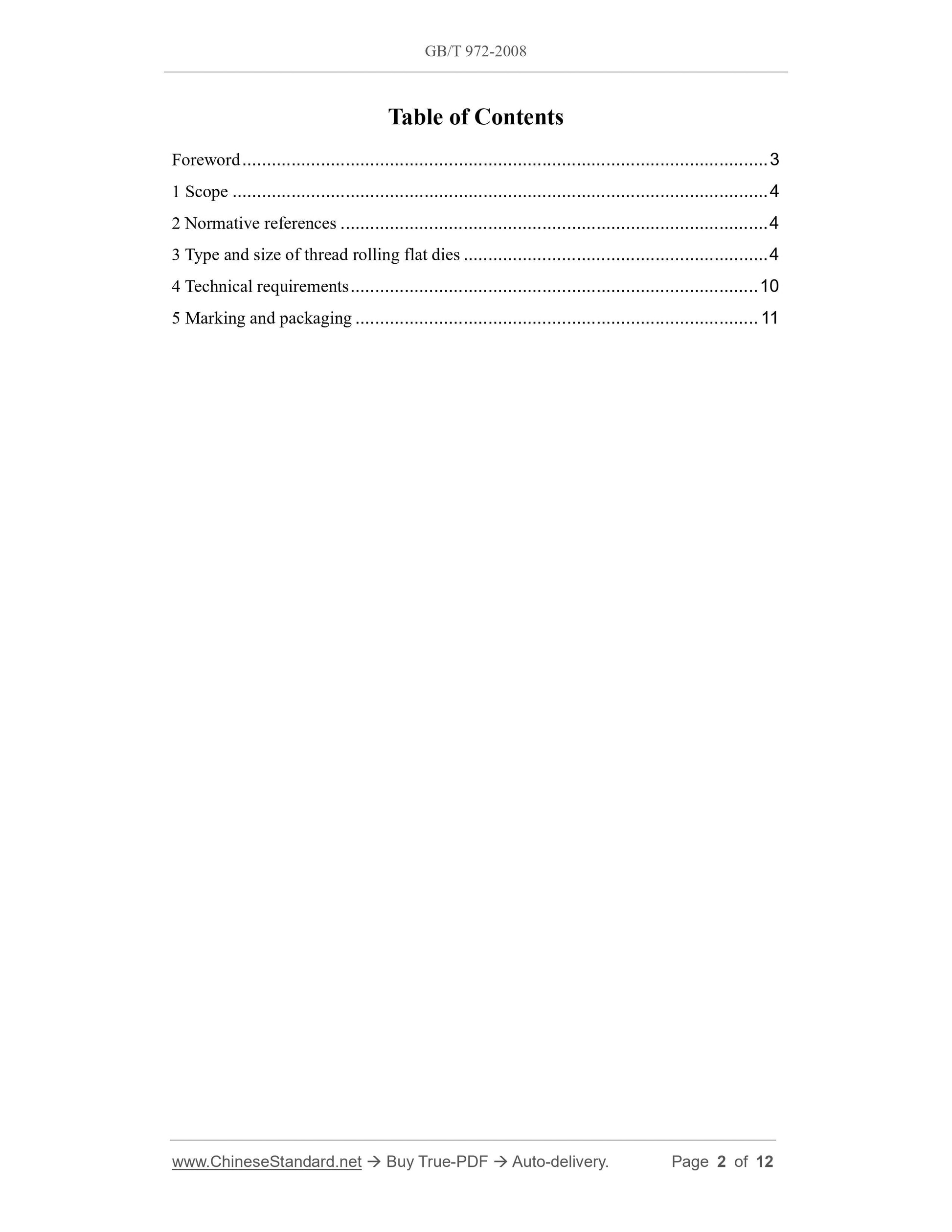

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Type and size of thread rolling flat dies ... 4
4 Technical requirements ... 10
5 Marking and packaging ... 11
Thread rolling flat dies

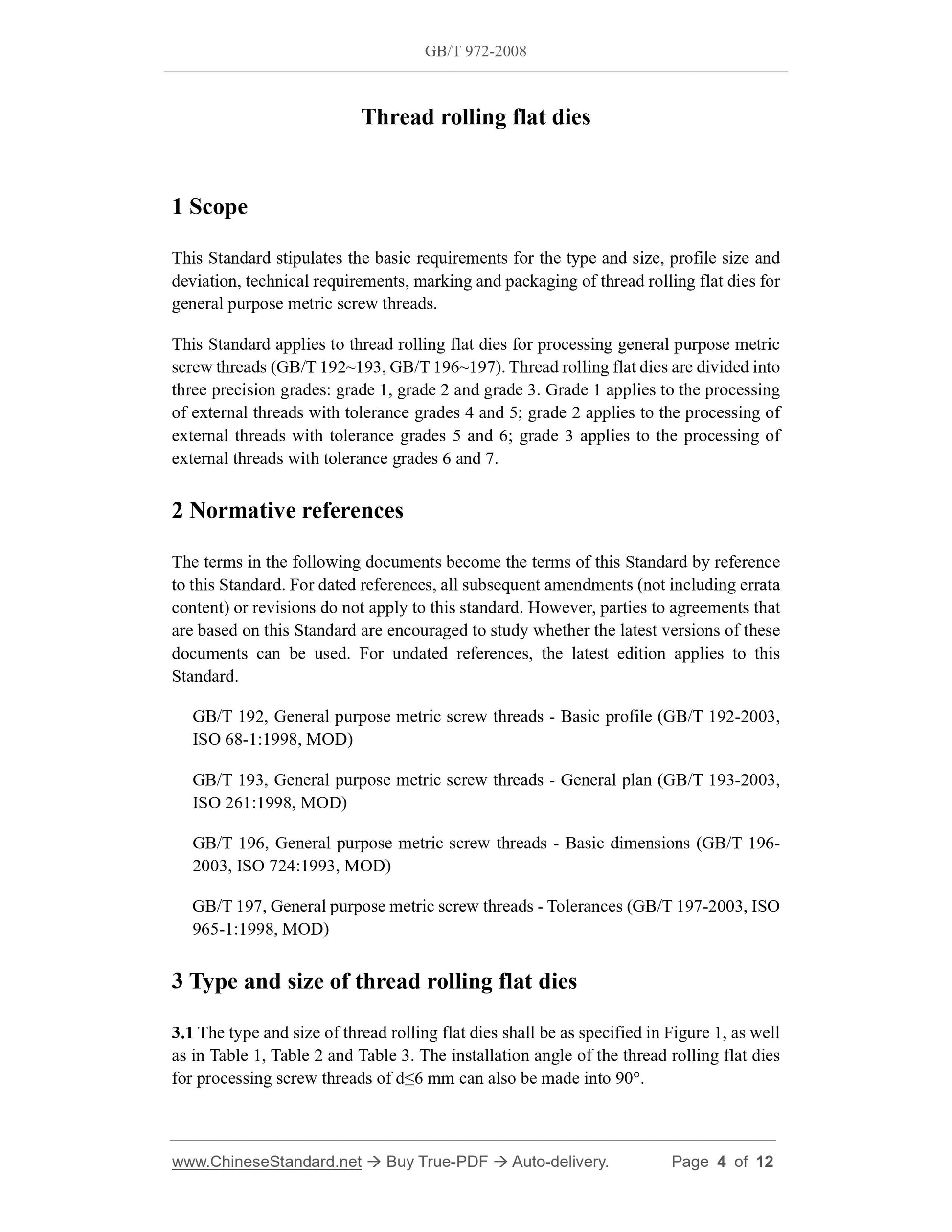

1 Scope
This Standard stipulates the basic requirements for the type and size, profile size and deviation, technical requirements, marking and packaging of thread rolling flat dies for general purpose metric screw threads.
This Standard applies to thread rolling flat dies for processing general purpose metric screw threads (GB/T 192~193, GB/T 196~197). Thread rolling flat dies are divided into three precision grades: grade 1, grade 2 and grade 3. Grade 1 applies to the processing of external threads with tolerance grades 4 and 5; grade 2 applies to the processing of external threads with tolerance grades 5 and 6; grade 3 applies to the processing of external threads with tolerance grades 6 and 7.
2 Normative references
The terms in the following documents become the terms of this Standard by reference to this Standard. For dated references, all subsequent amendments (not including errata content) or revisions do not apply to this standard. However, parties to agreements that are based on this Standard are encouraged to study whether the latest versions of these documents can be used. For undated references, the latest edition applies to this Standard.
GB/T 192, General purpose metric screw threads - Basic profile (GB/T 192-2003, ISO 68-1:1998, MOD)
GB/T 193, General purpose metric screw threads - General plan (GB/T 193-2003, ISO 261:1998, MOD)
GB/T 196, General purpose metric screw threads - Basic dimensions (GB/T 196- 2003, ISO 724:1993, MOD)
GB/T 197, General purpose metric screw threads - Tolerances (GB/T 197-2003, ISO 965-1:1998, MOD)
3 Type and size of thread rolling flat dies
3.1 The type and size of thread rolling flat dies shall be as specified in Figure 1, as well as in Table 1, Table 2 and Table 3. The installation angle of the thread rolling flat dies for processing screw threads of d???6 mm can also be made into 90??.
The thread rolling flat die of coarse pitch thread -- nominal diameter of processed thread 8 mm, pitch 1.25 mm, width 50 mm, fixed thread rolling flat die length 110 mm, precision grade 2, thread profile A: Thread rolling flat die AM8??50/110-2 GB/T 972- 2008
The thread rolling flat die of fine pitch thread -- nominal diameter of processed thread 8 mm, pitch 1.00 mm, width 50 mm, fixed thread rolling flat die length 110 mm, precision grade 2, thread profile A: Thread rolling flat die AM8??1??50/110-2 GB/T 972- 2008
Thread rolling flat dies for left screw threads shall be marked with ?€?LH?€? after the precision.

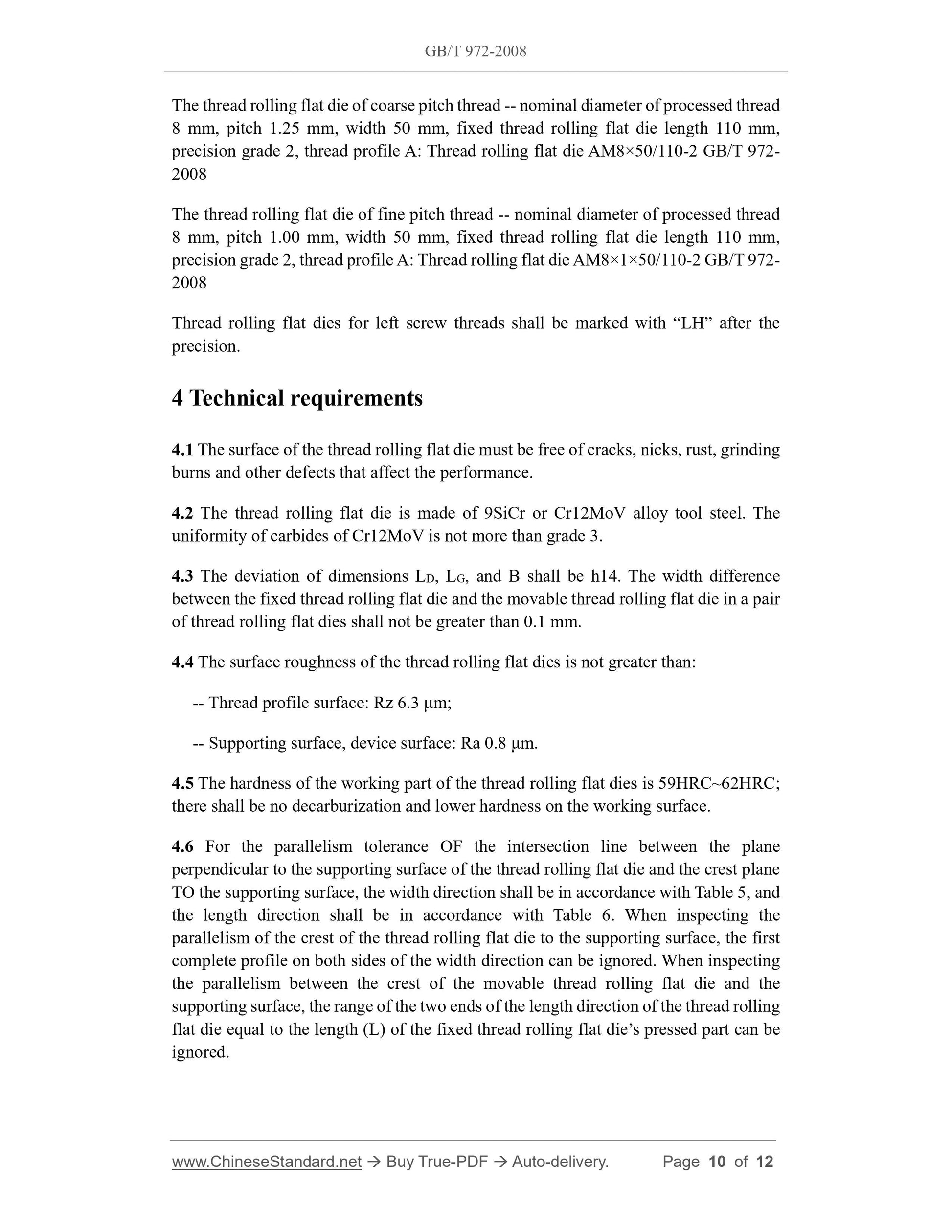

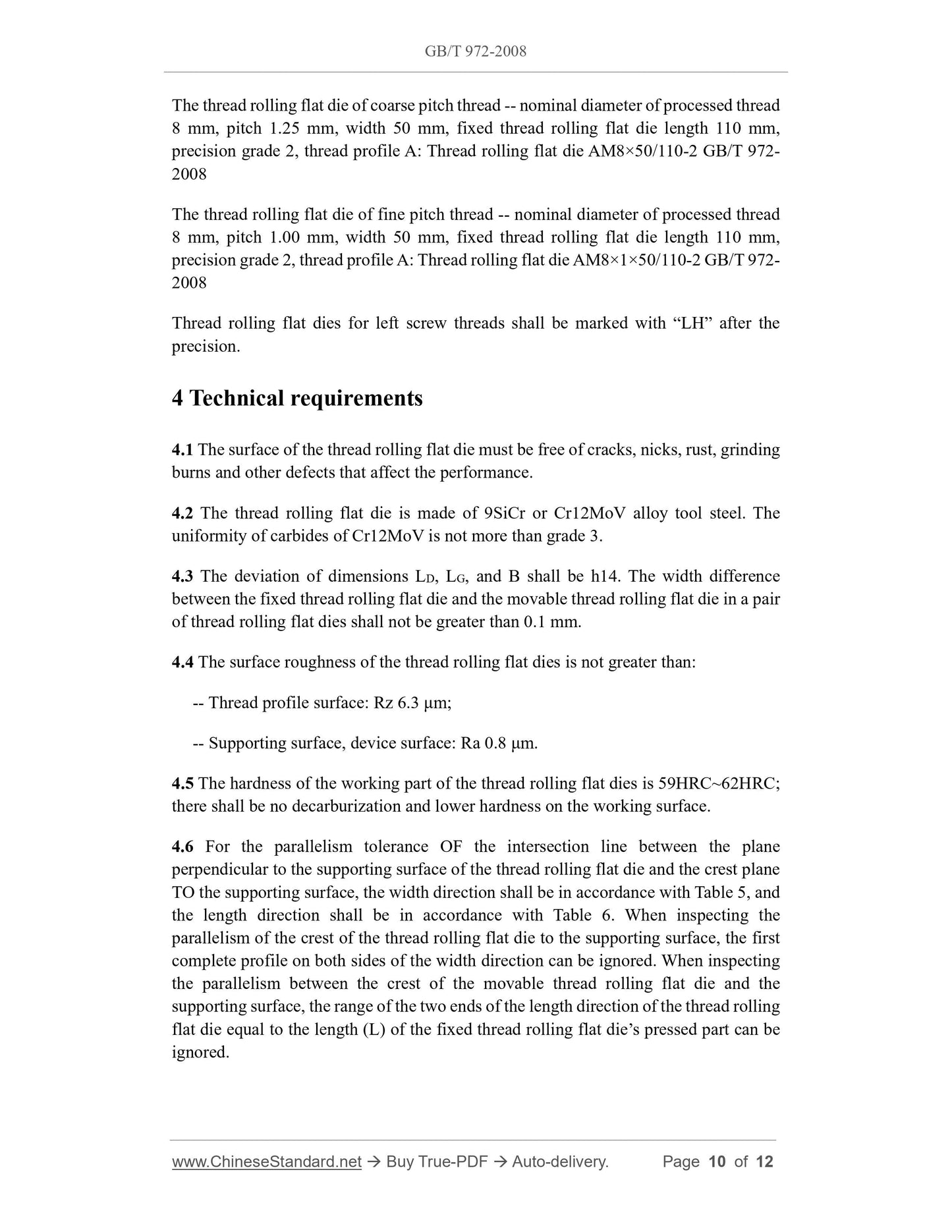

4 Technical requirements
