GB/T 953-1988 English PDF (GBT953-1988)

GB/T 953-1988 English PDF (GBT953-1988)

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: 24-hr self-service. Click GB/T 953-1988
See Chinese contents: GB/T 953-1988

GB/T 953-1988: Double end studs (clamping type). Product grade C

This Standard specifies double end studs of product grade C with the thread diameter of M8 ~ M48.

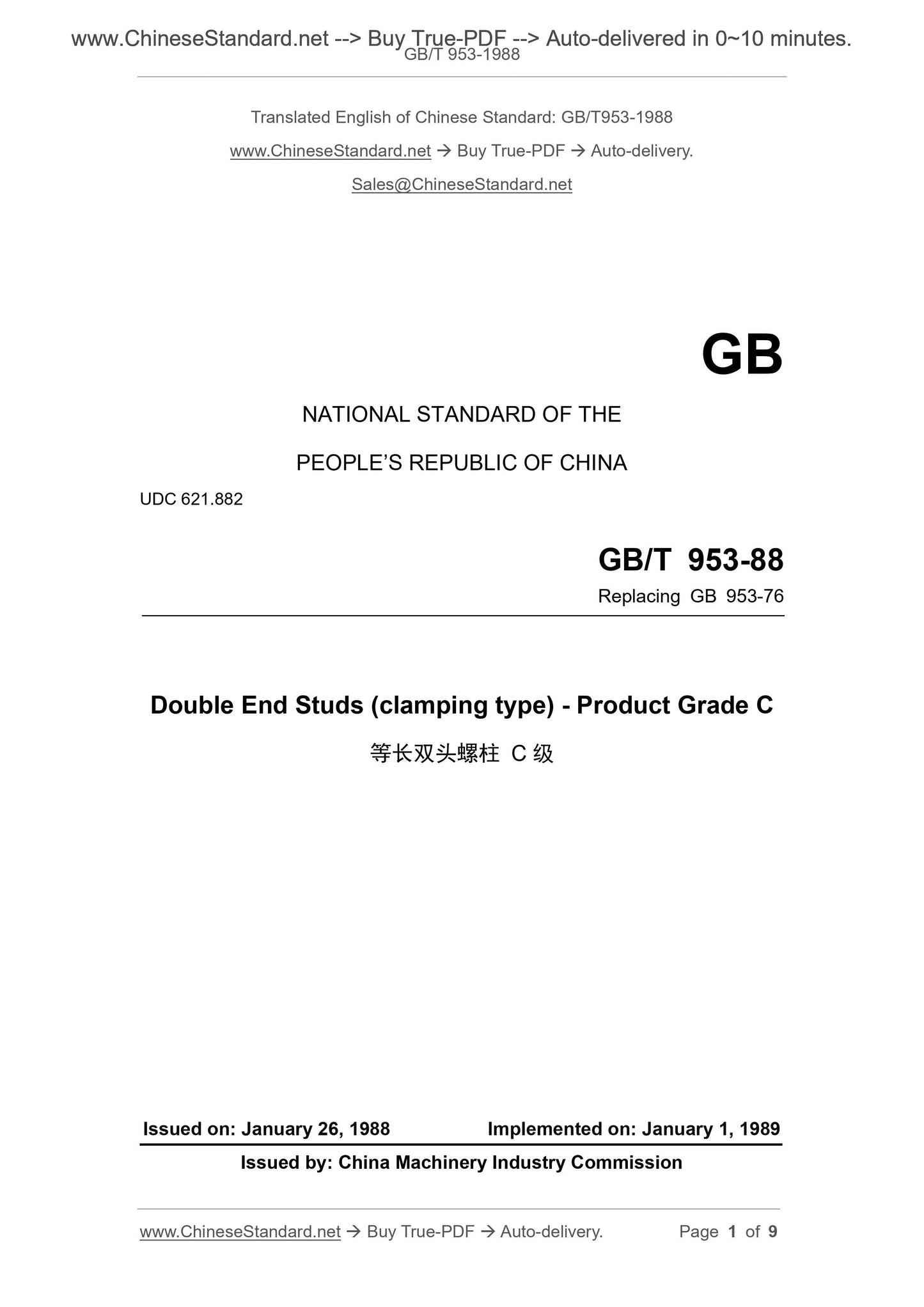

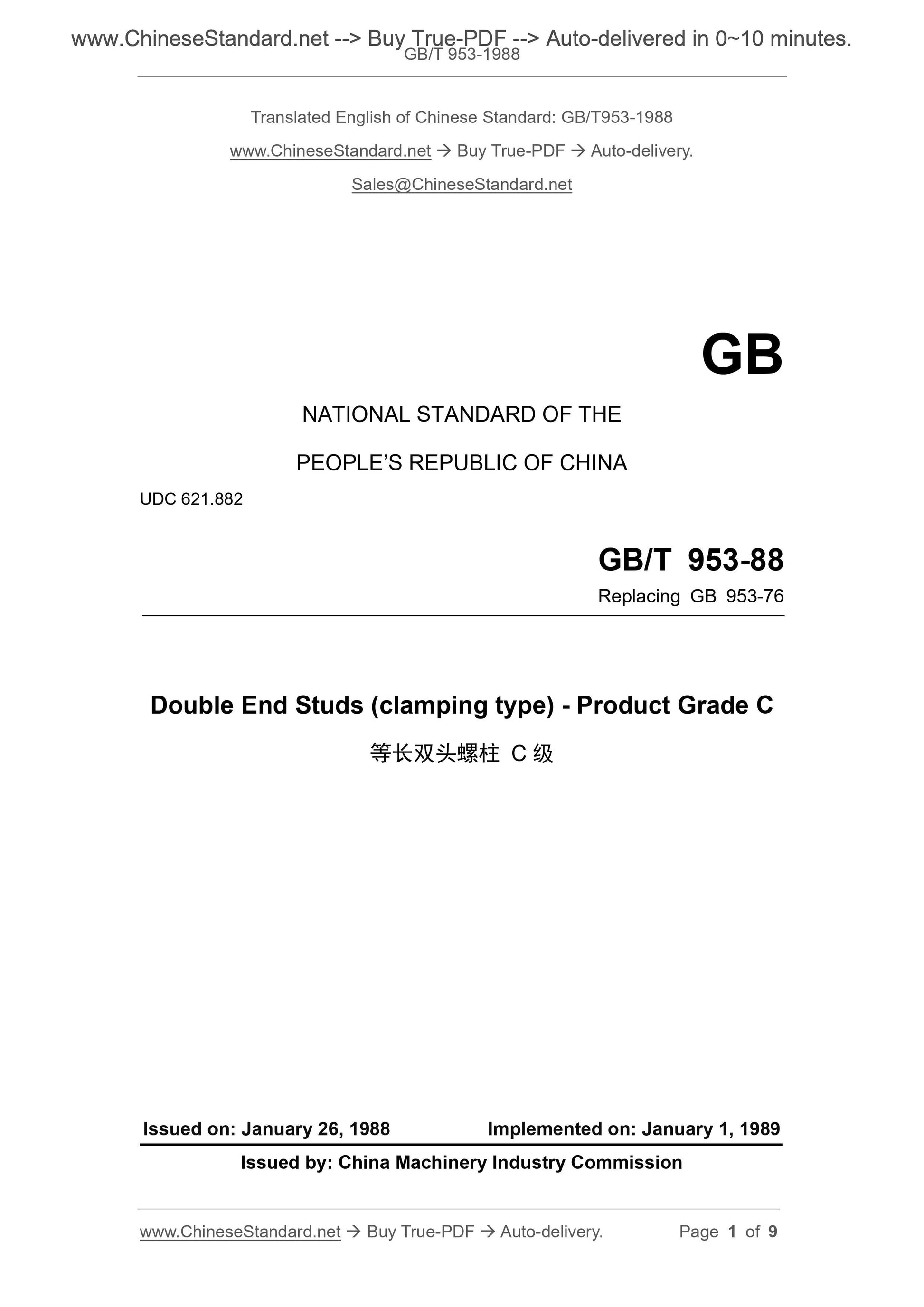

GB/T 953-1988
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
UDC 621.882
GB/T 953-88
Replacing GB 953-76
Double End Studs (clamping type) - Product Grade C
?????????????????? C???
ISSUED ON. JANUARY 26, 1988
IMPLEMENTED ON. JANUARY 1, 1989
Issued by. China Machinery Industry Commission

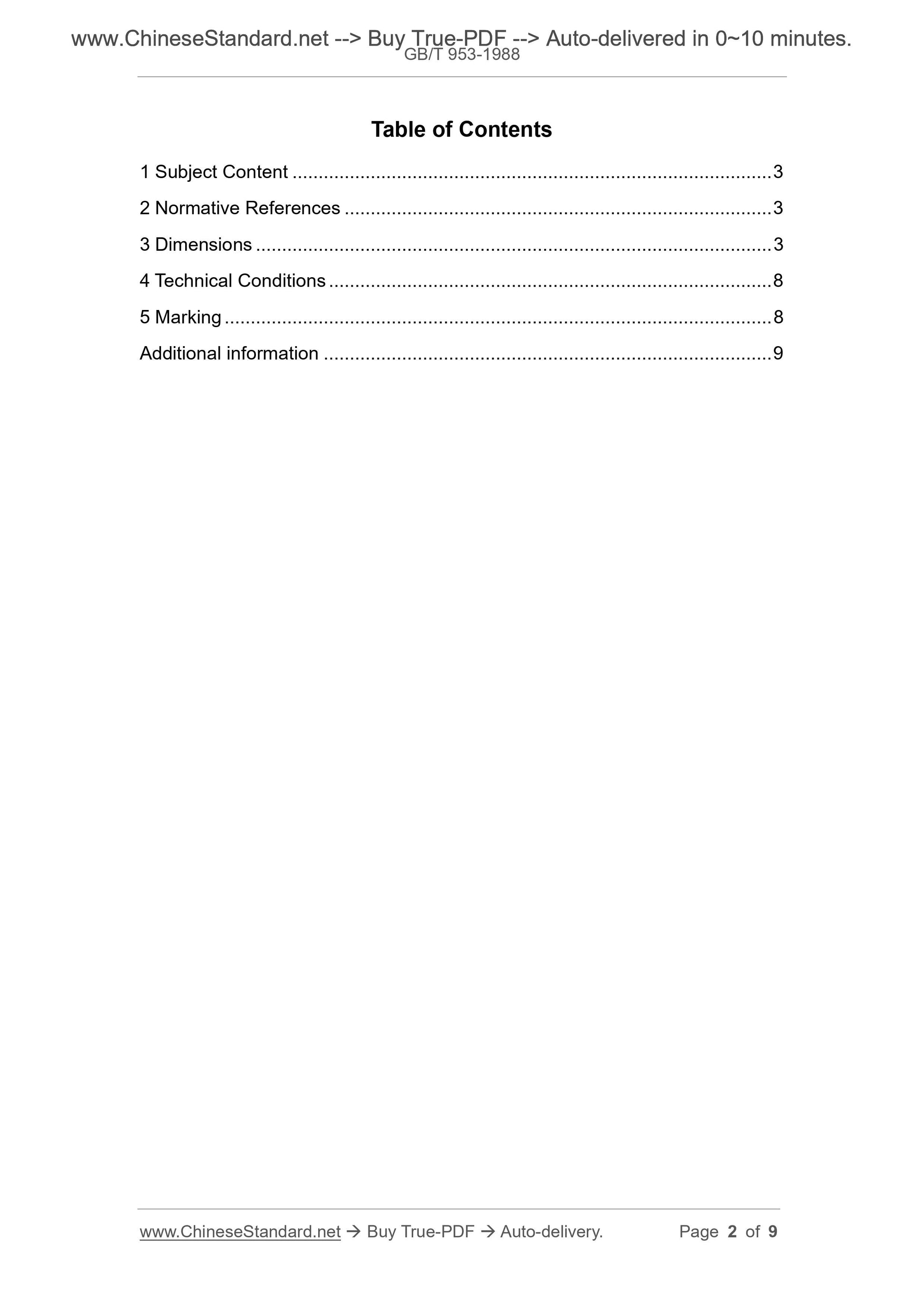

Table of Contents
1 Subject Content ... 3
2 Normative References ... 3
3 Dimensions ... 3
4 Technical Conditions ... 8
5 Marking ... 8
Additional information ... 9

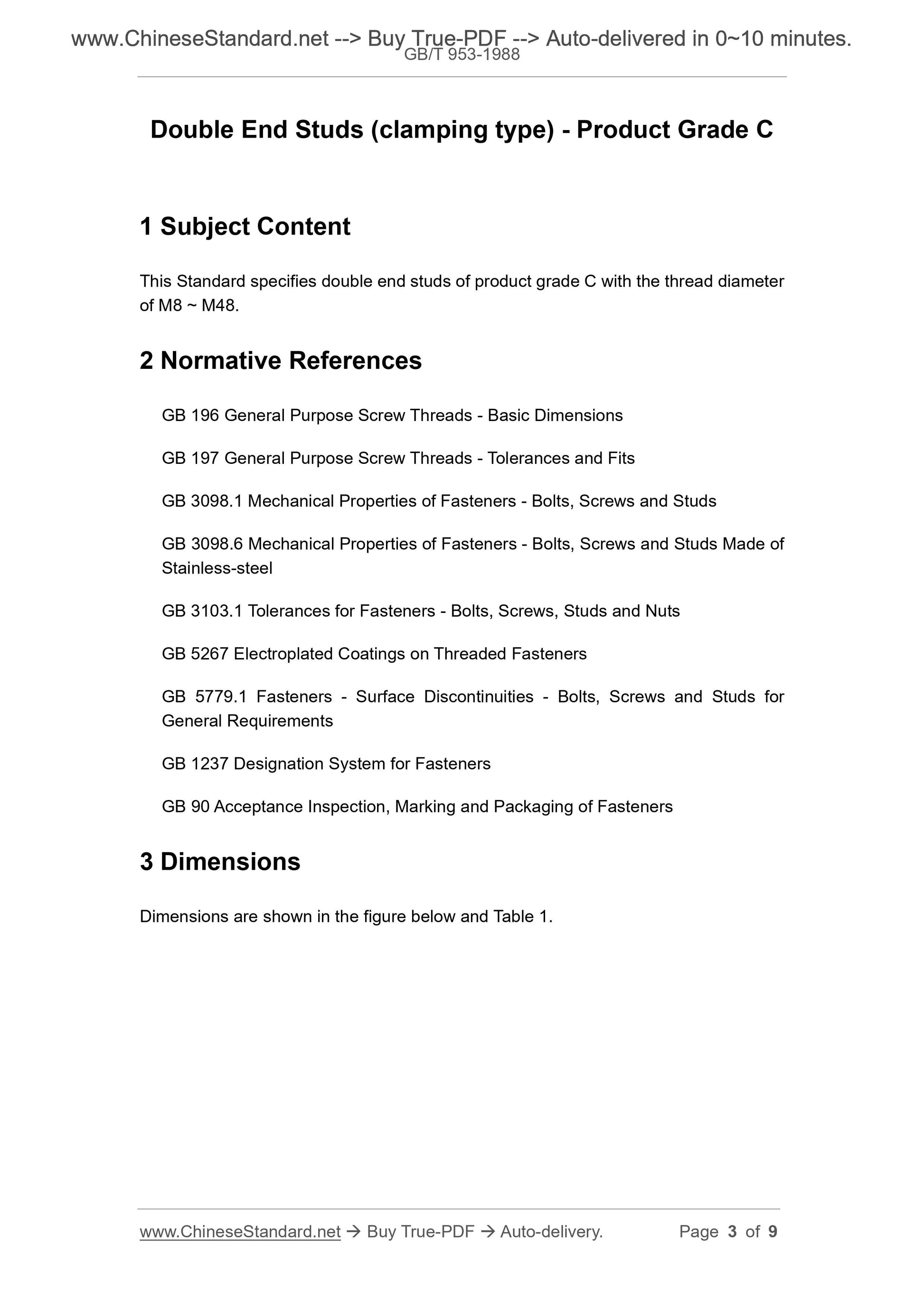

Double End Studs (clamping type) - Product Grade C
1 Subject Content
This Standard specifies double end studs of product grade C with the thread diameter of M8 ~ M48.
2 Normative References
GB 196 General Purpose Screw Threads - Basic Dimensions
GB 197 General Purpose Screw Threads - Tolerances and Fits
GB 3098.1 Mechanical Properties of Fasteners - Bolts, Screws and Studs
GB 3098.6 Mechanical Properties of Fasteners - Bolts, Screws and Studs Made of Stainless-steel
GB 3103.1 Tolerances for Fasteners - Bolts, Screws, Studs and Nuts
GB 5267 Electroplated Coatings on Threaded Fasteners
GB 5779.1 Fasteners - Surface Discontinuities - Bolts, Screws and Studs for General Requirements
GB 1237 Designation System for Fasteners
GB 90 Acceptance Inspection, Marking and Packaging of Fasteners
3 Dimensions
Dimensions are shown in the figure below and Table 1.
