GB/T 8577-2010 English PDF (GBT8577-2010)

GB/T 8577-2010 English PDF (GBT8577-2010)

Regular price $85.00 USD
Regular price Sale price $85.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 8577-2010 to get it for Purchase Approval, Bank TT...

GB/T 8577-2010: Determination of free water for compound fertilizers -- Karl Fischer method

This Standard specifies the determination of free water content for compound fertilizers by the method of using dioxane to extract the free water from the fertilizer and then using the Karl Fischer reagent to titrate.
GB/T 8577-2010
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 65.080
G 20
Replacing GB/T 8577-2002
Determination of free water for
compound fertilizers - Karl Fischer method
ISSUED ON. SEPTEMBER 26, 2010
IMPLEMENTED ON. MARCH 1, 2011
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.
Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Principle ... 4
4 Reagents and materials ... 4
5 Instruments ... 5
6 Analysis steps ... 5
7 Expression of analysis results ... 6
Determination of free water for
compound fertilizers - Karl Fischer method
1 Scope
This Standard specifies the determination of free water content for compound fertilizers by the method of using dioxane to extract the free water from the fertilizer and then using the Karl Fischer reagent to titrate.
2 Normative references
The following standards contain provisions which, through reference in this Standard, constitute provisions of this Standard. For dated reference, subsequent amendments to (excluding corrections to), or revisions of, any of these publications do not apply. However, the parties to agreements based on this Standard are encouraged to investigate the possibility of applying the most recent editions of the standards. For undated references, the latest edition of the normative document referred to applies. GB/T 6283 Chemical products - Determination of water - Karl Fischer method (general method) (GB/T 6283-2008, ISO 760.1978, NEQ)
GB/T 8571 Preparation of laboratory samples for compound fertilizers
HG/T 2843 Chemical fertilizer products - Standard volumetric standard reagent and indicator solutions for chemical analysis
3 Principle
The free water in the sample is quantitatively reacted with the Karl Fischer reagent with the known titer of water. The reactions are as follows.
H2O + I2 + SO2 + 3C5H5N = 2C5H5N ?? HI + C5H5N ?? SO3
C5H5N ?? SO3 + CH3OH = C5H5NH ?? OSO2OCH3
4 Reagents and materials

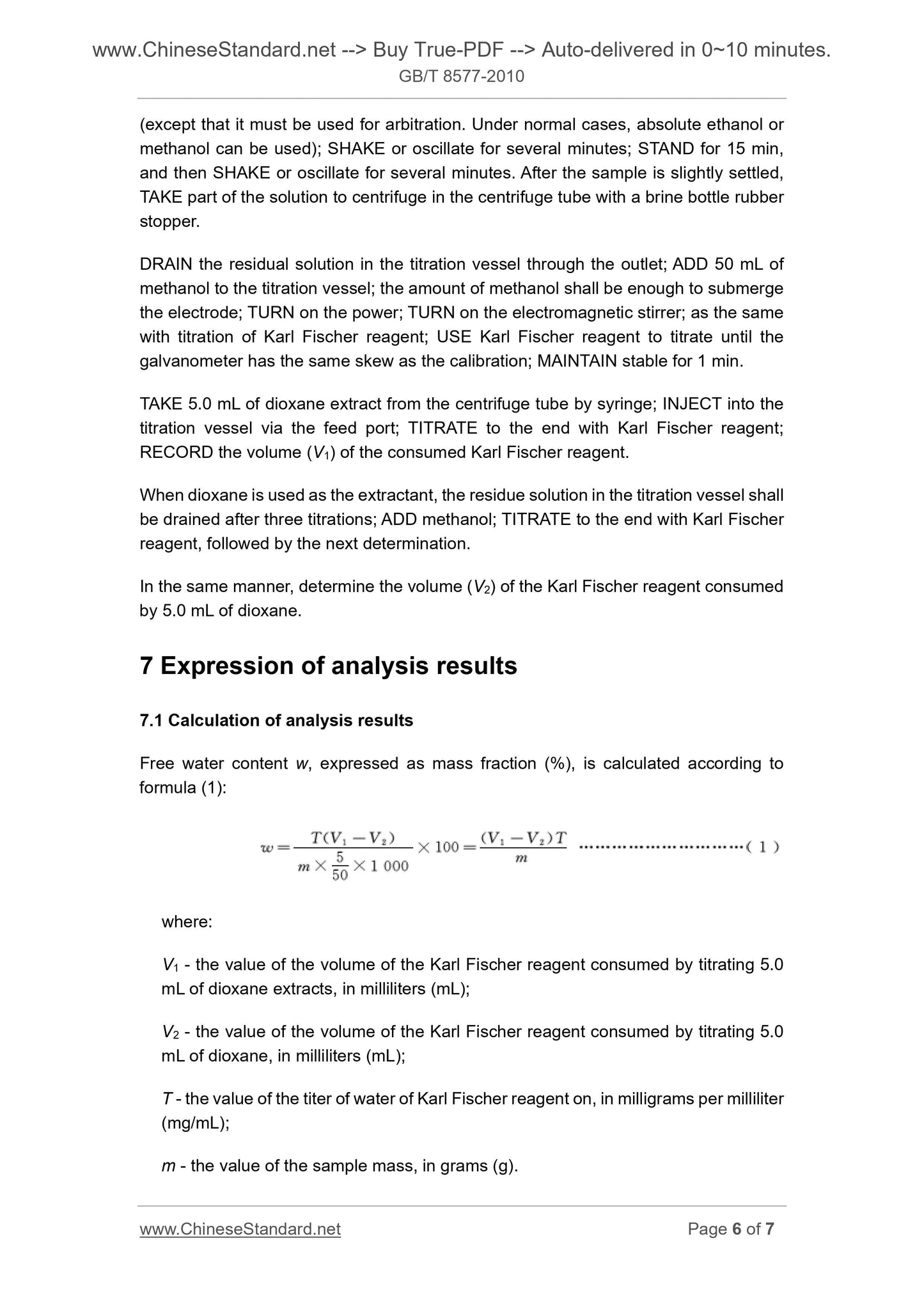

The reagents, solutions and water used in this Standard shall comply with the specifications of HG/T 2843 when their specification and formulation are not specified. (except that it must be used for arbitration. Under normal cases, absolute ethanol or methanol can be used); SHAKE or oscillate for several minutes; STAND for 15 min, and then SHAKE or oscillate for several minutes. After the sample is slightly settled, TAKE part of the solution to centrifuge in the centrifuge tube with a brine bottle rubber stopper.
DRAIN the residual solution in the titration vessel through the outlet; ADD 50 mL of methanol to the titration vessel; the amount of methanol shall be enough to submerge the electrode; TURN on the power; TURN on the electromagnetic stirrer; as the same with titration of Karl Fischer reagent; USE Karl Fischer reagent to titrate until the galvanometer has the same skew as the calibration; MAINTAIN stable for 1 min. TAKE 5.0 mL of dioxane extract from the centrifuge tube by syringe; INJECT into the titration vessel via the feed port; TITRATE to the end with Karl Fischer reagent; RECORD the volume (V1) of the consumed Karl Fischer reagent.
When dioxane is used as the extractant, the residue solution in the titration vessel shall be drained after three titrations; ADD methanol; TITRATE to the end with Karl Fischer reagent, followed by the next determination.
In the same manner, determine the volume (V2) of the Karl Fischer reagent consumed by 5.0 mL of dioxane.
7 Expression of analysis results
7.1 Calculation of analysis results
Free water content w, expressed as mass fraction (%), is calculated according to formula (1).
where.
V1 - the value of the volume of the Karl Fischer reagent consumed by titrating 5.0 mL of dioxane extracts, in milliliters (mL);
V2 - the value of the volume of the Karl Fischer reagent consumed by titrating 5.0 mL of dioxane, in milliliters (mL);
T - the value of the titer of water of Karl Fischer reagent on, in milligrams per milliliter (mg/mL);
m - the value of the sample mass, in grams (g).
