GB/T 845-1985 English PDF (GB/T845-1985)

GB/T 845-1985: Cross recessed pan head tapping screws
Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Newer version: (Replacing this standard) GB/T 845-2017
Get Quotation: Click GB/T 845-1985 (Self-service in 1-minute)
Historical versions (Master-website): GB/T 845-2017
Preview True-PDF (Reload/Scroll-down if blank)


GB 845-85
GB
NATIONAL STANDARD OF
THE PEOPLE’S REPUBLIC OF CHINA
UDC 621.382.216.5.082.6
Replacing GB 845-76
Cross recessed pan head tapping screws
十字槽盘头自攻螺钉
ISSUED ON. AUGUST 1, 1985
IMPLEMENTED ON. JUNE 1, 1986
Issued by. National Bureau of Standards
Table of Contents
1 Introduction ... 3
2 Normative references ... 3
3 Size ... 4
4 Technical conditions ... 7
5 Marking ... 7
Additional information... 7

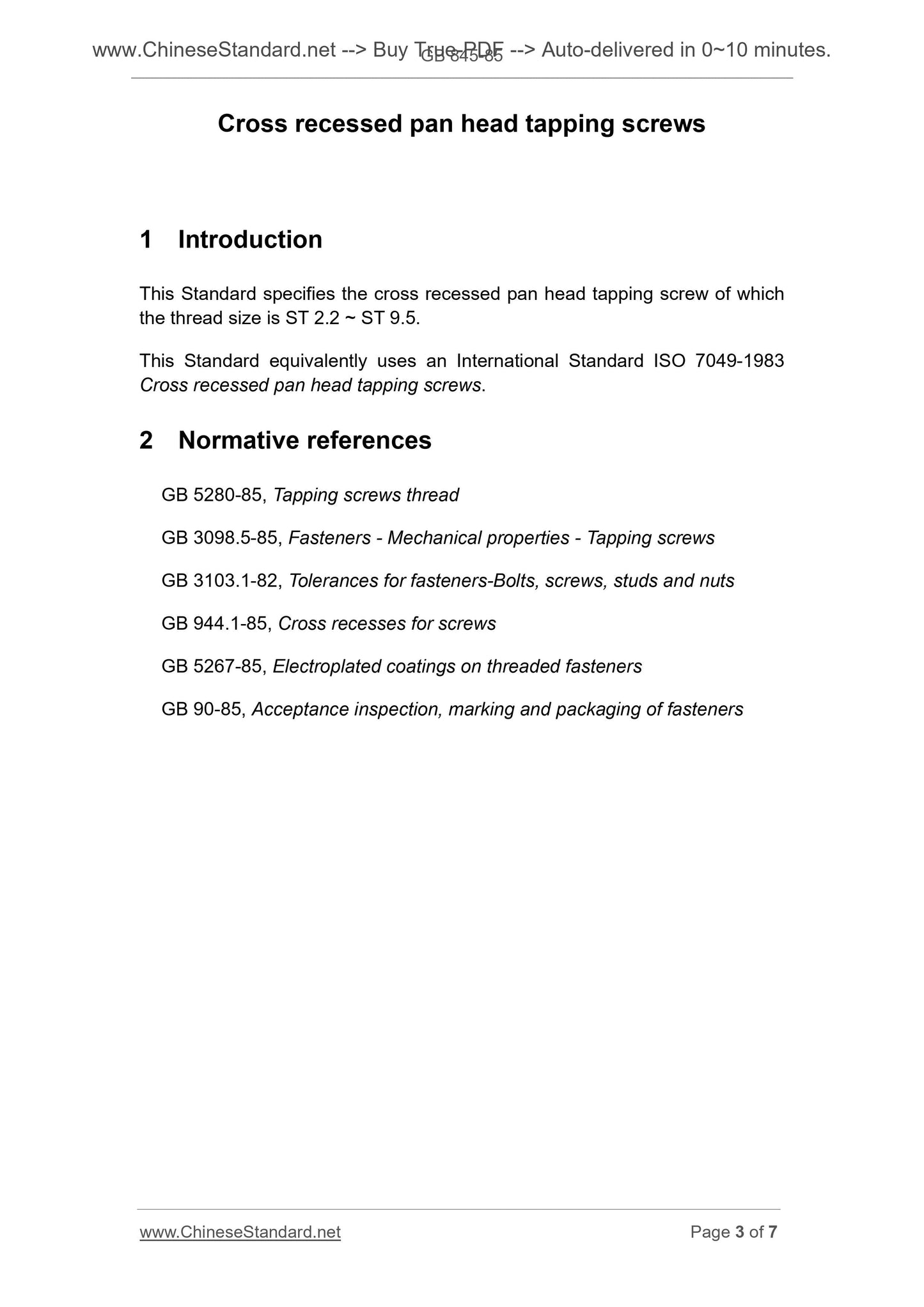

Cross recessed pan head tapping screws
1 Introduction
This Standard specifies the cross recessed pan head tapping screw of which
the thread size is ST 2.2 ~ ST 9.5.
This Standard equivalently uses an International Standard ISO 7049-1983
Cross recessed pan head tapping screws.
2 Normative references
GB 5280-85, Tapping screws thread
GB 3098.5-85, Fasteners - Mechanical properties - Tapping screws
GB 3103.1-82, Tolerances for fasteners-Bolts, screws, studs and nuts
GB 944.1-85, Cross recesses for screws
GB 5267-85, Electroplated coatings on threaded fasteners
GB 90-85, Acceptance inspection, marking and packaging of fasteners
