GB/T 7307-2001: Pipe threads with 55-degree thread angle where pressure-tight joints are not made on the threads

This Standard specifies the requirements for profiles, dimensions, tolerances and designation for pipe threads with 55 degree thread angle where pressure-tight joints are not made on the threads. This Standard applies to the threaded connection of pipes, valves, pipe joints, cocks and other pipe accessories.

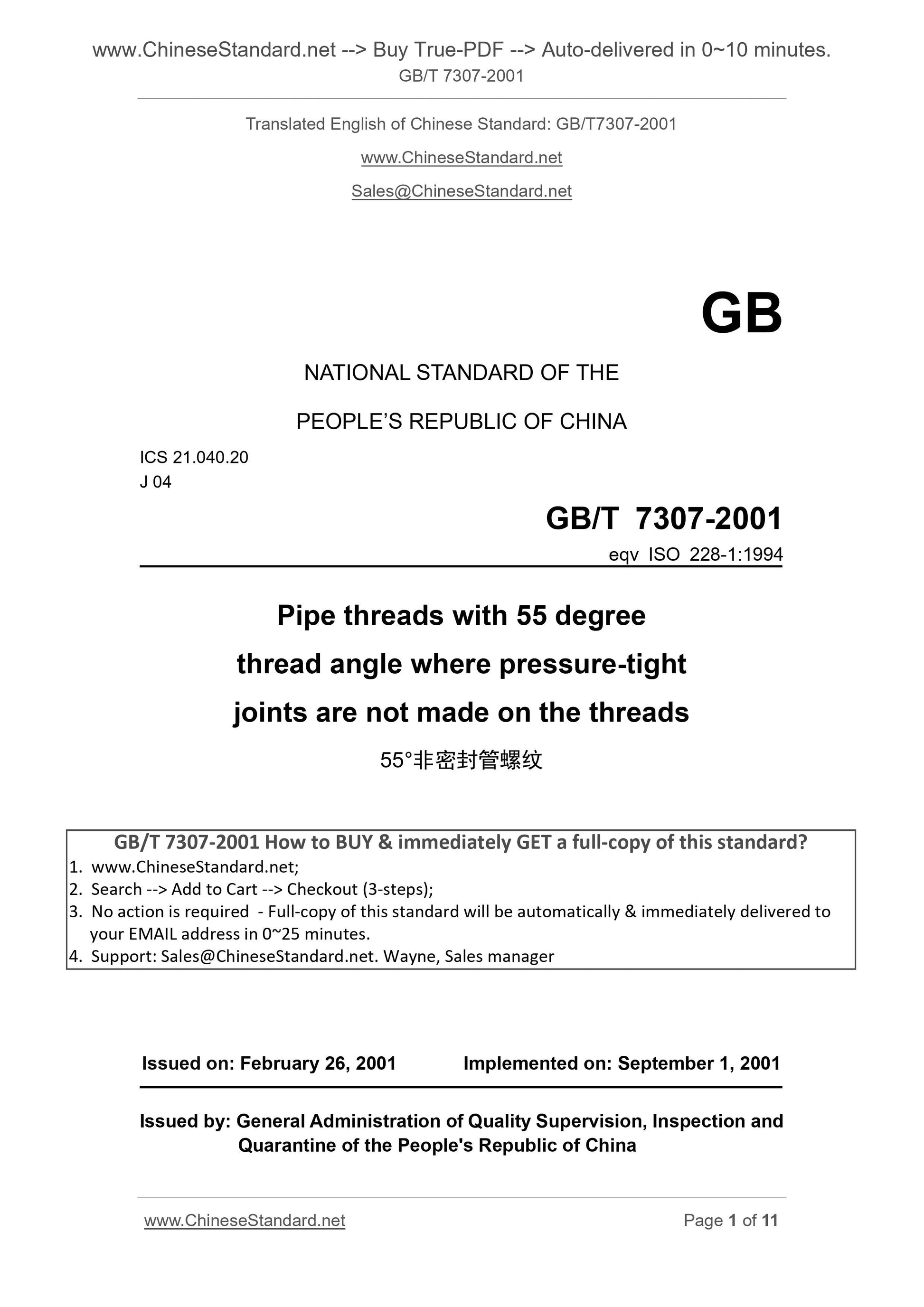

GB/T 7307-2001
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 21.040.20
J 04
eqv ISO 228-1.1994
Pipe threads with 55 degree
thread angle where pressure-tight
joints are not made on the threads
55????????????????????
ISSUED ON. FEBRUARY 26, 2001
IMPLEMENTED ON. SEPTEMBER 1, 2001
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China

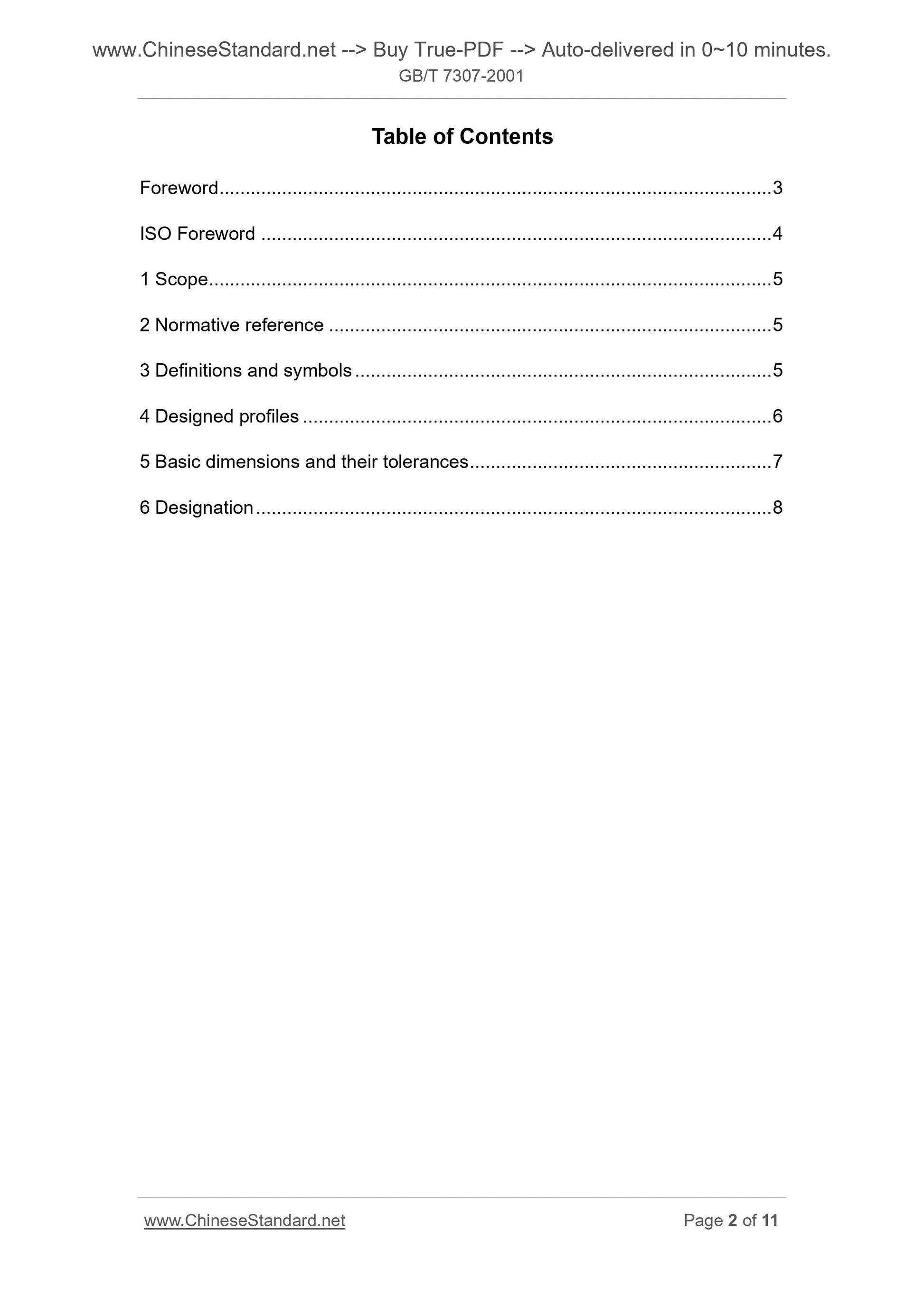

Table of Contents
Foreword ... 3
ISO Foreword ... 4
1 Scope ... 5
2 Normative reference ... 5
3 Definitions and symbols ... 5
4 Designed profiles ... 6
5 Basic dimensions and their tolerances ... 7
6 Designation ... 8

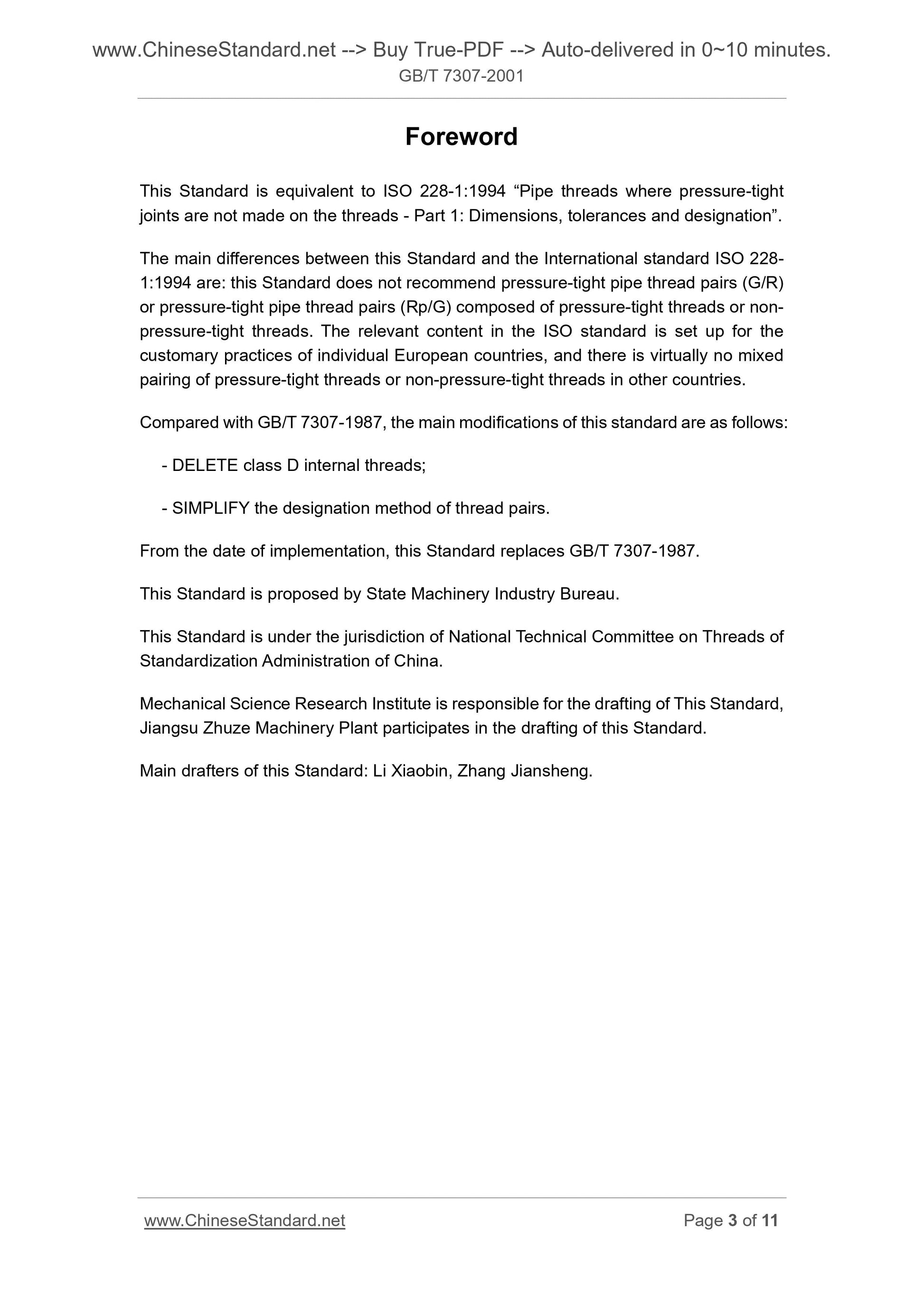

Foreword
This Standard is equivalent to ISO 228-1.1994 ?€?Pipe threads where pressure-tight joints are not made on the threads - Part 1. Dimensions, tolerances and designation?€?. The main differences between this Standard and the International standard ISO 228- 1.1994 are. this Standard does not recommend pressure-tight pipe thread pairs (G/R) or pressure-tight pipe thread pairs (Rp/G) composed of pressure-tight threads or non- pressure-tight threads. The relevant content in the ISO standard is set up for the customary practices of individual European countries, and there is virtually no mixed pairing of pressure-tight threads or non-pressure-tight threads in other countries. Compared with GB/T 7307-1987, the main modifications of this standard are as follows. - DELETE class D internal threads;
- SIMPLIFY the designation method of thread pairs.
From the date of implementation, this Standard replaces GB/T 7307-1987. This Standard is proposed by State Machinery Industry Bureau.
This Standard is under the jurisdiction of National Technical Committee on Threads of Standardization Administration of China.
Mechanical Science Research Institute is responsible for the drafting of This Standard, Jiangsu Zhuze Machinery Plant participates in the drafting of this Standard. Main drafters of this Standard. Li Xiaobin, Zhang Jiansheng.
Pipe threads with 55 degree thread angle where
pressure-tight joints are not made on the threads

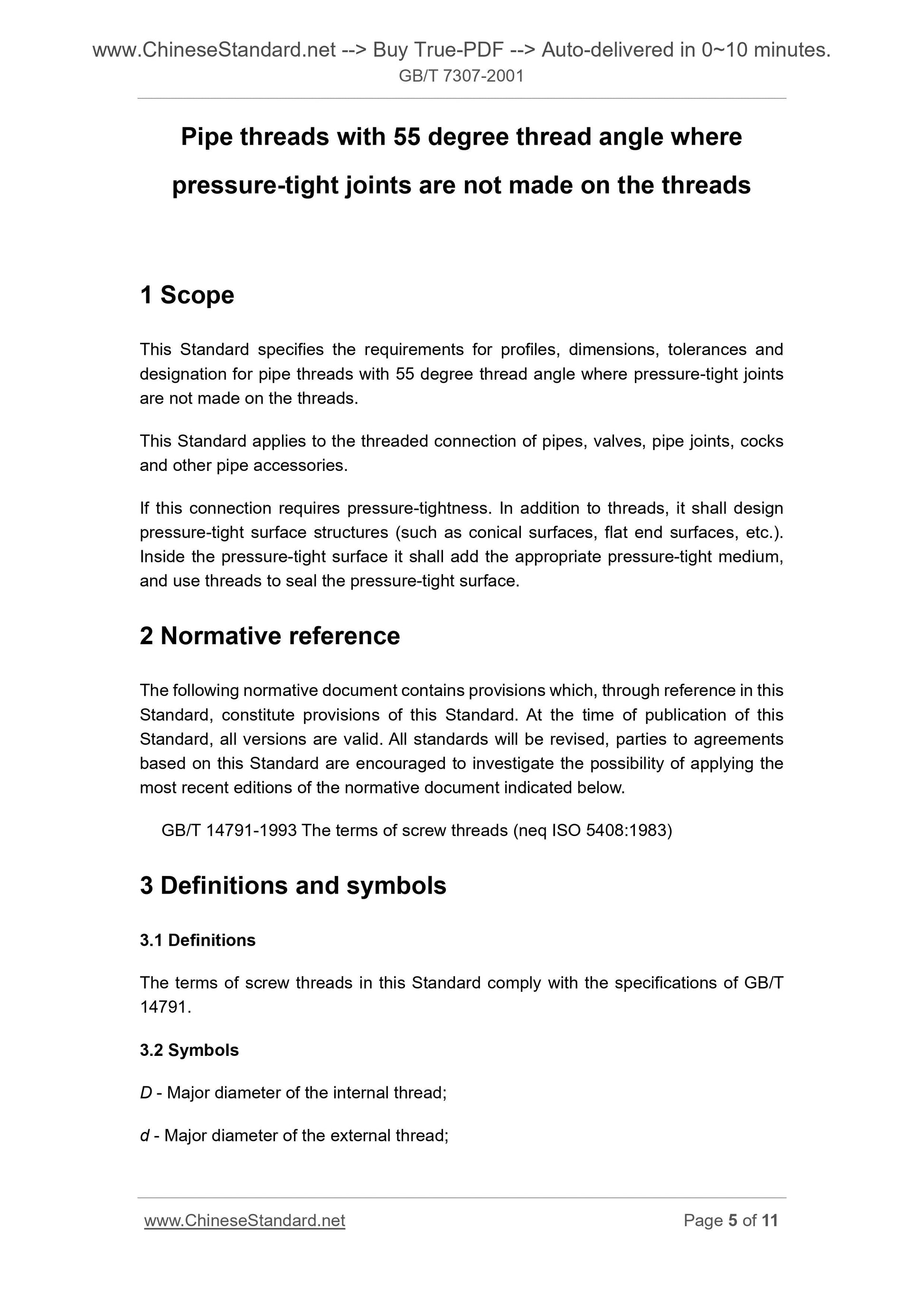

1 Scope
This Standard specifies the requirements for profiles, dimensions, tolerances and designation for pipe threads with 55 degree thread angle where pressure-tight joints are not made on the threads.
This Standard applies to the threaded connection of pipes, valves, pipe joints, cocks and other pipe accessories.
If this connection requires pressure-tightness. In addition to threads, it shall design pressure-tight surface structures (such as conical surfaces, flat end surfaces, etc.). Inside the pressure-tight surface it shall add the appropriate pressure-tight medium, and use threads to seal the pressure-tight surface.
2 Normative reference
The following normative document contains provisions which, through reference in this Standard, constitute provisions of this Standard. At the time of publication of this Standard, all versions are valid. All standards will be revised, parties to agreements based on this Standard are encouraged to investigate the possibility of applying the most recent editions of the normative document indicated below.
GB/T 14791-1993 The terms of screw threads (neq ISO 5408.1983)
3 Definitions and symbols
3.1 Definitions
The terms of screw threads in this Standard comply with the specifications of GB/T 14791.
3.2 Symbols
D - Major diameter of the internal thread;
d - Major diameter of the external thread;

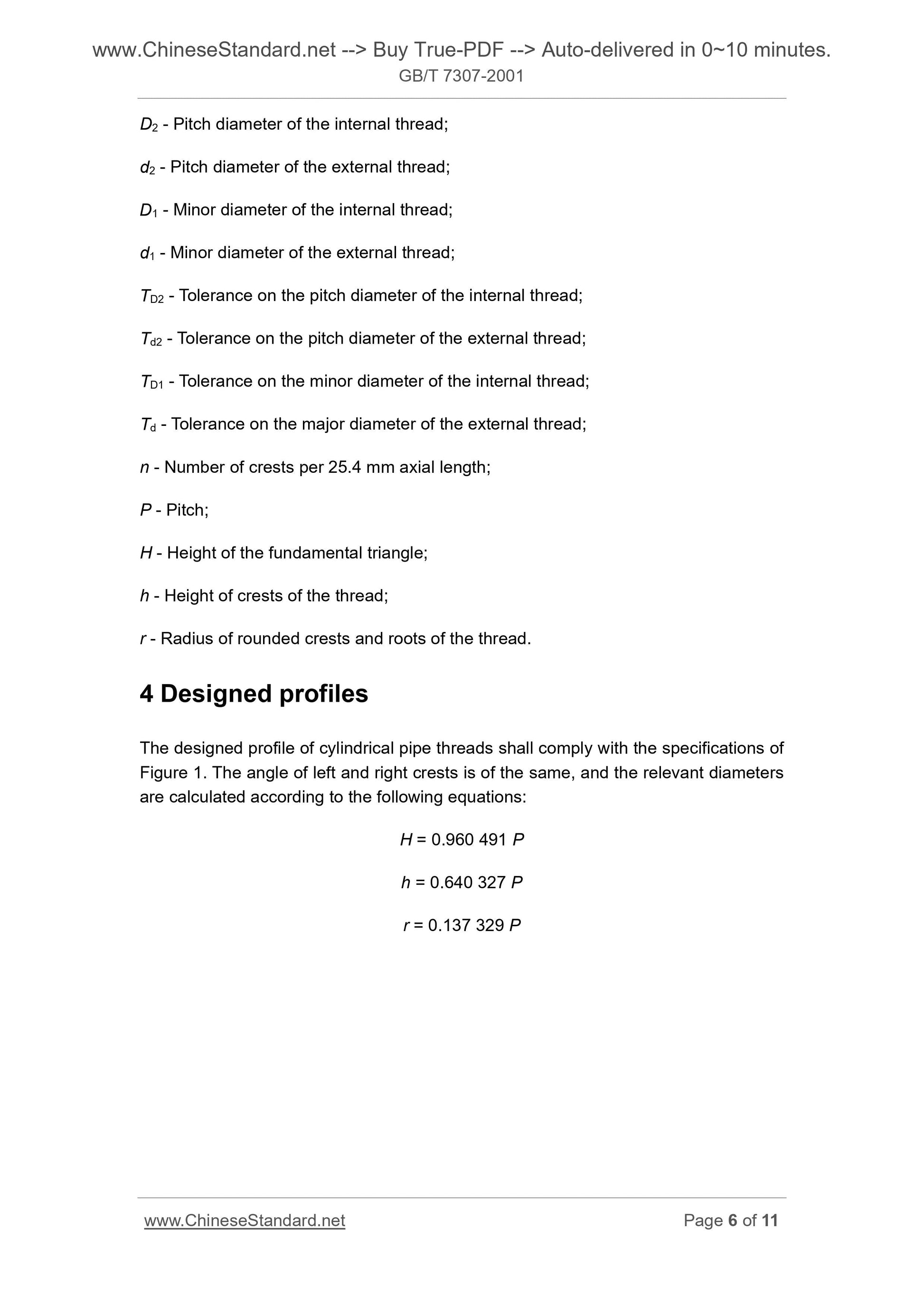

D2 - Pitch diameter of the internal thread;
d2 - Pitch diameter of the external thread;
D1 - Minor diameter of the internal thread;
d1 - Minor diameter of the external thread;
TD2 - Tolerance on the pitch diameter of the internal thread;
Td2 - Tolerance on the pitch diameter of the external thread;
TD1 - Tolerance on the minor diameter of the internal thread;
Td - Tolerance on the major diameter of the external thread;
n - Number of crests per 25.4 mm axial length;
P - Pitch;
H - Height of the fundamental triangle;
h - Height of crests of the thread;
r - Radius of rounded crests and roots of the thread.
4 Designed profiles
The designed profile of cylindrical pipe threads shall comply with the specifications of Figure 1. The angle of left and right crests is of the same, and the relevant diameters are calculated according to the following equations.
H = 0.960 491 P
h = 0.640 327 P
r = 0.137 329 P
