GB/T 7095.1-2008: Enamelled rectangular copper winding wires -- Part 1: General requirements

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 7095.1-2008 (Self-service in 1-minute)
Newer / historical versions: GB/T 7095.1-2008

Preview True-PDF

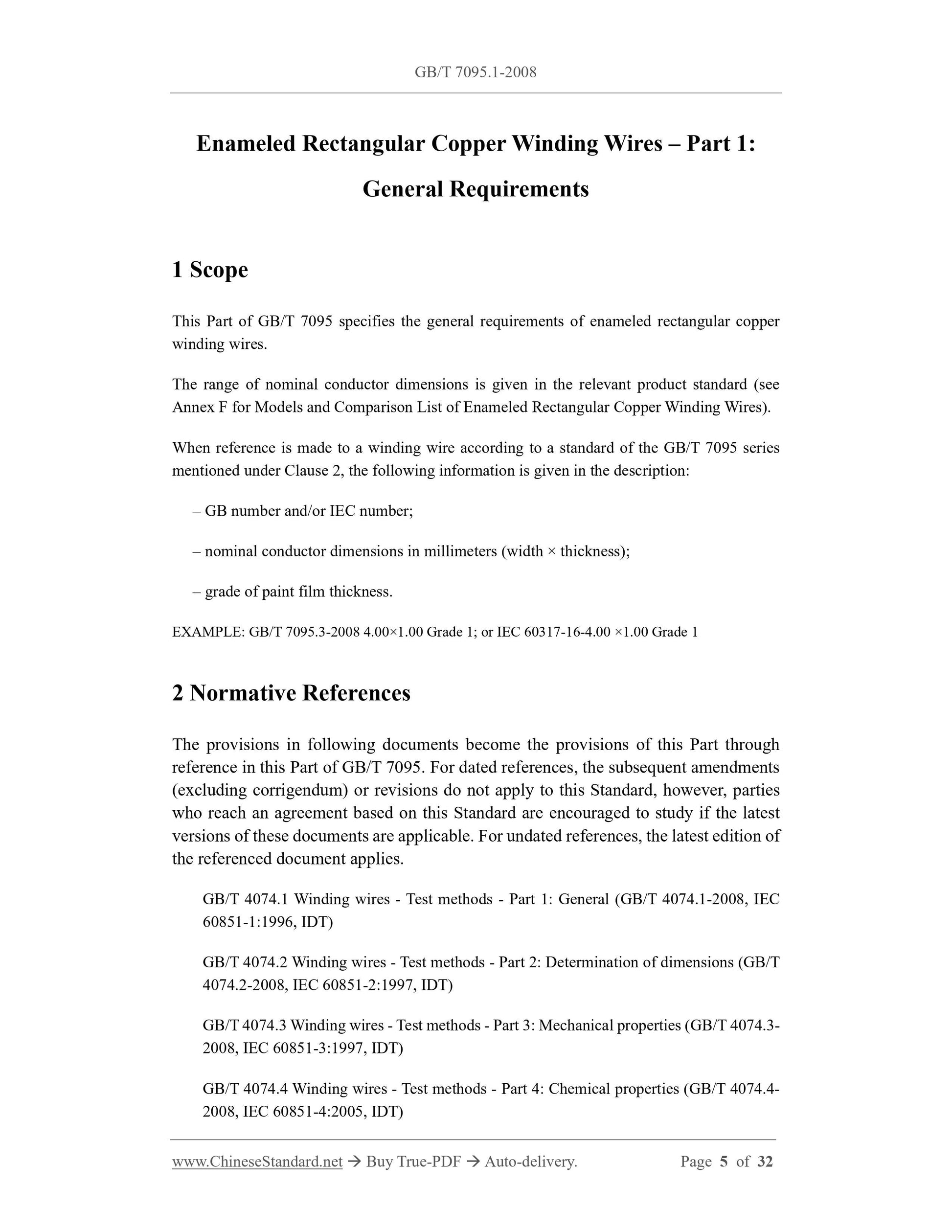

Scope

This Part of GB/T 7095 specifies the general requirements of enameled rectangular copper
winding wires.
The range of nominal conductor dimensions is given in the relevant product standard (see
Annex F for Models and Comparison List of Enameled Rectangular Copper Winding Wires).
When reference is made to a winding wire according to a standard of the GB/T 7095 series
mentioned under Clause 2, the following information is given in the description:
– GB number and/or IEC number;
– nominal conductor dimensions in millimeters (width × thickness);
– grade of paint film thickness.
EXAMPLE: GB/T 7095.3-2008 4.00×1.00 Grade 1; or IEC 60317-16-4.00 ×1.00 Grade 1

Basic Data

Standard ID	GB/T 7095.1-2008 (GB/T7095.1-2008)
Description (Translated English)	Enamelled rectangular copper winding wires -- Part 1: General requirements
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	K12
Classification of International Standard	29.060.10
Word Count Estimation	26,246
Date of Issue	2008-06-13
Date of Implementation	2009-03-01
Older Standard (superseded by this standard)	GB/T 7095.1-1995
Adopted Standard	IEC 60317-0-2-2005, IDT
Regulation (derived from)	Announcement of Newly Approved National Standards No. 10 of 2008 (total 123)
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the enamelled copper flat wire winding General requirements. Conductor nominal size range, see the relevant product standard (flat enamelled copper winding wire model and comparison table see Appendix F). When the reference mentioned in Chapter 2 GB/T 7095 standard winding in one line, gives the following contents: -GB number and/or IEC Code, Conductor nominal dimensions, mm (wide-brimmed narrow size x size), film thickness levels. Example: GB/T 7095. 3-2008 4. 00X1. 00 1 -or IEC 60317-16-4. 00X1. 00 Grade 1
