GB/T 6438-2007: Animal feeding stuffs -- Determination of crude ash

GB/T 6438-2007

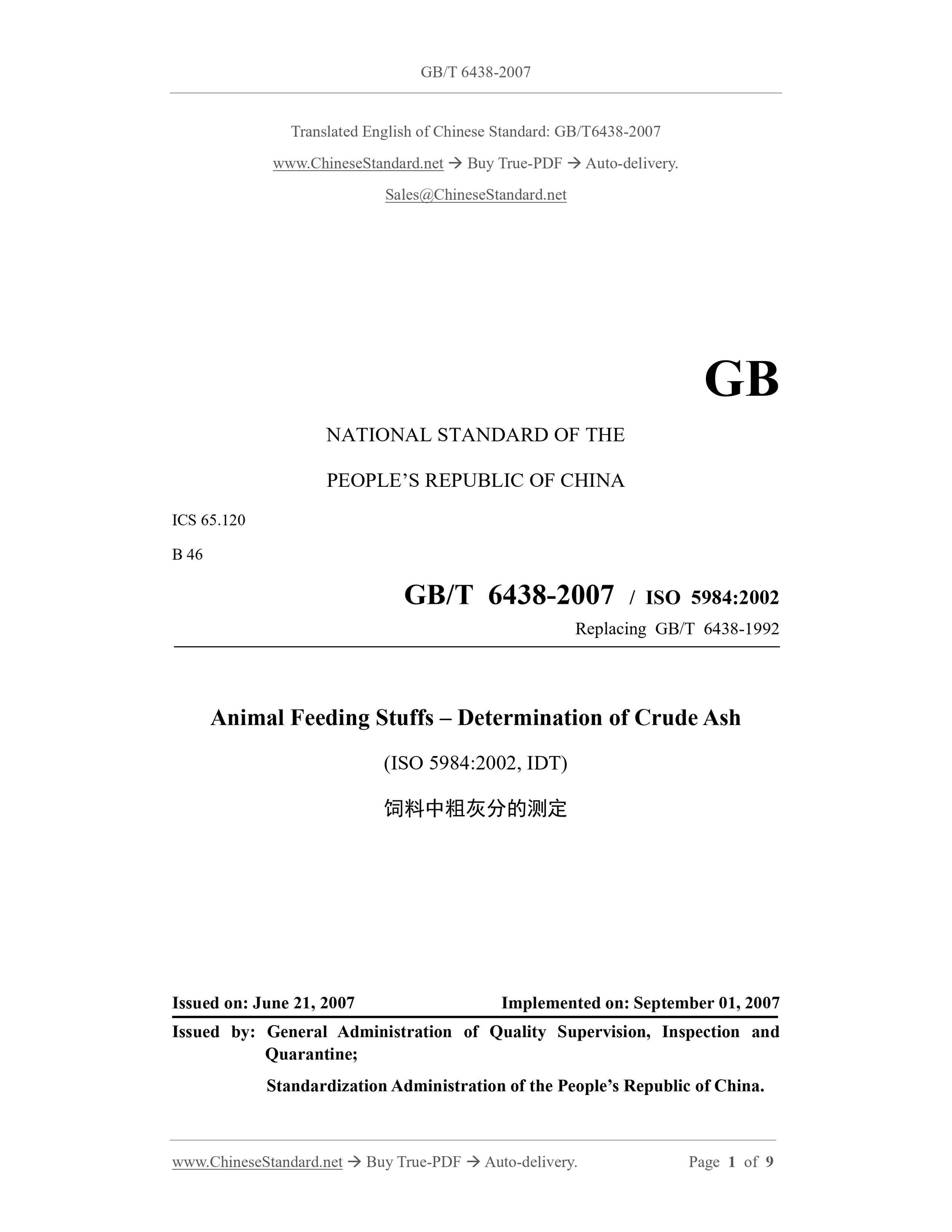

GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 65.120
B 46
GB/T 6438-2007 / ISO 5984:2002
Replacing GB/T 6438-1992
Animal Feeding Stuffs – Determination of Crude Ash
(ISO 5984:2002, IDT)
ISSUED ON: JUNE 21, 2007
IMPLEMENTED ON: SEPTEMBER 01, 2007
Issued by: General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration of the People’s Republic of China.

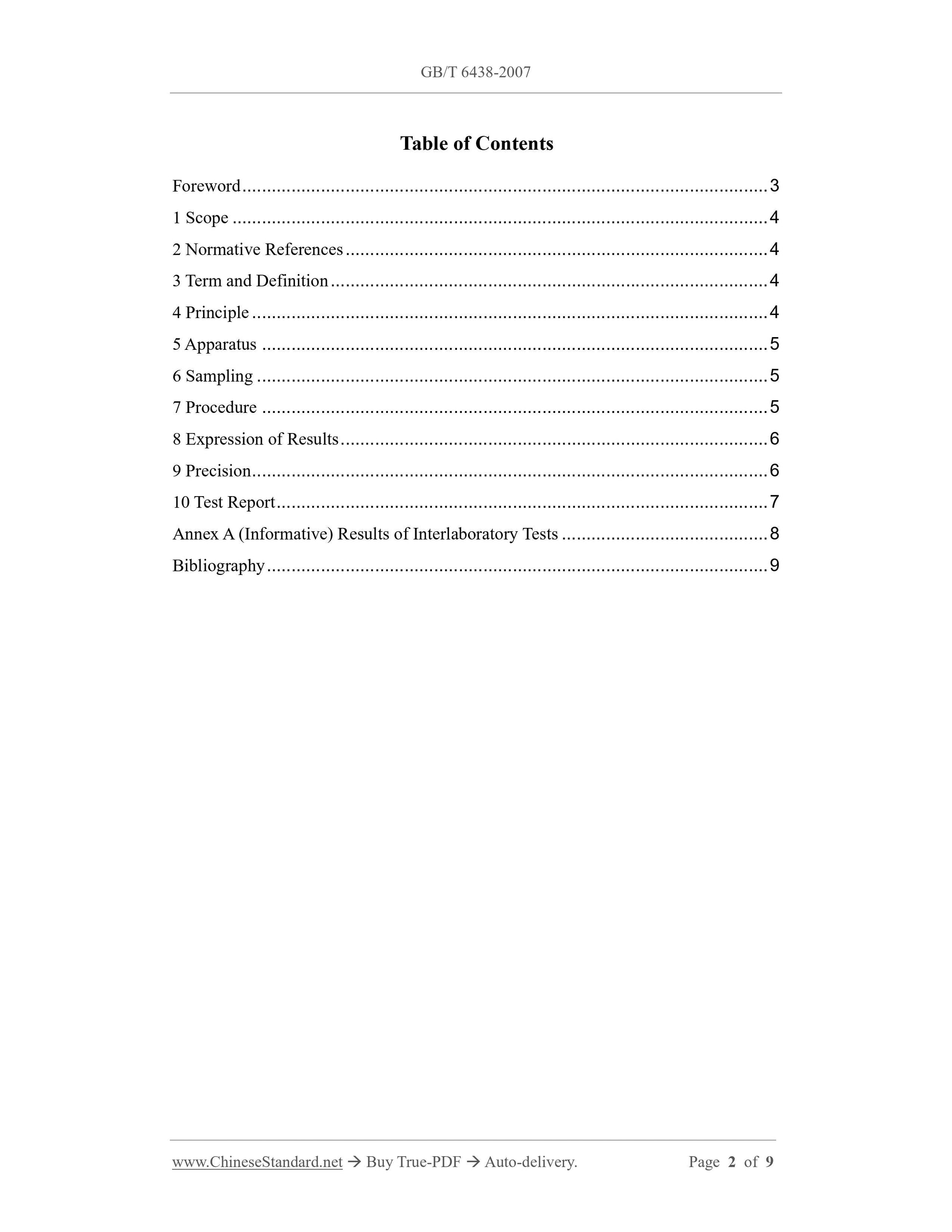

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative References ... 4
3 Term and Definition ... 4
4 Principle ... 4
5 Apparatus ... 5
6 Sampling ... 5
7 Procedure ... 5
8 Expression of Results ... 6
9 Precision ... 6
10 Test Report ... 7
Annex A (Informative) Results of Interlaboratory Tests ... 8
Bibliography ... 9

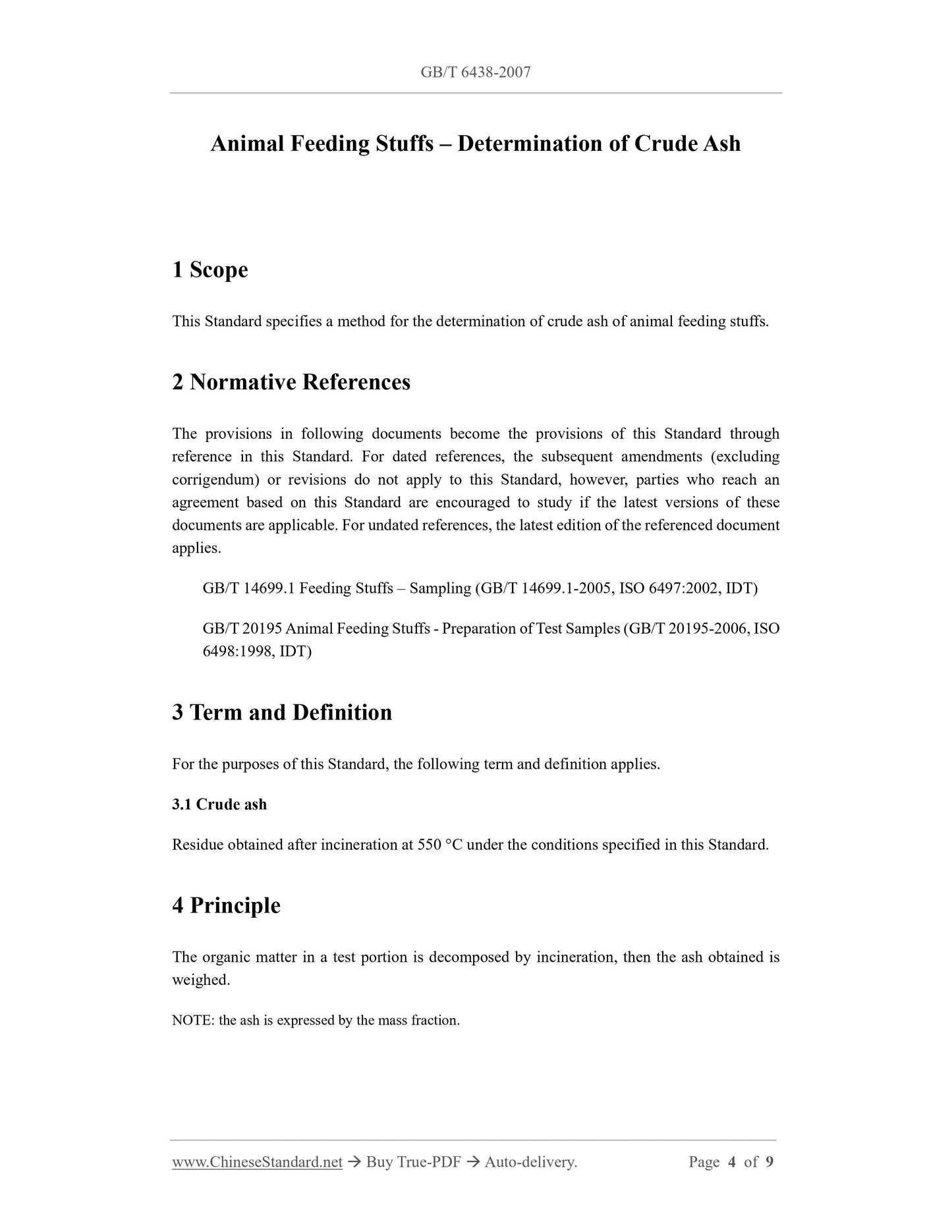

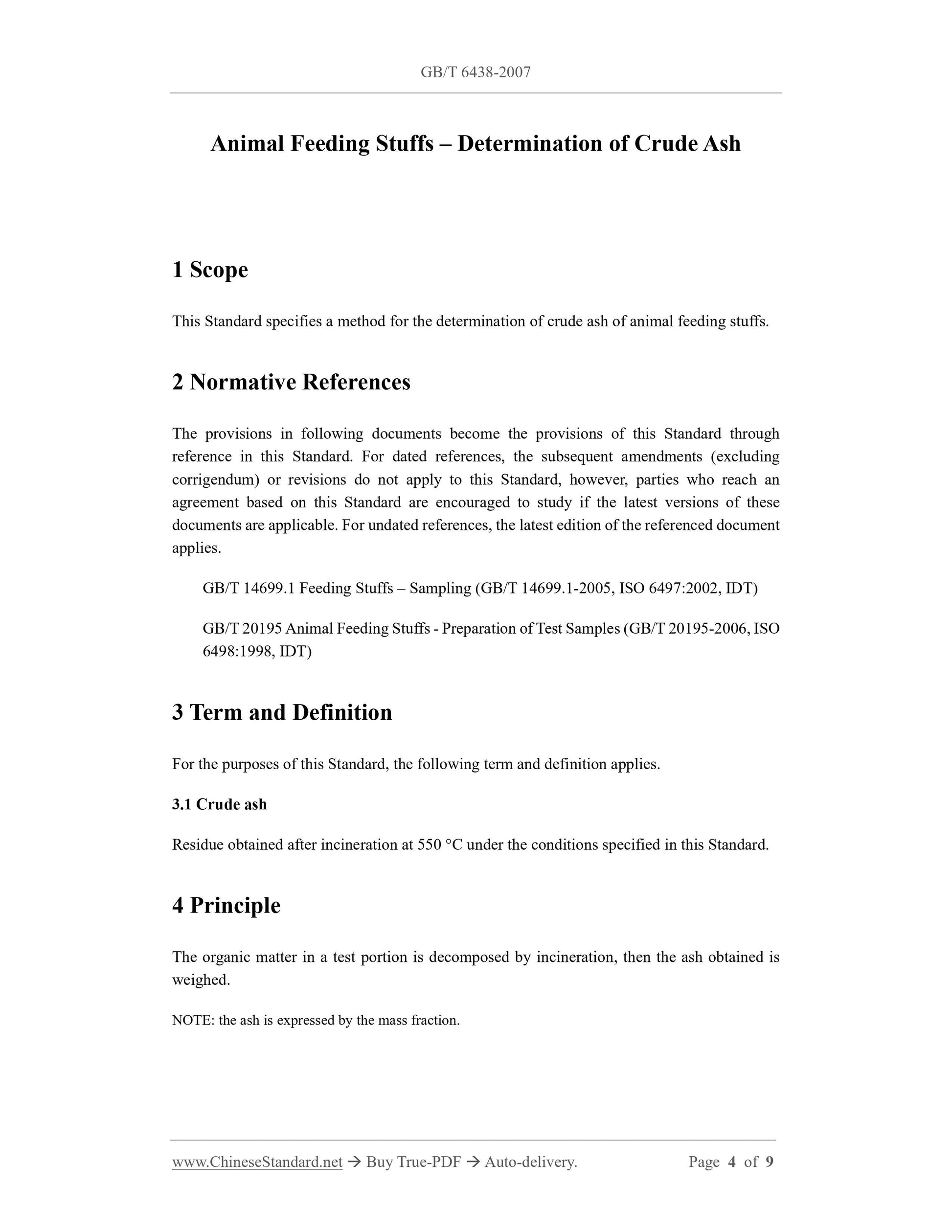

Animal Feeding Stuffs – Determination of Crude Ash
1 Scope
This Standard specifies a method for the determination of crude ash of animal feeding stuffs. 2 Normative References
The provisions in following documents become the provisions of this Standard through reference in this Standard. For dated references, the subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard, however, parties who reach an agreement based on this Standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies.
GB/T 14699.1 Feeding Stuffs – Sampling (GB/T 14699.1-2005, ISO 6497:2002, IDT) GB/T 20195 Animal Feeding Stuffs - Preparation of Test Samples (GB/T 20195-2006, ISO 6498:1998, IDT)
3 Term and Definition
For the purposes of this Standard, the following term and definition applies. 3.1 Crude ash
Residue obtained after incineration at 550 °C under the conditions specified in this Standard. 4 Principle
The organic matter in a test portion is decomposed by incineration, then the ash obtained is weighed.
NOTE: the ash is expressed by the mass fraction.

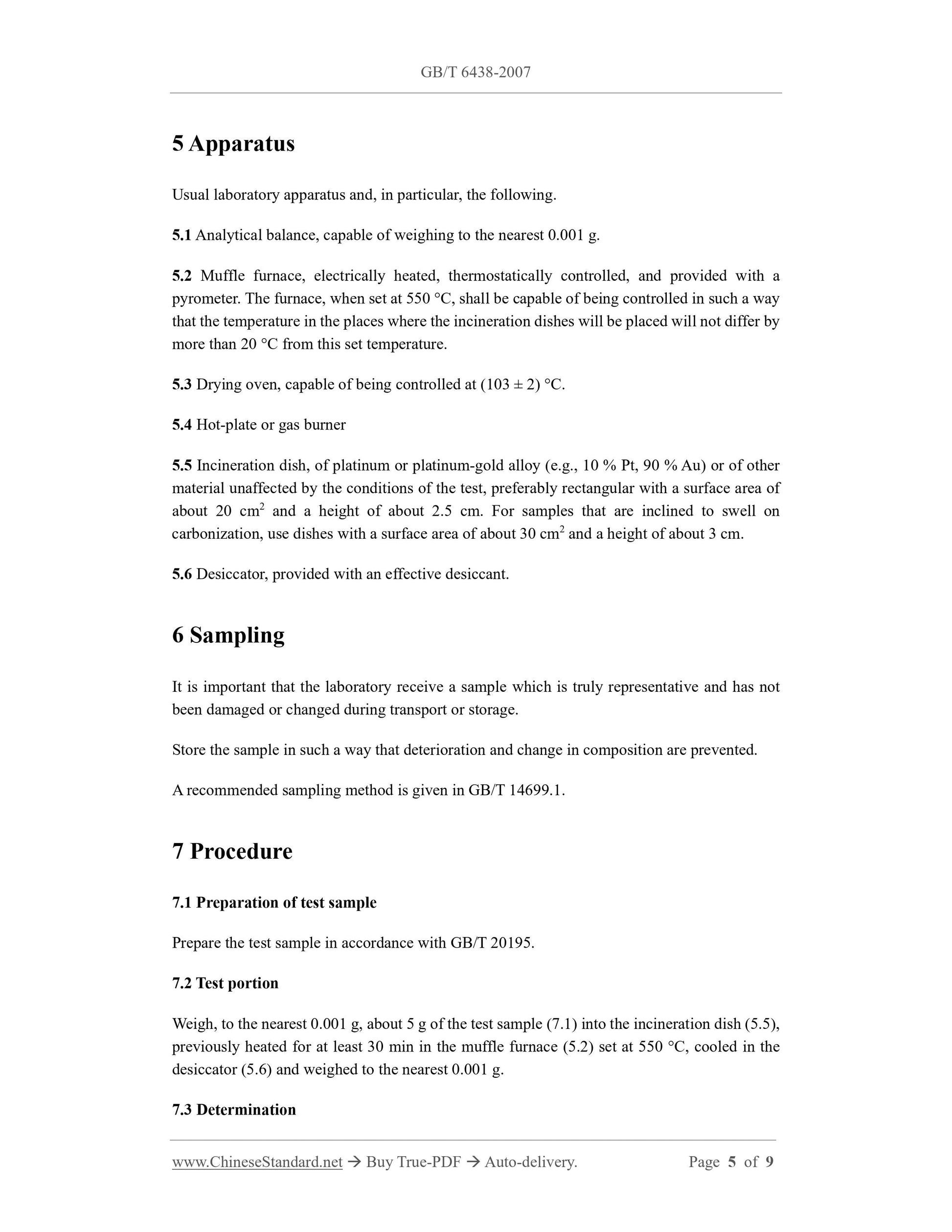

5 Apparatus
Usual laboratory apparatus and, in particular, the following.
5.1 Analytical balance, capable of weighing to the nearest 0.001 g.
5.2 Muffle furnace, electrically heated, thermostatically controlled, and provided with a pyrometer. The furnace, when set at 550 °C, shall be capable of being controlled in such a way that the temperature in the places where the incineration dishes will be placed will not differ by more than 20 °C from this set temperature.
5.3 Drying oven, capable of being controlled at (103 ± 2) °C.
5.4 Hot-plate or gas burner
5.5 Incineration dish, of platinum or platinum-gold alloy (e.g., 10 % Pt, 90 % Au) or of other material unaffected by the conditions of the test, preferably rectangular with a surface area of about 20 cm2 and a height of about 2.5 cm. For samples that are inclined to swell on carbonization, use dishes with a surface area of about 30 cm2 and a height of about 3 cm. 5.6 Desiccator, provided with an effective desiccant.
6 Sampling
It is important that the laboratory receive a sample which is truly representative and has not been damaged or changed during transport or storage.
Store the sample in such a way that deterioration and change in composition are prevented. A recommended sampling method is given in GB/T 14699.1.
7 Procedure
7.1 Preparation of test sample
Prepare the test sample in accordance with GB/T 20195.
7.2 Test portion
Weigh, to the nearest 0.001 g, about 5 g of the test sample (7.1) into the incineration dish (5.5), previously heated for at least 30 min in the muffle furnace (5.2) set at 550 °C, cooled in the desiccator (5.6) and weighed to the nearest 0.001 g.
7.3 Determination

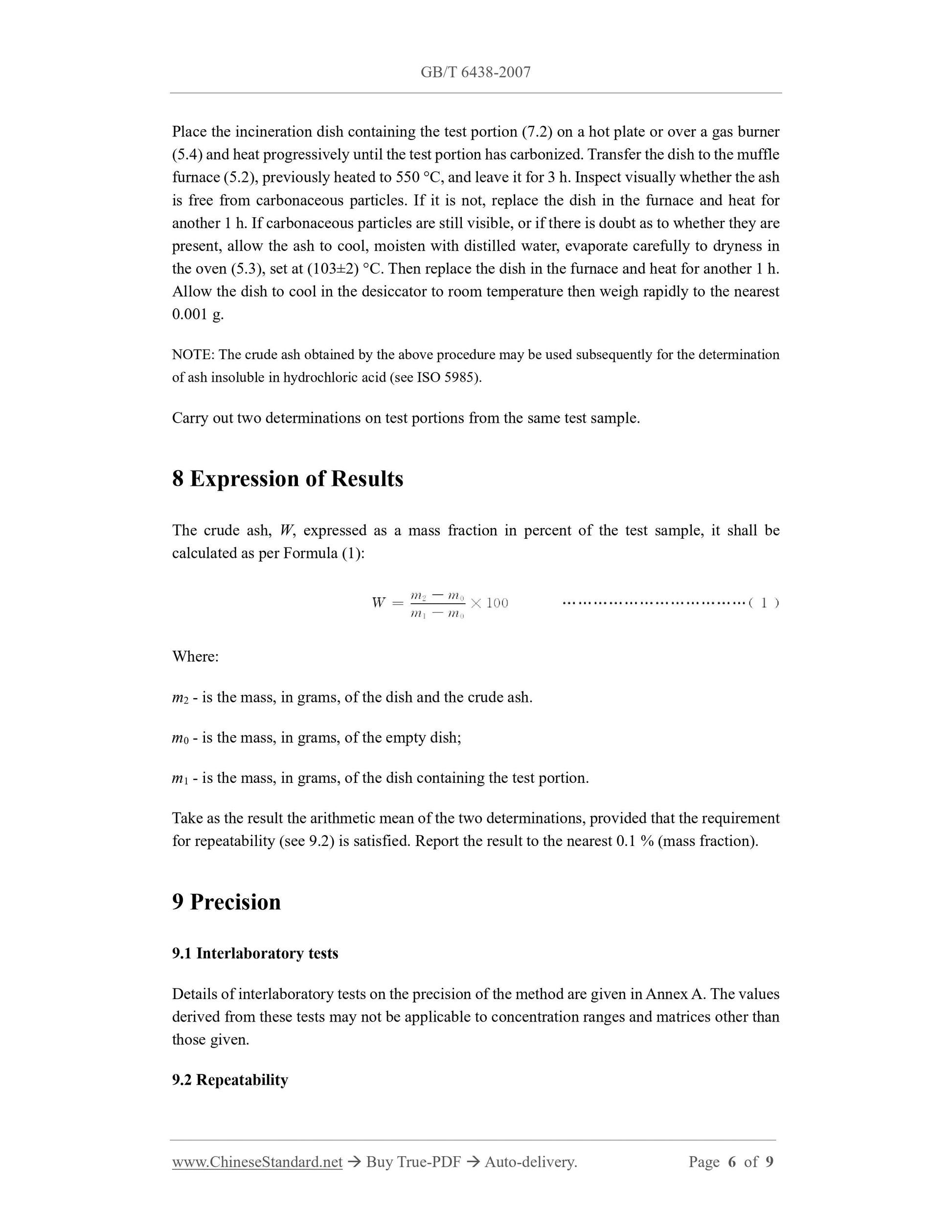

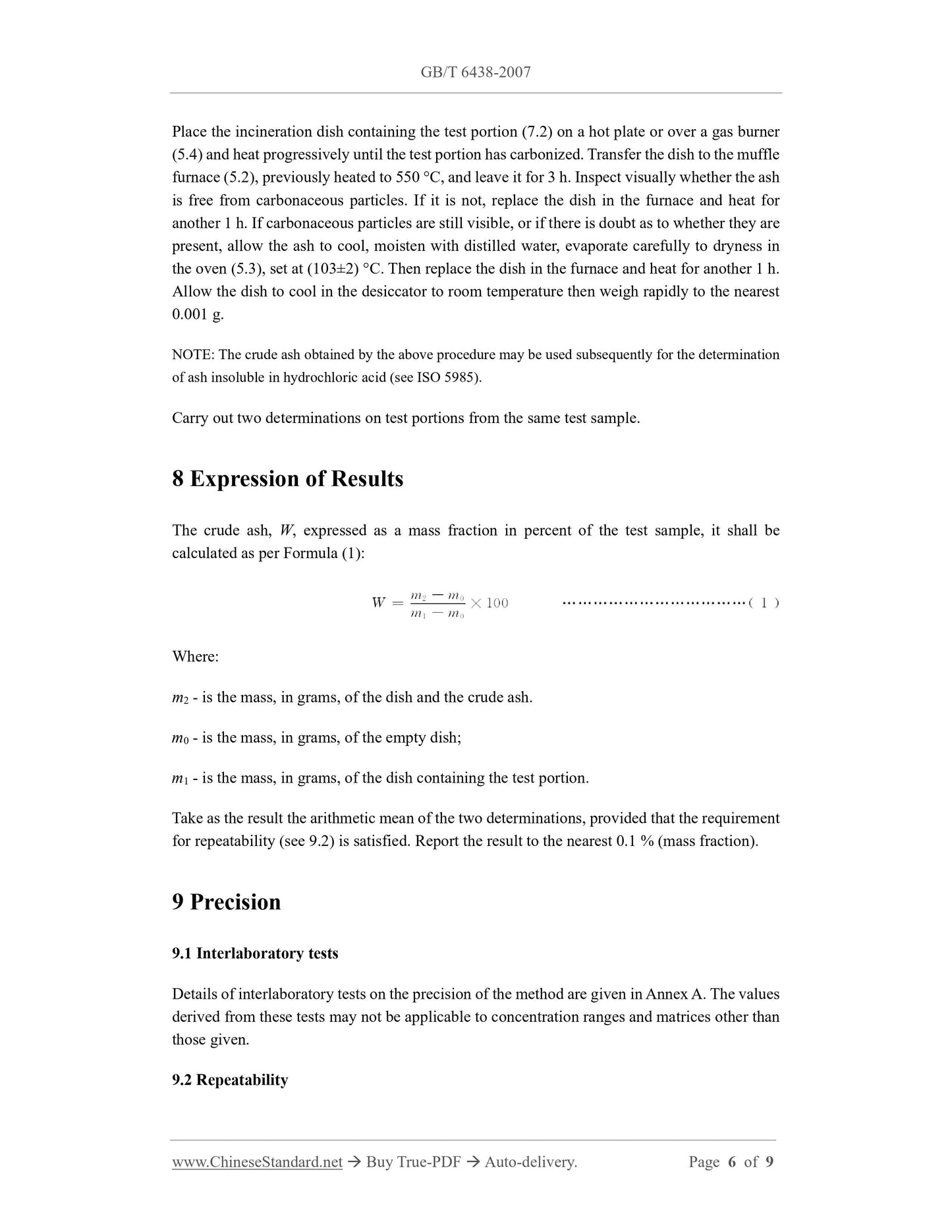

Place the incineration dish containing the test portion (7.2) on a hot plate or over a gas burner (5.4) and heat progressively until the test portion has carbonized. Transfer the dish to the muffle furnace (5.2), previously heated to 550 °C, and leave it for 3 h. Inspect visually whether the ash is free from carbonaceous particles. If it is not, replace the dish in the furnace and heat for another 1 h. If carbonaceous particles are still visible, or if there is doubt as to whether they are present, allow the ash to cool, moisten with distilled water, evaporate carefully to dryness in the oven (5.3), set at (103±2) °C. Then replace the dish in the furnace and heat for another 1 h. Allow the dish to cool in the desiccator to room temperature then weigh rapidly to the nearest 0.001 g.
NOTE: The crude ash obtained by the above procedure may be used subsequently for the determination of ash insoluble in hydrochloric acid (see ISO 5985).
Carry out two determinations on test portions from the same test sample. 8 Expression of Results
The crude ash, W, expressed as a mass fraction in percent of the test sample, it shall be calculated as per Formula (1):
Where:
m2 - is the mass, in grams, of the dish and the crude ash.
m0 - is the mass, in grams, of the empty dish;
m1 - is the mass, in grams, of the dish containing the test portion.
Take as the result the arithmetic mean of the two determinations, provided that the requirement for repeatability (see 9.2) is satisfied. Report the result to the nearest 0.1 % (mass fraction). 9 Precision
9.1 Interlaboratory tests
Details of interlaboratory tests on the precision of the method are given in Annex A. The values derived from these tests may not be applicable to concentration ranges and matrices other than those given.
9.2 Repeatability
