GB/T 6183.1-2016: Prevailing torque type hexagon nuts with flange (with non-metallic insert), style 2

Delivery: 9 seconds. Download (and Email) true-PDF + Invoice.
Get Quotation: Click GB/T 6183.1-2016 (Self-service in 1-minute)
Newer / historical versions: GB/T 6183.1-2016

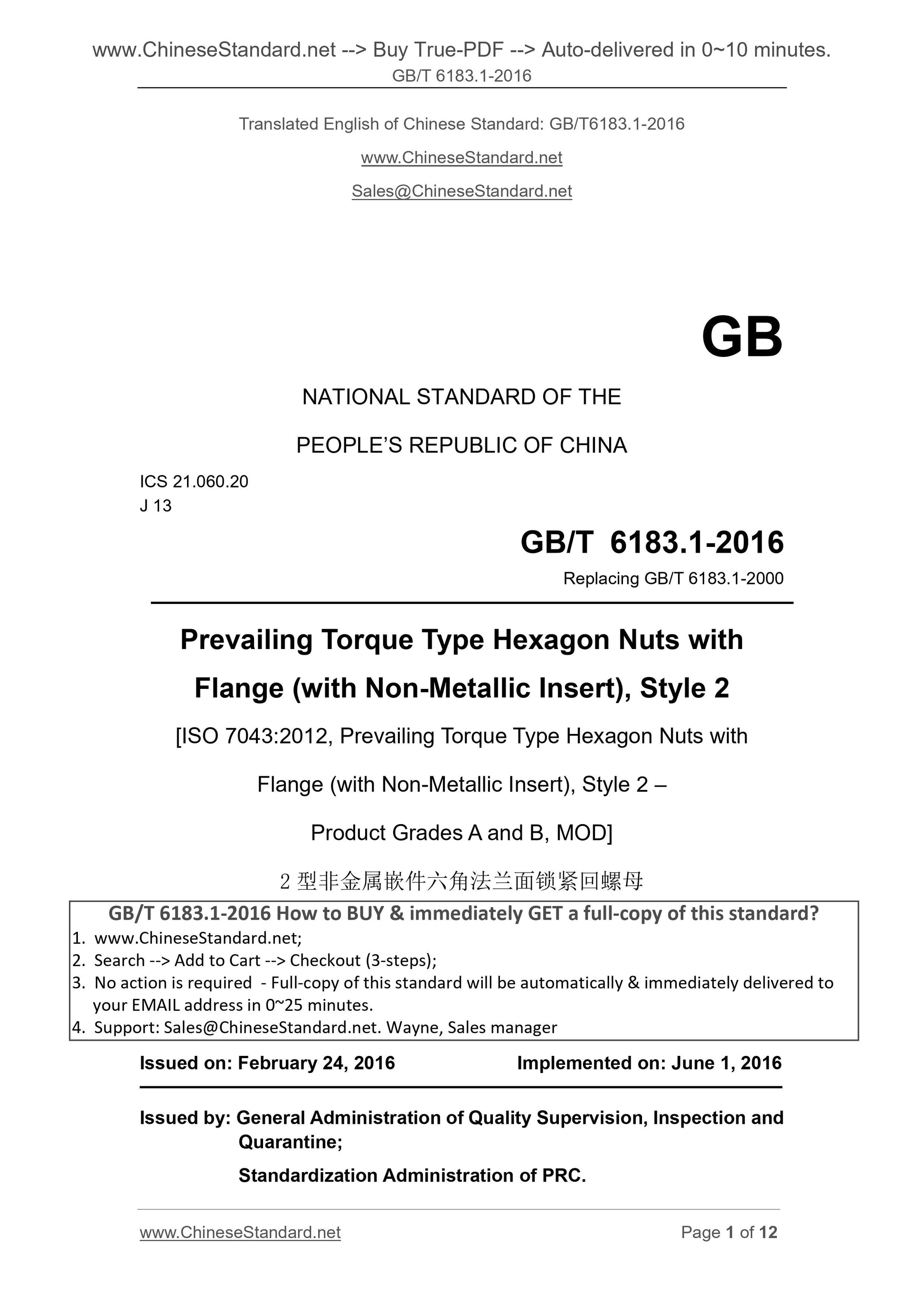

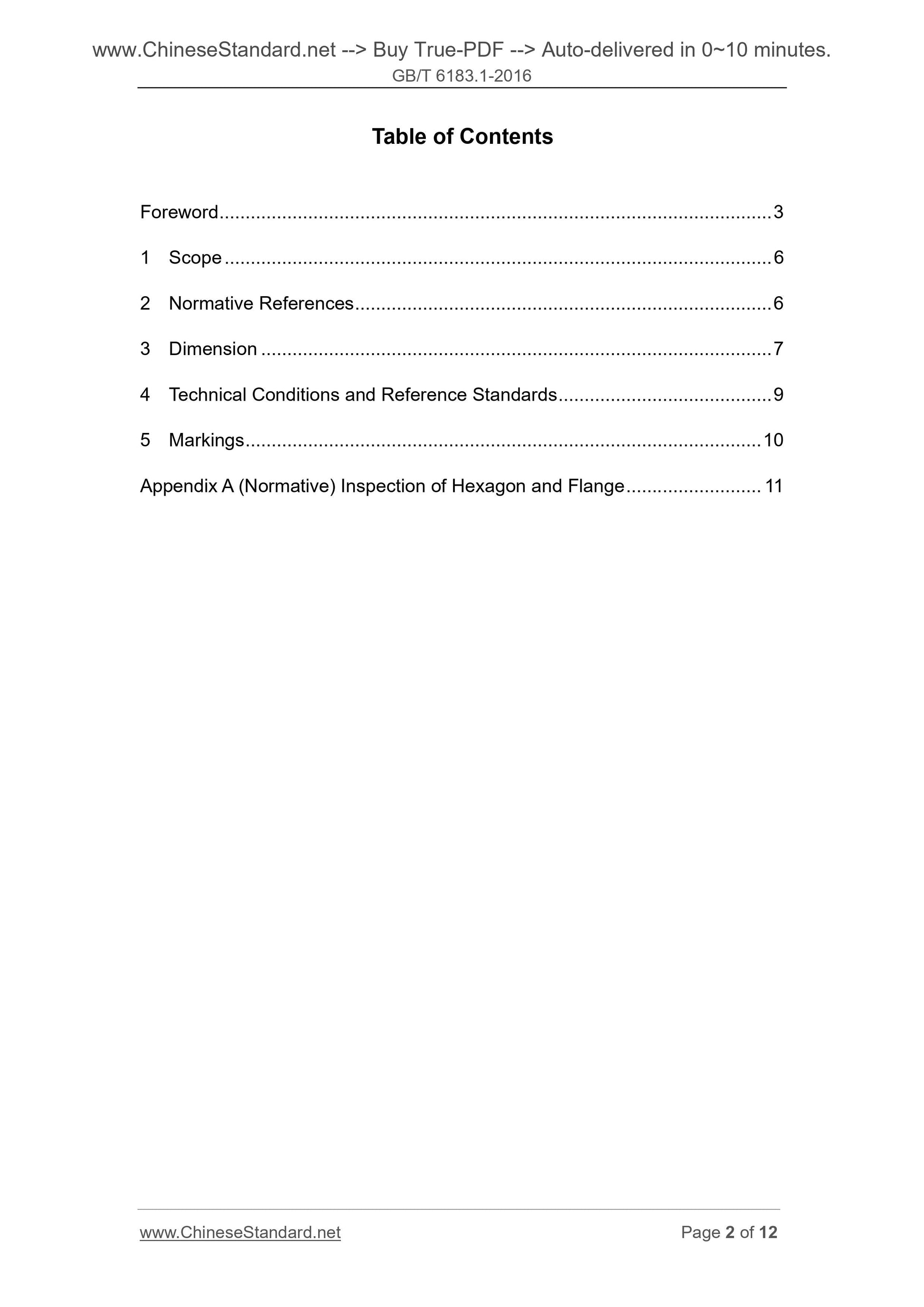

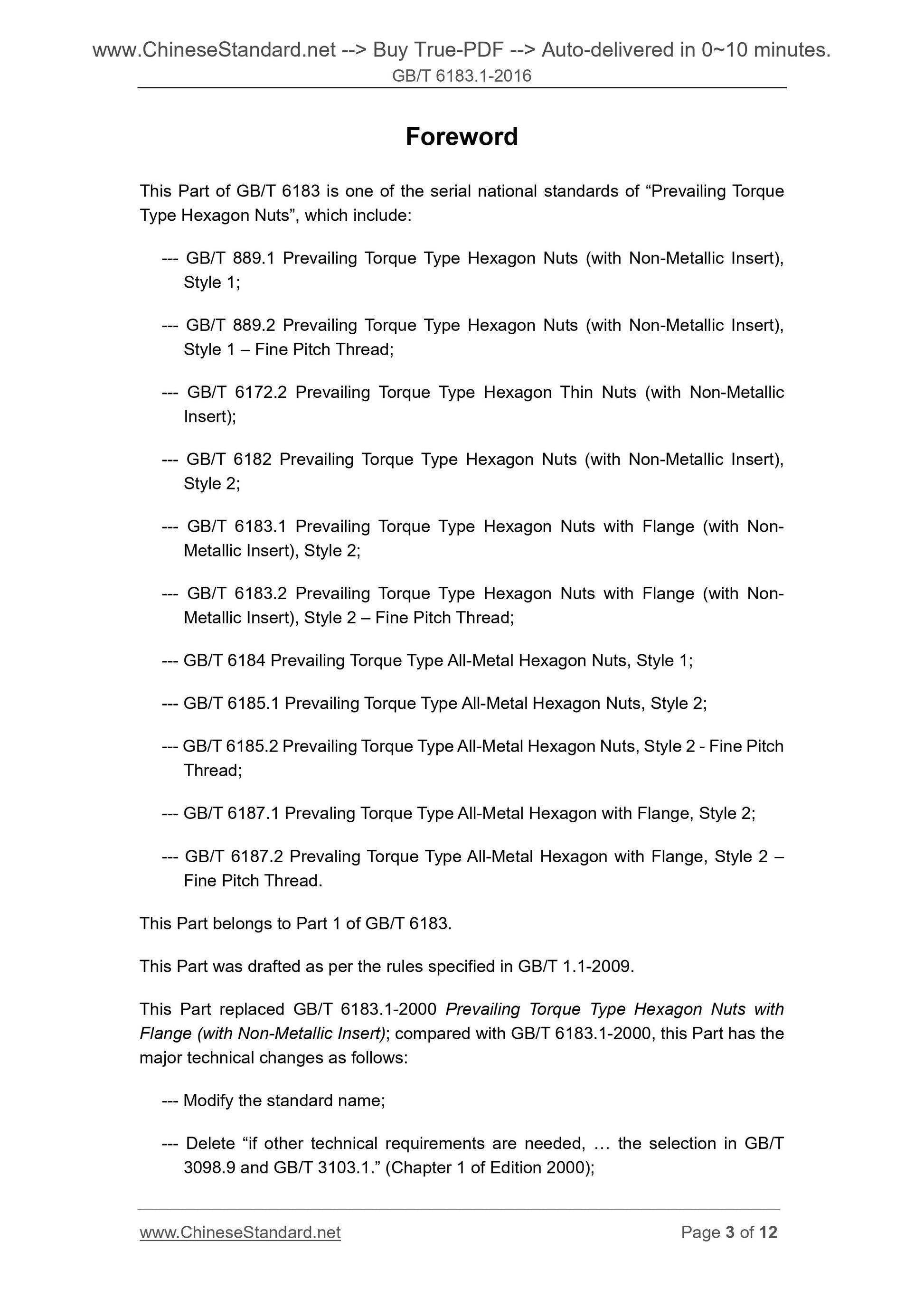

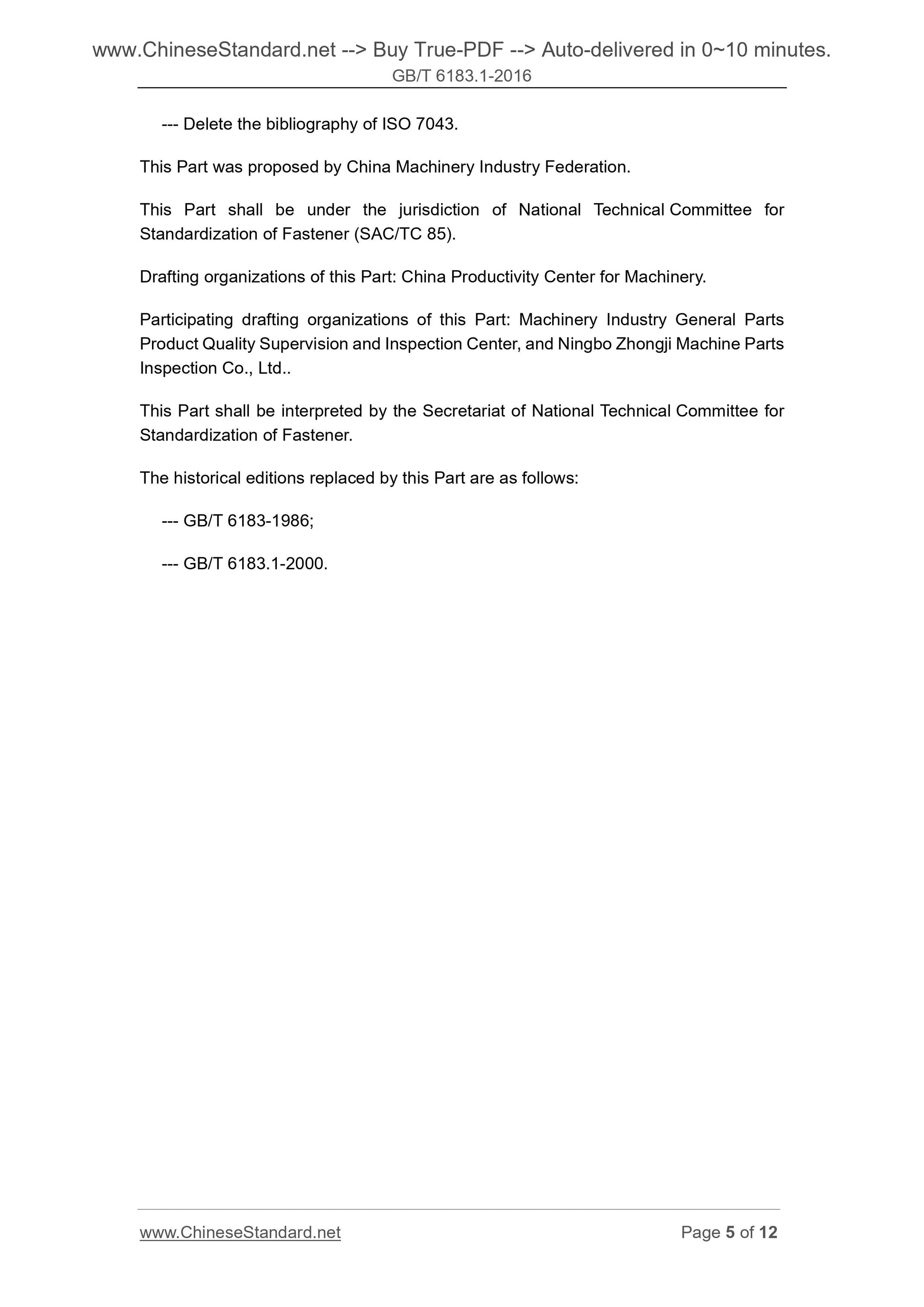

Preview True-PDF

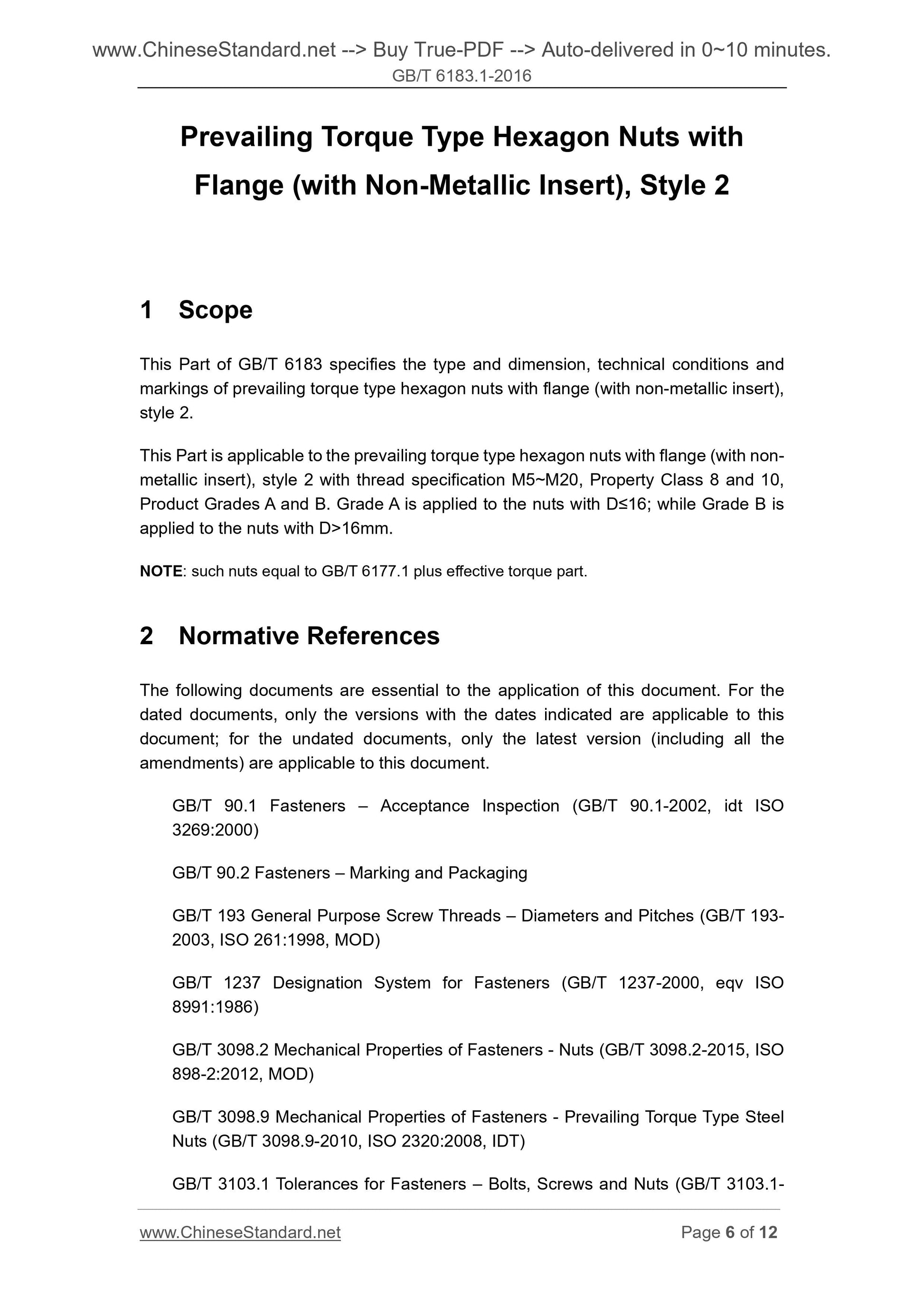

Scope

This Part of GB/T 6183 specifies the type and dimension, technical conditions and
markings of prevailing torque type hexagon nuts with flange (with non-metallic insert),
style 2.
This Part is applicable to the prevailing torque type hexagon nuts with flange (with non-
metallic insert), style 2 with thread specification M5~M20, Property Class 8 and 10,
Product Grades A and B. Grade A is applied to the nuts with D≤16; while Grade B is
applied to the nuts with D >16mm.
NOTE. such nuts equal to GB/T 6177.1 plus effective torque part.

Basic Data

Standard ID	GB/T 6183.1-2016 (GB/T6183.1-2016)
Description (Translated English)	Prevailing torque type hexagon nuts with flange (with non-metallic insert), style 2
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J13
Classification of International Standard	21.060.20
Word Count Estimation	11,127
Date of Issue	2016-02-24
Date of Implementation	2016-06-01
Older Standard (superseded by this standard)	GB/T 6183.1-2000
Quoted Standard	GB/T 90.1; GB/T 90.2; GB/T 193; GB/T 1237; GB/T 3098.2; GB/T 3098.9; GB/T 3103.1; GB/T 5267.1; GB/T 5267.2; GB/T 5276; GB/T 5779.2; GB/T 6177.1; GB/T 9145; GB/T 16938
Adopted Standard	ISO 7043-2012, MOD
Regulation (derived from)	National Standard Announcement No
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary	This standard specifies the type size, technical conditions and marking of type 2 non-metallic insert hexagon flange lock nuts. This standard applies to non-metallic hexagon flange lock nuts of type 2, grade M and M20, class 8 and class 10, class A and class B. Class A for D �� 16 mm; Class B for D and gt; 16 mm nuts. Note: This nut is equivalent to GB/T 6177.1 plus the effective torque part.
