GB/T 6113.201-2018: Specification for radio disturbance and immunity measuring apparatus and methods -- Part 2-1: Methods of measurement of disturbances and immunity -- Conducted disturbance measurements
GB/T 6113.201-2018

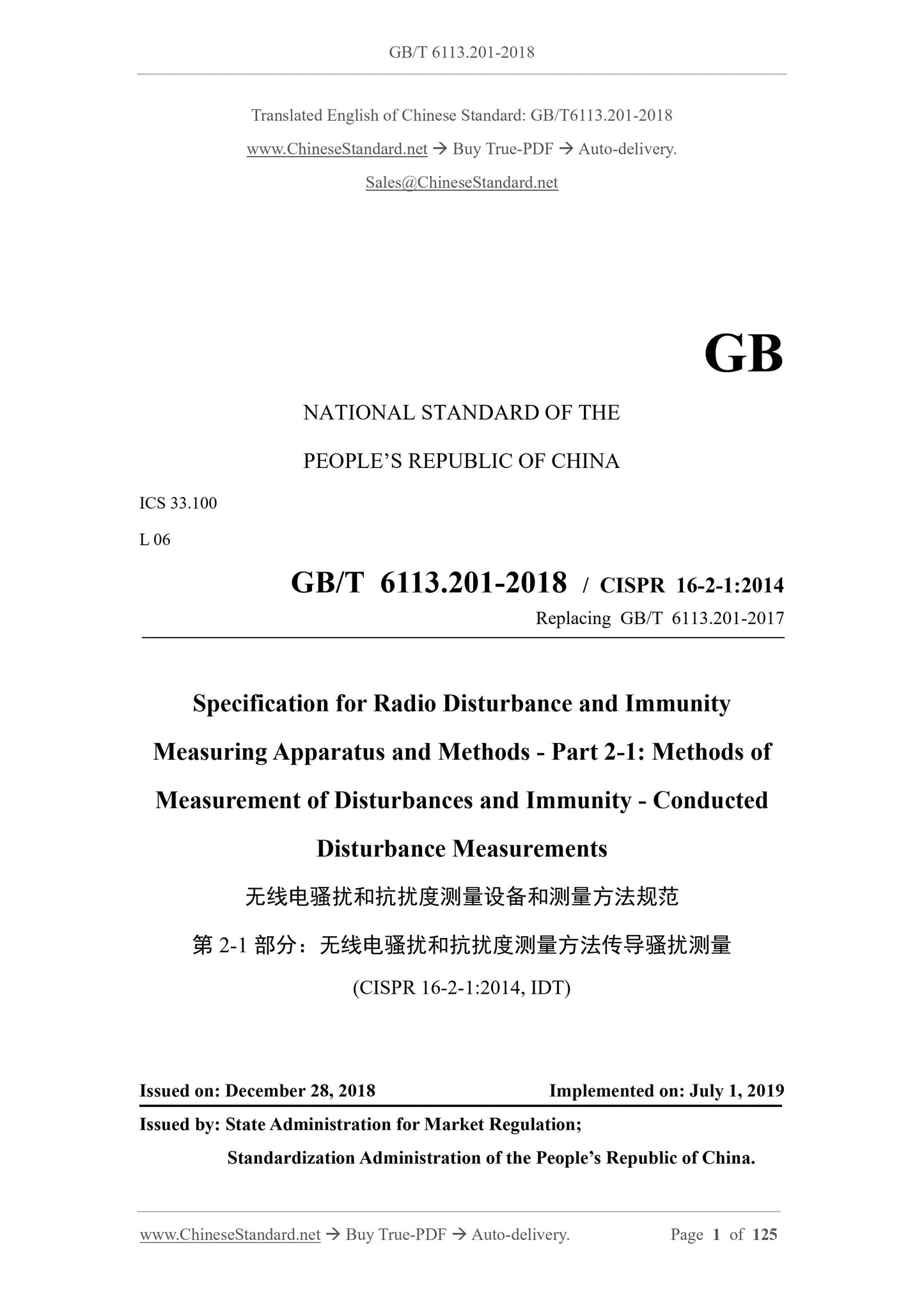

NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 33.100
L 06
GB/T 6113.201-2018 / CISPR 16-2-1:2014
Replacing GB/T 6113.201-2017
Specification for Radio Disturbance and Immunity
Measuring Apparatus and Methods - Part 2-1: Methods of
Measurement of Disturbances and Immunity - Conducted
Disturbance Measurements
(CISPR 16-2-1:2014, IDT)
ISSUED ON: DECEMBER 28, 2018
IMPLEMENTED ON: JULY 1, 2019
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

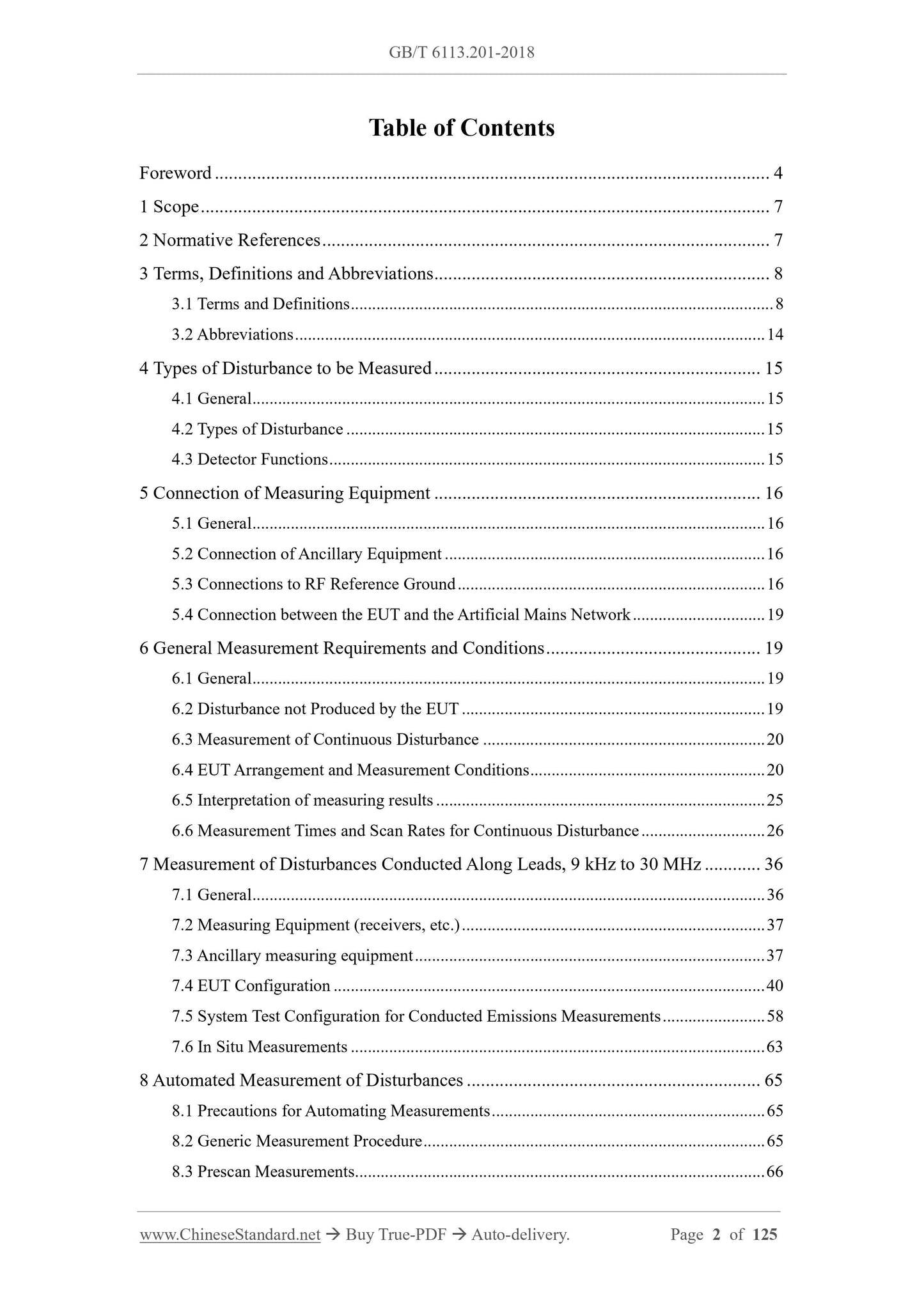

Table of Contents
Foreword ... 4
1 Scope ... 7
2 Normative References ... 7
3 Terms, Definitions and Abbreviations ... 8
3.1 Terms and Definitions ... 8
3.2 Abbreviations ... 14
4 Types of Disturbance to be Measured ... 15
4.1 General ... 15
4.2 Types of Disturbance ... 15
4.3 Detector Functions ... 15
5 Connection of Measuring Equipment ... 16
5.1 General ... 16
5.2 Connection of Ancillary Equipment ... 16
5.3 Connections to RF Reference Ground ... 16
5.4 Connection between the EUT and the Artificial Mains Network ... 19
6 General Measurement Requirements and Conditions ... 19
6.1 General ... 19
6.2 Disturbance not Produced by the EUT ... 19
6.3 Measurement of Continuous Disturbance ... 20
6.4 EUT Arrangement and Measurement Conditions ... 20
6.5 Interpretation of measuring results ... 25
6.6 Measurement Times and Scan Rates for Continuous Disturbance ... 26
7 Measurement of Disturbances Conducted Along Leads, 9 kHz to 30 MHz ... 36
7.1 General ... 36
7.2 Measuring Equipment (receivers, etc.) ... 37
7.3 Ancillary measuring equipment ... 37
7.4 EUT Configuration ... 40
7.5 System Test Configuration for Conducted Emissions Measurements ... 58
7.6 In Situ Measurements ... 63
8 Automated Measurement of Disturbances ... 65
8.1 Precautions for Automating Measurements ... 65
8.2 Generic Measurement Procedure ... 65
8.3 Prescan Measurements ... 66
8.4 Data Reduction ... 67
8.5 Disturbance Maximization and Final Measurement ... 67
8.6 Post Processing and Reporting ... 68
8.7 Disturbance Measurement Strategies with FFT-based Measuring Instruments ... 68
9 Test Set-up and Measurement Procedure Using the CDNE in the Frequency Range 30
MHz to 300 MHz ... 68
9.1 General ... 68
9.2 Test Set-up ... 69
9.3 Measurement Procedure ... 71

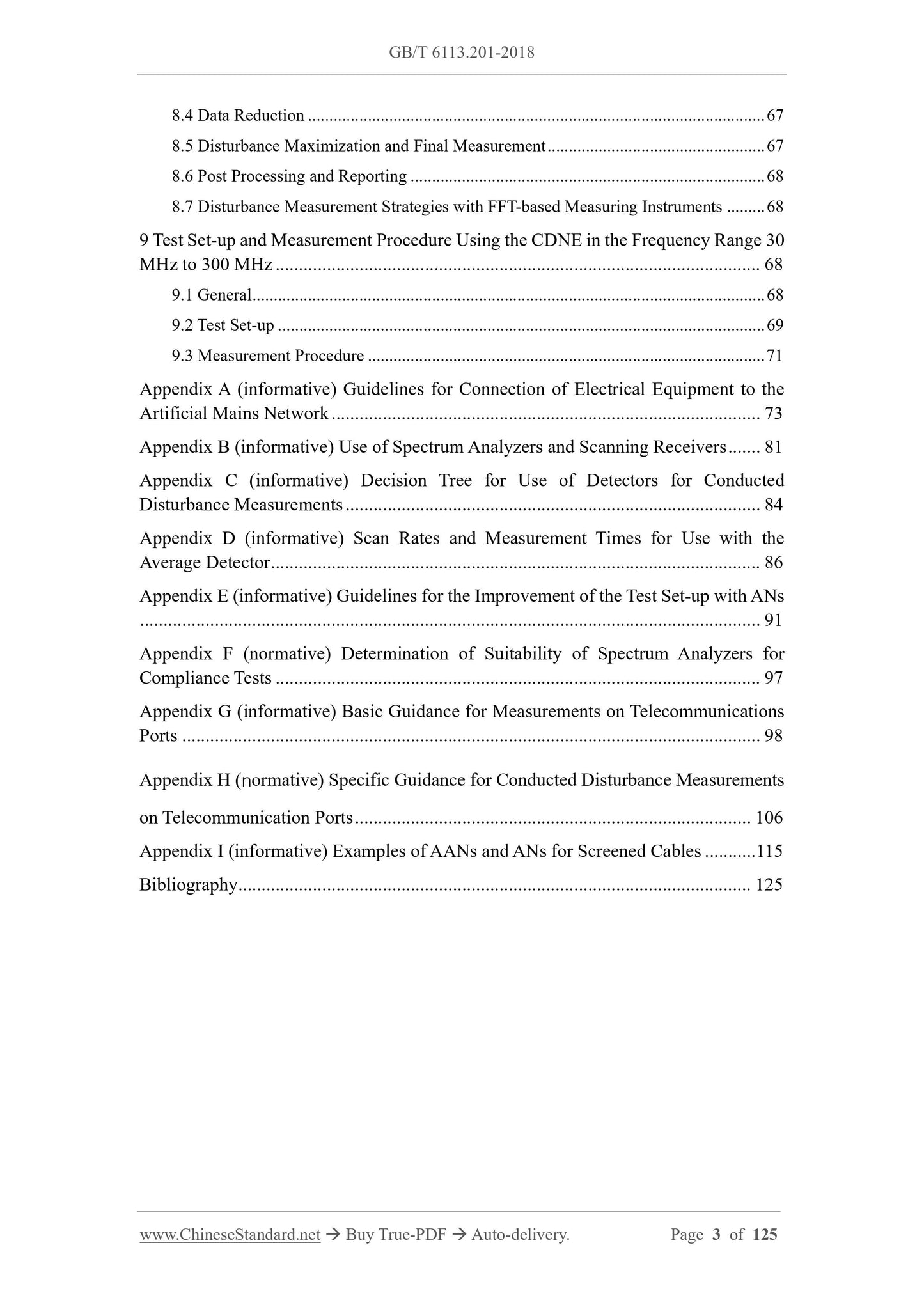

Appendix A (informative) Guidelines for Connection of Electrical Equipment to the
Artificial Mains Network ... 73
Appendix B (informative) Use of Spectrum Analyzers and Scanning Receivers ... 81
Appendix C (informative) Decision Tree for Use of Detectors for Conducted
Disturbance Measurements ... 84
Appendix D (informative) Scan Rates and Measurement Times for Use with the
Average Detector ... 86
Appendix E (informative) Guidelines for the Improvement of the Test Set-up with ANs
... 91
Appendix F (normative) Determination of Suitability of Spectrum Analyzers for
Compliance Tests ... 97
Appendix G (informative) Basic Guidance for Measurements on Telecommunications
Ports ... 98
Appendix H (normative) Specific Guidance for Conducted Disturbance Measurements
on Telecommunication Ports ... 106
Appendix I (informative) Examples of AANs and ANs for Screened Cables ... 115
Bibliography ... 125

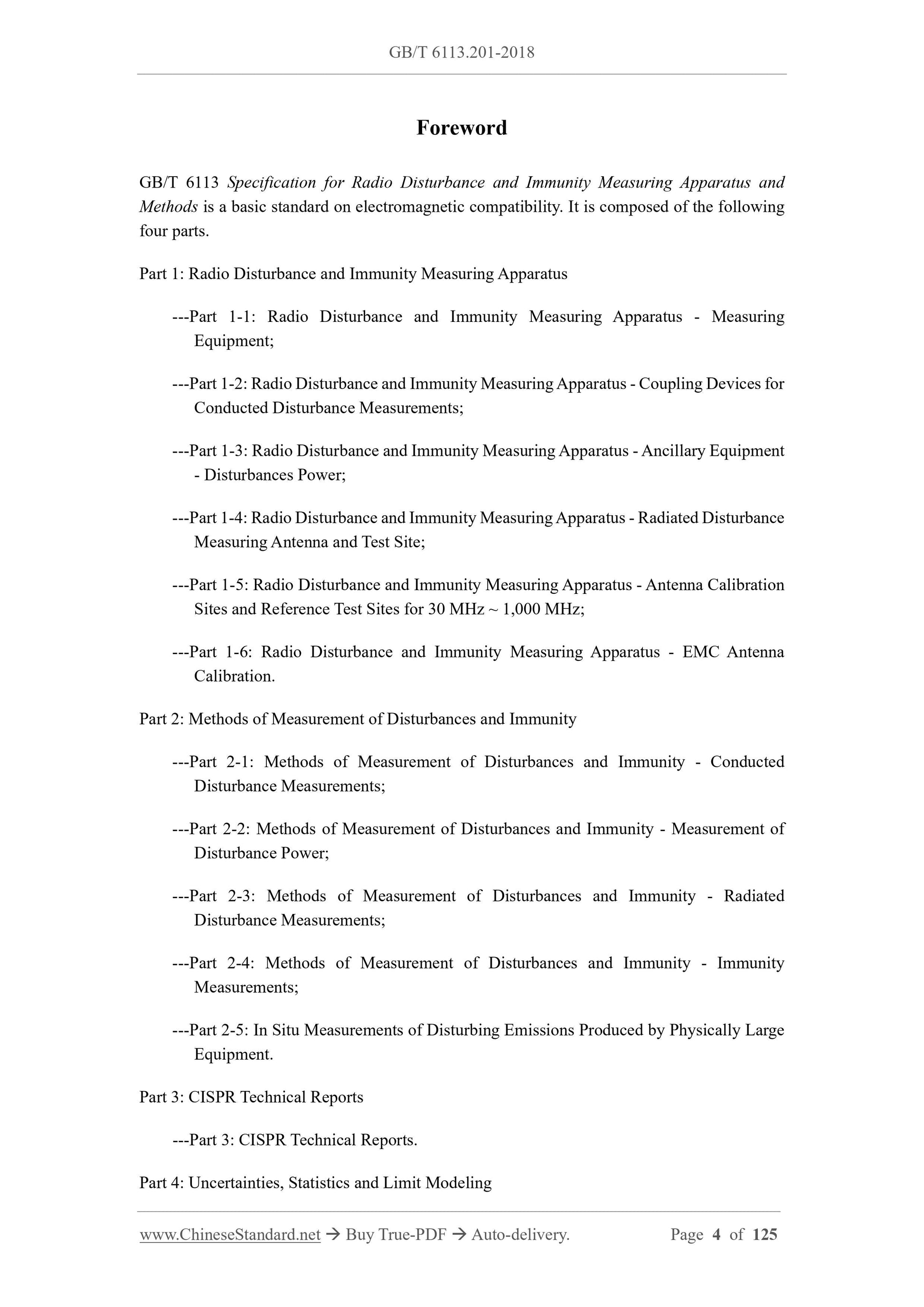

Foreword
GB/T 6113 Specification for Radio Disturbance and Immunity Measuring Apparatus and
Methods is a basic standard on electromagnetic compatibility. It is composed of the following
four parts.
Part 1: Radio Disturbance and Immunity Measuring Apparatus
---Part 1-1: Radio Disturbance and Immunity Measuring Apparatus - Measuring
Equipment;
---Part 1-2: Radio Disturbance and Immunity Measuring Apparatus - Coupling Devices for
Conducted Disturbance Measurements;
---Part 1-3: Radio Disturbance and Immunity Measuring Apparatus - Ancillary Equipment
- Disturbances Power;
---Part 1-4: Radio Disturbance and Immunity Measuring Apparatus - Radiated Disturbance
Measuring Antenna and Test Site;
---Part 1-5: Radio Disturbance and Immunity Measuring Apparatus - Antenna Calibration
Sites and Reference Test Sites for 30 MHz ~ 1,000 MHz;
---Part 1-6: Radio Disturbance and Immunity Measuring Apparatus - EMC Antenna
Calibration.
Part 2: Methods of Measurement of Disturbances and Immunity
---Part 2-1: Methods of Measurement of Disturbances and Immunity - Conducted
Disturbance Measurements;
---Part 2-2: Methods of Measurement of Disturbances and Immunity - Measurement of
Disturbance Power;
---Part 2-3: Methods of Measurement of Disturbances and Immunity - Radiated
Disturbance Measurements;
---Part 2-4: Methods of Measurement of Disturbances and Immunity - Immunity
Measurements;
---Part 2-5: In Situ Measurements of Disturbing Emissions Produced by Physically Large
Equipment.
Part 3: CISPR Technical Reports
---Part 3: CISPR Technical Reports.
Part 4: Uncertainties, Statistics and Limit Modeling
---Part 4-1: Uncertainties, Statistics and Limit Modeling - Uncertainties in Standardized
EMC Tests;
---Part 4-2: Uncertainties, Statistics and Limit Modeling - Measurement Instrumentation
Uncertainty;
---Part 4-3: Uncertainties, Statistics and Limit Modeling - Statistical Considerations in the
Determination of EMC Compliance of Mass-produced Products;
---Part 4-4: Uncertainties, Statistics and Limit Modeling - Statistics of Complaints and a
Model for the Calculation of Limits;

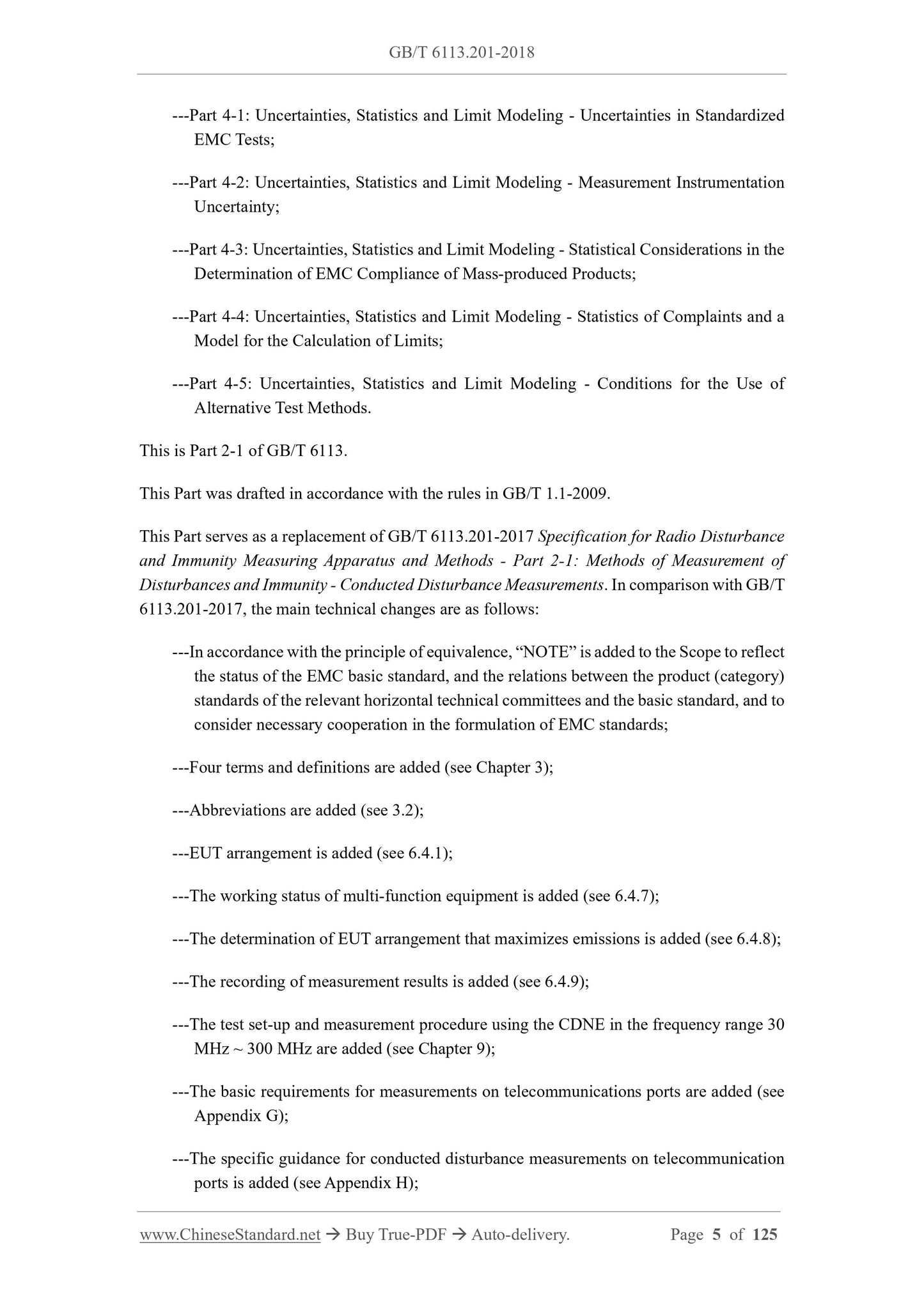

---Part 4-5: Uncertainties, Statistics and Limit Modeling - Conditions for the Use of
Alternative Test Methods.
This is Part 2-1 of GB/T 6113.
This Part was drafted in accordance with the rules in GB/T 1.1-2009.
This Part serves as a replacement of GB/T 6113.201-2017 Specification for Radio Disturbance
and Immunity Measuring Apparatus and Methods - Part 2-1: Methods of Measurement of
Disturbances and Immunity - Conducted Disturbance Measurements. In comparison with GB/T
6113.201-2017, the main technical changes are as follows:
---In accordance with the principle of equivalence, “NOTE” is added to the Scope to reflect
the status of the EMC basic standard, and the relations between the product (category)
standards of the relevant horizontal technical committees and the basic standard, and to
consider necessary cooperation in the formulation of EMC standards;
---Four terms and definitions are added (see Chapter 3);
---Abbreviations are added (see 3.2);
---EUT arrangement is added (see 6.4.1);
---The working status of multi-function equipment is added (see 6.4.7);
---The determination of EUT arrangement that maximizes emissions is added (see 6.4.8);
---The recording of measurement results is added (see 6.4.9);
---The test set-up and measurement procedure using the CDNE in the frequency range 30
MHz ~ 300 MHz are added (see Chapter 9);
---The basic requirements for measurements on telecommunications ports are added (see
Appendix G);
---The specific guidance for conducted disturbance measurements on telecommunication
ports is added (see Appendix H);
Specification for Radio Disturbance and Immunity
Measuring Apparatus and Methods - Part 2-1: Methods of
Measurement of Disturbances and Immunity - Conducted
Disturbance Measurements

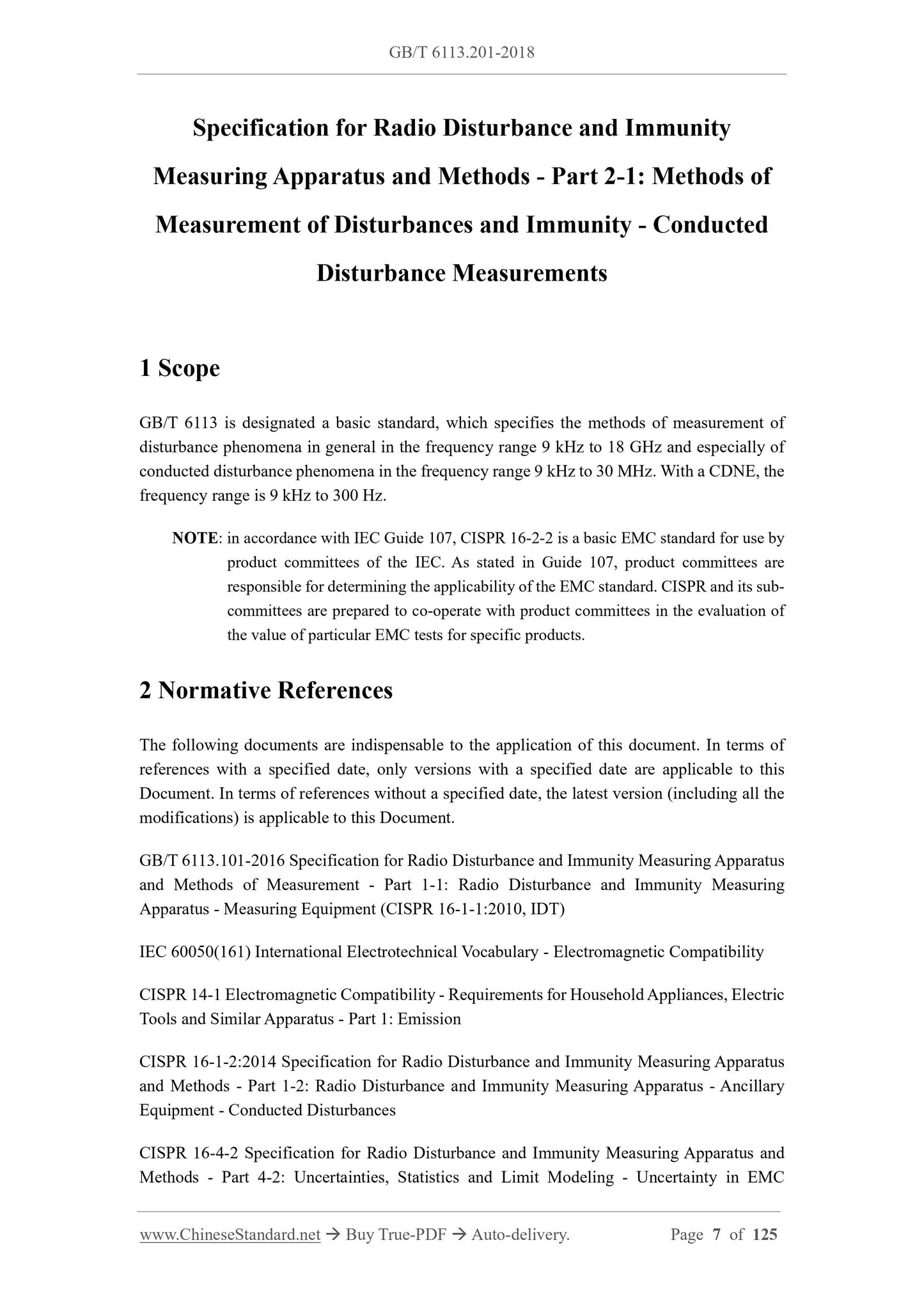

1 Scope
GB/T 6113 is designated a basic standard, which specifies the methods of measurement of
disturbance phenomena in general in the frequency range 9 kHz to 18 GHz and especially of
conduct...
