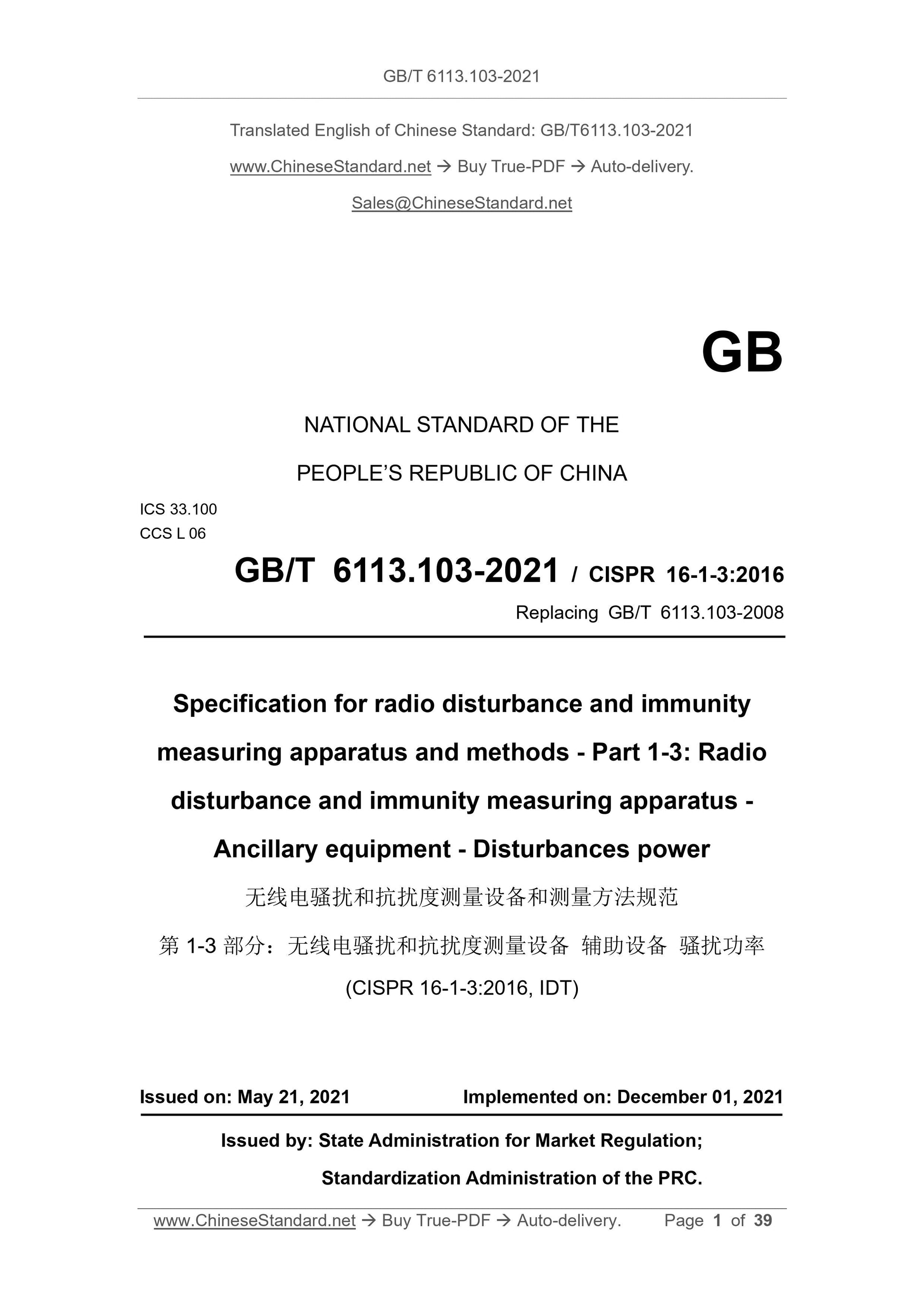

GB/T 6113.103-2021: Specification for radio disturbance and immunity measuring apparatus and methods - Part 1-3: Radio disturbance and immunity measuring apparatus - Ancillary equipment - Disturbances power

GB/T 6113.103-2021
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 33.100
CCS L 06
GB/T 6113.103-2021 / CISPR 16-1-3:2016
Replacing GB/T 6113.103-2008
Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-3: Radio
disturbance and immunity measuring apparatus -
Ancillary equipment - Disturbances power
(CISPR 16-1-3:2016, IDT)
ISSUED ON: MAY 21, 2021
IMPLEMENTED ON: DECEMBER 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of the PRC.

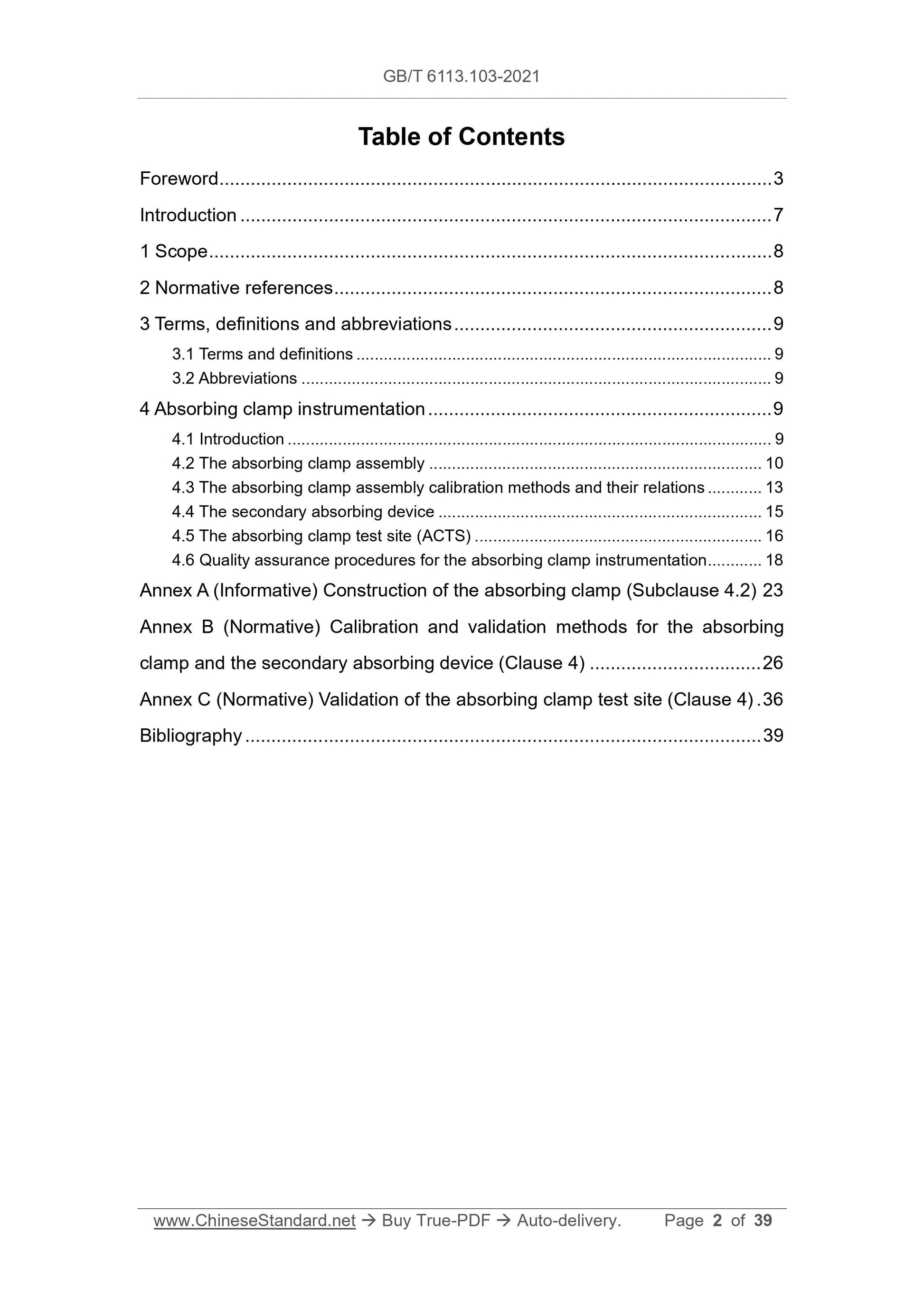

Table of Contents
Foreword ... 3
Introduction ... 7
1 Scope ... 8
2 Normative references ... 8
3 Terms, definitions and abbreviations ... 9
3.1 Terms and definitions ... 9
3.2 Abbreviations ... 9
4 Absorbing clamp instrumentation ... 9
4.1 Introduction ... 9
4.2 The absorbing clamp assembly ... 10
4.3 The absorbing clamp assembly calibration methods and their relations ... 13 4.4 The secondary absorbing device ... 15
4.5 The absorbing clamp test site (ACTS) ... 16
4.6 Quality assurance procedures for the absorbing clamp instrumentation ... 18 Annex A (Informative) Construction of the absorbing clamp (Subclause 4.2) 23 Annex B (Normative) Calibration and validation methods for the absorbing clamp and the secondary absorbing device (Clause 4) ... 26
Annex C (Normative) Validation of the absorbing clamp test site (Clause 4) . 36 Bibliography ... 39

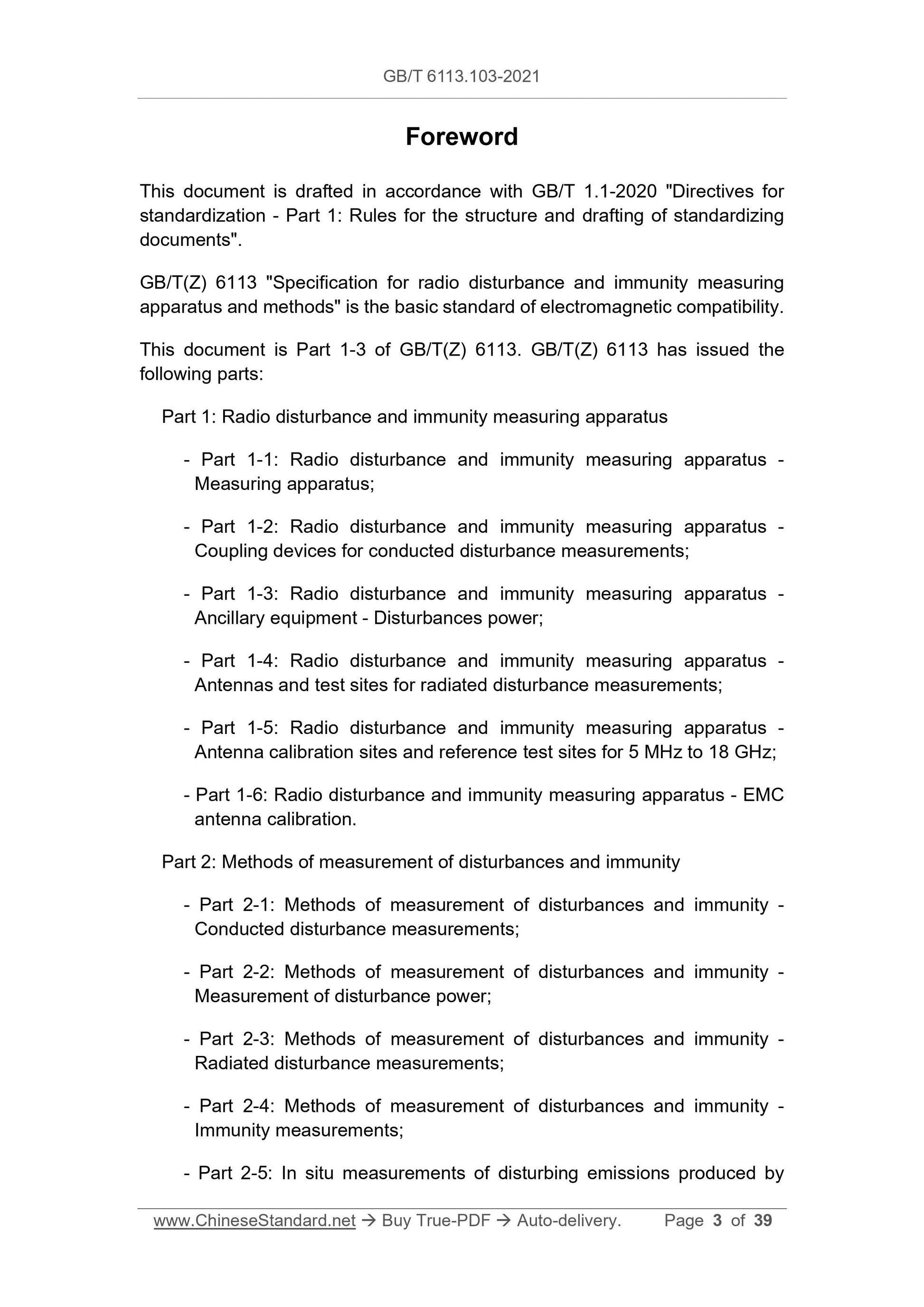

Foreword
This document is drafted in accordance with GB/T 1.1-2020 "Directives for standardization - Part 1: Rules for the structure and drafting of standardizing documents".
GB/T(Z) 6113 "Specification for radio disturbance and immunity measuring apparatus and methods" is the basic standard of electromagnetic compatibility. This document is Part 1-3 of GB/T(Z) 6113. GB/T(Z) 6113 has issued the
following parts:
Part 1: Radio disturbance and immunity measuring apparatus
- Part 1-1: Radio disturbance and immunity measuring apparatus -
Measuring apparatus;
- Part 1-2: Radio disturbance and immunity measuring apparatus -
Coupling devices for conducted disturbance measurements;
- Part 1-3: Radio disturbance and immunity measuring apparatus -
Ancillary equipment - Disturbances power;
- Part 1-4: Radio disturbance and immunity measuring apparatus -
Antennas and test sites for radiated disturbance measurements;
- Part 1-5: Radio disturbance and immunity measuring apparatus -
Antenna calibration sites and reference test sites for 5 MHz to 18 GHz; - Part 1-6: Radio disturbance and immunity measuring apparatus - EMC
antenna calibration.
Part 2: Methods of measurement of disturbances and immunity
- Part 2-1: Methods of measurement of disturbances and immunity -
Conducted disturbance measurements;
- Part 2-2: Methods of measurement of disturbances and immunity -
Measurement of disturbance power;
- Part 2-3: Methods of measurement of disturbances and immunity -
Radiated disturbance measurements;
- Part 2-4: Methods of measurement of disturbances and immunity -
Immunity measurements;
- Part 2-5: In situ measurements of disturbing emissions produced by
physically large equipment.
Part 3: CISPR technical reports
- Part 3: CISPR technical reports.
Part 4: Uncertainties, statistics and limit modelling
- Part 4-1: Uncertainties, statistics and limit modelling - Uncertainties in standardized EMC tests;
- Part 4-2: Uncertainties, statistics and limit modelling - Measurement instrumentation uncertainty;
- Part 4-3: Uncertainties, statistics and limit modelling - Statistical considerations in the determination of EMC compliance of mass-
produced products;
- Part 4-4: Uncertainties, statistics and limit modelling - Statistics of complaints and a model for the calculation of limits;
- Part 4-5: Uncertainties, statistics and limit modelling - Conditions for the use of alternative test methods.

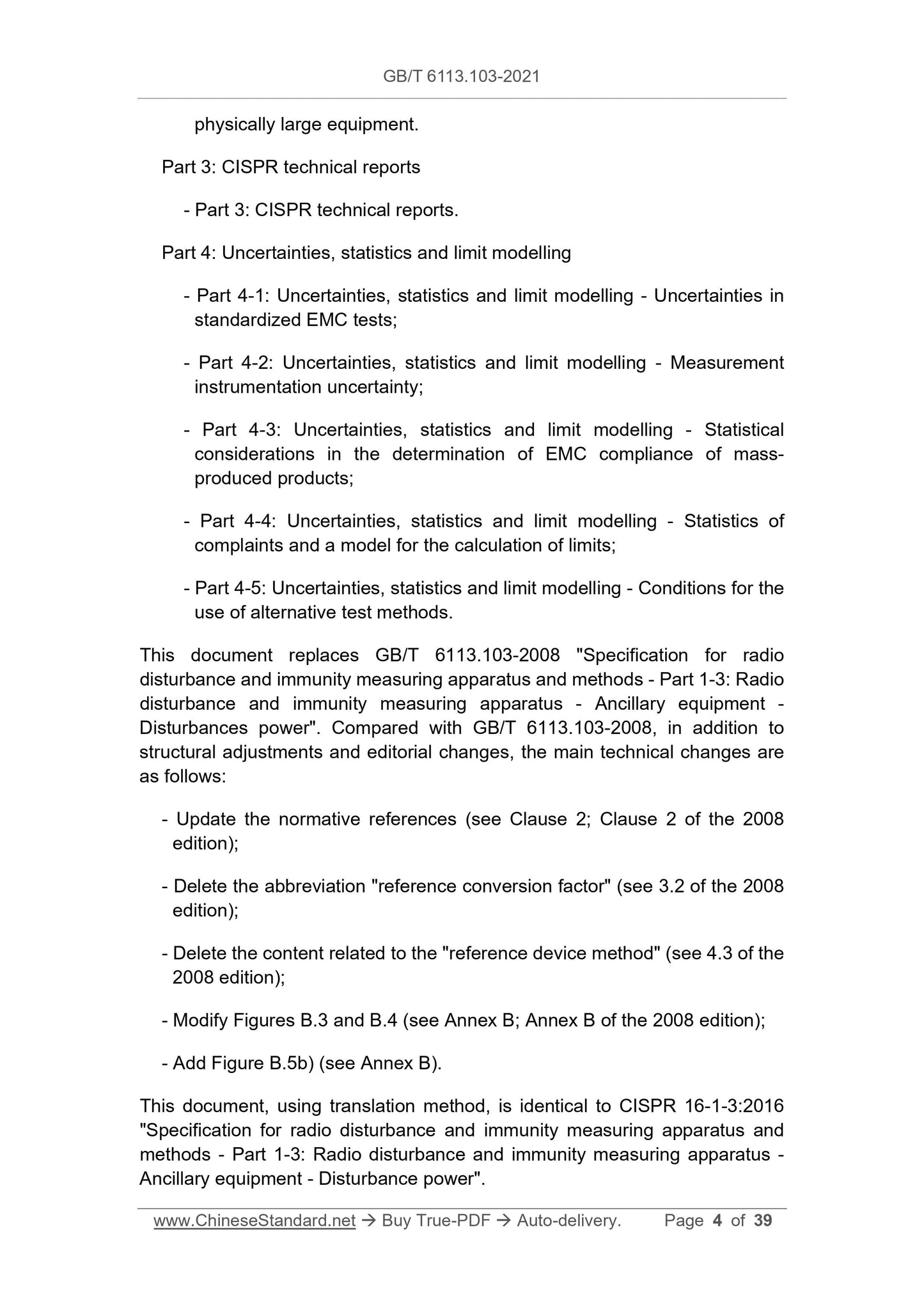

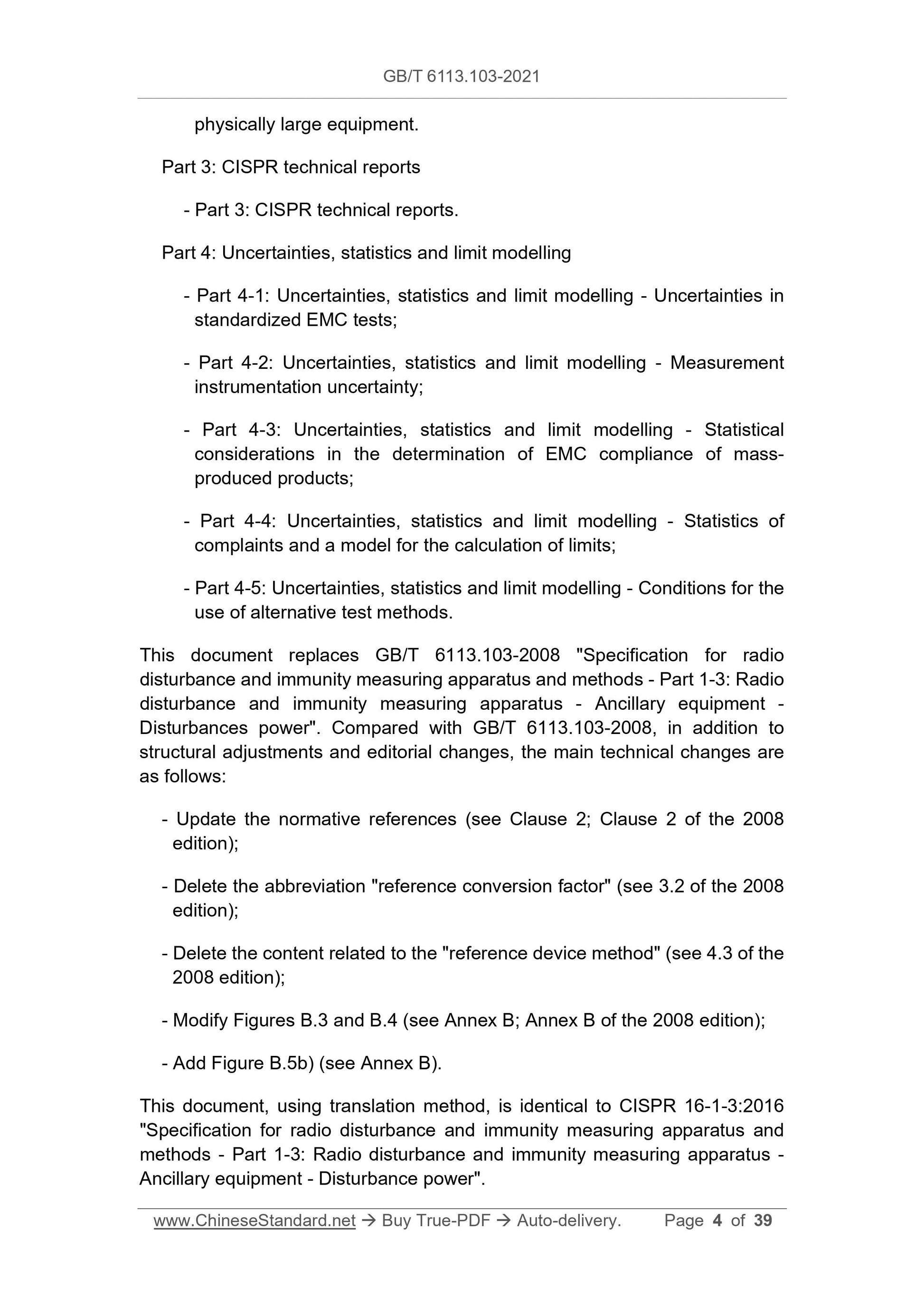

This document replaces GB/T 6113.103-2008 "Specification for radio
disturbance and immunity measuring apparatus and methods - Part 1-3: Radio disturbance and immunity measuring apparatus - Ancillary equipment -
Disturbances power". Compared with GB/T 6113.103-2008, in addition to
structural adjustments and editorial changes, the main technical changes are as follows:
- Update the normative references (see Clause 2; Clause 2 of the 2008
edition);
- Delete the abbreviation "reference conversion factor" (see 3.2 of the 2008 edition);
- Delete the content related to the "reference device method" (see 4.3 of the 2008 edition);
- Modify Figures B.3 and B.4 (see Annex B; Annex B of the 2008 edition); - Add Figure B.5b) (see Annex B).
This document, using translation method, is identical to CISPR 16-1-3:2016 "Specification for radio disturbance and immunity measuring apparatus and methods - Part 1-3: Radio disturbance and immunity measuring apparatus - Ancillary equipment - Disturbance power".

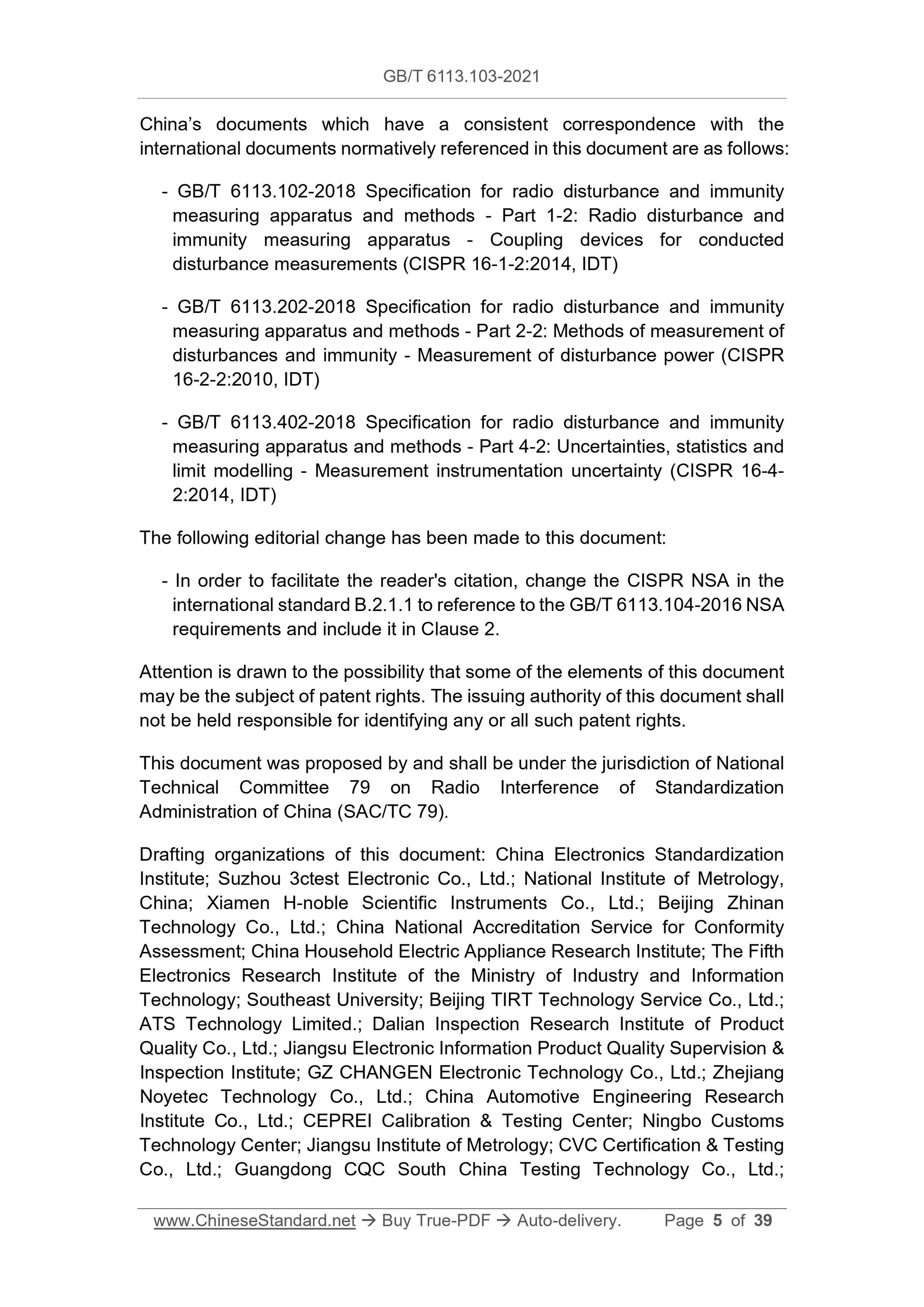

China’s documents which have a consistent correspondence with the
international documents normatively referenced in this document are as follows: - GB/T 6113.102-2018 Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-2: Radio disturbance and
immunity measuring apparatus - Coupling devices for conducted
disturbance measurements (CISPR 16-1-2:2014, IDT)
- GB/T 6113.202-2018 Specification for radio disturbance and immunity
measuring apparatus and methods - Part 2-2: Methods of measurement of
disturbances and immunity - Measurement of disturbance power (CISPR
16-2-2:2010, IDT)
- GB/T 6113.402-2018 Specification for radio disturbance and immunity
measuring apparatus and methods - Part 4-2: Uncertainties, statistics and limit modelling - Measurement instrumentation uncertainty (CISPR 16-4-
2:2014, IDT)
The following editorial change has been made to this document:
- In order to facilitate the reader's citation, change the CISPR NSA in the international standard B.2.1.1 to reference to the GB/T 6113.104-2016 NSA requirements and include it in Clause 2.
Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. The issuing authority of this document shall not be held responsible for identifying any or all such patent rights.
This document was proposed by and shall be under the jurisdiction of National Technical Committee 79 on Radio Interference of Standardization
Administration of China (SAC/TC 79).
Drafting organizations of this document: China Electronics Standardization Institute; Suzhou 3ctest Electronic Co., Ltd.; National Institute of Metrology, China; Xiamen H-noble Scientific Instruments Co., Ltd.; Beijing Zhinan
Technology Co., Ltd.; China National Accreditation Service for Conformity Assessment; China Household Electric Appliance Research Institute; The Fifth Electronics Research Institute of the Ministry of Industry and Information Technology; Southeast University; Beijing TIRT Technology Service Co., Ltd.; ATS Technology Limited.; Dalian Inspection Research Institute of Product Quality Co., Ltd.; Jiangsu Electronic Information Product Quality Supervision and Inspection Institute; GZ CHANGEN Electronic Technology Co., Ltd.; Zhejiang Noyetec Technology Co., Ltd.; China Automotive Engineering Research
Institute Co., Ltd.; CEPREI Calibration and Testing Center; Ningbo Customs Technology Center; Jiangsu Institute of Metrology; CVC Certification and Testing Co., Ltd.; Guangdong CQC South China Testing Technology Co., Ltd.;
Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-3: Radio
disturbance and immunity measuring apparatus -
Ancillary equipment - Disturbances power

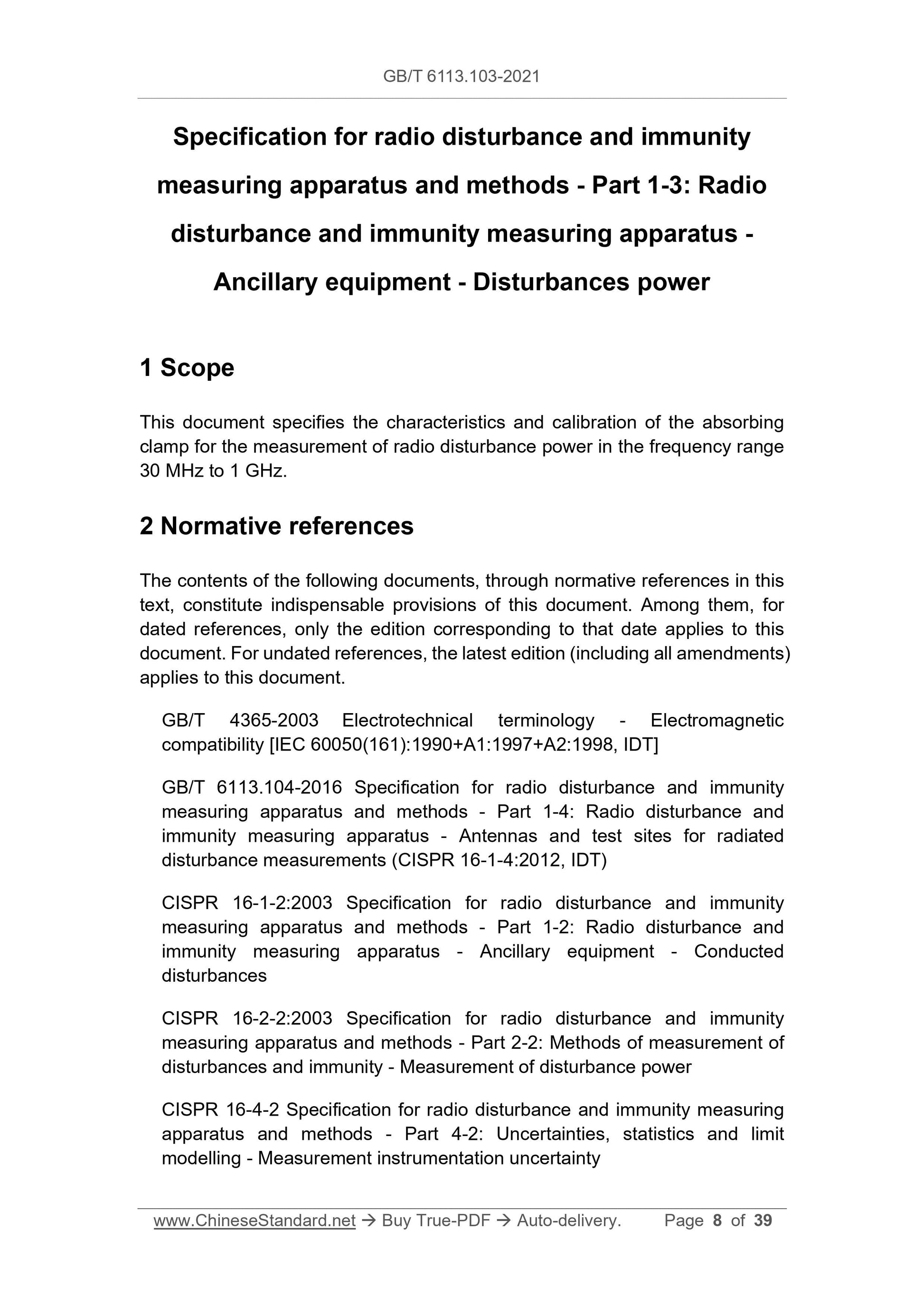

1 Scope
This document specifies the characteristics and calibration of the absorbing clamp for the measurement of radio disturbance power in the frequency range 30 MHz to 1 GHz.
2 Normative references
The contents of the following documents, through normative references in this text, constitute indispensable provisions of this document. Among them, for dated references, only the edition corresponding to that date applies to this document. For undated references, the latest edition (including all amendments) applies to this document.
GB/T 4365-2003 Electrotechnical terminology - Electromagnetic
compatibility [IEC 60050(161):1990+A1:1997+A2:1998, IDT]
GB/T 6113.104-2016 Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-4: Radio disturbance and
immunity measuring apparatus - Antennas and test sites for radiated
disturbance measurements (CISPR 16-1-4:2012, IDT)
CISPR 16-1-2:2003 Specification for radio disturbance and immunity
measuring apparatus and methods - Part 1-2: Radio disturbance and
immunity measuring apparatus - Ancillary equipment - Conducted
disturbances
CISPR 16-2-2:2003 Specification for radio disturbance and immunity
measuring apparatus and methods - Part 2-2: Methods of measurement of
disturbances and immunity - Measurement of disturbance power
CISPR 16-4-2 Specification for radio disturbance and immunity measuring apparatus and methods - Part 4-2: Uncertainties, statistics and limit
modelling - Measurement instrumentation uncertainty

View full details
