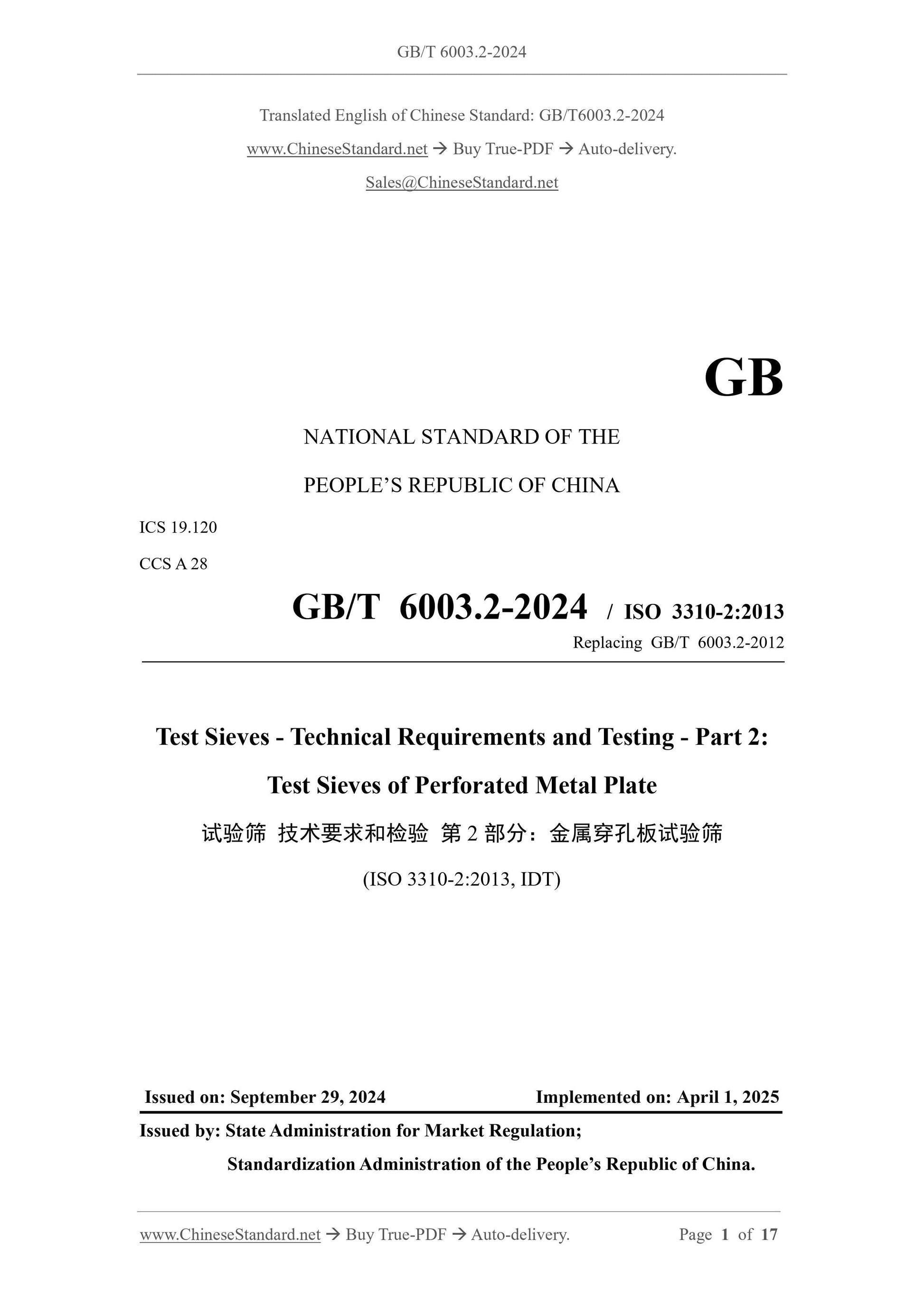

GB/T 6003.2-2024
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 19.120
CCS A 28
GB/T 6003.2-2024 / ISO 3310-2:2013
Replacing GB/T 6003.2-2012
Test Sieves - Technical Requirements and Testing - Part 2:
Test Sieves of Perforated Metal Plate
(ISO 3310-2:2013, IDT)
ISSUED ON: SEPTEMBER 29, 2024
IMPLEMENTED ON: APRIL 1, 2025
Issued by: State Administration for Market Regulation;
Standardization Administration of the People’s Republic of China.

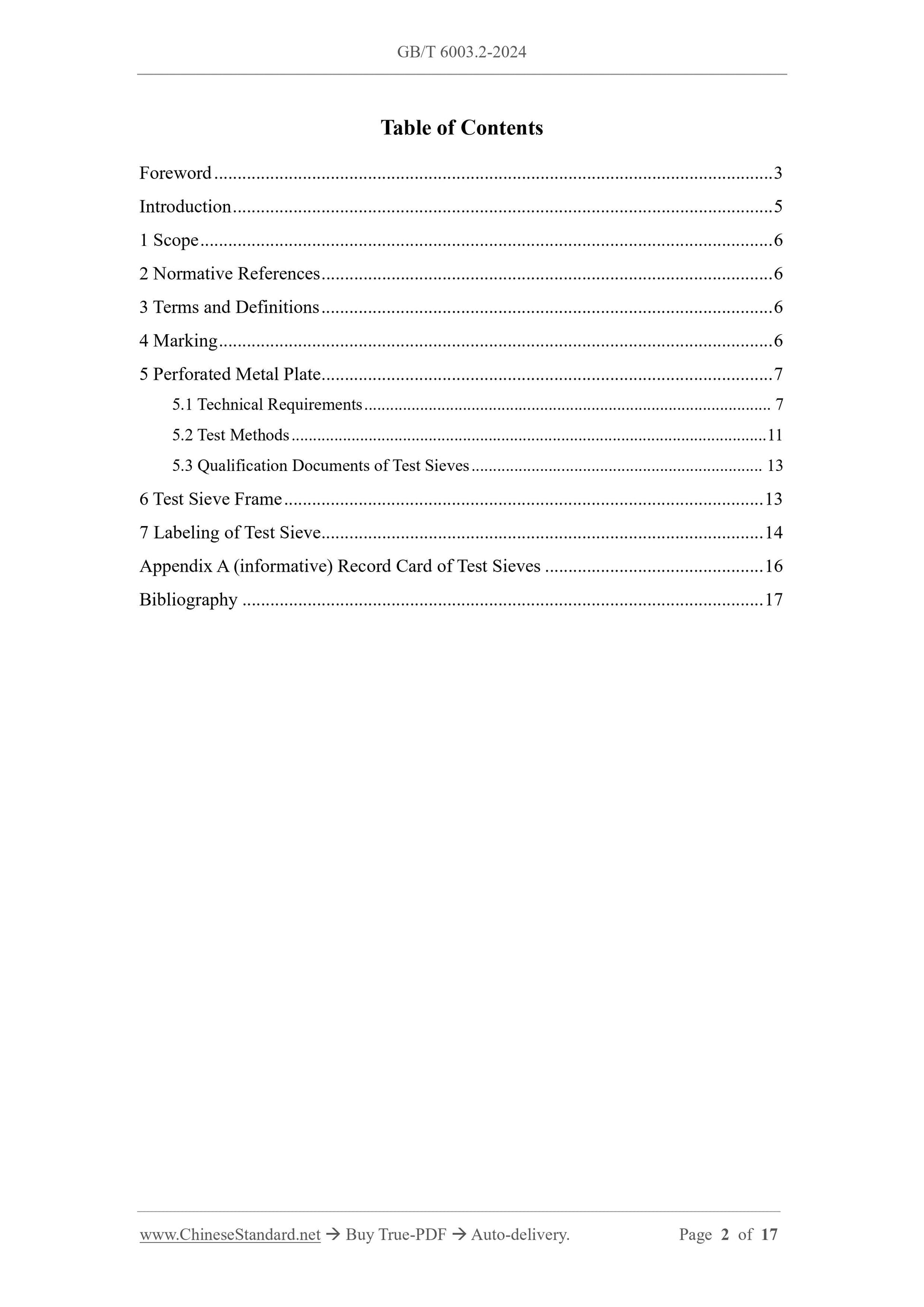

Table of Contents
Foreword ... 3
Introduction ... 5
1 Scope ... 6
2 Normative References ... 6
3 Terms and Definitions ... 6
4 Marking ... 6
5 Perforated Metal Plate ... 7
5.1 Technical Requirements ... 7
5.2 Test Methods ... 11
5.3 Qualification Documents of Test Sieves ... 13
6 Test Sieve Frame ... 13
7 Labeling of Test Sieve ... 14
Appendix A (informative) Record Card of Test Sieves ... 16
Bibliography ... 17

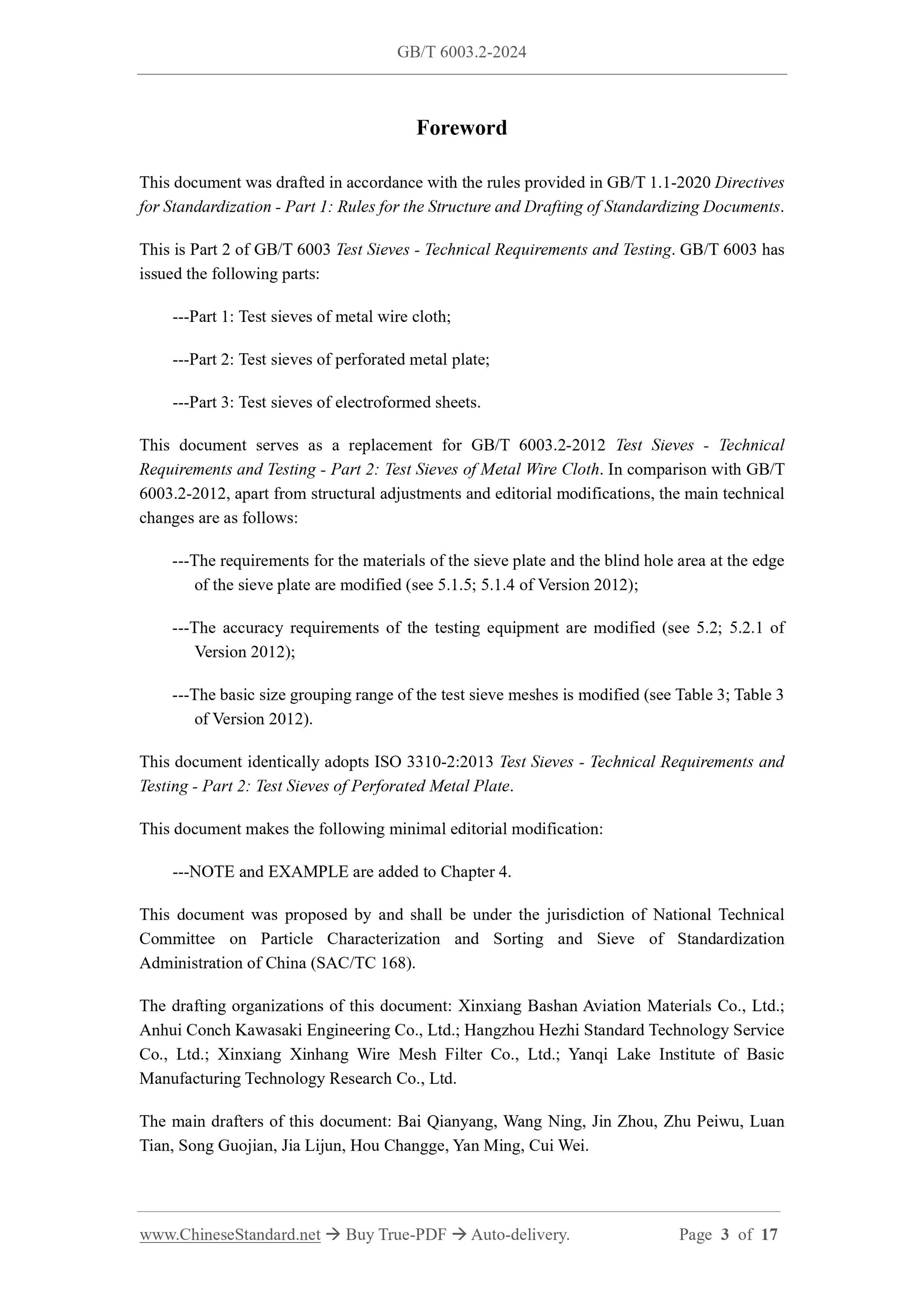

Foreword
This document was drafted in accordance with the rules provided in GB/T 1.1-2020 Directives
for Standardization - Part 1: Rules for the Structure and Drafting of Standardizing Documents.
This is Part 2 of GB/T 6003 Test Sieves - Technical Requirements and Testing. GB/T 6003 has
issued the following parts:
---Part 1: Test sieves of metal wire cloth;
---Part 2: Test sieves of perforated metal plate;
---Part 3: Test sieves of electroformed sheets.
This document serves as a replacement for GB/T 6003.2-2012 Test Sieves - Technical
Requirements and Testing - Part 2: Test Sieves of Metal Wire Cloth. In comparison with GB/T
6003.2-2012, apart from structural adjustments and editorial modifications, the main technical
changes are as follows:
---The requirements for the materials of the sieve plate and the blind hole area at the edge
of the sieve plate are modified (see 5.1.5; 5.1.4 of Version 2012);
---The accuracy requirements of the testing equipment are modified (see 5.2; 5.2.1 of
Version 2012);
---The basic size grouping range of the test sieve meshes is modified (see Table 3; Table 3
of Version 2012).
This document identically adopts ISO 3310-2:2013 Test Sieves - Technical Requirements and
Testing - Part 2: Test Sieves of Perforated Metal Plate.
This document makes the following minimal editorial modification:
---NOTE and EXAMPLE are added to Chapter 4.
This document was proposed by and shall be under the jurisdiction of National Technical
Committee on Particle Characterization and Sorting and Sieve of Standardization
Administration of China (SAC/TC 168).
The drafting organizations of this document: Xinxiang Bashan Aviation Materials Co., Ltd.;
Anhui Conch Kawasaki Engineering Co., Ltd.; Hangzhou Hezhi Standard Technology Service
Co., Ltd.; Xinxiang Xinhang Wire Mesh Filter Co., Ltd.; Yanqi Lake Institute of Basic
Manufacturing Technology Research Co., Ltd.
The main drafters of this document: Bai Qianyang, Wang Ning, Jin Zhou, Zhu Peiwu, Luan
Tian, Song Guojian, Jia Lijun, Hou Changge, Yan Ming, Cui Wei.
Test Sieves - Technical Requirements and Testing - Part 2:
Test Sieves of Perforated Metal Plate

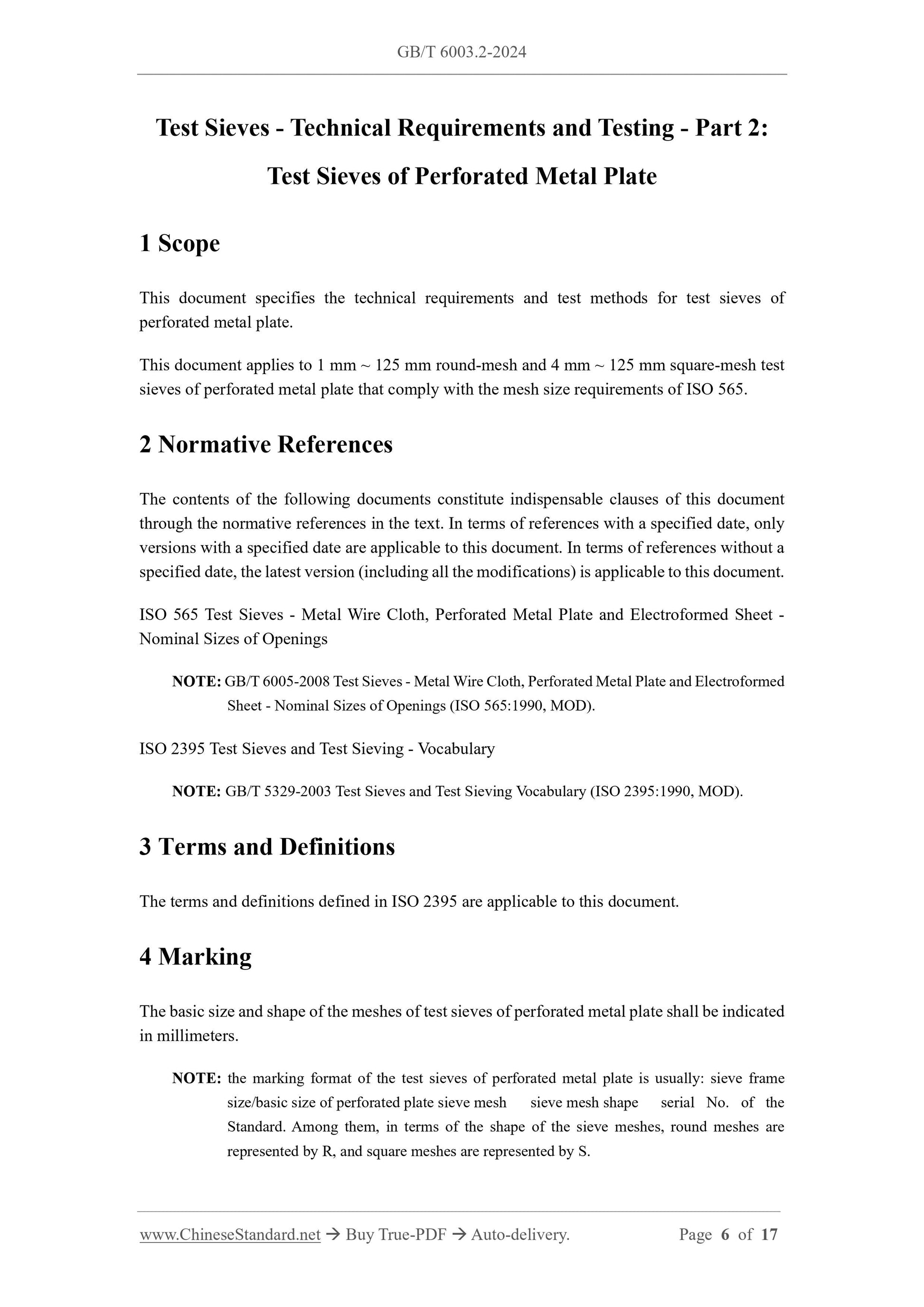

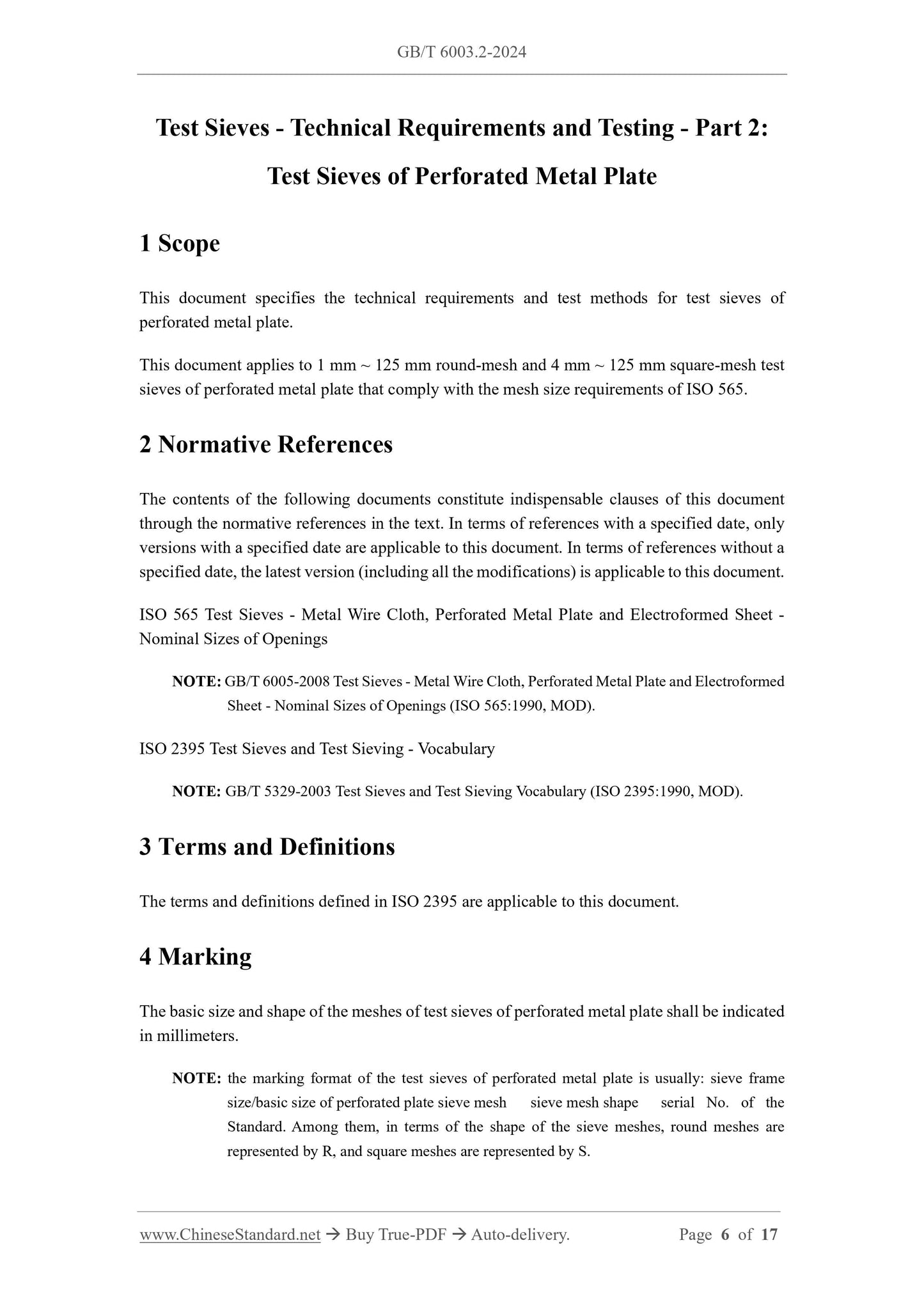

1 Scope
