GB/T 5900.1-2021: Machine tools - Connecting dimensions of spindle noses and work holding chucks - Part 1: Conical connection

This Part specifies the interchangeable dimensions between the taper end (Type A) of the lathe spindle and the corresponding connecting surface of the faceplate or chuck. This Part is applicable to common lathes, CNC lathes, and other machine tools can also be used as reference.
GB/T 5900.1-2021

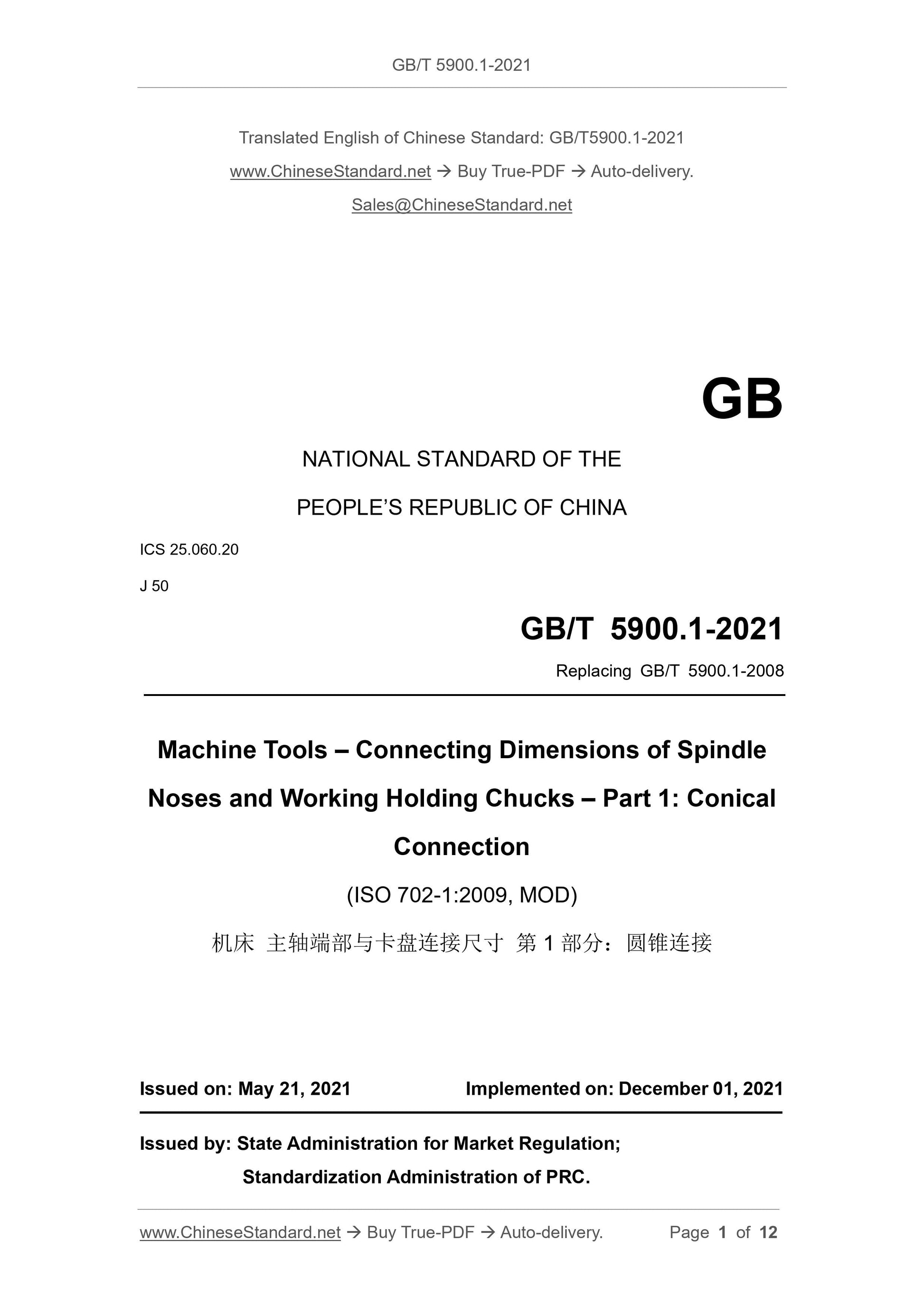

GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 25.060.20
J 50
Replacing GB/T 5900.1-2008
Machine Tools ?€? Connecting Dimensions of Spindle
Noses and Working Holding Chucks ?€? Part 1: Conical
Connection
(ISO 702-1:2009, MOD)
ISSUED ON: MAY 21, 2021
IMPLEMENTED ON: DECEMBER 01, 2021
Issued by: State Administration for Market Regulation;
Standardization Administration of PRC.

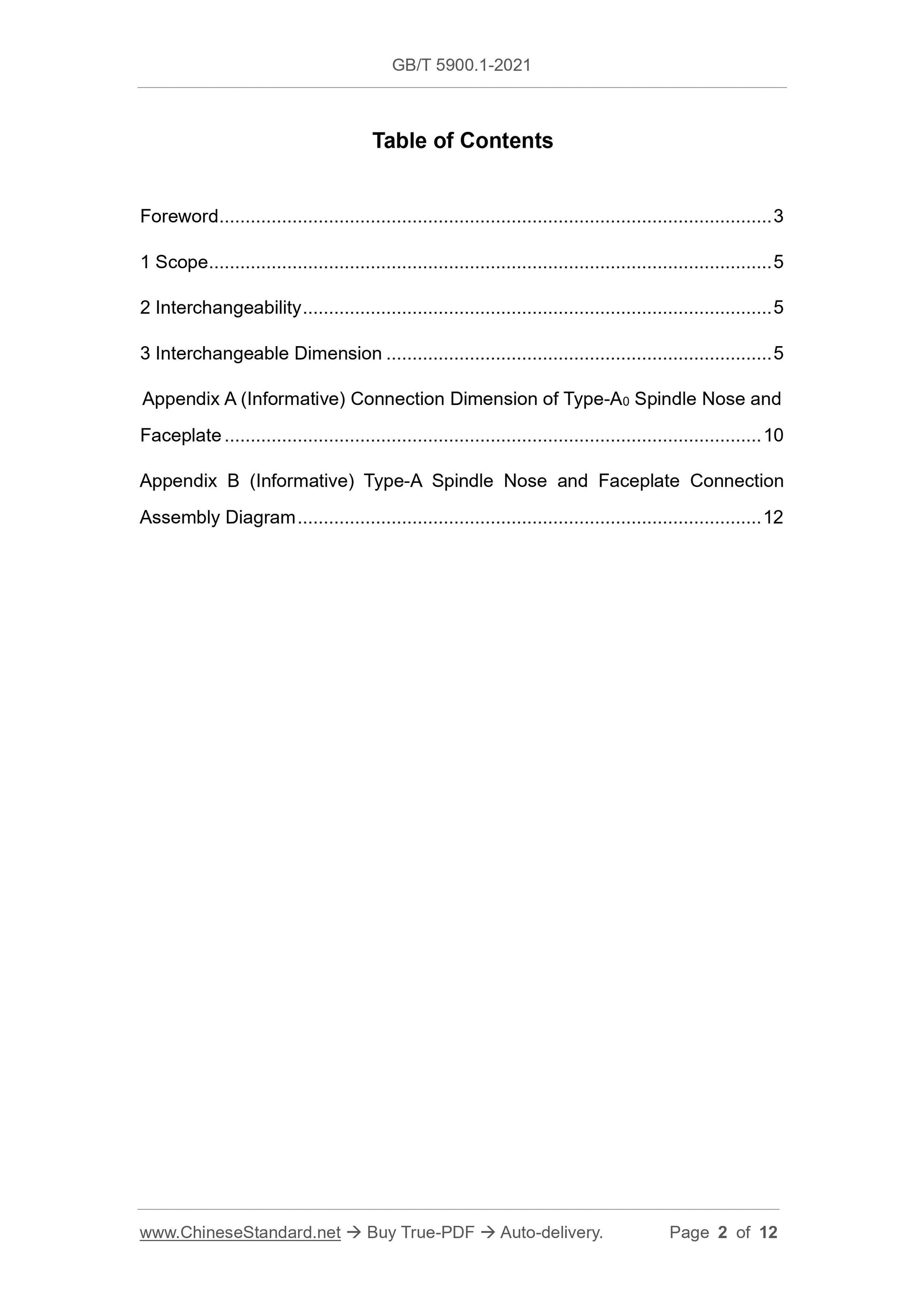

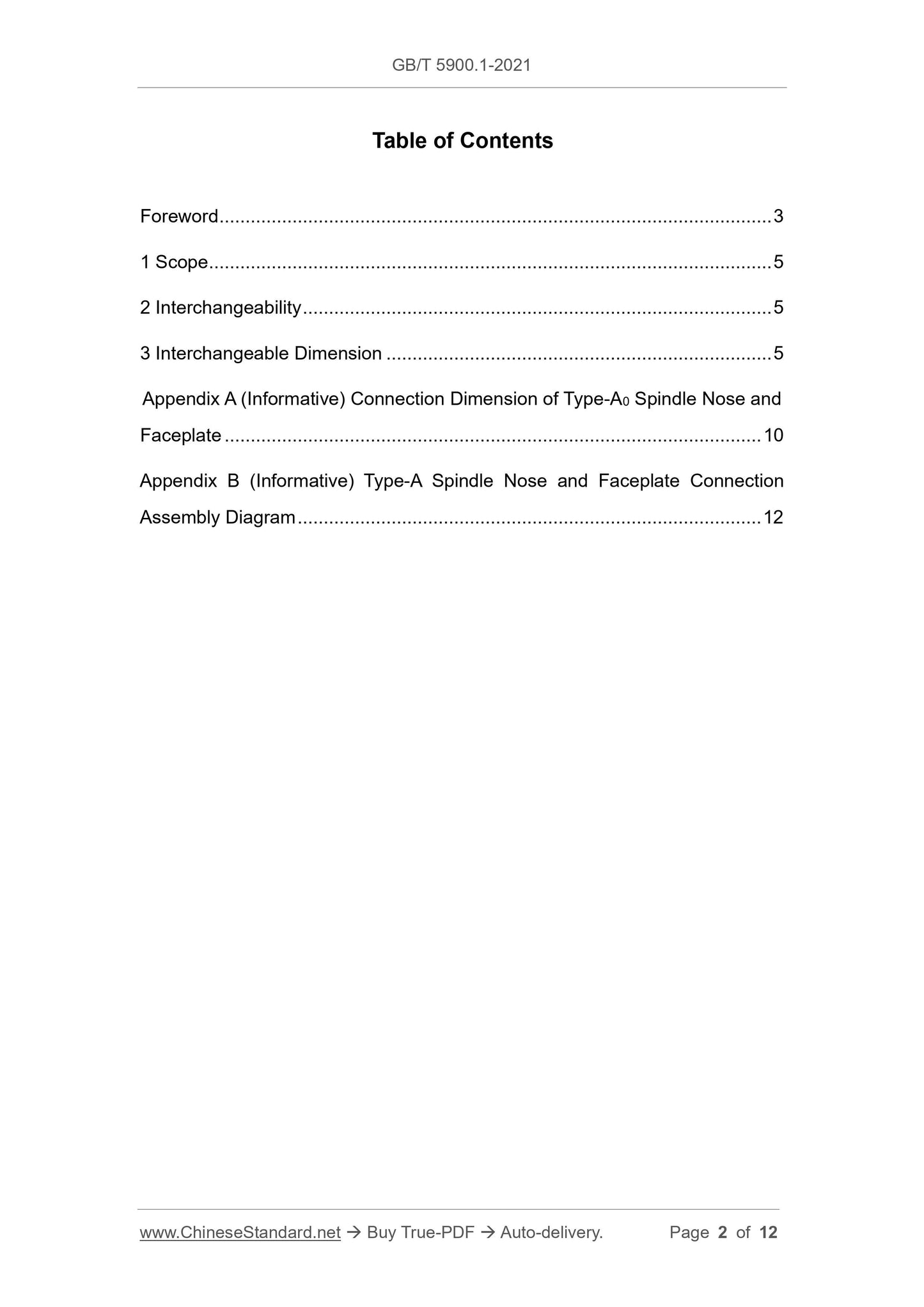

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Interchangeability ... 5
3 Interchangeable Dimension ... 5
Appendix A (Informative) Connection Dimension of Type-A0 Spindle Nose and Faceplate ... 10
Appendix B (Informative) Type-A Spindle Nose and Faceplate Connection
Assembly Diagram ... 12

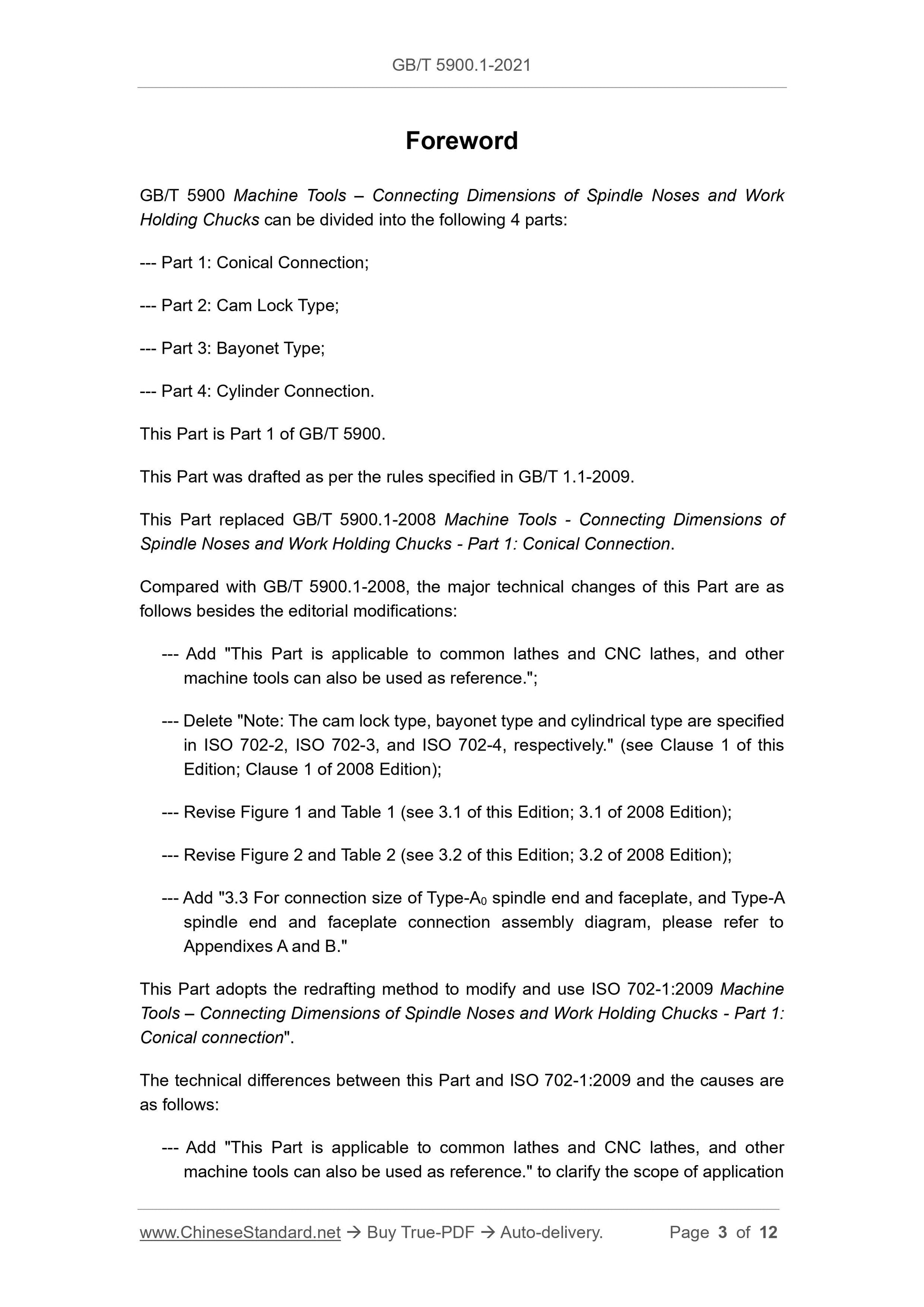

Foreword
GB/T 5900 Machine Tools ?€? Connecting Dimensions of Spindle Noses and Work Holding Chucks can be divided into the following 4 parts:
--- Part 1: Conical Connection;
--- Part 2: Cam Lock Type;
--- Part 3: Bayonet Type;
--- Part 4: Cylinder Connection.
This Part is Part 1 of GB/T 5900.
This Part was drafted as per the rules specified in GB/T 1.1-2009.
This Part replaced GB/T 5900.1-2008 Machine Tools - Connecting Dimensions of Spindle Noses and Work Holding Chucks - Part 1: Conical Connection.
Compared with GB/T 5900.1-2008, the major technical changes of this Part are as follows besides the editorial modifications:
--- Add "This Part is applicable to common lathes and CNC lathes, and other machine tools can also be used as reference.";
--- Delete "Note: The cam lock type, bayonet type and cylindrical type are specified in ISO 702-2, ISO 702-3, and ISO 702-4, respectively." (see Clause 1 of this Edition; Clause 1 of 2008 Edition);
--- Revise Figure 1 and Table 1 (see 3.1 of this Edition; 3.1 of 2008 Edition); --- Revise Figure 2 and Table 2 (see 3.2 of this Edition; 3.2 of 2008 Edition); --- Add "3.3 For connection size of Type-A0 spindle end and faceplate, and Type-A spindle end and faceplate connection assembly diagram, please refer to
Appendixes A and B."
This Part adopts the redrafting method to modify and use ISO 702-1:2009 Machine Tools ?€? Connecting Dimensions of Spindle Noses and Work Holding Chucks - Part 1: Conical connection".
The technical differences between this Part and ISO 702-1:2009 and the causes are as follows:
--- Add "This Part is applicable to common lathes and CNC lathes, and other machine tools can also be used as reference." to clarify the scope of application of this Part;

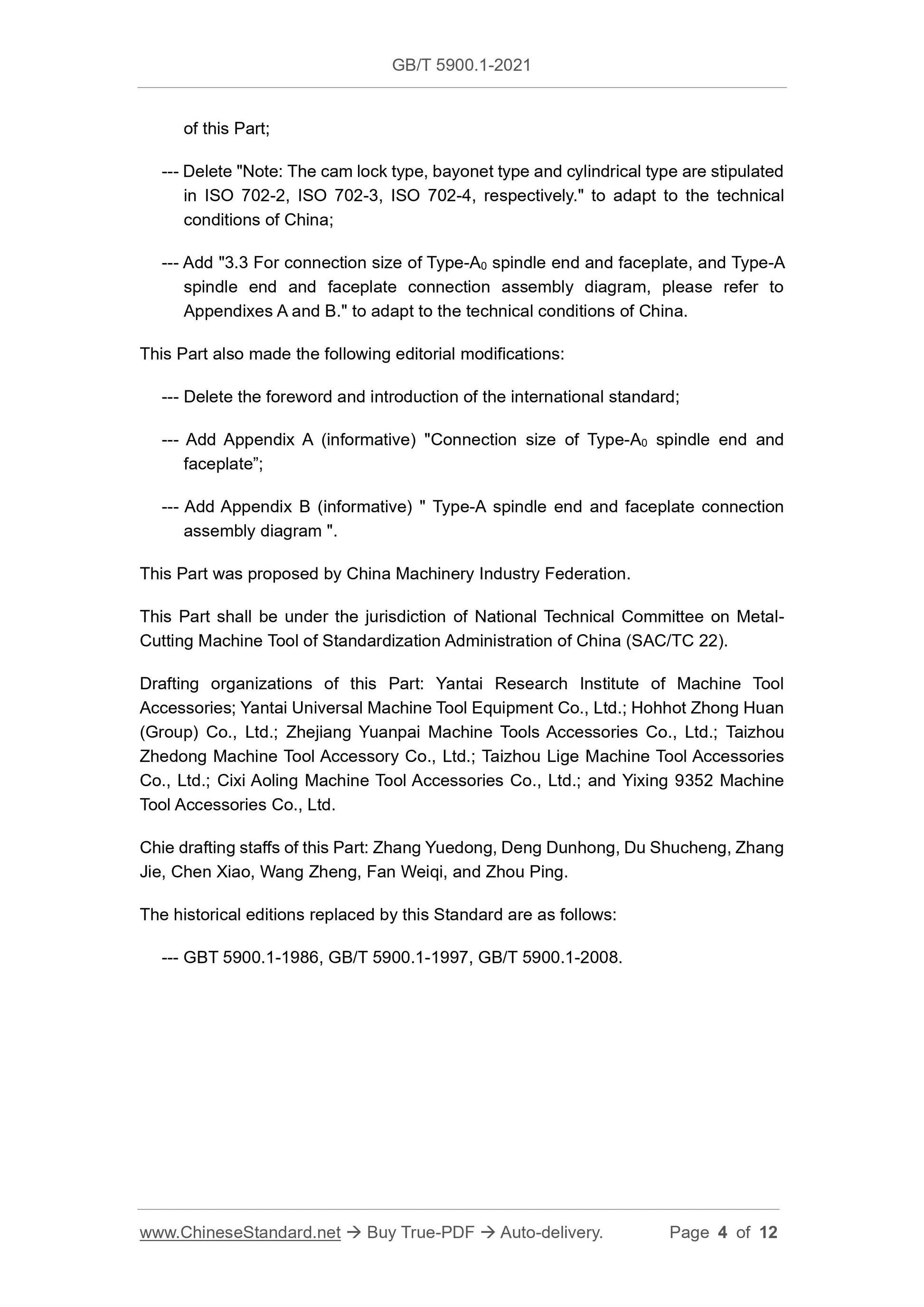

--- Delete "Note: The cam lock type, bayonet type and cylindrical type are stipulated in ISO 702-2, ISO 702-3, ISO 702-4, respectively." to adapt to the technical conditions of China;
--- Add "3.3 For connection size of Type-A0 spindle end and faceplate, and Type-A spindle end and faceplate connection assembly diagram, please refer to
Appendixes A and B." to adapt to the technical conditions of China.
This Part also made the following editorial modifications:
--- Delete the foreword and introduction of the international standard; --- Add Appendix A (informative) "Connection size of Type-A0 spindle end and faceplate?€?;
--- Add Appendix B (informative) " Type-A spindle end and faceplate connection assembly diagram ".
This Part was proposed by China Machinery Industry Federation.
This Part shall be under the jurisdiction of National Technical Committee on Metal- Cutting Machine Tool of Standardization Administration of China (SAC/TC 22). Drafting organizations of this Part: Yantai Research Institute of Machine Tool Accessories; Yantai Universal Machine Tool Equipment Co., Ltd.; Hohhot Zhong Huan (Group) Co., Ltd.; Zhejiang Yuanpai Machine Tools Accessories Co., Ltd.; Taizhou Zhedong Machine Tool Accessory Co., Ltd.; Taizhou Lige Machine Tool Accessories Co., Ltd.; Cixi Aoling Machine Tool Accessories Co., Ltd.; and Yixing 9352 Machine Tool Accessories Co., Ltd.
Chie drafting staffs of this Part: Zhang Yuedong, Deng Dunhong, Du Shucheng, Zhang Jie, Chen Xiao, Wang Zheng, Fan Weiqi, and Zhou Ping.
The historical editions replaced by this Standard are as follows:
--- GBT 5900.1-1986, GB/T 5900.1-1997, GB/T 5900.1-2008.

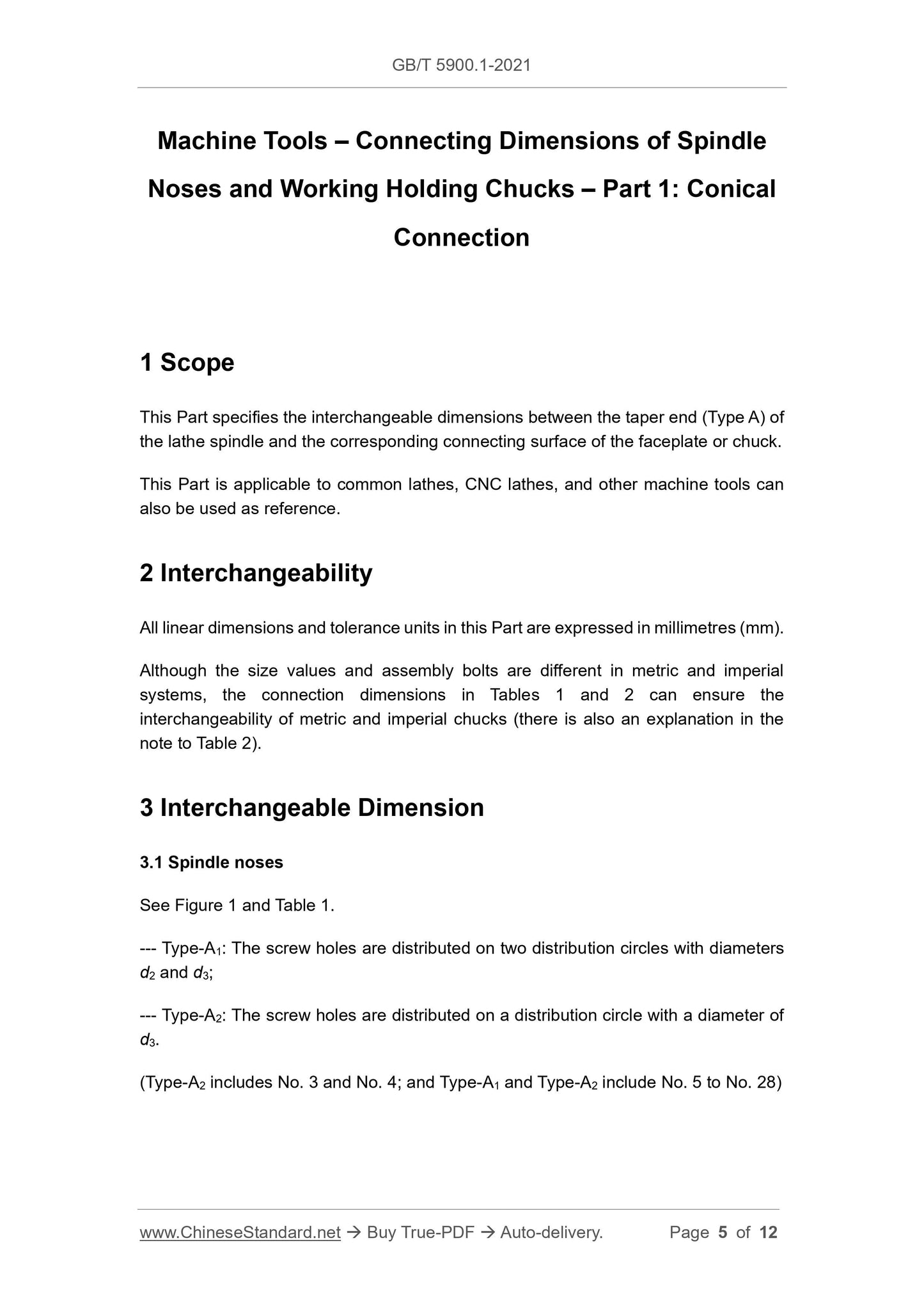

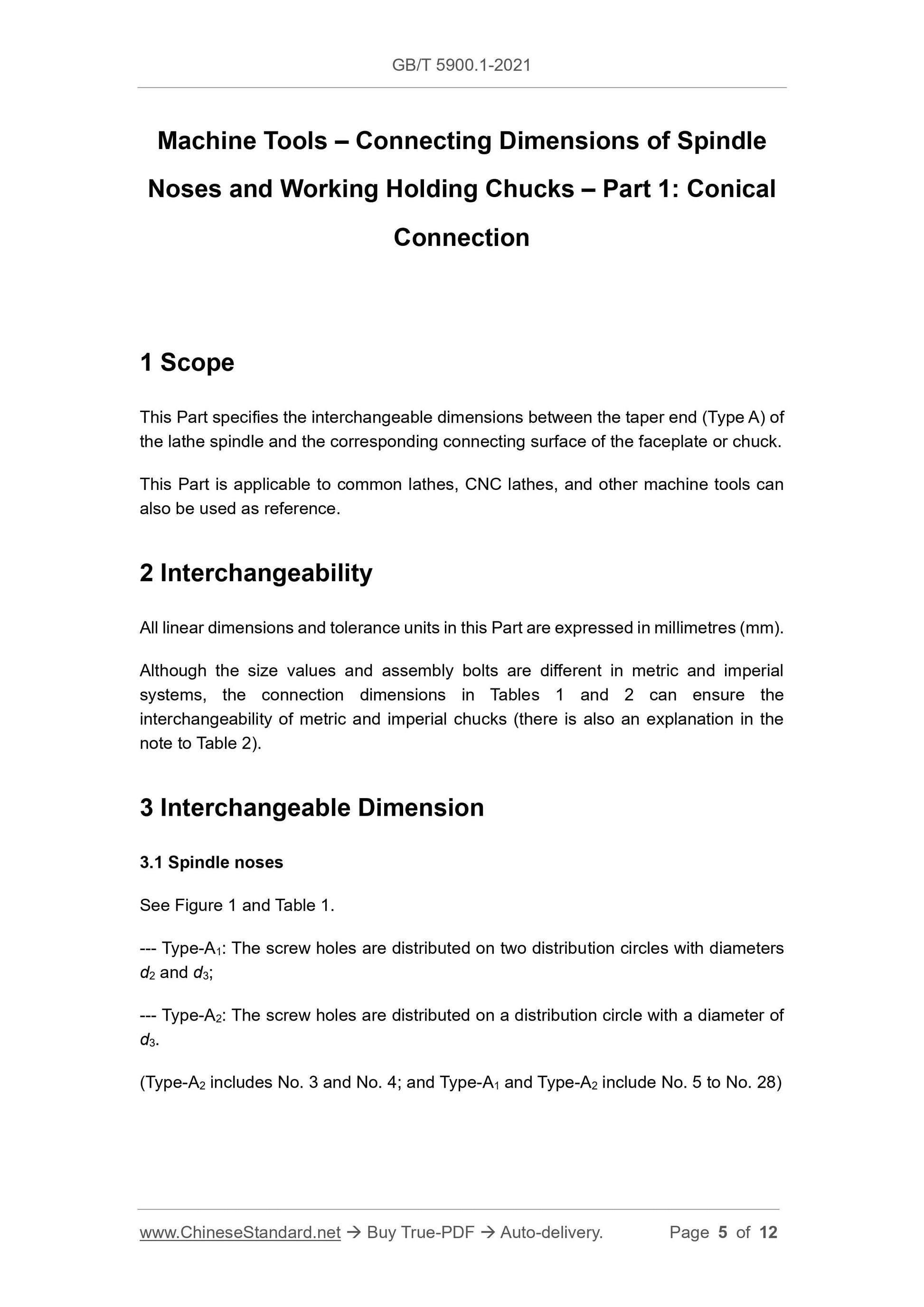

Machine Tools ?€? Connecting Dimensions of Spindle
Noses and Working Holding Chucks ?€? Part 1: Conical
Connection
1 Scope
This Part specifies the interchangeable dimensions between the taper end (Type A) of the lathe spindle and the corresponding connecting surface of the faceplate or chuck. This Part is applicable to common lathes, CNC lathes, and other machine tools can also be used as reference.
2 Interchangeability
All linear dimensions and tolerance units in this Part are expressed in millimetres (mm). Although the size values and assembly bolts are different in metric and imperial systems, the connection dimensions in Tables 1 and 2 can ensure the
interchangeability of metric and imperial chucks (there is also an explanation in the note to Table 2).
3 Interchangeable Dimension
3.1 Spindle noses
See Figure 1 and Table 1.
--- Type-A1: The screw holes are distributed on two distribution circles with diameters d2 and d3;
--- Type-A2: The screw holes are distributed on a distribution circle with a diameter of d3.
(Type-A2 includes No. 3 and No. 4; and Type-A1 and Type-A2 include No. 5 to No. 28)
