GB/T 5680-2023: Austenitic manganese steel castings

This document specifies the order information, manufacturing process, technical requirements, test methods, inspection rules, marking, certificate of conformity, packaging, transportation and storage of austenitic manganese steel castings. This document is applicable to wear-resistant austenitic manganese steel castings subject to impact load. The wear-resistant austenitic manganese steel castings of other working conditions may take this as a reference in the implementation.

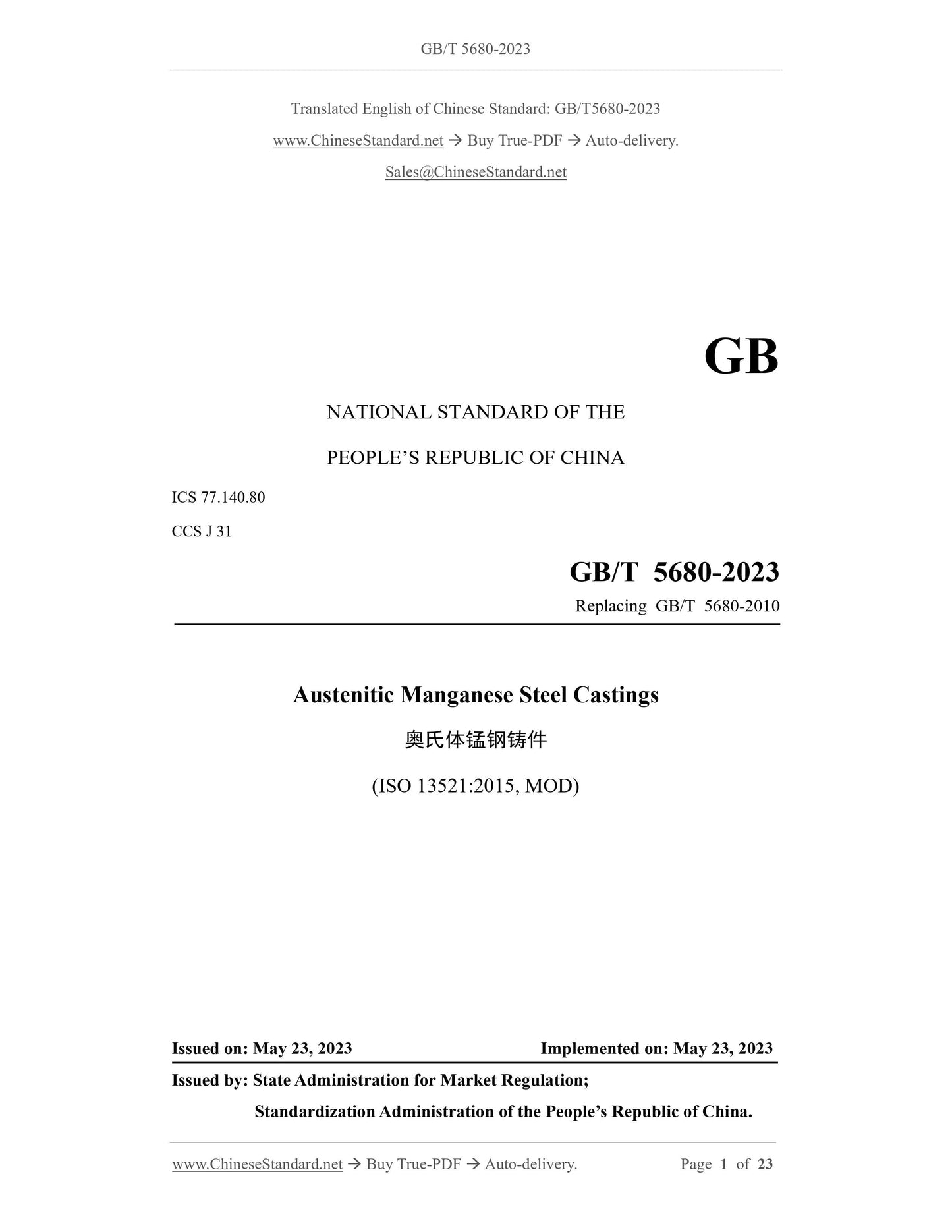

GB/T 5680-2023
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 77.140.80
CCS J 31
Replacing GB/T 5680-2010
Austenitic Manganese Steel Castings
(ISO 13521:2015, MOD)
ISSUED ON: MAY 23, 2023
IMPLEMENTED ON: MAY 23, 2023
Issued by: State Administration for Market Regulation;
Standardization Administration of the PEOPLE Republic of China.

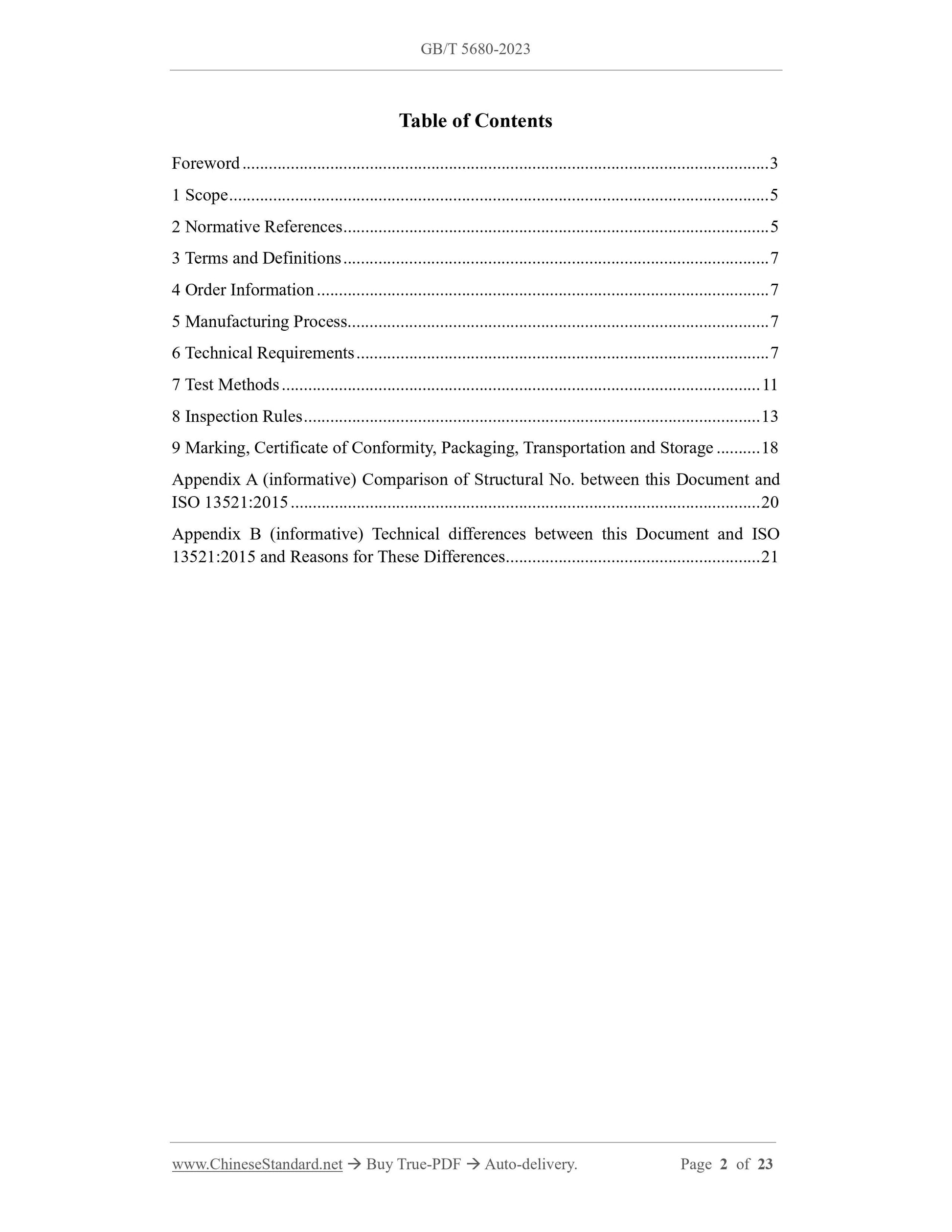

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative References ... 5
3 Terms and Definitions ... 7
4 Order Information ... 7
5 Manufacturing Process ... 7
6 Technical Requirements ... 7
7 Test Methods ... 11
8 Inspection Rules ... 13
9 Marking, Certificate of Conformity, Packaging, Transportation and Storage ... 18 Appendix A (informative) Comparison of Structural No. between this Document and ISO 13521:2015 ... 20
Appendix B (informative) Technical differences between this Document and ISO 13521:2015 and Reasons for These Differences ... 21
Austenitic Manganese Steel Castings

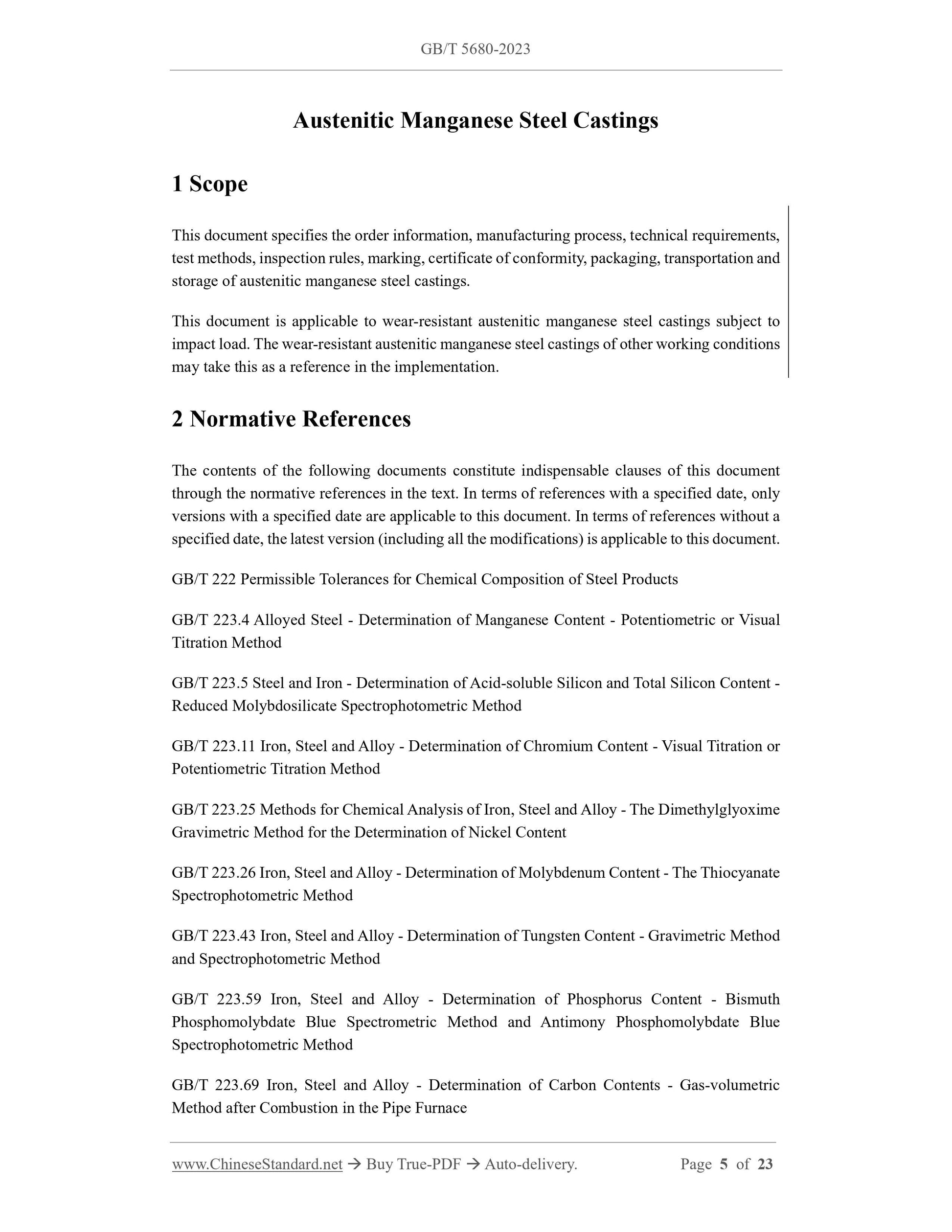

1 Scope
This document specifies the order information, manufacturing process, technical requirements, test methods, inspection rules, marking, certificate of conformity, packaging, transportation and storage of austenitic manganese steel castings.
This document is applicable to wear-resistant austenitic manganese steel castings subject to impact load. The wear-resistant austenitic manganese steel castings of other working conditions may take this as a reference in the implementation.
2 Normative References
The contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 222 Permissible Tolerances for Chemical Composition of Steel Products GB/T 223.4 Alloyed Steel - Determination of Manganese Content - Potentiometric or Visual Titration Method
GB/T 223.5 Steel and Iron - Determination of Acid-soluble Silicon and Total Silicon Content - Reduced Molybdosilicate Spectrophotometric Method
GB/T 223.11 Iron, Steel and Alloy - Determination of Chromium Content - Visual Titration or Potentiometric Titration Method
GB/T 223.25 Methods for Chemical Analysis of Iron, Steel and Alloy - The Dimethylglyoxime Gravimetric Method for the Determination of Nickel Content
GB/T 223.26 Iron, Steel and Alloy - Determination of Molybdenum Content - The Thiocyanate Spectrophotometric Method
GB/T 223.43 Iron, Steel and Alloy - Determination of Tungsten Content - Gravimetric Method and Spectrophotometric Method
GB/T 223.59 Iron, Steel and Alloy - Determination of Phosphorus Content - Bismuth Phosphomolybdate Blue Spectrometric Method and Antimony Phosphomolybdate Blue Spectrophotometric Method
GB/T 223.69 Iron, Steel and Alloy - Determination of Carbon Contents - Gas-volumetric Method after Combustion in the Pipe Furnace

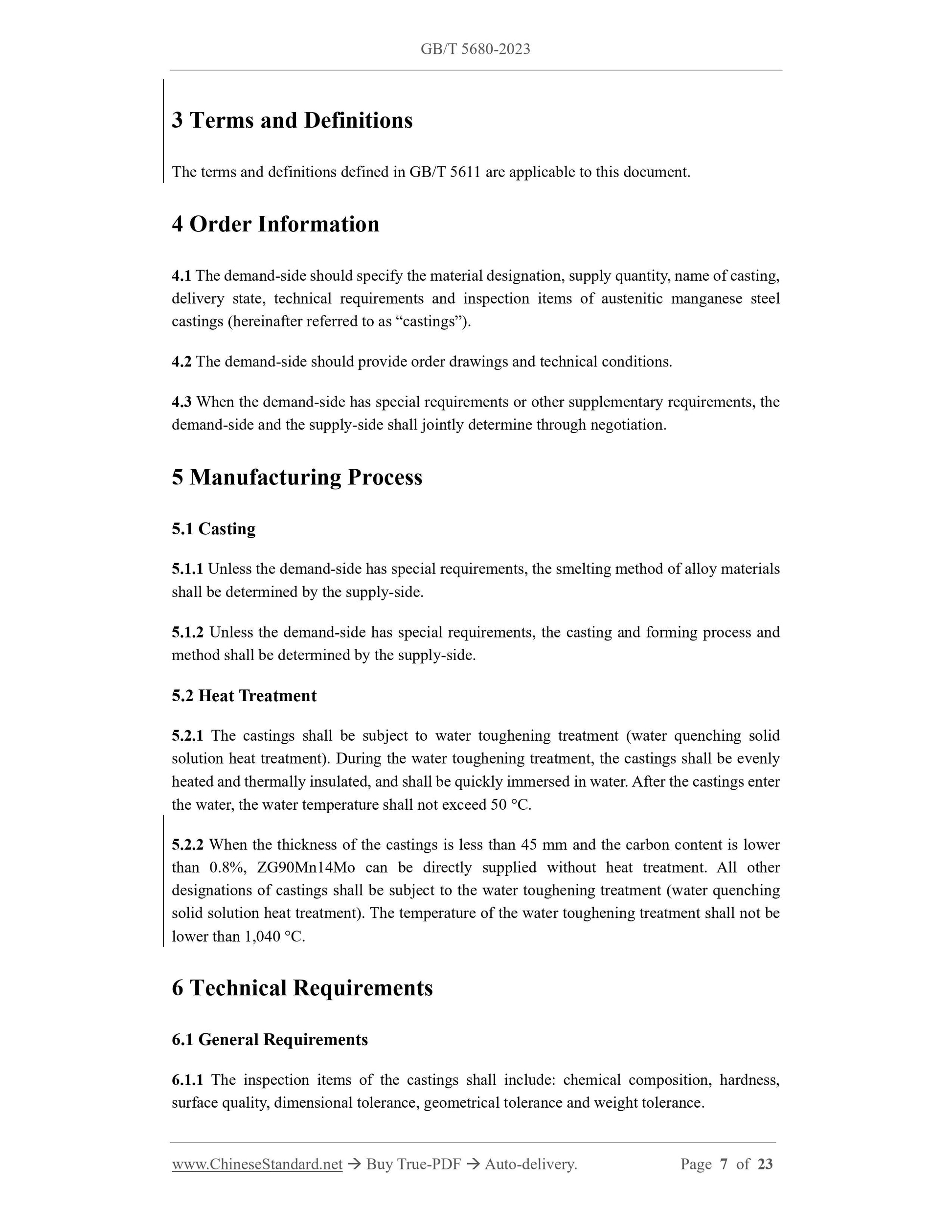

3 Terms and Definitions
The terms and definitions defined in GB/T 5611 are applicable to this document. 4 Order Information
4.1 The demand-side should specify the material designation, supply quantity, name of casting, delivery state, technical requirements and inspection items of austenitic manganese steel castings (hereinafter referred to as ?€?castings?€?).
4.2 The demand-side should provide order drawings and technical conditions. 4.3 When the demand-side has special requirements or other supplementary requirements, the demand-side and the supply-side shall jointly determine through negotiation. 5 Manufacturing Process
5.1 Casting
5.1.1 Unless the demand-side has special requirements, the smelting method of alloy materials shall be determined by the supply-side.
5.1.2 Unless the demand-side has special requirements, the casting and forming process and method shall be determined by the supply-side.
5.2 Heat Treatment
5.2.1 The castings shall be subject to water toughening treatment (water quenching solid solution heat treatment). During the water toughening treatment, the castings shall be evenly heated and thermally insulated, and shall be quickly immersed in water. After the castings enter the water, the water temperature shall not exceed 50 ???C.
5.2.2 When the thickness of the castings is less than 45 mm and the carbon content is lower than 0.8%, ZG90Mn14Mo can be directly supplied without heat treatment. All other designations of castings shall be subject to the water toughening treatment (water quenching solid solution heat treatment). The temperature of the water toughening treatment shall not be lower than 1,040 ???C.
6 Technical Requirements
6.1 General Requirements
6.1.1 The inspection items of the castings shall include: chemical composition, hardness, surface quality, dimensional tolerance, geometrical tolerance and weight tolerance. specimen after bending, but the specimen still remains in one piece, it is also deemed to be qualified.

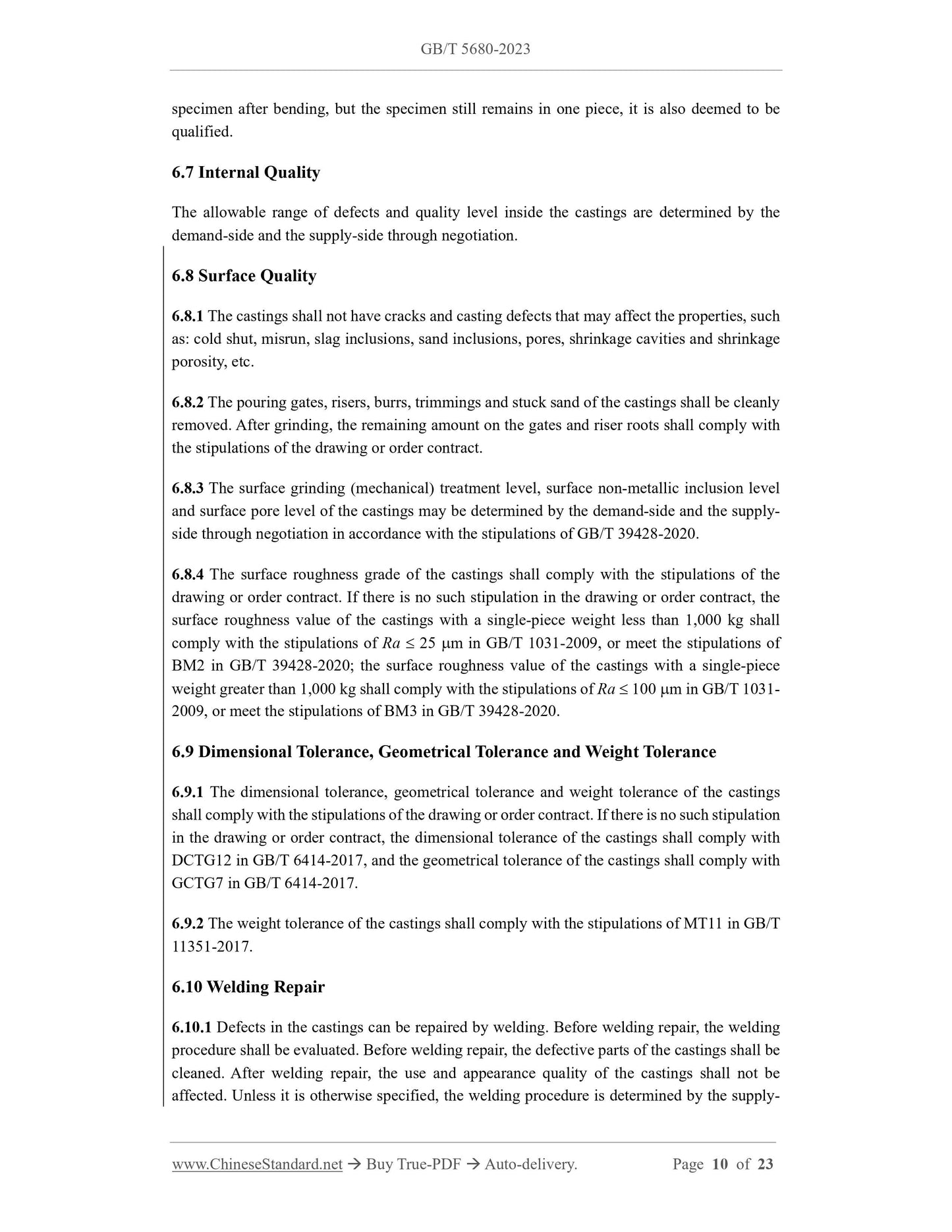

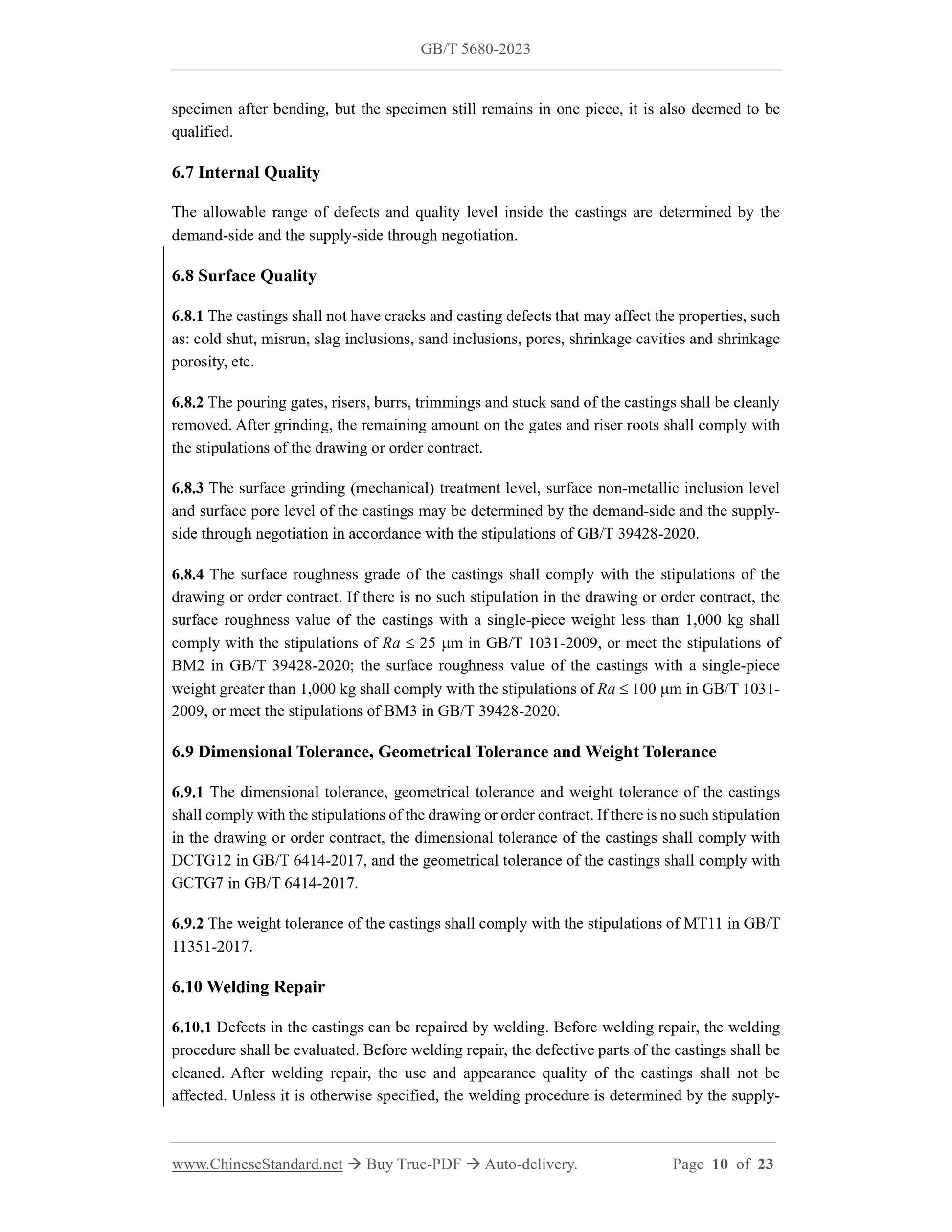

6.7 Internal Quality
The allowable range of defects and quality level inside the castings are determined by the demand-side and the supply-side through negotiation.
6.8 Surface Quality
6.8.1 The castings shall not have cracks and casting defects that may affect the properties, such as: cold shut, misrun, slag inclusions, sand inclusions, pores, shrinkage cavities and shrinkage porosity, etc.
6.8.2 The pouring gates, risers, burrs, trimmings and stuck sand of the castings shall be cleanly removed. After grinding, the remaining amount on the gates and riser roots shall comply with the stipulations of the drawing or order contract.
6.8.3 The surface grinding (mechanical) treatment level, surface non-metallic inclusion level and surface pore level of the castings may be determined by the demand-side and the supply- side through negotiation in accordance with the stipulations of GB/T 39428-2020. 6.8.4 The surface roughness grade of the castings shall comply with the stipulations of the drawing or order contract. If there is no such stipulation in the drawing or order contract, the surface roughness value of the castings with a single-piece weight less than 1,000 kg shall comply with the stipulations of Ra ??? 25 ???m in GB/T 1031-2009, or meet the stipulations of BM2 in GB/T 39428-2020; the surface roughness value of the castings with a single-piece weight greater than 1,000 kg shall comply with the stipulations of Ra ??? 100 ???m in GB/T 1031- 2009, or meet the stipulations of BM3 in GB/T 39428-2020.
6.9 Dimensional Tolerance, Geometrical Tolerance and Weight Tolerance
6.9.1 The dimensional tolerance, geometrical tolerance and weight tolerance of the castings shall comply with the stipulations of the drawing or order contract. If there is no such stipulation in the drawing or order contract, the dimensional tolerance of the castings shall comply with DCTG12 in GB/T 6414-2017, and the geometrical tolerance of the castings shall comply with GCTG7 in GB/T 6414-2017.
6.9.2 The weight tolerance of the castings shall comply with the stipulations of MT11 in GB/T 11351-2017.
6.10 Welding Repair
6.10.1 Defects in the castings can be repaired by welding. Before welding repair, the welding procedure shall be evaluated. Before welding repair, the defective parts of the castings shall be cleaned. After welding repair, the use and appearance quality of the castings shall not be affected. Unless it is otherwise specified, the welding procedure is determined by the supply- 7.3.1 The metallographic structure inspection shall be carried out in accordance with the stipulations of GB/T 13298 and GB/T 13925.

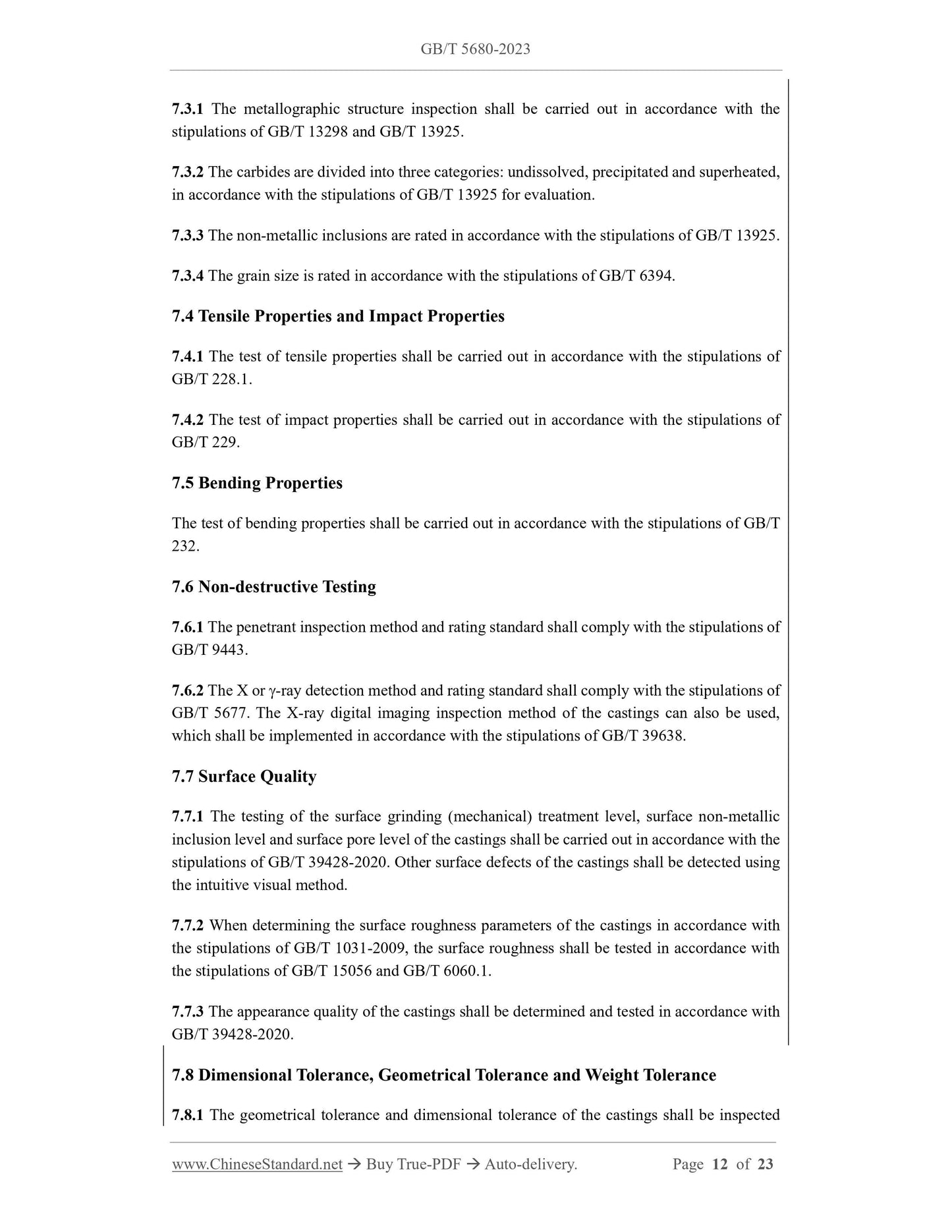

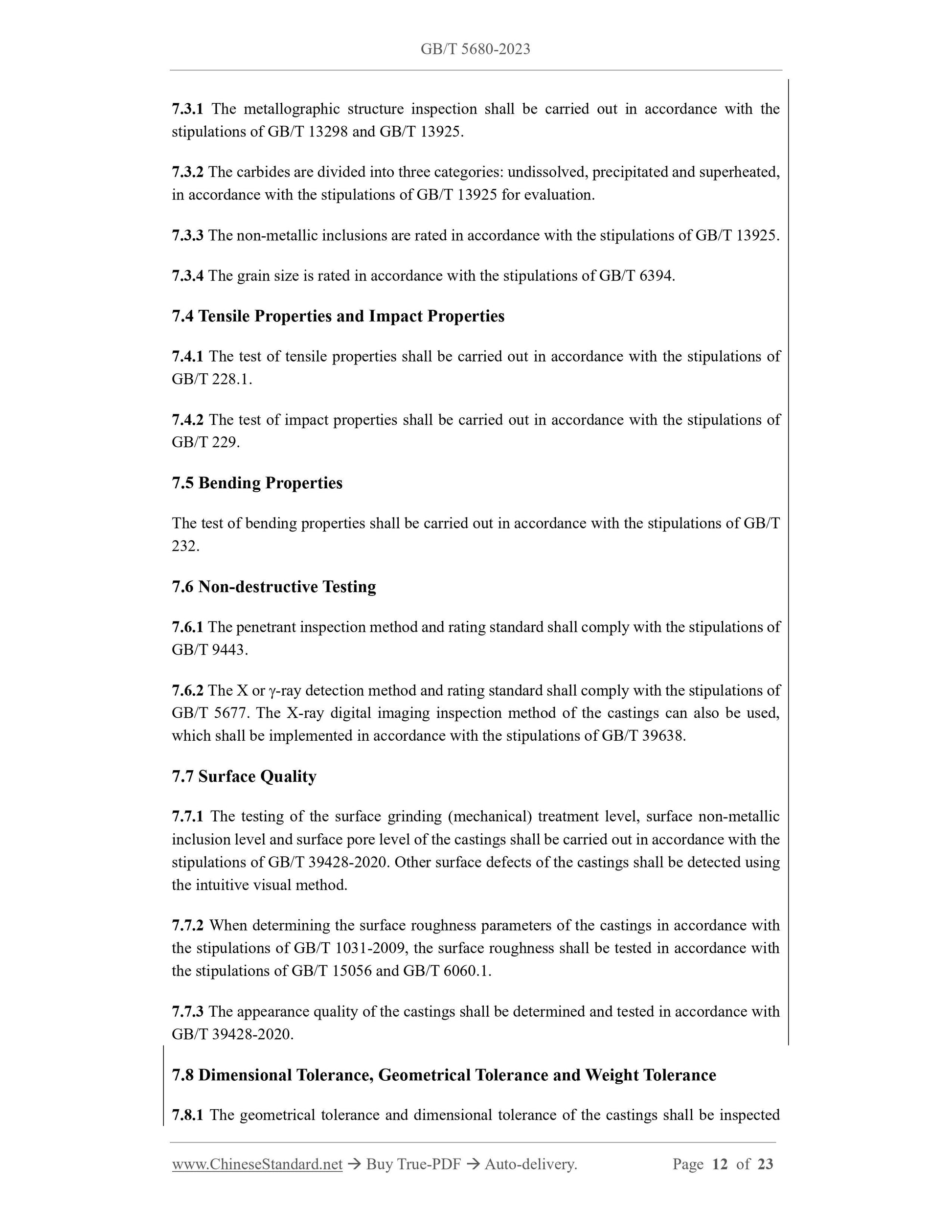

7.3.2 The carbides are divided into three categories: undissolved, precipitated and superheated, in accordance with the stipulations of GB/T 13925 for evaluation.
7.3.3 The non-metallic inclusions are rated in accordance with the stipulations of GB/T 13925. 7.3.4 The grain size is rated in accordance with the stipulations of GB/T 6394. 7.4 Tensile Properties and Impact Properties
7.4.1 The test of tensile properties shall be carried out in accordance with the stipulations of GB/T 228.1.
7.4.2 The test of impact properties shall be carried out in accordance with the stipulations of GB/T 229.
7.5 Bending Properties
The test of bending properties shall be carried out in accordance with the stipulations of GB/T 232.
7.6 Non-destructive Testing
7.6.1 The penetrant inspection method and rating standard shall comply with the stipulations of GB/T 9443.
7.6.2 The X or ???-ray detection method and rating standard shall comply with the stipulations of GB/T 5677. The X-ray digital imaging inspection method of the castings can also be used, which shall be implemented in accordance with the stipulations of GB/T 39638. 7.7 Surface Quality
7.7.1 The testing of the surface grinding (mechanical) treatment level, surface non-metallic inclusion level and surface pore level of the castings shall be carried out in accordance with the stipulations of GB/T 39428-2020. Other surface defects of the castings shall be detected using the intuitive visual method.
7.7.2 When determining the surface roughness parameters of the castings in accordance with the stipulations of GB/T 1031-2009, the surface roughness shall be tested in accordance with the stipulations of GB/T 15056 and GB/T 6060.1.
7.7.3 The appearance quality of the castings shall be determined and tested in accordance with GB/T 39428-2020.
7.8 Dimensional Tolerance, Geometrical Tolerance and Weight Tolerance
7.8.1 The geometrical tolerance and dimensional tolerance of the castings shall be inspected with testing tools, gauge blocks, templates or markings with corresponding precisions. 7.8.2 The weight inspection of the castings shall adopt the weighing method. 7.9 Welding Repair and Welding Qualification

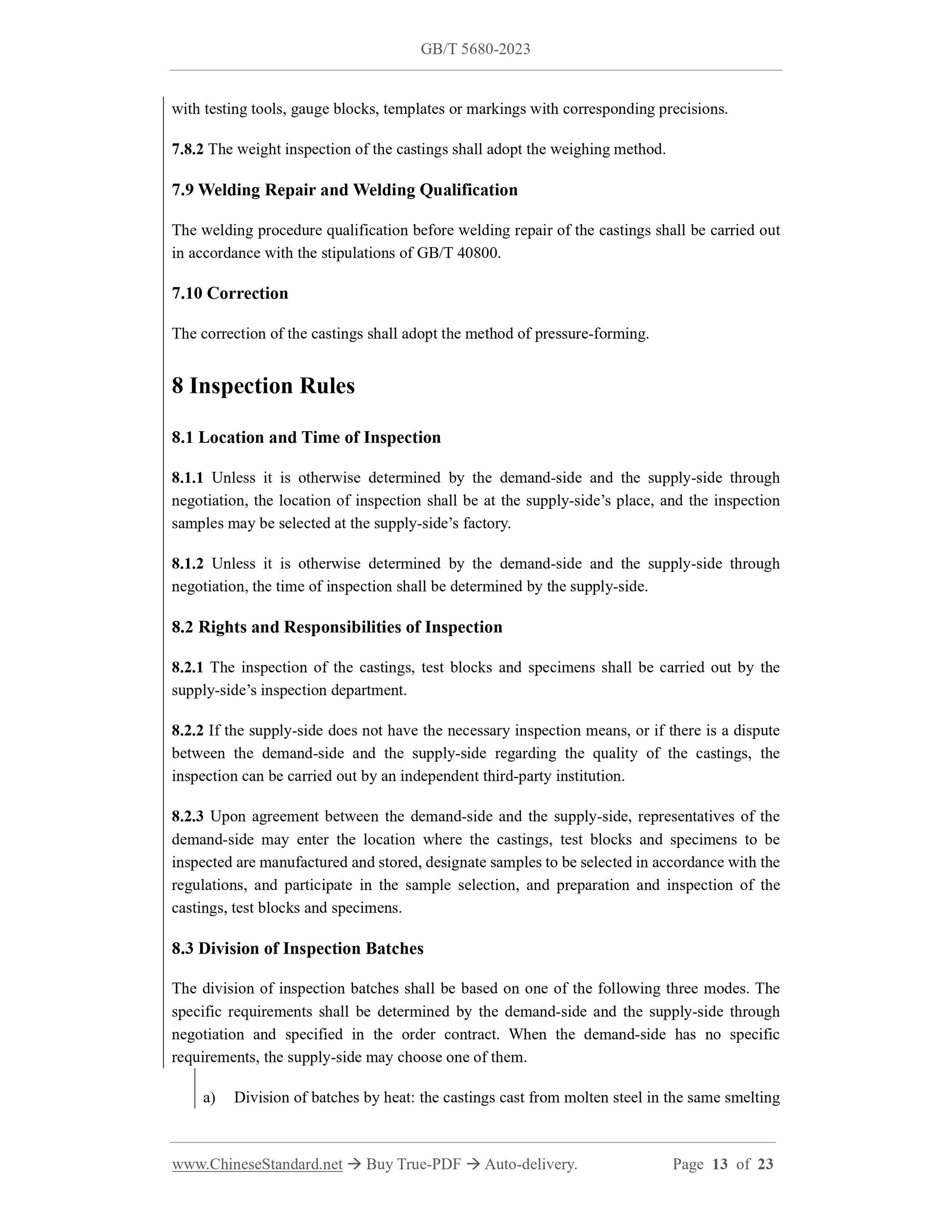

The welding procedure qualification before welding repair of the castings shall be carried out in accordance with the stipulations of GB/T 40800.
7.10 Correction
The correction of the castings shall adopt the method of pressure-forming. 8 Inspection Rules
8.1 Location and Time of Inspection
8.1.1 Unless it is otherwise determined by the demand-side and the supply-side through negotiation, the location of inspection shall be at the supply-side?€?s place, and the inspection samples may be selected at the supply-side?€?s factory.
8.1.2 Unless it is otherwise determined by the demand-side and the supply-side through negotiation, the time of inspection shall be determined by the supply-side. 8.2 Rights and Responsibilities of Inspection
8.2.1 The inspection of the castings, test blocks and specimens shall be carried out by the supply-side?€?s inspection department.
8.2.2 If the supply-side does not have the necessary inspection means, or if there is a dispute between the demand-side and the supply-side regarding the quality of the castings, the inspection can be carried out by an independent third-party institution. 8.2.3 Upon agreement between the demand-side and the supply-side, representatives of the demand-side may enter the location where the castings, test blocks and specimens to be inspected are manufactured and stored, designate samples to be selected in accordance with the regulations, and participate in the sample selection, and preparation and inspection of the castings, test blocks and specimens.
8.3 Division of Inspection Batches
The division of inspection batches shall be based on one of the following three modes. The specific requirements shall be determined by the demand-side and the supply-side through negotiation and specified in the order contract. When the demand-side has no specific requirements, the supply-side may choose one of them.

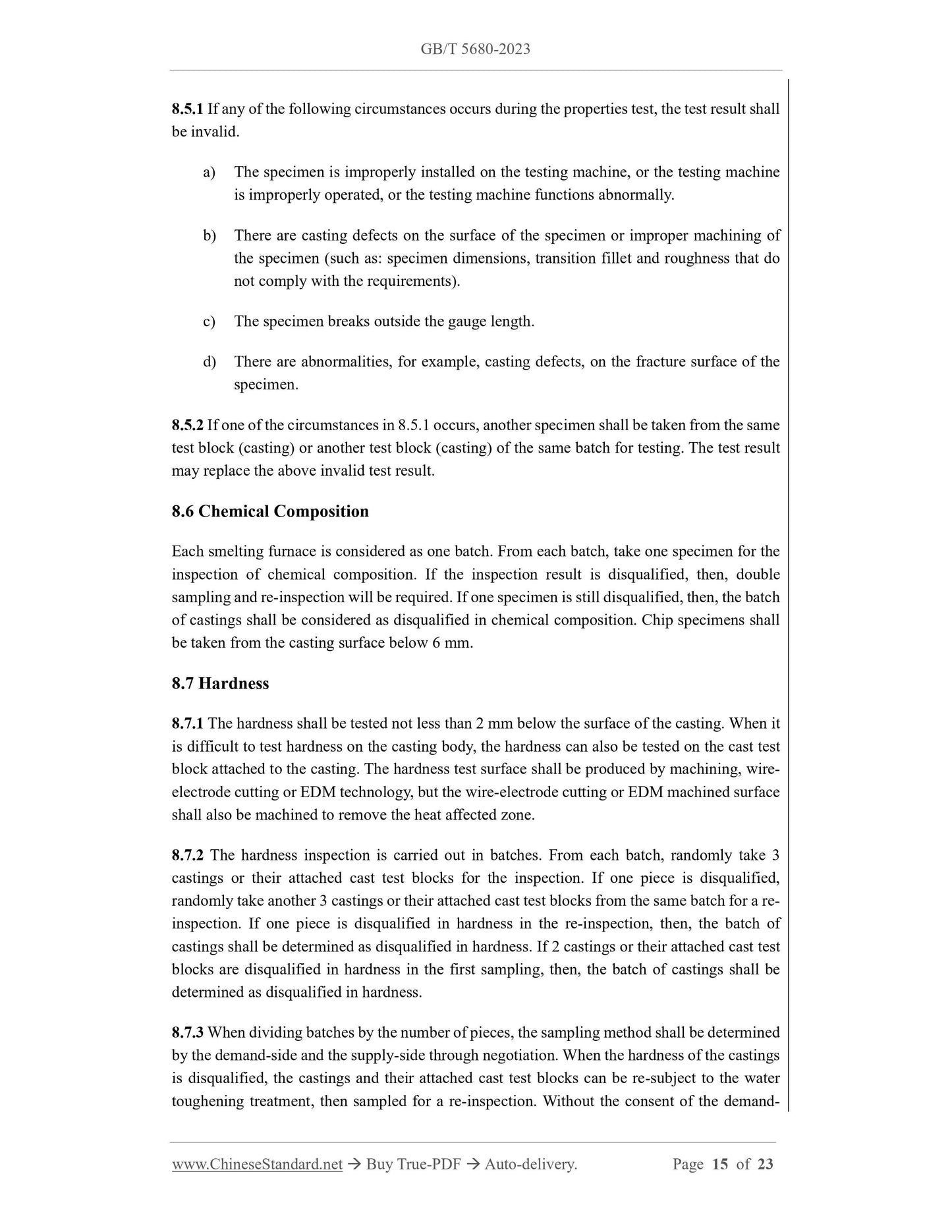

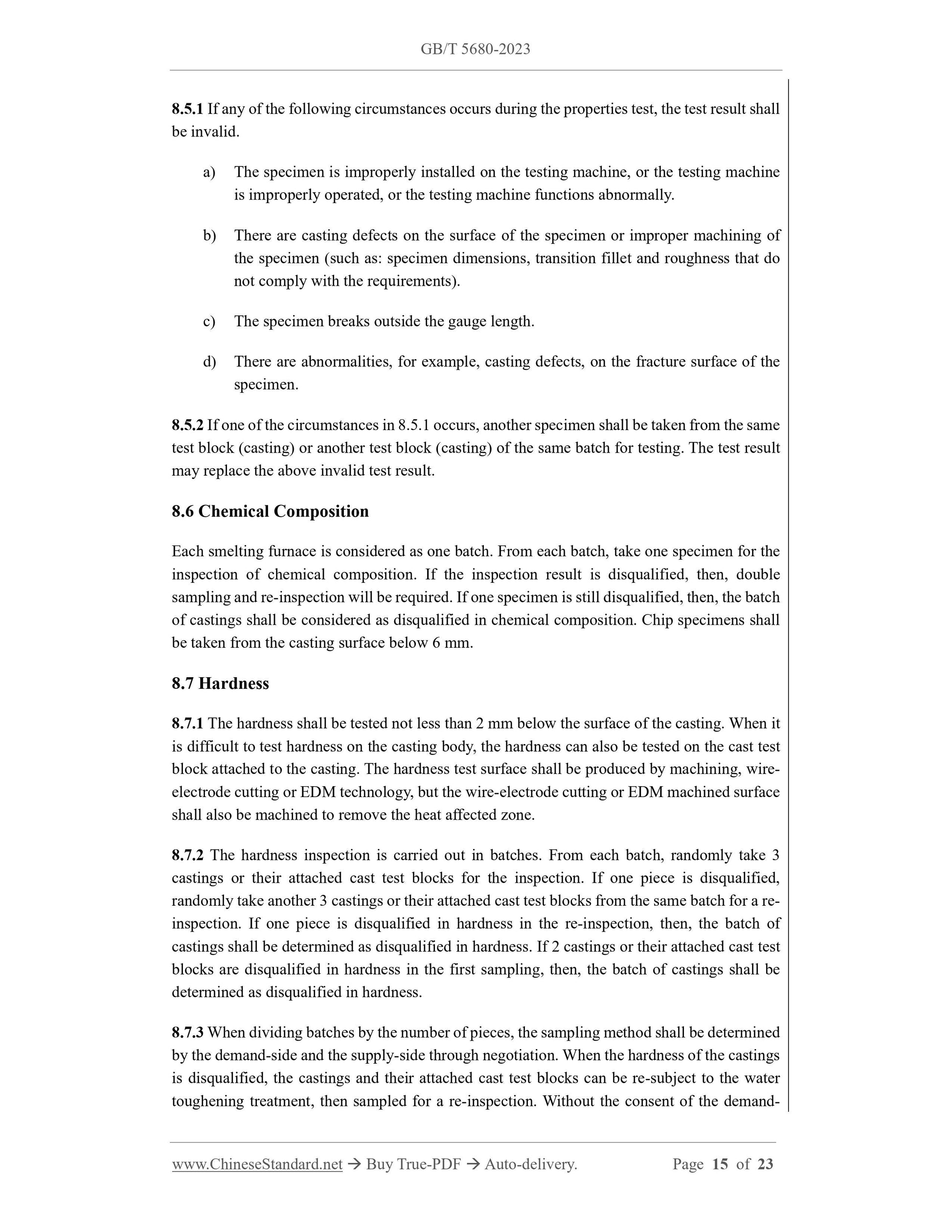

a) Division of batches by heat: the castings cast from molten steel in the same smelting 8.5.1 If any of the following circumstances occurs during the properties test, the test result shall be invalid.
a) The specimen is improperly installed on the testing machine, or the testing machine is improperly operated, or the testing machine functions abnormally.
b) There are casting defects on the surface of the specimen or improper machining of the specimen (such as: specimen dimensions, transition fillet and roughness that do not comply with the requirements).
c) The specimen breaks outside the gauge length.
d) There are abnormalities, for example, casting defects, on the fracture surface of the specimen.
8.5.2 If one of the circumstances in 8.5.1 occurs, another specimen shall be taken from the same test block (casting) or another test block (casting) of the same batch for testing. The test result may replace the above invalid test result.
8.6 Chemical Composition
Each smelting furnace is considered as one batch. From each batch, take one specimen for the inspection of chemical composition. If the inspection result is disqualified, then, double sampling and re-inspection will be required. If one specimen is still disqualified, then, the batch of castings shall be considered as disqualified in chemical composition. Chip specimens shall be taken from the casting surface below 6 mm.
8.7 Hardness
8.7.1 The hardness shall be tested not less than 2 mm below the surface of the casting. When it is difficult to test hardness on the casting body, the hardness can also be tested on the cast test block attached to the casting. The hardness test surface shall be produced by machining, wire- electrode cutting or EDM technology, but the wire-electrode cutting or EDM machined surface shall also be machined to remove the heat affected zone.
8.7.2 The hardness inspection is carried out in batches. From each batch, randomly take 3 castings or their attached cast test blocks for the inspection. If one piece is disqualified, randomly take another 3 castings or their attached cast test blocks from the same batch for a re- inspection. If one piece is disqualified in hardness in the re-inspection, then, the batch of castings shall be determined as disqualified in hardness. If 2 castings or their attached cast test blocks are disqualified in hardness in the first sampling, then, the batch of castings shall be determined as disqualified in hardness.
8.7.3 When dividing batches by the number of pieces, the sampling method shall be determined by the demand-side and the supply-side through negotiation. When the hardness of the castings is disqualified, the castings and their attached cast test blocks can be re-subject to the water toughening treatment, then sampled for a re-inspection. Without the consent of the demand- side, the castings and their attached cast test blocks shall not be re-subject to the water toughening treatment more than twice. After being re-subject to the water toughening treatment, if they are qualified in the inspection, then, the batch of castings can still be determined as qualified in hardness.

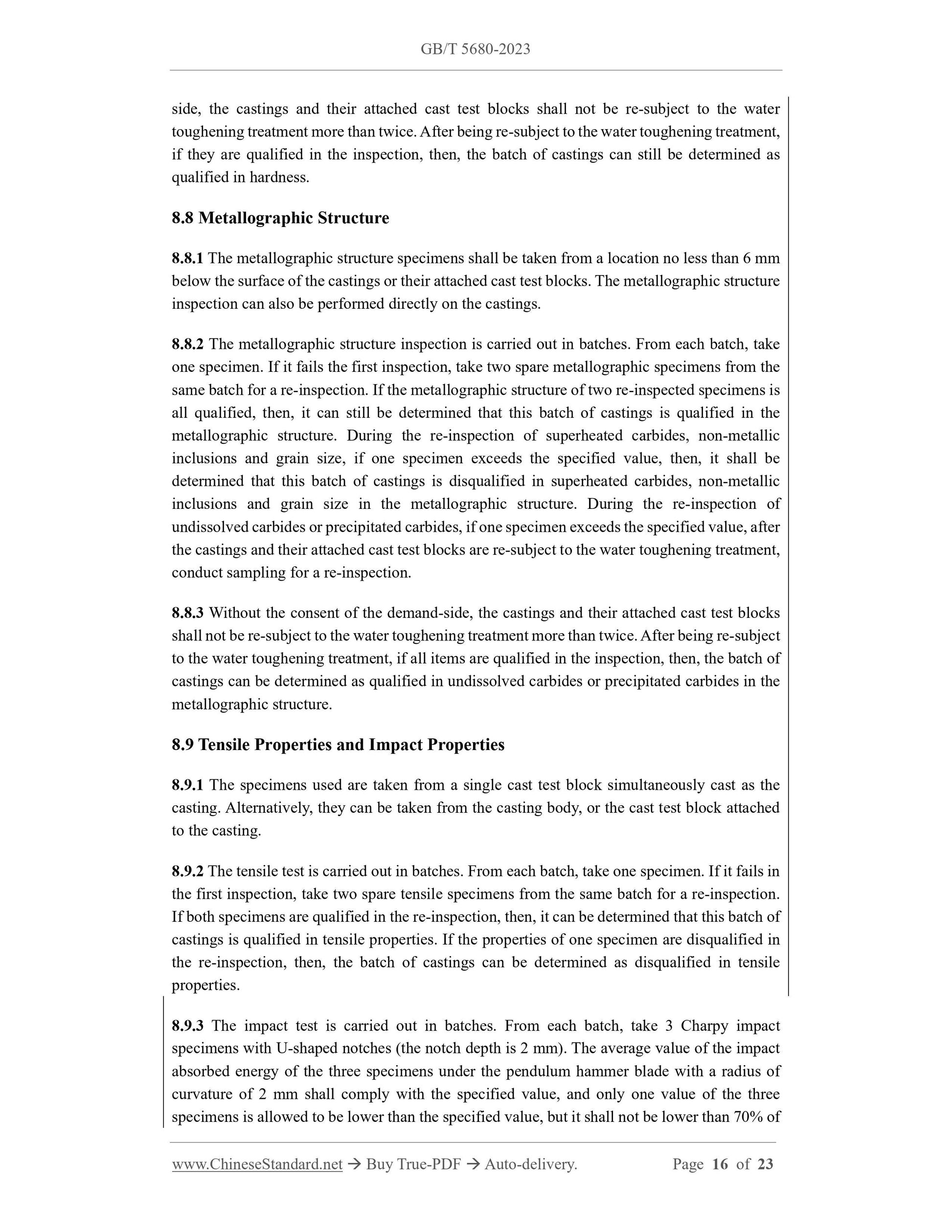

8.8 Metallographic Structure
8.8.1 The metallographic structure specimens shall be taken from a location no less than 6 mm below the surface of the castings or their attached cast test blocks. The metallographic structure inspection can also be performed directly on the castings.
8.8.2 The metallographic structure inspection is carried out in batches. From each batch, take one specimen. If it fails the first inspection, take two spare metallographic specimens from the same batch for a re-inspection. If the metallographic structure of two re-inspected specimens is all qualified, then, it can still be determined that this batch of castings is qualified in the metallographic structure. During the re-inspection of superheated carbides, non-metallic inclusions and grain size, if one specimen exceeds the specified value, then, it shall be determined that this batch of castings is disqualified in superheated carbides, non-metallic inclusions and grain size in the metallographic structure. During the re-inspection of undissolved carbides or precipitated carbides, if one specimen exceeds the specified value, after the castings and their attached cast test blocks are re-subject to the water toughening treatment, conduct sampling for a re-inspection.
8.8.3 Without the consent of the demand-side, the castings and their attached cast test blocks shall not be re-subject to the water toughening treatment more than twice. After being re-subject to the water toughening treatment, if all items are qualified in the inspection, then, the batch of castings can be determined as qualified in undissolved carbides or precipitated carbides in the metallographic structure.
8.9 Tensile Properties and Impact Properties
8.9.1 The specimens used are taken from a single cast test block simultaneously cast as the casting. Alternatively, they can be taken from the casting body, or the cast test block attached to the casting.
8.9.2 The tensile test is carried out in batches. From each batch, take one specimen. If it fails in the first inspection, take two spare tensile specimens from the same batch for a re-inspection. If both specimens are qualified in the re-inspection, then, it can be determined that this batch of castings is qualified in tensile properties. If the properties of one specimen are disqualified in the re-inspection, then, the batch of castings can be determined as disqualified in tensile properties.
8.9.3 The impact test is carried out in batches. From each batch, take 3 Charpy impact specimens with U-shaped notches (the notch depth is 2 mm). The average value of the impact absorbed energy of the three specimens under the pendulum hammer blade with a radius of curvature of 2 mm shall comply with the specified value, and only one value of the three specimens is allowed to be lower than the specified value, but it shall not be lower than 70% of
