GB/T 5567-2013: Rubber and plastics hoses and hose assemblies -- Determination of resistance to vacuum

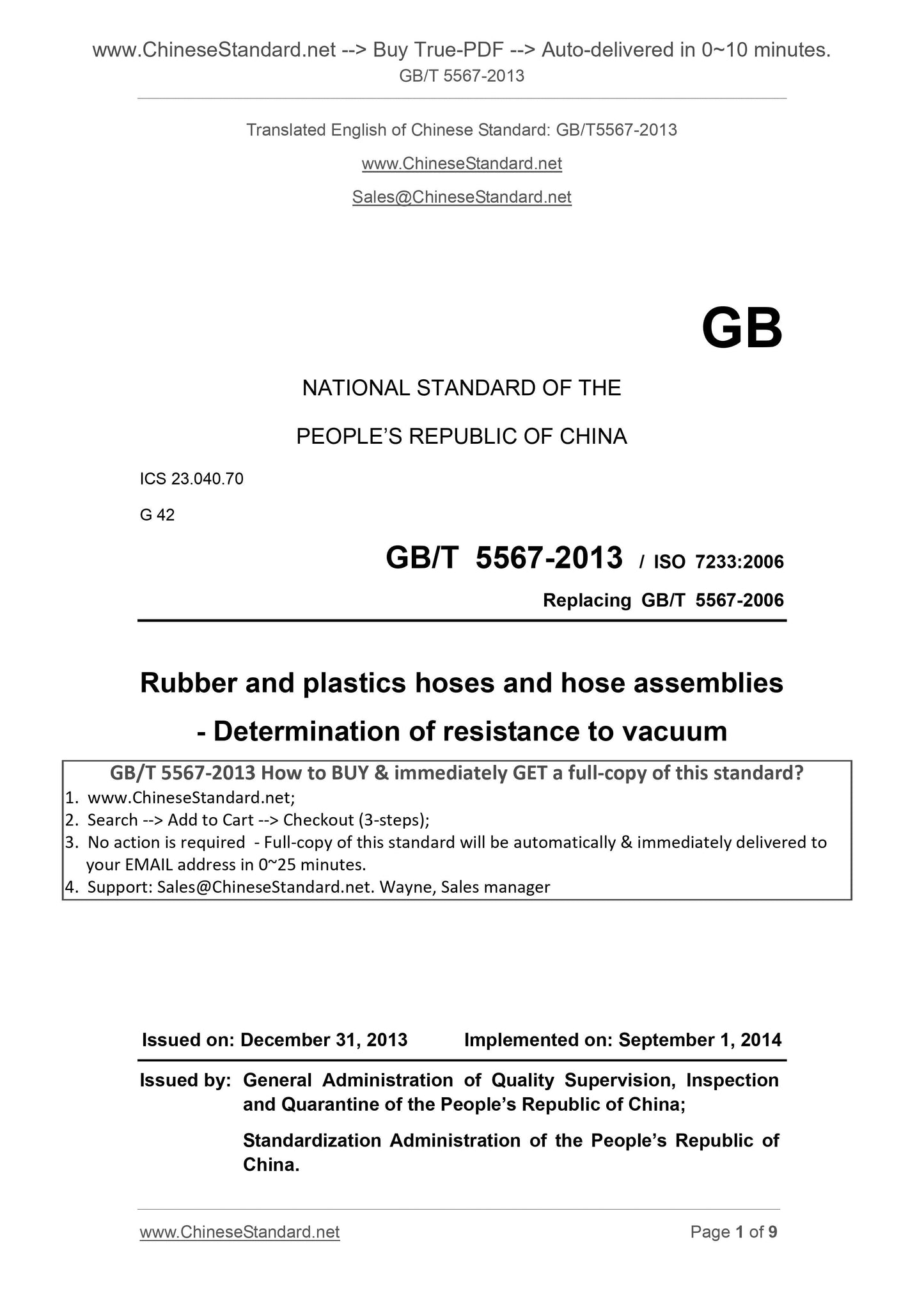

GB/T 5567-2013
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 23.040.70
G 42
GB/T 5567-2013 / ISO 7233.2006
Replacing GB/T 5567-2006
Rubber and plastics hoses and hose assemblies
- Determination of resistance to vacuum
橡胶和塑料软管及软管组合件
耐真空性能的测定
(ISO 7233.2006, IDT)
ISSUED ON. DECEMBER 31, 2013
IMPLEMENTED ON. SEPTEMBER 1, 2014
Issued by.
General Administration of Quality Supervision, Inspection
and Quarantine of the People’s Republic of China;
Standardization Administration of the People’s Republic of
China.

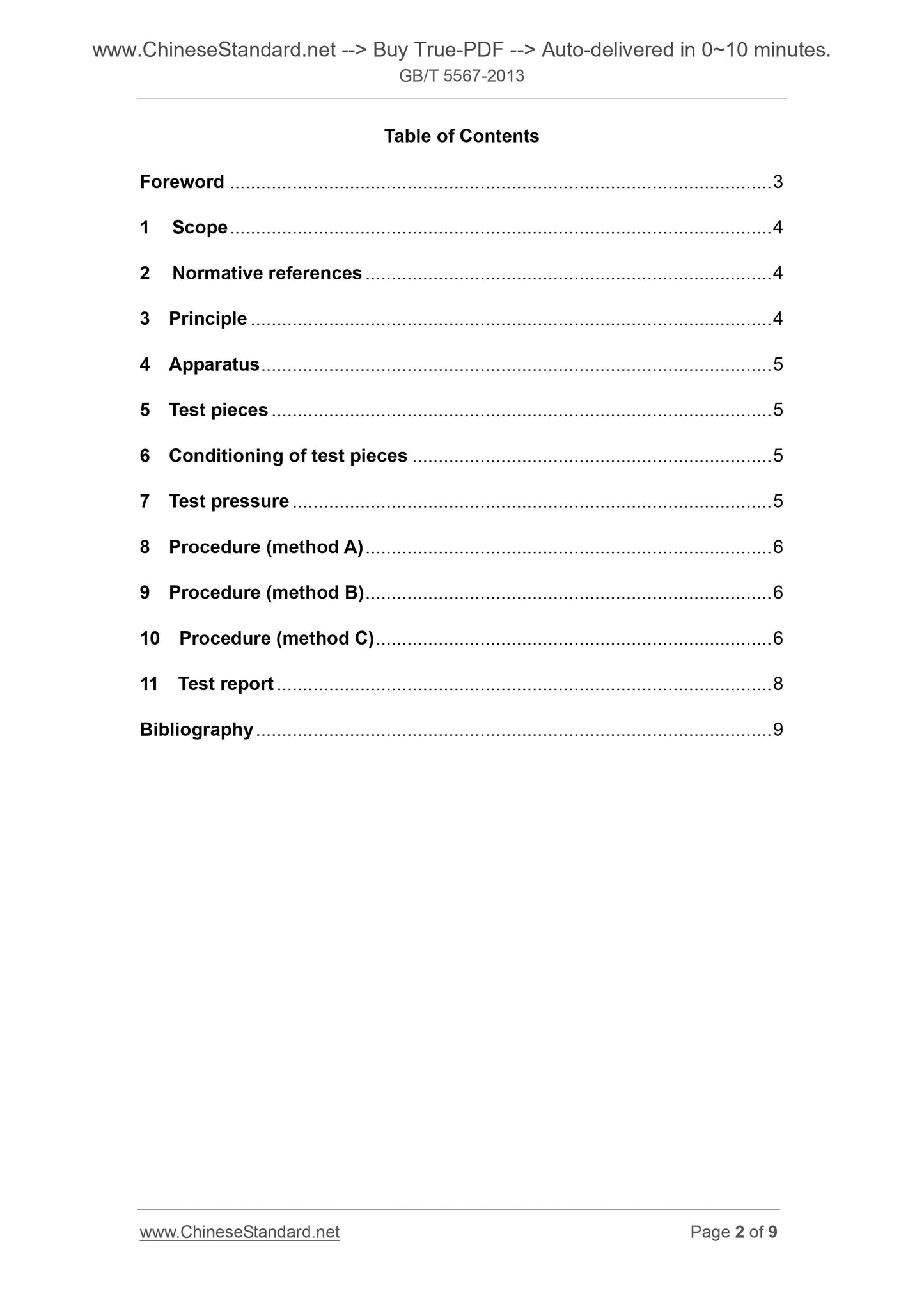

Table of Contents
Foreword ... 3
1  Scope ... 4
2  Normative references ... 4
3 Principle ... 4
4 Apparatus ... 5
5 Test pieces ... 5
6 Conditioning of test pieces ... 5
7 Test pressure ... 5
8 Procedure (method A) ... 6
9 Procedure (method B) ... 6
10 Procedure (method C) ... 6
11 Test report ... 8
Bibliography ... 9

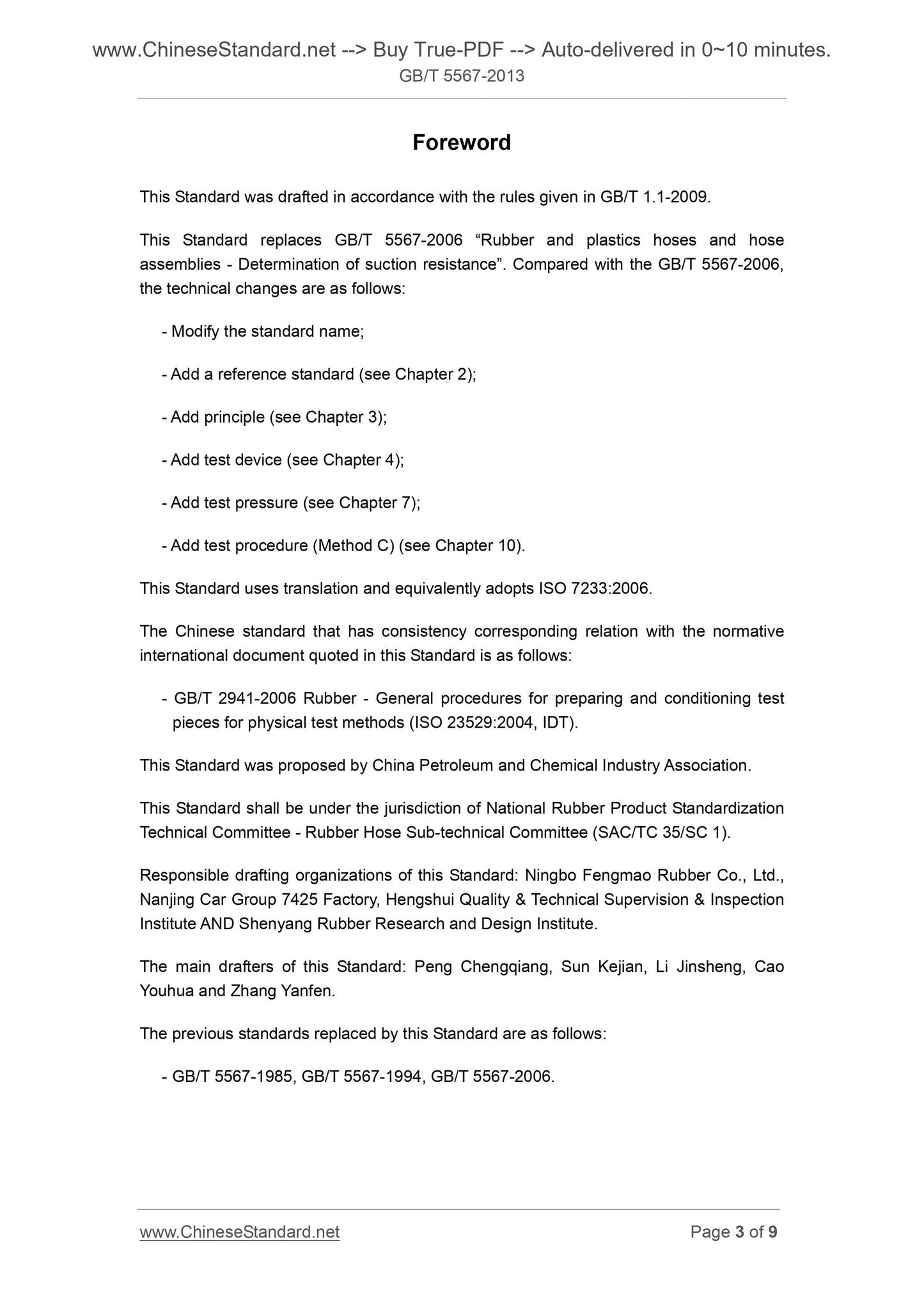

Foreword
This Standard was drafted in accordance with the rules given in GB/T 1.1-2009.
This Standard replaces GB/T 5567-2006 “Rubber and plastics hoses and hose
assemblies - Determination of suction resistance”. Compared with the GB/T 5567-2006,
the technical changes are as follows.
- Modify the standard name;
- Add a reference standard (see Chapter 2);
- Add principle (see Chapter 3);
- Add test device (see Chapter 4);
- Add test pressure (see Chapter 7);
- Add test procedure (Method C) (see Chapter 10).
This Standard uses translation and equivalently adopts ISO 7233.2006.
The Chinese standard that has consistency corresponding relation with the normative
international document quoted in this Standard is as follows.
- GB/T 2941-2006 Rubber - General procedures for preparing and conditioning test
pieces for physical test methods (ISO 23529.2004, IDT).
This Standard was proposed by China Petroleum and Chemical Industry Association.
This Standard shall be under the jurisdiction of National Rubber Product Standardization
Technical Committee - Rubber Hose Sub-technical Committee (SAC/TC 35/SC 1).
Responsible drafting organizations of this Standard. Ningbo Fengmao Rubber Co., Ltd.,
Nanjing Car Group 7425 Factory, Hengshui Quality and Technical Supervision and Inspection
Institute AND Shenyang Rubber Research and Design Institute.
The main drafters of this Standard. Peng Chengqiang, Sun Kejian, Li Jinsheng, Cao
Youhua and Zhang Yanfen.
The previous standards replaced by this Standard are as follows.
- GB/T 5567-1985, GB/T 5567-1994, GB/T 5567-2006.

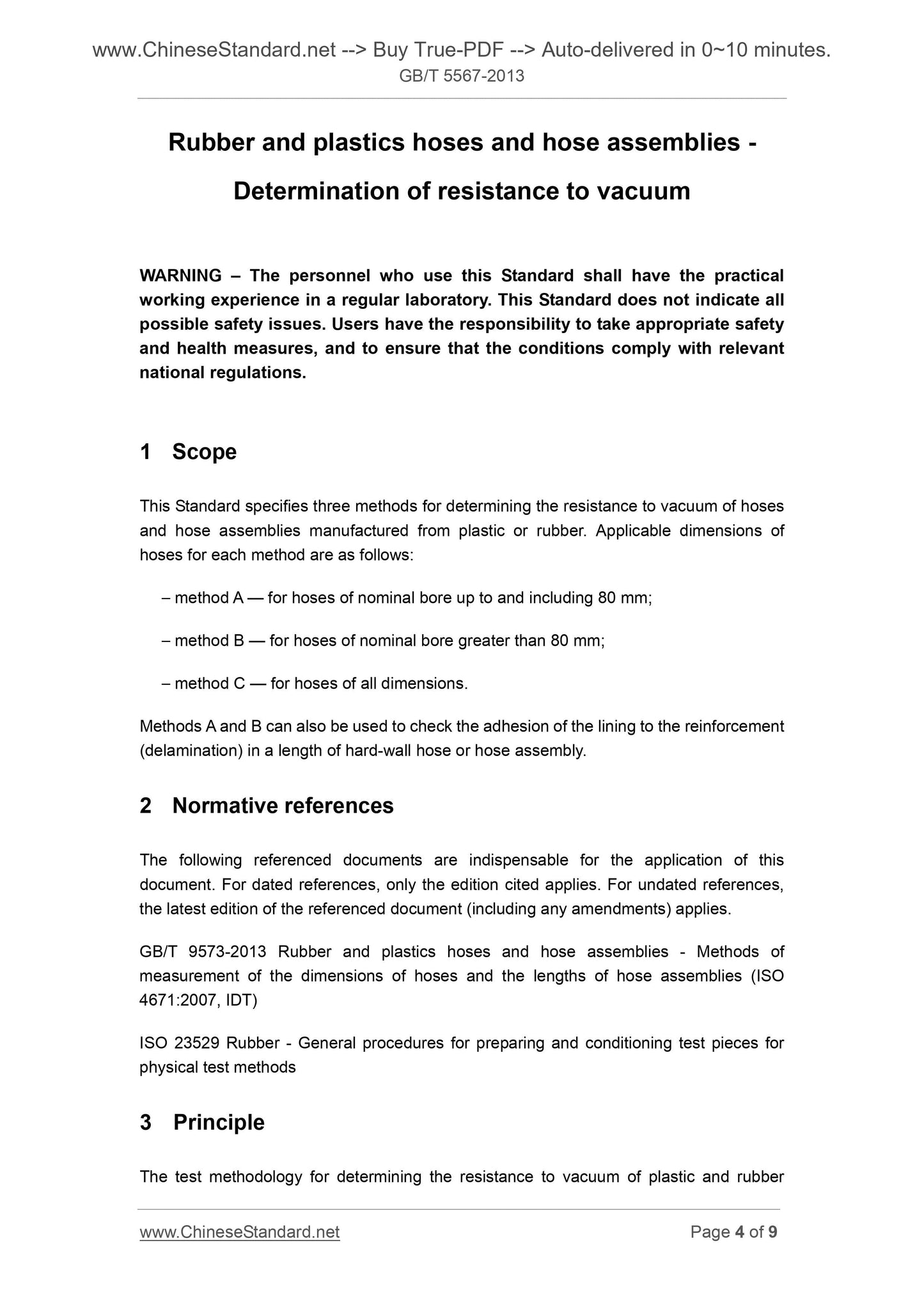

Rubber and plastics hoses and hose assemblies -
Determination of resistance to vacuum
WARNING – The personnel who use this Standard shall have the practical
working experience in a regular laboratory. This Standard does not indicate all
possible safety issues. Users have the responsibility to take appropriate safety
and health measures, and to ensure that the conditions comply with relevant
national regulations.
1 Scope
This Standard specifies three methods for determining the resistance to vacuum of hoses
and hose assemblies manufactured from plastic or rubber. Applicable dimensions of
hoses for each method are as follows.
ۛ method A — for hoses of nominal bore up to and including 80 mm;
ۛ method B — for hoses of nominal bore greater than 80 mm;
ۛ method C — for hoses of all dimensions.
Methods A and B can also be used to check the adhesion of the lining to the reinforcement
(delamination) in a length of hard-wall hose or hose assembly.
2 Normative references
The following referenced documents are indispensable for the application of this
document. For dated references, only the edition cited applies. For undated references,
the latest edition of the referenced document (including any amendments) applies.
GB/T 9573-2013 Rubber and plastics hoses and hose assemblies - Methods of
measurement of the dimensions of hoses and the lengths of hose assemblies (ISO
4671.2007, IDT)
ISO 23529 Rubber - General procedures for preparing and conditioning test pieces for
physical test methods
3 Principle
The test methodology for determining the resistance to vacuum of plastic and rubber

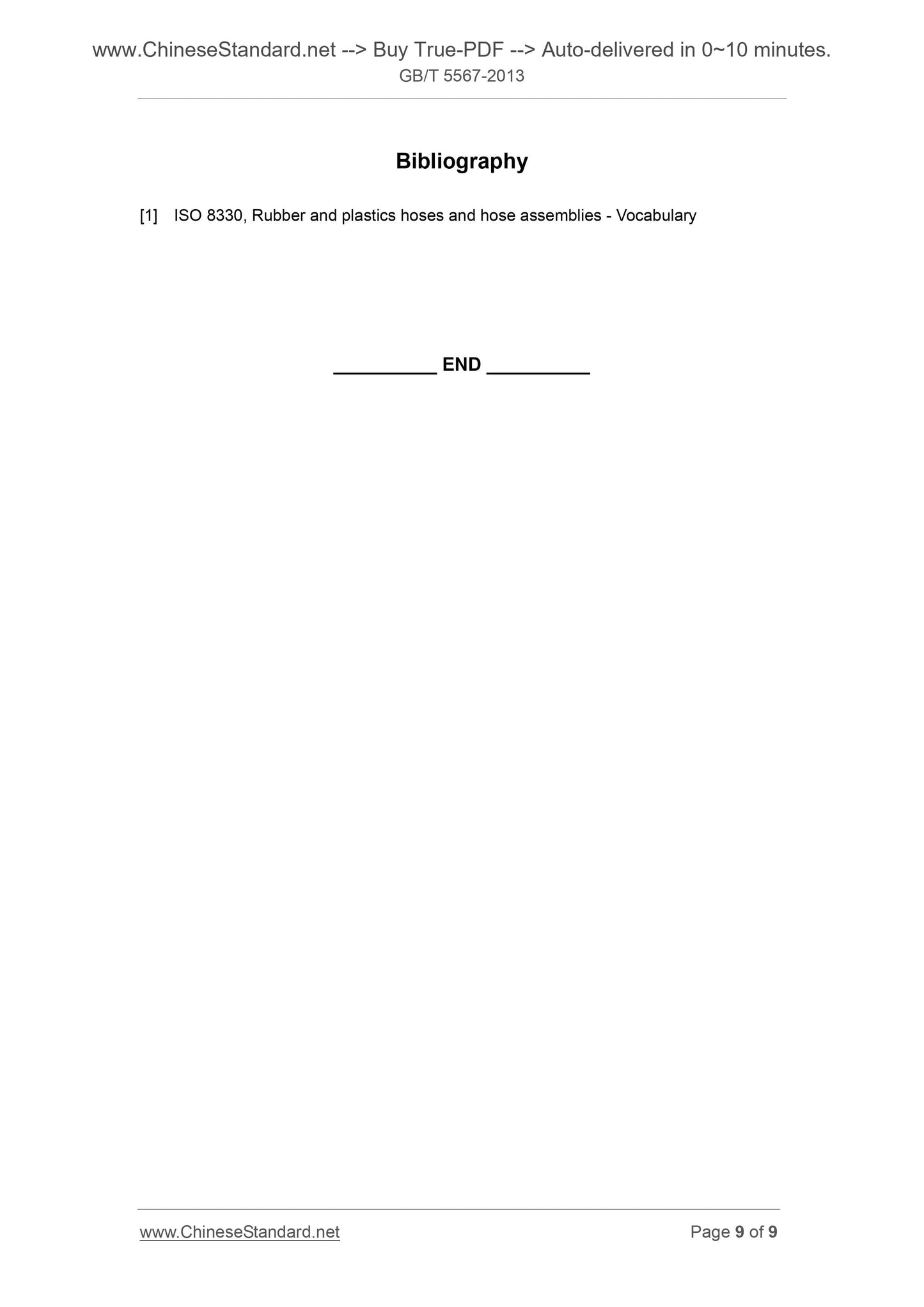

Bibliography
[1] ISO 8330, Rubber and plastics hoses and hose assemblies - Vocabulary
