GB/T 536-2017: Liquefied anhydrous ammonia

This Standard specifies the requirements, test methods, inspection rules, packaging, mark, storage, transportation and safety requirements for liquefied anhydrous ammonia. This Standard is mainly applicable to the liquefied anhydrous ammonia (liquefied ammonia for short) which is prepared by the direct catalyzed synthesis of hydrogen and nitrogen under the condition of high temperature and high pressure. The Standard is also suitable for the products which are produced by other processes.

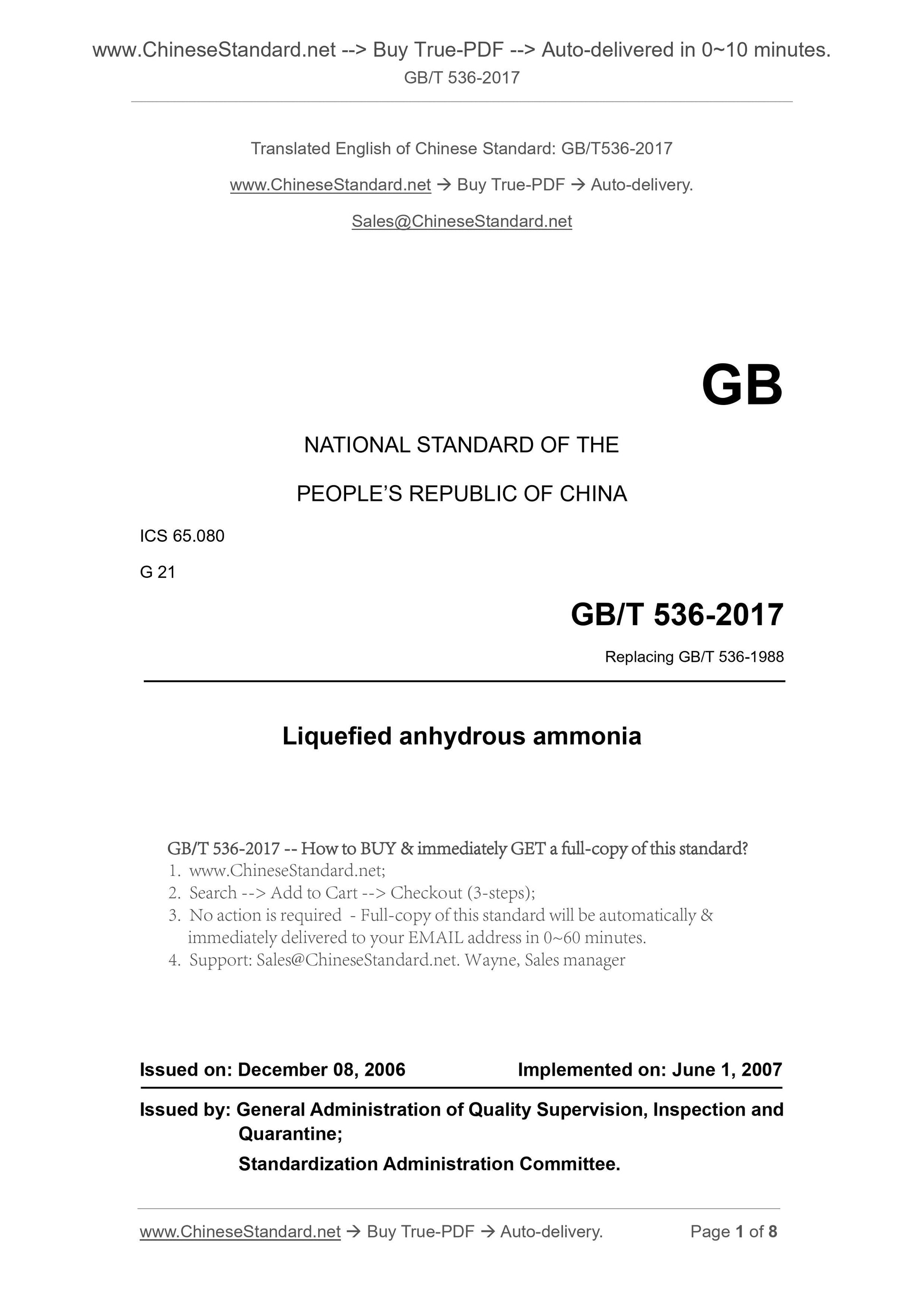

GB/T 536-2017
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 65.080
G 21
Replacing GB/T 536-1988
Liquefied anhydrous ammonia
???????????????
ISSUED ON. DECEMBER 08, 2006
IMPLEMENTED ON. JUNE 1, 2007
Issued by. General Administration of Quality Supervision, Inspection and Quarantine;
Standardization Administration Committee.

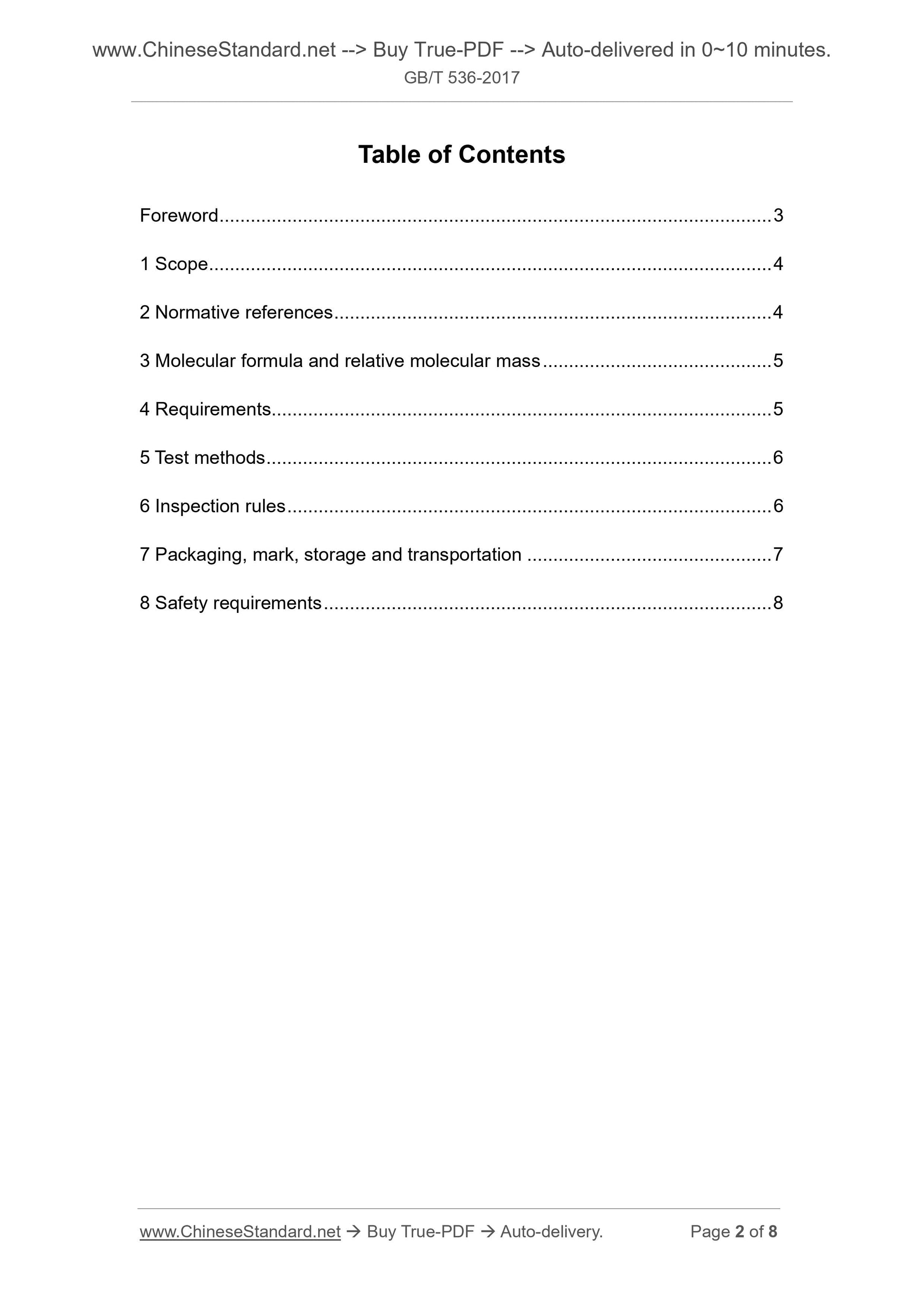

Table of Contents
Foreword ... 3
1 Scope .. 4
2 Normative references ... 4
3 Molecular formula and relative molecular mass ... 5
4 Requirements... 5
5 Test methods .. 6
6 Inspection rules ... 6
7 Packaging, mark, storage and transportation ... 7
8 Safety requirements ... 8

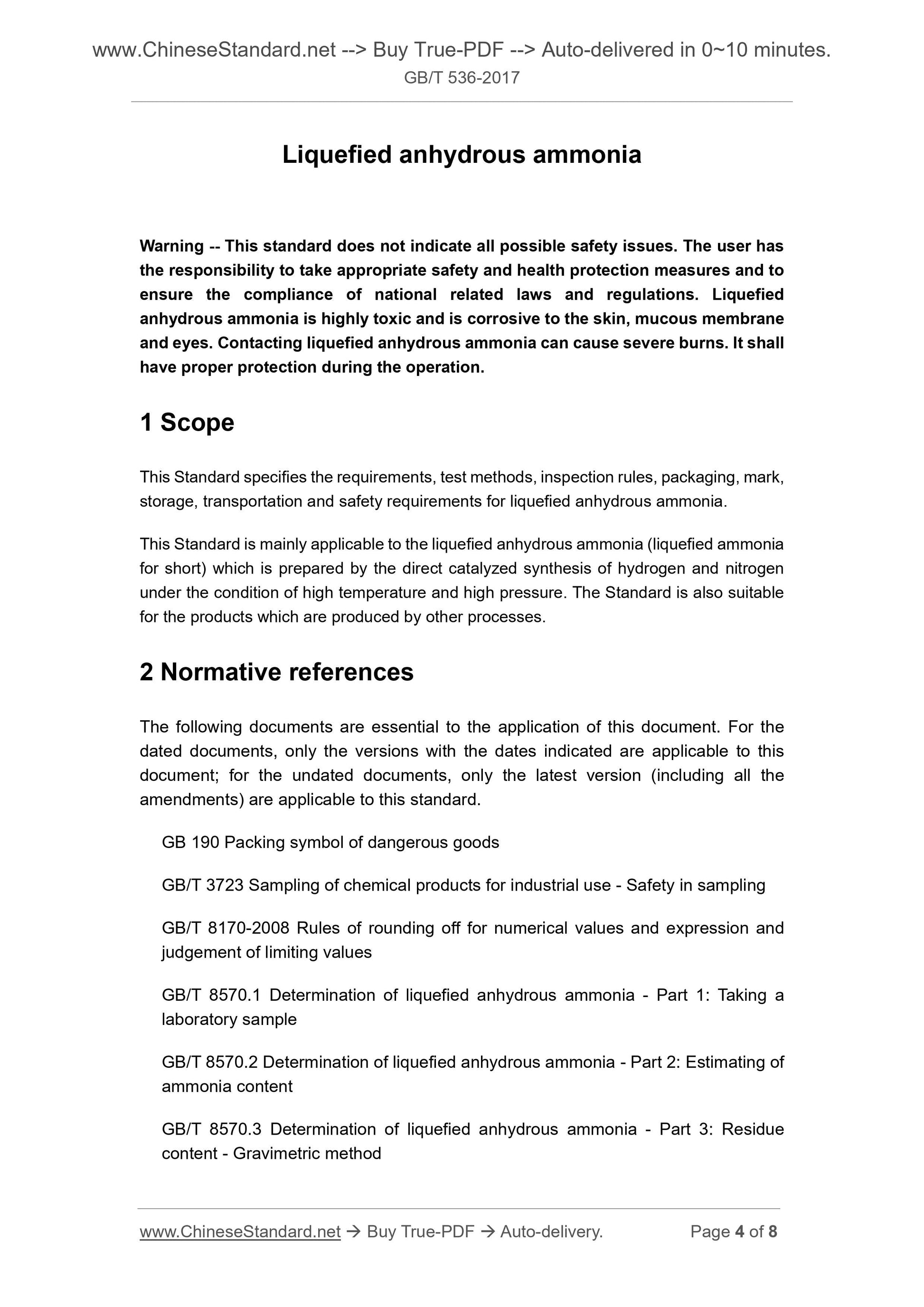

Liquefied anhydrous ammonia
Warning -- This standard does not indicate all possible safety issues. The user has the responsibility to take appropriate safety and health protection measures and to ensure the compliance of national related laws and regulations. Liquefied anhydrous ammonia is highly toxic and is corrosive to the skin, mucous membrane and eyes. Contacting liquefied anhydrous ammonia can cause severe burns. It shall have proper protection during the operation.
1 Scope
This Standard specifies the requirements, test methods, inspection rules, packaging, mark, storage, transportation and safety requirements for liquefied anhydrous ammonia. This Standard is mainly applicable to the liquefied anhydrous ammonia (liquefied ammonia for short) which is prepared by the direct catalyzed synthesis of hydrogen and nitrogen under the condition of high temperature and high pressure. The Standard is also suitable for the products which are produced by other processes.
2 Normative references
The following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this standard.
GB 190 Packing symbol of dangerous goods
GB/T 3723 Sampling of chemical products for industrial use - Safety in sampling GB/T 8170-2008 Rules of rounding off for numerical values and expression and judgement of limiting values
GB/T 8570.1 Determination of liquefied anhydrous ammonia - Part 1. Taking a laboratory sample
GB/T 8570.2 Determination of liquefied anhydrous ammonia - Part 2. Estimating of ammonia content
GB/T 8570.3 Determination of liquefied anhydrous ammonia - Part 3. Residue content - Gravimetric method

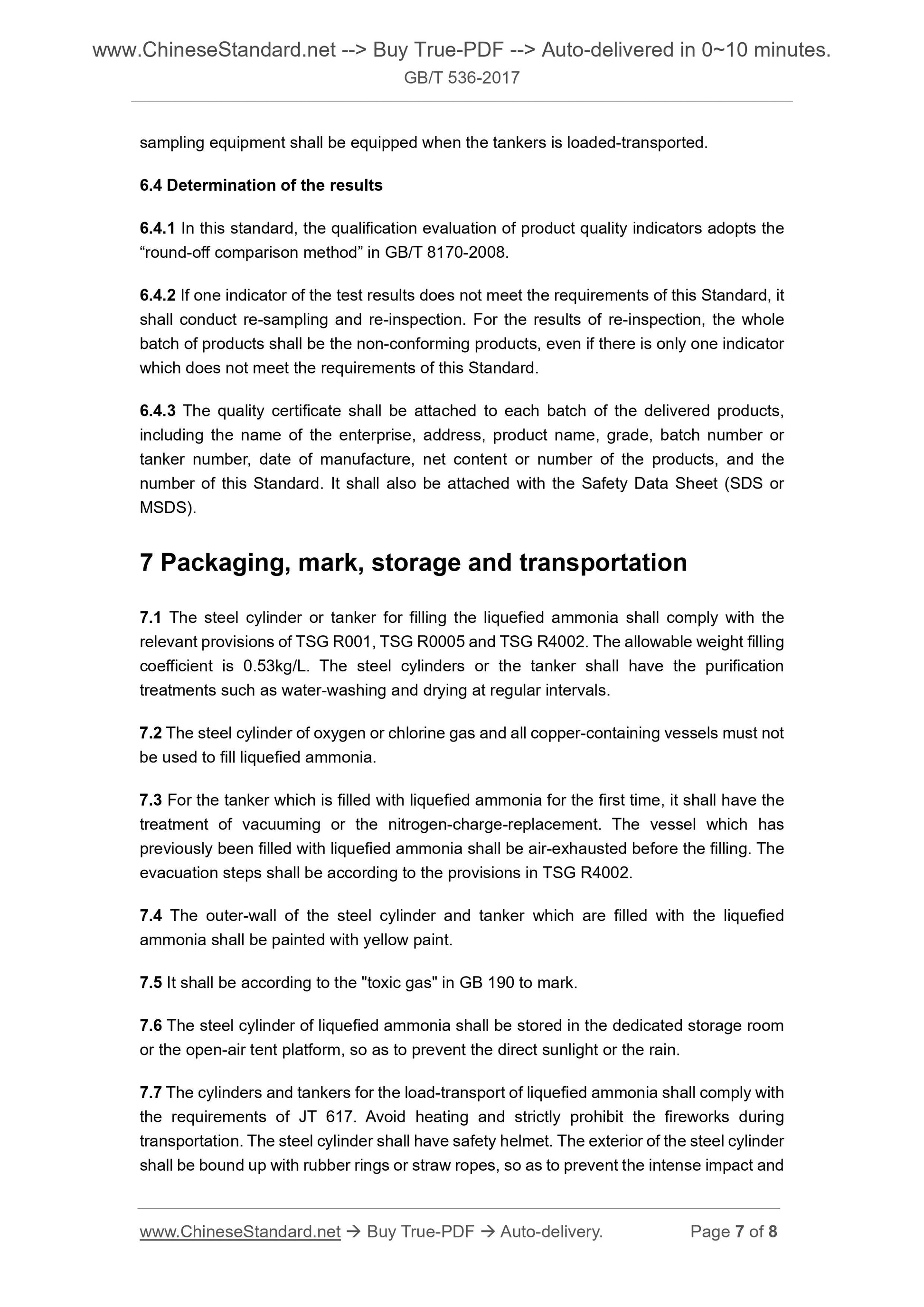

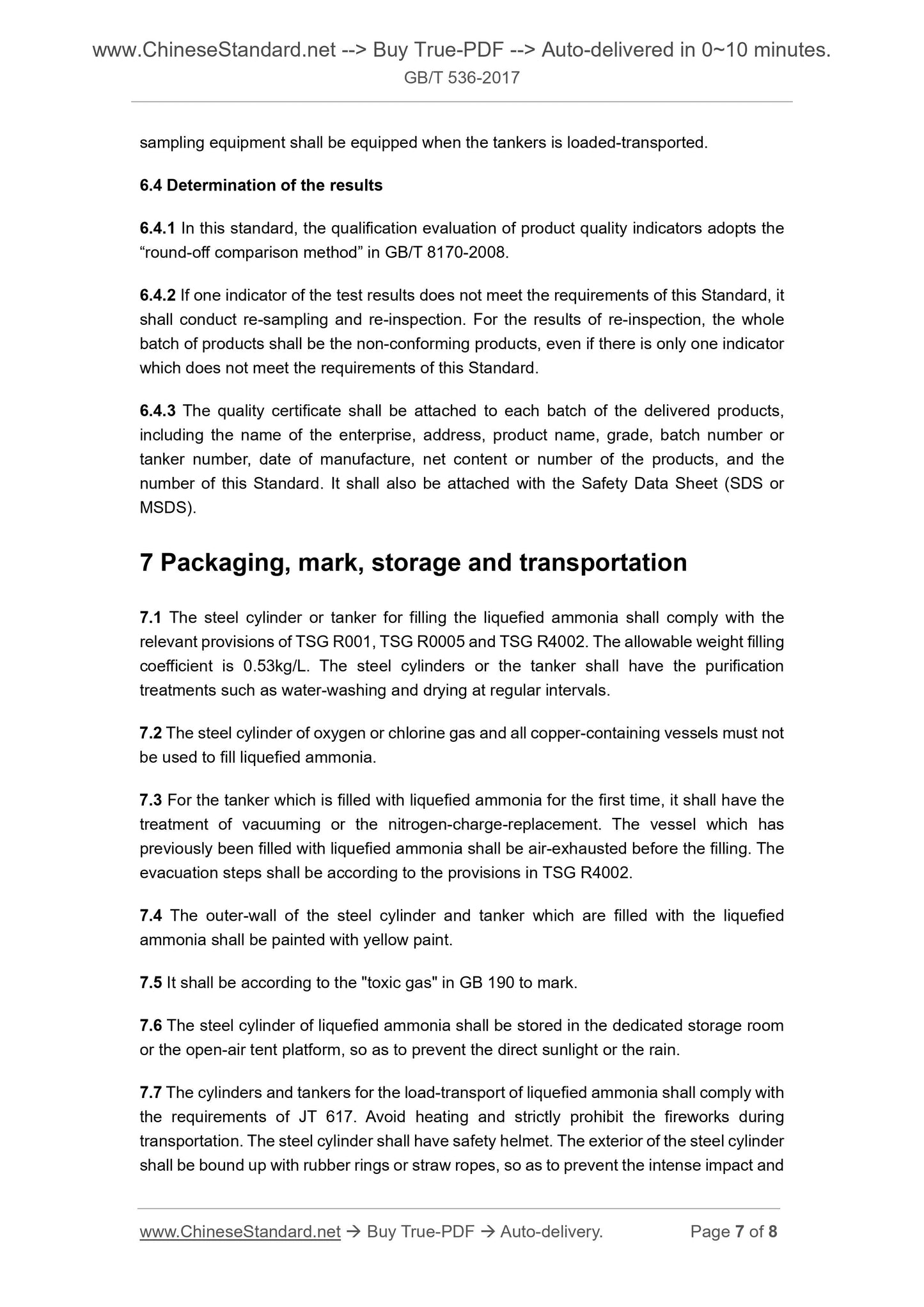

sampling equipment shall be equipped when the tankers is loaded-transported. 6.4 Determination of the results
6.4.1 In this standard, the qualification evaluation of product quality indicators adopts the ?€?round-off comparison method?€? in GB/T 8170-2008.
6.4.2 If one indicator of the test results does not meet the requirements of this Standard, it shall conduct re-sampling and re-inspection. For the results of re-inspection, the whole batch of products shall be the non-conforming products, even if there is only one indicator which does not meet the requirements of this Standard.
6.4.3 The quality certificate shall be attached to each batch of the delivered products, including the name of the enterprise, address, product name, grade, batch number or tanker number, date of manufacture, net content or number of the products, and the number of this Standard. It shall also be attached with the Safety Data Sheet (SDS or MSDS).
7 Packaging, mark, storage and transportation
7.1 The steel cylinder or tanker for filling the liquefied ammonia shall comply with the relevant provisions of TSG R001, TSG R0005 and TSG R4002. The allowable weight filling coefficient is 0.53kg/L. The steel cylinders or the tanker shall have the purification treatments such as water-washing and drying at regular intervals.
7.2 The steel cylinder of oxygen or chlorine gas and all copper-containing vessels must not be used to fill liquefied ammonia.
7.3 For the tanker which is filled with liquefied ammonia for the first time, it shall have the treatment of vacuuming or the nitrogen-charge-replacement. The vessel which has previously been filled with liquefied ammonia shall be air-exhausted before the filling. The evacuation steps shall be according to the provisions in TSG R4002.
7.4 The outer-wall of the steel cylinder and tanker which are filled with the liquefied ammonia shall be painted with yellow paint.
7.5 It shall be according to the "toxic gas" in GB 190 to mark.
7.6 The steel cylinder of liquefied ammonia shall be stored in the dedicated storage room or the open-air tent platform, so as to prevent the direct sunlight or the rain. 7.7 The cylinders and tankers for the load-transport of liquefied ammonia shall comply with the requirements of JT 617. Avoid heating and strictly prohibit the fireworks during transportation. The steel cylinder shall have safety helmet. The exterior of the steel cylinder shall be bound up with rubber rings or straw ropes, so as to prevent the intense impact and
