GB/T 5359.1-2019: Term for motorcycles and mopeds -- Part 1: Types of vehicles
This part of GB/T 5359 gives the terms and definitions of the vehicle types of motorcycles and mopeds. This Part applies to motorcycles and mopeds.

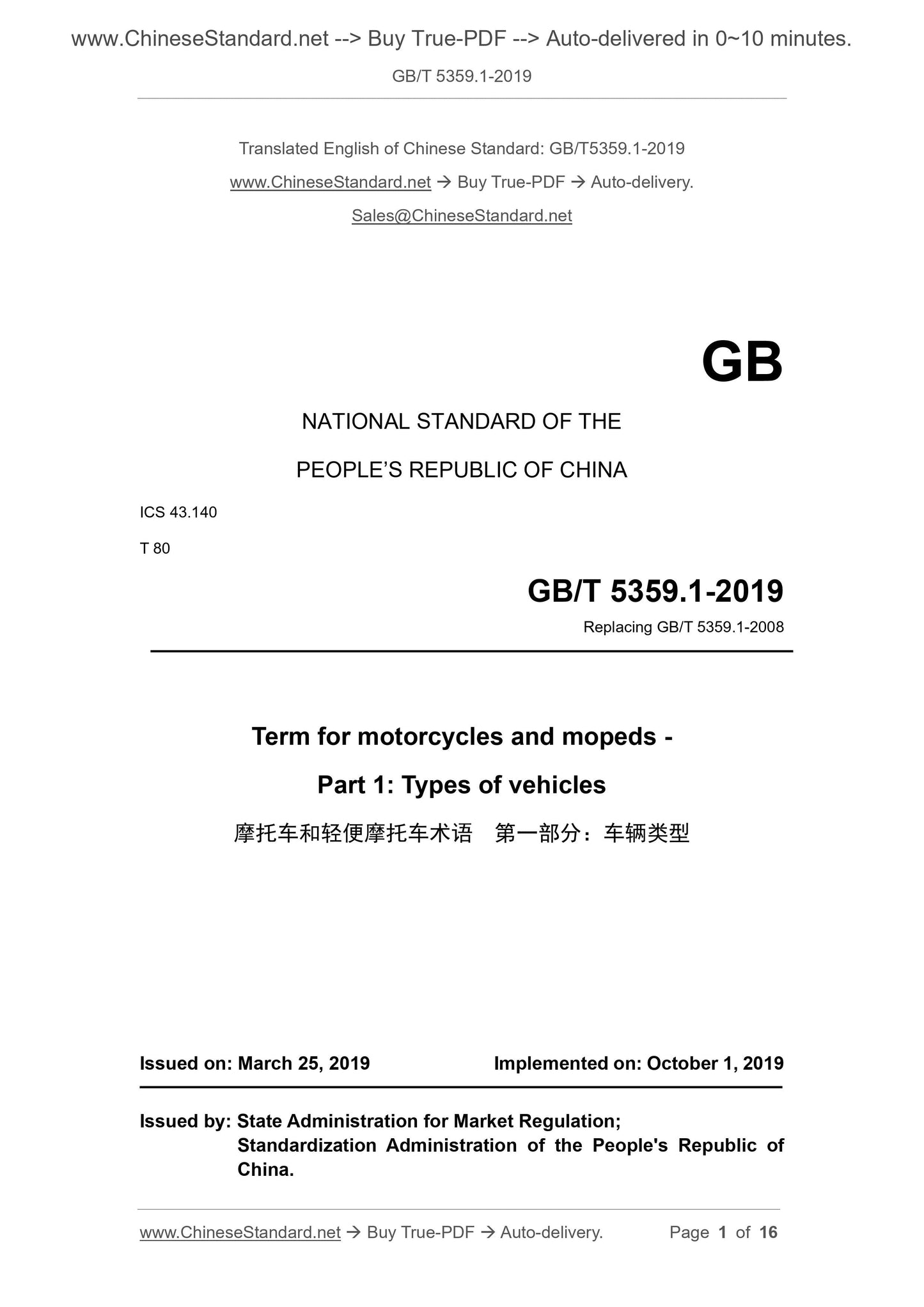

GB/T 5359.1-2019
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 43.140
T 80
Replacing GB/T 5359.1-2008
Term for motorcycles and mopeds -
Part 1: Types of vehicles
ISSUED ON: MARCH 25, 2019
IMPLEMENTED ON: OCTOBER 1, 2019
Issued by: State Administration for Market Regulation;
Standardization Administration of the People's Republic of
China.

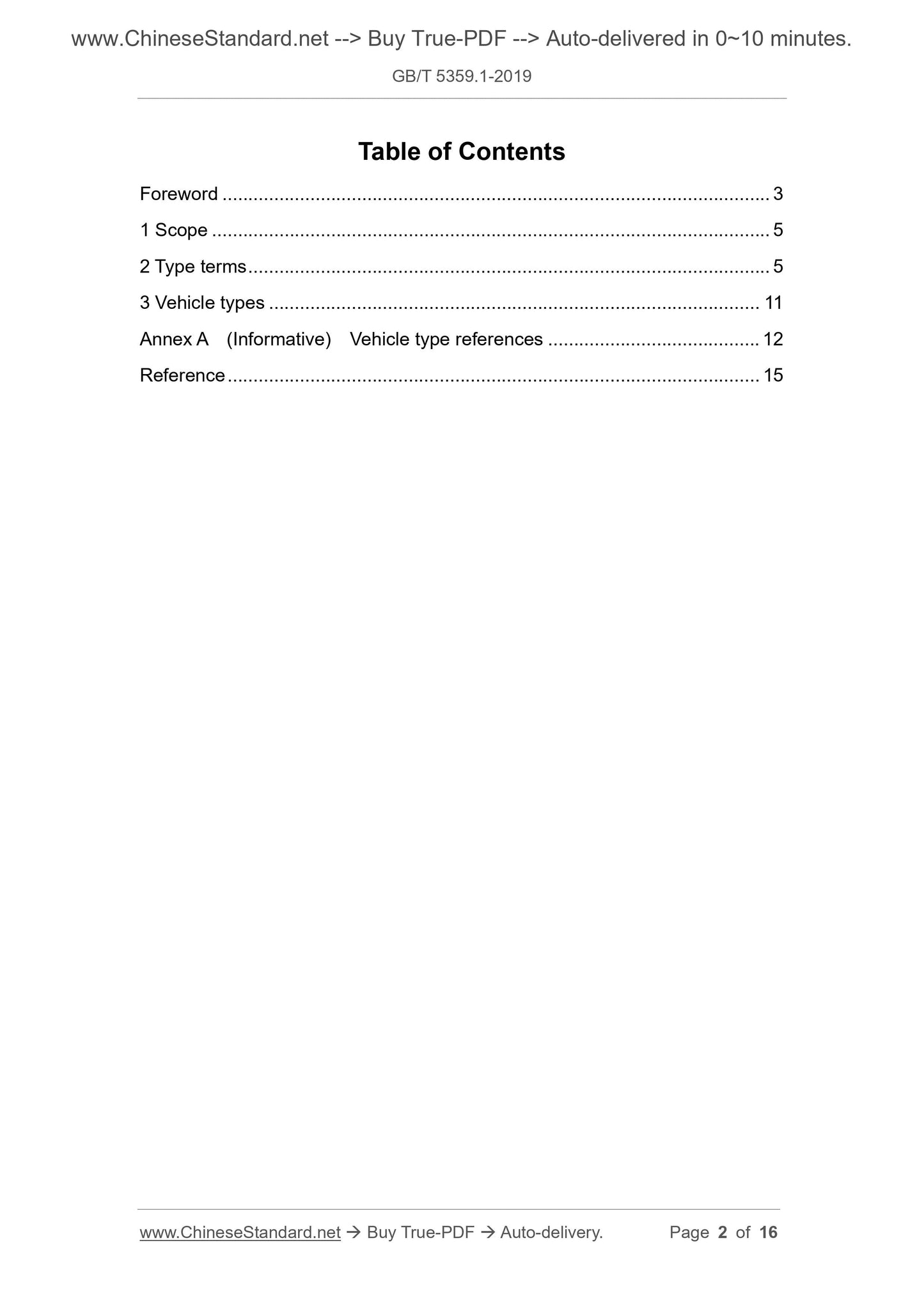

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Type terms ... 5
3 Vehicle types ... 11
Annex A (Informative) Vehicle type references ... 12
Reference ... 15

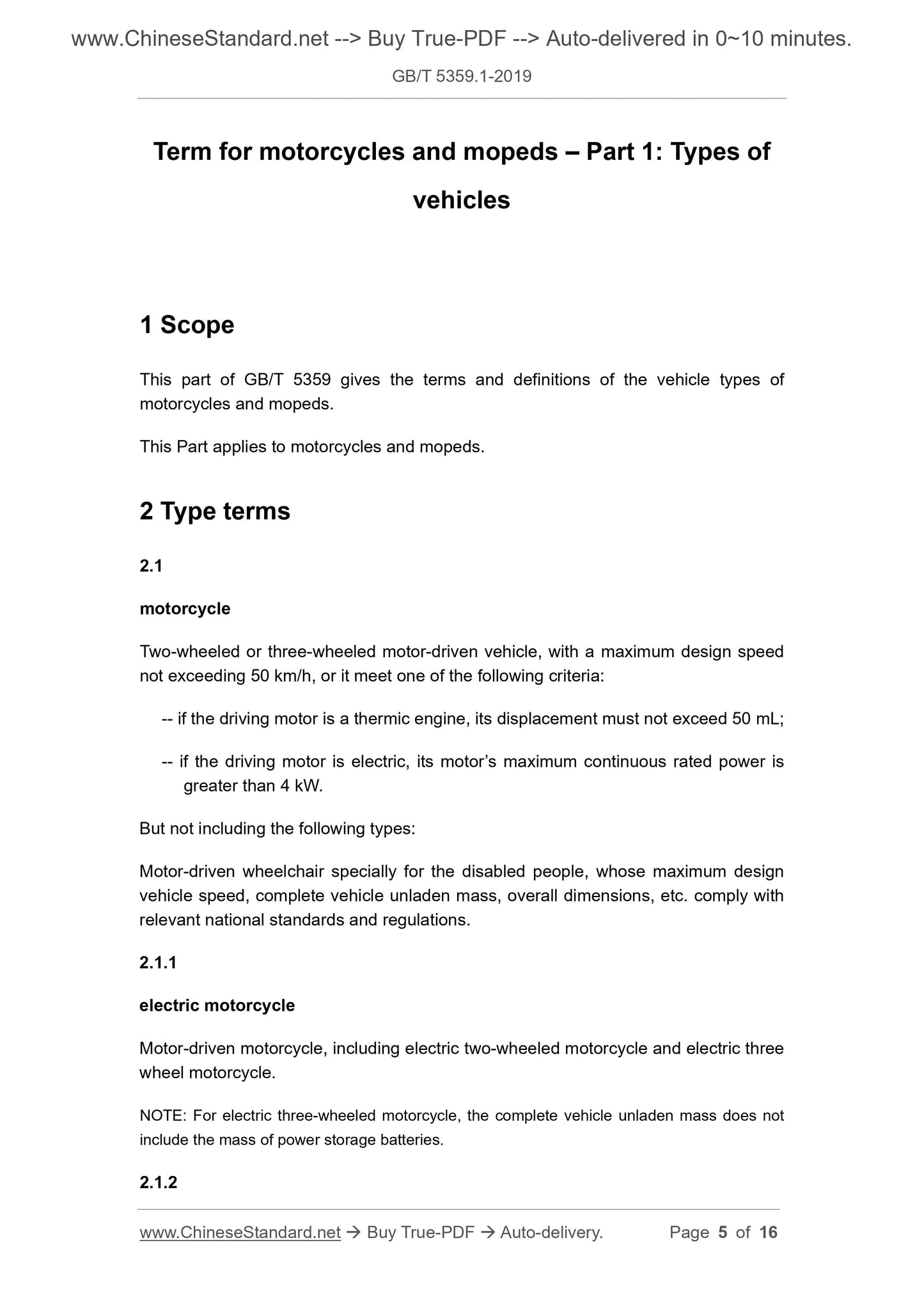

Term for motorcycles and mopeds – Part 1: Types of
vehicles
1 Scope
This part of GB/T 5359 gives the terms and definitions of the vehicle types of motorcycles and mopeds.
This Part applies to motorcycles and mopeds.
2 Type terms
2.1
motorcycle
Two-wheeled or three-wheeled motor-driven vehicle, with a maximum design speed not exceeding 50 km/h, or it meet one of the following criteria:
-- if the driving motor is a thermic engine, its displacement must not exceed 50 mL; -- if the driving motor is electric, its motor’s maximum continuous rated power is greater than 4 kW.
But not including the following types:
Motor-driven wheelchair specially for the disabled people, whose maximum design vehicle speed, complete vehicle unladen mass, overall dimensions, etc. comply with relevant national standards and regulations.
2.1.1
electric motorcycle
Motor-driven motorcycle, including electric two-wheeled motorcycle and electric three wheel motorcycle.
NOTE: For electric three-wheeled motorcycle, the complete vehicle unladen mass does not include the mass of power storage batteries.

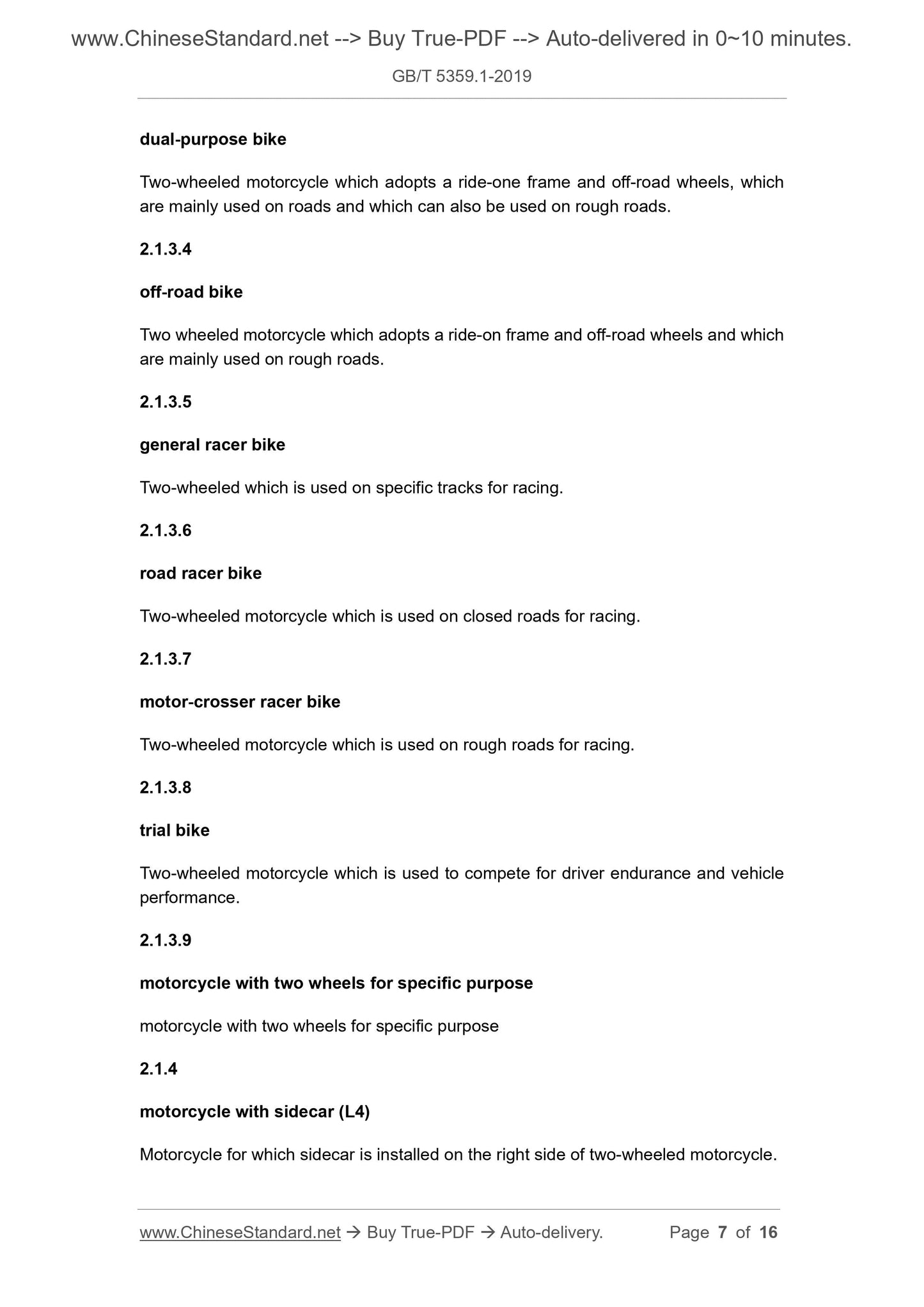

2.1.2
dual-purpose bike
Two-wheeled motorcycle which adopts a ride-one frame and off-road wheels, which are mainly used on roads and which can also be used on rough roads.
2.1.3.4
off-road bike
Two wheeled motorcycle which adopts a ride-on frame and off-road wheels and which are mainly used on rough roads.
2.1.3.5
general racer bike
Two-wheeled which is used on specific tracks for racing.
2.1.3.6
road racer bike
Two-wheeled motorcycle which is used on closed roads for racing.
2.1.3.7
motor-crosser racer bike
Two-wheeled motorcycle which is used on rough roads for racing.
2.1.3.8
trial bike
Two-wheeled motorcycle which is used to compete for driver endurance and vehicle performance.
2.1.3.9
motorcycle with two wheels for specific purpose
motorcycle with two wheels for specific purpose
2.1.4
motorcycle with sidecar (L4)

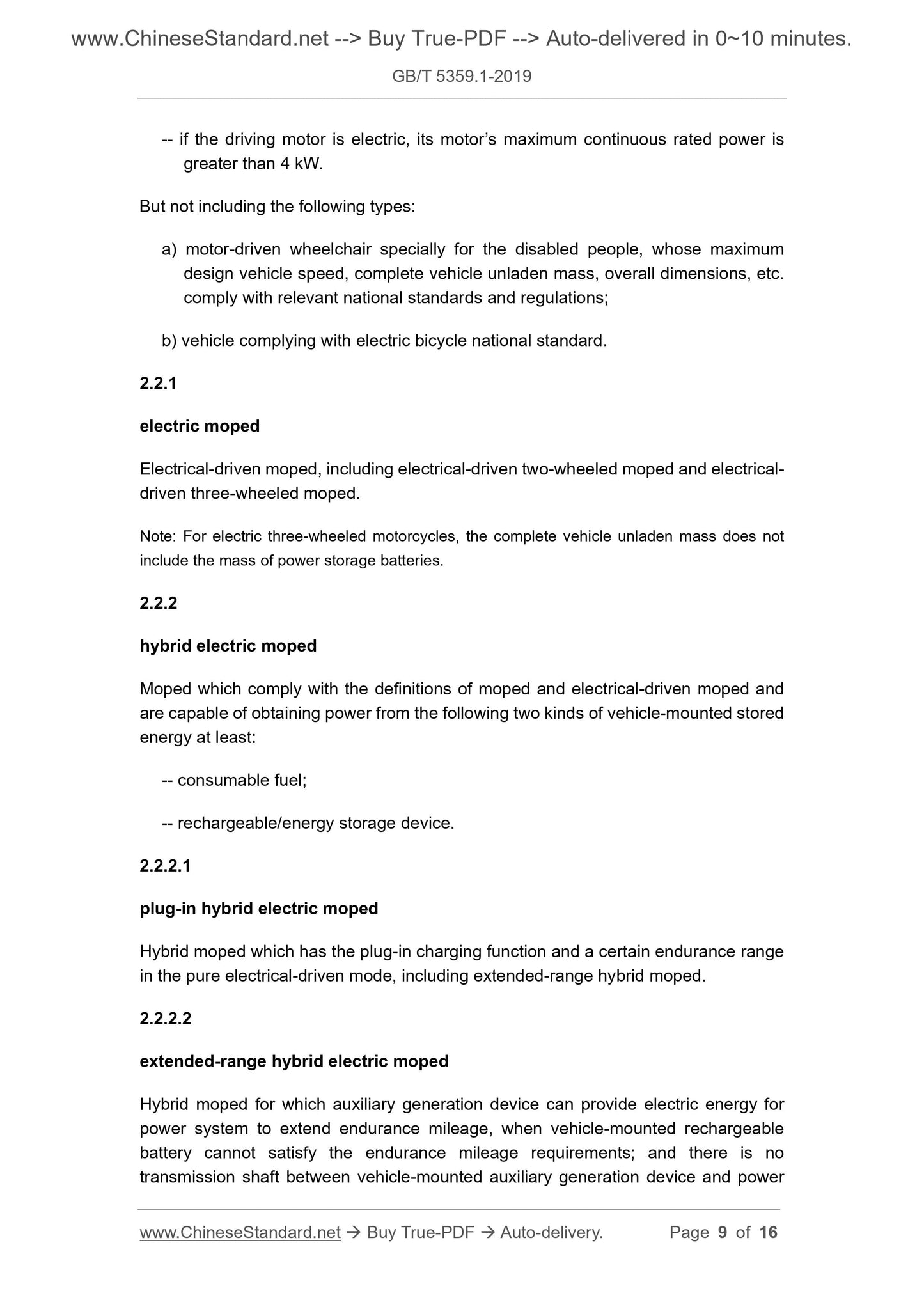

Motorcycle for which sidecar is installed on the right side of two-wheeled motorcycle. -- if the driving motor is electric, its motor’s maximum continuous rated power is greater than 4 kW.
But not including the following types:
a) motor-driven wheelchair specially for the disabled people, whose maximum design vehicle speed, complete vehicle unladen mass, overall dimensions, etc. comply with relevant national standards and regulations;
b) vehicle complying with electric bicycle national standard.
2.2.1
electric moped
Electrical-driven moped, including electrical-driven two-wheeled moped and electrical- driven three-wheeled moped.
Note: For electric three-wheeled motorcycles, the complete vehicle unladen mass does not include the mass of power storage batteries.
2.2.2
hybrid electric moped
Moped which comply with the definitions of moped and electrical-driven moped and are capable of obtaining power from the following two kinds of vehicle-mounted stored energy at least:
-- consumable fuel;
-- rechargeable/energy storage device.
2.2.2.1
plug-in hybrid electric moped
Hybrid moped which has the plug-in charging function and a certain endurance range in the pure electrical-driven mode, including extended-range hybrid moped. 2.2.2.2
extended-range hybrid electric moped
Hybrid moped for which auxiliary generation device can provide electric energy for power system to extend endurance mileage, when vehicle-mounted rechargeable battery cannot satisfy the endurance mileage requirements; and there is no transmission shaft between vehicle-mounted auxiliary generation device and power
