GB/T 5335-2008 English PDF (GBT5335-2008)

GB/T 5335-2008 English PDF (GBT5335-2008)

Regular price $95.00 USD
Regular price Sale price $95.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 5335-2008 to get it for Purchase Approval, Bank TT...

GB/T 5335-2008: Automobile pressure test connection for hydraulic braking equipment

This Standard specifies the main dimensions of the pressure test connector, the free space to be left around, and the corrosion resistance requirements for checking the reaction time and pressure value of the hydraulic braking equipment of automobile (except passenger cars and their variants). This Standard applies to hydraulic braking systems only.

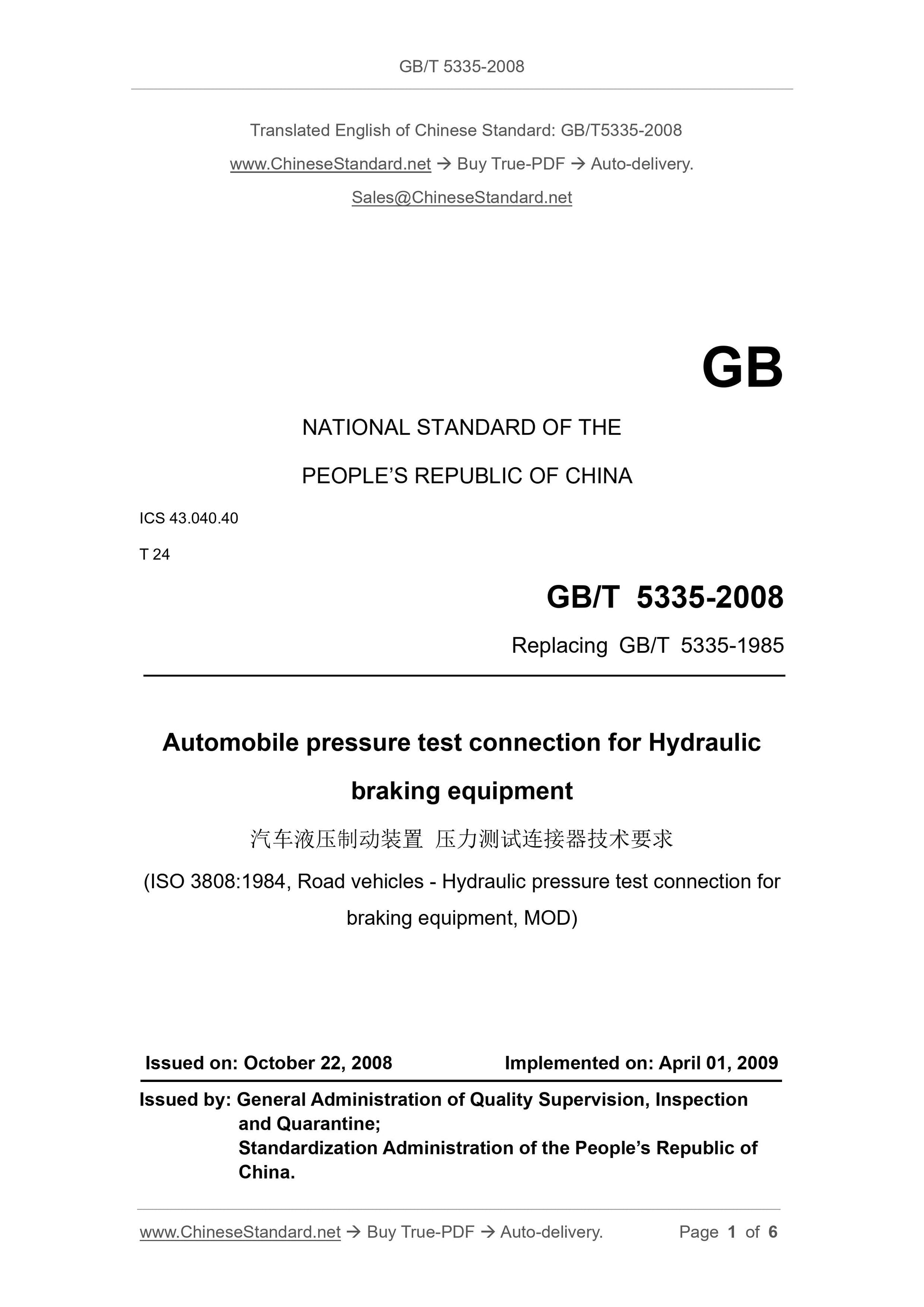

GB/T 5335-2008
GB
NATIONAL STANDARD OF THE
PEOPLE REPUBLIC OF CHINA
ICS 43.040.40
T 24
Replacing GB/T 5335-1985
Automobile pressure test connection for Hydraulic
braking equipment
(ISO 3808:1984, Road vehicles - Hydraulic pressure test connection for
braking equipment, MOD)
ISSUED ON: OCTOBER 22, 2008
IMPLEMENTED ON: APRIL 01, 2009
Issued by: General Administration of Quality Supervision, Inspection
and Quarantine;
Standardization Administration of the PEOPLE Republic of
China.

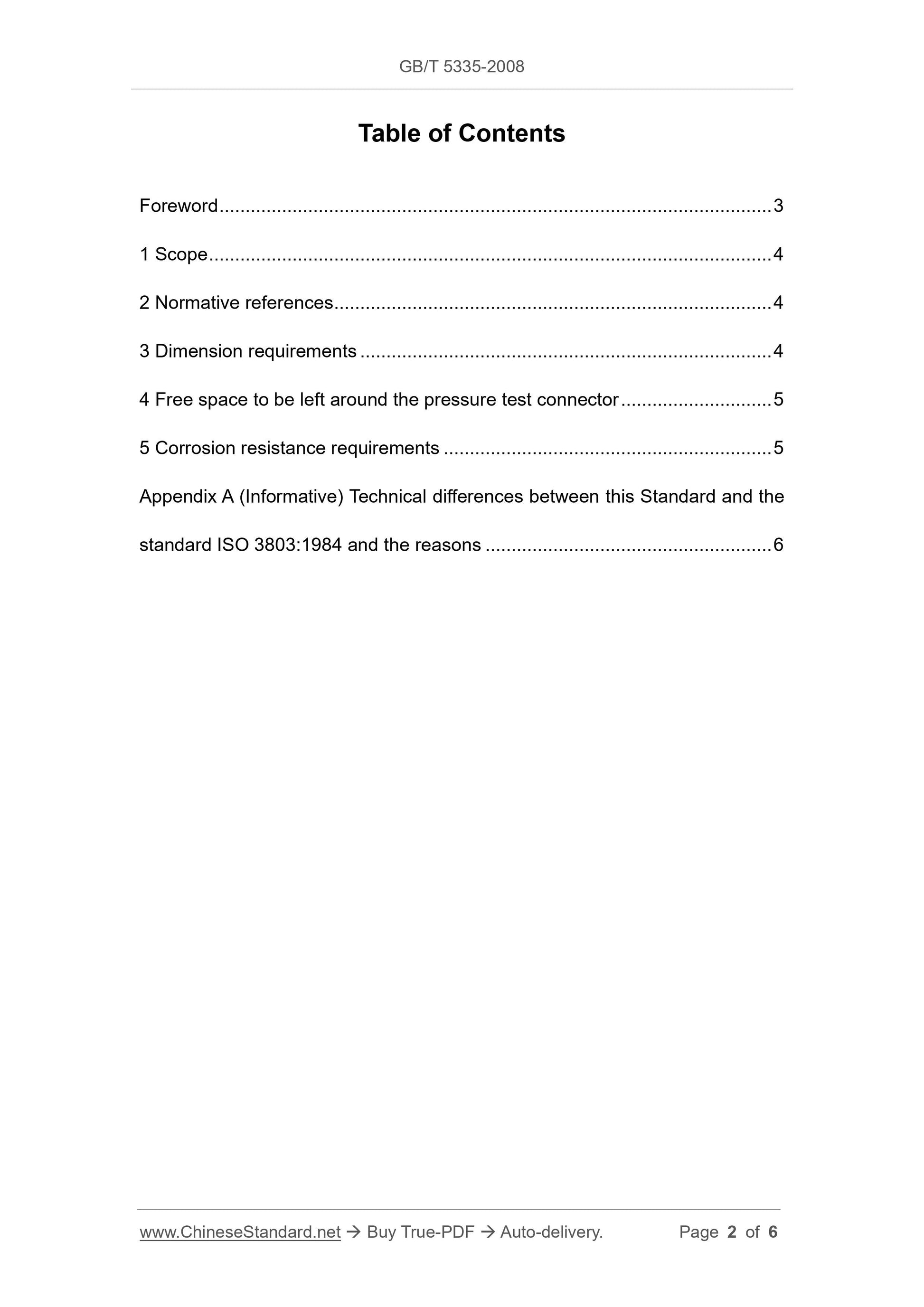

Table of Contents
Foreword ... 3
1 Scope ... 4
2 Normative references ... 4
3 Dimension requirements ... 4
4 Free space to be left around the pressure test connector ... 5
5 Corrosion resistance requirements ... 5
Appendix A (Informative) Technical differences between this Standard and the standard ISO 3803:1984 and the reasons ... 6

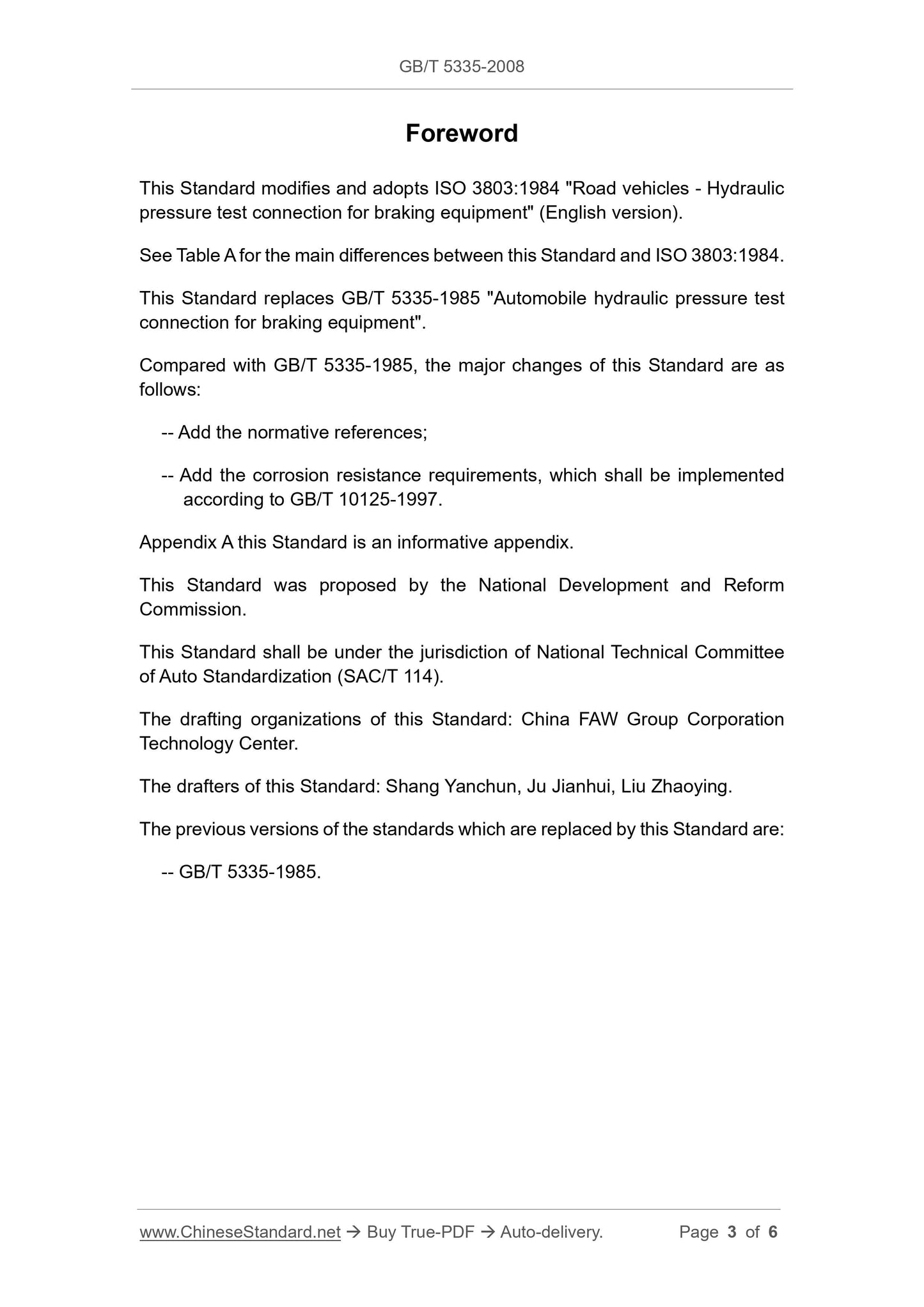

Foreword
This Standard modifies and adopts ISO 3803:1984 "Road vehicles - Hydraulic pressure test connection for braking equipment" (English version).
See Table A for the main differences between this Standard and ISO 3803:1984. This Standard replaces GB/T 5335-1985 "Automobile hydraulic pressure test connection for braking equipment".
Compared with GB/T 5335-1985, the major changes of this Standard are as follows:
-- Add the normative references;
-- Add the corrosion resistance requirements, which shall be implemented according to GB/T 10125-1997.
Appendix A this Standard is an informative appendix.
This Standard was proposed by the National Development and Reform
Commission.
This Standard shall be under the jurisdiction of National Technical Committee of Auto Standardization (SAC/T 114).
The drafting organizations of this Standard: China FAW Group Corporation Technology Center.
The drafters of this Standard: Shang Yanchun, Ju Jianhui, Liu Zhaoying. The previous versions of the standards which are replaced by this Standard are: -- GB/T 5335-1985.

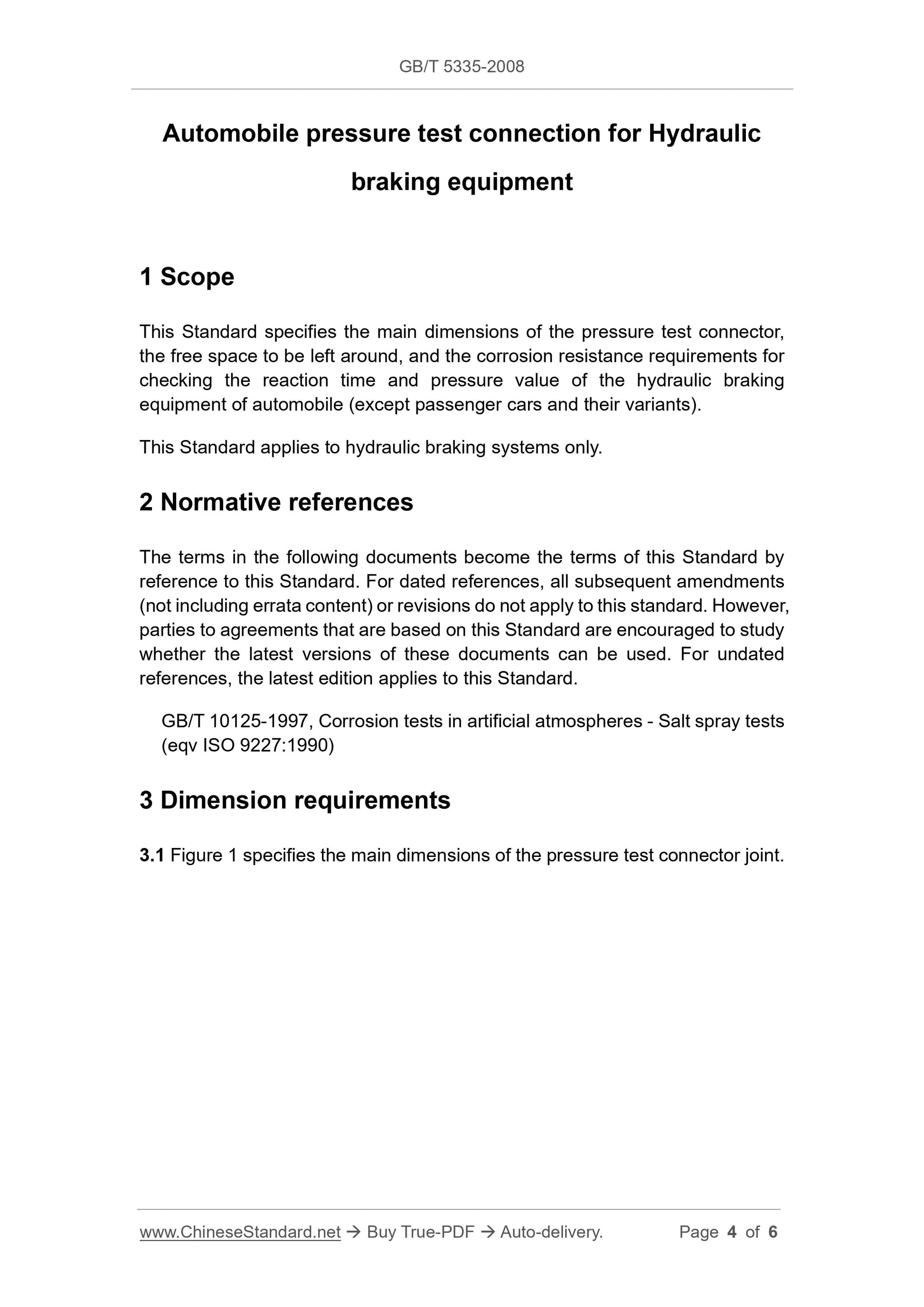

Automobile pressure test connection for Hydraulic
braking equipment
1 Scope
This Standard specifies the main dimensions of the pressure test connector, the free space to be left around, and the corrosion resistance requirements for checking the reaction time and pressure value of the hydraulic braking
equipment of automobile (except passenger cars and their variants).
This Standard applies to hydraulic braking systems only.
2 Normative references
The terms in the following documents become the terms of this Standard by reference to this Standard. For dated references, all subsequent amendments (not including errata content) or revisions do not apply to this standard. However, parties to agreements that are based on this Standard are encouraged to study whether the latest versions of these documents can be used. For undated references, the latest edition applies to this Standard.
GB/T 10125-1997, Corrosion tests in artificial atmospheres - Salt spray tests (eqv ISO 9227:1990)
3 Dimension requirements
3.1 Figure 1 specifies the main dimensions of the pressure test connector joint.
