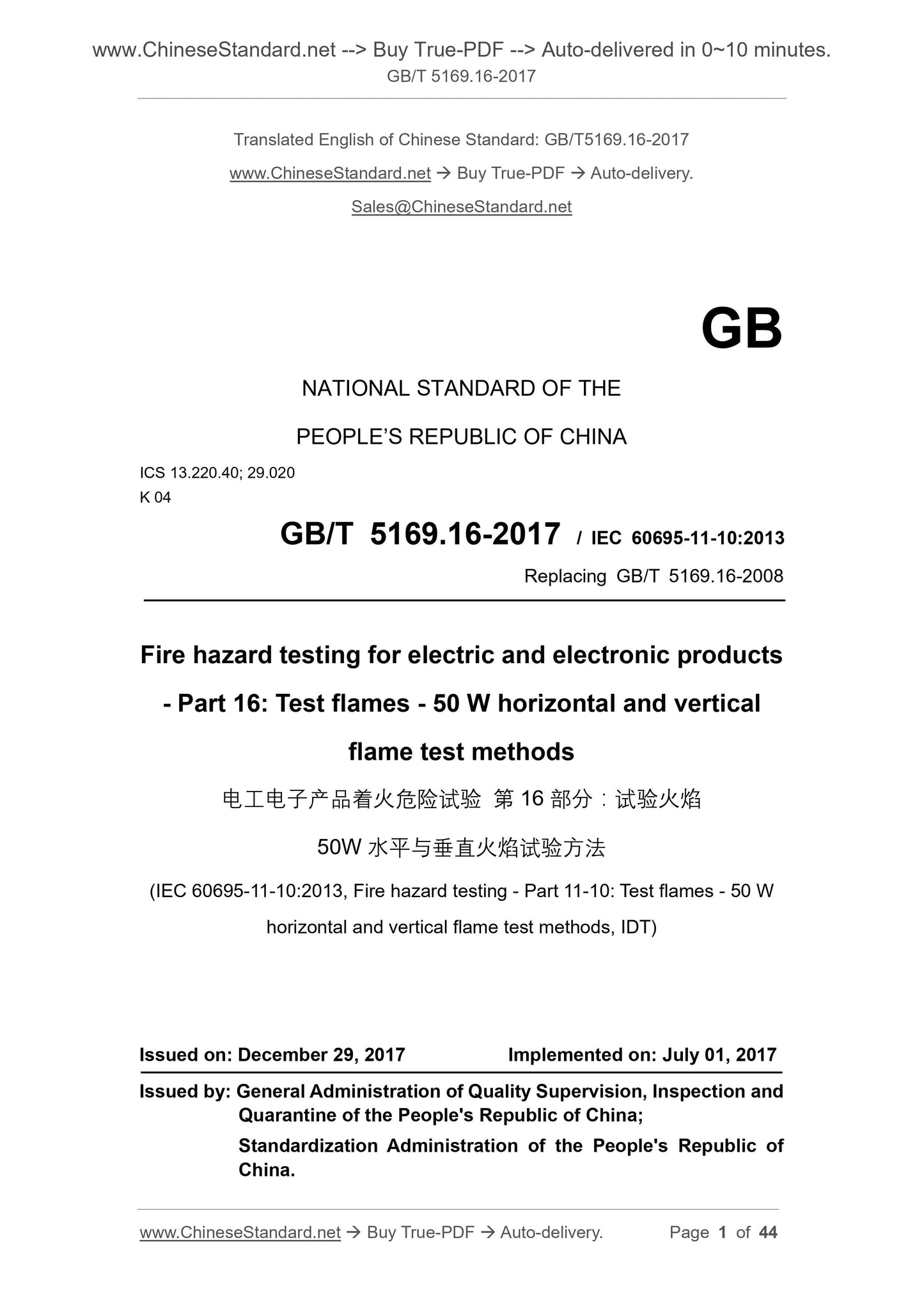

GB/T 5169.16-2017 English PDF (GBT5169.16-2017)

GB/T 5169.16-2017 English PDF (GBT5169.16-2017)

Regular price $410.00 USD
Regular price Sale price $410.00 USD
Sale Sold out
Shipping calculated at checkout.
Quotation: In 1-minute, 24-hr self-service. Click here GB/T 5169.16-2017 to get it for Purchase Approval, Bank TT...

GB/T 5169.16-2017: Fire hazard testing for electric and electronic products -- Part 16: Test flames--50 W horizontal and vertical flame test methods

GB/T 5169.16-2017
Fire hazard testing for electric and electronic products--Part 16. Test flames--50 W horizontal and vertical flame test methods ICS 13.220.40; 29.020
K04
National Standards of People's Republic of China
Replace GB/T 5169.16-2008
Electrical and electronic products fire hazard test
Part 16. Test flame
50W horizontal and vertical flame test method
Part 16. Testflames-50Whorizontalandverticalflametestmethods
(IEC 60695-11-10.2013, Firehazardtesting-Part 11-10. Testflames-
50Whorizontalandverticalflametestmethods, IDT)
2017-12-29 released.2018-07-01 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration issued

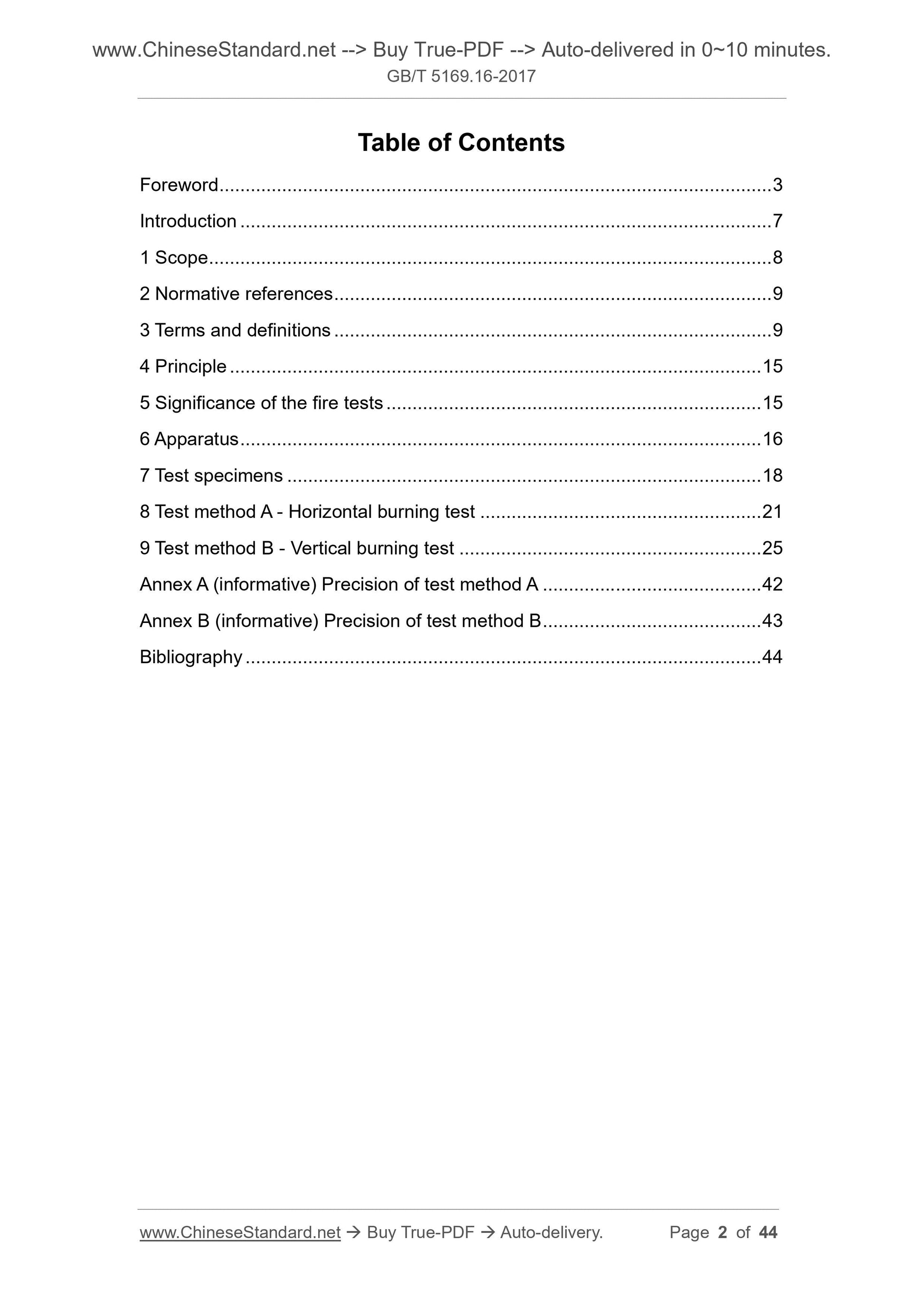

Content
Foreword I
Introduction III
1 range 1
2 Normative references 1
3 Terms and Definitions 2
4 Principle 5
5 The significance of the fire test 5
6 test device 6
7 sample 7
8 Test Method A - Horizontal Burning Test 8
9 Test Method B - Vertical Burning Test 11
Appendix A (informative) Accuracy of Test Method A 23
Appendix B (informative) Accuracy of Test Method B 24
Reference 25
Figure 1 Horizontal combustion test device 14
Figure 2 Supporting fixture for flexible specimens - Method A 15
Figure 3 Vertical Burning Test Device - Method B 16
Figure 4 Strip sample 17
Figure 5 Optional gauge gauge 17
Figure 6 Gap gauge 18
Figure 7 Application of flame 19
Figure 8 Application of flame with molten drops 19
Figure 9 HB sample gauge (example) 20
Figure 10 V sample gauge (example) 20
Figure 11 Flame front position 21 not "burned to the clamp"
Figure 12 Flame front position 22 "burn to clamp"
Table 1 Tolerance of nominal thickness 7
Table 2 Judging criteria for vertical burning classification 13
Table A.1 Linear Burning Rate 23
Table B.1 Afterflame time and afterflame plus afterburning time 24

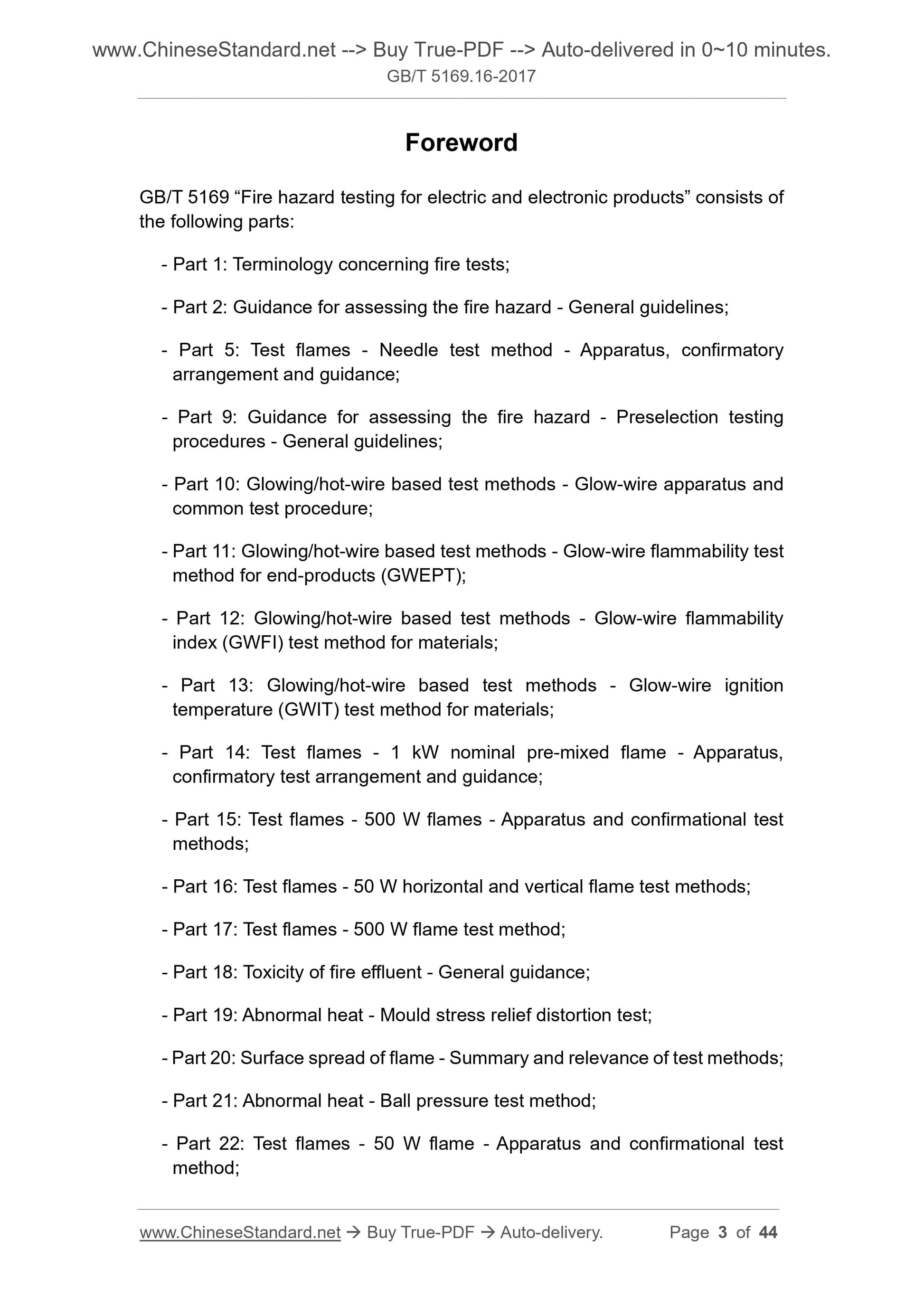

Foreword
GB/T 5169 "Electrical and Electronic Products Fire Hazard Test" consists of the following parts. --- Part 1. Terminology for ignition test;
--- Part 2. General guidelines for the assessment of fire hazard;
---Part 5. Test flame test method, test method and guide;
--- Part 9. General rules for pre-selection test procedures for fire hazard assessment guidelines; --- Part 10. Glow wire/hot wire basic test method Glow wire device and general test method; --- Part 11. Glow wire/hot wire basic test method Glow wire flammability test method (GWEPT); --- Part 12. Glow wire/hot wire basic test method Glow wire flammability index (GWFI) test method; --- Part 13. Glow wire/hot wire basic test method Glow wire light-off temperature (GWIT) test method for materials; ---Part 14. Test flame 1kW nominal premixed flame device, validation test method and guidelines; ---Part 15. Test flame 500W flame device and confirmation test method;
--- Part 16. Test flame 50W horizontal and vertical flame test method;
---Part 17. Test flame 500W flame test method;
---Part 18. General principles of toxicity of combustion streams;
---Part 19. Unnormal thermal compression stress release deformation test; --- Part 20. Summary and correlation of test methods for flame surface spread; --- Part 21. Unusual hot ball pressure test method;
--- Part 22. Test flame 50W flame device and confirmation test method;

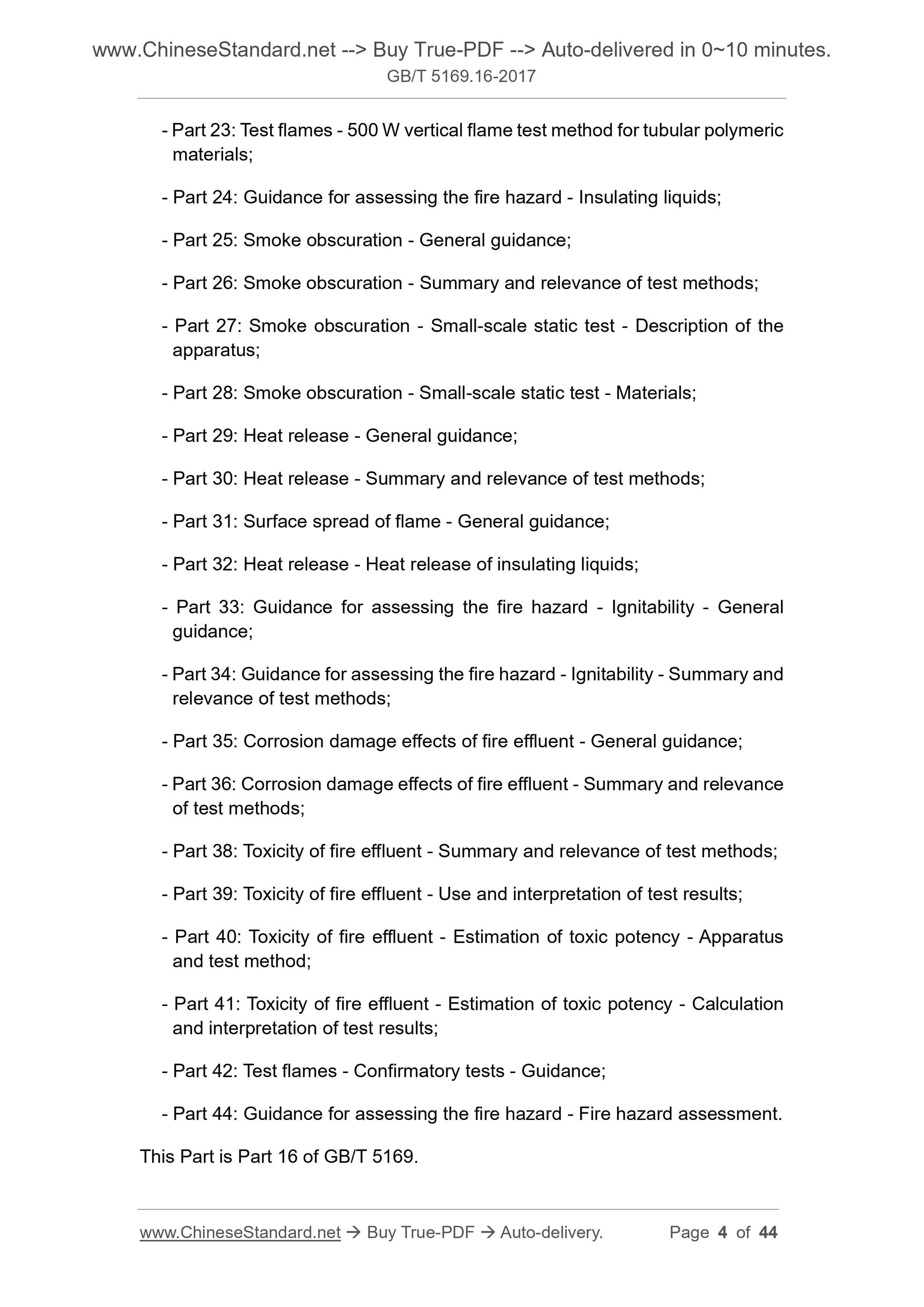

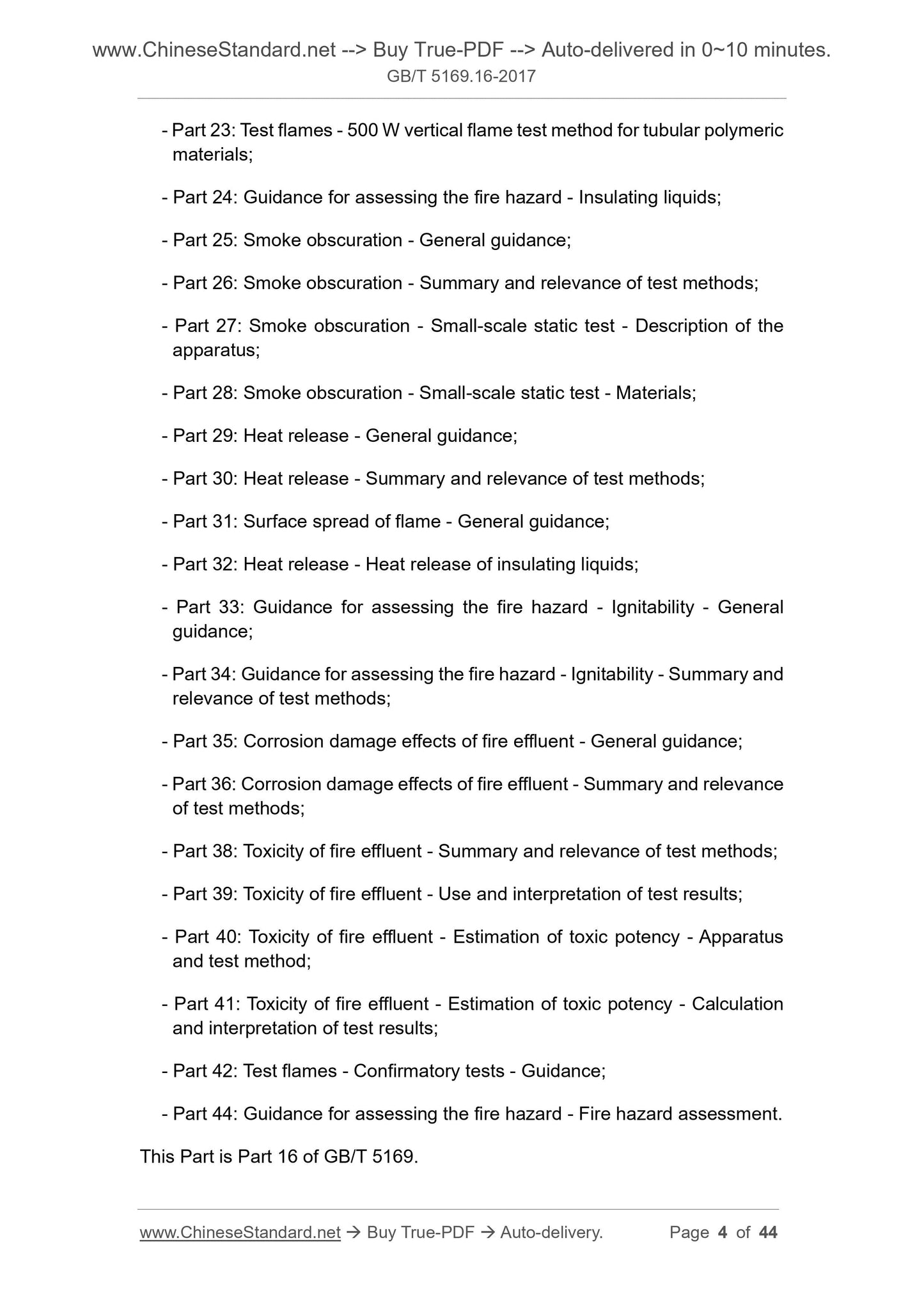

--- Part 23. Test flame tube-shaped polymeric material 500W vertical flame test method; --- Part 24. Fire hazard assessment guidelines for insulating liquids;
--- Part 25. General rules for smoke blur;
--- Part 26. Summary and correlation of smoke fuzzing test methods;
--- Part 27. Smoke fuzzy small-scale static test method instrument description; --- Part 28. Smoke fuzzy small-scale static test method materials;
---Part 29. General rules for heat release;
--- Part 30. Summary and correlation of heat release test methods;
--- Part 31. General rules for the spread of flame surfaces;
--- Part 32. Heat release of heat release insulating liquids;
--- Part 33. Fire hazard assessment guidelines for general ignitability; --- Part 34. Fire hazard assessment guidelines Summary and correlation of ignitability test methods; --- Part 35. General rules for corrosion hazards of combustion streams; --- Part 36. Summary and correlation of test methods for corrosion hazards of combustion flows; --- Part 38. Summary and correlation of toxicity test methods for combustion streams; --- Part 39. Use and description of the toxicity test results of the combustion stream; --- Part 40. Toxic toxicological assessment devices and test methods for combustion streams; --- Part 41. Calculation and description of test results for toxic toxicity assessment of combustion streams; --- Part 42. Test flame confirmation test guidelines;
--- Part 44. Fire hazard assessment guidelines for fire hazard assessment. This part is the 16th part of GB/T 5169.

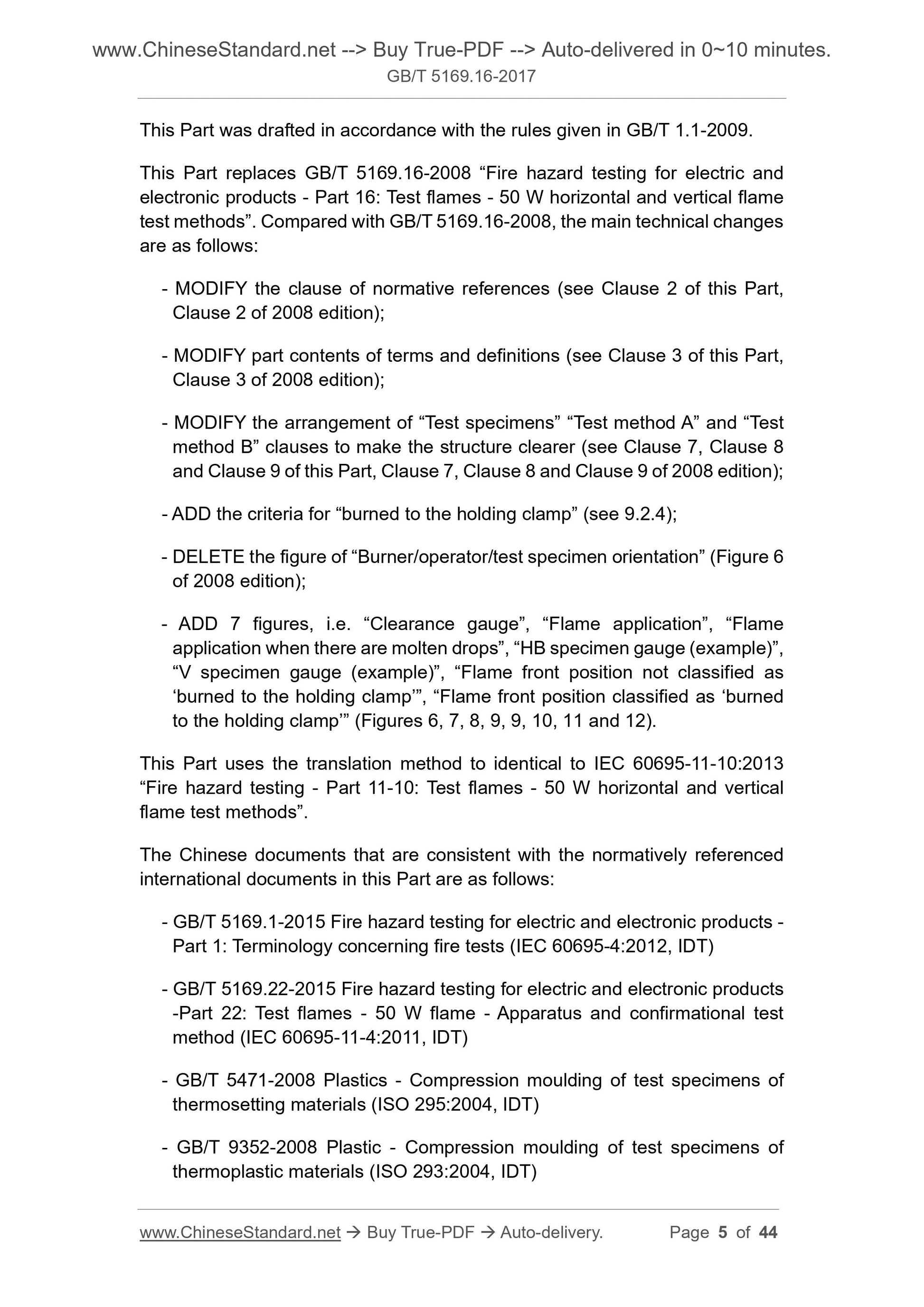

This part is drafted in accordance with the rules given in GB/T 1.1-2009. This part replaces GB/T 5169.16-2008 "Electrical and electronic products - Fire hazard test - Part 16. Test flame 50W water The main technical changes compared with GB/T 5169.16-2008 are as follows. ---Modified the chapter on normative references (see Chapter 2, Chapter 2 of the.2008 edition); --- Modified some of the terms and definitions (see Chapter 3, Chapter 3 of the.2008 edition); --- Revised the layout of the "sample" "Method A" and "Method B" chapters to make the organization clearer (see Chapters 7, 8 and 9). Chapters 7, 8, and 9 of the.2008 edition);
--- Added the criteria for the evaluation of "burn to clamp fixtures" (see 9.2.4); --- Removed the "burner/operator/test sample orientation" map (2008 Figure 6); --- Added "gauge gauge" "application of flame" "application of flame when there is molten drip" "HB sample gauge (example)" "V specimen Gauge (example) ""flame leading edge position not burned to the gripping fixture"" "burning to the flame front position of the gripping fixture" 7 diagrams (See Figures 6, 7, 8, 9, 9, 10, and 12).
This section uses the translation method equivalent to IEC 60695-11-10.2013 "Fire hazard test Part 11-10. Test flame 50W horizontal and vertical flame test method.
The documents of our country that have a consistent correspondence with the international documents referenced in this part are as follows. --- GB/T 5169.1-2015 Electrical and electronic products - Fire hazard testing - Part 1 . Fire test term (IEC 60695-4. 2012, IDT)
--- GB/T 5169.22-2015 Electrical and electronic products - Fire hazard test - Part 22. Test flame 50W Set and confirm test methods (IEC 60695-11-4.2011, IDT)
---GB/T 5471-2008 Compression molding of plastic thermosetting plastic samples (ISO 295.2004, IDT) ---GB/T 9352-2008 Compression molding of plastic thermoplastic materials (ISO 293.2004, IDT) --- GB/T 12006.1-2009 Plastic polyamide - Part 1. Determination of viscosity (ISO 307.2007, IDT) ---GB/T 16499-2008 Preparation of safety publications and application of basic safety publications and multi-disciplinary shared safety publications Guidelines (neq IEC guide 104..1997)
---GB/T 20002.4-2015 Standardization Work Guide Part 4. Contents related to safety in the standard (ISO /IEC guide 51.2014, MOD)

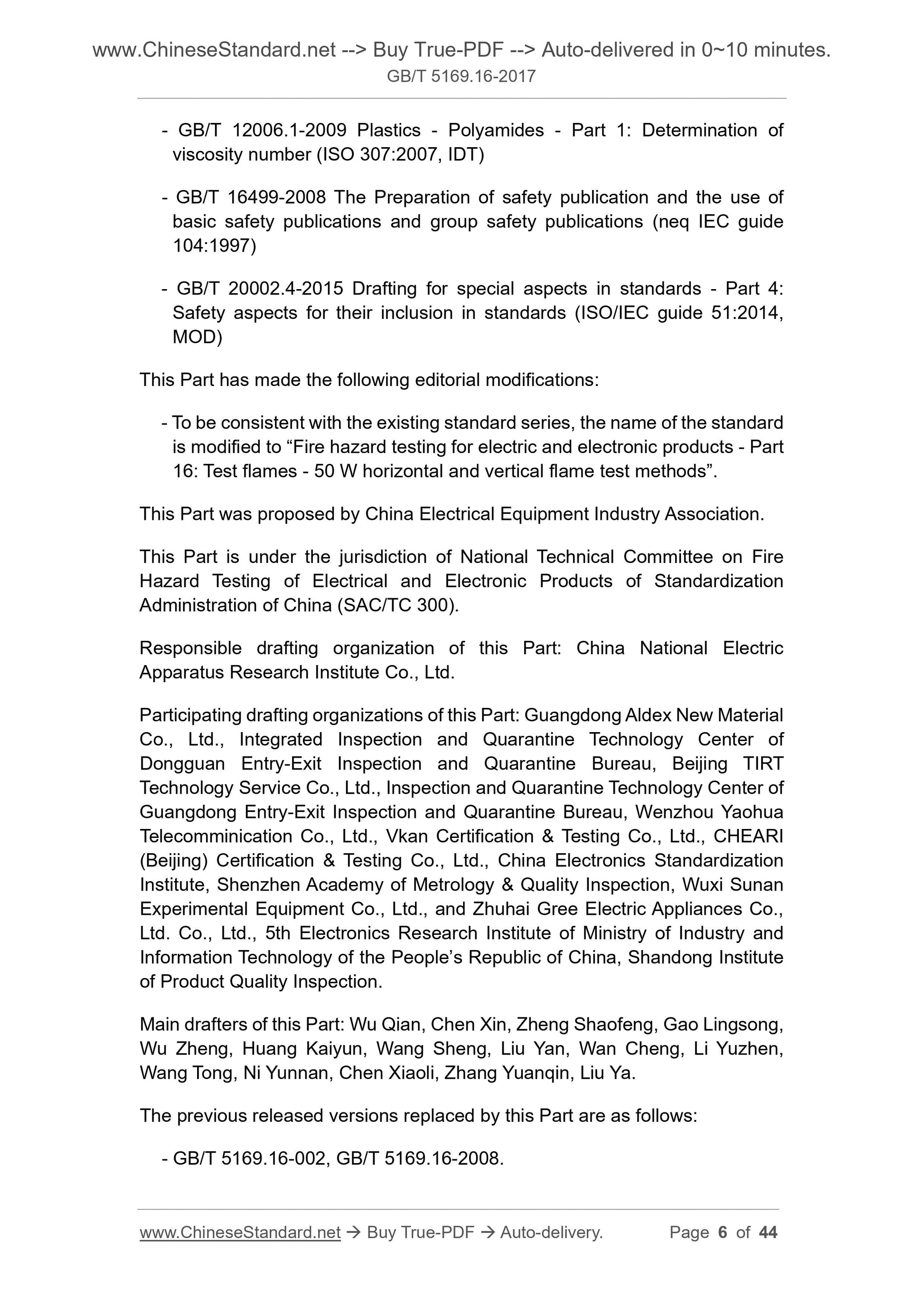

This section has made the following editorial changes.
--- In line with the existing standard series, change the standard name to "Electrical and Electronic Products Fire Hazard Test Part 16. Test Fire Flame 50W Horizontal and Vertical Flame Test Method.
This part was proposed by China Electrical Equipment Industry Association. This part is under the jurisdiction of the National Standardization Technical Committee for Fire and Hazard Testing of Electrical and Electronic Products (SAC/TC300). This section is responsible for drafting unit. China Electric Apparatus Research Institute Co., Ltd. Participated in the drafting of this section. Guangdong Yuanrong New Materials Co., Ltd., Dongguan Entry-Exit Inspection and Quarantine Bureau Inspection and Quarantine Comprehensive Technology Center, Beijing Tairuite Testing Technology Service Co., Ltd., Guangdong Entry-Exit Inspection and Quarantine Bureau Inspection and Quarantine Technology Center, Wenzhou Yaohua Telecommunications Co., Ltd. Company, Weikai Testing Technology Co., Ltd., Zhongjiayuan (Beijing) Testing and Certification Co., Ltd., China Electronics Technology Standardization Research Institute, Shenzhen City Quantity Quality Inspection Institute, Wuxi Sunan Test Equipment Co., Ltd., Zhuhai Gree Electric Co., Ltd., Ministry of Industry and Information Technology Five Research Institutes, Shandong Provincial Product Quality Inspection Institute. The main drafters of this section. Wu Qian, Chen Xin, Zheng Shaofeng, Gao Lingsong, Wu Zheng, Huang Kaiyun, Wang Sheng, Liu Yan, Wan Cheng, Li Yuxi, Wang Tong, Ni Yunan, Chen Xiaoli, Zhang Yuanqin, Liu Ya.
The previous versions of the standards replaced by this section are.
---GB/T 5169.16-2002, GB/T 5169.16-2008.
introduction
All electrical and electronic products must be designed with fire risk and potential fire hazard in mind. Design of components, circuits and products, and The purpose of the screening of materials is to understand potential fires under normal operating conditions and in the case of reasonably foreseeable abnormal use, failure and failure. The risk is reduced to an acceptable level. How to achieve IEC 60695-1-10 and IEC 60695-1-11 developed by IEC /TC89 This purpose provides guidance.
The primary purpose of IEC 60695-1-10 and IEC 60695-1-11 is to provide guidance for the following actions. a) prevent the ignition of live parts;
b) If ignition occurs, the fire is confined to the electrical and electronic product enclosure. The secondary purpose is to minimize the extent to which the flame spreads outside the product, as well as to the combustion stream such as heat, smoke, toxicity and/or corrosive Harmful effects are minimized.
Fires involving electrical and electronic products may also be caused by non-electric external sources of ignition. This factor should be considered in the overall risk assessment. This section describes the small-scale test methods performed on materials used in electrical equipment. The 50W test flame is used as the ignition source. This section The specified classification method can be used for quality assurance, pre-selection of product parts and materials, or to verify the minimum level of combustion required for the materials used in the finished product. This test method cannot be used alone to describe or assess the risk of fire or fire of materials, products or components under actual fire conditions. However, the results of this test can be used as an element of a fire risk assessment that takes into account all factors, the fire risk assessment and a specific end use The risk assessment of the way is related.
This section may involve hazardous materials, operations, and equipment. Its purpose is not to solve all the security issues related to it. question. Before using this section, users of this section should establish appropriate safety and health measures and determine their applicability and limitations. Electrical and electronic products fire hazard test
Part 16. Test flame
50W horizontal and vertical flame test method

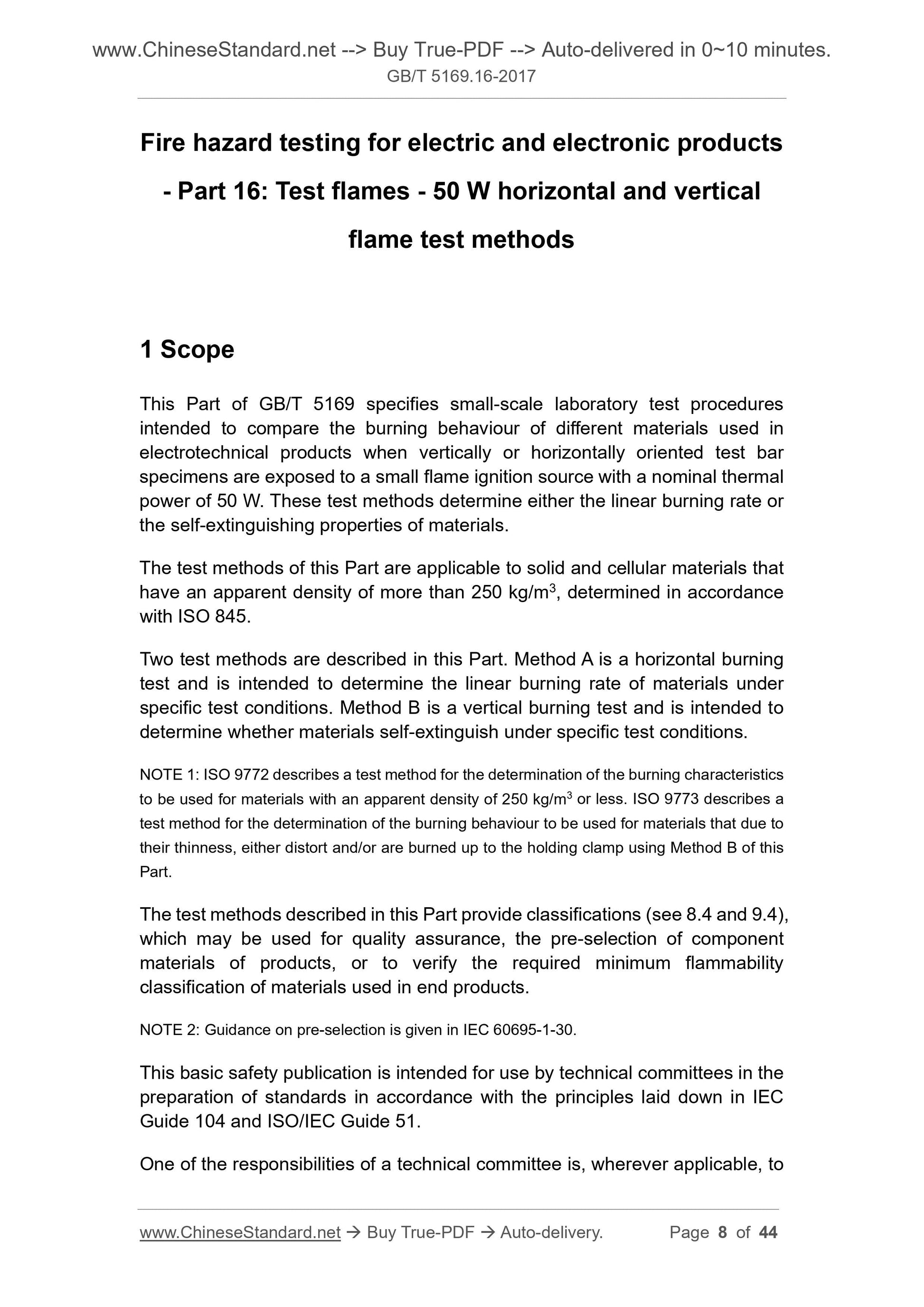

1 Scope
This part of GB/T 5169 specifies small-scale laboratory tests for comparing the combustion properties of different materials used in electrical and electronic products. Procedure, in which the strip sample is placed horizontally or vertically and exposed to a small flame with a nominal power of 50 W. Test method Used to determine the linear burning rate or self-extinguishing property of the material. The test methods in this section are applicable to solid materials and foams having an apparent density of not less than 250 kg/m3 as determined by the method of ISO 845. plastic.
This section gives two test methods. Method A is a horizontal burning test designed to measure the linear combustion of materials under specified test conditions. rate. Method B is a vertical burning test designed to measure the self-extinguishing ability of materials under specified test conditions. Note 1. ISO 9772 describes a test method for measuring the combustion characteristics of materials for materials with an apparent density of less than or equal to 250 kg/m3. ISO 9773 describes a test method for measuring the burning properties of materials, which is suitable for use in the use of method B of this part, because thin will produce distortion and / Or the material that burns to the fixture.
The classification methods specified in the test methods described in this section (see 8.4 and 9.4) can be used for quality assurance, pre-selection of product constituent materials, or Verify the minimum level of combustion required for the material used in the finished product. Note 2. The pre-selection guide can be found in IEC 60695-1-30.
This section is intended to prepare standards for the Product Standards Committee in accordance with the principles set forth in IEC Guide 104 and ISO /IEC Guide 51. One of the tasks of the Product Standards Committee is to use this series of standards wherever applicable. Unless relevant Special mention or list, otherwise the requirements, test methods or test conditions of this section will not apply. 2 Normative references

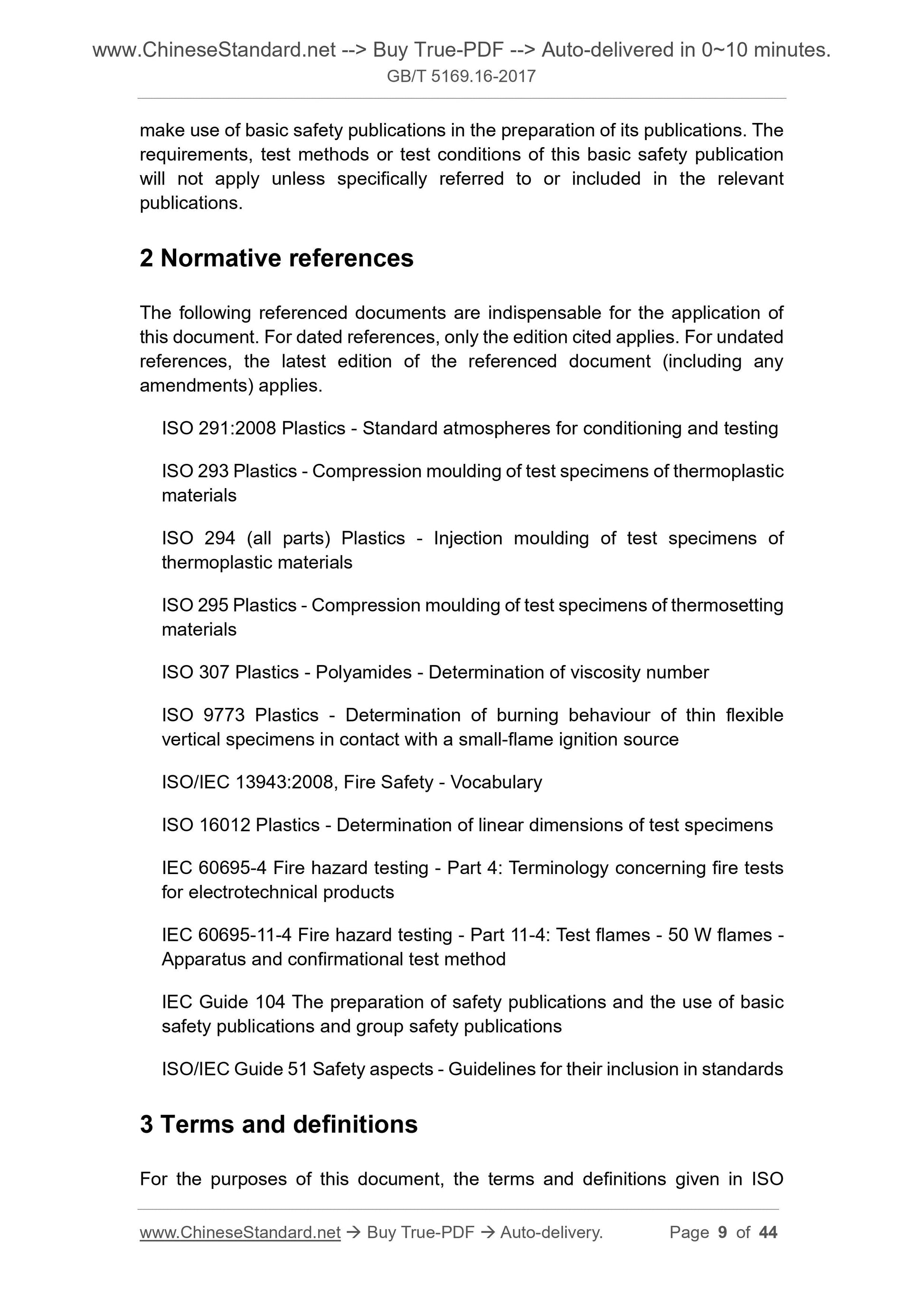

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. ISO 291.2008 Standard environment for conditioning and testing of plastic specimens (Plastics-Standardatmospheresforcon- Ditioningandtesting)
Compression molding of ISO 293 plastic thermoplastic specimens (Plastics-Compressionmouldingoftestspecimensof Catalyst materials)
ISO 294 (all parts) Injection molding of plastic thermoplastic specimens (Plastics-Injectionmouldingoftestspeci- Mensofthermoplasticmaterials)
Compression molding of ISO 295 plastic thermosetting plastic samples (Plastics-Compressionmouldingoftestspecimensof Thermosettingmaterials)
ISO 307 Plastics-Polyamides-Determination of Viscositynumber
ISO 9773 Determination of the burning characteristics of flexible vertical specimens when exposed to small flame ignition sources (Plastics-Determi- Nationofburningbehaviourofthinflexibleverticalspecimensincontactwithasmal-flameignition Source)
ISO 13943.2008 Fire Safety Typo (FireSafety-Vocabulary)
Determination of the linear dimensions of ISO 16012 plastic test samples (Plastics-Determination oflineardimensionsof Testspecimens)
IEC 60695-4 Fire hazard testing - Part 4. Terms relating to ignition tests of electric and electronic products (Firehazardtes- ting-Part 4.Terminologyconcerningfiretestsforelectrotechnicalproducts)
IEC 60695-11-4 Fire hazard testing - Part 11-4. Test flame 50W flame apparatus and test method (Fire hazardtesting-Part 11-4. Testflames-50Wflames-Apparatusandconfirmationaltestmethod) IEC Guide 104 Preparation of safety publications and application guidelines for basic safety publications and multi-disciplinary shared safety publications (The Preparationofsafetypublicationsandtheuseofbasicsafetypublicationsandgroupsafetypublica- Tions)
ISO /IEC Guide 51 Guidelines for safety aspects in safety aspects (Safetyaspects-Guidelinesfortheir Inclusioninstandards)
3 Terms and definitions
The following terms and definitions defined by ISO 13943.2008 and IEC 60695-4 apply to this document, for ease of use, the following Some terms and definitions in ISO 13943.2008 and IEC 60695-4 are listed. 3.1
Afterflame afterflame
Under the specified test conditions, the material continues to flaming after removal of the ignition source. [ISO 13943.2008, definition 4.6]
3.2
Afterflame time afterflametime
The period of time during which the residual flame lasts under the test conditions. Note. This method is specified in method B as t1 and t2.
[ISO 13943.2008, definition 4.7]
3.3
Afterburning afterglow
After the ignition source is removed and the flame is terminated, the material continues to burn. [ISO 13943.2008, definition 4.8]
3.4
Afterburning time afterglowtime
Under the test conditions, the period of time after the burn is continued. Note. This method is specified in method B as t3.
[ISO 13943.2008, definition 4.9]
3.5
"Standard status" "asreceived"
The sample was pretreated under laboratory conditions for a period of time. 3.6
Burning (intransitiveverb) burn(intransitiveverb)
Withstand burning.
[ISO 13943.2008, definition 4.28]
3.7
Combustion performance burningbehaviour
< Fire test> The sample is placed under specified combustion conditions to test its response to fire or fire. [ISO 13943.2008, definition 4.32]
3.8
Combustion combustion
An exothermic reaction of a substance with an oxidant.
Note. Combustion usually produces a combustion stream accompanied by a flame and/or heat. [ISO 13943.2008, definition 4.46]
3.9
No ventilation environment draught-freeenvironment
The test results are not affected by the spatial environment in which the local airflow is significantly affected. Note. Qualitative examples, such as. a space environment that keeps the candle flame substantially stable. Quantitative examples, such as. small-scale ignition tests, sometimes the largest specified The air flow rate is 0.1 m/s or 0.2 m/s.
[ISO 13943.2008, definition 4.70]
3.10
Shell enclosure
< Electrical and Electronic Engineering> Covers for electrical and mechanical parts of protective equipment. Note. Except for cables.
[ISO 13943.2008, definition 4.78]
3.11
Fire danger firehazard
An undesired potential substance or condition caused by a fire.
[ISO 13943.2008, definition 4.112]
3.12
Fire hazard assessment firehazardassessment
Assessment of the cause of the fire, the likelihood and type of subsequent fire development, and the likely consequences of the fire. [IEC 60695-4, definition 3.2.10]
3.13
Flame retardant fireretardant
In order to inhibit, reduce or delay the burning of materials, a substance is added to the material or a treatment is applied to the material. Note. Flame retardant does not necessarily inhibit ignition or terminate combustion. [ISO 13943.2008, definition 4.123]
3.14
Fire risk firerisk
The possibility of quantifying the measurement with the consequences of the fire. Note. It is usually evaluated by the product of the probability of occurrence of fire and the consequences of fire. [ISO 13943.2008, definition 4.124]
3.15
Fire test firetest
Tests that measure fire performance or exposure to fires.
Note. The results of the ignition test can be used to quantify the severity of a sample's ignition or to determine its fire resistance or ignition response. [ISO 13943.2008, definition 4.132]
3.16
Burning (verb) flame(verb)
Produce a flame.
[ISO 13943.2008, definition 4.134]
3.17
Flame (noun) flame(noun)
In a gaseous medium, rapid, spontaneous, and subsonic propagating combustion is usually accompanied by luminescence. [ISO 13943.2008, definition 4.133]
3.18
Flame frontal flamefront
A boundary of a flaming combustion zone that propagates on the surface of the material or via a gas mixture. [ISO 13943.2008, definition 4.136]
3.19
Flame spread flamespread
The spread of the flame...
