GB/T 5169.11-2006
GB
ICS 29.020
K04
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
GB/T 5169.11-2006 / IEC 60695-2-11:2000
Replacing GB/T 5169.11-1997
Fire Hazard Testing for Electric and Electronic Products -
Part 11: Glowing/Hot-wire Based Test Methods - Glow-wire
Flammability Test Method for End-Products
(IEC 60695-2-11:2000, Fire hazard testing - Part 2-11: Glowing/hot-wire Based Test
Methods - Glow-wire Flammability Test Method for End-products, IDT)
[Replaced by GB/T 5169.11-2017]
ISSUED ON: DECEMBER 19, 2006
IMPLEMENTED ON: SEPTEMBER 1, 2007
Issued by: General Administration of Quality Supervision, Inspection and
Quarantine;
Standardization Administration Committee.
Table of Contents
Foreword ... 3
1 Scope ... 6
2 Normative References ... 6
3 Definitions... 6
4 Description of Test Considerations and Test Specimen Selection ... 7
5 Description of the Test Apparatus ... 8
6 Severities ... 8
7 Verification of the Temperature Measuring System ... 9
8 Conditioning ... 9
9 Initial Measurements ... 9
10 Test Procedure ... 9
11 Observations and Measurements ... 9
12 Evaluation of Test Results ... 10
13 Information to Be Given in the Relevant Specification ... 10
Appendix A (Informative) Guidance for Glow-wire Test ... 12

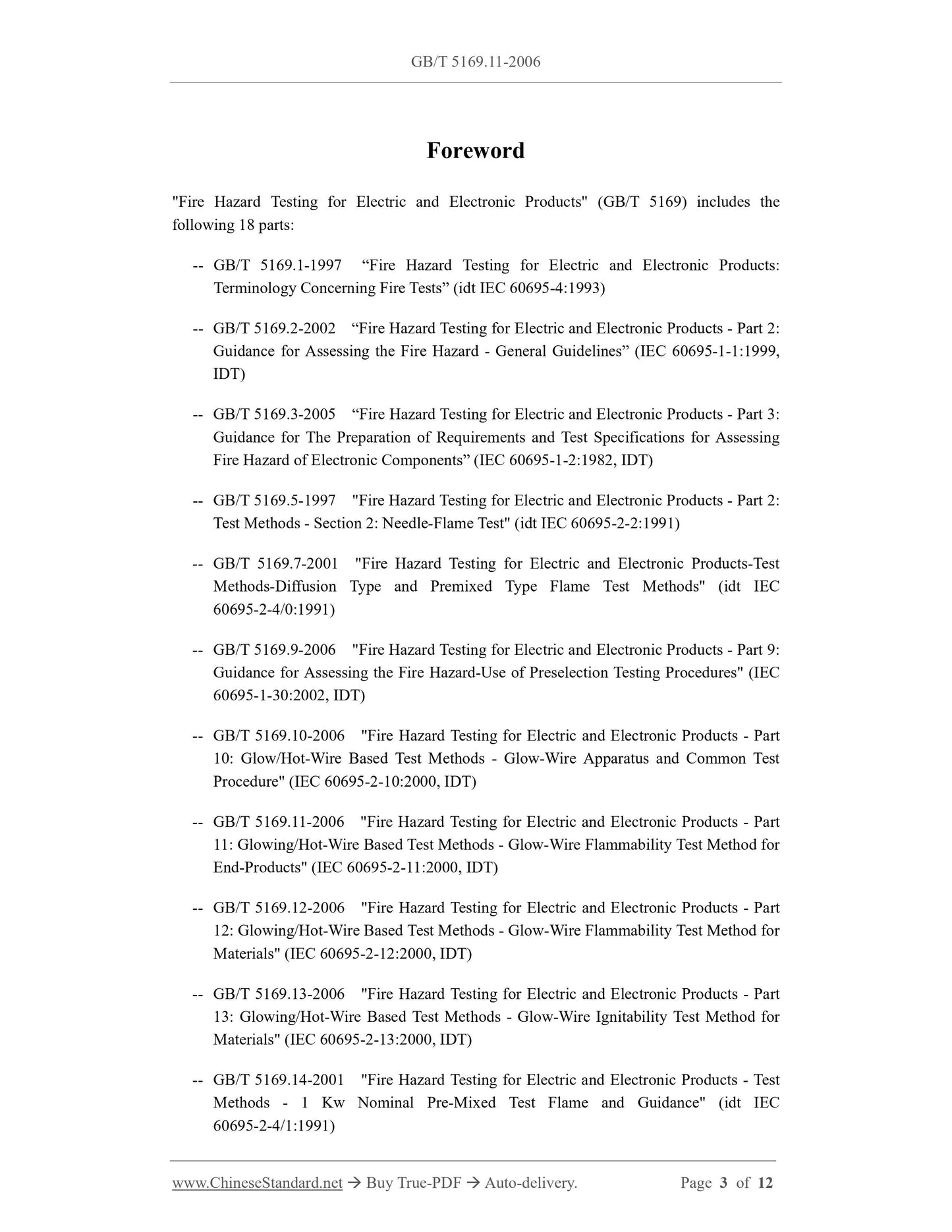

Foreword
"Fire Hazard Testing for Electric and Electronic Products" (GB/T 5169) includes the
following 18 parts:
-- GB/T 5169.1-1997 “Fire Hazard Testing for Electric and Electronic Products:
Terminology Concerning Fire Tests” (idt IEC 60695-4:1993)
-- GB/T 5169.2-2002 “Fire Hazard Testing for Electric and Electronic Products - Part 2:
Guidance for Assessing the Fire Hazard - General Guidelines” (IEC 60695-1-1:1999,
IDT)
-- GB/T 5169.3-2005 “Fire Hazard Testing for Electric and Electronic Products - Part 3:
Guidance for The Preparation of Requirements and Test Specifications for Assessing
Fire Hazard of Electronic Components” (IEC 60695-1-2:1982, IDT)
-- GB/T 5169.5-1997 "Fire Hazard Testing for Electric and Electronic Products - Part 2:
Test Methods - Section 2: Needle-Flame Test" (idt IEC 60695-2-2:1991)
-- GB/T 5169.7-2001 "Fire Hazard Testing for Electric and Electronic Products-Test
Methods-Diffusion Type and Premixed Type Flame Test Methods" (idt IEC
60695-2-4/0:1991)
-- GB/T 5169.9-2006 "Fire Hazard Testing for Electric and Electronic Products - Part 9:
Guidance for Assessing the Fire Hazard-Use of Preselection Testing Procedures" (IEC
60695-1-30:2002, IDT)
-- GB/T 5169.10-2006 "Fire Hazard Testing for Electric and Electronic Products - Part
10: Glow/Hot-Wire Based Test Methods - Glow-Wire Apparatus and Common Test
Procedure" (IEC 60695-2-10:2000, IDT)
-- GB/T 5169.11-2006 "Fire Hazard Testing for Electric and Electronic Products - Part
11: Glowing/Hot-Wire Based Test Methods - Glow-Wire Flammability Test Method for
End-Products" (IEC 60695-2-11:2000, IDT)
-- GB/T 5169.12-2006 "Fire Hazard Testing for Electric and Electronic Products - Part
12: Glowing/Hot-Wire Based Test Methods - Glow-Wire Flammability Test Method for
Materials" (IEC 60695-2-12:2000, IDT)
-- GB/T 5169.13-2006 "Fire Hazard Testing for Electric and Electronic Products - Part
13: Glowing/Hot-Wire Based Test Methods - Glow-Wire Ignitability Test Method for
Materials" (IEC 60695-2-13:2000, IDT)
-- GB/T 5169.14-2001 "Fire Hazard Testing for Electric and Electronic Products - Test
Methods - 1 Kw Nominal Pre-Mixed Test Flame and Guidance" (idt IEC
60695-2-4/1:1991)
-- GB/Z 5169.15-2001 "Fire Hazard Testing for Electric and Electronic Products - Test
Methods - 500 W Nominal Test Flame and Guidance" (idt IEC 60695-2-4/2:1994)
-- GB/T 5169.16-2002 "Fire Hazard Testing for Electric and Electronic Products - Part
16: 50 W Horizontal and Vertical Flame Test Methods" (IEC 60695-11-10:1999, IDT)
-- GB/T 5169.17-2002 "Fire hazard testing for electric and electronic products - Part 17:
500W flame test methods" (IEC 60695-11-20:1999, IDT)
-- GB/T 5169.18-2005 "Fire Hazard Testing for Electric and Electronic Products - Part
18: Guidance on the Minimization of Toxic Hazards Due to Fire Involving Electric and
Electronic Products - General" (IEC 60695-7-1:1993, IDT)
-- GB/T 5169.19-2006 "Fire Hazard Testing for Electric and Electronic Products - Part
19: Abnormal Heat - Mould Stress Relief Distortion Test" (IEC 60695-10-3:2002, IDT)
-- GB/T 5169.20-2006 “Fire Hazard Testing for Electric and Electronic Products - Part
20: Surface Spread of Flame-Summary and Relevance of Test Methods” (IEC/TS
60695-9-2:2001, IDT)
-- GB/T 5169.21-2006 "Fire Hazard Testing for Electric and Electronic Products - Part
21: Abnormal Heat - Ball Pressure Test" (IEC 60695-10-2:2003, IDT).
This Part is Part 11 of GB/T 5169. This Part shall be used in conjunction with GB/T
5169.10-2006.
This Part is identical to "Fire Hazard Testing - Part 2-11: Fire Hazard Testing for Electric and
Electronic Products - Glowing/Hot-Wire Based Test Methods - Glow-Wire Flammability Test
Method for End-Products" (IEC 60695-2-11:2000). However, there are few editorial changes
according to the requirements specified in 4.2b) and 5.2 of "Guides for Standardization - Part
2: Adoption for International Standards" (GB/T 20000.2-2001).
This Part replaces "Fire Hazard Testing for Electric and Electronic Products - Test Methods -
Glow-Wire End-Product Test and Guidance" (GB/T 5169.11-1997).
Compared with GB/T 5169.11-1997, the main changes in this Part are as follows:
a) The terminology, definition and figure of "small parts" were added (3.1 of this Part);
b) The requirements related to the contact time between glow-wire top and test sample
specified in GB/T 5169.11-1997 (9.4 of GB/T 5169.11-1997) were cancelled, and the
content are included in GB/T 5169.10-2006;
c) The content in 9.5 of GB/T 5169.11-1997 was cancelled.
Appendix A of this Part is for informative only.
This Part was proposed by China Electrical Equipment Industry Association.

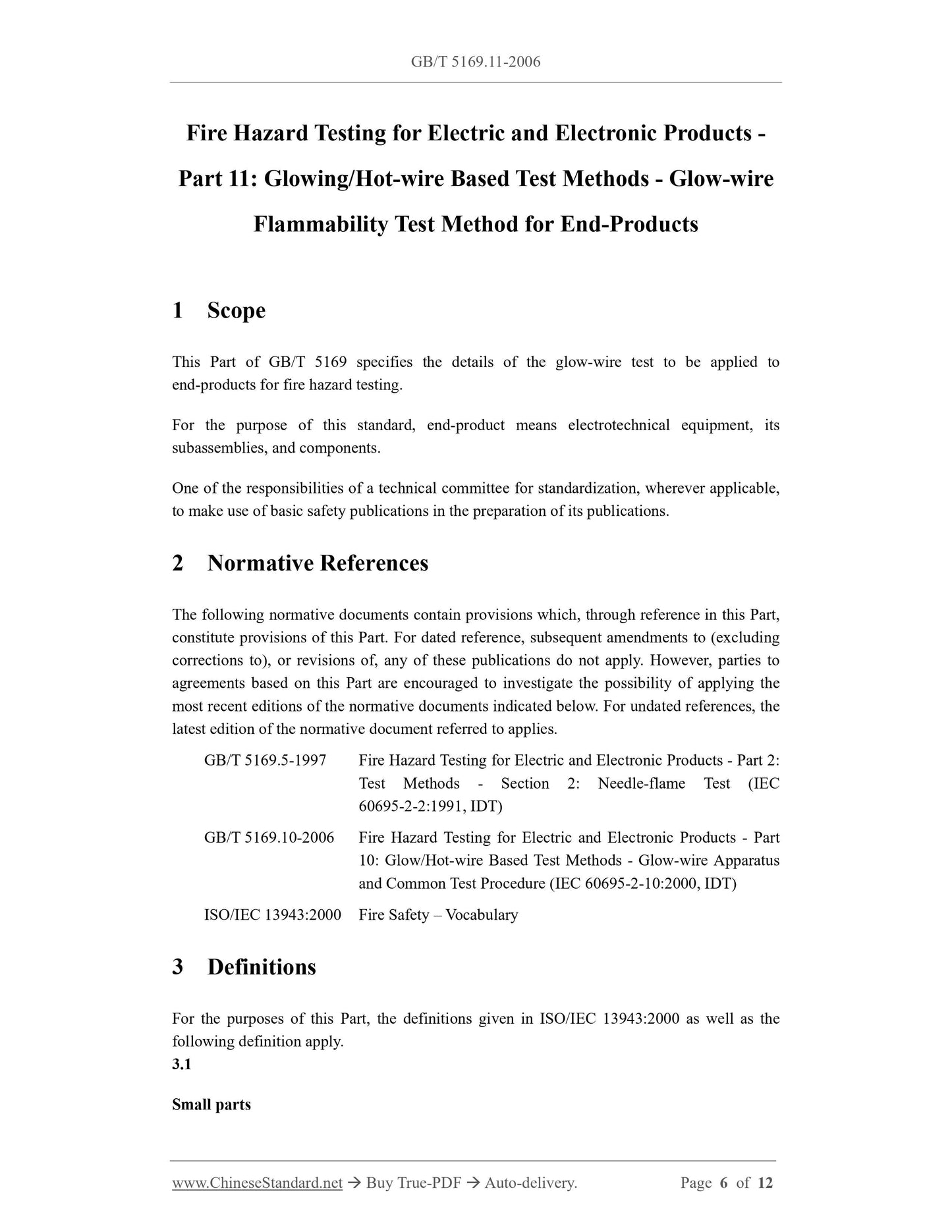

Fire Hazard Testing for Electric and Electronic Products -
Part 11: Glowing/Hot-wire Based Test Methods - Glow-wire
Flammability Test Method for End-Products
1 Scope
This Part of GB/T 5169 specifies the details of the glow-wire test to be applied to
end-products for fire hazard testing.
For the purpose of this standard, end-product means electrotechnical equipment, its
subassemblies, and components.
One of the responsibilities of a technical committee for standardization, wherever applicable,
to make use of basic safety publications in the preparation of its publications.
2 Normative References
The following normative documents contain provisions which, through reference in this Part,
constitute provisions of this Part. For dated reference, subsequent amendments to (excluding
corrections to), or revisions of, any of these publications do not apply. However, parties to
agreements based on this Part are encouraged to investigate the possibility of applying the
most recent editions of the normative documents indicated below. For undated references, the
latest edition of the normative document referred to applies.
GB/T 5169.5-1997 Fire Hazard Testing for Electric and Electronic Products - Part 2:
Test Methods - Section 2: Needle-flame Test (IEC
60695-2-2:1991, IDT)
GB/T 5169.10-2006 Fire Hazard Testing for Electric and Electronic Products - Part
10: Glow/Hot-wire Based Test Methods - Glow-wire Apparatus
and Common Test Procedure (IEC 60695-2-10:2000, IDT)
ISO/IEC 13943:2000 Fire Safety – Vocabulary
3 Definitions
For the purposes of this Part, the definitions given in ISO/IEC 13943:2000 as well as the
following definition apply.
3.1
Small parts

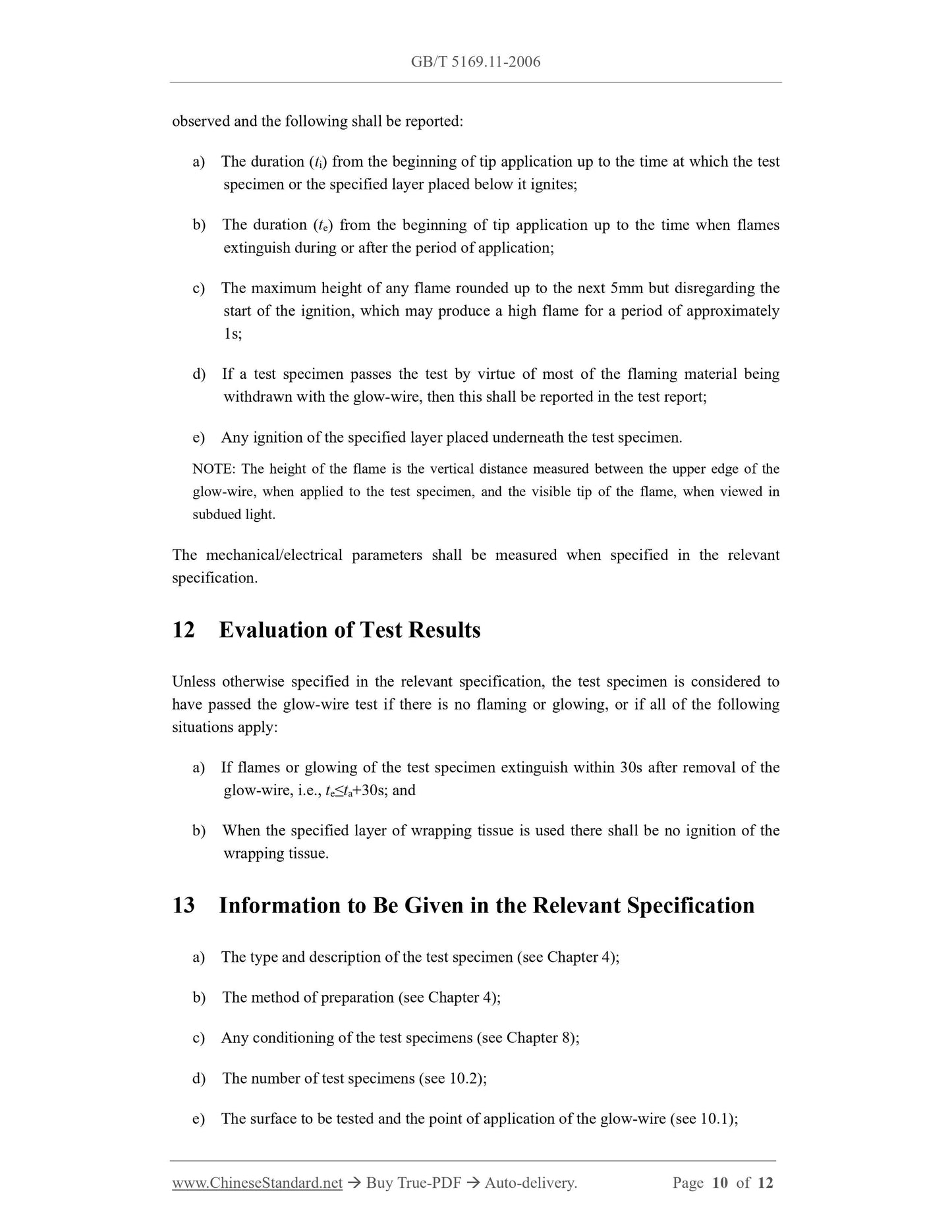

observed and the following shall be reported:
a) The duration (ti) from the beginning of tip application up to the time at which the test
specimen or the specified layer placed below it ignites;
b) The duration (te) from the beginning of tip application up to the time when flames
extinguish during or after the period of application;
c) The maximum height of any flame rounded up to the next 5mm but disregarding the
start of the ignition, which may produce a high flame for a period of approximately
1s;
d) If a test specimen passes the test by virtue of most of the flaming material being
withdrawn with the glow-wire, then this shall be reported in the test report;
e) Any ignition of the specified layer placed underneath the test specimen.
NOTE: The height of the flame is the vertical distance measured between the upper edge of the
glow-wire, when applied to the test specimen, and the visible tip of the flame, when viewed in
subdued light.
The mechanical/electrical parameters shall be measured when specified in the relevant
specification.
12 Evaluation of Test Results
Unless otherwise specified in the relevant specification, the test specimen is considered to
have passed the glow-wire test if there is no flaming or glowing, or if all of the following
situations apply:
a) If flames or glowing of the test specimen extinguish within 30s after removal of the
glow-wire, i.e., te≤ta+30s; and
b) When the specified layer of wrapping tissue is used there shall be no ignition of the
wrapping tissue.
13 Information to Be Given in the Relevant Specification
a) The type and description of the test specimen (see Chapter 4);
b) The method of preparation (see Chapter 4);
c) Any conditioning of the test specimens (see Chapter 8);
d) The number of test specimens (see 10.2);
e) The surface to be tested and the point of application of the glow-wire (see 10.1);
