GB/T 5137.3-2002: Test methods of safety glazing materials used on road vehicles -- Part 3: radiation, high temperature, humidity, fire and simulated weathering resistance tests

This Part of GB/T 5137 specifies the test methods of safety glazing materials used on road vehicles - radiation, high temperature, humidity, fire and simulated weathering resistance. This Part applies to automotive safety glass. It includes those glass products which are processed by various types of safety glass or which are combined of glass and other materials.

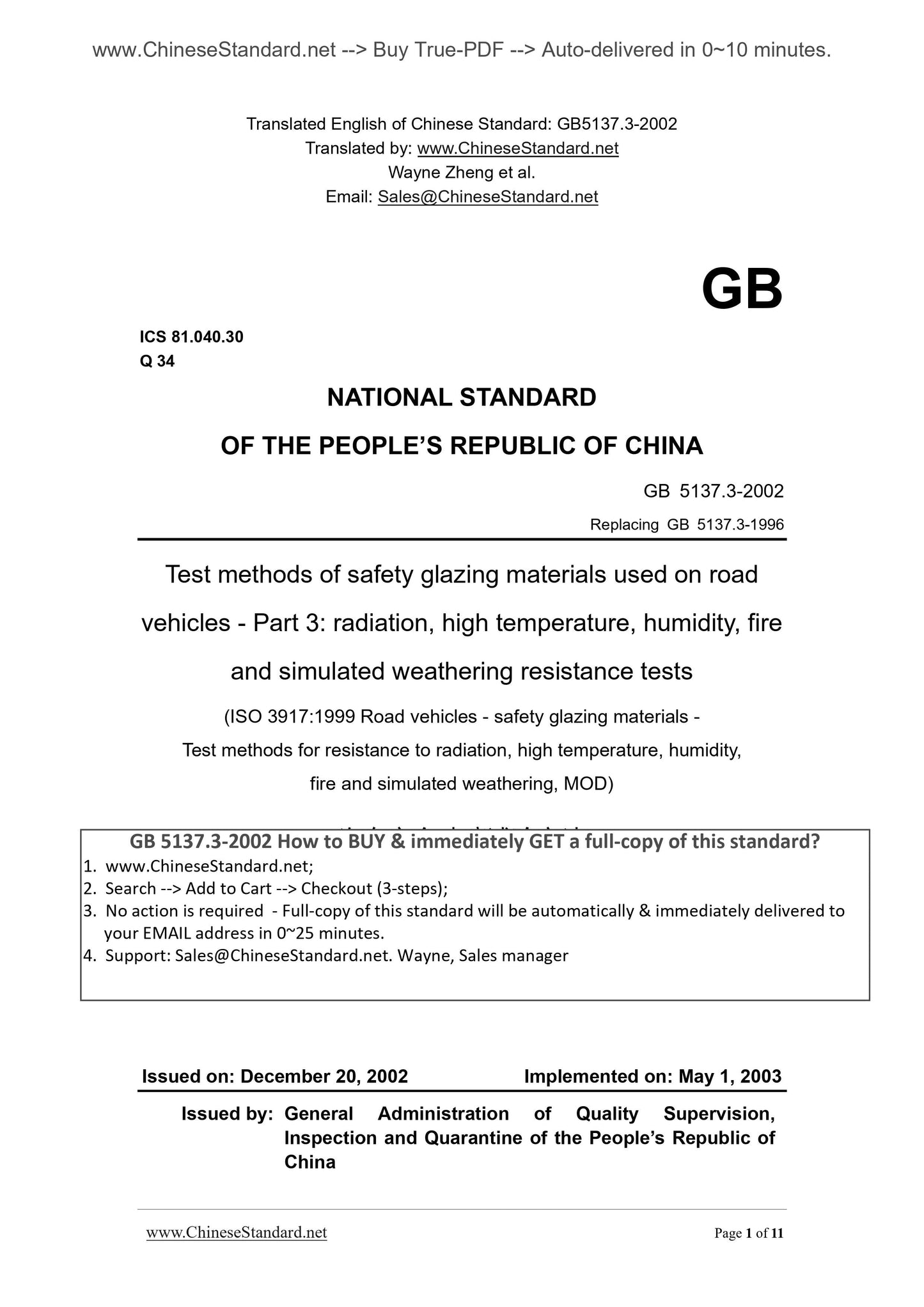

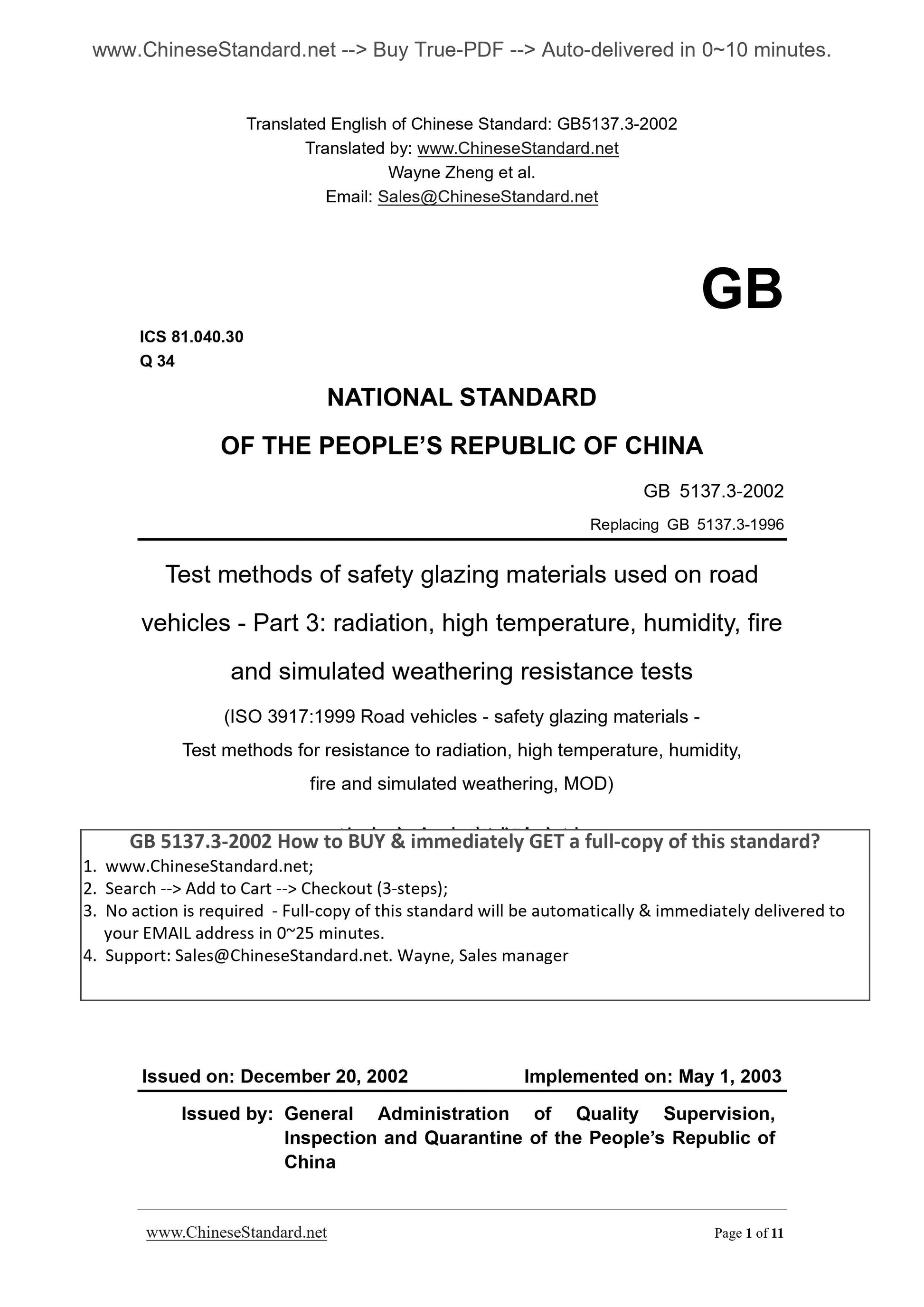

GB 5137.3-2002
GB
ICS 81.040.30
Q 34
NATIONAL STANDARD
OF THE PEOPLE REPUBLIC OF CHINA
Replacing GB 5137.3-1996
Test methods of safety glazing materials used on road
vehicles - Part 3. radiation, high temperature, humidity, fire
and simulated weathering resistance tests
(ISO 3917.1999 Road vehicles - safety glazing materials -
Test methods for resistance to radiation, high temperature, humidity,
fire and simulated weathering, MOD)
ISSUED ON. DECEMBER 20, 2002
IMPLEMENTED ON. MAY 1, 2003
Issued by.
General Administration of Quality Supervision,
Inspection and Quarantine of the PEOPLE Republic of
China

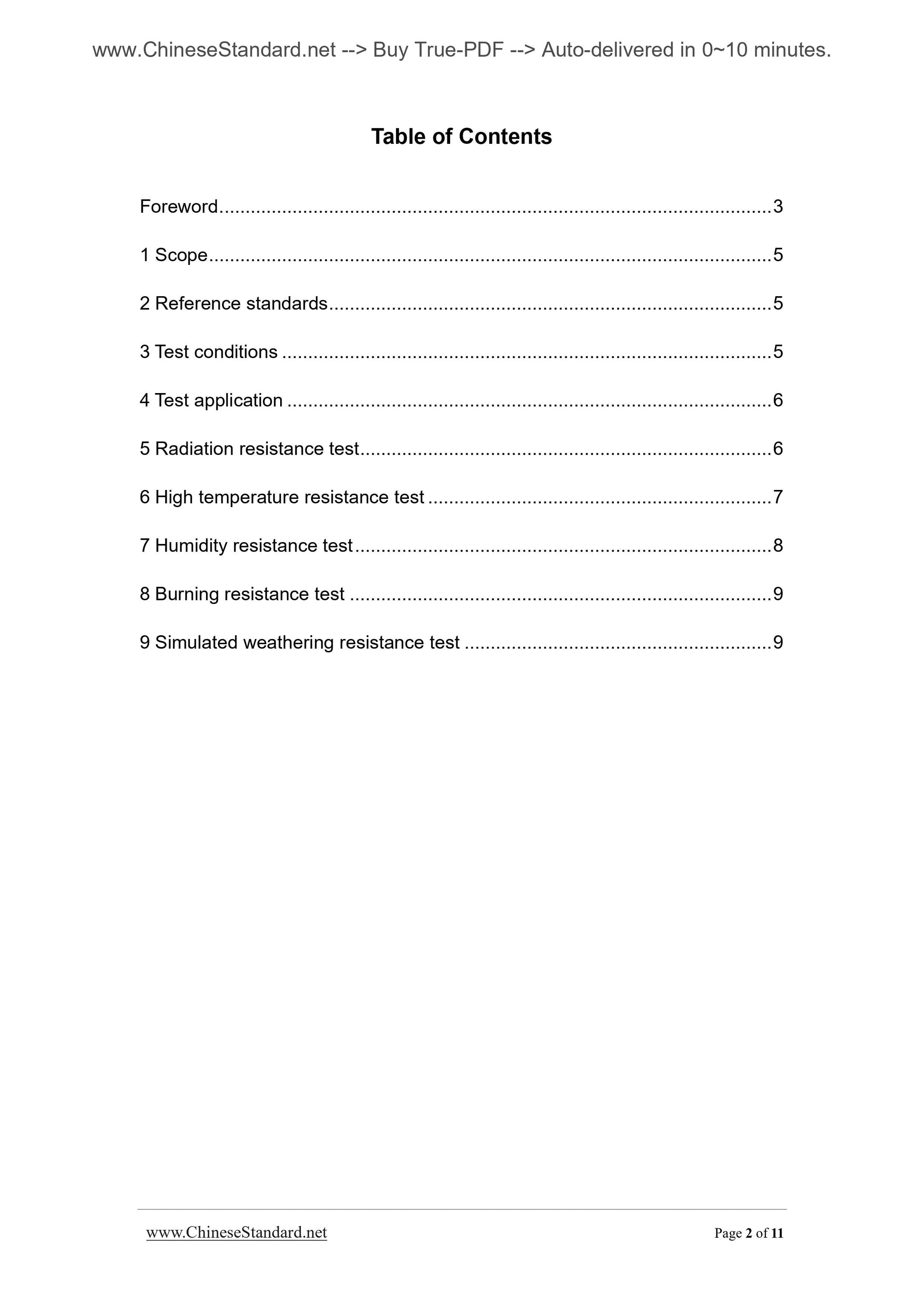

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Reference standards ... 5
3 Test conditions ... 5
4 Test application ... 6
5 Radiation resistance test ... 6
6 High temperature resistance test ... 7
7 Humidity resistance test ... 8
8 Burning resistance test ... 9
9 Simulated weathering resistance test ... 9

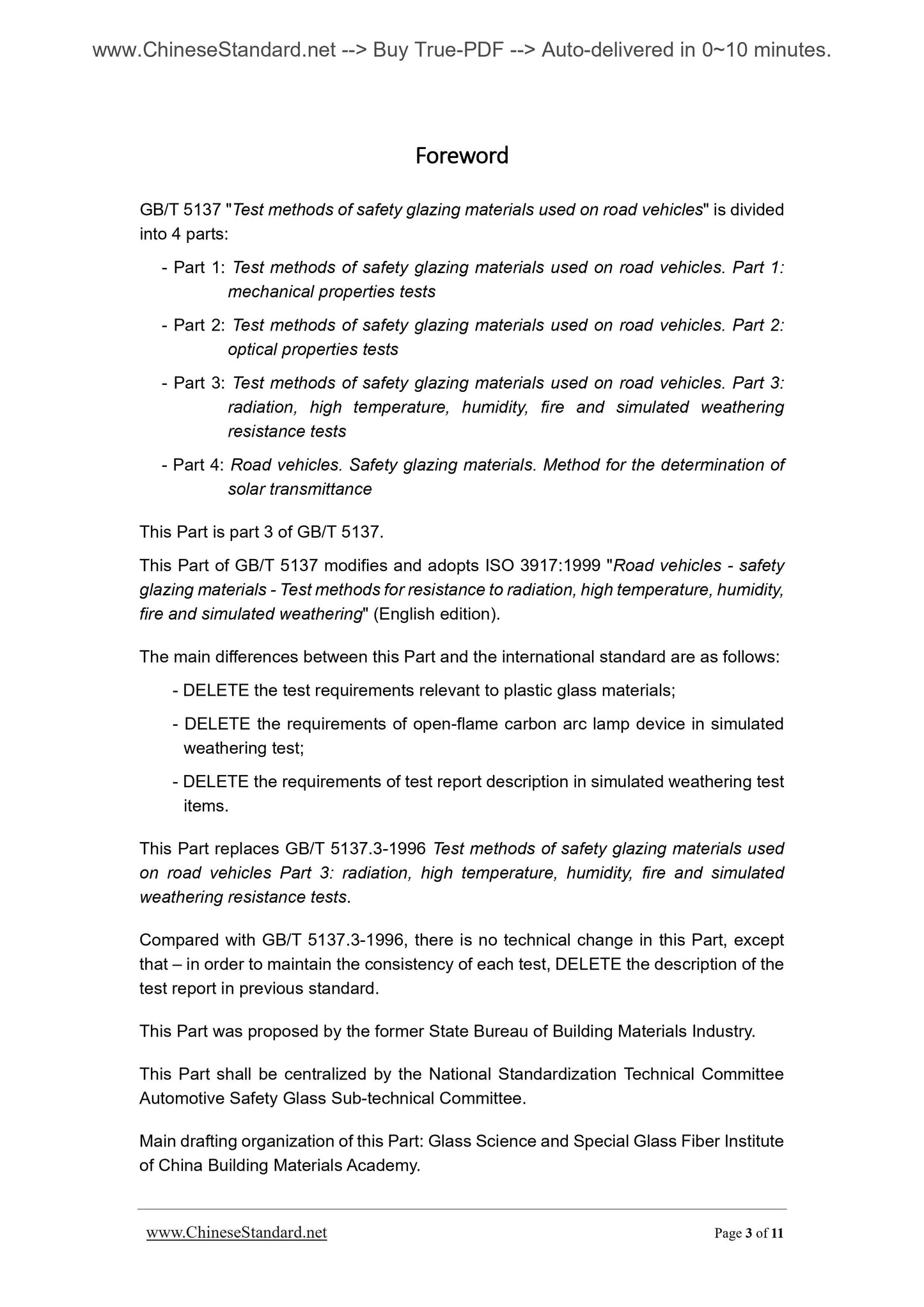

Foreword
GB/T 5137 "Test methods of safety glazing materials used on road vehicles" is divided into 4 parts.
- Part 1. Test methods of safety glazing materials used on road vehicles. Part 1. mechanical properties tests
- Part 2. Test methods of safety glazing materials used on road vehicles. Part 2. optical properties tests
- Part 3. Test methods of safety glazing materials used on road vehicles. Part 3. radiation, high temperature, humidity, fire and simulated weathering
resistance tests
- Part 4. Road vehicles. Safety glazing materials. Method for the determination of solar transmittance
This Part is part 3 of GB/T 5137.
This Part of GB/T 5137 modifies and adopts ISO 3917.1999 "Road vehicles - safety glazing materials - Test methods for resistance to radiation, high temperature, humidity, fire and simulated weathering" (English edition).
The main differences between this Part and the international standard are as follows. - DELETE the test requirements relevant to plastic glass materials;
- DELETE the requirements of open-flame carbon arc lamp device in simulated weathering test;
- DELETE the requirements of test report description in simulated weathering test items.
This Part replaces GB/T 5137.3-1996 Test methods of safety glazing materials used on road vehicles Part 3. radiation, high temperature, humidity, fire and simulated weathering resistance tests.
Compared with GB/T 5137.3-1996, there is no technical change in this Part, except that ?€? in order to maintain the consistency of each test, DELETE the description of the test report in previous standard.
This Part was proposed by the former State Bureau of Building Materials Industry. This Part shall be centralized by the National Standardization Technical Committee Automotive Safety Glass Sub-technical Committee.
Main drafting organization of this Part. Glass Science and Special Glass Fiber Institute of China Building Materials Academy.

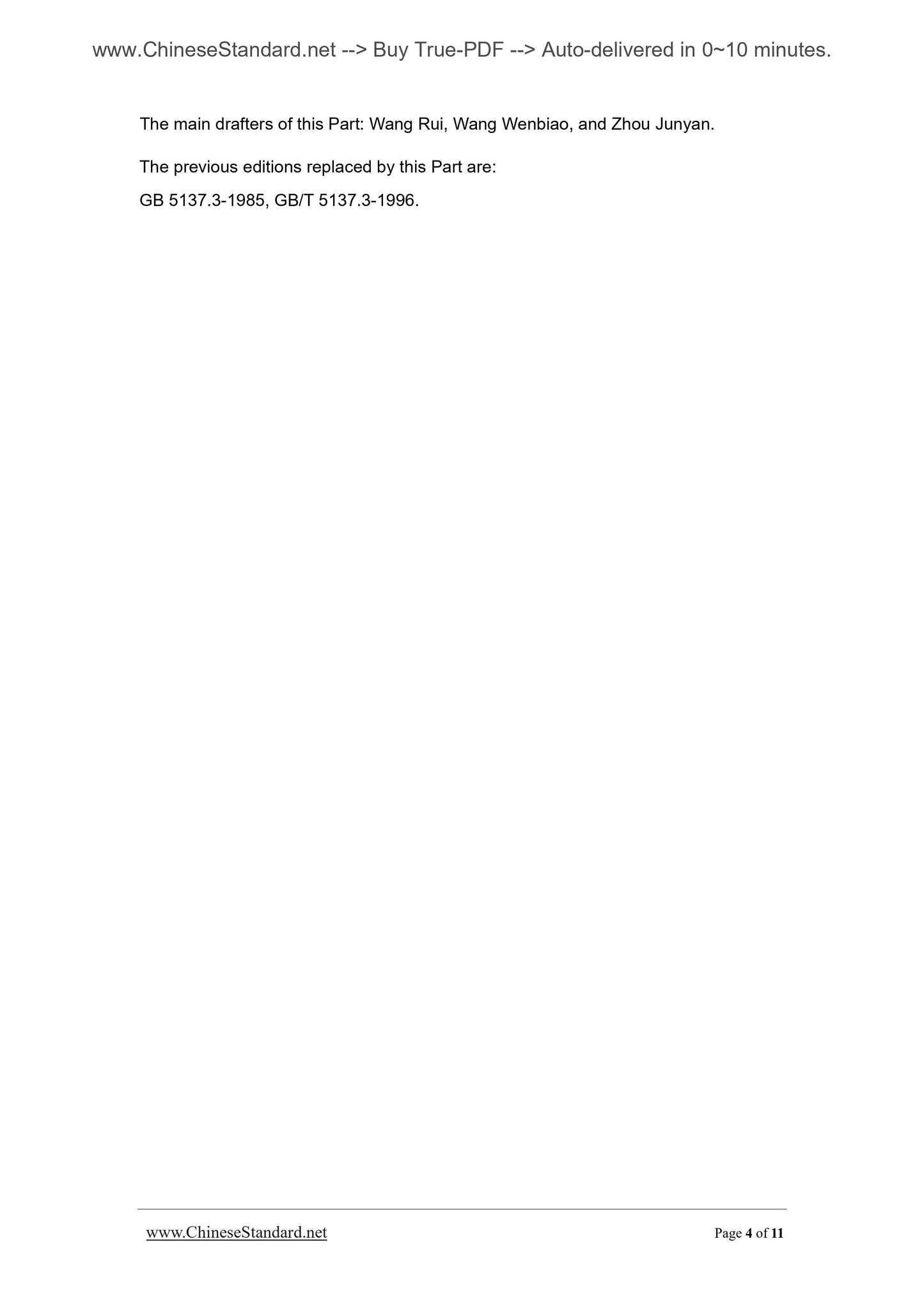

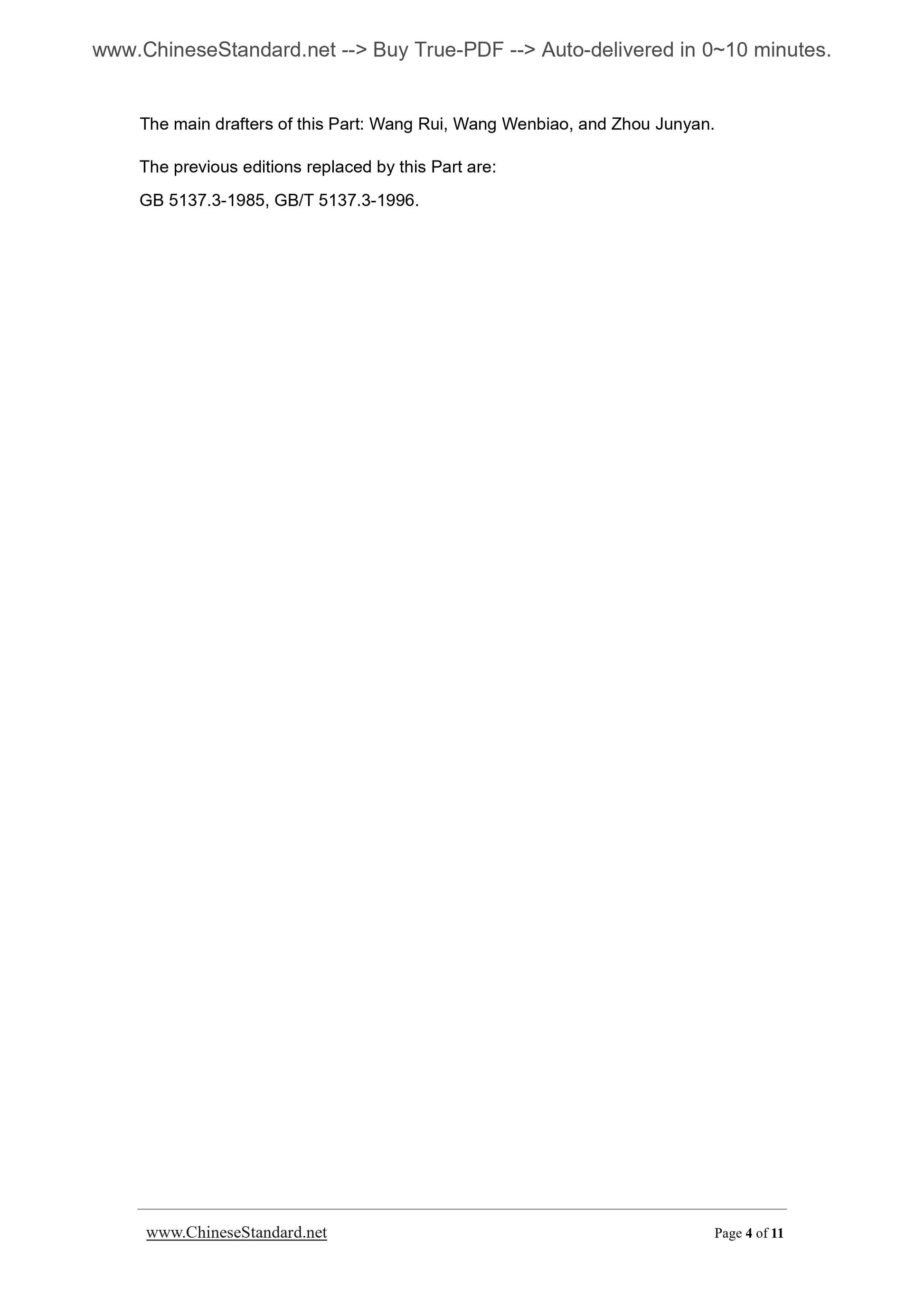

The main drafters of this Part. Wang Rui, Wang Wenbiao, and Zhou Junyan. The previous editions replaced by this Part are.
GB 5137.3-1985, GB/T 5137.3-1996.
GB 17326-1998
Test methods of safety glazing materials used on road
vehicles - Part 3. radiation, high temperature, humidity, fire
and simulated weathering resistance tests

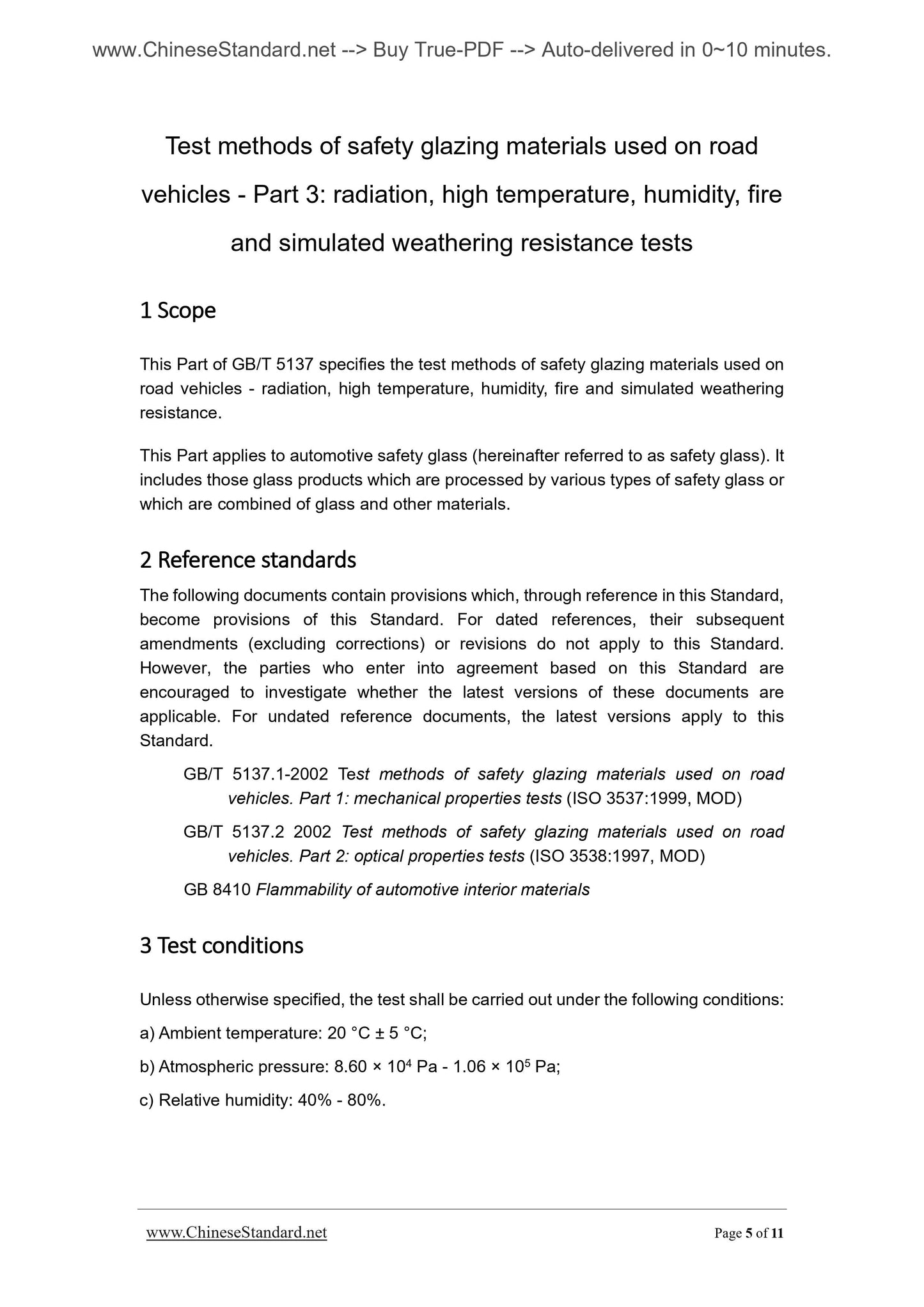

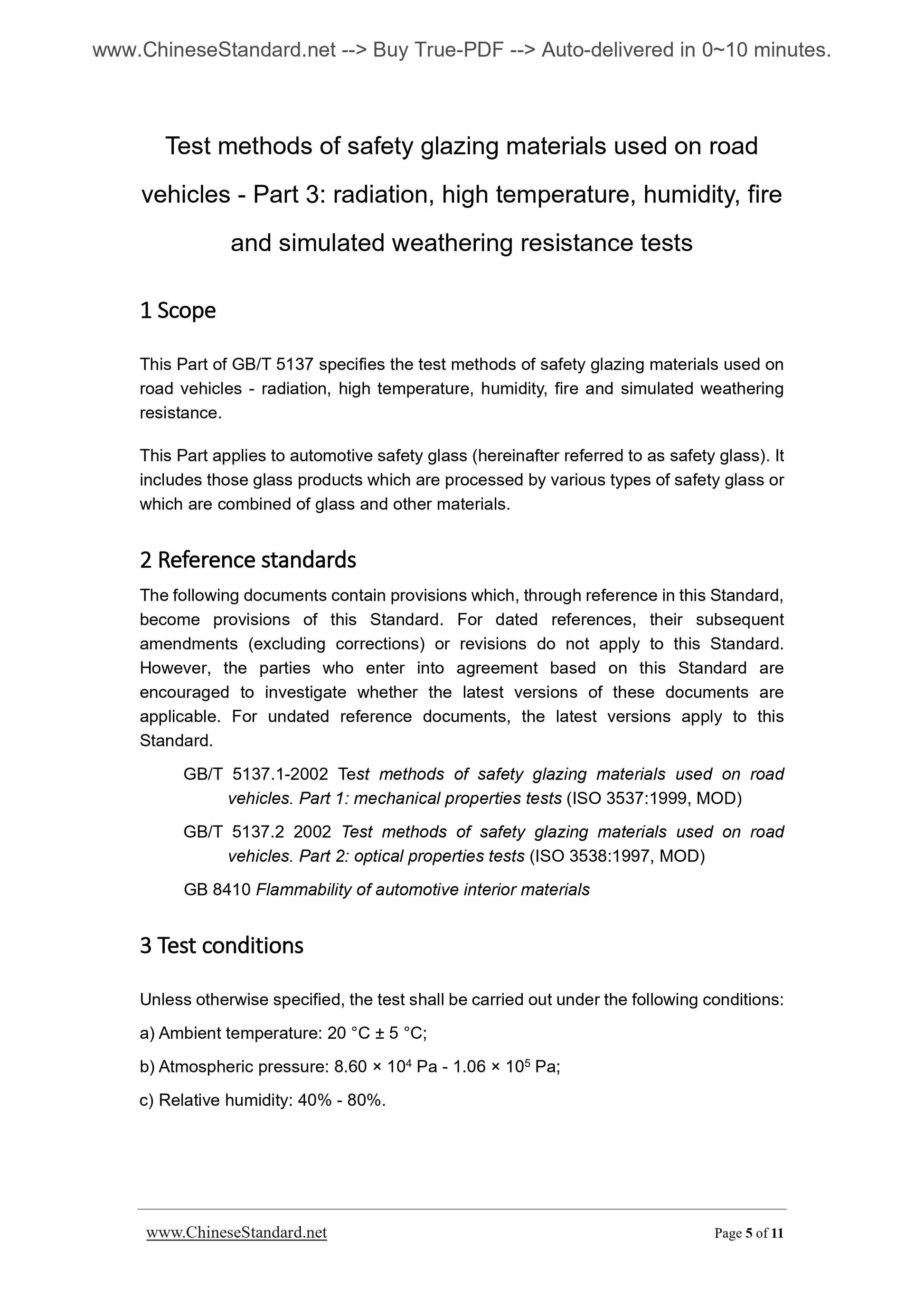

1 Scope
This Part of GB/T 5137 specifies the test methods of safety glazing materials used on road vehicles - radiation, high temperature, humidity, fire and simulated weathering resistance.
This Part applies to automotive safety glass (hereinafter referred to as safety glass). It includes those glass products which are processed by various types of safety glass or which are combined of glass and other materials.
2 Reference standards
The following documents contain provisions which, through reference in this Standard, become provisions of this Standard. For dated references, their subsequent amendments (excluding corrections) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest versions apply to this Standard.
GB/T 5137.1-2002 Test methods of safety glazing materials used on road
vehicles. Part 1. mechanical properties tests (ISO 3537.1999, MOD)
GB/T 5137.2 2002 Test methods of safety glazing materials used on road
vehicles. Part 2. optical properties tests (ISO 3538.1997, MOD)
GB 8410 Flammability of automotive interior materials
3 Test conditions
Unless otherwise specified, the test shall be carried out under the following conditions. a) Ambient temperature. 20 ??C ?? 5 ??C;
b) Atmospheric pressure. 8.60 ?? 104 Pa - 1.06 ?? 105 Pa;
c) Relative humidity. 40% - 80%.
GB 17326-1998
4 Test application
For certain types of safety glazing materials, if the test results can be predicted according to the certain known properties, then it is not necessary to carry out all the tests specified in this Part.

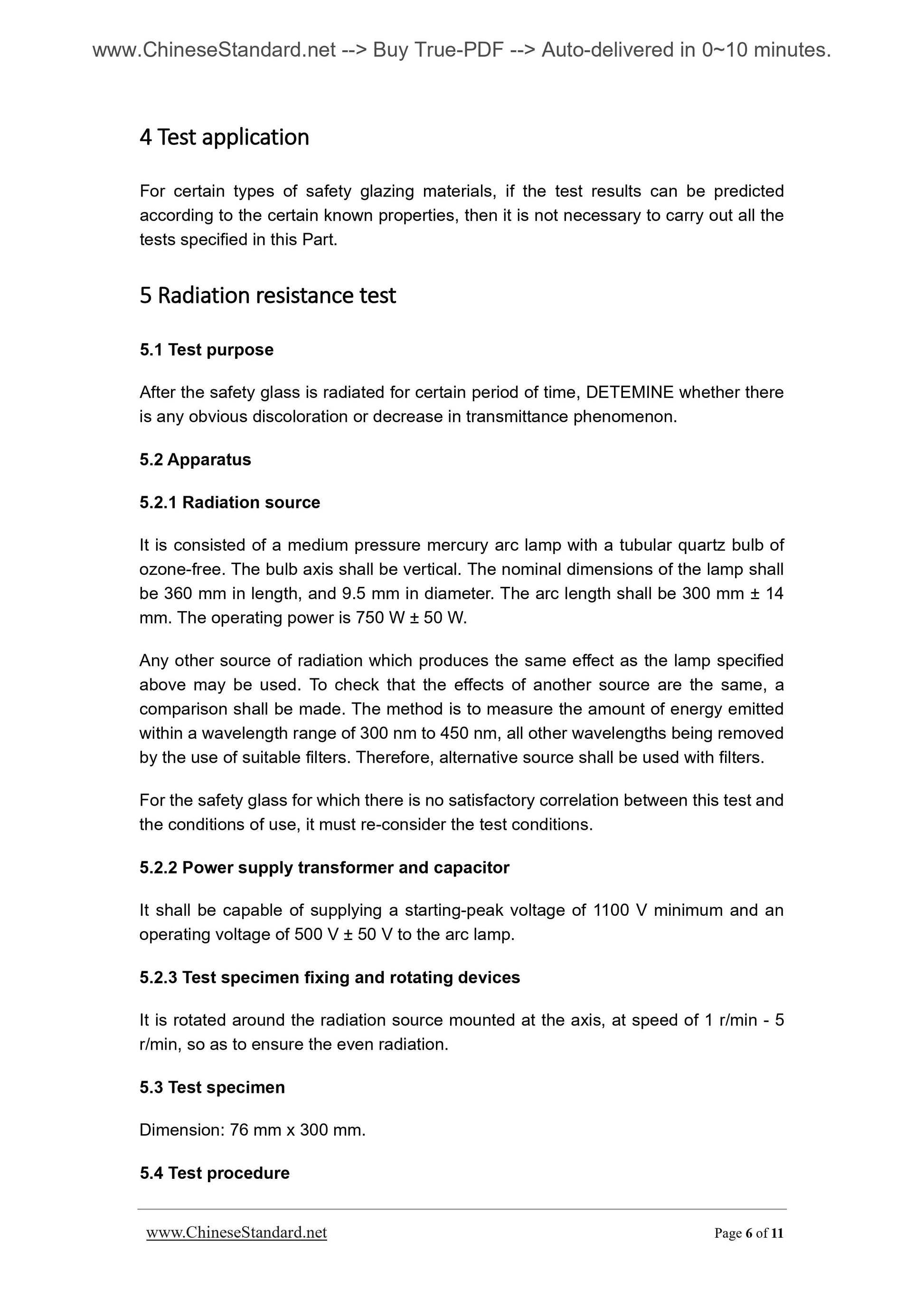

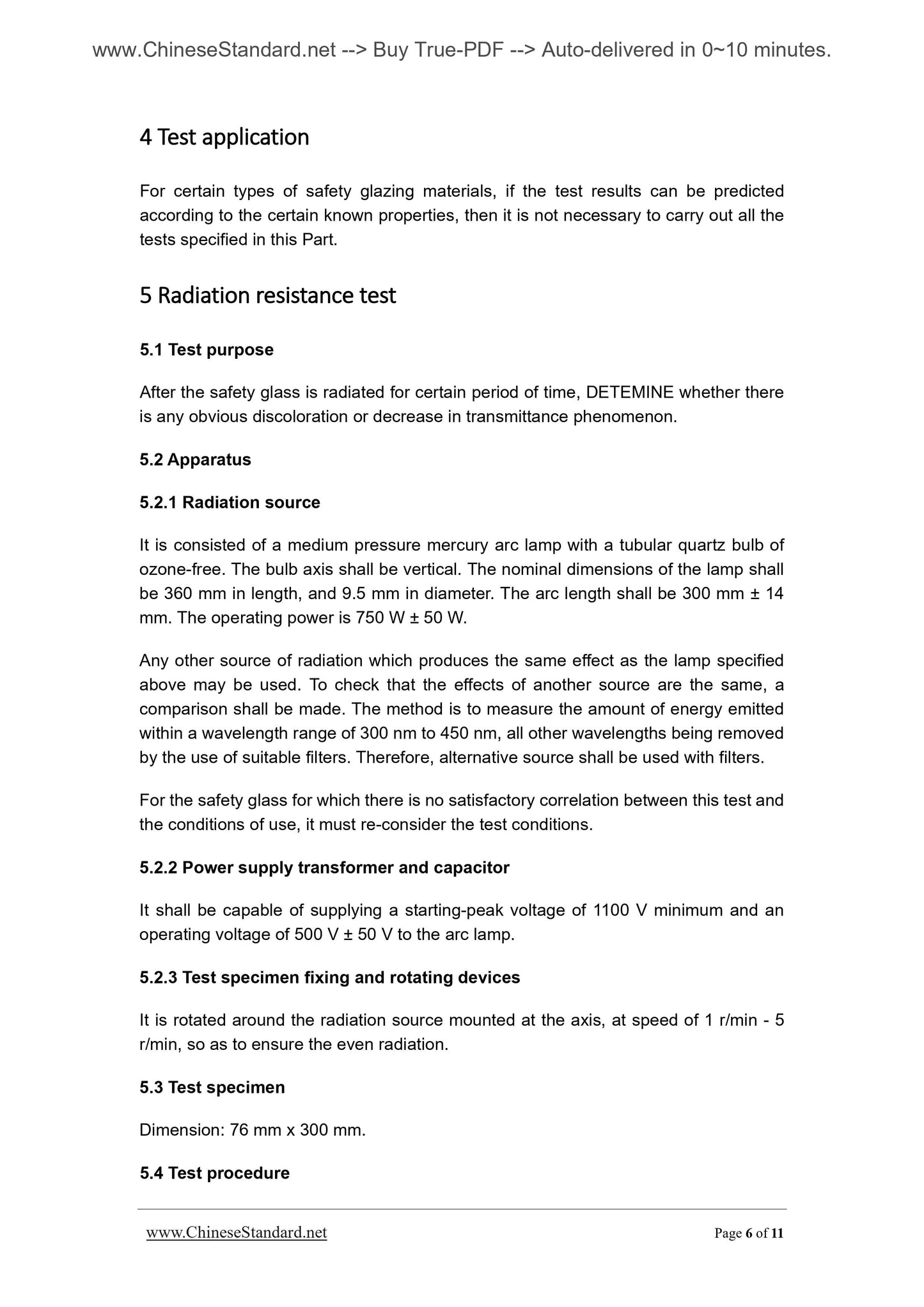

5 Radiation resistance test
5.1 Test purpose
After the safety glass is radiated for certain period of time, DETEMINE whether there is any obvious discoloration or decrease in transmittance phenomenon.
5.2 Apparatus
5.2.1 Radiation source
It is consisted of a medium pressure mercury arc lamp with a tubular quartz bulb of ozone-free. The bulb axis shall be vertical. The nominal dimensions of the lamp shall be 360 mm in length, and 9.5 mm in diameter. The arc length shall be 300 mm ?? 14 mm. The operating power is 750 W ?? 50 W.
Any other source of radiation which produces the same effect as the lamp specified above may be used. To check that the effects of another source are the same, a comparison shall be made. The method is to measure the amount of energy emitted within a wavelength range of 300 nm to 450 nm, all other wavelengths being removed by the use of suitable filters. Therefore, alternative source shall be used with filters. For the safety glass for which there is no satisfactory correlation between this test and the conditions of use, it must re-consider the test conditions.
5.2.2 Power supply transformer and capacitor
It shall be capable of supplying a starting-peak voltage of 1100 V minimum and an operating voltage of 500 V ?? 50 V to the arc lamp.
5.2.3 Test specimen fixing and rotating devices
It is rotated around the radiation source mounted at the axis, at speed of 1 r/min - 5 r/min, so as to ensure the even radiation.
5.3 Test specimen
Dimension. 76 mm x 300 mm.
5.4 Test procedure
GB 17326-1998

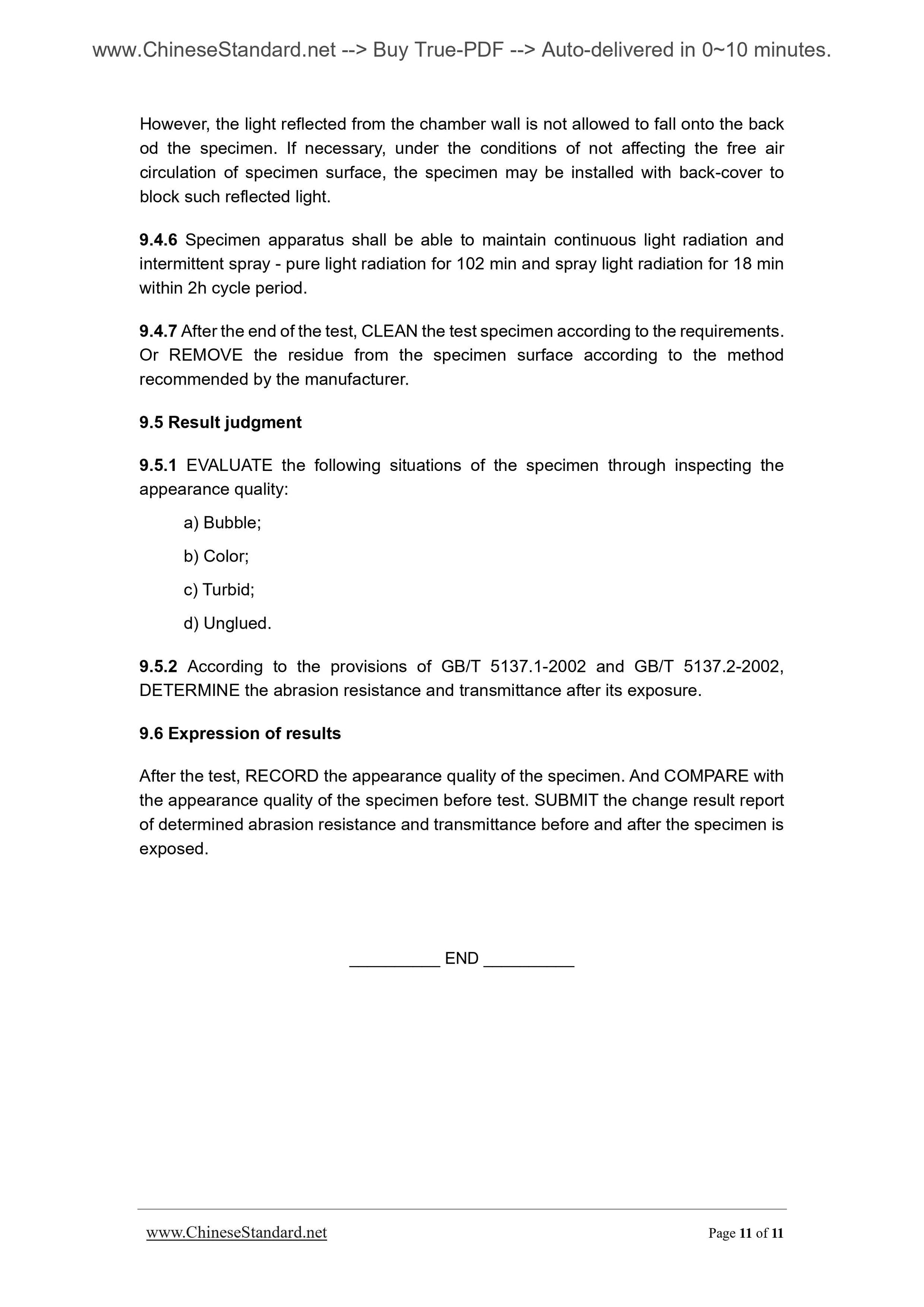

However, the light reflected from the chamber wall is not allowed to fall onto the back od the specimen. If necessary, under the conditions of not affecting the free air circulation of specimen surface, the specimen may be installed with back-cover to block such reflected light.
9.4.6 Specimen apparatus shall be able to maintain continuous light radiation and intermittent spray - pure light radiation for 102 min and spray light radiation for 18 min within 2h cycle period.
9.4.7 After the end of the test, CLEAN the test specimen according to the requirements. Or REMOVE the residue from the specimen surface according to the method recommended by the manufacturer.
9.5 Result judgment
9.5.1 EVALUATE the following situations of the specimen through inspecting the appearance quality.
a) Bubble;
b) Color;
c) Turbid;
d) Unglued.
9.5.2 According to the provisions of GB/T 5137.1-2002 and GB/T 5137.2-2002, DETERMINE the abrasion resistance and transmittance after its exposure. 9.6 Expression of results
After the test, RECORD the appearance quality of the specimen. And COMPARE with the appearance quality of the specimen before test. SUBMIT the change result report of determined abrasion resistance and transmittance before and after the specimen is exposed.
