Scope

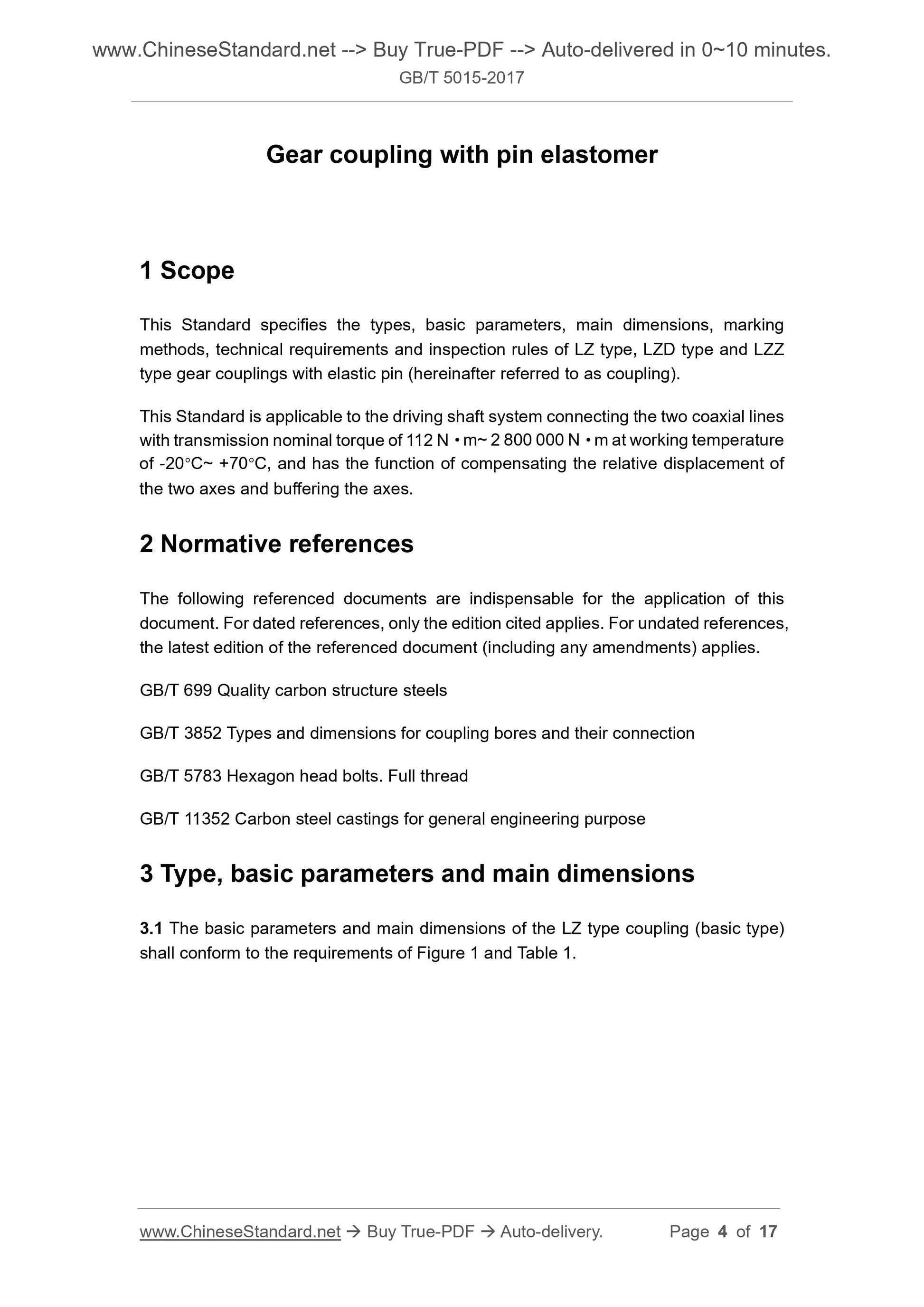

This Standard specifies the types, basic parameters, main dimensions, marking methods, technical requirements and inspection rules of LZ type, LZD type and LZZ type gear couplings with elastic pin (hereinafter referred to as coupling).
This Standard is applicable to the driving shaft system connecting the two coaxial lines with transmission nominal torque of 112 N·m~ 2 800 000 N·m at working temperature of -20°C~ +70°C, and has the function of compensating the relative displacement of the two axes and buffering the axes.

Basic Data

Standard ID	GB/T 5015-2017 (GB/T5015-2017)
Description (Translated English)	Gear coupling with pin elastomer
Sector / Industry	National Standard (Recommended)
Classification of Chinese Standard	J19
Classification of International Standard	21.120.20
Word Count Estimation	13,143
Date of Issue	2017-05-12
Date of Implementation	2017-12-01
Older Standard (superseded by this standard)	GB/T 5015-2003
Quoted Standard	GB/T 699; GB/T 3852; GB/T 5783; GB/T 11352
Issuing agency(ies)	General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
