GB/T 5008.3-2005: Starter batteries terminal size and markings

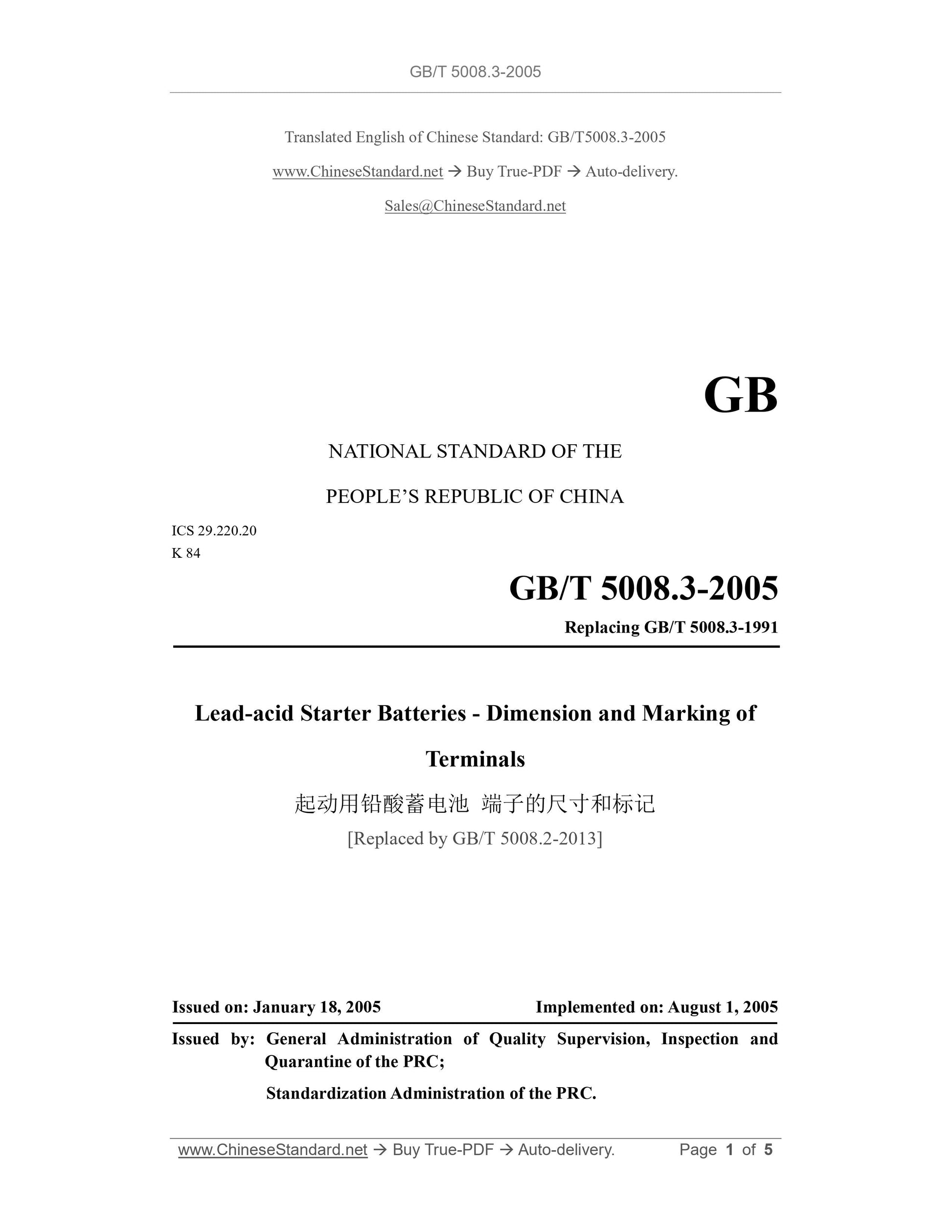

GB/T 5008.3-2005
GB
NATIONAL STANDARD OF THE
PEOPLE’S REPUBLIC OF CHINA
ICS 29.220.20
K 84
Replacing GB/T 5008.3-1991
Lead-acid Starter Batteries - Dimension and Marking of
Terminals
[Replaced by GB/T 5008.2-2013]
ISSUED ON. JANUARY 18, 2005
IMPLEMENTED ON. AUGUST 1, 2005
Issued by. General Administration of Quality Supervision, Inspection and
Quarantine of the PRC;
Standardization Administration of the PRC.

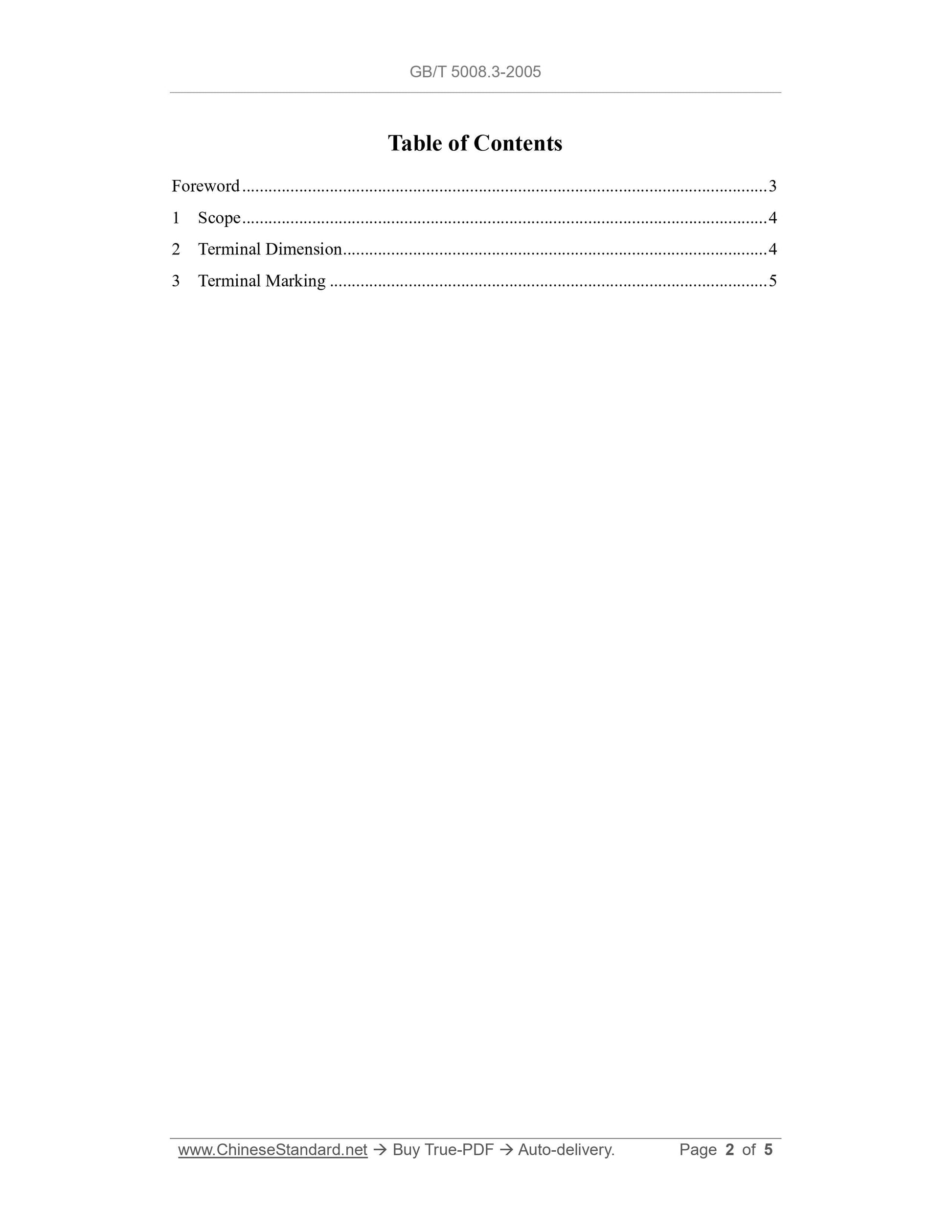

Table of Contents
Foreword... 3
1 Scope... 4
2 Terminal Dimension... 4
3 Terminal Marking... 5

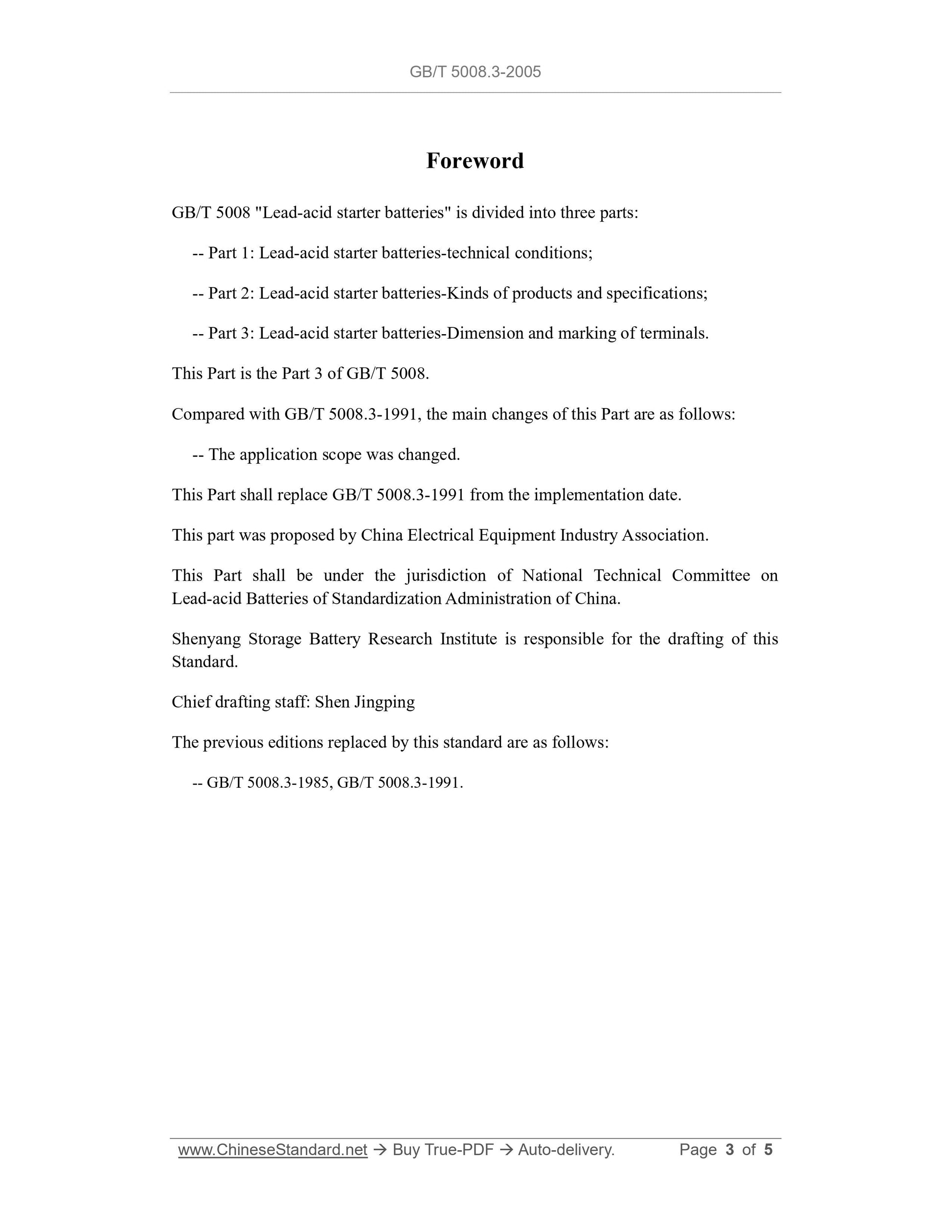

Foreword
GB/T 5008 "Lead-acid starter batteries" is divided into three parts.
-- Part 1.Lead-acid starter batteries-technical conditions;
-- Part 2.Lead-acid starter batteries-Kinds of products and specifications;
-- Part 3.Lead-acid starter batteries-Dimension and marking of terminals.
This Part is the Part 3 of GB/T 5008.
Compared with GB/T 5008.3-1991, the main changes of this Part are as follows.
-- The application scope was changed.
This Part shall replace GB/T 5008.3-1991 from the implementation date.
This part was proposed by China Electrical Equipment Industry Association.
This Part shall be under the jurisdiction of National Technical Committee on
Lead-acid Batteries of Standardization Administration of China.
Shenyang Storage Battery Research Institute is responsible for the drafting of this
Standard.
Chief drafting staff. Shen Jingping
The previous editions replaced by this standard are as follows.
-- GB/T 5008.3-1985, GB/T 5008.3-1991.

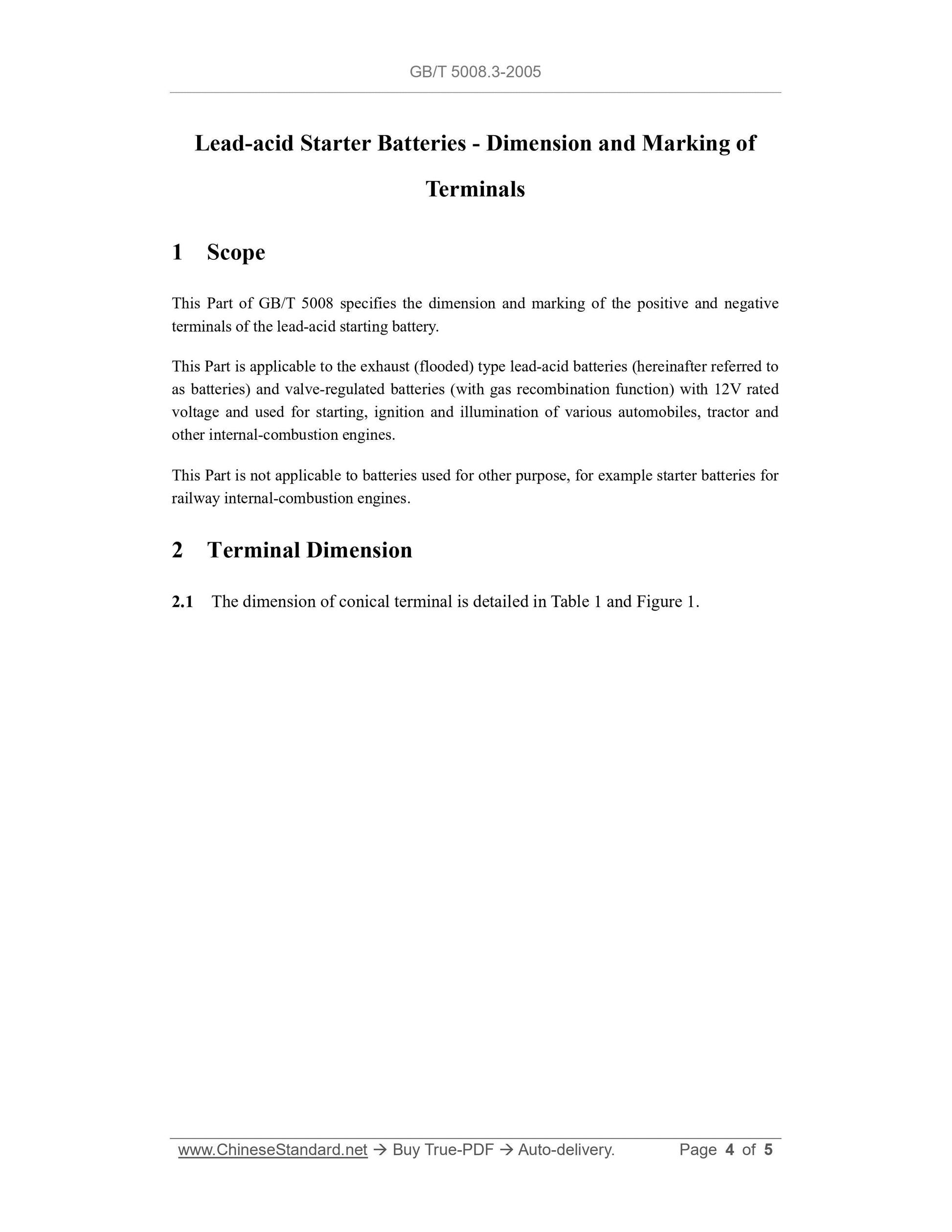

Lead-acid Starter Batteries - Dimension and Marking of
Terminals
1 Scope
This Part of GB/T 5008 specifies the dimension and marking of the positive and negative
terminals of the lead-acid starting battery.
This Part is applicable to the exhaust (flooded) type lead-acid batteries (hereinafter referred to
as batteries) and valve-regulated batteries (with gas recombination function) with 12V rated
voltage and used for starting, ignition and illumination of various automobiles, tractor and
other internal-combustion engines.
This Part is not applicable to batteries used for other purpose, for example starter batteries for
railway internal-combustion engines.
2 Terminal Dimension
2.1 The dimension of conical terminal is detailed in Table 1 and Figure 1.
