GB/T 4879-2016: Rustproof packaging

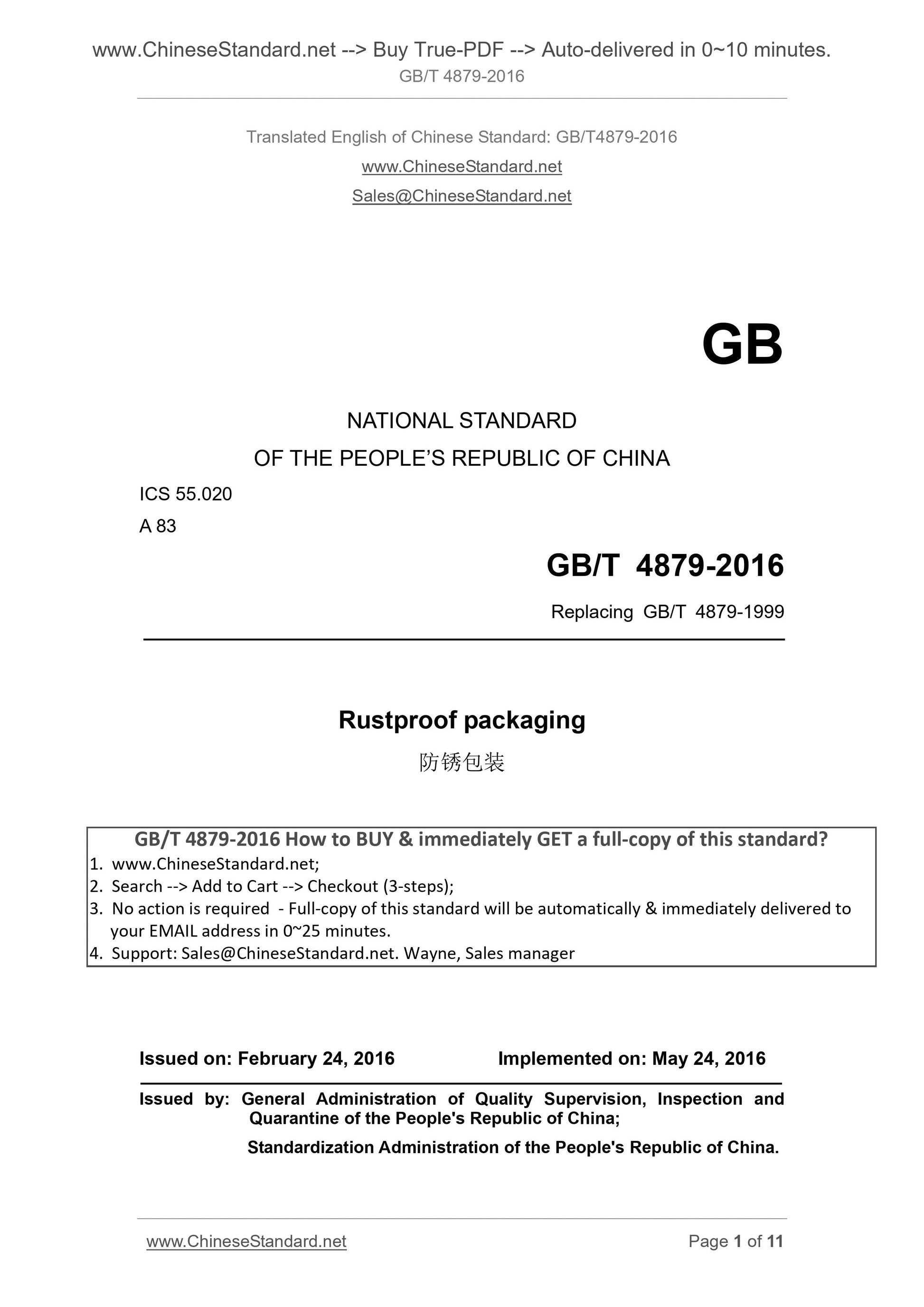

GB/T 4879-2016
Rustproof packaging
ICS 55.020
A83
National Standards of People's Republic of China
Replace GB/T 4879-1999
Rust proof packaging
2016-02-24 released
2016-05-24 implementation
General Administration of Quality Supervision, Inspection and Quarantine of the People 's Republic of China
China National Standardization Management Committee released

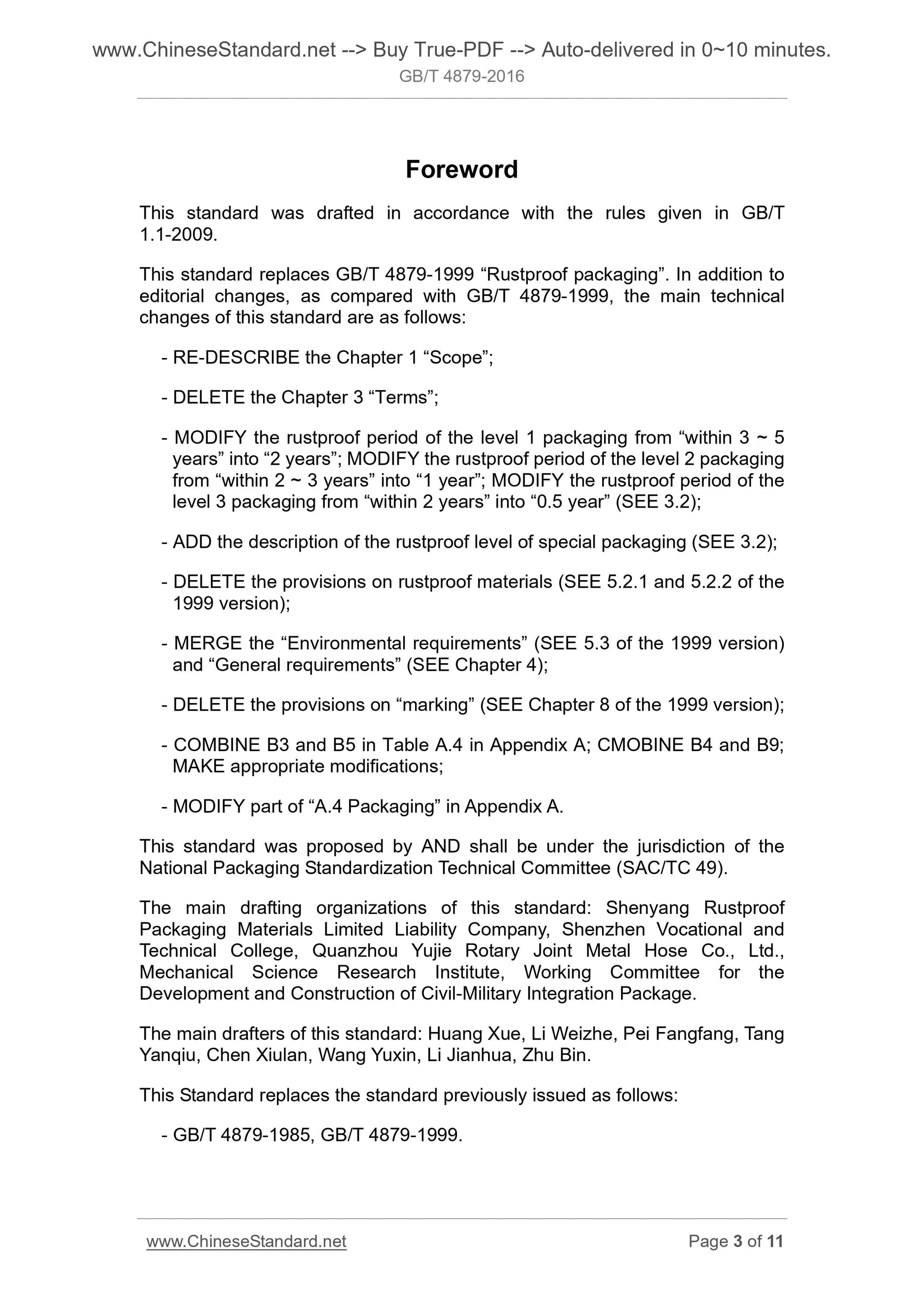

Preface
This standard is drafted in accordance with the rules given in GB/T 1.1-2009.
This standard instead of GB/T 4879-1999 "rust-proof packaging", in addition to editorial changes, compared with GB/T 4879-1999 main technology
The changes are as follows.
- a re-description of Chapter 1 "scope";
--- Removed Chapter 3 "Terminology";
--- will be a package of rust-proof period of "3 to 5 years" modified to "2 years"; 2 package rust-proof period "2 to 3 years" modified to
"1 year"; the three-stage packaging rust-proof period "within 2 years" modified to "0.5 years" (see 3.2);
- a description of the special packaging rust rating (see 3.2);
- the provisions on rust-proof materials were deleted (see 5.2.1, 5.2.2 in.1999);
- merge "environmental requirements" (see 5.3 of.1999 edition) and "general requirements" (see Chapter 4);
- the deletion of the "sign" (see Chapter 8 of the.1999 edition);
- combine B3 and B5 in Table A.4 in Appendix A, B4 and B9, and make appropriate modifications;
--- modified part of Appendix A "A.4 Package".
This standard is proposed by the National Packaging Standardization Technical Committee (SAC/TC49).
The main drafting unit of this standard. Shenyang anti-rust packaging materials limited liability company, Shenzhen Vocational and Technical College, Quanzhou Yujie rotary joint
Metal Hose Co., Ltd., Mechanical Science Research Institute, military and civilian integration of packaging development and construction work committee.
The main drafters of this standard. Huang Xue, Li Weizhe, Pei Fangfang, Tang Yanqiu, Chen Xiulan, Wang Yuxin, Li Jianhua, Zhu Bin
This standard replaced the previous version of the standard release.
--- GB/T 4879-1985, GB/T 4879-1999.

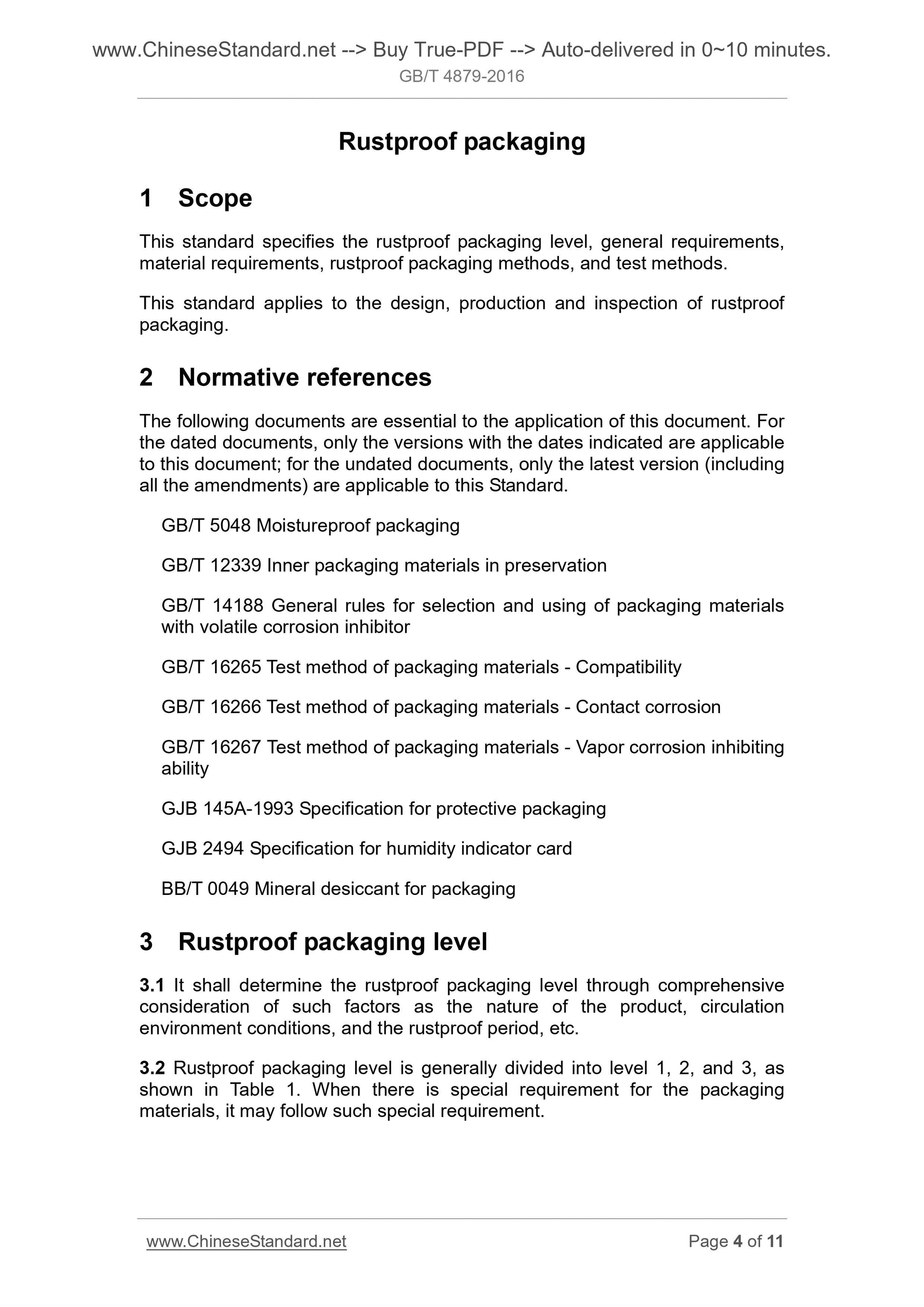

Rust proof packaging
1 Scope
This standard specifies the rustproof packaging grade, general requirements, material requirements, rust proof packaging methods and test methods.
This standard applies to the design, production and inspection of rust proof packaging.
2 normative reference documents
The following documents are indispensable for the application of this document. For dated references, the only dated edition applies to this article
Pieces. For undated references, the latest edition (including all modifications) applies to this document.
GB/T 5048 moisture-proof packaging
GB/T 12339 Protective inner packaging materials
GB/T 14188 General rules for selection of gas - phase anti - rust packaging materials
Packaging materials - Test methods - Compatibility
GB/T 16266 Test methods for packaging materials - Contact corrosion
Packaging materials - Test methods - Gas phase corrosion inhibition capacity GB/T
Specification for protective packaging for GJB145A -.1993
GJB2494 humidity indicator card specification
BB/T 0049 Mineral Desiccant for Packaging
3 rust proof packaging level
3.1 should be based on the nature of the product, circulation conditions, rust and other factors to consider the combination of rust to determine the level of anti-rust packaging.
3.2 rust-proof packaging level is generally divided into 1, 2, 3, see Table 1. Anti-rust packaging with special requirements, according to special requirements.
Table 1 rust proof packaging level
grade
condition
Rust - proof temperature, humidity product nature
1 class 2 years temperature greater than 30 ℃, relative humidity greater than 90%
Easy to rust products, as well as valuable, sophisticated can be
Rusty products
Level 2 packaging for 1 year
Temperature between 20 ℃ ~ 30 ℃, relative humidity
Between 70% and 90%
More easy to rust products, and more expensive, more refined
Dense rusty products
3-level packaging 0.5 years temperature is less than 20 ℃, relative humidity less than 70% is not easy to rust products
Note 1. When the rust-proof packaging factor can not meet the requirements of the table at the same time, should be in accordance with the three conditions of the most severe conditions to determine the rust-proof packaging
level. But also in accordance with the nature of the product, rust-proof period, temperature and humidity conditions in the order to consider, to determine the rust-proof packaging level.
Note 2. For special requirements of rust-proof packaging, mainly moisture requirements of higher packaging, should adopt more stringent moisture-proof measures.
4 General requirements
4.1 to determine the rust-proof packaging level. And according to the level of packaging requirements, in the rust-proof period to protect the product does not produce corrosion.
4.2 anti-rust packaging operation should be continuous, if the interrupt should take a temporary anti-rust treatment.
4.3 rust-proof packaging process should avoid hand sweat and other pollutants pollution products.
4.4 products to be anti-rust treatment, such as in a hot state, in order to avoid rust loss or decomposition of the rust, should be cooled to near room temperature
And then processed.
4.5 coated with rust inhibitor products, if you need to wrap the packaging material, should use the neutral, dry and clean packaging materials.
4.6 anti-rust products with rust-proof products, in the unsealed use, the general should remove the rust inhibitor. Products in the coating or removal of rust inhibitor will affect the production
Product performance, should not use rust inhibitor.
4.7 anti-rust packaging operations should be clean, dry, small temperature changes in the environment.

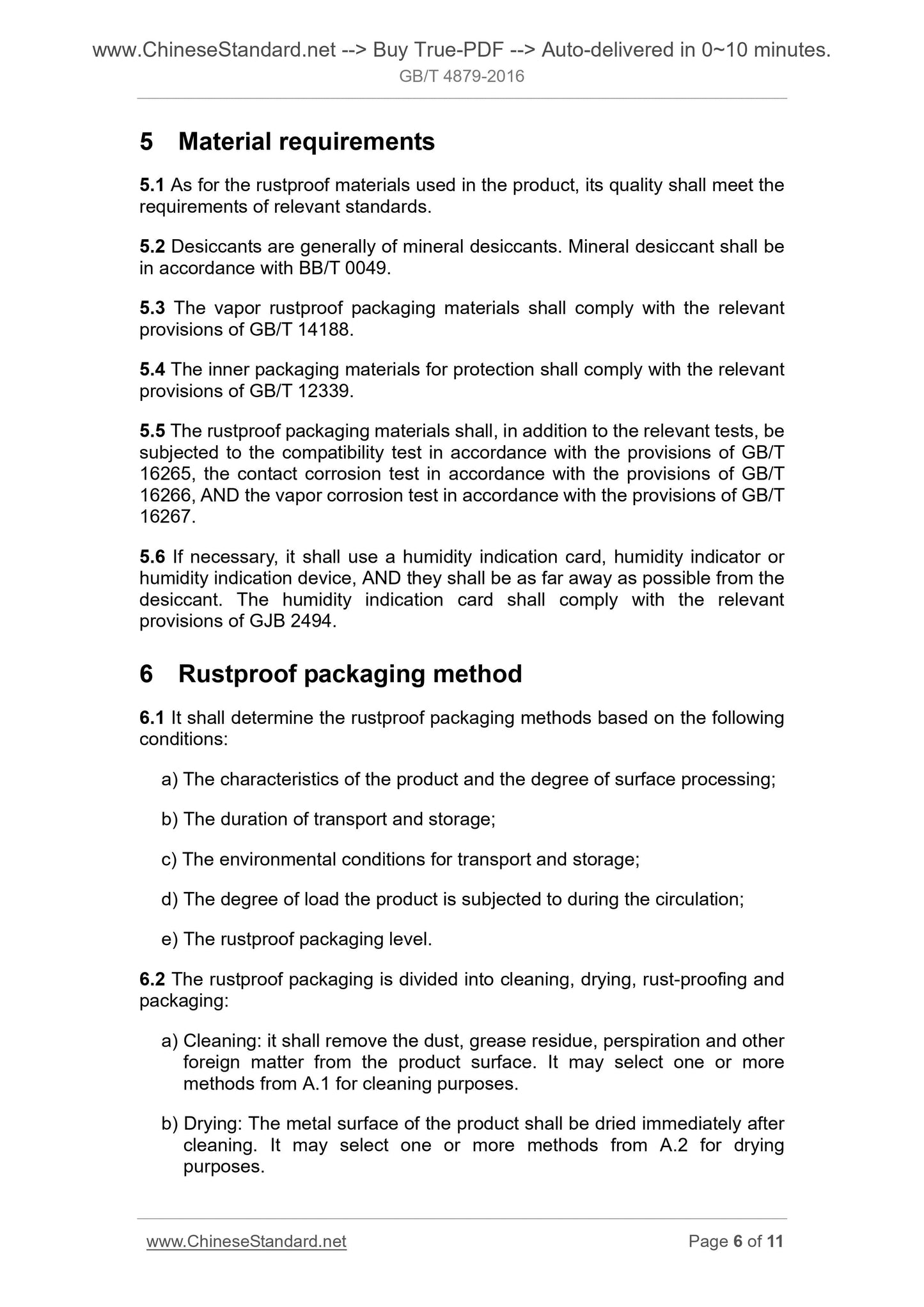

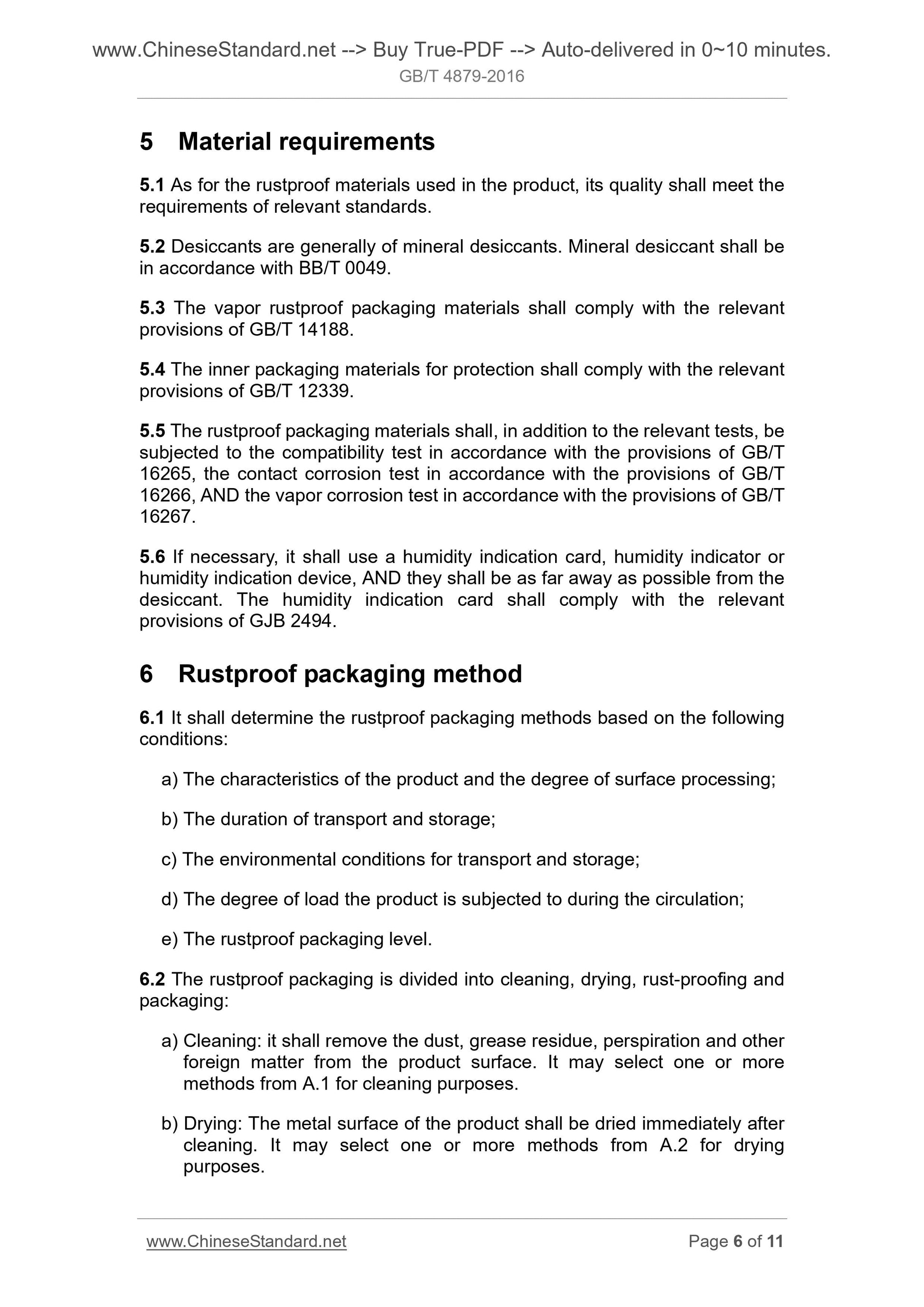

5 Material requirements
5.1 anti-rust materials used in the product, its quality should meet the relevant standards.
5.2 Desiccants Generally use mineral desiccants. Mineral desiccant should be in accordance with BB/T 0049.
5.3 VCI packaging materials shall comply with the relevant provisions of GB/T 14188.
5.4 protective packaging materials should be consistent with the relevant provisions of GB/T 12339.
5.5 Anticorrosive Packaging Materials In addition to the relevant tests, the compatibility test shall be in accordance with GB/T 16265, contact corrosion test should be
GB/T 16266 requirements, gas phase corrosion resistance test should be GB/T 16267 requirements.
5.6 If necessary, use a humidity indicator, humidity indicator or humidity indicator, and should be as far away as possible from the desiccant. The humidity indicator card should be in place
The relevant provisions of GJB2494.
6 rust proof packaging method
6.1 Products should be based on the following conditions to determine the anti-rust packaging method.
A) the characteristics of the product and the degree of surface processing;
B) the duration of transport and storage;
C) environmental conditions for transport and storage;
D) the degree of load the product is subjected to during the circulation;
E) rustproof packaging grade.
6.2 rust-proof packaging is divided into cleaning, drying, rust and packaging four steps.
A) clean. Should remove the product surface dust, grease residue, perspiration and other foreign body. One or more of the methods of A.1 may be used
To clean.
B) dry. The metal surface of the product should be dried immediately after cleaning. Drying may be carried out using one or more of A.2.
C) rust. The metal surface of the product after cleaning, drying, according to the need for rust treatment, you can choose one or more A.3
Methods combined with anti-rust.
D) Packing. The metal surface of the product is subjected to cleaning, drying, and anti-rust treatment. Packaging can be used as a kind of A.4 or
A variety of methods combined, can also be used with GB/T 5048 moisture-proof packaging method for anti-rust packaging.
7 Test method
7.1 Antirust packaging is carried out in accordance with the provisions of Cycle Test Exposure A in GJB145A-1993. Class 1 packaging can choose 3 cycles of exposure test
Test, two packages can choose two cycles of exposure test, three packages can choose a cycle exposure test.
7.2 After the periodic exposure test, unsealed to check whether the product and the selected material are free of corrosion, aging, rupture or other abnormalities.
Appendix A
(Informative)
Commonly used anti - rust packaging method
A.1 Cleaning
Common cleaning methods are shown in Table A.1.
Table A.1 Cleaning methods
Code Name Method
Q1 solvent cleaning method
At room temperature, the product is fully immersed or semi-immersed in the specified solvent, with scrub, scrub, etc. to clean.
Large products can be sprayed. Care should be taken to prevent condensation on the surface of the product
Q2 Clear sweat spells
At room temperature, the product in the replacement of anti-rust oil for immersion, washing or washing, high-precision small products can be
Wash with warm methanol in a suitable device
Q3 steam degreasing cleaning method
The product is vaporized with a halogenated hydrocarbon cleaning agent in a steam cleaner or other device. This method applies
In the removal of oil-like pollutants
Q4 Alkaline cleaning method The product is immersed in the lye, boiled or sprayed
Q5 Emulsion cleaning method The product is immersed in the emulsion cleaning solution or spray cleaning
Q6 Surfactant cleaning method
The product is immersed in an aqueous solution of an ionic surfactant or a nonionic surfactant, soaked or washed
Sprayed
Q7 electrolytic cleaning method The product is immersed in the electrolyte for electrolytic cleaning
Q8 Ultrasonic cleaning method The product is immersed in various cleaning solutions, the use of ultrasonic cleaning
A.2 Drying
Common drying methods are shown in Table A.2.
Table A.2 Drying methods
Code Name Method
G1 The compressed air drying method is dried by drying the clean compressed air
G2 drying method in the oven or drying room for drying
G3 Infrared drying method Direct drying with infrared light or far infrared device
G4 dry method with a clean, dry cloth dry, pay attention to not allow the fiber residue on the product
G5 drip dry, dry method with solvent cleaning products can be used to dry the method
G6 dehydration method with water-based cleaning agent cleaning products, after cleaning, should immediately use dehydrated oil for drying
A.3 rust
Commonly used anti-rust method see Table A.3.
Table A.3 Anti-rust methods
Code Name Method
F1 anti-rust oil dip coating products will be completely immersed in anti-rust oil, coated with anti-rust oil film
F2 anti-rust grease brushing method in the product surface brush rust-proof grease
F3 anti - rust grease filling method
In the product cavity filled with rust-proof grease, filling should be noted that the entire surface of the cavity coating, and should leave gaps,
And should not leak
F4 vapor phase corrosion inhibitor method
According to the requirements of the product, the use of powder, tablets or pill-like gas phase corrosion inhibitor, spread or into a clean bag or
Box. Or a nonaqueous solution of an oil or the like containing a gas phase corrosion inhibitor is sprayed in the packaging space
F5 Vapor Antirust Paper Method
The shape of the relatively simple and easy to bandaged products, can be coated with gas-phase anti-rust paper, sealed when asked to contact or
Close to the metal surface
F6 VCI anti-rust plastic film product requirements packaging appearance transparent use of gas-phase anti-rust plastic film bag hot-pressure welding
F7 anti-rust liquid treatment can be dip or spray, and then dry
A.4 Packing
Common packaging methods are shown in Table A.4.
Table A.4 Packaging methods
Code Name Method Applicable to rust rating
B1 general packaging
Products after cleaning, drying, direct use of moisture, waterproof packaging materials
Material for packaging
Level 3 packaging
B2 anti-rust grease packaging
B2-1 coated with anti-rust grease
Press F1 or F2 to coat the film or rust-proof grease directly. Do not
Using inner packaging
Level 3 packaging
B2-2 rust proof paper packaging
Press F1 or F2 method coated with anti-rust grease, the use of oil resistance,
Non-corrosive inner packaging material encapsulation
Level 3 packaging
B2-3 plastic film packaging
Press F1 or F2 method coated with anti-rust grease, into the plastic thin
Film made of bags, according to the need to use adhesive tape sealed or hot pressing
Welding
Level 1 packaging
Level 2 packaging
B2-4 aluminum-plastic film packaging
Press F1 or F2 method coated with anti-rust grease, into the aluminum thin plastic
Membrane made of the bag, hot pressure welding
Level 1 packaging
Level 2 packaging
B2-5 anti-rust grease filling packaging
On the closed cavity of the rust, according to the method of F3 rust,
Sealed packaging
Level 1 packaging
Table A.4 (continued)
Code Name Method Applicable to rust rating
B3 vapor phase anti-rust material packaging
B3-1 vapor phase corrosion inhibitor packaging according to F4 method for rust, and then sealed packaging
B3-2 VCI paper packaging according to F5 method of anti-rust, and then sealed packaging
B3-3 VCI plastic film packaging in accordance with the F6 method to complete the packaging when the anti-rust
Level 1 packaging
Level 2 packaging
Level 3 packaging
B3-4 VCI Anti-rust Oil Packaging Products Chamber Sealing System Brush, Spray or Inject Gas Phase Antirust Oil Level 3 Package
B4 sealed container packaging
B4-1 metal rigid container sealed packaging
B4-2 non - metallic rigid container sealed packaging
B4-3 rigid container in the anti-rust oil soaking packaging
Press F1 or F2 method coated with anti-rust grease, with oil-resistant packaging
Material bandaged and filled with cushioning material, loaded into metal rigid container
Sealed, when required for decompression
The rust-proof products into the use of moisture-proof packaging materials produced
Non-metallic rigid containers sealed with hot-press or other means
The product i...
