GB/T 479-2016: Determination of plastometric indices of bituminous coal

This Standard specifies the terms and definitions, method summary, reagents and materials, instruments and equipment, coal samples, test preparation, test procedures, result expression, method precision and test report for the plastometric indices of bituminous coal. This Standard is applicable to the bituminous coal.

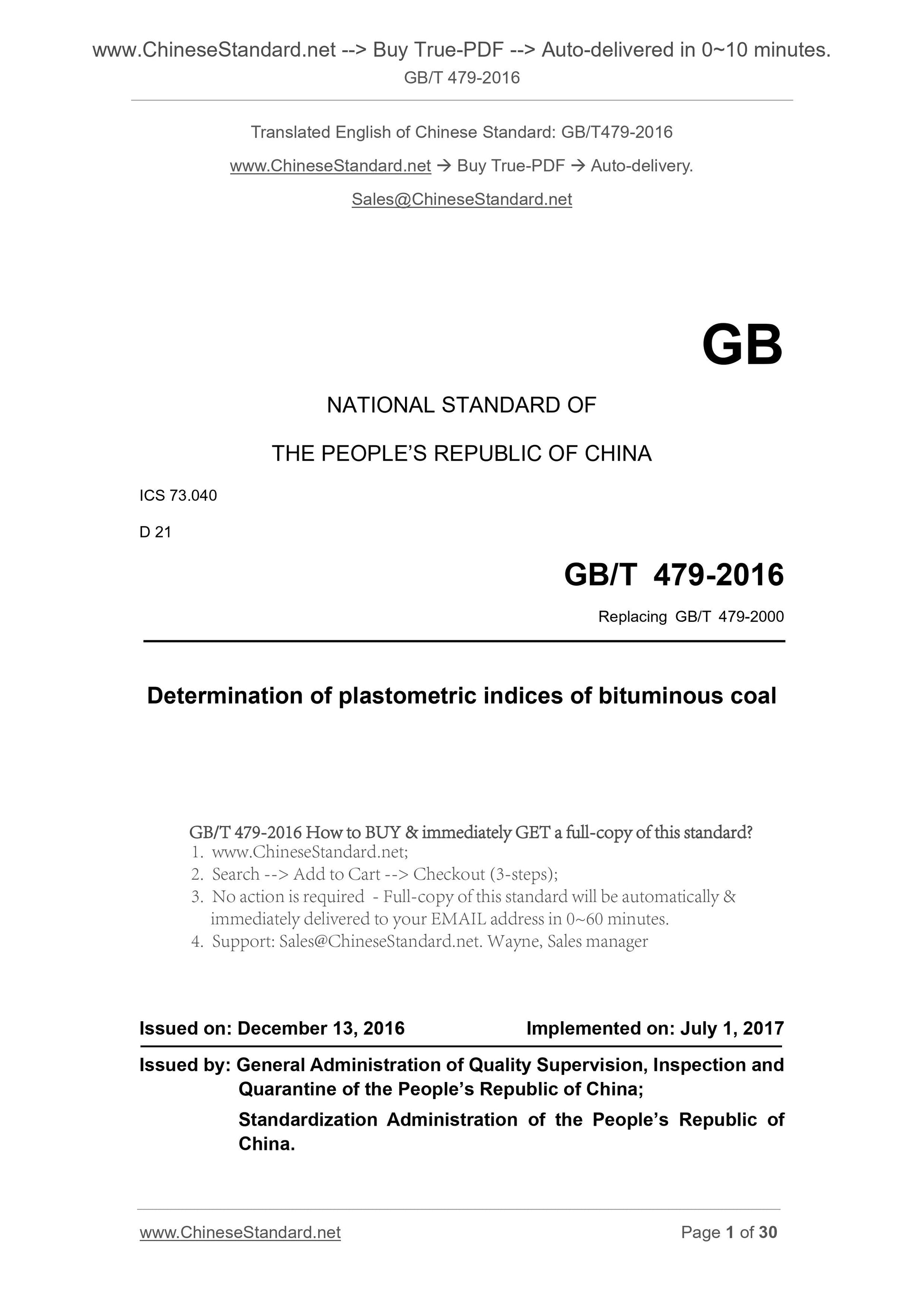

GB/T 479-2016
GB
NATIONAL STANDARD OF
THE PEOPLE REPUBLIC OF CHINA
ICS 73.040
D 21
Replacing GB/T 479-2000
Determination of plastometric indices of bituminous coal
ISSUED ON. DECEMBER 13, 2016
IMPLEMENTED ON. JULY 1, 2017
Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PEOPLE Republic of China;
Standardization Administration of the PEOPLE Republic of
China.

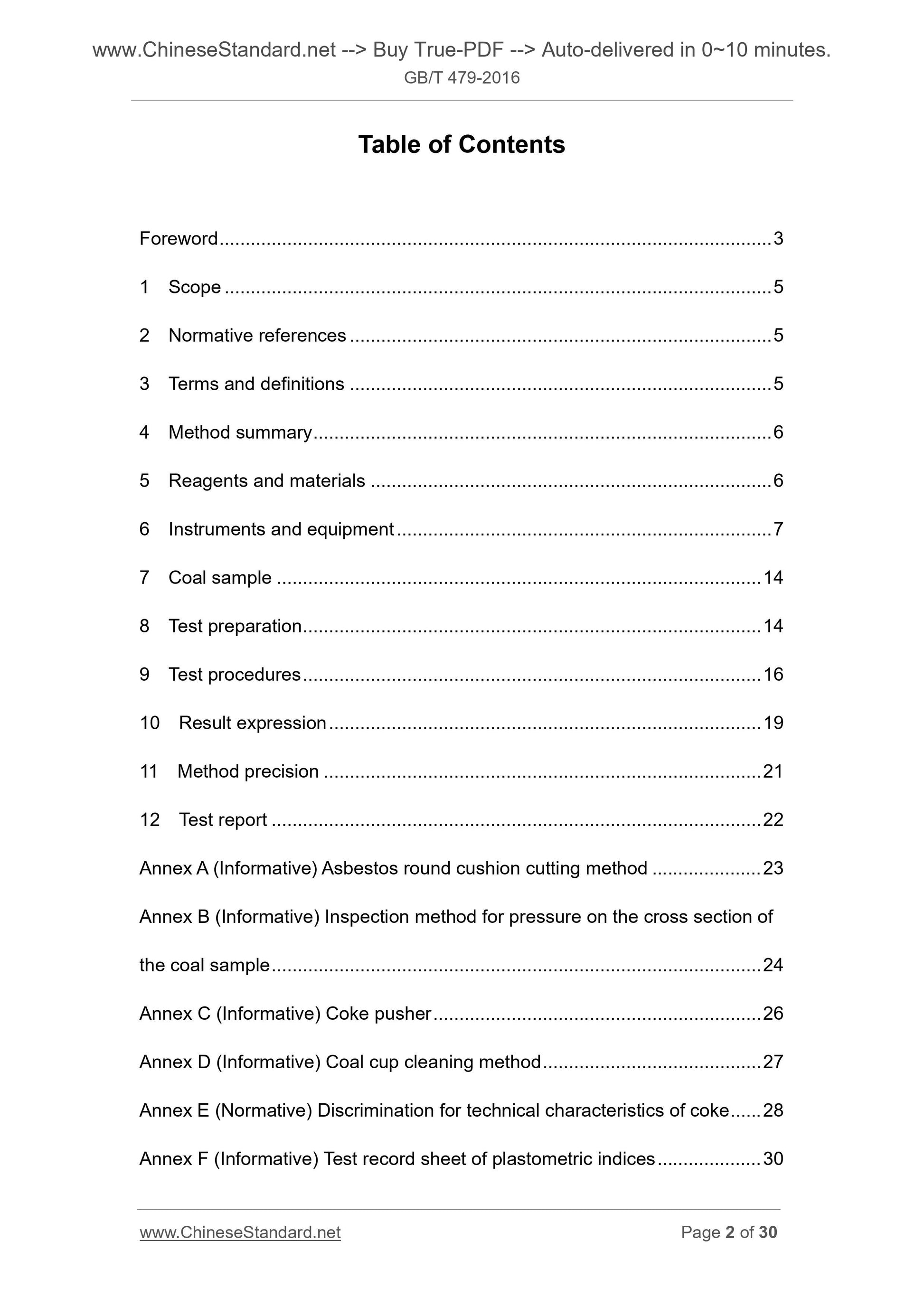

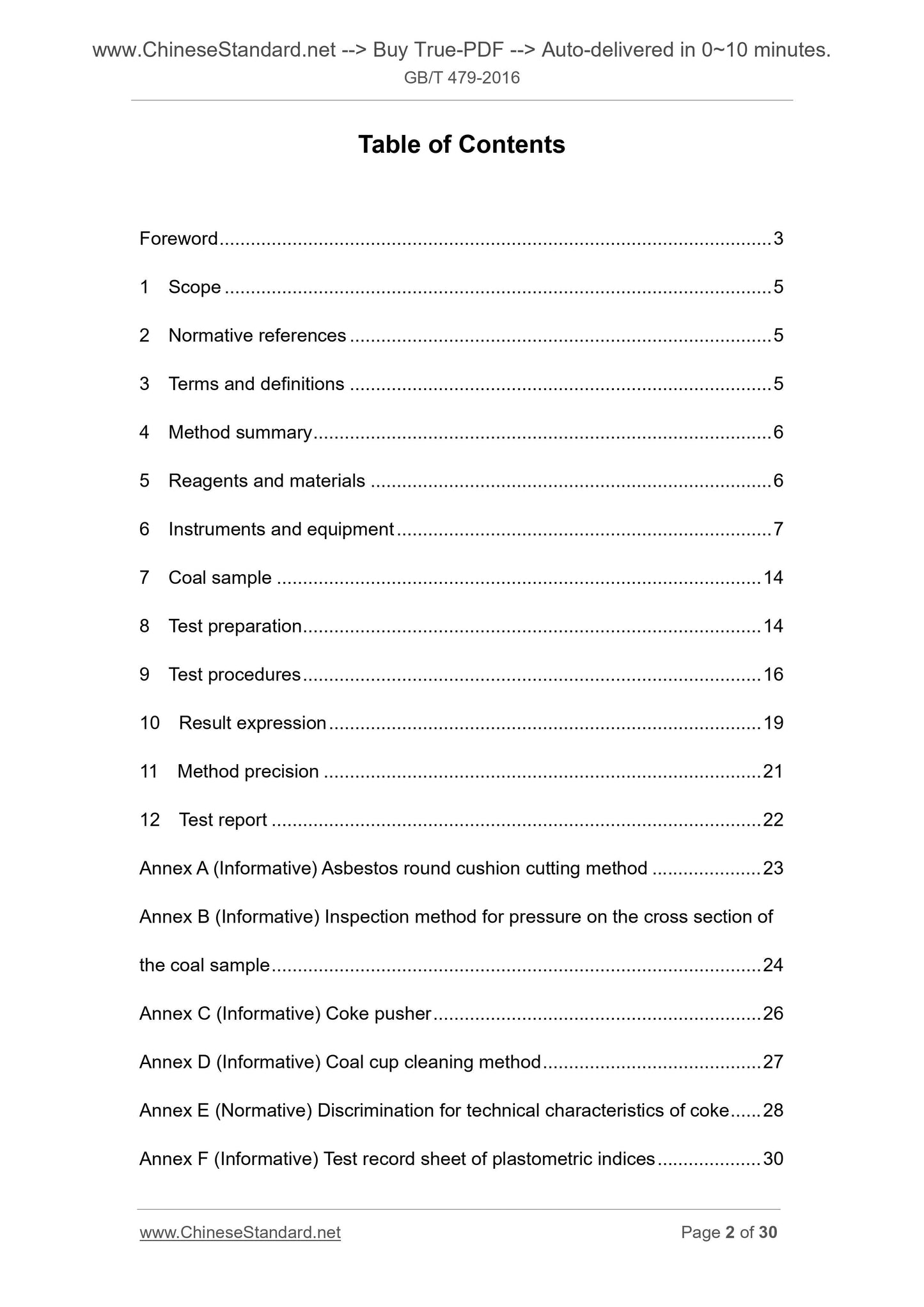

Table of Contents
Foreword ... 3
1 Scope ... 5
2 Normative references ... 5
3 Terms and definitions ... 5
4 Method summary ... 6
5 Reagents and materials ... 6
6 Instruments and equipment ... 7
7 Coal sample ... 14
8 Test preparation ... 14
9 Test procedures ... 16
10 Result expression ... 19
11 Method precision ... 21
12 Test report ... 22
Annex A (Informative) Asbestos round cushion cutting method ... 23
Annex B (Informative) Inspection method for pressure on the cross section of the coal sample ... 24
Annex C (Informative) Coke pusher ... 26
Annex D (Informative) Coal cup cleaning method ... 27
Annex E (Normative) Discrimination for technical characteristics of coke ... 28 Annex F (Informative) Test record sheet of plastometric indices ... 30 Foreword

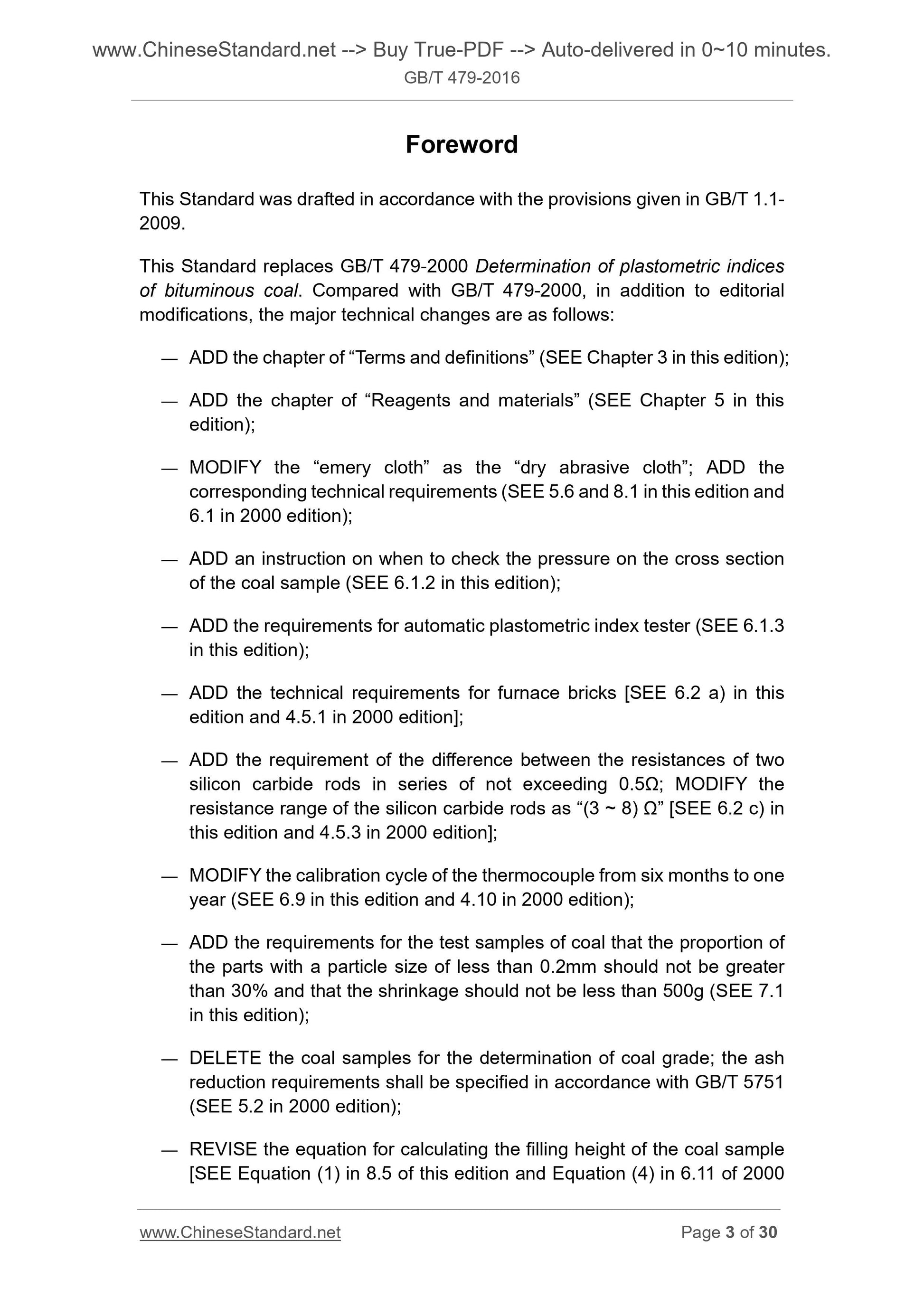

This Standard was drafted in accordance with the provisions given in GB/T 1.1- 2009.
This Standard replaces GB/T 479-2000 Determination of plastometric indices of bituminous coal. Compared with GB/T 479-2000, in addition to editorial modifications, the major technical changes are as follows.
?€? ADD the chapter of ?€?Terms and definitions?€? (SEE Chapter 3 in this edition); ?€? ADD the chapter of ?€?Reagents and materials?€? (SEE Chapter 5 in this
edition);
?€? MODIFY the ?€?emery cloth?€? as the ?€?dry abrasive cloth?€?; ADD the
corresponding technical requirements (SEE 5.6 and 8.1 in this edition and 6.1 in 2000 edition);
?€? ADD an instruction on when to check the pressure on the cross section of the coal sample (SEE 6.1.2 in this edition);
?€? ADD the requirements for automatic plastometric index tester (SEE 6.1.3 in this edition);
?€? ADD the technical requirements for furnace bricks [SEE 6.2 a) in this edition and 4.5.1 in 2000 edition];
?€? ADD the requirement of the difference between the resistances of two
silicon carbide rods in series of not exceeding 0.5??; MODIFY the
resistance range of the silicon carbide rods as ?€?(3 ~ 8) ???€? [SEE 6.2 c) in this edition and 4.5.3 in 2000 edition];
?€? MODIFY the calibration cycle of the thermocouple from six months to one year (SEE 6.9 in this edition and 4.10 in 2000 edition);
?€? ADD the requirements for the test samples of coal that the proportion of the parts with a particle size of less than 0.2mm should not be greater than 30% and that the shrinkage should not be less than 500g (SEE 7.1
in this edition);
?€? DELETE the coal samples for the determination of coal grade; the ash
reduction requirements shall be specified in accordance with GB/T 5751
(SEE 5.2 in 2000 edition);
?€? REVISE the equation for calculating the filling height of the coal sample [SEE Equation (1) in 8.5 of this edition and Equation (4) in 6.11 of 2000 Determination of plastometric indices of bituminous coal

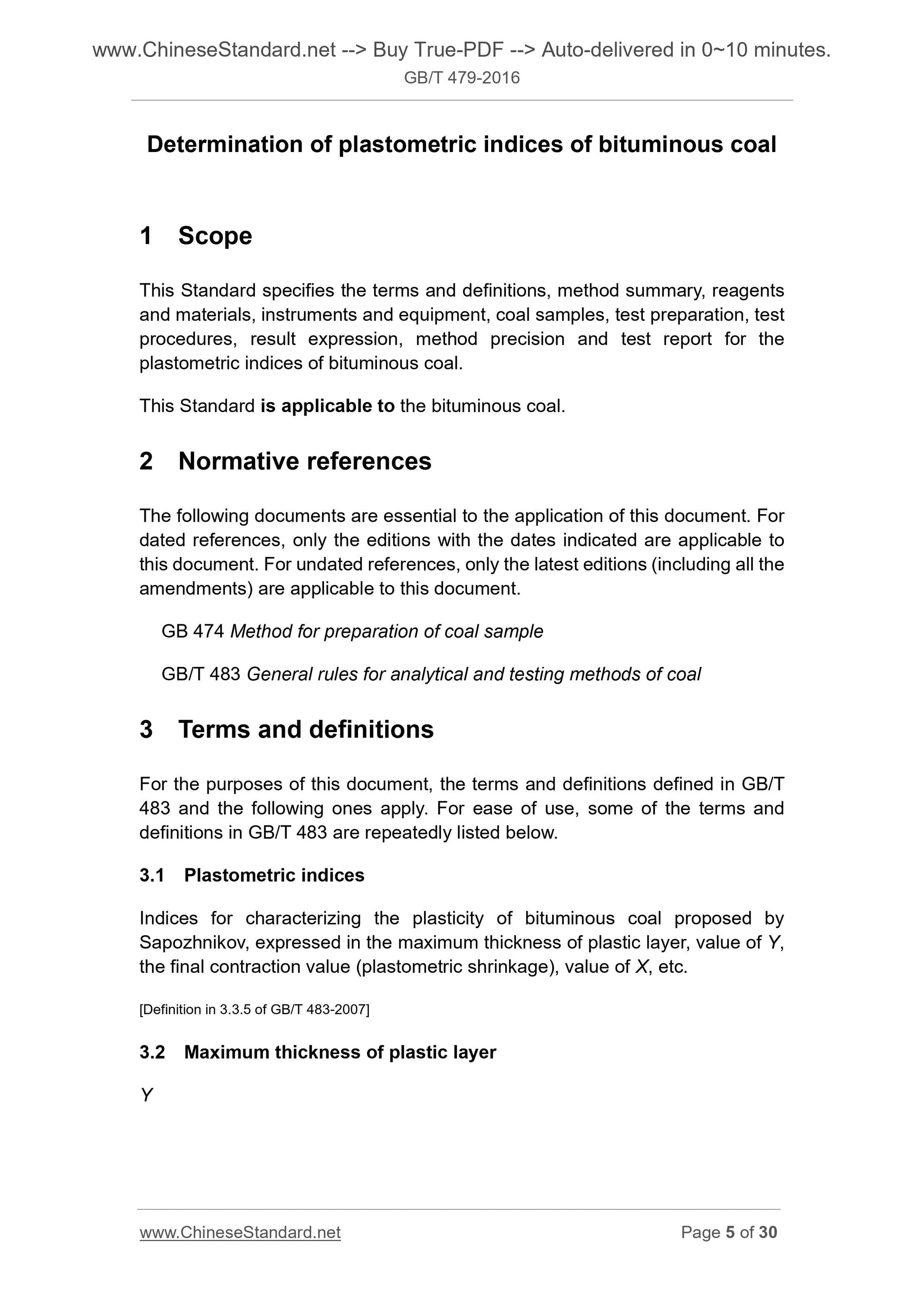

1 Scope
This Standard specifies the terms and definitions, method summary, reagents and materials, instruments and equipment, coal samples, test preparation, test procedures, result expression, method precision and test report for the plastometric indices of bituminous coal.
This Standard is applicable to the bituminous coal.
2 Normative references
The following documents are essential to the application of this document. For dated references, only the editions with the dates indicated are applicable to this document. For undated references, only the latest editions (including all the amendments) are applicable to this document.
GB 474 Method for preparation of coal sample
GB/T 483 General rules for analytical and testing methods of coal
3 Terms and definitions
For the purposes of this document, the terms and definitions defined in GB/T 483 and the following ones apply. For ease of use, some of the terms and definitions in GB/T 483 are repeatedly listed below.
3.1 Plastometric indices
Indices for characterizing the plasticity of bituminous coal proposed by Sapozhnikov, expressed in the maximum thickness of plastic layer, value of Y, the final contraction value (plastometric shrinkage), value of X, etc.
[Definition in 3.3.5 of GB/T 483-2007]

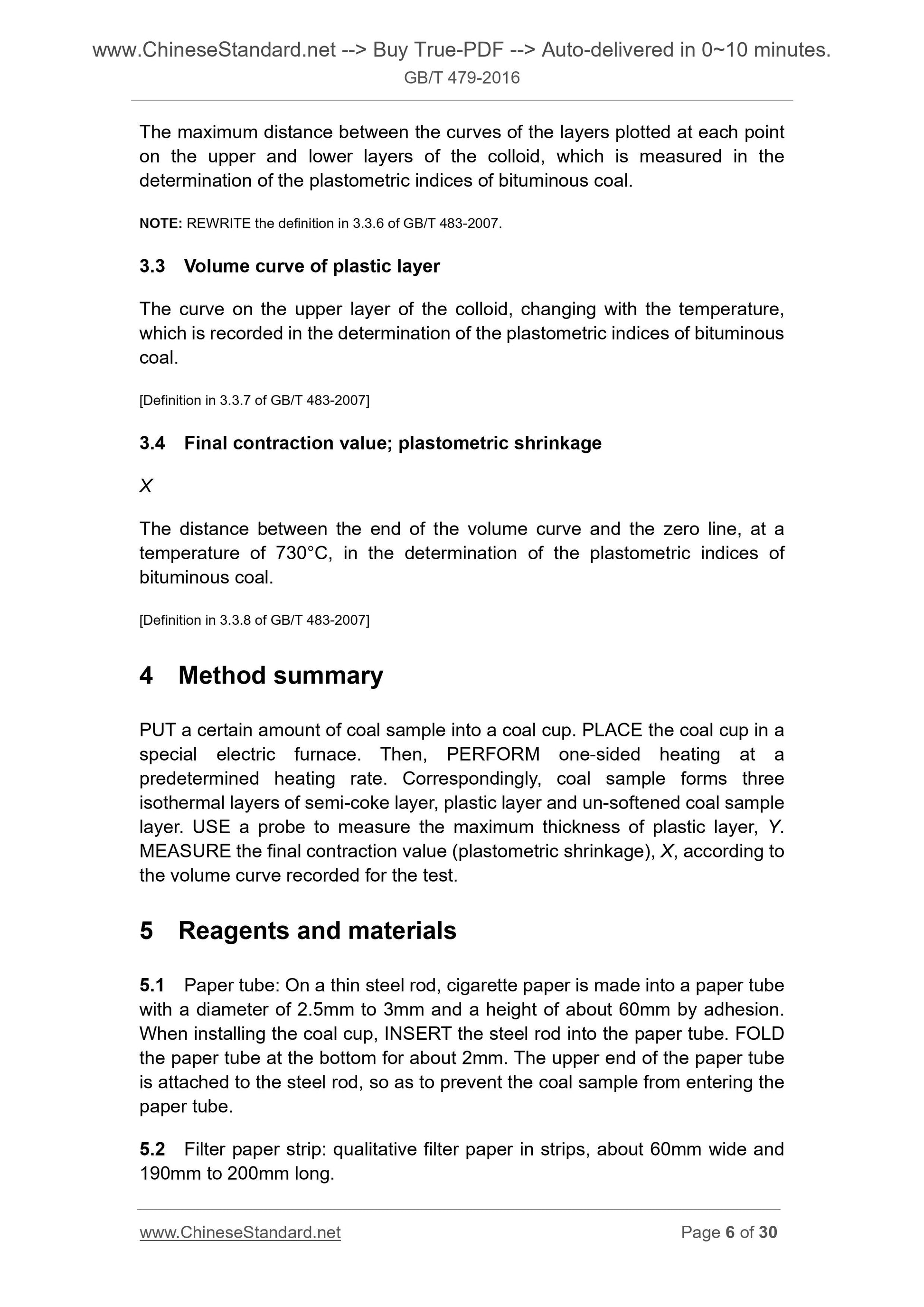

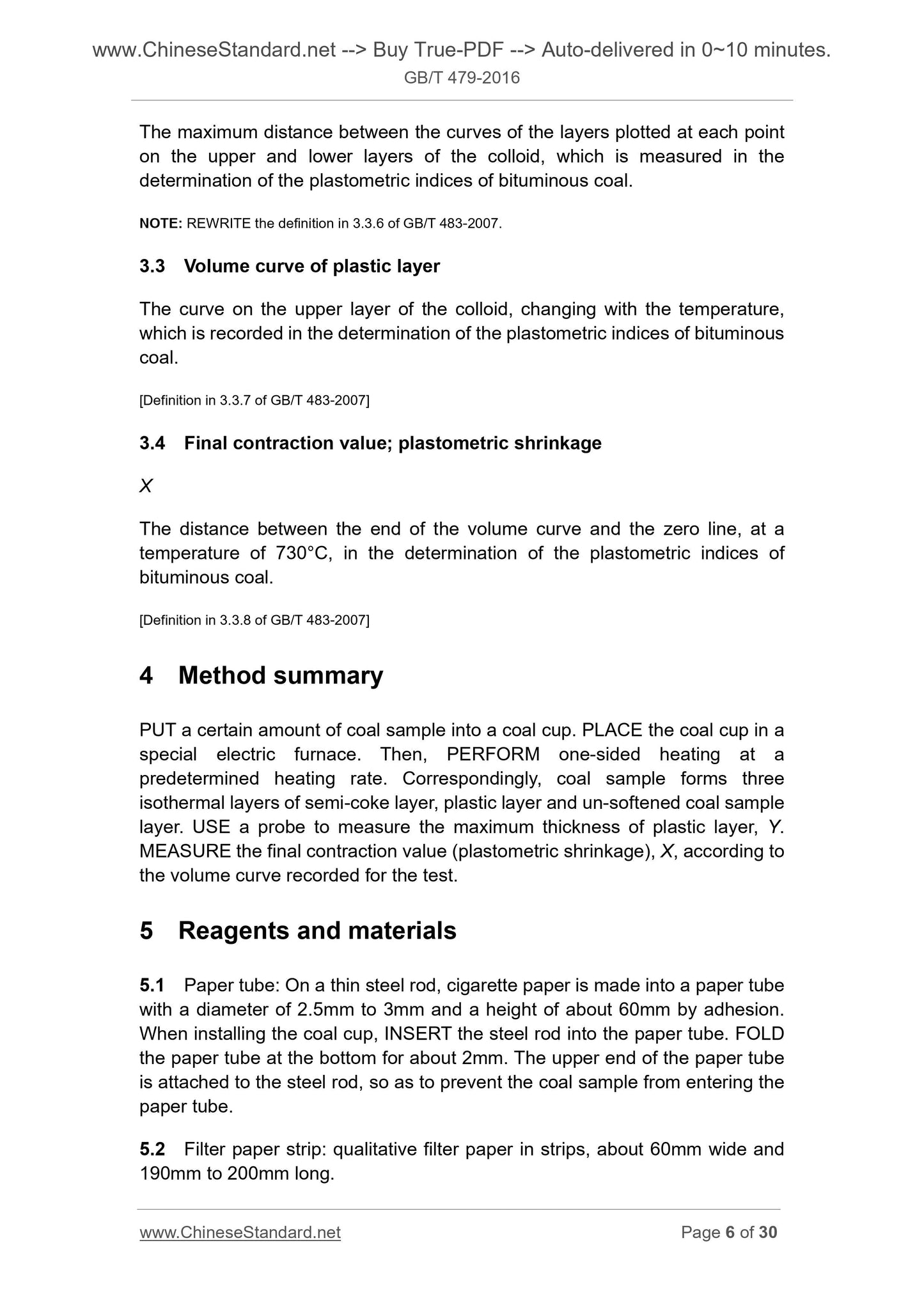

3.2 Maximum thickness of plastic layer
The maximum distance between the curves of the layers plotted at each point on the upper and lower layers of the colloid, which is measured in the
determination of the plastometric indices of bituminous coal.
NOTE. REWRITE the definition in 3.3.6 of GB/T 483-2007.
3.3 Volume curve of plastic layer
The curve on the upper layer of the colloid, changing with the temperature, which is recorded in the determination of the plastometric indices of bituminous coal.
[Definition in 3.3.7 of GB/T 483-2007]
3.4 Final contraction value; plastometric shrinkage
The distance between the end of the volume curve and the zero line, at a temperature of 730??C, in the determination of the plastometric indices of bituminous coal.
[Definition in 3.3.8 of GB/T 483-2007]
4 Method summary
PUT a certain amount of coal sample into a coal cup. PLACE the coal cup in a special electric furnace. Then, PERFORM one-sided heating at a
predetermined heating rate. Correspondingly, coal sample forms three
isothermal layers of semi-coke layer, plastic layer and un-softened coal sample layer. USE a probe to measure the maximum thickness of plastic layer, Y. MEASURE the final contraction value (plastometric shrinkage), X, according to the volume curve recorded for the test.
5 Reagents and materials
5.1 Paper tube. On a thin steel rod, cigarette paper is made into a paper tube with a diameter of 2.5mm to 3mm and a height of about 60mm by adhesion. When installing the coal cup, INSERT the steel rod into the paper tube. FOLD the paper tube at the bottom for about 2mm. The upper end of the paper tube is attached to the steel rod, so as to prevent the coal sample from entering the paper tube.
5.2 Filter paper strip. qualitative filter paper in strips, about 60mm wide and 190mm to 200mm long.

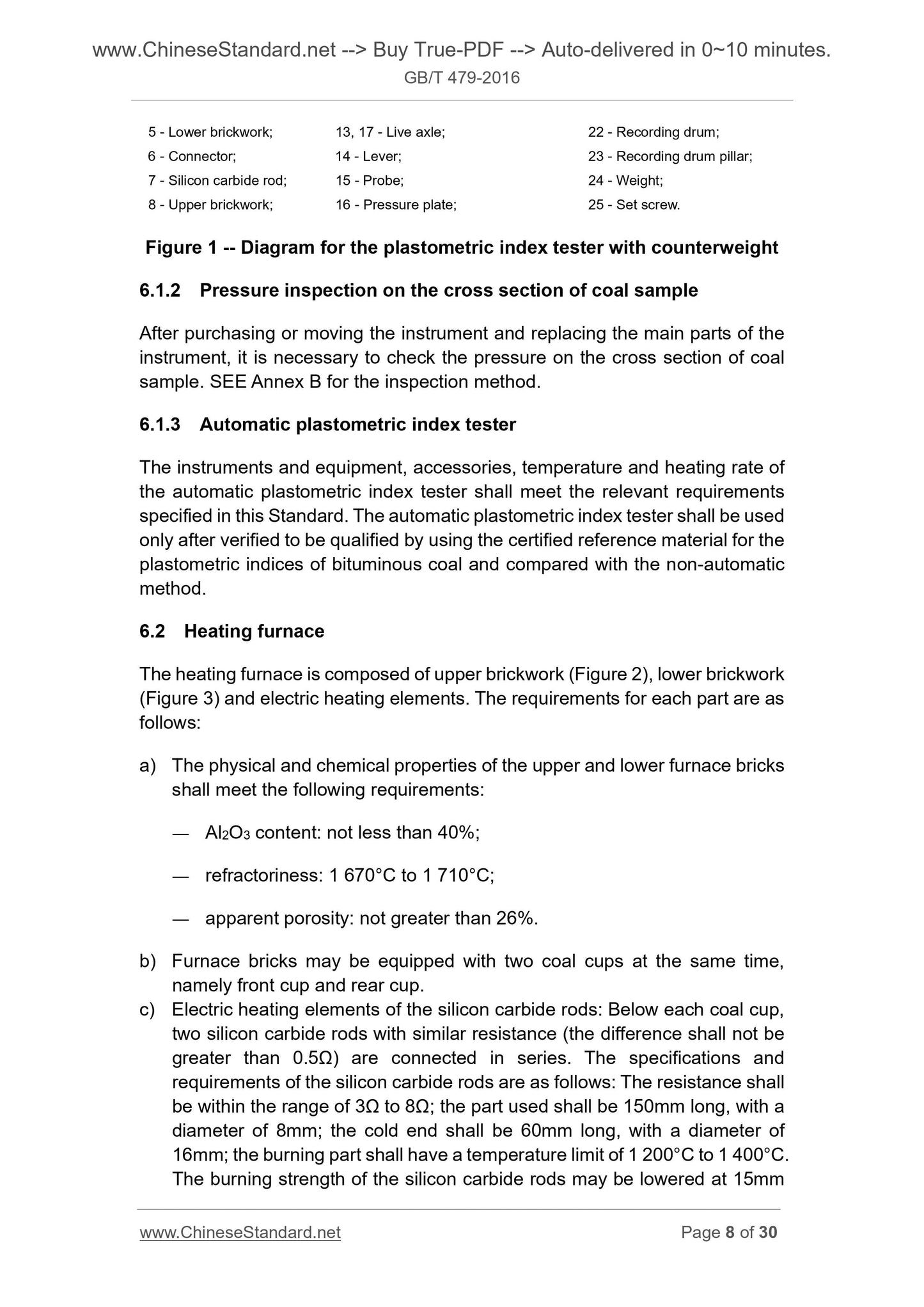

5 - Lower brickwork; 13, 17 - Live axle; 22 - Recording drum;
6 - Connector; 14 - Lever; 23 - Recording drum pillar;
7 - Silicon carbide rod; 15 - Probe; 24 - Weight;
8 - Upper brickwork; 16 - Pressure plate; 25 - Set screw.
Figure 1 -- Diagram for the plastometric index tester with counterweight 6.1.2 Pressure inspection on the cross section of coal sample
After purchasing or moving the instrument and replacing the main parts of the instrument, it is necessary to check the pressure on the cross section of coal sample. SEE Annex B for the inspection method.
6.1.3 Automatic plastometric index tester
The instruments and equipment, accessories, temperature and heating rate of the automatic plastometric index tester shall meet the relevant requirements specified in this Standard. The automatic plastometric index tester shall be used only after verified to be qualified by using the certified reference material for the plastometric indices of bituminous coal and compared with the non-automatic method.
6.2 Heating furnace
The heating furnace is composed of upper brickwork (Figure 2), lower brickwork (Figure 3) and electric heating elements. The requirements for each part are as follows.
a) The physical and chemical properties of the upper and lower furnace bricks shall meet the following requirements.
?€? Al2O3 content. not less than 40%;
?€? refractoriness. 1 670??C to 1 710??C;
?€? apparent porosity. not greater than 26%.
b) Furnace bricks may be equipped with two coal cups at the same time,...
